IRM 5 MMC
OPERATING INSTRUCTIONS
Impulse reflectometer with memory card

General

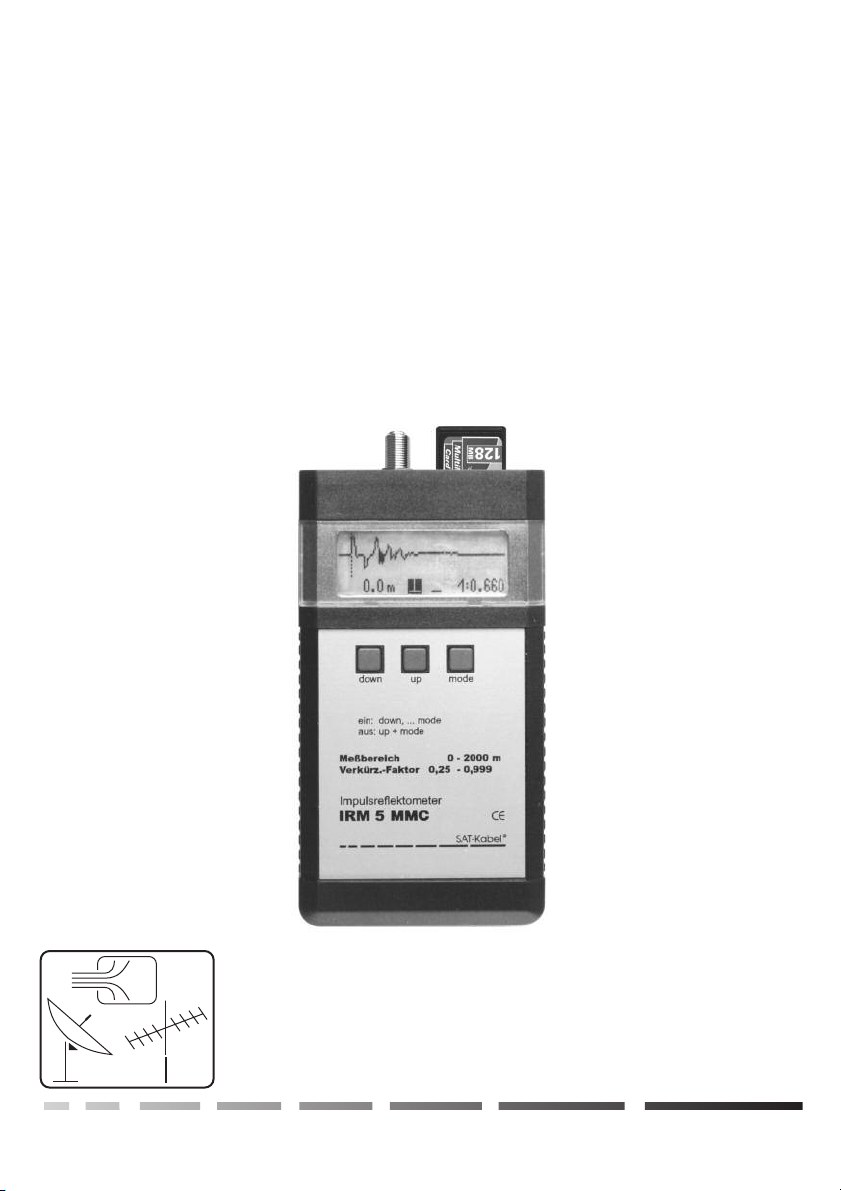

The is a impulse reflectometer, processor controlled, with LCD display for check
and locate faults in telecommunication and power cables. For a more accurate analysis the
return loss of coaxial cables is measured additional. Additional this instrument can store
measuring values on a multimedia card. It is handy and easy to operate.
- already 20 cable types are pre-programmed, additional types can be added in the menu
- length measurement at the leading edge of the reflected pulse
- return loss measurement on the reflected pulse
- pulse amplification adjustable at cable bruise, bad connectors and other components with
too less return loss.
1 incl. high-quality NiMH accumulator
1 plugin charging device AC/AC
1 operating instructions
optional available: Imitation leather bag KLT
Measuring cable with adapter MKA 150 HQ
Plastic case
Do not measure at live objects >65V AC !
Do not expose incident solar radiation, heath and extreme coldness!
The working temperature range is 0 °C until +40 °C
avoid shocks by bumps or falling down. We recommend the use of the imitation leather
bag.
The F-measuring socket is a high-quality component. This one is designed for a
maximum diameter of 1.1 mm of the inner conductor. We recommend for a good care
of the socket to use a measuring cable with F-connector plus an according adapter.
IRM 5 MMC
IRM 5 MMC
Delivery volume
For attention!
+
+
+
+
+
(software: download from or on SAT-Kabel-CD)http://www.sat-kabel.de/download.html
-2-
Charging:
Connect the plugin charging device (containing in the delivery volume) to the charging socket
of the IRM 5 (ø5.5/2.1 mm, plus pole inside). The power supply voltage (11...28 V) and
charging control is shown on the display.
1
We thank you for buying of a product of the company SAT-Kabel
This operating instructions shall help you to understand the functions of the instrument and to
ease its use. If you have questions about this instrument or suggestions for further
improvements, please get in touch with us.
®.
M

Operational elements
3 Operating keys
LCD-Display
Charging socket
Measuring socket
-3-
Technical data, features
C
123
down up mode
Measuring ranges 0 –2000 m
Resolution 0,25 m / 1 m / 4 m switchable
Accuracy 0,2 % of the measuring range
Propagation factor 0,250 –0,999
Storage places 30 for cable type and propagation factor
already 20 pre-programmed
Dynamic 44 dB
Sensitivity 70 dB
Digital filter switchable for suppression of
External voltages on the cable
Impedance 75 Ohm
Output F-socket
Output pulse 4 V / 5 ns, 20 ns oder 100 ns wide
Display LCD 120 × 32 pixel, illuminated
Operation with 3 keys
Power supply NiMH-accumulator 6V/750 mAh; AC/AC adapter
Powwer consumption 80 mA
Dimensions/weight 157 × 84 × 30 [mm] / 300 g
Function operated from:
L
K
Switch on key 1 after that key 2 or key 3 (according of the desired mode)
Switch off keys 2 und 3 simultaneously
Cursor move key 1 “down”–one step to left
key 2 “up”–one step to right
Menu key 3 “mode”long( ) –one menu point forward
key 3 “mode”shortly( ) –one menu point back
Operating functions standard
W
MMC –memory card

-4-
Operating:
Keys:“”= 1; “”= 2; “”= 3
Switch on:
Switch off:
Cursor movement:
Fast Cursor movement:
down up mode
push key 1, after that push key 3. (accumulator full app. 7 V, empty app. 5.5V)
push simultaneously key 2 and 3, after 4 min. inactivity automatically.
If the accumulator voltage drops to 5.9 V, a fade-in happens on the display.
At 5.5 V the IRM switches off itself.
With key 1 or 2
Keep pushed key 1 or 2 .
Use of the given cable types:
Choice between length measurement and return loss:
Fault location: ATTENTION ! Do not measure on live cables !
(Electric strength max. 65 V)
Switch on the with key 1 , push after that key 2. Select the cable type with the
keys 1 und 2 , after that push key 3 –propagation factor and cable attenuation of the cable
types are preset at the measurements.
Push shortly key 3 .
At 0 m the positive transmitting pulse can be seen. If the connected cable is open on its
end, an additional positive going pulse appears on the display. In the case of a shorted end
of the cable a negative going pulse appears reflected from the cable end (pulse echo).
Adjust the cursor to the beginning of the pulse and read the cable length. If the cable is
terminated with a resistance equal to the impedance of the cable, no reflexion occurs when
the cable is faultless. In the case of breaks, contact faults in sleeves, short circuits or
taps/splitter in the sector to be tested, the distance to the cable beginning can be
determined by the pulse echo.
If wide pulses are used for the measurement, the echoes are stronger, but faultless
taps/splitter cause then strong echoes.
IRM 5 MMC
Selection of resolution, output pulse width, storage place or propagation factor:
Outgoing from the length measurement:
Back:
push long key 3 until the desired symbol
appears inversely.
change of the selected value with the keys 1 and 2.
Permanent storage: push keys 1 and 3 simultaneously.
push short key 3 .
P

-5-
Measuring of the return loss (reflexion attenuation dBRL) :
Measurement of the cable attenuation/100m at 50 MHz:
Digital filter:
Pulse amplifier
Moving of the zero line:
Start mode:
Set cursor to pulse peak and read return loss on the left bottom corner.
The cable attenuation/100m at 50 MHz is displayed on the right bottom corner and has to be
set on a value according the data sheet of the cable. (selection possible by pushing long key 3).
If the cable attenuation is correctly set, the displays the real return loss (local
return loss). The pulse attenuation of the cable is taken into consideration by the ,
the pulse gain is set automatically.
For measurement of the return loss a pulse width of 20 ns (middle pulse) is best suitable.
Connect app. 100 - 200m cable on the , shorted or open end (all pulse energy
will bereflected). Select pulse width 20 ns. Set cursor on the pulse echo. Set the value of
the cable attenuation so that the return loss will be 0 dBRL. Read the attenuation value.
To reject or decrease interference voltage on the cable, which affect the displayed
waveform, a digital mean filter “Fi”can be connected. The display of the waveform will be
delayed to 3 seconds.
Between the storage places 0 and 9 for different cable attenuations on the storage place “V”
the gain of the pulse amplifier can be firmly set from 0 to 28 dB in steps of 4 dB to increase the
sensitivity of the at short cable length (10 –100 m).
If at the measurement of the return loss the gain is firmly set, the displayed value contains the
cable attenuation, i.e. the displayed dBRL value consist of the sum of the local return loss and
the cable attenuation.
The amplitude on the cursor position can be set to the zero line by pushing the keys 1 and 2
simultaneously. Because the has its highest sensitivity in the area of the zero line,
e.g. the graphical representation of the amplitude on the pulse peak can be seen.
This function can be cancelled by pushing the key 3.
If at a certain resolution the keys 1 und 3 are pushed simultaneously, this resolution will be
active at the switch on of the .
IRM 5 MMC
IRM 5 MMC
IRM 5 MMC
IIRM 5 MMC
IRM 5 MMC
IRM 5 MMC
S
Propagation factors:
Power cables 0.49 0.57, (app. 0.53)
Coaxial cable with PE dielectric 0.66
Coaxial cable with foam-PE 0.77 0.85
Air isolation 0.88 0.92

Operating scheme IRM 5 MMC
-6-
3K
1+2
Return loss
dB RL
Pulse width S Filter
Fi
Length
m
Pulse width Storage place P0...P9
p
Filter
Fi
Length range
e.g. 0 100 m
Resolution
e.g. <100 m>
3K
3L 1
3L
3K
3K
3K
3K
3K
3K
3K 3
3K
3L
3L3L
3L
3L
3L 3
in all settings:
Amplitude on
cursor position
set to zero line
K = push shortly
L = push long
Switch on : Key 1, then key 3
Switch on with selection of the cable type: Key 1, then 2 / cable type select with 1 and 2 / push 3
Cursor shift or change values: with 1 or 2
Store values: push 1 + 3 simultaneously
Keys: ””= 1; “”= 2; “”= 3down up mode

-7-
Storage place
cable attenuation
or gain V
P0...P9 cable attenuation
or gain
F
Storage place P0...P9
propagation factor
Zero set
Transmitting pulse
propagation factorF
1+2
3
3K
3
3L
3K
3K
3L
possible only without selection of cable types
Change of the stored cable types:
- IRM 5 switch off,
- 1 + 2 push 5 s long up to cable memory appears.
- Select value with 3 K and change it with 1 and 2.
- Store it with 1 + 3.
i
Key 1, then key 3
S Key 1, then 2 / cable type select with 1 and 2 / push 3
C with 1 or 2
1 + 3 simultaneously
K
(ohne Messwertspeicherung)

-8-
0.80 / 3.50 CPE
ON
P: 1 v/c=0.83 5.7 dB
S
Measuring of the propagation factor (nvp-value) of the cable:
Measurement principle:
Propagation factor:
Zero adjustment of the transmitting pulse:
Change of the cable characteristic values:
Connect a cable with known length (e.g. 100 m) on the IRM 5. Set the cursor on the cable length
and change the propagation factor so that the pulse echo appears behind the cursor.
The measuring pulse fed into the cable will reflected by inhomogeneity of the cable i
mpedance (cable faults) and showed on the display.
The distance and the kind of the fault can be determined out of the shape and the time setting
of the reflection. (Practical experience can be obtained by test measurements).
The Propagation factor (v/c or pulse velocity) declares the velocity of electrical signals in the
cable in relation to the speed of light.
The propagation factor of the cable under test must always preset before the length
measurement.
If the propagation factor is unknown, a approximate value is set and the fault is determined from
both ends of the cable
- Select a storage place of the propagation factor
- push key 1 and 2 simultaneously up to ““appears on the display.
- Shift the transmitting pulse with key 1 or 2 so that the cursor is located at beginning
of the pulse.
- Store this setting by pushing the keys 1 und 3 simultaneously.
- Back to the normal operation with key 3.
1. In switched off condition push the keys 1 and 2 simultaneously so long, until
the display of the storage places appears.
2. Select by shortly pushing of the key 3 the parameter to be changed (inverse
display) and change with the keys 1 and 2.
3. Not used storage places can be faded in or out with the parameter ”ON“resp. ”OFF”.
Faded out storage places don't appear any more at the switch on.
The changeable parameters are:
0.08 inner diameter
3.5 outer diameter
CPE dielectric
ON(OFF) fade in/out of the storage place
P: 1 storage place (e.g. 1)
v/c propagation factor
5.7 dB cable attenuation
4. Storage by simultaneously pushing of the keys 1 and 3.

-9-
T3L: BACK START
LAENGE: 100 m
IMPULS: _| |_
FILTER: ____ v/c=0.780
MESSPUNKTNAME
IRM5-MESSUNG 0001
100m
SCAN ERFOLGREICH !
0
Storage of data on the MMC card:
1. Switch on the instrument with the key 1 and after that with key 3 or over the cable
selection with the key 1 and after that with key 2.
2. For storage must be inserted a MMC card in the IRM 5 MMC.
Push the keys 1 and 3 so long, until e.g. the following appears on the display:
The displayed values are adopted from the previous settings and can now be changed.
4. Select the parameters to be changed by shortly pushing of the key 3 (inverse display)
and change with the keys 1 and 2.
- Is “BACK“marked, you come by long pushing of the key 3 in the previous menu point
5. If “START" is marked, the storage process will be triggered by long pushing of the key 3.
In this case the IRM 5 MMC picks up measuring data and stored these on the multi
media card. On the display appears the following notice:
6. If “SCAN ERFOLGREICH !“in the last line of the displays appears, the measurement
is successfully completed. The measurement point name is automatically consecutively
numbered.
7. By shortly pushing of the key 3 the IRM 5 MMC will be reset in the normal operation
mode.
M
ATTENTION!
The MMC card has to be formatted only with FAT (FAT 12 or FAT 16). They don't be
formatted in no case with FAT32 or even NTFS!
PC software
The necessary software for the use of the multi media card and an installation instruction you can
find in the actual version in Internet under for the
corresponding measuring instrument in a free download. In order to use this software, on the used
Win-PC must be installed the Java Runtime Environment (JRE) in the version 1.5.0 –also called as
version 5. If necessary this software can be free downloaded from the Internet e.g. under
.
http://www.sat-kabel.de/download.html
http://www.java.com

-10 - -
Program cable type cable diameter kind of propagation cable attenuation at
ielectric
place designation inner conductor dielectric dfactor 50 MHz at 100 m
P1CCS 36 GAS 0,41 mm 1,90 mm CPE 0,78 10,9 dB
P2MIDI EXTRA 65 GAS 0,65 mm 3,00 mm CPE 0,83 7,2 dB
P3COAX 12 0,70 mm 4,60 mm PF 0,66 5,6 dB
P4EXTRA 80 GAS 0,80 mm 3,50 mm CPF 0,83 5,7 dB
P5H 126 DUOBOND PLUS 1,00 mm 4,60 mm CPE 0,82 4,5 dB
P6TRISHIELD DIGITAL GAS 1,02 mm 4,40 mm CPE 0,85 4,3 dB
P7QUADRISHIELD DIGITAL GAS 1,02 mm 4,40 mm CPE 0,85 4,2 dB
P8TELASS B1,1/7,3 1,10 mm 7,25 mm PE 0,66 3,8 dB
P91 ikx 1,1/7,3 1,10 mm 7,30 mm PE 0,66 3,3 dB
P10 AMEL SATGAS, SAT300 GAS 1,13 mm 4,80 mm CPE 0,85 4,1 dB
P11ALM DIGITAL SAT/ GAS 1,13 mm 4,80 mm CPE 0,85 3,9 dB
P12 PA1,63/50 SATGAS 1,63 mm 7,20 mm CPE 0,84 3,0 dB
P13 PA1,63 ALL DIGITAL- SAT
(AP/Tragseil)
P14 COAX 6 (LG) 1,70 mm 6,95 mm CPE 0,89 2,3 dB
P15 1nkx 2,20 mm 8,80 mm PEH 0,88 1,8 dB
P16 1qkx 3,30 mm 13,50 mm PEH 0,88 1,2 dB
P17 75-7-12 D 2,60 mm 10,00 mm AIR 0,85 1,6 dB
P18 75-7-16 D 3,80 mm 13,80 mm AIR 0,92 1,1 dB
P19 1skx 4,90 mm 19,40 mm PEH 0,88 0,9 dB
P20 75-7-G 1,20 mm 8,00 mm PE 0,67 4,0 dB
1,63 mm 7,20 mm CPE 0,84 2,7 dB
Stored cable data
IRM 5

-11 -
Cleaning and maintenance
The surface of the housing can be cleaned with a dry, soft and lintfree cloth. Do not use
aggressive solvents for the cleaning.
This operating instruction has been drown up . Errors, technical
amendmends and developments are subject to change without notice!
Updated operating instructions in PDF form can be also downloaded from our internet
homepage. ( )www.sat-kabel.de
to the best of our knowledge
P
Guarantee
State July 2006
For this instrument will be granted a service life (in following called guarantee) to following
conditions:
This guarantee is valid for new instruments purchased in Germany.
New instruments and their components, which are defective because of production
faults and/or material faults, are repaired or are replaced from SAT-Kabel® against a
corresponding instrument.
For wear parts, like accumulators, keyboards, housings, bags, connecting cables this
guarantee is valid for 6 month from the purchasing date.
The guarantee claim expires at matings by the purchaser or third persons.
At defects, caused by improper handling or operating, by wrong installation or store, by
improper connection or mounting, no guarantee is granted .
For not justified demand of our service we charge for our service the usual payment for
material, working hours and forwarding costs.
Repairs are only made with filled service covering.
(Forms for service coverings and further information are found in the standard form contracts
under:
)
+
+
+
+
+
+
+
www.sat-kabel.de

Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH
Telefon: [phone]
Telefax: [phone]
E-Mail: [email protected]
Internet: www.sat-kabel.de
SAT-Kabel®
Errors, technical amendmends and developments are subject to change without notice!
IRM5MMC_1/2008e CDX3 ©SAT-Kabel®
