SAT-Kabel CATVmeter User manual

CATVmeter
USER MANUAL
12.05.2014
Firmware 1.06
analog+digital

2
Index
3 – FRONTPANEL&KEYS
4 – NAVIGATION
5 – CONFIGURATIONS
6 – “PLAN” SCREEN AND NAVIGATION
7 – QUALITY MEASUREMENT SCREEN
8– TV
8 – ANALOG TV MEASUREMENT SCREEN
9 – DVB-C DIGITAL CATV MEASUREMENT SCREEN
10 – INGRESS & LEAKAGE MEASUREMENT SCREENS
11 – SPECT11 – SPECTRUM ANALYZER SCREENS
12 – TV: BARSCAN LEVEL/POWER OF ALL CHANNELS
13 – SCAN: CHANNEL PLANS AND LOG FILES
13 – TV: AUTOMEMORY TV
14 – TV: MANUAL MEMORY
15 – LOGGER SAVE & RECALL
16 – BATTERY TEST & BATTERY REGENERATION
17 – LI-ION POLYMER BATTERIES
17 – WARNINGS
18 – POWER SUPPLY & BATTERY CHARGE LED STATUS
19 – METER MAINTENANCE
19 – DISPOSAL of ELECTRONIC EQUIPMENT

3
1HOME Key
2
Press to turn on. Keep pressed to turn off.
MAINS
LED on when the meter is connected to the mains power supply
3 SPECT Key
4
Press to visualize spectrum
BAT. CHRG
5
LED on during battery charge
QUALITY Key
6
Press to visualize signal quality
RF TV Input
7
TV/CATV input connector 47-1.000 MHz
Arrow keys
8
Press to select and adjust values/fields
ENTER
9
Press to select/confirm
USB/Power Supply 5 V power supply connector via MICRO-USB
and for PC connection

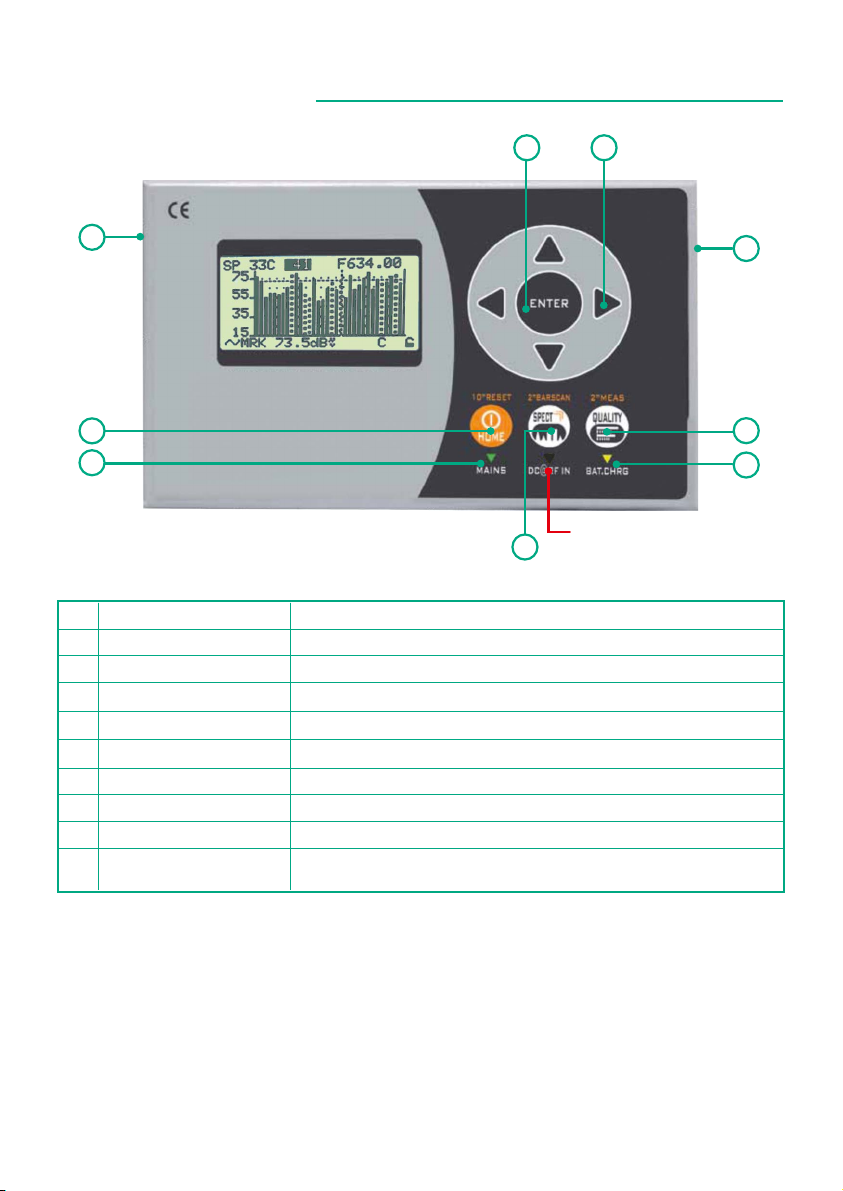

Front Panel & Keys
6
5
4
2
3
8 7
1
9
not included
N.B:
To comply with European standards, we used a Micro-USB connector in the instrument,because
the European Community does not recommend providing power supplies. This meter can be
chargedanduseddirectlyfromaPCviatheUSBsocket,orusinganyMICRO-USB,5V,1Apower
supply.

4
• ENTER
• ARROW KEYS
Navigation
• POWER
• RESET HARDWARE • RESET SOFTWARE
To turn on press
the ‘HOME’ key.
To turn off keep the
‘HOME’ keypressed.
Press the arrow keys to
select the menu required
or to adjust the value in a
selected field
(number/menu).
Presstoselectamenu
or to confirm.
With the meter turned
on keep the ‘HOME’ key
pressed for 10 sec. and
then turn on again.
With the meter turned off,
turn the instrument on
keeping the “ENTER” key
pressed and only release
when the boot has been
completed.

5

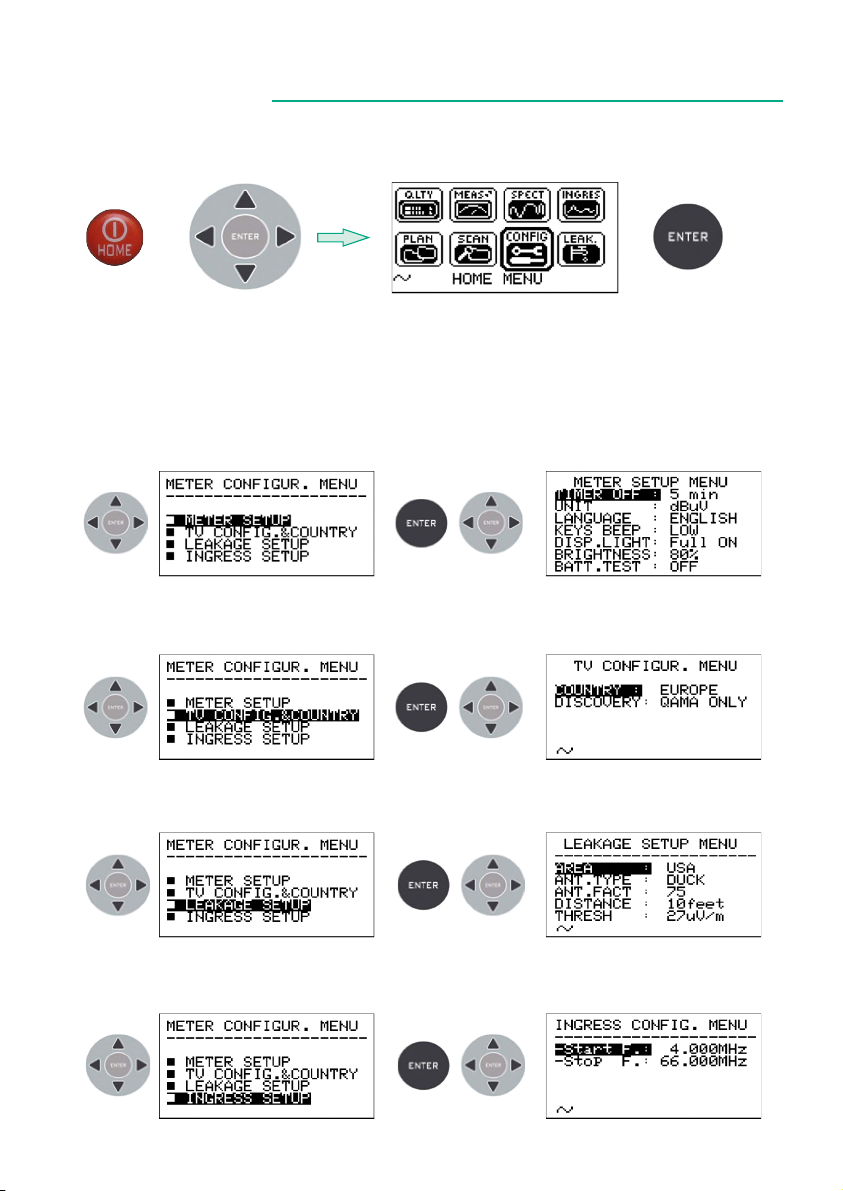

Press the ‘HOME’ key, use the arrow keys to select “CONFIG”, then press “ENTER”.
Use the arrow keys to select and adjust the settings/values in the various menus.
Configurations
CONFIGURATION OF THE INSTRUMENT PARAMETERS:
COUNTRY CONFIGURATION & DISCOVERY MODE:
LEAKAGE PARAMETERS CONFIGURATION:
INGRESS PARAMETERS CONFIGURATION:

6

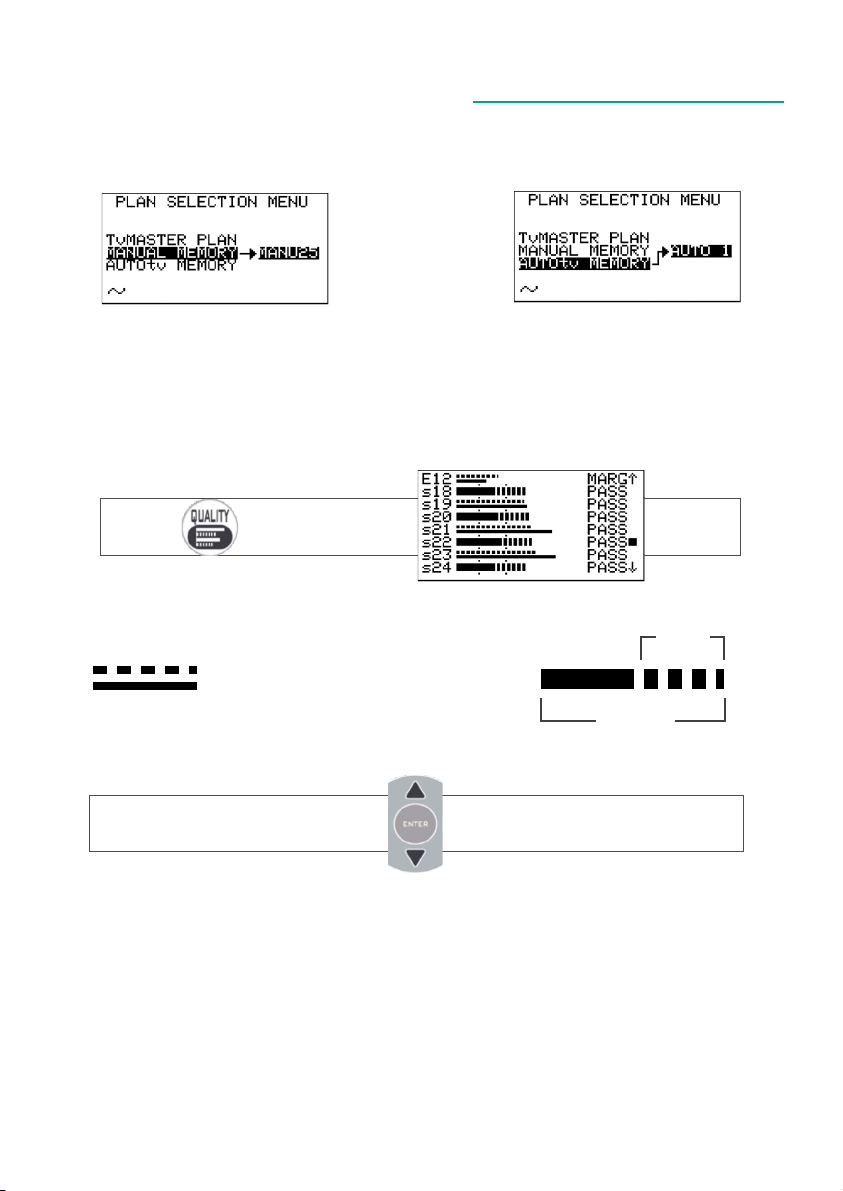

“PLAN” Screen and Navigation
Press the “HOME” key, use the arrow keys to select “PLAN”, then press “ENTER”.
• MASTER TV PLAN SELECTION:
• MANUAL MEMORY SELECTION:
• AUTO MEMORY SELECTION:
Use the arrow keys to select the TV MASTER (Tv MASTER PLAN) memory plans you wish
to use, manual (MANUAL MEMORY) or automatic (AUTOtv MEMORY).

7
QUALITY measurement screen
Measure the quality and power of up to 140 channels in blocks of 8 channels.
Pressthearrowkeys toscrollthechannellist.
or
DIGITAL CHANNEL: ANALOG CHANNEL:
POWER
QUALITY
LEVEL
A/V
Select the manual memory
plan required(MANU XX).
Select the automatic
memory plan
required(AUTO XX).

8
TV
TV SIGNAL ANALYSIS
Pressthe“HOME”key,usethearrowkeystoselect“MEAS”,thenpress“ENTER”.
Or keep the “QUALITY” key pressed for 2 seconds.
Analog TV Measurement screen
Signal Level (LEV)Report
carrier VIDEO-AUDIO (V/A)
Use the “LEFT” and “RIGHT” keys to select the
field required.Use the “UP” and “DOWN” arrow
keystoadjustthevalue.Keeppressedtorapidly
adjust.

9
DVB-C Digital CATV Measurement screen
Repeatedly press the “ENTER” key to navigate in the TV measurement screens.Use
the “LEFT” & “RIGHT” keys to select the field required.Use the “UP” & “DOWN” arrow
keys to adjust the value. Keep pressed to rapidly adjust.
Digital Average Power
(PWR)Noise Margin
(N.MAR)Quality (QLY)
MERBER before Viterbi
(bBER)BER after Viterbi
(aBER)
64 QAM Constellation
PresstonavigateintheTVmeasurements

10
INGRESS MEASUREMENT SCREEN
LEAKAGE MEASUREMENT SCREEN
Press the “HOME” key, use the arrow keys to select “INGRESS”, then press “ENTER”.
Press the “HOME” key, use the arrow keys to select “LEAK”, then press “ENTER”.

11

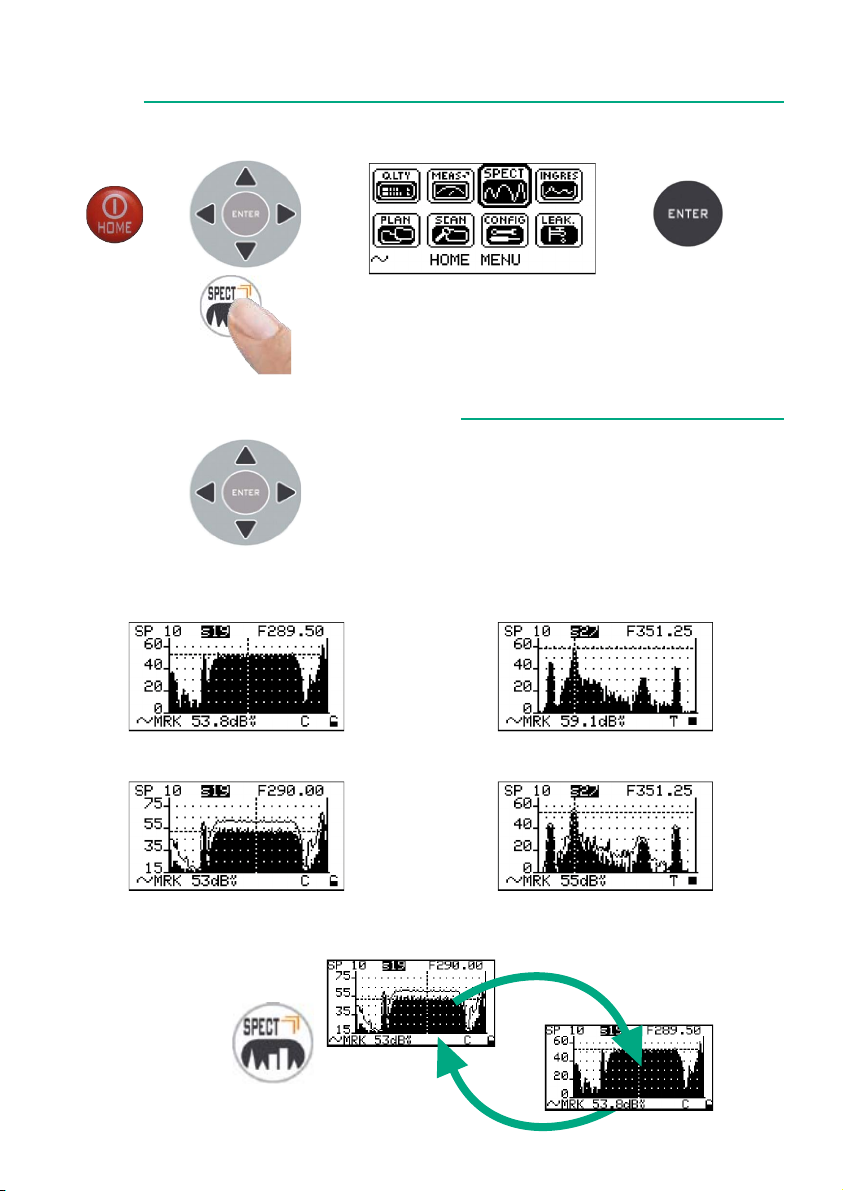

SPECT
Or press the “HOME” key, use the arrow keys to
select “SPECT”, then press “ENTER”.
Press the “SPECT” key to go to Spectrum mode
Spectrum analyzer
SPECTRUM ANALYZER SCREENS
DIGITAL TV SIGNALS
SPECTRUM
ANALOG TV SIGNALS
SPECTRUM
Fast spectrum Fast spectrum
or
Use the arrow keys to select and adjust the
spectrum’s numerical values: SPAN (SP) -
CHANNEL - FREQUENCY (F) - REFERENCE LEVEL
Fast spectrum with memory
peak (MAX HOLD)
Fast spectrum with memory
peak (MAX HOLD)
Presstocycle
through spectrum
analyzer screens

12
TV: level/power of all channelsBARSCAN
Barscan (level bar chart)
ANALOG
CHANNELS
DIGITAL
CHANNELS
In the TV standard canalization the meter displays the level/power of all TV channels.In
MANUAL MEMORY or AUTOMATIC TV MEMORY (AUTOtv MEMORY) the meter displays the
memorized channels and distinguishes analog and digital signals using two different bars.
Press the “SPECT” key for 2 seconds to visualize
the Barchart
Use the arrow keys to select and change the
barchart’s numerical values: SPAN (SP) -
CHANNEL - FREQUENCY (F) - RESOLUTION (dB/ D) -
REFERENCE LEVEL

13
Fig 2
Memorization in progress
Fig 3

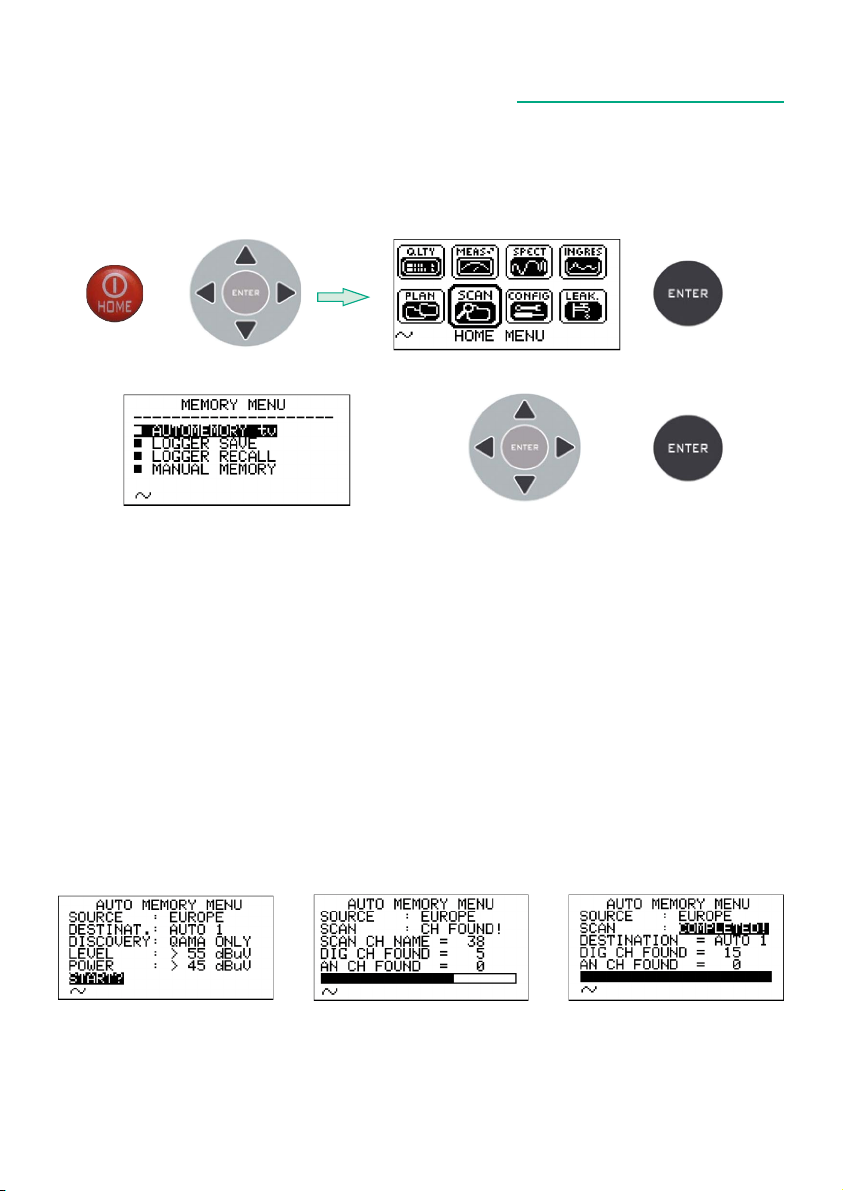

To automatically store all the existing channels in a city or building.
Press the “HOME” key, using the arrow keys select “SCAN”, then press ENTER.
Fig 1
TV: AUTOMEMORY TV
SCAN: channel plans and log files
Memorization complete
1. Select “DESTINAT” and select the destination file “AUTO” where the search must be
saved
2. Select “DISCOVERY” and set search mode (fig 1),
3. Select “LEVEL” and set the minimum level threshold of the analog channels searched
(fig 1).
4. Select “POWER” and set the minimum power level of the digital channels searched
(fig 1).
5. Select “START” to create a new channel plan and to activate the search (fig 1).
N.B.:
If the word “OVERWRITE” appears, the selected file will be overwritten.Wait a few
minutes (fig 2), the meter indicates the recorded ANALOG & DIGITAL CHannels (fig 3).
select “AUTOMEMORY TV” Use the arrow keys to select and change
the required parameters
Set the desired
parameters and select
“START”

14
TV: MANUAL MEMORY
How to create/edit a manual memory plan.Press the “HOME” key, use the arrow keys to
select “SCAN”, then press “ENTER”.
3
5
12
4
6
8
7
Use the arrow keys “UP” and “DOWN” and
select the manual plan required
Select “MANUAL MEMORY” and press “ENTER”
Use the “UP” and “DOWN’” keys and select the
type of signal required
Use the “UP” and “DOWN’” keys and select the
channel required
Use the “UP” and “DOWN” arrow keys to select
the required Symbol Rate (SR) value.
Select “STORE” and press “ENTER” to
memorize
Use the “UP” and “DOWN’” keys and select
the type of signal required
Use the “UP” and “DOWN’” keys and select
the channel required
N.B.: When the memorization of a channel has finished, follow the steps described above to add
other channels in the same memory plan, or in a new one. The instrument automatically suggests
the zone “MEM ..: Pxx: ___”, the memory position where you can save or overwrite the new channel.

15
LOGGE R
LOGG ER SAVE
LOGGER RECALL
Use the arrow keys to select and change the items/values in the various menus.
Press the “HOME” key, use the arrow keys to select “MEMORY”, than press “ENTER”.
“DATA LOGGER” in progress.
Select LOGGER SAVEand press “ENTER”.
Set the desired parameters and select
“STORE?”tocreateanewLOGfile.
N.B.:
If the word “OVERWRITE” appears, the selected log will be overwritten. Wait a few
minutes for the Datalogger to complete.
Select “Logger RECALL”and press
“ENTER”.
Select the “LOG” (LOG NUM) number to
be recalled and select “RECALL”.
Pressthearrowkeysto
select themeasurement
of the required signal.

16
USEFUL ADVICE:
“BATTERY TEST” INSTRUCTIONS & PROCEDURE:
Battery Test & Battery regeneration
FIG. 2∗FIG. 1∗ FIG. 3∗
IMPORTANT ADVICE:
• CHARGE THE BATTERIES EVERY NIGHT AFTER USE, EVEN IF THEY ARE NOT
COMPLETELY DISCHARGED;
• ALWAYS USE THE “BATTERY SAVE” & “TIMER OFF” FUNCTIONS TO INCREASE YOUR
METER’S AUTONOMY;
• THE MAXIMUM CAPACITY OF THE BATTERIES AND BATTERY CHARGE INDICATOR’S
ACCURACY IMPROVES BY UP TO 20% IF YOU CARRY OUT MANY BATTERY TEST CYCLES;
• DO NOT REPLACE THE BATTERIES: FIRST CARRY OUT 3 TO 5 BATTERY TEST CYCLES
UNTIL YOU RECOVER THE MAXIMUM CAPACITY OF THE BATTERIES.
THIS PROCEDURE EXPLAINS HOW TO REGENERATE/CHECK YOUR BATTERIES AND
CALIBRATE THEBATTERY CHARGE INDICATOR

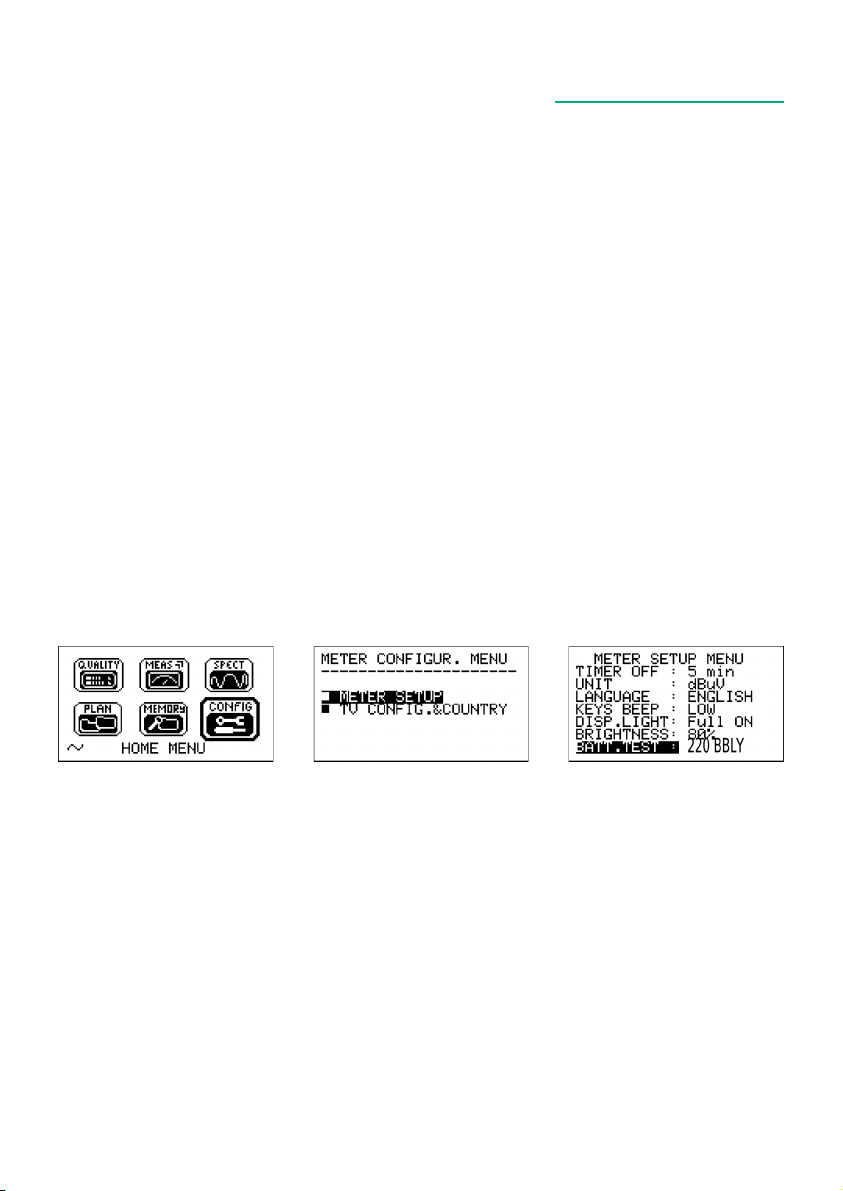

1. Before carrying out the test, connect the meter to the original battery charger:
• Turn on the meter;• Press the Home key (fig. 1);
• Select the word “CONFIG” and press “ENTER” to confirm (fig. 1);
• Select “METER SETUP” and press “ENTER” (fig. 2);
• Select the word “BATT. TEST” and press the “RIGHT” keys to select “ON”;
• Press “ENTER” to confirm.
• Carefully read the various screens, pressing “ENTER” in succession;
• In the last instructions window, select “START” and press “ENTER” to start the test.
The procedure will be cancelled if you select “exit” on any screen.WARNING:
• Do not connect any type of load to the “F” input connector (LNB, TV head-end,
amplifiers, etc.).
• Extract the conditional access module (CAM), if it is present in your meter.
2. The battery test takes approx. 12 hours (charging/discharging/recharging activities and
measurement of the battery autonomy), during this time the meter must not be used.
At the end of the test the meter will turn off automatically. In order to make sure that
the test has been carried out correctly, all the meter’s commands are blocked except
for the reset function, which remains active so that the meter can be turned off if
necessary.3. The batteries will be completely charged at the end of the test.
4. To check the battery test results, enter “METER SETUP” (fig. 2), select “BATTERY TEST”
function and read the results: for example 220BBLY (fig. 3) = 220 minutes. The “Y” of
YES confirms that the battery is still good enough, whereas an “N” for NO indicates
that it could be faulty, too deteriorated or that the cycle was interrupted.

LI-ION Polymer Batteries
IMPORTANT:
• ALWAYS TURN THE INSTRUMENT OFF BEFORE CONNECTING THE BATTERY CHARGER;
• DO NOT LEAVE THE BATTERIES DISCHARGED FOR LONG PERIODS;
• ALWAYS CHARGE THE BATTERIES AT NIGHT FOR AT LEAST 7 HOURS, EVEN IF THEY ARE
NOT COMPLETELY DISCHARGED.
USEFUL INFORMATION:
1. The batteries supplied are high quality and tested individually, their autonomy
depends on the following conditions:
– the LNB power consumption: Single, dual or Quadruple;
– the external temperature: with temperatures of less than 10 °C, 20 % of the
capacity is lost;
– the age of the batteries: a 10 % loss in effi ciency each year;
– Remember that the TIMER OFF function, that automatically turns off the Meter
after 5 to 10 minutes of inactivity, saves up to 30 %.
2. The battery indicator has a tolerance (like all battery powered electronic devices)
according to the following factors:
- the battery’s charging percentage;
- external temperatures;
- battery wear and tear;
•+/–2%.
ICONS SHOWING THE BATTERY CHARGE STATUS:
BATTERY AUTONOMY:
The battery autonomy of between: 2 hours min. and 4 hours max.
17
Battery Test & Battery regeneration
IMPORTANT NOTES: If the test is interrupted using “reset”, the battery charge indicator may provide incorrect
indications, therefore repeat the battery test procedure.
∗ The displays shown in this guide may change according to the model and are subject to change without
notice. If you connect your meter, using the S.M.A.R.T. Pro program, from the USB port to the PC, you can
download the screens shown above.

18
Power Supply (mains) and Battery Charge (chrg)
LED status
____________________________________________________________________
INSTRUMENT
CONNECTED
TO THE MAINS
POWER SUPPLY
LED MAINS LED BATT
CHRG NOTES
OFF YES ON ON Batteriesinfastcharge
OFF YES ON OFF Battery charge completed
OFF YES ON
Flashing
0.5 SECONDS OFF
0.5 SECONDS ON
Abnormal battery temperature.
The recharge cycle has been suspended
temporarily and will automatically reset.
RECHARGEABLE BATTERY
RECHARGING THE BATTERY
WARNINGS
This device contains a built-in Li-PO (Lithium polimer) battery that can be recharged many
times. The battery contains chemicals that might wear with time even if not used. Please
dispose of batteries properly.
Do not take the battery pack apart or expose it to extreme temperatures (over 50 °C). If the
device has been exposed to very low or high temperatures let it rest at room temperature
before use.
The Battery must be recharged at room temperature (about 20 °C) with the device turned off.
To avoid premature failure of the battery never leave the device with an empty battery for
prolonged periods.

19
Meter Maintenance
CLEANING THE METER
Keeping the meter clean from dust and dirt is easy and helps mantain optimum
working conditions over the years. The cleaning procedure is simple and quick and
requires only minor attention. Never use aggressive, chemical products (diluent)
and/or abrasive or rough clothes, which may damage plastics and displays. Always
use a soft cloth, dampened with a solution of water and alcohol or a de-greasing, non-
abrasive liquid soap. The keyboard and display should be gently cleaned. Rubbing the
keyboard and/or the display(s) may seriously damage their functions.
MAINTENANCE AND CARE OF THE METER
This meter has been designed to withstand severe conditions of use. Even so, its life
can be prolonged by respecting some simple and effective rules:
• The meter has not been designed to withstand high temperatures (over 60 °C or
140 °F). These temperatures can be easily reached when the meter is left in a car,
especially behind the windshield, or in a trunk. The LCD display and/or other details
could easily be damaged by extreme temperatures.
• The internal battery could rapidly loose its efficiency if exposed to high or low
temperatures. This may result in reduced meter autonomy when powered by its
internal battery.
• When recharging the internal battery, allow good air circulation around the meter
and the adapter: do not cover it with clothes and do not recharge the battery when
the meter is in its transport case.
• The meter is not waterproof, even if it is protected against incidental water drops. If
it comes into contact with water electronic circuits may be damaged. Allow the
meter to dry thoroughly before trying to turn it on. Do not use hairdryers or other
strong heating sources, just leave the meter at room temperature. If necessary,
contact SAT-Kabel GmbH for technical assistance.
Disposal of electronic equipment
Disposal of electric / electronic equipment (applicable in all CEE countries and
wherever a separate waste collection system is applied).This symbol on the packaging
indicates that the product should not be considered domestic waste. The product, at
the moment of disposal, should be brought to a waste collection point with the proper
facilities to manage electrical/electronic appliances.Electric/electronical appliances, if
not disposed of correctly, may have negative consequences on your
health and the enivironment.Furthermore, a proper recycling
procedure helps mantain natural resources.For more information
about the correct disposal of this product, please refer to your local
waste disposal management offices or the shop where this product
was bought.

Telefon: [phone]
Telefax: [phone]
[email protected] • www.sat-kabel.de
Errors, technical amendmends and developments are subject to change without notice!
SAT-Kabel GmbH 2014-05-30
