IRM 70 SD

Pulse reflectometer

with memory card

v 4.11.7

This instruction has been performed to the best of our knowledge. Developments and

technical amendments are subject to change without notice.

Topical made operating instructions in a PDF format can also downloaded from our Internet

homepage www.sat-kabel.de.

®.

We thank you for buying of a product of the company SAT-Kabel

This operating instructions shall help you to understand the functions of the instrument and

to ease its use. If you have questions about this instrument or suggestions for further

improvements, please get in touch with us.

Content

1. General 4

2. Delivery volume 4

3. Measurement principle 4

4. Charging 4

5. Important Notes 5

6. Operational elements 5

7. Operating 5

7.1 Operating functions standard 5

7.2 Advanced operating functions 6

7.2.1 Pulse Amplifier 6

7.2.2 Parameter of length measurement adjust 7

7.2.3 Vertical resolution 7

8. Settings 8

8.1 Change the language 8

8.2 Change display color 8

8.3 Save the settings 8

8.4 Change of the cable characteristic values 9

9. Technical data 10

10. Save measurments to SD card 11

10.1 Data storage 11

11. Operating Scheme 12/13

12. Stored cable data 14

13. Cleaning 15

14. Guarantee 15

This instruction has been performed to the best of our knowledge. Developments and

technical amendments are subject to change without notice.

Topical made operating instructions in a PDF format can also downloaded from our Internet

homepage www.sat-kabel.de.

®.

We thank you for buying of a product of the company SAT-Kabel

This operating instructions shall help you to understand the functions of the instrument and

to ease its use. If you have questions about this instrument or suggestions for further

improvements, please get in touch with us.

Content

1. General 4

2. Delivery volume 4

3. Measurement principle 4

4. Charging 4

5. Important Notes 5

6. Operational elements 5

7. Operating 5

7.1 Operating functions standard 5

7.2 Advanced operating functions 6

7.2.1 Pulse Amplifier 6

7.2.2 Parameter of length measurement adjust 7

7.2.3 Vertical resolution 7

8. Settings 8

8.1 Change the language 8

8.2 Change display color 8

8.3 Save the settings 8

8.4 Change of the cable characteristic values 9

9. Technical data 10

10. Save measurments to SD card 11

10.1 Data storage 11

11. Operating Scheme 12/13

12. Stored cable data 14

13. Cleaning 15

14. Guarantee 15

1. General

2. Delivery volume

4. Charging

3. Measurement principle

The IRM 70 is a impulse reflectometer, processor controlled, with LCD display for check

and locate faults in telecommunication and power cables. For a more accurate analysis the

return loss of coaxial cables is measured additionally. It is handy and easy to operate. The

special features are:

!already 20 cable types are pre-programmed, additional types can be added in the

!length measurement at the leading edge of the reflected pulse

!return loss measurement on the reflected pulse

!pulse amplification adjustable at cable bruise, bad connectors and other

components witht oo less return loss.

1 IRM 70, incl. high-quality NiMH accumulator

1 plugin charging device AC/DC

1 F measuring cable with adapter MKA 150HQ

Plastic case

operating instructions

optional available:

Symmetrical measuring cable with adapter SMK-IRM

Car charging cable KFZ-LK

Imitation leader bag

Connect the plugin charging device (containing in the

delivery volume) to the charging socket of the IRM 70

(ø5.5/2.1 mm, plus pole inside). The power supply voltage

(11...24 V) and charging control is shown on the display.

After about 1 minute the backlight switches off. When

battery is fully charged, it switches on again. An

informational message appears in the display that the

charging process has finished.

Fed into a cable measuring pulses are reflected by the inhomogenities of the cable

impedance (cable fault) and made visible on the display. From the form and the time

displacement of the reflection, the nature of the fault and the fault distance can be

determined. It is also advisable to acquire practical experience by sample

measurements.

ESC

STARTSTART

START

5. Important notes

6. Operational elements

• Measurement only on strain-free objects!

• Do not expose incident solar radiation, heath and extreme coldness!

• The working temperature range is 0 °C until +40 °C

• Avoid shocks by bumps or falling down. We recommend the use of the

imitation leather bag.

• The F-measuring socket is a high-quality component. This one is

designed for a maximum diameter of 1.1 mm of the inner conductor. We

recommend for a good care of the socket to use a measuring cable with

F-connector plus an according adapter.

7.1.1 Switch on with cable selection

Push once more button START. Now select with buttons DOWN and UP to the desired

cable type.

7.1.2 Switch on without cable selection

Propagation factor and cable loss must be yet adjusted manually to measure.

7. Operating

7.1 Operating functions standard

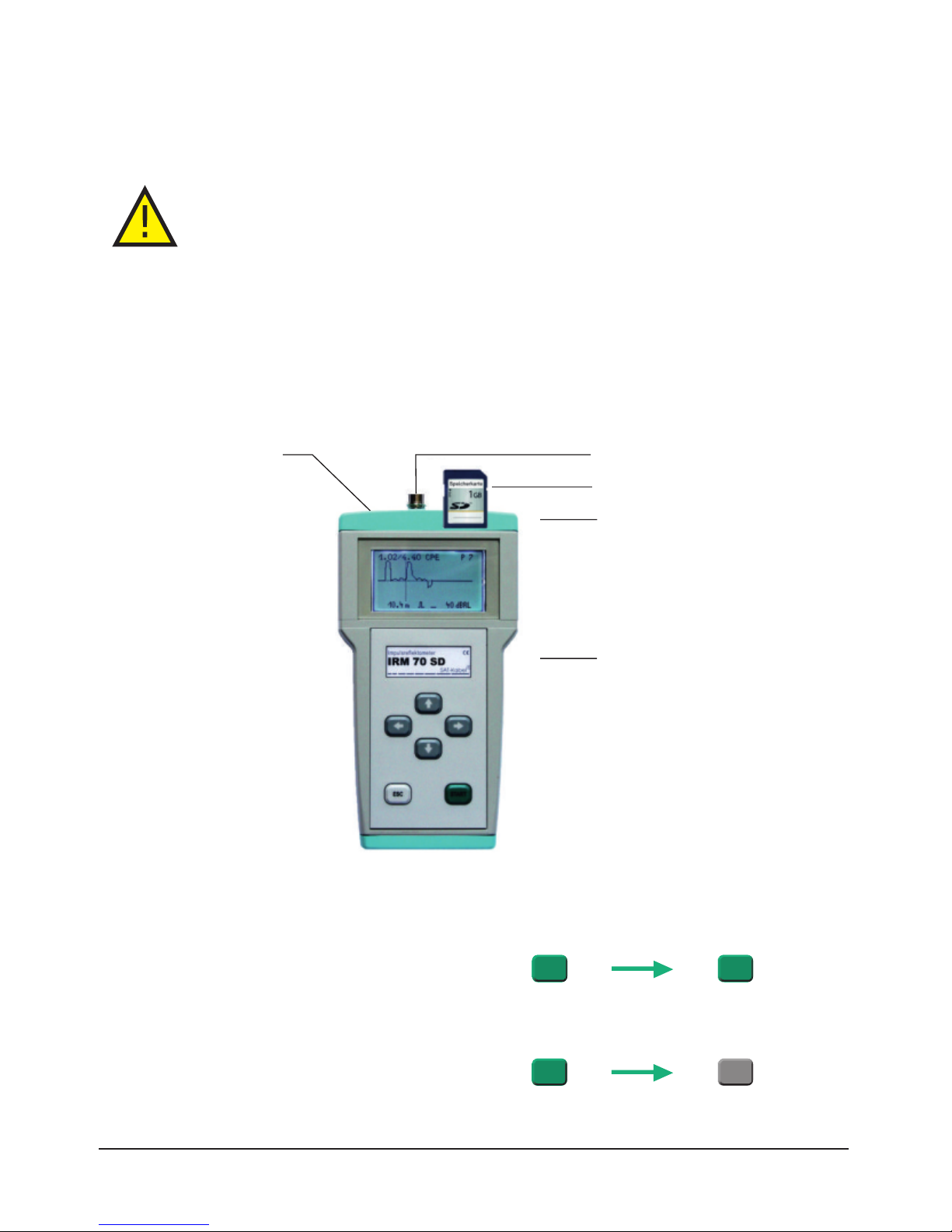

6 Operating keys

LCD-Display

Charging socket Measuring socket

Memory SD card

6 Operating keys with dual function:

1| push shortly the key

2| push long the key (>2 sec.)

1. General

2. Delivery volume

4. Charging

3. Measurement principle

The IRM 70 is a impulse reflectometer, processor controlled, with LCD display for check

and locate faults in telecommunication and power cables. For a more accurate analysis the

return loss of coaxial cables is measured additionally. It is handy and easy to operate. The

special features are:

!already 20 cable types are pre-programmed, additional types can be added in the

!length measurement at the leading edge of the reflected pulse

!return loss measurement on the reflected pulse

!pulse amplification adjustable at cable bruise, bad connectors and other

components witht oo less return loss.

1 IRM 70, incl. high-quality NiMH accumulator

1 plugin charging device AC/DC

1 F measuring cable with adapter MKA 150HQ

Plastic case

operating instructions

optional available:

Symmetrical measuring cable with adapter SMK-IRM

Car charging cable KFZ-LK

Imitation leader bag

Connect the plugin charging device (containing in the

delivery volume) to the charging socket of the IRM 70

(ø5.5/2.1 mm, plus pole inside). The power supply voltage

(11...24 V) and charging control is shown on the display.

After about 1 minute the backlight switches off. When

battery is fully charged, it switches on again. An

informational message appears in the display that the

charging process has finished.

Fed into a cable measuring pulses are reflected by the inhomogenities of the cable

impedance (cable fault) and made visible on the display. From the form and the time

displacement of the reflection, the nature of the fault and the fault distance can be

determined. It is also advisable to acquire practical experience by sample

measurements.

ESC

STARTSTART

START

5. Important notes

6. Operational elements

• Measurement only on strain-free objects!

• Do not expose incident solar radiation, heath and extreme coldness!

• The working temperature range is 0 °C until +40 °C

• Avoid shocks by bumps or falling down. We recommend the use of the

imitation leather bag.

• The F-measuring socket is a high-quality component. This one is

designed for a maximum diameter of 1.1 mm of the inner conductor. We

recommend for a good care of the socket to use a measuring cable with

F-connector plus an according adapter.

7.1.1 Switch on with cable selection

Push once more button START. Now select with buttons DOWN and UP to the desired

cable type.

7.1.2 Switch on without cable selection

Propagation factor and cable loss must be yet adjusted manually to measure.

7. Operating

7.1 Operating functions standard

6 Operating keys

LCD-Display

Charging socket Measuring socket

Memory SD card

6 Operating keys with dual function:

1| push shortly the key

2| push long the key (>2 sec.)

>2 s

ESC

7.1.3 Switch off

Push buttons 2 and 3 simultaneously until display disappears

Without operation the device switches off itself after four minutes. If the battery voltage

drop to 6.1 volts, there is a fade-in on the display. At 5.6 V the device switches off to

protect the battery.

START

ESC

7.2 Advanced operating functions

7.2.1 Pulse amplifier

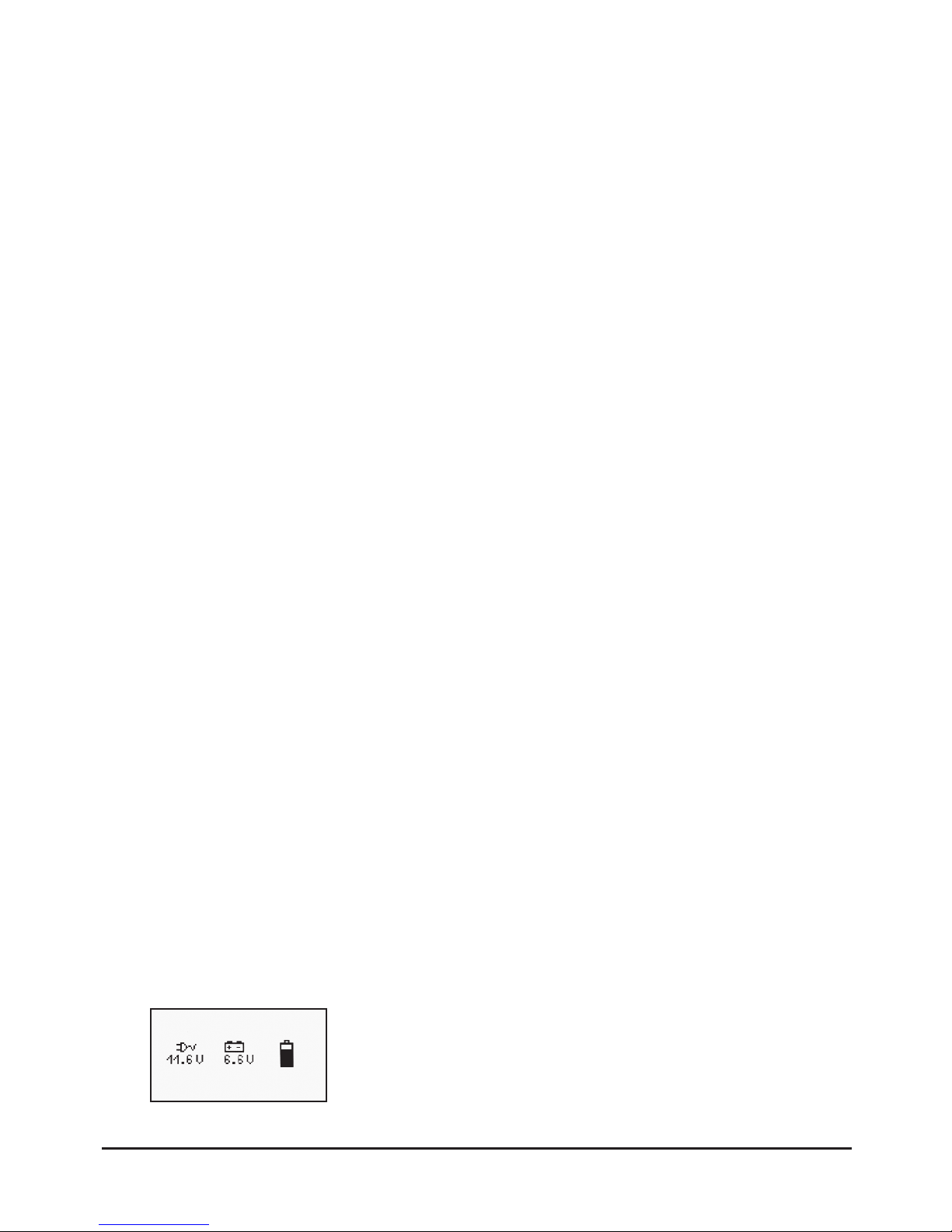

During switching on the state of charge of the battery in the display will briefly appear

(battery is full: ca. 7 V, low battery: ca. 5.6 V, charging: if <6.2 V!)

To increase the sensitivity of the IRM 70 SD, the gain can be adjusted in 4-dB steps

from 0 to 36 dB. The gain »V« is starting from the length display to select by shortly

pressing the button ESC. With the buttons LEFT and RIGHT the gain can be stepwise

changed. Set it back by a short push on button ESC.

>2 s

START

7.1.4 Arrow keys – 1 step (1 pxl) to the left

– 1 step (1 pxl) to the right

– 10 step (10 pxl) to the left

– 10 step (10 pxl) to the right

Hold down for quick cursor movement the respective key.

7.1.5 START key – to confirm / a menu item on

– save settings:

The previous settings will remain permanent.

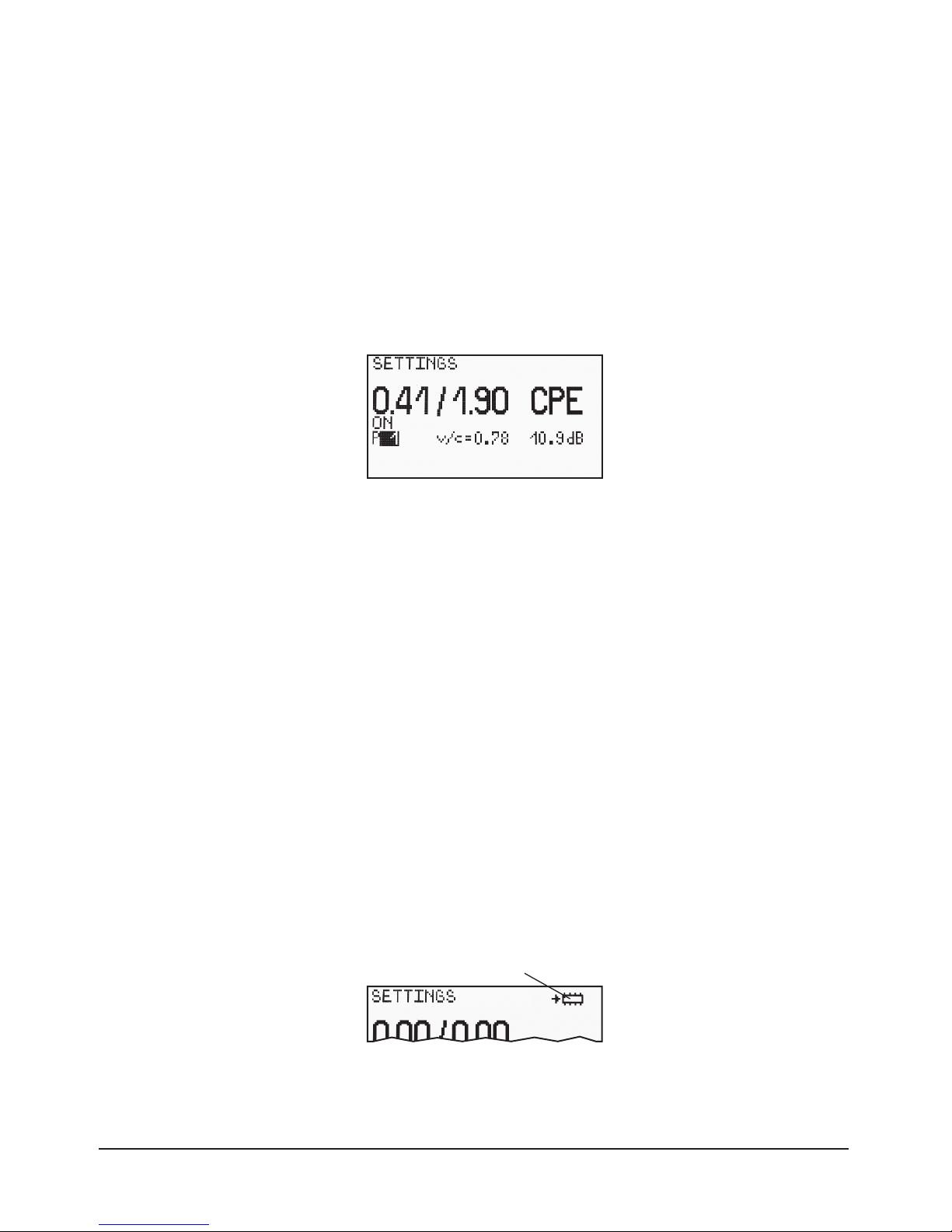

propagation factor

return loss

filter

pulse widthresolution

measuring trace

(with reflection)

transmit pulse (0,0 m)

cursor

pulse amplifier

cable type

7.2.2 Parameter of length measurement adjust

Resolution | Firstly can be adjusted in the menu the resolution of the trace in steps. By

long pressing of the button START - until the icons appear inverted - you get to the first

parameter of the measurement. Here can be set with the buttons LEFT or RIGHT the

required value.

Pulse width| After repeated long pressing of button START (until icon inverted), the

pulse width can be changed. Rule of thumb: short cable - short pulse

Filter | Next lets switch a filter »Fi«. This can make at a restless trace by interference

from external voltages a better visibility. The disadvantage of pulse reflectometer is

generally: The presentation of the measured curve is delayed. In our case, at about three

seconds.

Storage space for propagation factors | The next setting option is to select a stored

propagation factor. If the propagation factor is not already selected when switched on or

it will need a change in use, this can be done here.

Propagation factor| As the last the propagation factor can be adjusted manually by

repeatedly long press of the button START. The propagation factor must always be set

accordingly before measuring the cable.

If the necessary settings have been made, by briefly pressing button ESC the parameter

settings are stepwise leaving again.

7.2.3 Vertical resolution / fullscreen

By briefly pressing the button UP or DOWN the display is toggled between fullscreen

and the view with measurement parameters. The set gain value is retained.

>2 s

ESC

7.1.3 Switch off

Push buttons 2 and 3 simultaneously until display disappears

Without operation the device switches off itself after four minutes. If the battery voltage

drop to 6.1 volts, there is a fade-in on the display. At 5.6 V the device switches off to

protect the battery.

START

ESC

7.2 Advanced operating functions

7.2.1 Pulse amplifier

During switching on the state of charge of the battery in the display will briefly appear

(battery is full: ca. 7 V, low battery: ca. 5.6 V, charging: if <6.2 V!)

To increase the sensitivity of the IRM 70 SD, the gain can be adjusted in 4-dB steps

from 0 to 36 dB. The gain »V« is starting from the length display to select by shortly

pressing the button ESC. With the buttons LEFT and RIGHT the gain can be stepwise

changed. Set it back by a short push on button ESC.

>2 s

START

7.1.4 Arrow keys – 1 step (1 pxl) to the left

– 1 step (1 pxl) to the right

– 10 step (10 pxl) to the left

– 10 step (10 pxl) to the right

Hold down for quick cursor movement the respective key.

7.1.5 START key – to confirm / a menu item on

– save settings:

The previous settings will remain permanent.

propagation factor

return loss

filter

pulse widthresolution

measuring trace

(with reflection)

transmit pulse (0,0 m)

cursor

pulse amplifier

cable type

7.2.2 Parameter of length measurement adjust

Resolution | Firstly can be adjusted in the menu the resolution of the trace in steps. By

long pressing of the button START - until the icons appear inverted - you get to the first

parameter of the measurement. Here can be set with the buttons LEFT or RIGHT the

required value.

Pulse width| After repeated long pressing of button START (until icon inverted), the

pulse width can be changed. Rule of thumb: short cable - short pulse

Filter | Next lets switch a filter »Fi«. This can make at a restless trace by interference

from external voltages a better visibility. The disadvantage of pulse reflectometer is

generally: The presentation of the measured curve is delayed. In our case, at about three

seconds.

Storage space for propagation factors | The next setting option is to select a stored

propagation factor. If the propagation factor is not already selected when switched on or

it will need a change in use, this can be done here.

Propagation factor| As the last the propagation factor can be adjusted manually by

repeatedly long press of the button START. The propagation factor must always be set

accordingly before measuring the cable.

If the necessary settings have been made, by briefly pressing button ESC the parameter

settings are stepwise leaving again.

7.2.3 Vertical resolution / fullscreen

By briefly pressing the button UP or DOWN the display is toggled between fullscreen

and the view with measurement parameters. The set gain value is retained.

8. Settings

8.1 Change the language

8.2 Change display color

8.3 Save the settings

To change the language of the device, press and hold the UP button in the battery and

charging view (for at least 2 sec). The selected language will appear in the upper area of the

display.

SPRACHE: DEUTSCH

or LANGUAGE: ENGLISH

The selection is saved when switching off the IRM 70 with the ESC button.

The color of the display's backlight can be changed. Press and hold the UP button (for at

least 2 sec.) when the IRM 70 is switched on completely to set the next color. With the UP

button held down, the color changes continuous.

The selection is saved when switching off the IRM 70 with the ESC button.

The manual saving of the settings is necessary when:

SETTINGS – set or change the cable parameters of the single presets

CABLE-SELECTION – preset (cable type) used at power on of the IRM 70

WITHOUT CABLE-TYPE – manual defined cable parameters (resolution, impulse, filter etc.)

are loaded every time the device switched on

For manual saving press and hold the START button until the save symbol is shown in the

upper right of the display.

store

8.4 Change of the cable characteristic values

1 | To get to the settings menu for the cable parameters, press the START button when

the IRM 70 is powered off. The battery view is shown in the display. Press and hold the

DOWN button for at least 5 seconds until the SETTINGS appears.

2 | By shortly pressing of the button ESC parameter to be changed are to be selected

(inverted display) and to change by the buttons DOWN and UP. Unused memory

locations can be displayed and disappear here with the parameter »ON« or »OFF«.

Disappeared storage locations do not appear when switching on.

The adjustable parameters are:

0.80 – diameter inner conductor

3.50 – diameter screening

CPE – dielectric

ON/OFF – memory location displayed/disappeared

P: 1 – memory location (e. g. 1)

v/c=0.83 – propagation factor – 0.83 here

5.7 dB – cable attenuation at 100 m at 50 MHz

DO NOT FORGET to save the settings before exit by press and hold the START button

until the save symbol appears.

If necessary the cable parameters can be changed in the memory locations or also add

new ones. It is essential to ensure to work very carefully, because these values are

critical for each measurement. It may happen, for example, that the propagation factor

must be determined first.

8. Settings

8.1 Change the language

8.2 Change display color

8.3 Save the settings

To change the language of the device, press and hold the UP button in the battery and

charging view (for at least 2 sec). The selected language will appear in the upper area of the

display.

SPRACHE: DEUTSCH

or LANGUAGE: ENGLISH

The selection is saved when switching off the IRM 70 with the ESC button.

The color of the display's backlight can be changed. Press and hold the UP button (for at

least 2 sec.) when the IRM 70 is switched on completely to set the next color. With the UP

button held down, the color changes continuous.

The selection is saved when switching off the IRM 70 with the ESC button.

The manual saving of the settings is necessary when:

SETTINGS – set or change the cable parameters of the single presets

CABLE-SELECTION – preset (cable type) used at power on of the IRM 70

WITHOUT CABLE-TYPE – manual defined cable parameters (resolution, impulse, filter etc.)

are loaded every time the device switched on

For manual saving press and hold the START button until the save symbol is shown in the

upper right of the display.

store

8.4 Change of the cable characteristic values

1 | To get to the settings menu for the cable parameters, press the START button when

the IRM 70 is powered off. The battery view is shown in the display. Press and hold the

DOWN button for at least 5 seconds until the SETTINGS appears.

2 | By shortly pressing of the button ESC parameter to be changed are to be selected

(inverted display) and to change by the buttons DOWN and UP. Unused memory

locations can be displayed and disappear here with the parameter »ON« or »OFF«.

Disappeared storage locations do not appear when switching on.

The adjustable parameters are:

0.80 – diameter inner conductor

3.50 – diameter screening

CPE – dielectric

ON/OFF – memory location displayed/disappeared

P: 1 – memory location (e. g. 1)

v/c=0.83 – propagation factor – 0.83 here

5.7 dB – cable attenuation at 100 m at 50 MHz

DO NOT FORGET to save the settings before exit by press and hold the START button

until the save symbol appears.

If necessary the cable parameters can be changed in the memory locations or also add

new ones. It is essential to ensure to work very carefully, because these values are

critical for each measurement. It may happen, for example, that the propagation factor

must be determined first.

10.1 data storage

2. Push the START button for 4 seconds until the following display content will appear:

The displayed values are taken from the previous settings and can now

5. The message »SCAN SUCCEED !« in the last line of the display indicates that

the measurement is completed successfully.

The name of the measurement point becomes automatic numbered.

For processing the measurement data on the SD card a PC software is used.

This can be downloaded in the current version on our website

http://www.sat-kabel.de/support-software.php

The Java Runtime Environment (JRE) needs to be installed (at least in Version 1.5.0).

This can be found at http://www.java.com for free download.

6. Press the ESC button briefly to set the IRM 70 SD back in normal operating mode.

3. Select the parameters by press the arrow keys up and down [↓][↑] briefly

(inverted display)

and use the arrow keys left and right [←][→] to change the values.

! Press the ESC button briefly to enter the previous menu point.

! Press the START button to store the values.

9. Technical data

Measuring ranges 0–2000 m

Resolution switchable 0.1 m / 0.2 m / 0.4 m / 1 m / 2 m / 4 m,

Accuracy of the measuring range 0.2 %

Propagation factor 0.250–0.999

Storage places for cable type and propagation factor 30

already 20 pre-programmed

Dynamic 64 dB

Sensitivity 80 dB

Digital filter switchable for suppression of

external voltages on the cable

Impedance 75 Ohm

Output F-socket

Output pulse 4 V, 2 ns / 20 ns / 100 ns wide

Display LCD 128 × 64 pixel, illuminated

visible size 67 mm × 37 mm

Operation with 6 keys

Power supply NiMH-accumulator 6V/1800 mAh; AC/DC adapter

Powwer consumption max. 200 mA

Dimensions 210 mm × 110 mm × 45 mm

Weight 530 g

9.1 Fault, clearance

Device can not be switched off:

push the buttons LEFT and RIGHT simultaneously

10. Save measurements to SD card

10.1 data storage

Attention:

!the SD card must be formatted with FAT32 (FAT16) filesystem

!(do not use NTFS or exFAT)

!most SD and SDHC cards up to 32GB are supported

!insert or remove the SD card with the meter turned off

A SD card have to be inserted!

1. Switch on the device

- switch on with cable selection, see section 7.1.1 page 5

- switch on without cable selection, see section 7.1.2 page 5

4. The measurement process is shown to the user with two successive display contents.

In this state the IRM 70 SD records the measurement data and stores it on the

SD card.

10.1 data storage

2. Push the START button for 4 seconds until the following display content will appear:

The displayed values are taken from the previous settings and can now

5. The message »SCAN SUCCEED !« in the last line of the display indicates that

the measurement is completed successfully.

The name of the measurement point becomes automatic numbered.

For processing the measurement data on the SD card a PC software is used.

This can be downloaded in the current version on our website

http://www.sat-kabel.de/support-software.php

The Java Runtime Environment (JRE) needs to be installed (at least in Version 1.5.0).

This can be found at http://www.java.com for free download.

6. Press the ESC button briefly to set the IRM 70 SD back in normal operating mode.

3. Select the parameters by press the arrow keys up and down [↓][↑] briefly

(inverted display)

and use the arrow keys left and right [←][→] to change the values.

! Press the ESC button briefly to enter the previous menu point.

! Press the START button to store the values.

9. Technical data

Measuring ranges 0–2000 m

Resolution switchable 0.1 m / 0.2 m / 0.4 m / 1 m / 2 m / 4 m,

Accuracy of the measuring range 0.2 %

Propagation factor 0.250–0.999

Storage places for cable type and propagation factor 30

already 20 pre-programmed

Dynamic 64 dB

Sensitivity 80 dB

Digital filter switchable for suppression of

external voltages on the cable

Impedance 75 Ohm

Output F-socket

Output pulse 4 V, 2 ns / 20 ns / 100 ns wide

Display LCD 128 × 64 pixel, illuminated

visible size 67 mm × 37 mm

Operation with 6 keys

Power supply NiMH-accumulator 6V/1800 mAh; AC/DC adapter

Powwer consumption max. 200 mA

Dimensions 210 mm × 110 mm × 45 mm

Weight 530 g

9.1 Fault, clearance

Device can not be switched off:

push the buttons LEFT and RIGHT simultaneously

10. Save measurements to SD card

10.1 data storage

Attention:

!the SD card must be formatted with FAT32 (FAT16) filesystem

!(do not use NTFS or exFAT)

!most SD and SDHC cards up to 32GB are supported

!insert or remove the SD card with the meter turned off

A SD card have to be inserted!

1. Switch on the device

- switch on with cable selection, see section 7.1.1 page 5

- switch on without cable selection, see section 7.1.2 page 5

4. The measurement process is shown to the user with two successive display contents.

In this state the IRM 70 SD records the measurement data and stores it on the

SD card.

11. Operating scheme IRM 70

Measuring of the return loss – programm place

Switch off:

Store:

(programm place)

ESC

START

>2 s

ESC

START

Cable selection

(storage place)

Measuring curve

Cursor

Resolution

0,1/0,2/…/4 m

Resolution

0,1/0,2/…/4 m

Pulse width

2/20/100 ns

Filter

(on/off)

In all measurement menus

– 64 dB dynamics

– high vertical resolution

vertical resolution

high / normal

Gain

V: 0/4/8/…/36

Measuring without return loss – cable data adjustable

Switch off:

Store values:

ESC

START

>2 s

ESC

ESC ESC

ESC

START

Cursor

Resolution

0,1/0,2/…/4 m

Gain

V: 0/4/8/…36

Pulse width

2/20/100 ns

Filter

(on/off)

Storage place for

propagations factor

Propagations factor

0,25…0,999

11. Operating scheme IRM 70

Measuring of the return loss – programm place

Switch off:

Store:

(programm place)

ESC

START

>2 s

ESC

START

Cable selection

(storage place)

Measuring curve

Cursor

Resolution

0,1/0,2/…/4 m

Resolution

0,1/0,2/…/4 m

Pulse width

2/20/100 ns

Filter

(on/off)

In all measurement menus

– 64 dB dynamics

– high vertical resolution

vertical resolution

high / normal

Gain

V: 0/4/8/…/36

Measuring without return loss – cable data adjustable

Switch off:

Store values:

ESC

START

>2 s

ESC

ESC ESC

ESC

START

Cursor

Resolution

0,1/0,2/…/4 m

Gain

V: 0/4/8/…36

Pulse width

2/20/100 ns

Filter

(on/off)

Storage place for

propagations factor

Propagations factor

0,25…0,999

program

cable type

cable diameter

kind of

propagation

cable attenuation at

place

designation

inner conductor

dielectric

factor

50 MHz at 100 m

P 1

Mini-Kabel

0,41 mm

1,90 mm

CPE

0,78

10,9 dB

P 2

H 123

0,65 mm

2,90 mm

CPE

0,85

7,5 dB

P 3

COAX 12

0,70 mm

4,60 mm

0,66

5,6 dB

P 4

H 121., MK 75

0,80 mm

3,50 mm

CPF

0,84

5,7 dB

P 5

H 126 DUOBOND PLUS, KOKA 799

1,00 mm

4,60 mm

CPE

0,82

4,5 dB

P 6

MK 15, LCD 90

1,02 mm

4,40 mm

CPE

0,85

4,3 dB

P 7

75100 AKZ 3-S (RG6)

1,00 mm

4,60 mm

CPE

0,85

4,4 dB

P 8

TELASS B1,1/7,3

1,10 mm

7,25 mm

0,66

3,8 dB

P 9

1 ikx 1,1/7,3; KOKA 741

1,10 mm

7,30 mm

0,66

3,3 dB

P 10

LCD 95, DIGITAL 94

1,13 mm

4,80 mm

CPE

0,85

4,3 dB

P 11

PRG 11

1,55 mm

7,25 mm

CPE

0,81

2,7 dB

P 12

LCM 14, MK 15, KOKA 7

1,63 mm

7,20 mm

CPE

0,84

2,8 dB

P 13

COAX 6 (LG)

1,70 mm

6,95 mm

CPE

0,89

2,3 dB

P 14

COAX 4

2,20 mm

10,2 mm

CPE

0,82

1,9 dB

P 15

1nkx

2,20 mm

8,80 mm

PEH

0,88

1,8 dB

P 16

1qkx

3,30 mm

13,50 mm

PEH

0,88

1,2 dB

P 17

COAX 3

3,40 mm

14,9 mm

CPE

0,84

1,3 dB

P 18

1skx

4,90 mm

19,40 mm

PEH

0,88

0,9 dB

P 19

75-7-12 D

2,60 mm

10,00 mm

AIR

0,85

1,6 dB

P 20

75-7-16 D

3,80 mm

13,80 mm

AIR

0,92

1,1 dB

12.

Stored cable

data

(State 01/2012)

The surface of the housing can be cleaned with a dry, soft and lintfree cloth. Do not use

aggressive solvents for the cleaning.

13. Cleaning

14. Guarantee State July 2006

For this instrument will be granted a service life (in following called guarantee) to

following conditions:

+This guarantee is valid for new instruments purchased in Germany.

+New instruments and their components, which are defective because of

production faults and/or material faults, are repaired from SAT-Kabel®.

+For wear parts, like accumulators, keyboards, housings, bags, connecting cables

this guarantee is valid for 6 month from the purchasing date.

+The guarantee claim expires at matings by the purchaser or third persons.

+At defects, caused by improper handling or operating, by wrong installation or

store, by improper connection or mounting, no guarantee is granted.

+For not justified demand of our service we charge for our service the usual

payment for material, working hours and forwarding costs.

+Repairs are only made with filled service covering.

Forms for service coverings and further information are found in the standard form

contracts under: www.sat-kabel.de
