This is the user’s manual for your Scanwave device.
This document must be used together with the general
user’s manual for SATELEC curing lamps.
I – DESCRIPTION
1.1 Presentation
As symbolised in figure 1, ScanWave includes the
following components:
• The multi-fiber light guide, 45° curve, Ø7.5mm,
sterilizable (fig. 1-1).
• The handpiece (fig. 1-3) fitted with a protective cap
(fig. 1-2).
• Lithium-ion battery (fig. 1-4), assembled when
delivered.
• Charging base (fig. 1-5).
• Power supply.
• The main plugs (USA, AUS, EEC, UK).
• The rigid protection shield.
• Accompanying documentation.
On option:
• Kit of 5 flexible protective shields, sterilizable, Ø7,5 mm.
• Multi-fiber light guide, 45° curve, Ø 5,5mm,
sterilizable.
• Kit of 5 flexible protective shields, sterilizable, Ø5,5 mm.
1.2 technical descriPtion
ScanWave is equipped with a Light-Emitting Diode
(LED) that emits blue visible light of a wavelength
between 390 and 505nm for the photopolymerization of
dental materials.
Scanwave incorporates a laser aiming system
with a wavelength of 655nm and a light intensity
of less than 1mV, allowing the light ray to be directed
with precision.
ATTENTION - LASER LIGHT - DIRECT EXPOSURE DANGEROUS
FOR EYES - CLASS 2 LASER UNIT
IEC –60825 standard-1 second edition 2007 - Safety of laser
devices - Max. power: 1mW - Pulse duration: duration
of user pressing button - Wavelength: 655nm
1.3 lcd screen
The LCD screen is backlit and allows the display of the
different pieces of information required by the user.
2
3
5
1
4
As shown above, it comprises different zones identified
from top to bottom as follows:
• A text box displaying the curing mode selected. (1)
• A display in seconds of the duration of the selected
curing cycle. During operation, this countdown
display indicates the remaining activation time until
the current cycle is complete. (2)
• Three icons represent the type of light emission. (3)
Continuous light
Flashing light
Gradual light
• A battery charge level indicator symbolised by a
ladder with 0 to 5 levels. (4)
• A laser function activation indicator: LA. (5)
1.4 Menu activation and selection
The handpiece comprises several control devices.
Two buttons located under the LCD screen can be used
to:
- Configure the required mode by pressing the left-
hand «M» Mode button (fig. 1-6)
- Select in this mode, the curing cycle to be used.
Right-hand «C» Cycle button (fig. 1-7)
The curing cycle is initiated by pressing the control
trigger located under the device (fig. 1-8) or the ON/
OFF button (fig. 1-9) located on the aluminium tip.
1.5 Battery autonoMy
The charge level indicator shows the remaining battery
power. Its charge time is about 3 hours.
• When the battery is completely discharged, the LCD

User’s Manual ScanWave ● J05451 ● V5 ● (13) ● 05/2013 ● NG39EN020E ● 5
screen displays the message «Lb» (Low battery), the
handpiece beeps 4 times, and the start of a curing
cycle will be inhibited.
• You must then replace the ScanWave on its charger.
1.6 recharging
The translucent «Neck» of the charger (fig. 1-10) shows
the charger operation status and the level of lighting
power emitted by the light.
Place the charger on a hard, stable surface with a
flatness of less than 5°, then plug the connector into
the grid supply. The translucent part of the support
successively emits three flashes: red, green and blue.
Then insert the light guide in the charger and ensure
charging terminals are in contact with battery
connections.
The translucent part then emits a blue light signalling
that the battery is charging. The blue light goes out
when charging is complete.
1.7 checking lighting Power
The charger can be used to check the lighting power
emitted by ScanWave. To do this, a control window is
located in the rear section of the support (fig. 1-11).
To check the lighting power emitted:
• Select Scan mode; continuous; 9 seconds.
• Clean the optical guide, make sure that it is not
damaged, and then insert it into the handpiece.
• Also make sure that the control window is unbroken
and clean.
• Place the tip of the optical guide flat on the control
window and activate ScanWave.
• If the transluscent «Neck» of the charger lights up
green, the lighting power is sufficient. If the lighting
power is not sufficient, this will be signalled by a
fixed red or flashing red/green light. In this case,
refer to chapter X.
1.8 technical sPecifications
Model name ScanWave
Manufacturer SATELEC
Medical category IIa according to the
directive 93/42/CEE
Handpiece
Weight 185g
Dimensions Ø34 x 220mm
Operating cycle
See II - Routine operation -
Clinical care
Category Type B
Protection 1,5 A T Fu1 fuse (non
accessible) 125V
Protection index IPX0
AC power adapter
Input voltage 100V AC to 240V AC
Frequency 50Hz to 60Hz
Output voltage 12 V DC
Output current 0.8 A
Category II
Protection index IP 41
Charging base
Input voltage 12V DC
Protection 3 A T Fu1 fuse (non
accessible) 125V
Operating cycle Continuous operation
Protection index IPX0
Battery
Type Lithium-Ion
Dimensions Ø34 x 115mm
Capacity 2500mAh
Optical specifications
LED sources 4
Wavelength range 390nm-505nm
Central wavelength 405nm / 440nm / 460nm
and 480nm
Intensity
1500 mW/cm² ± 10% (for a 7.5mm fiber : active
diameter 6.8)
2200 mW/cm² ± 10% (for a 5.5mm fiber : active
diameter 4.8)
Maximum exposure time
60 seconds (pulse mode at 1500 mW/cm² ± 10%)
Laser aiming system
Typical wavelength 655nm

6 ● NG39EN020E ● 05/2013 ● (13) ● V5 ● J05451 ●User’s Manual ScanWave
Minimum wavelength 650nm
Maximum wavelength 660nm
Intensity < 1mW
Class 2
Exposure time As long as user presses the
button
Temperature
Operation +10°C to +30°C
Stockage 0°C to +50°C
Humidity
Operation 30% to 75%
Storage 10% to 70% condensation
included
Atmospheric pressure 500hPa to 1060hPa
II – ROUTINE OPERATION
2.1 oPerating for the first tiMe
On receipt of the unit, look for any damage that may
have occurred during transportation. If necessary,
contact your supplier.
Prior to any use, it is essential that the sterilizable
accessories (light guide and protective shield) be
sterilized and that the unit base be disinfected (see
the maintenance chapter in the attached general user’s
manual for SATELEC curing lamps).
Remove the protective caps from the handpiece (to be
kept during maintenance to prevent the liquid products
from damaging the LEDs), and insert the sterilized light
guide into the handpiece.
Ensure that the light guide is properly inserted,
confirmed by a click.
Ensure that all the segments of the LCD screen are
present
The battery supplied is only charged to 60% prior to
shipment. Charge it fully (See 1.6 - Recharging) prior to
using it each time.
2.1 selecting curing cycles
ScanWave has several curing cycles classified into two
families called «Modes». At start-up, the device runs a
sequence of automatic tests and positions itself on the
last cycle used.
• To switch from one mode to the other, quickly press
the «Mode» button located on the left under the LCD
screen.
• To scan and select one of the cycles contained in
these modes, quickly press the «Cycle» button
located on the right under the LCD screen.
C C
M
2.2 curing Modes and cycles
Scan mode
To systematically scan a continuous spectrum from
390nm to 505nm, the Scan mode can be used to
activate all photosensitive dental equipment.
This mode has 2 pre-programmed cycles:
• A continuous 9-second cycle.
• A gradual 20-second cycle including a 5-second
increase in power, 10 seconds at stable full power,
and a 5-second linear descent at the end of the cycle.
Bonding mode
Designed for dental adhesives and marked «Bond.»,
this mode has 2 cycles:
• A 5-second continuous cycle.
• A 12 x 5-second pulse cycle.
In dentistry, the pulse cycle is used to bond a complete
arch passing from one bracket to another, with each
space coinciding with a short extinguishing of the light.
2.3 oPeration
Select the curing mode and cycle that you want to
use. The time corresponding to the selected cycle is
displayed on the LCD screen in seconds. In addition,

User’s Manual ScanWave ● J05451 ● V5 ● (13) ● 05/2013 ● NG39EN020E ● 7
an icon indicates the type of light emission selected:
continuous, flashing or gradual.
• Place the optical guide as close as possible to the
surface of the equipment to be photocured but
avoid contact as this may reduce the quality of the
curing process. The use of a transparent strip is
recommended.
• Press the ON/OFF button to start the polymerization
cycle.
• A countdown counter on the LCD screen shows the
time remaining.
• Press the button again for longer to stop the current
cycle at any time.
III – CONFIGURATION
7.1 laser sight
ScanWave has a laser guiding system which positions
the light beam in the direction of the material to be
photocured.
At the start of a cycle, press and hold down the ON/
OFF button or the trigger to display a red sight circle.
Release them to make the sight circle disappear and
activate the light. This function allows you to view the
light zone associated with optimum power. The laser
radiation passes into the optical guide. Do not look in
the optical guide.
3.2 cycle initiation
By default, in order to ensure that the device can
be used easily by everyone, cycles are initiated by
pressing the ON/OFF button or by pushing the control
trigger.
However, depending on the required ergonomics, the
cycle start control can be configured:

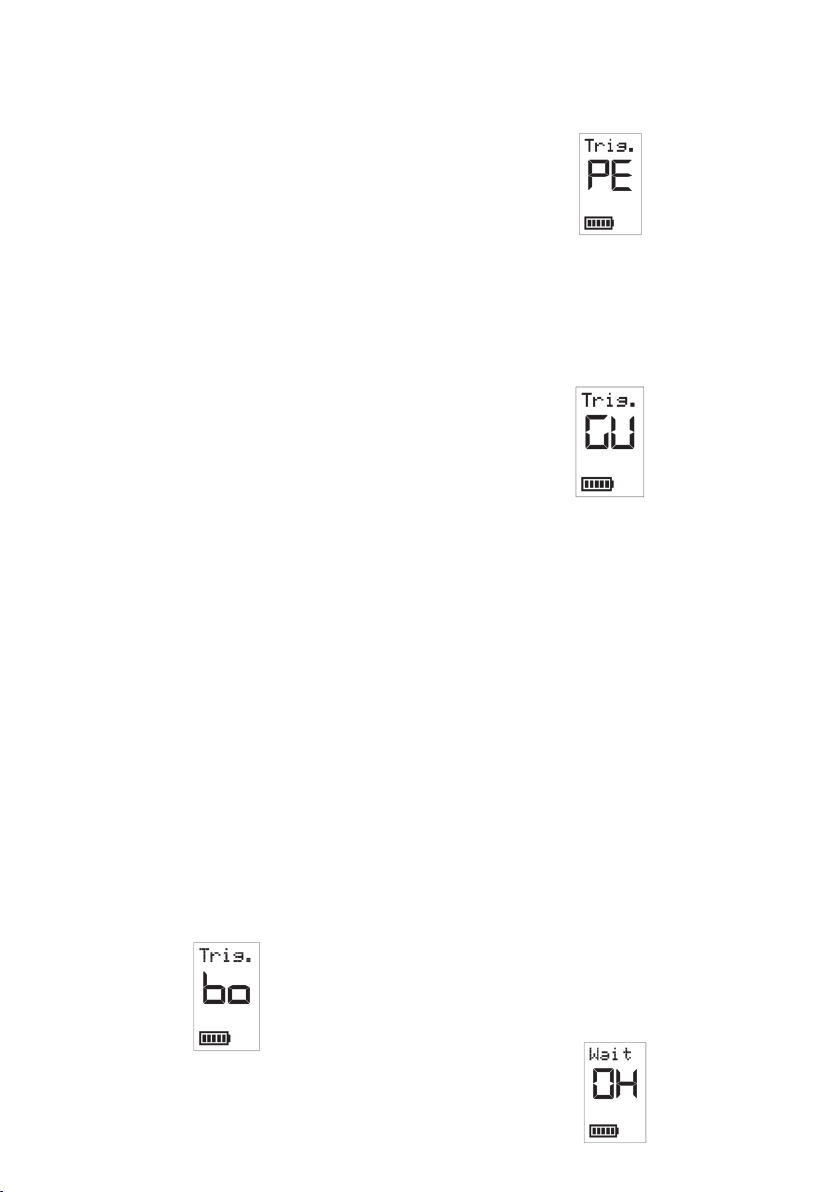

• One long press on the Cycle C button makes the
following screen appear:
• Activation is then possible either by pressing the
button or the control trigger. Bo signifies «Both».
• A short press on the menu C button allows you to
select the pen-style hold. Initiation is then only
possible by pressing the ON/OFF button and the
screen displays PE: «Pen-Style».
• To validate the modification and exit configuration
mode, press the Mode M button again.
• However, if you prefer the gun-type hold, quickly
press the Cycle C button. Launch is then only possible
by pressing the control trigger and the screen displays
GU: «Gun-type».
• To validate the modification and exit configuration
mode, press the Mode M button.
• Proceed in the same way to change the initiation
mode again.
3.3 standBy Mode
After 3 minutes without use, the unit goes into standby
mode (low consumption), the LCD screen backlighting
switches off.
The unit can be taken out of standby mode by simply
pressing one of the buttons.
IV – SECURITIES
ScanWave is equipped with a system for the detection
of possible unit operation anomalies.
4.1 excessive teMPerature of the unit
During intensive use, an excessive temperature may be
detected and the screen then displays the letters «OH»
(Over Heat) and the audible warning (beep) sounds 4
times. The light can now not be switched on.

8 ● NG39EN020E ● 05/2013 ● (13) ● V5 ● J05451 ●User’s Manual ScanWave
It is then recommended that the user leaves the handpiece to cool for a few minutes, until the screen displays the
selected time cycle again and then the light can be switched on again.
V - ACCESSORIES
The following accessories are available for ScanWave
• ScanWave handpiece Ref F05460
• ScanWave battery Ref F05451
• ScanWave charging base Ref F05452
• Power supply Ref X05494
• Light guide Ø7.5mm Ref F05470
• Rigid protection shield Ref F05407
• Light guide Ø5.5mm Ref F05471 (option)
• Kit of 5 flexible protective shields, sterilizable, Ø7.5mm Ref F61507 (option)
• Kit of 5 flexible protective shields, sterilizable, Ø5.5mm Ref F61505 (option)
VI - TROUBLESHOOTING GUIDE
The unit is not repairable in-situ.
All maintenance/repair procedures must be performed in a specialist workshop.
Symptom Possible causes Solutions
No operation
(LCD screen
off)
Battery completely discharged Recharge battery
Battery defective Return to SATELEC after-sales department
ScanWave defective
Put ScanWave back on the charging base
Return to SATELEC after-sales department
No operation
(LCD screen
on)
ScanWave defective
Put ScanWave back on the charging base
Return to SATELEC after-sales department
Light power
defect or no
light power
LED defective and / or dirty Check cleanliness of LEDs, clean with dry air jet and / or
return to SATELEC after-sales department
ScanWave defective Return to SATELEC after-sales department
Defective buttons Return to SATELEC after-sales department
Insufficiently charged battery Check charge indicator on the unit’s LCD screen, charge the
battery
Light guide defective and / or
dirty
Clean light guide and / or return to SATELEC after-sales
department

User’s Manual ScanWave ● J05451 ● V5 ● (13) ● 05/2013 ● NG39EN020E ● 9
Symptom Possible causes Solutions
Laser defect
or no light
power
Defective laser diode or defective
buttons
Return to SATELEC after-sales department
Light guide defective and / or
dirty
Clean light guide and / or return to SATELEC after-sales
department
Charger does
not operate
AC power wall outlet defective Contact your electrician
AC power adapter defective Return to SATELEC after-sales department
Light and audible alarms defective Return to SATELEC after-sales department
Fuse defective Return to SATELEC after-sales department
Wrong battery detection Clean battery contacts and charger and / or return to
SATELEC after-sales department
Dysfunction
of power
level
verification
Light guide defective and / or
dirty
Clean light guide and / or return to SATELEC after-sales
department
LED defective and / or dirty Check cleanliness of verification window and / or return to
SATELEC after-sales department
Indicator light defective Check cleanliness of LEDs, clean with dry air jet and / or
return to SATELEC after-sales department
Window defective and / or dirty Clean window
It is particularly recommended to continuously wear protective glasses during repair operations.

10 ● NG39EN020E ● 05/2013 ● (13) ● V5 ● J05451 ●User’s Manual ScanWave
VII – SYMBOLS AND ABBREVIATIONS
SYMBOL DEFINITION
Alternating current
Direct current
Do not discard as household waste
Please refer to the accompanying
documentation
«ON»/«OFF» (pushbutton)
Type B
Class 2 laser equipment
Protective glasses recommended
CE marking
No access for persons with active
implant as pacemaker
Rx only
United States Federal Law restricts
on its territory the use of this unit
exclusively to trained, capable
and qualified dental healthcare
professionals, or under their control.
Note: Technical personnel of the SATELEC authorized
dealer network can obtain from ACTEON GROUP on
request all the information they need for repair of the
parts of the curing light that ACTEON has identified as
repairable.

User’s Manual ScanWave ● J05451 ● V5 ● (13) ● 05/2013 ● NG39EN020E ● 11

17 av. Gustave Eiffel • BP 30216 • 33708 MERIGNAC cedex • FRANCE
Tel + 33 (0) 556 34 06 07 • Fax + 33 (0) 556 34 92 92
E-mail : [email protected] • www.acteongroup.com
J05451 ● V5 ● (13) ● 05/2013 ● NG39EN020E
