DentalEZ everLight EVLCE User manual

Installation, Operation & Care Manual
Track, Ceiling,Wall & Cabinet Mount
DentalEZ MAKES YOUR PRACTICE PERFECT
®®
®

EverLight
®
1
Ta b l e o f C o n t e n t s
Section I Introduction
Specifications ......................................................................................................................... 2
Classifications ........................................................................................................................ 2
Dimensions ........................................................................................................................ 3-4
Light Head Range of Motion .............................................................................................. 5
Packaging ................................................................................................................................5
Section II Installation
Tr a c k M o u n t A s s e m b l y .................................................................................................. 6-10
Ceiling Mount Assembly............................................................................................. 11-14
Wall Mount Assembly ................................................................................................. 15-16
Cabinet Mount Assembly ........................................................................................... 17-18
Section III Operation
Light Switch ........................................................................................................................ 19
Touchpads ........................................................................................................................... 19
Positioning Light ................................................................................................................ 20
Eliminating Adjustable Arm Drift (Wall Mount) .......................................................... 21
Section IV Care
Cleaning & Disinfecting .................................................................................................... 22
Section V User Service Information
Troubleshooting ................................................................................................................ 23
Service Instruction ............................................................................................................ 23
Section VI Parts List/Diagrams
Light Arm ............................................................................................................................. 24
Light Head........................................................................................................................... 24
Drop Post ............................................................................................................................ 24
Product Support Services ..................................................................................... 25
Wiring Schematic......................................................................................................... 26
EMC Information .................................................................................................... 27-28
Mounting Template (Ceiling/Wall Mount)
Installation, Operation and Care Manual

EverLight
2Installation, Operation and Care Manual
®
Section I Introduction
This manual contains installation, operation and care
instructions and user service information for the
EverLight® LED light.
The EverLight is designed to provide trouble-free
service when installed, operated and maintained
according to the procedures set forth in this manual.
To ensure cor rect track, ceiling, wall or cabinet
mounting installation, carefully read all the instruc-
tions contained in this manual paying close attention
to all notes, notices, cautions and warnings.
After the EverLight is installed, please review the
operation procedures and care guidelines with the
doctor's staff. Then!"#$%#!&'()!*$+,$"!(+!&'#
-./&.01)!.22(/# for future reference.
Light Arm Assembly
Classifications
Class 1, Medical Equipment
for Ordinary Use
with Respect to Electric Shock,
Fire and Mechanical Hazards
Only in Accordance with
UL 60601-1, IEC 60601-1,
CAN/CSA 22.2 No. 601.1
53HN
Specifications
3.4#0!5,66"78 Primary: 100-240 V AC 50/60 Hz.
Secondary: 12V DC
96#0$&(+:!;*6#0$:#8! .4 max. - .16 min. Amp
<./$"!=#+:&'8 27"
>.".0!?#*6#0$&,0#8 High: 5300° Kelvin
(Color Matching)
Medium: 4300° Kelvin
(Operative Setting)
Low: 3200° Kelvin
(Composite Setting)
=(:'&!@+&#+)(&78 High: 2300 Footcandles
(25,000 Lux)
Medium: 1375 Footcandles
(15,000 Lux)
Low: 725 Footcandles
(8,000 Lux)
=(:'&!3$&&#0+8!!6-1/2" x 3-1/2"
A+(&!B#(:'&8 Track Mount: 87 lbs.
Ceiling Mount: 41 lbs.
Wall Mount: 59 lbs.
Cabinet Mount: 51 lbs.
—SPECIAL NOTICES —
In accordance with Part 15 of FCC rules, this
equipment was tested and complies with
Class A digital device limits. These limits are
designed to give equipment reasonable
protection against detrimental interference
when operated in a commercial environment.
Medical electircal equipment needs special
precautions regarding electromagnetic com-
patibility (EMC) and needs to be installed
according to EMC information. (See EMC
Information Pgs. 27 and 28.)
Mobile radio frequency (RF) communications
equipment can effect medical electrical
equipment.
= Attention, Consult Accompanying Documents
=Voltage,AC
=Voltage,DC
= Caution. Electrical Shock Hazard. Refer Servicing
to Qualified Personnel
= European Certification - If applicable, see
nameplate.
Explanation of Symbols used on Equipment:
CType of protection against electric shock: Class 1
Equipment
CDegree of protection against the ingress of water:
Ordinary
CEquipment not suitable for use in the presence of
a flammable anesthetic mixture with air or with
oxygen or nitrous oxide.
CMode of operation: Continuous
CEnvironmental conditions recommended ranges for:
Transport and Storage:
D Temperature range of - 10º C to + 70º C
D Relative humidity range of 10% to 100%
D Atmospheric pressure range of 500 to 1060 hPa
Normal Use:
D Temperature range of + 10º C to + 40º C
D Relative humidity range of 30% to 75%
D Atmospheric pressure range of 700 to 1060 hPa

EverLight
®
3
24"
1.61"
1.25"
3.5"
9"
15"
17"
14.375"
Section I Introduction
Ceiling Mount
Tr a c k M o u n t
24"
1.375"
7.25"
31.875"
9"
15"
17"
14.375"
Dimensions

EverLight
4Installation, Operation and Care Manual
®
Wall/Cabinet Mount
Section I Introduction
24"
4.5"
56"
9"
14.375"
15"
17"
1.375"

EverLight
®
5
Verify the EverLight components packaging contents
against the appropriate mounting configuration's
packing list.
!"#$: Be aware that some sections of the carton
may be packed as fillers and might be empty (even if
optional components are ordered).
—NOTICE —
For any questions about an order, please
contact a DentalEZ Equipment customer
service representative at %&'((&)#$&*!+"
,%&'((&-'-&.(-(/.
Packaging Carefully unpack the light. Inspect all of the items
received to assure there has been no shipping damage.
*0 123435617812789:;6<62=19:>?39?1?@6193<<76<
7446273?6ABC1#@6>1<6D:<?13>2107A61?@613DD<:D<7&
3?619A37481E7?@1?@6193<<76<1E7?@7>1F.1@:G<8130?6<
26A7;6<B. (See Product Support Services, Page 25.)
Section I Introduction
—IMPORTANT NOTE —
All parts supplied are vital for proper installation.
):1>:? discard any hardware or components
until installation is checked and complete.
145º
145º
180º
150º
Light Head Range of Motion

EverLight
6Installation, Operation and Care Manual
®
End of Track
8' 0" Min.
77"
53"
71"
Floor
Power Connection
This End
Section II Installation
Tr a c k M o u n t A s s e m b l y
To o l s R e q u i r e d
HPhillips-head Screwdriver HTorpedo Level
HSet of Allen Wrenches HPower Drill
HStripping/Crimping tool HDrill Bits
HPipe Cutter/Hacksaw HTape Measure
HLubricant: Silicon/Grease Product
TrackAssembly Installation
%.After determining the location of the track
light (see illustration below), arrange for the
hole for the power cord to be above the head
of the chair.
F. Drill four 5/16" mounting holes and a 1-1/2"
power supply hole.
Extended-length
post assembly
required for
ceiling heights:
8' 1" to 10'
Suggested Track Mount Location
Side
Cover
Screw
1..Using a Phillips-head
screwdriver, remove
and retain the four
screws that hold the
side covers to each
end of the wood
mounting pallet.
—NOTICE —
Because of the size and weight of the track
mount assembly, two people are required
for installation.
!"#$I1The ceiling structure 4G8? be capable of
supporting 200 pounds. Additional bracing to the
ceiling structure may need to be provided.
!"#$I1The mounting lag bolts 4G8? go into a
minimum of 2-1/2" of solid wood.
—NOTICE —
A full-size track mount template is available.
Order PN:1F(JJ&KLK.
-. Remove the track light assembly from the
packaging and lay it flat with mounting side
down on the floor or sturdy table.

EverLight
®
7
!"#$I1Refer to the exploded illustration below
during track light installation.
L.Loosen, but do not remove, two Phillips-
head screws from one end cap of the track
mount assembly.
(C After loosening the end cap (do not remove
end cap), take off the side covers and set
them aside.
Section II Installation
End Cap
Phillips-head
Screws
Side
Cover
End Cap
Tr o l l ey
Power Supply
Housing Cover
Trolley Cover
Support Hub
Side Covers
Drop Post
Stop Collar
Swivel Key
Swivel Sleeve
Cut End
Machined End
Light Arm Assembly
Rigid Arm
Spindle
Wood
Mounting
Pallet

EverLight
8Installation, Operation and Care Manual
®
J.Remove the four screws from the power
supply housing cover, then take off the cover
and set the screws and cover aside.
Section II Installation
Power Supply
Housing Cover
1/4 x 3"
Lag Bolt
Screws
Wood Mounting
Pallet
Power Supply
Housing
Power Supply Wiring
%. Make sure the appropriate electrical line
(100-240 VAC, 50/60 Hz) is properly
supplied to the power supply housing.
'.Remove the template from the ceiling.
M.Mount the track assembly to the ceiling using
the four 1/4 x 3" lag bolts supplied. (Only if
needed, slide the supplied spacers over the four
lag bolts before mounting the track.)
If trolley removal is necessary:
%.Remove the end cover and the stops on the end
of the track opposite the power supply
housing.
F.While supporting the trolley, roll it off the track
and remove the strain relief from the bracket.
-. To reassemble, reverse the procedure making
sure the rounded wheel goes into the grooved
side of the track.
—NOTICE —
All wiring 4G8? be in accordance with local
electrical codes.
— WARNING —
Before proceeding, verify the power at the
main circuit is "++.
!"#$I1If possible, install a wall switch in the
power source to the track light. This can be turned off
to eliminate wear of the power supply and protect
against electrical surges.
!"#$I1There is a hole in the wood pallet and the
power supply housing for routing the electrical supply.
F.Pull the power supply cord through the
ceiling and hole in the wood mounting pallet.
-.Connect the supply to the black white and
green leads in the power supply housing.
!"#$I1When connecting to a 115V power source,
connect the wires accordingly: ground to green, neutral
to white and black to hot.

EverLight
®
9
Section II Installation
4.Tuck the wires in neatly and replace the power
supply housing cover using the retaining
screws previously removed.
5. Replace the side covers using the four
Phillips-head screws previously removed.
6.Tighten the two Phillips-head screws on the
loosened end cap.
Drop Post Installation
NOTE: The track light is designed to accommodate
up to a 10' ceiling. The drop post must be cut to
length for the appropriate ceiling height. Refer to the
chart below for the correct post length for various
ceiling heights.
Ceiling Height 8' 8'-6" 9' 9'-6" 10'
Post Length 12" 18" 24" 30" 36"
—CAUTION —
Do not cut the post at the end containing
the three machined screw holes.
1.Remove the three screws from the lower end
of the drop post assembly. Then take out the
swivel sleeve and swivel key.
NOTE: This hole is for the 5/16" bolt that secures
the drop post to the support hub.
4.Route the pigtail from the trolley through the
drop post
5.Insert the drop post into the support hub and
tighten the 5/16" bolt through the drop post
and let the post rest on the bolt.
2.Measure the post from the end containing the
three machined screw holes and cut to length
according to the chart above.
NOTE: Remove any sharp edges.
—CAUTION —
Do not drill into the end of the post
containing the three machined screw holes.
—CAUTION —
Failure to install the bolt as described may
allow the light to fall.
3.At a distance of 1-5/8" from the cut end of
the post, drill an 11/32" (.343) diameter hole
on the center line of the post.
6.Tighten the eight set screws in the support
hub and make sure the post is plumb from
front to back and side to side.
7.Slide the cover and cover support up the
drop post and tighten the set screw in the
cover support to prevent the cover from
falling.
8. Lightly lubricate the inside of the swivel
sleeve.
NOTE: The swivel sleeve and swivel key must face
towards the toeboard of the chair to prevent the light
arm from rotating a full 360°. (See illustration below.)
Button-head Screws
Swivel
Sleeve
Swivel
Key
9.Correctly orient and place the swivel sleeve on
the rigid arm spindle and insert the swivel
key in the slot to secure the sleeve and
spindle.
10.After determining the proper wire length,
push any excess wiring into the post and
connect the harnesses.

EverLight
10 Installation, Operation and Care Manual
®
Section II Installation
Drop Post
Spindle with
Swivel Sleeve
and Swivel Key
Secure with
three button-
head screws
Stop
11. Insert the spindle with the swivel and swivel
key into the drop post with the key facing
towards the foot of the chair.
12.Align the three holes of the swivel sleeve and
the drop post and secure with three
button-head screws.
Flex Arm Height Adjustment
1. An adjustment can be made to the flex arm
travel in the event the flex arm contacts the
track or the ceiling.
2. To access the adjustable stop, remove the
four screws that hold the arm cover.
3.Remove one of the arm end caps. These have
been attached with a small amount of glue
and require care in removing.
4.Slide the arm cover toward one end of the
arm to expose the compression spring
retaining mechanism.
5.The adjustable stop is located on the spring
rod directly behind the friction block and
between the spring stopper.
13.Check the level of the post and readjust if
necessary.
14.See "Testing" section on this page.
6.Loosen the two retaining set screws in the
top of the block and position the stop to
limit the vertical travel of the arm to the
desired position. Then tighten the set screws.
7. Slide the arm cover back in position and
attach using four retaining screws.
8. Replace the end cap using a small amount of
adhesive.
Te s t i n g
1.Before proceeding, verify that the power to
the main circuit breaker panel is ON.
2Move the toggle switch, located immediately
behind the light head, UP to turn the light ON.

EverLight
®
11
Section II Installation
Ceiling Mount Assembly
—IMPORTANT NOTE —
Before any framing is done, 3AE3B8 obtain the
doctor's approval.
—NOTICE —
For any questions about an order, please contact
a DentalEZ Equipment customer service repre-
sentative at %&'((&)#$&*!+".
Left-Hand Operation Right-Hand Operation
25-1/2"
6"
25-1/2"
6"
Suggested Ceiling Mount Location
To o l s R e q u i r e d
HPhillips-head Screwdriver HBubble Level
HSet of Allen Wrenches HPower Drill & Bits
HStripping/Crimping tool HHammer
HPipe Cutter/Hacksaw HTape Measure
HLubricant: Silicon/Grease Product
Framing & Mounting
%. Adjust the chair back to its full1)"N! posi-
tion and the seat to normal operating position.
F.For a suggested ceiling mount location, refer
to the illustration below.
!"#$I1Frame locations may be varied to suit
individual preferences. But, be aware of the following
framing considerations.
HCheck ceiling structure and assure it will
support a minimum of 200 pounds.

EverLight
12 Installation, Operation and Care Manual
®
Power Supply
Ground Junction Box
Ground
Screw
Section II Installation
Ceiling Joists
Nails or
Lag Screws
—WARNING —
Before proceeding, verify the power at the
main circuit breaker panel is "++.
—NOTICE —
All wiring 4G8? be in accordance with local
electrical codes.
Steel Bar
Joist
Steel Bar
Joist
Mounting Light SupportAbove
Suspended Ceiling
Mounting Light SupportAt
Suspended Ceiling Level
Framing
Framing & Cross
Brace
Ceiling
Mount Plate
Junction
Box
Power
Supply
Wiring
Hole
HEnsure no lateral movement of the light
column is possible.
HCheck for an electrical circuit near the
support area of the light.
-.Using the full-size ceiling mount template in
the back of this manual, drill three holes for
the ceiling mount plate.
..Attach the ceiling mount plate to the framing
joist using three bolts that are 3/8" diameter
or larger and appropriate for the framing
construction. (The bolts are not supplied.)
!"#$I1For suspended ceiling installation, spacers are
provided to use between the frame and the ceiling mount plate.
Power Supply Wiring
%. Make sure the appropriate electrical line
(100-240 VAC, 50/60 Hz) is properly
supplied to the junction box.
F.Remove the junction box cover.
-.Route the power supply wiring through the
hole in the ceiling mount plate.
..Secure the power supply wiring to the
junction box with strain relief according to
local electrical codes.
L.Secure the incoming ground wire to the
junction box ground screw using a ring
terminal from the bag of supplies.

EverLight
®
13
Section II Installation
—CAUTION —
):1>:?19G? the drop post at the machined end
that contains the swivel sleeve screws.
—CAUTION —
):1>:?12<7AA into the machined end of the
tube that contains the swivel sleeve screws.
Drop Post Installation
!"#$I1The ceiling light is designed to accommo-
date up to an 10' ceiling. The drop post
4G8?1O6
9G?1?:1A6>5?@
for the appropriate ceiling height.
Refer to the chart below for the correct post length for
various ceiling heights.
L.Insert the cut end of the drop post into the
support hub and tighten the 5/16" bolt
through the drop post and let the post rest on
the bolt.
-.At a distance of 1-3/4" from the cut end of
the post, drill an 11/32" (.343) diameter hole
on the center line of the post.
!"#$I1This hole is for the 5/16" bolt that secures
the drop post to the support hub.
..Route the light cord from the power supply
through the cut end of the drop post . Then
pull the cord through the machined end.
%.Remove the three screws from the lower end
of the drop post assembly. Then take out the
swivel sleeve and swivel key.
F.Measure the post from the end containing
the three machined screw holes and cut to
length according to the chart above.
!"#$I1Remove any sharp edges.
—CAUTION —
+37AG<61?:17>8?3AA1?@61O:A?13812689<7O62143B
3AA:E1?@61A75@?1?:103AAC
Ceiling Mount Plate
Ceiling Mount Collar
Drop Post
Swivel Key
Swivel Sleeve
Ceiling Mount Cover
Ceiling Stop Collar
Light Arm
Machined
End
Cut End
(.Using the bubble level make sure the post is
plumb from front to back and side to side. If
needed, adjust the eight set screws in the ceiling
mount collar.
—CAUTION —
All 8 set screws 4G8?1O61?75@? to prevent the
light from falling!
J.Tighten the eight set screws in the ceiling
mount collar.
CEILING DROP POST
HEIGHT LENGTH
10' 36"
9' 6" 32"
9' 26"
8' 6" 20"
8' 14"

EverLight
14 Installation, Operation and Care Manual
®
Section II Installation
8. Slide the cover and cover support up the drop
post and tighten the set screw in the cover
support to prevent the cover from falling.
9.Lightly lubricate the inside of the swivel sleeve.
NOTE: The swivel sleeve and swivel key must face
towards the toeboard of the chair to prevent the light
arm from rotating a full 360°. (See illustration below.)
Flex Arm Height Adjustment
An adjustment can be made to the flex arm to limit
the vertical travel of the arm.
NOTE: If flex arm height adjustment is needed for
the ceiling mount, refer to the adjustment instructions
for the track light found on Page 10.
Te s t i n g
1.Before proceeding, verify that the power to
the main circuit breaker panel is ON.
2Move the toggle switch, immediately behind
the light head, to the left and turn the light ON.
10.Correctly orient and place the swivel sleeve on
the rigid arm spindle and insert the swivel
key in the slot to secure the sleeve and
spindle.
11.Connect the wiring harness from the rigid arm
to the light cord harness in the drop post.
12. Insert the spindle with the swivel and swivel
key into the drop post with the key facing
towards the foot of the chair.
13.Align the three holes of the swivel sleeve and
the drop post and secure with three button-
head screws.
14.Check the level of the post and readjust if
necessary.
15.Pull the excess cord through the junction box
and secure with strain relief bushing to the
junction box.
16.After the wiring connections are complete,
replace the junction box cover.
17.See "Testing" section on this page.
Button-head Screws
Swivel
Sleeve
Swivel
Key

EverLight
®
15
Section II Installation
Wall Mount Assembly
Suggested Wall Mount Location
To o l s R e q u i r e d
HPower Drill & Bits
HSlotted Screwdriver
HPhillips-head Screwdriver
HWire Crimping Tool
HTape Measure
HWire Stripper
HSet of Allen Wrenches
HLubricant: Silicon/Grease Product
Wall Mount Positioning
*PQ"R#S!#1!"#$I1Check wall structure and
assure it will support a minimum of 200 pounds.
%.Place the chair back in its full )"N! position
and the seat in the normal operating position.
F. For a suggested wall mount location, refer to
the illustration below and follow this guide:
3.First identify the center point of the long
arm rotation. This point should align with
the chair's center line and off-set 25-1/4"
from the front edge of the chair's base
plate in the direction of the headrest.
O. From this point, swing a 60" radius arc,
representing the long arm rotation, until
an intersection with the wall is found.

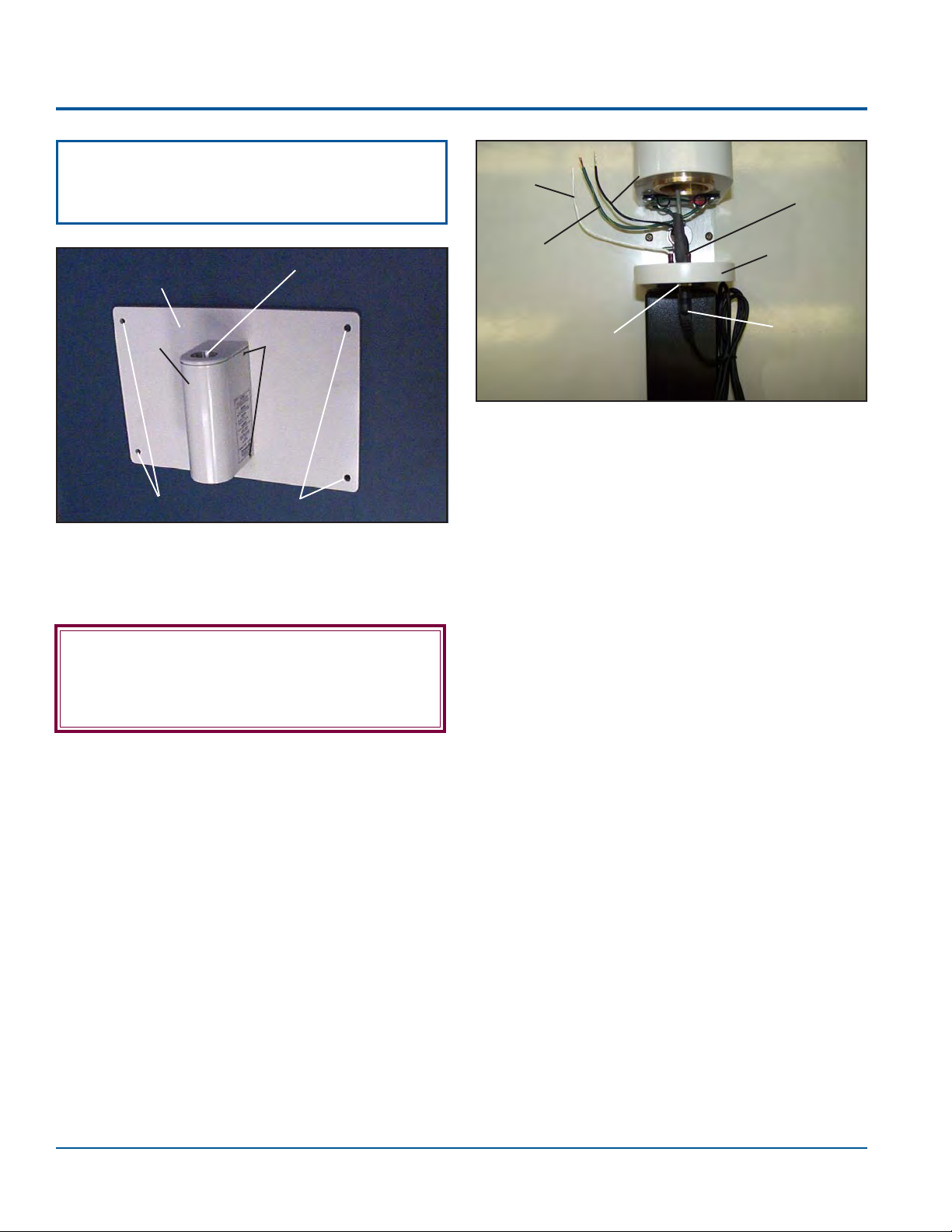

Wall Mount Installation
%.After determining the proper position of the
wall mount, use the wall mount template in
the back of this manual to align mounting
holes on two wall studs.
F.Depending on the size of wall fastener
chosen, drill four mounting holes into the
wall studs. Then drill a 1-1/2" center hole for
the incoming power source.
!"#$I1Make sure the required power supply wiring
runs from inside the wall to the proper location.
WALL
WALL
Mounting
Bracket
Right-hand
Operation
Left-hand
Operation
Optional
Right-hand
Position
Optional
Left-hand
Position
R60"
25.25"
Mounting
Bracket
WALL
FLOOR
63"

EverLight
16 Installation, Operation and Care Manual
®
—WARNING —
Before proceeding, verify the power at the main
circuit breaker panel is "++.
Section II Installation
Mounting
Bracket
Nut Power
Supply
Harness
White
Wire Harness
From Light
Green/Yellow
Wire
Wall Mount To p H o l e f o r
LightArm
Mounting Holes
Cover Screws
—NOTICE —
All wiring 4G8? be in accordance with local
electrical codes.
-.On the wall mount, remove and retain the
four screws that secure the cover. Then take
off the cover.
..Feed the incoming power supply cord
through the center hole of the wall mount.
L.Secure the wall mount to the wall using the
four chosen fasteners.
(.Place a small amount of lubricant on the
light arm pivot pin.
J. Insert the light arm assembly, light cord first,
into the top hole of the wall mount.
'.Connect the ground wire from the power
supply to the green/yellow wire.
M.Connect the black wire from the power
supply to the black wire.
%K.Connect the white wire from the power
supply to the white wire.
%%.Insert the harness from the light into the hole
provided in the mounting bracket and attach
the nut.
%F.Connect the power supply harness to the
harness from the light.
%-.After connecting the power leads, replace the
cover on the wall mount making sure no
wires interfere with the closing of the cover.
%..Secure the cover to the wall mount using the
four screws previously removed.
Te s t i n g
%.Before proceeding, make sure the power at
the main circuit breaker panel is1"!.
F.Move the toggle switch, immediately behind
the light head, to the "! (up) position..
Black
Wire

EverLight
®
17
Typical
Clearance
for X-ray
Arm
1.5"
Typical Clearance
Adjustable
Height Post
6"
Typical Sprinkler Head
25"
96"
Ceiling Line
8"
Cabinet Mount Assembly
Suggested Cabinet
Mount Location
To o l s R e q u i r e d
HPower Drill & Bits
HSlotted Screwdriver
HPhillips-head Screwdriver
HWire Crimping Tool
HTape Measure
HWire Stripper
HSet of Allen Wrenches
HMagnetic Level
HLubricant: Silicon/Grease Product
Power Supply Wiring
Make sure the required power supply wiring is
available in the sub-base of the cabinet.
Cabinet Mount Installation
Before proceeding with the cabinet mount assembly
installation, the following important information re-
garding placement PTU# be taken into consideration.
It is imperative that the light assembly's upper
primary arm is:
Hmounted parallel with the ceiling,
Hsituated at least 1-1/2" above an X-ray arm's
highest folded position, and
H>:? in contact with or interferes with any
obstruction in the ceiling, especially sprinkler
heads, smoke alarms, etc.!
The illustration below gives the suggested mounting
location for the DentalEZ cabinet mount assembly
and the HDX Intraoral X-ray.
!"#$I1The cabinet assembly will accommodate
either one-light or two-light assemblies.

EverLight
18 Installation, Operation and Care Manual
®
Upper Primary
Arm
Metal Post
Support Bracket
Ver tical
Mounting Post
Metal Angle
Bracket
Electrical Power
Cord
Cabinet Metal
Frame
Plywood
Center
Panel
EndView
%.Secure the vertical mounting post(s) to the
metal frame inside the cabinet assembly using
the metal post support brackets supplied.
(Refer to the illustration below.)
!"#$I1 The location of the metal angle
brackets at the lower end of the vertical
mounting post(s) determines the height of the
light assembly.
F. Using the supplied 1/4" lag bolts, attach the
metal angle brackets to the plywood center
panel.
!"#$I1The metal post support brackets are
designed to facilitate perpendicular and
parallel adjustments.
-.Using a magnetic level, ensure the light post
is plumb.
..Apply a thin coating of lubricant to the
bearing surfaces.
L.To achieve anti-rotation of the vertical
mounting posts, tighten the set screws in the
post support brackets.
(. Route the light assembly electrical power
cord through the metal post support brackets
and cabinet metal frame to the metal
subbase.
J.Insert the light arm in the bushing.
'.Connect the cord to the power supply. Then
plug the power supply into an electrical
receptacle.
M.V6<70B1?@3?1?@61D:E6<1?:1?@61437>197<9G7?
O<63W6<1D3>6A1781"!C Then test the light
switch as described in Section III Operation
(Page 19).

EverLight
®
19
Section III Operation
Designed with three procedural and three intensity
settings EverLight offers a total of nine settings to
assure the correct light in every procedure.
To u c h p a d s
Procedural Settings
!A - Sun - Color Matching - 5300° Kelvin
!B - Sun/Bulb - Operative Setting - 4300° Kelvin
!C - Bulb - Composite Setting - 3200° Kelvin
Low
(8,000 Lux)
Sun/Bulb - 4300°Kelvin
(Operative Setting)
Bulb - 3200°Kelvin
(Composite Setting)
Sun - 5300°Kelvin
(Color Matching)
Procedural
Settings
Intensity
Settings
Intensity Settings
!1 - Low - 8,000 Lux
!2 - Medium - 15,000 Lux
!3 - High - 25,000 Lux
Medium
(15,000 Lux)
High
(25,000 Lux)
Light Switch
The light ON/OFF paddle is located on the elbow
section of the light arm assembly..
Light
Paddle
!Flip the paddle to the UP to turn the light ON.
!Flip the paddle DOWN to shut the light OFF.
ON
OFF
The EverLight dental light is designed to provide
illumination of the oral cavity for use by dental
professionals in the dental operatory.
➜
➜
