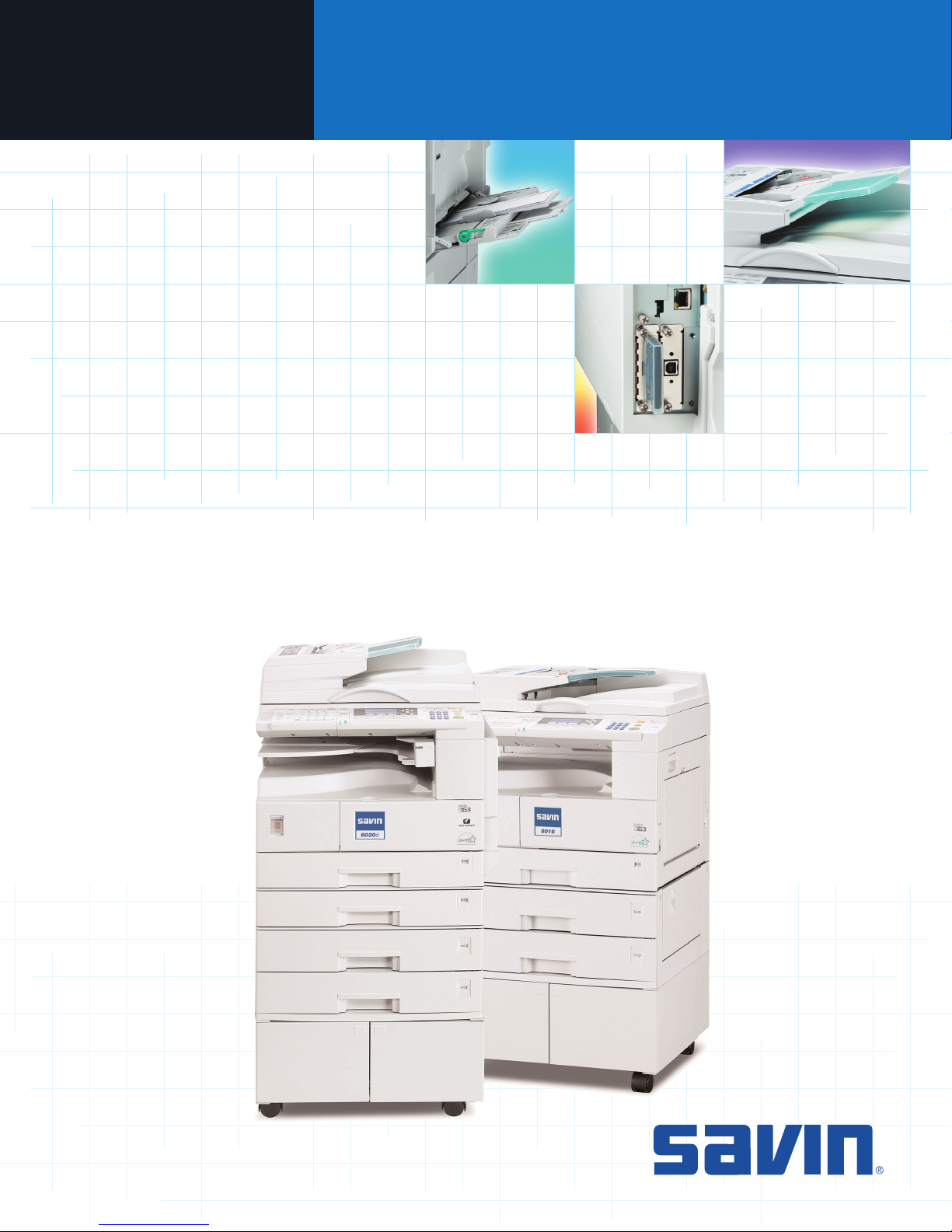

>DIGITAL IMAGING SYSTEMS
Savin
8016/8020/8020d
What you
need to get
your work done.
Savin 8016/8020/8020d

Fast, Efficient, Reliable Copying
When you want copies, you want them
now, and the Savin 8016/8020/8020d
systems deliver – producing up to 21
copies per minute at 600 dpi. And
with a warm-up time of up to just 30
seconds and first-copy-out speed of
6.5 seconds, you won’thaveto wait
for that critical first print. All in all,
the Savin 8016/ 8020/8020d have the
speed, quality and reliability to support
your needs.

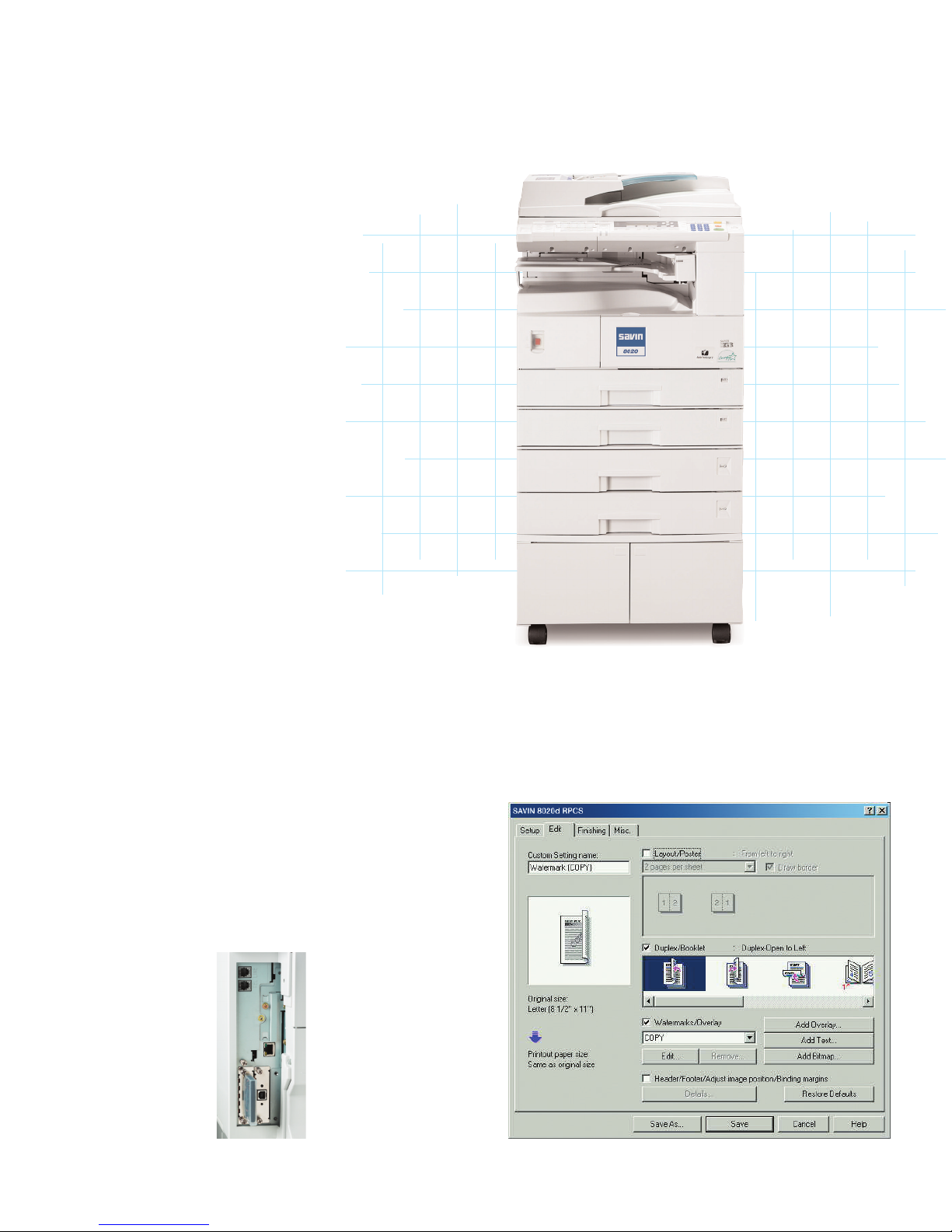

Easy-To-Network
Printing
The Savin 8016/8020/
8020d systems are fully
loaded with everything
you need to connect
seamlessly to your
networkordirectly
to a PC, including 10/100BaseT Ethernet
and a USB 2.0 Interface. Or you can
forget the connections altogether and
use the Wireless LAN or Bluetooth
options to let your
teams workwireless.
The systems can sup-
portall of the most
common business
applications your
office is likely to use,
via the standard PCL
5e/6 print driver or
the optional Adobe®
PostScript®3™.
What’s more,
Savin’s Refined Print
Command Stream
(RPCS™)–an icon-
based print driver –
allows you to save
various printer settings for different
jobs and store them under a single icon,
reducing your most complex print jobs
to a one-click proposition.
The Savin 8016/8020/8020d Digital
Imaging Systems can form the core
of your communications network.
Fast and efficient, they have all the
capabilities you need – copier, printer,
scanner, fax – to make your workload
easier and help you accomplish the
essential document management tasks
of your organization.
Savin 8016/8020/8020d. Copying, printing, s

Scanning For Instant
Hardcopy Distribution
Once you’ve used the scanner on the
Savin 8016/8020/8020d, you’ll wonder
how you ever got along without it.
Scan your documents exactly as if
you weremaking a copy,and send
the digitized files directly to an e-mail
address to anyone on your network or
over the Internet. It’s an easier and
much more versatile way to distribute
your hardcopy documents than sending
afax – and much faster.
Take Faxing To A
Whole New Level
Savin 8016/8020/8020d systems turn
faxing into an even more powerful
communications vehicle than ever.
And take full advantage of your Internet
and LAN connections to dramatically
cut costs.
•Internet Fax lets you send scanned
documents directly to e-mail addresses
or over the Internet to an Internet-
enabled fax, eliminating both the
paper costs of standardfaxing and
long-distance phone charges.
•LAN-Fax lets you send faxes directly
from your PC, maximizing your
investment in your Local Area
Network and reducing paper usage.
•And for organizations that send faxes
out in quantity, the Super G3 Modem
lets you firethem off in as little as
three seconds per page.
Time-Saving Network
Management
Let’s face it, you don’t have time to
patrol your office checking on the status
of your networked systems. That’s why
the Savin 8016/8020/8020d systems
have what all time-pressed network
administrators need: remote monitoring.
Web SmartDeviceMonitor and Web
Image Monitor give you the power to
check the status of your system right
from your desktop with a standard Web
browser. The result: you not only stay
on top of network functionality and get
moreworkdone, but your workgroups
maintain uninterrupted efficiency.
ting, scanning, faxing –it’s all done here.
Savin 8016/8020/8020d
Mail Server Mail Server
Internet
Scan-to-Email
Send documents from the 8016/8020/8020d with Embedded Scan-to-Email. Just scan hardcopy documents
and then immediately distribute them to multiple e-mail addresses, saving both time and money.
Recipient’s PC

Keeping Costs Down,
Productivity Up
Because the Savin 8016/8020/8020d
systems combine four functions into a
single unit, they help reduce the cost
of everything from maintenance, to
supplies, to office space. But these
systems go even further byhelping
you to work more efficiently and cut the
overall, everyday costs of operation.
•Cut both paper
usage and print
times in half with
automatic duplex-
ing (available on
the Savin 8020d
with the optional
ARDF), which lets
you print or copy
on both sides of
apage.
•Work for longer uninterrupted stretches
with the generous paper capacity,
and use the 100-sheet bypass tray
to print envelopes.
•Cut scanning time with the Automatic
Document Feeder and Automatic
Reversing Document Feeder, which
can scan multiple originals up to
11" x 17".
•Reduce costly errors and cut paper waste
with automatic image rotation, which
rotates your scanned images to match
the orientation in your paper trays.
•Eliminate time-consuming hand
collating with electronic rotate sorting.
Savin 8016/
8020/8020d
Easily identify inbound faxes and keep
them separated from print and copy output
with the One-Bin Tray (available on the
8020/8020d).
Toner replacement is a snap thanks to the
8016/8020/8020d’sdual component design.
Automatic Duplexing (8020d with optional
ARDF) lets you copy and print two-sided
documents – up to 11" x 17" – which
significantly reduces paper, hardcopy
storage and postage costs.
Easy-To-Use Control Panel
Access advanced digital features right from the control panel. Easily navigate copy, print,
scan, fax and document management functions with the 4-line, 27-digit backlit display and
4cursor keys.
Select the configuration that meets the needs of your office
8016spf: For efficient
document management
in a space-saving design.
8020spf: For productive
document management,
including a One-Bin Tray.
8020dspf: For total
document management,
including a One-Bin Tray
and Duplexing capability.

Choose Savin
Savin offers the broadest range of
digital imaging systems in the industry.
Our technology is proven, reliable
and awardwinning. Our document
management expertise is second to
none. And our consultative approach
can help you fully exploit the potential
of digital technology.
@
For more information, contact
your authorized Savin dealer.

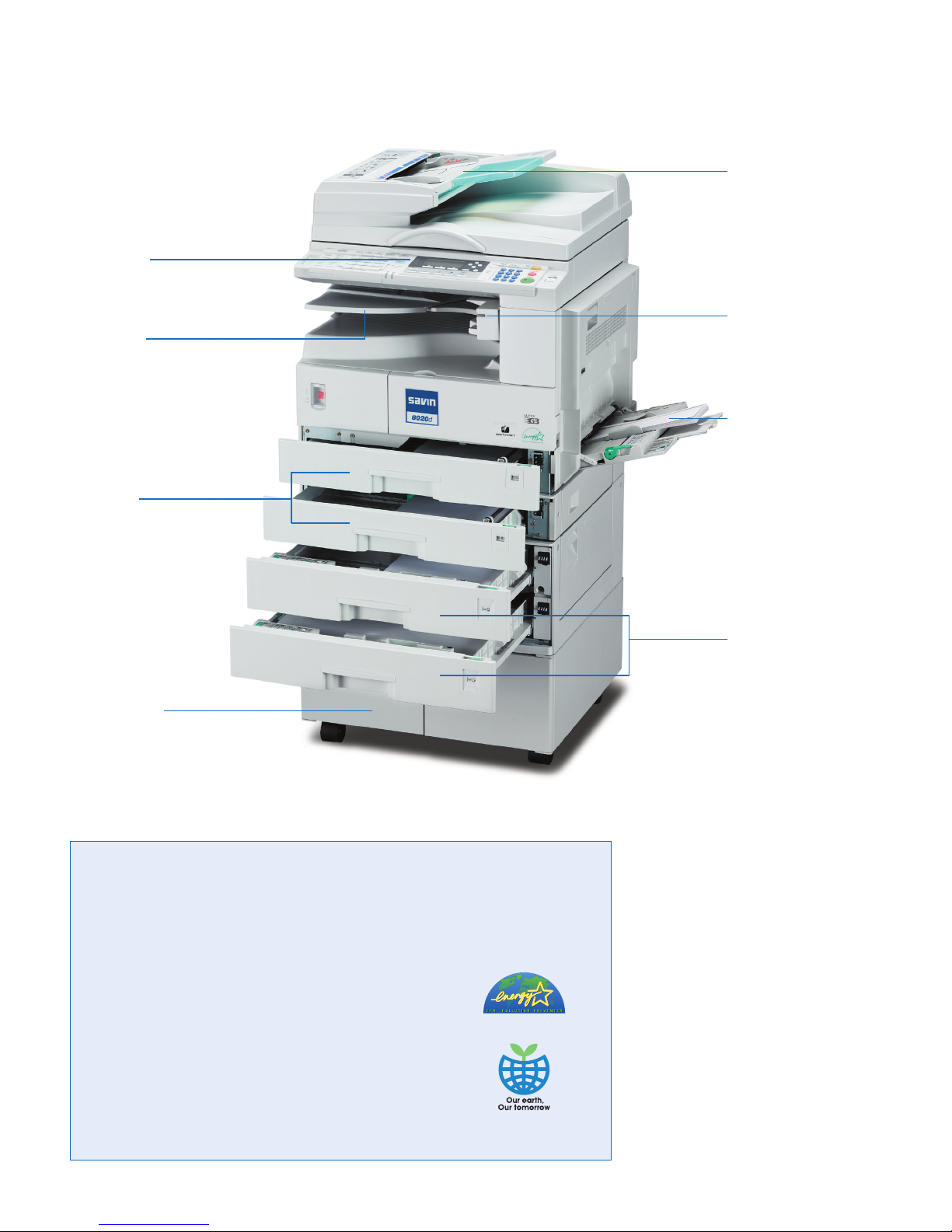

Savin 8016/8020/8020d
Document Feeders
Automatic Document Feeder
(30-sheet capacity) or Automatic
Reversing Document Feeder
(50-sheet capacity) quickly
processes multi-page originals.
Control Panel
Easy-to-use Control Panel
makes operation intuitive.
Indicator Light
Illuminates when documents are in
the tray, informing you immediately
when your job is completed.
Bypass Tray
100-sheet Bypass Tray allows
quick, easy paper stock changes.
Paper Trays
Standard 1 or 2 x 250-sheet
Paper Trays accommodate
paper weights up to 24 lb.
–ensuring long print runs
between paper changes.
Optional Paper Trays
1or 2 x 500-sheet Paper Trays
(for a total capacity of up to
1,350 or 1,600 sheets) further
extend working time between
paper replenishment and hold up
to five different sizes or orientations
of paper.
Don’t Forget The Environment
It’s everyone’s business to lessen our impact on the environment.
The Savin 8016/8020/8020d digital imaging systems do their part:
•Quick Start Up (QSU) Technology creates recovery
times of just 10 seconds, which maximizes time
in Energy Saver Mode and keeps energy costs to
aminimum.
•Consolidation of functions – copy, print, scan, fax –
minimizes the space you need for your document
management systems. www.savin.com
One-Bin Tray
Additional 100-sheet Output
Tray separates copy output
from prints or faxes and lights
up when output is present.
(Available on 8020/8020d).
Storage Cabinet
Spacious Storage Cabinet
keeps supplies handy.

ENGINE SPECIFICATIONS
Imaging Process Dry Process (dual component)
Reading Element Solid State Scanner
Configuration Console
Resolution 600 x 600 dpi
Grayscale 256 Gradation Levels
Paper Supply 250-Sheet Tray (8016)
250 Sheets x 2 Trays
(8020/8020d)
Bypass 100 Sheets, #10 Envelopes
Paper Weight 16to 24 lb. Bond (Paper Trays)
16 to 42 lb. Bond (Bypass Tray)
Output Tray Capacity 250 Sheets
Power Source 120V/60Hz/15A
Dimensions (WxDxH) 21.65" x 22.36" x 16.54"
(8016)
21.65" x 22.36" x 21.97"
(8020)
23.11" x 22.36" x 21.97"
(8020d)
Weight 78lbs. (8016)
96 lbs. (8020)
103 lbs. (8020d)
COPIER SPECIFICATIONS
Warm Up Time 15 Seconds/30 Seconds
(Basic/spf)
First-Copy Speed 6.5 Seconds
Multi-Copy Speed 16 copies/minute (8016)
20 copies/minute (8020)
21 copies/minute (8020d)
Quantity Indicator 1-99
Original Type Sheet/Book
Original Size Up to 11" x 17"
Copy Size 5.5" x 8.5" to 11" x 17"
Reproduction Ratios 50%; 65%; 78%; 93%; 121%;
129%; 155%
Zoom 50% to 200% in 1% increments
MemoryCapacity 16 MB
NETWORK SCANNER SPECIFICATIONS
(Option)
Scan Speed ScanRouter: 43 ipm (@ 200 dpi)
TWAIN Driver: 25 ipm
(@ 200 dpi)
Interface Standard Ethernet 10/100BaseT
Optional IEEE1394
Optional IEEE802.11b Wireless
LAN
Optical Resolution 600 dpi
Compression Binary: MH (default), MR, MMR
Maximum Original 11" x 17"
Size
Network Protocol TCP/IP
Memory Capacity 192 MB shared with copier,
printer and fax
Original Size Up to 11" x 17"
File Formats TIFF; PDF
PRINTER FEATURES
Automatic Tray Selection
Auto Tray Switching
Envelope Printing
Layout
Paper Size Settings
Watermarks
SCANNER FEATURES
Black-and-White Scanning
Duplex Scanning (8020d)
Embedded Scan-to-Email
Image Rotation
Network TWAIN Scanning
ScanRouter Lite
ACCESSORIES
DF78 Automatic Document Feeder
Original Size 5.5" x 8.5" to 11" x 17"
Original Weight 14 to 28 lb. Bond
Original Capacity 30 Sheets
Dimensions (WxDxH) 21.6" x 18.5" x 3.55"
Weight 15.4 lbs.
DF79 Automatic Reversing Document Feeder (8020d)
Original Size 5.5" x 8.5" to 11" x 17"
Original Weight Simplex Original: 10 to 34 lb.
Bond;
Duplex Original: 14 to 28 lb.
Bond
Original Capacity 50 Sheets
Dimensions (WxDxH) 21.6" x 18.5" x 5.1"
Weight 22.1 lbs.
PS450 Paper Bank*
Paper Capacity 500 Sheets x 2 Trays
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 16 to 28 lb. Bond
Dimensions (WxDxH) 21.6" x 20.5" x 10.6"
Weight 55.1 lbs.
PS460 Paper Bank*
Paper Capacity 500 Sheets x 1 Tray
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 16 to 28 lb. Bond
Dimensions (WxDxH) 21.6" x 20.5" x 5.3"
Weight 26.1 lbs.
Type PT340 One-Bin Tray
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 16 to 28 lb. Bond
Paper Capacity 100 Sheets
Dimensions (WxDxH) Unit: 8.5" x 18.9" x 4.1"
Tray: 13.2" x 15.4" x 1.7"
Weight 3.5 lbs.
*Cabinets Available
FAX FEATURES
Al Short Protocol LAN-Fax***
Authorized Reception Manual Reception
Auto Reduction Page Retransmission
Batch Transmission Parallel Memory Transmission
Battery Backup Reception Time Printing
Dual Access Restricted Access
Duplex Fax Transmission Send Later
(8020d) Serial Broadcasting
Error Correction Mode Substitute Reception
Inbound Fax Routing*** User Function Keys (3)
Inbound Fax (T.37)***
***Requires optional all-in-one kit
Savin Five Dedrick Place, West Caldwell, NJ 07006
SAVIN®is a registered trademark of Ricoh Corporation. Windows®and Windows®95/98/Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh®,Mac®OS and AppleTalk®are registered
trademarks of Apple Computer, Inc. Adobe®and PostScript®are registered trademarks of Adobe Systems, Inc. PCL®is a registered trademarkof Hewlett-Packard Company. RPCS™is a trademarkof Ricoh Company,Ltd.
All other trademarks are the property of their respective owners.
Print speed may be affected by network, application or PC performance. Specifications and external appearances are subject to change without notice.
Products are shown with optional features.
Printed in U.S.A. on recycled paper. (S2130)
Savin 8016/8020/8020d Specifications
NETWORK PRINTER SPECIFICATIONS
(Option)
Print Speed 16 PPM (8016)
20 PPM (8020)
21 PPM (8020d)
Interface Standard Ethernet10/100BaseT
Standard USB 2.0
Optional IEEE1394
Optional IEEE802.11b Wireless
LAN
Optional Bluetooth
Optional IEEE1284 Parallel
Resolution 600 x 600 dpi
Network Protocol TCP/IP; IPX/SPX; AppleTalk
(Auto switching); NetBEUI*
CPU Speed 240 MHz
Memory Capacity 192 MB shared with copier,
scanner and fax
PDL StandardRPCS, PCL 5e/6
Optional Adobe PostScript 3
Network Operating Windows 9x, Me, NT4.0, 2000,
System 2003, XP, Macintosh 8.6-OSX
10.1 or later, UNIX
*SmartDeviceMonitor for client is required.
FAX SPECIFICATIONS (Option)
Circuit PSTN, PBX
Compatibility ITU-T G3
Modem Speed 33.6 Kbps V.34 w/Auto Shift
Down
Transmission Speed G3; 3.0 Seconds*, **
Scanning Speed 1.0 Second
Data Compression MH, MR, MMR, JBIG
Resolution 200 x 100/200/400 dpi
Page Memory 3MB (240 Sheets*)
Memory Backup 1Hour
Quick Dials 32
Speed Dials 150
Group Dials 10 (max. 100 per group)
**Based on ITU-Test Chart #1 in standard mode.
**Approximately 3 seconds per page at 33.6 Kbps is dependent on
optimal line quality. Customer performance may vary by location.
