Savox SearchCam 3000 User manual

SAVOX SEARCHCAM®3000
TECHNICAL SEARCH AND RESCUE CAMERA
OPERATION AND MAINTENANCE MANUAL
www.savox.com

TABLE OF CONTENTSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com
TABLE OF CONTENTS
OVERVIEW ......................................................................................................................... 2
SearchCam®3000 Victim Location System (VLS) ........................................................... 2
SearchCam®3000 — Kit 1 Contents.............................................................................. 3
SearchCam®3000 — Kit 2 Contents.............................................................................. 4
General Precautions........................................................................................................ 5
Safety Precautions.......................................................................................................... 6
SEARCHCAM® 3000 CONFIGURATIONS.......................................................................... 7
Standard and Long Tube Set Conguration ..................................................................... 7
Camera Probe Conguration in Air ................................................................................ 10
Camera Probe Conguration in Water .......................................................................... 12
Super Probe Conguration In Air................................................................................... 13
Super Probe Conguration In Water .............................................................................. 14
POWERING UP THE SYSTEM ........................................................................................... 15
Powering Up................................................................................................................. 15
Shutting Down.............................................................................................................. 16
SEARCHCAM®3000 CONTROLS...................................................................................... 17
Rocker Switches........................................................................................................... 17
Display Controls............................................................................................................ 18
Menu............................................................................................................................ 19
Camera Menu............................................................................................................... 19
Camera Information.............................................................................................. 19
Camera Style........................................................................................................ 20
Photo File Management........................................................................................ 20
Pistol Grip Image Capture..................................................................................... 21
Video Menu .................................................................................................................. 21
Video File Management........................................................................................ 22
On Screen Display................................................................................................ 22
LCD Brightness .................................................................................................... 23
LCD Contrast........................................................................................................ 23
Mode Settings .............................................................................................................. 24
Headset Volume ................................................................................................... 24
Power Saving Mode.............................................................................................. 25
Quick Start - Single User Preference Settings....................................................... 25
Date and Time Settings ................................................................................................ 26
Date/Time ............................................................................................................ 26
Information Menu ......................................................................................................... 27
Memory Card Information..................................................................................... 27
Battery Information............................................................................................... 28
Close Menu .................................................................................................................. 28

TABLE OF CONTENTSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
USING THE SEARCHCAM®3000 CAMERA....................................................................... 29
Safety Clutch................................................................................................................ 29
Tube Sets..................................................................................................................... 30
VDU Position Adjustment.............................................................................................. 30
VDU Position Detachment............................................................................................. 30
Connecting the Headset................................................................................................ 31
Inserting the SDHC or SD Card...................................................................................... 32
Camera Quick Disconnect (QD)..................................................................................... 33
Changing the Camera .......................................................................................... 33
Using the Camera in a Vertical Orientation .................................................................... 35
Secondary Display Unit................................................................................................. 35
Batteries....................................................................................................................... 36
Hot swapping ....................................................................................................... 36
Level Indicator...................................................................................................... 36
Charging .............................................................................................................. 36
Storage ................................................................................................................ 36
Warnings.............................................................................................................. 36
MAINTENANCE ................................................................................................................ 37
Camera Quick Disconnect (QD) Maintenance ................................................................ 37
General Maintenance.................................................................................................... 37
Environmental Considerations....................................................................................... 38
Cold Temperature Conditions........................................................................................ 38
High Temperature Conditions........................................................................................ 38
High Moisture Conditions.............................................................................................. 38
Post Incident Inspection................................................................................................ 38
System Packing and Storing ......................................................................................... 38
SC3000 SPECIFICATIONS ............................................................................................... 39
TROUBLESHOOTING......................................................................................................... 40
WARRANTY...................................................................................................................... 41
Exclusions .................................................................................................................... 41
Relief............................................................................................................................ 41
Obtaining Warranty Service........................................................................................... 41
Disclaimer .................................................................................................................... 41
SERVICE........................................................................................................................... 42
Service Centre.............................................................................................................. 42

SAVOXSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 1

OVERVIEWSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
2
OVERVIEW
SearchCam®3000 Victim Location System (VLS)
The SearchCam®3000 is designed to address rescue teams’ need for a camera while
performing search operations in collapsed buildings and conned spaces.
The SearchCam®3000 VLS is modular and can be congured to meet the needs of any
rescue situation. The 240 degree articulating camera with built in audio provides rescuers
with the enhanced ability to see and communicate with trapped victims.
The Camera Head with the Environmental Sleeve installed, can be submersed in water up to
75 feet (23 meters) deep (see page 12).
The SearchCam®3000 records videos and takes photos which are saved to an SDHC card
(included). These les can be uploaded to a computer for playback, archive and search review
purposes. If an attempt for taking video or picture is made when the memory card is not present
or if the memory card is full, “No Memory Card” icon will appear in the centre of the screen.
This manual provides information for the safe and proper operation and maintenance of the
SearchCam®3000. Please read the manual completely before using the SearchCam®3000.
If there are questions about the operation of the system, or comments on how this product
can be improved, please contact Savox Communications at:
1-800-546-3405 (North America Only) or (0) 1-604-244-9323.
* This new release of the SearchCam® 3000 comes with additional features:
1. ClearSearchTM – The new Video Display Unit (VDU) includes a transective screen
with a larger screen size. Thanks to the ClearSearchTM feature the screen adapts to
the environment brightness. Working under bright sunlight does not require a sunshield
anymore.
2. XtraChargeTM – The new XtraChargeTM rmware allows an operational time of up
to 50% when used with the blue Savox batteries (included in this package). The blue
batteries can be mixed matched with the previous black batteries but will not lead to any
signicant increase in operation time. This also applies when using only black batteries
with the new XtraChargeTM feature.

OVERVIEWSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 3
SearchCam®3000 — Kit 1 Contents
6000-11-001
ITEM DESCRIPTION PART NUMBER QT Y.
1Power Module 6010-00-001 1
2 Standard Length Tube Set 6010-01-000 1
3Standard Length Coiled Coax Cable (Shipped Inside Tube Set) 6010-04-002 1
4Gearbox/Audio Module 6010-00-002 1
5 Environmental Sleeve for Audio Module 6010-00-003 1
6Color Camera 6010-02-000 1
7ClearSearchTM Video Display Unit (VDU) 6010-00-008 1
8Headset 6010-03-000 1
9 16GB SDHC Card 0316-44-004 1
10 Waterproof Storage Case with Foam 6010-03-002 1
11 75 Foot (23 Meter) Camera Extension Cable 6010-04-000 1
12 70 Foot (21 Meter) Rope with Carabineer 6010-04-005 1
13 Camera Head Rope Coupler 6010-04-001 1
14 Lithium Ion Batteries 6010-05-005 4
15 Gang Charger 6010-05-003 1
16 Power Supply for Gang Charger* 1902-26-015 1
17 Shoulder Sling 6010-06-003 1
18 Tube Strap (Not Shown) 6010-06-004 1
19 VOID Orientation Guide VOG-03 6010-90-002 1
20 Operation Manual 6010-90-000 1
21 Tube of Grease 6010-03-003 1
22 Warranty Card (Not Shown) 6010-90-003 1
23 Infrared Camera (Optional) 6010-02-002 1
*Varies by country
6 4
14
3
17
11
2 1
14
13
571615
12
21
919
10
20
8
23
Kit 2 only

OVERVIEWSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
4

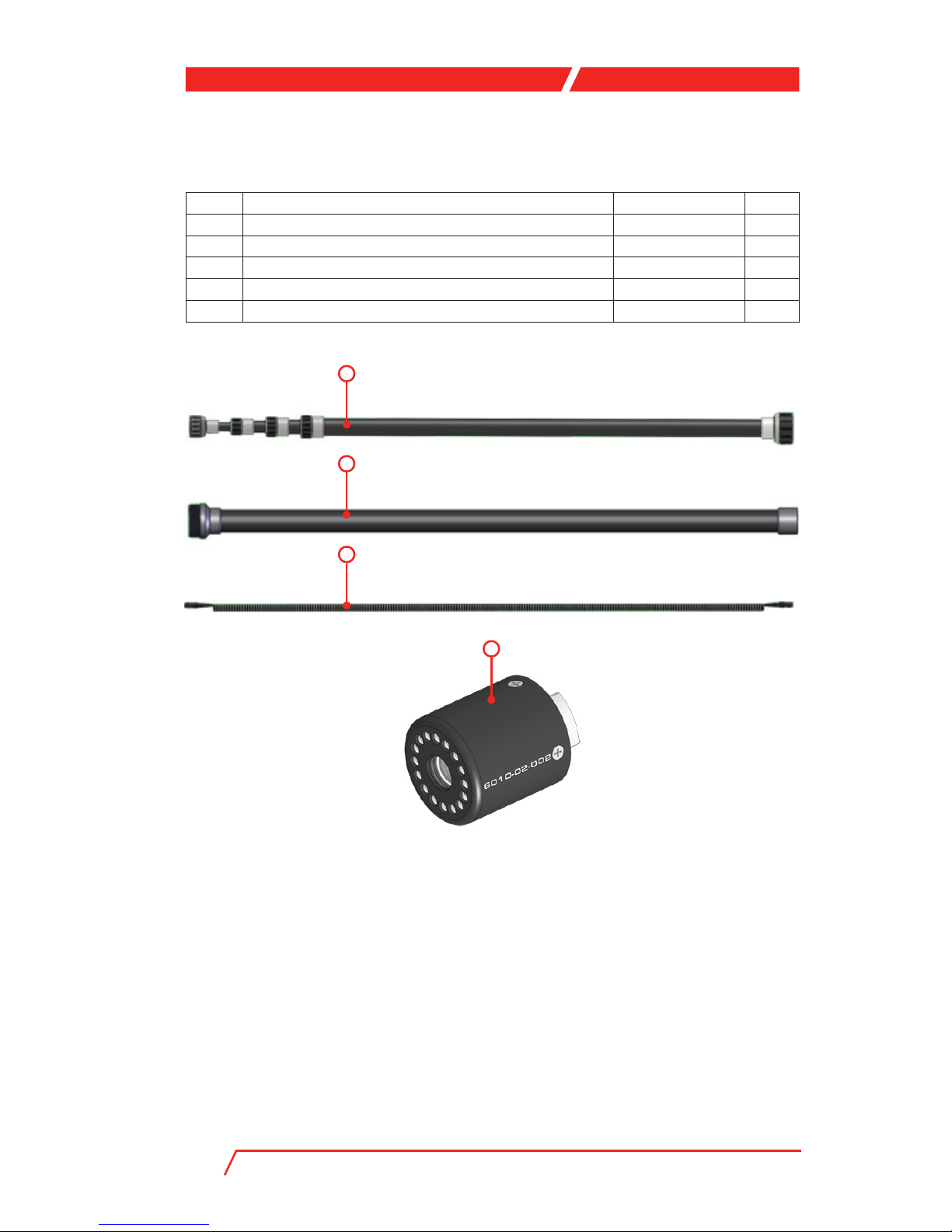

SearchCam®3000 — Kit 2 Contents
6000-11-002
ITEM DESCRIPTION PART NUMBER QT Y.
1SC3000 Kit1 6000-11-001 1
2 Long Tube Set 6010-01-001 1
3Extension Tube 6010-01-002 1
4 Long Coiled Coax Cable 6010-04-003 1
5Infrared Camera 6010-02-002 1
2
3
4
5

OVERVIEWSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 5
General Precautions
The SearchCam®3000 is designed to function under the demanding conditions of a disaster
scene. However, it is important to remember that the system is a precise instrument and it
can be damaged if not cared for properly. The following precautions should be adhered to in
order to prevent damage from misuse:
• Avoid exposing the camera head to great deal of leverage which could result in
damaging the articulating camera joint.
• Do not use the extension cable or the coiled cable by itself as means of lowering
the camera head into a void. Use the provided 70 foot (21 meter) rope with
carabineer 6010-04-005 or your choice of rope as a lanyard in conjunction with
the provided Camera Head Rope Coupler 6010-04-001 to lower the Camera
head into a vertical cavity (see page 10).
• Store the SC3000 Camera System in its original case, laid out as shown on page 2.
• The SC3000 complies with Criteria A of IEC 61000-6-1: 2nd ED 2005 immunity
standard at all frequencies except in the range of 211-215 MHz. At these frequencies
the SC3000 complies with Criteria B, as the VDU may experience loss of video/
audio signal, depending on the intensity of the interfering signal. The SC3000
resumes normal operation without any intervention from the user the moment the
interference is no longer present or the SC3000 is reoriented to minimize its effects.
• This equipment has been tested and found to comply with the limits for Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
CAUTION:
Changes or modications to this equipment, not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

OVERVIEWSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
6
Safety Precautions
Rescue operations can be very hazardous. All safety practices must be understood and
adhered to while working at the rescue scene.
• Always wear the level of personal protective equipment appropriate for the conditions
at the rescue scene. Do not attempt any rescue operation without the training and
experience required to safely perform the rescue, as you could jeopardize your life
as well as the victim’s.
• The SearchCam®3000 camera will conduct electricity. If the camera comes in contact
with a live power line, electrocution could occur while touching any part of the
camera. Verify that all power sources in the collapse area have been disconnected.
Watch for overhead power lines that may be low enough to make contact with
the camera when the camera is extended over your head. Do not operate this unit
in an electrical storm. Failure to take these precautions could result in death by
electrocution.
• The SearchCam®3000 is not certied for use in hazardous atmospheres. Do not
use the system in ammable atmospheres. Always verify that the atmosphere is
clear of ammable gases or liquids before operating the system. Ensure that all
potential fuel sources have been disconnected and properly secured. Failure to take
these precautions could result in an explosion.
• Operate the SearchCam®3000 in a safe manner. Adequate training and judgment
are required to reduce the inherent risks in the rescue environment. Failure to
follow the above safety precautions, and to operate safely at the collapse scene,
may jeopardize your life as well as the lives of your team.
• While the Camera Head with the Environmental Sleeve installed, is capable of
immersion into water up to 75 feet (23 meters) deep, the Power Module and Video
Display Unit are only splash proof. Do not immerse these parts of the system in
water, this may result in permanent damage.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 7
POWER
MODULE
COLLARCOLLAR
CONNECT
SCREWSCREW
CONNECT
TUBE SETCAMERA HEAD
COILED CABLE
SEARCHCAM® 3000 CONFIGURATIONS
The SearchCam®3000 is modular and can be congured to meet the needs of any rescue
situation. This section describes the various congurations of the SearchCam®3000.
Standard and Long Tube Set Conguration
The camera is stored in the case partially assembled to reduce rescue launch time. If the
camera is used directly from the case and has been stored as per factory layout (see page 3),
skip to Step 3.
For Long Tube Set Conguration repeat this operation using Long Tube Set and Long Coiled
Cable provided with Kit 2.
Step 1.
Connect the Standard Length Coiled Cable stored inside the Standard Length Tube Set to
the Camera Head and on one side and to the Power Module on the other side. Make sure the
cable is inside the tube set.
All SC3000 cables use Push-Pull action connectors.
Make sure the smaller end of the Tube Set points towards the camera head.
Step 2.
Screw the collars of the Tube Set onto the Camera Head and the Power Module
respectively. Make sure both collars are tight. Collars are designed for hand installation.
DO NOT use tools to install the collars.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
8
VDU
PLUNGER
GUIDING
PIN
GUIDING CHANNEL
RECEIVING
SOCKET
CONNECT

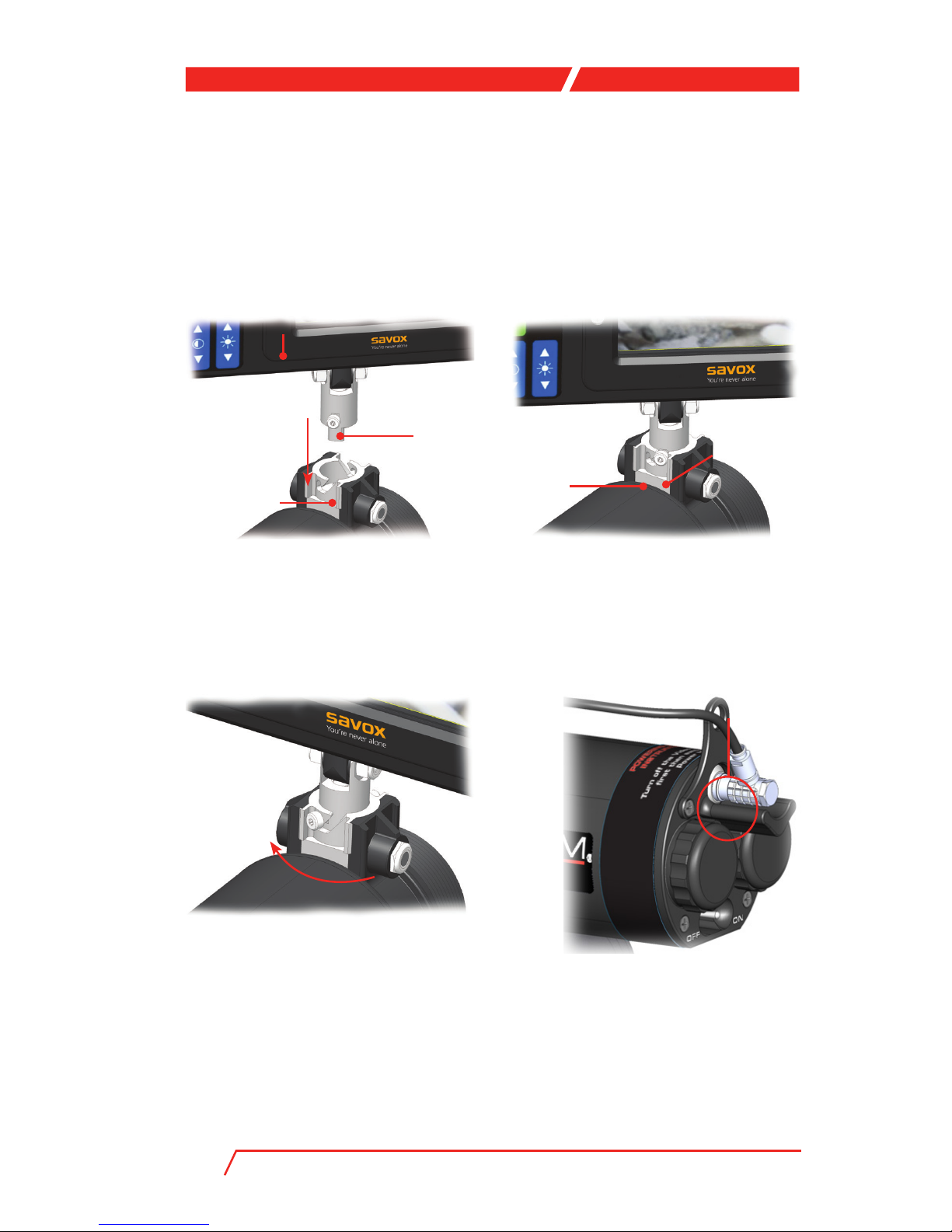

Step 3.
Install the Video Display Unit (VDU) onto the Power Module. Position the VDU over the Power
Module and slide the locking plunger into the receiving socket.
Align the guiding pin on the plunger with the guiding channel on the socket.
Twist the VDU clockwise until the plunger locks securely in place.
Connect the cable from the VDU to the back of the Power Module.
Older versions of the SearchCam 3000 provided a sunshield to protect from a
glaring screen when working under bright sunlight. The ClearSearchTM feature has a
transreective screen that adapts to the environment. Working under bright sunlight or
with oodlights will not reect on the screen anymore.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 9
BATTERY
CAPS
BATTERIES
ON/OFF
SWITCH
SHOULDER SLING

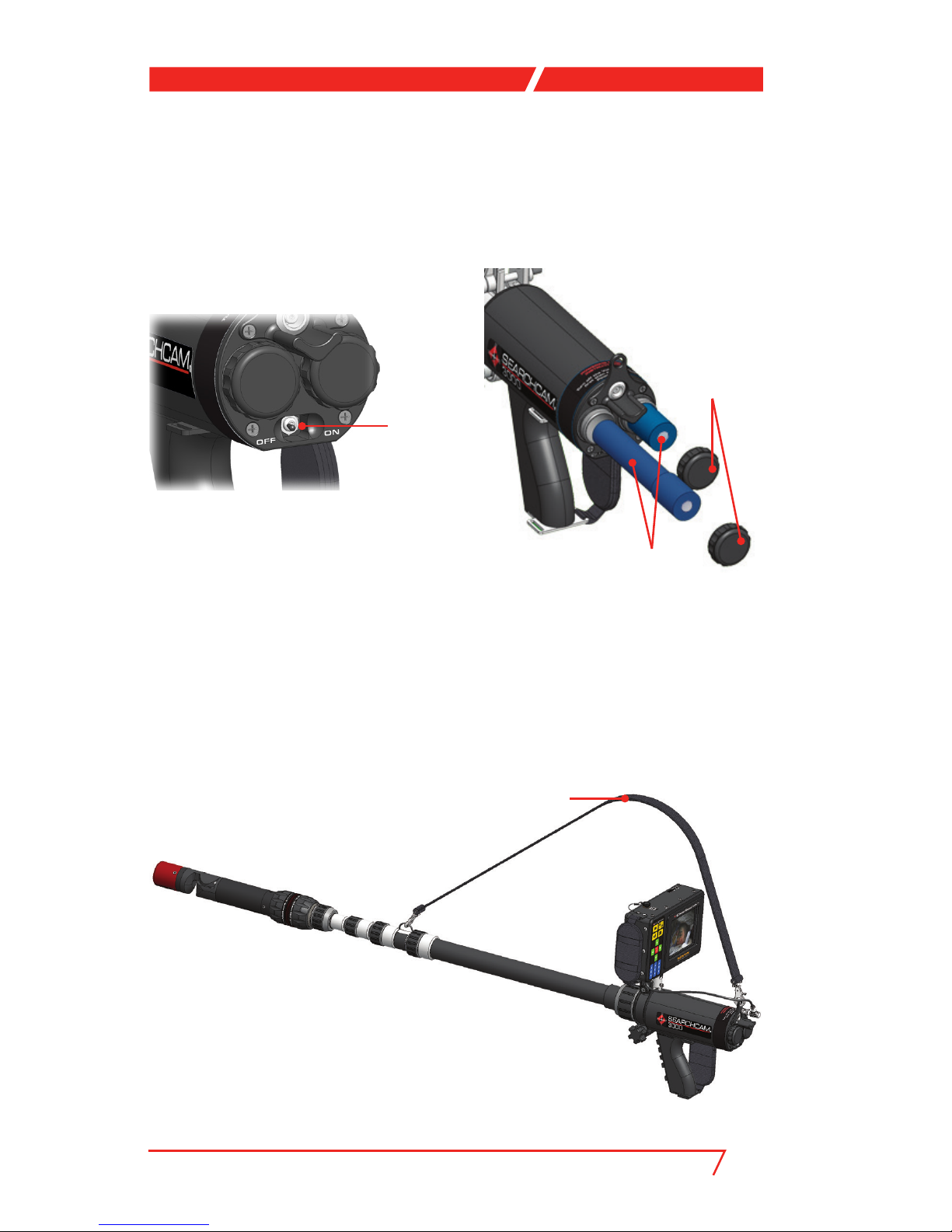

Step 4.
Make sure the ON/OFF Switch on the Power Module is in the OFF position. Remove the
battery caps from the battery holders and slide two batteries into the Power Module. Install
the caps back onto the battery holders. Make sure the batteries are charged (see page 36).
Step 5.
Adjust the length of the shoulder sling to your comfort.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
10
FEED THROUGH
EXTENSION
CABLE
CONNECT
SCREW ON
Camera Probe Conguration in Air
NEVER USE THE EXTENSION CABLE OR THE COILED CABLE BY ITSELF AS MEANS
OF LOWERING THE CAMERA HEAD INTO A VOID.

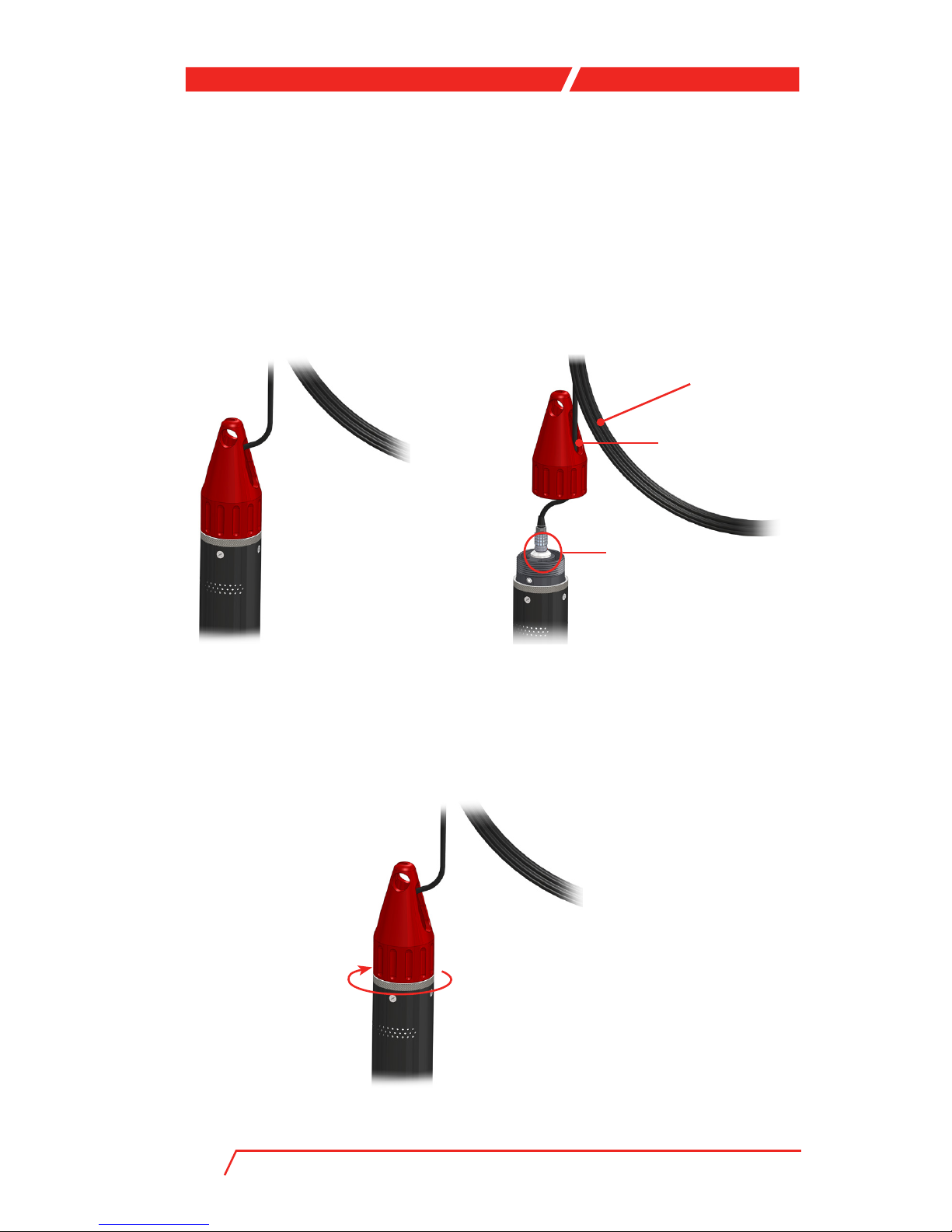

Step 1.
Feed the 75 foot (23 meter) Camera Extension Cable through the long, oval shaped slot on
the Camera Head Rope Coupler and connect it to the back of the Camera Head.
Step 2.
Screw the Camera Head Rope Coupler onto the Camera Head as shown. The Coupler is
designed for hand installation. DO NOT use tools to install the Coupler.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 11
CLIP ON
CONNECT TO
POWER MODULE
REEL
Step 3.
Clip the snap hook ( part of the 70 ft (21 meter) Rope with carabineer) into the Coupler as
shown. Connect the other end of the extension cable to the front of the Power Module.
Step 4.
Lower the Camera Head into an air void by unwinding the Rope from its Reel. Make sure
that the weight of the Camera Head is always taken by the rope, NOT the cable. The Reel
may be used as an anchor.

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
12
Camera Probe Conguration in Water
Audio is NOT available in this conguration.
Step 1.
Follow instructions for Camera Probe Conguration in Air on page 10.
Step 2.
Slide the Environmental Sleeve onto the Camera Head. Move it all the way up until it
reaches the edge of the collar.
Disclaimer:
• Tighten the environmental sleeve until the two red arrows align.
• Verify that the environmental sleeve does not move.
• If over-tightened (it has been tightened past the red arrows lining up)
DO NOT back up, as you will loosen the seal.
Step 3.
Lower the Camera Head into a void lled with water up to 75 feet (23 meters) deep by
unwinding the Rope from its Reel. Make sure that the weight of the Camera Head is always
taken by the rope, NOT the cable. The Reel may be used as an anchor.
ENVIRONMENTAL
SLEEVE
ROPE COUPLER
RED ARROWS
COLLAR
ENVIRONMENTAL
SLEEVE

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 13
Super Probe Conguration In Air
(SearchCam®3000 Kit 2 Required)
Super Probe Conguration requires two operators. One to hold the Power Module and the
other to maneuver the Camera Head.
Step 1.
Remove the Long Coiled Cable from the Long Tube Set.
Step 2.
Screw the back end of the Long Tube Set onto the Extension Tube.
Step 3.
Feed the 75 foot Extension Cable through the tubes.
Step 4.
Connect the Extension Cable to the Camera Head on one side and to the Power Module on
the other side. Screw the small collar of the Long Tube Set onto the Camera Head. Connect
the other end of the cable to the Power Module.
Standard Length Tube Set
with Extension Tube Reach Limits 82" – 133" (208cm – 338cm)
Long Tube Set
with Extension Tube Reach Limits 103" – 223" (261cm – 566cm)
LONG
TUBE SET
EXTENSION
TUBE
EXTENSION
CABLE
SCREW ONCONNECT AND
SCREW ON

CONFIGURATIONSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
14

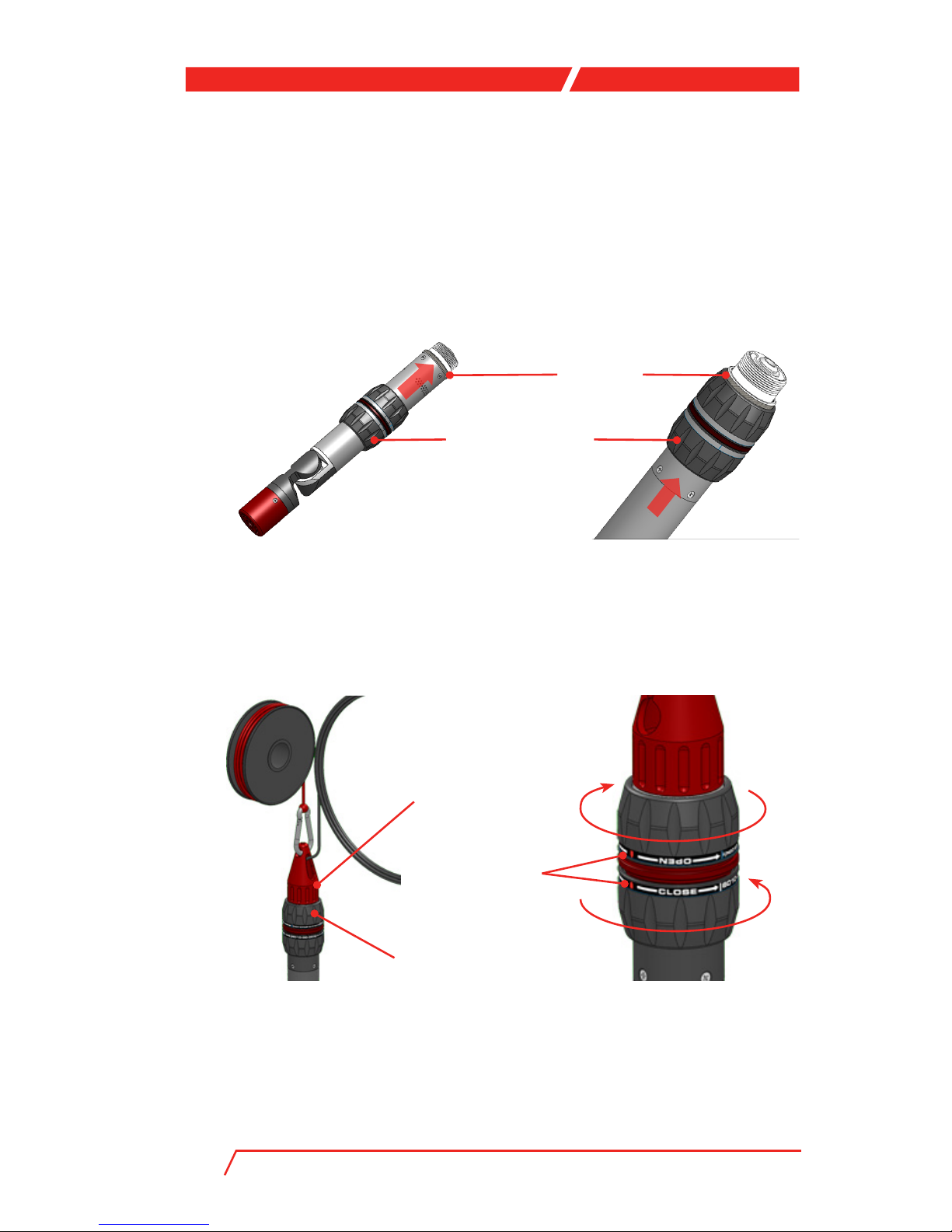

Super Probe Conguration In Water
(SearchCam®3000 Kit 2 Required)
Audio is NOT available in this conguration.
Step 1.
Follow Super Probe Conguration in Air Instructions on page 13.
Step 2. Step 3.
Slide the Environmental Sleeve Move the sleeve all the way up until
onto the Camera Head. it reaches the edge of the collar.
Step 4.
Screw the two outer rings of the sleeve
in the close direction, until the two Red Arrows
on the labels align vertically.
Disclaimer:
• Tighten the environmental sleeve until the two red arrows align.
• Verify that the environmental sleeve does not move.
• If over-tightened (it has been tightened past the red arrows lining up)
DO NOT back up, as you will loosen the seal.
RED ARROWS
COLLAR
ENVIRONMENTAL
SLEEVE

POWERING UPSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 15
Step 2.
Turn on the VDU using the RED ON/OFF button located in the center of the control pad.
The system will take about 15 seconds to “boot up”.
During "boot up" the screen may display a warning regarding the Environmental Sleeve.
Please read this warning carefully and then press the red button on the VDU
to accept and continue.
0 DEGREE
POSITION
ON/OFF BUTTON
SWITCH
ON
POWERING UP THE SYSTEM
Powering Up
Make sure the SC3000 have been assembled as per one of the congurations described in
the previous section (see pages 7 – 14), and batteries are installed inside the Power Module
as per Step 4 on page 9.

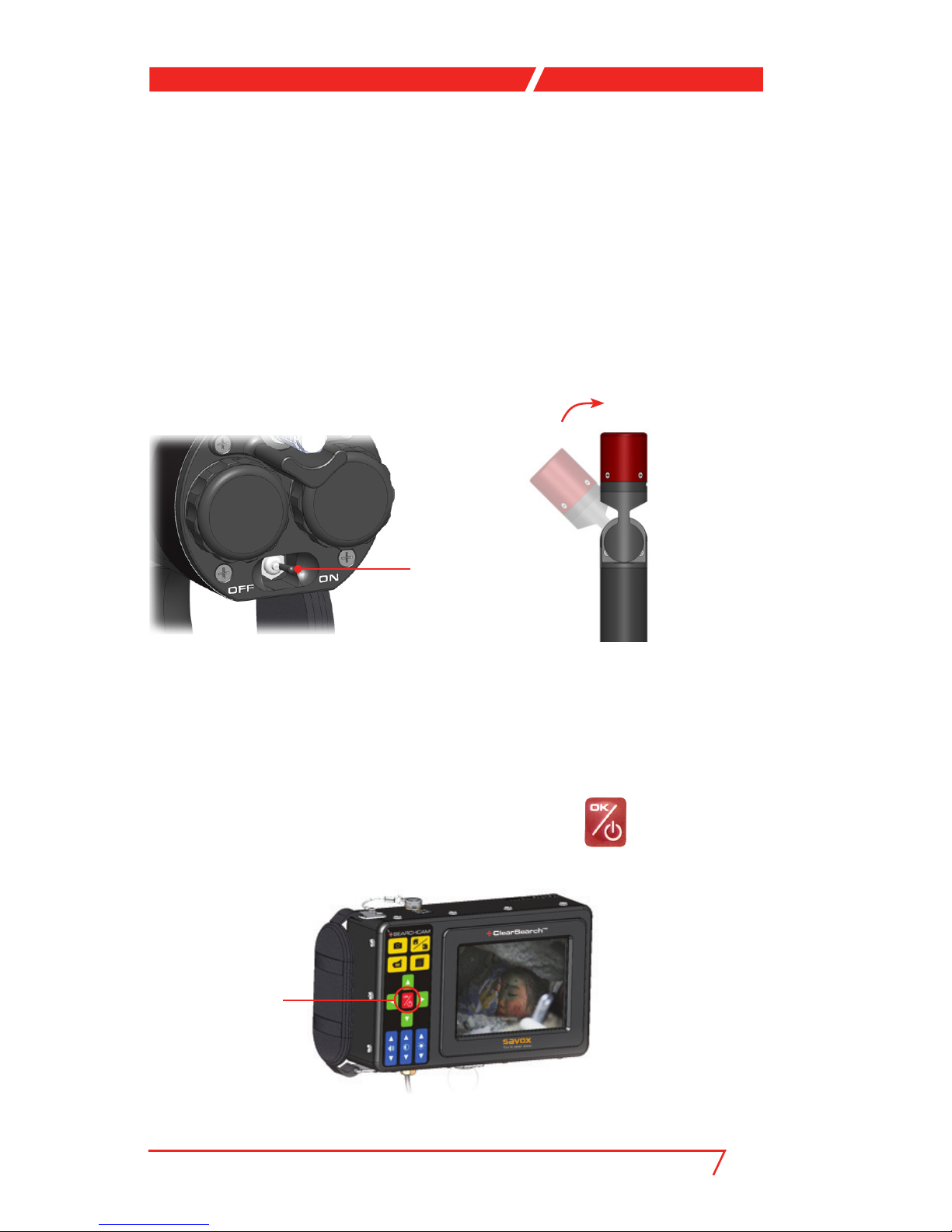

Step 1.
Position the power module so the handle is vertical, as shown in step one on page 7.
Turn ON the Power Module using the ON/OFF switch located on the back of it. The camera
will move to the 0 degree position indicating that the Camera Head has been powered up.

SHUTTING DOWNSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17 www.savox.com
16
ON/OFF BUTTON
LED
SWITCH
OFF
Step 2.
Wait until the VDU has fully shut down, then switch OFF the Power Module.
Shutting Down
IT IS IMPORTANT TO POWER DOWN THE SYSTEM IN THE FOLLOWING SEQUENCE,
FAILURE TO DO SO COULD RESULT IN LOST VIDEO IMAGES AND MAY CORRUPT
THE SD CARD.
Step 1.
Press and hold down the RED ON/OFF button for 3 seconds until the Red LED turns off. The
system will take about 10 seconds to shut down.

PTT
CONTROLSSEARCHCAM®3000 OPERATIONS MANUAL
6010-90-000 R17
www.savox.com 17
SEARCHCAM®3000 CONTROLS
SearchCam®3000 is operated using the ve Rocker Switches located on the Hand Grip
and the buttons located on the front of the VDU.

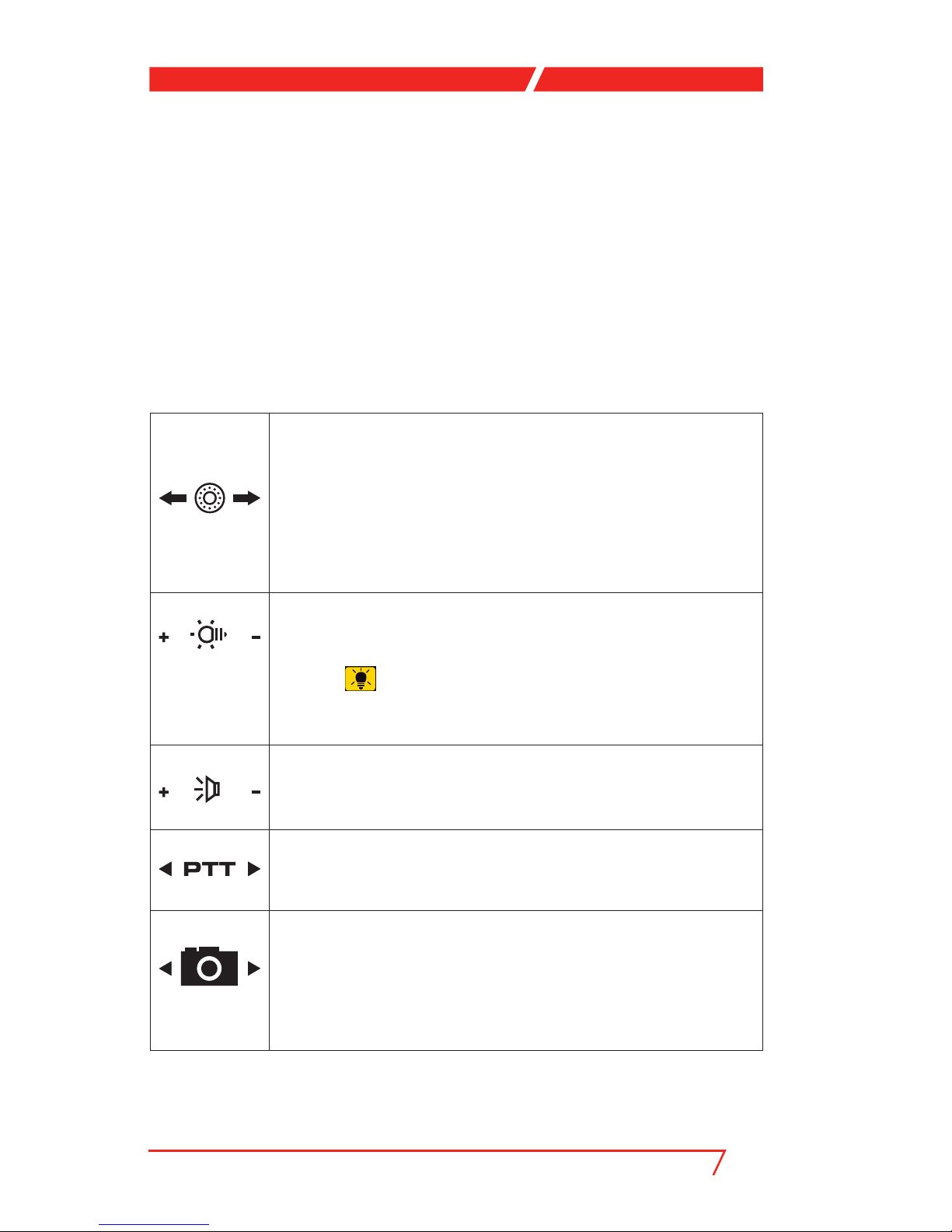

Rocker Switches
Rocker Switches are located on the hand grip of the Power Module. These switches are
used to control the camera’s articulation, illumination, headset volume, and PTT functions.
There is also a still image switch.
The Articulation Rocker Switch moves the camera at the end of the
Camera Head left or right. The camera moves 240 degrees from full
left to full right. Hold the left or right side of the rocker switch down to
move the camera in either direction. The camera will pause in the center
when moving right or left while crossing the 0 degree position. Release
the switch and then depress again to continue actuating the head. The
Camera Head is equipped with a safety clutch (see page 29).
The Illumination Rocker Switch turns ON, increases, decreases and turns
OFF illumination. Move the rocker switch right to turn ON and again to
increase or left to decrease and eventually turn OFF the illumination. The
LED ICON is displayed on the VDU screen when illumination is ON.
An intensity level bar is displayed on the bottom of the screen while the
switch is operated.
This Rocker Switch increases (right) or decreases (left) the headset
volume. This function is also duplicated on the Video Display Unit.
The PTT Rocker Switch (with headset installed) controls the
communication with the victim. Push the switch left or right to talk to the
victim. The switch must be released to listen to the victim’s response.
The Image Capture Switch allows you to capture a specic image being
shown on the display and store it onto the SDHC Card (see page 32).
This function is also duplicated on the Video Display Unit. By default, this
button is inactive to prevent accidental image capture (see page 21).
Table of contents
