Saxun 4 DUPLEX COLUMNS P-150 User manual

ASSEMBLY INSTRUCTIONS BIOCLIMATIC PERGOLA
4 DUPLEX COLUMNS P-150

INDEX
01 INSTALLATION 02
We do not provide the screws for fixing-anchoring to the wall and/or foundations. The fitter must choose the adequate
rod / screw / plug / nut / washer system for fixing and flushing to the foundations ad/or wall, based on the nature of
these surfaces. In any case, the screws must be in stainless steel.
1.1 INSTALLING THE SURFACE BRACKET 02
1.2 ASSEMBLING THE OPENING BEAM WITH THE A and B COLUMNS AND
THE CLOSING BEAM WITH THE C and D COLUMNS 05
1.3 ASSEMBLING THE LEFT BEAM WITH A and C COLUMNS 07
1.4 ASSEMBLING THE CENTRAL BEAM 08
1.5 ASSEMBLING THE RIGHT BEAM WITH B and D COLUMNS 09
1.6 JOINING THE SURFACE MANIFOLDS IN THE OPENING AND CLOSING BEAM 10
1.7 INSTALLING THE RUBBER 12
1.8 INSTALLING “U” DRAINING PROFILE, OPENING, CLOSING, CENTRAL
AND LATERALS 13
1.9 INSTALLING THE SLAT, TRANSMISSION PLATE AND MOTOR TANDEM AXLE 14
1.10 MOTOR INSTALLATION 18
02 ELECTRICAL CONNECTIONS 17
The connection of the electrical installation must be done adhering to the current regulations for low voltage
2.1 ELECTRICAL DIAGRAM OF COMPONENTS 18
03 INSTALLING THE COLUMN CAP 18
04 SWITCHBOARD PROGRAMMING (factory set up) 19
4.1 ADVANCED MOTOR PROGRAMMING (factory set up) 19
4.2 LED LINE PROGRAMMING (factory set up) 21
4.3 TOTAL MEMORY DELETION 21
4.4 CENTRAL PROGRAMMING OF 1 MOTOR WITHOUT LED OR SENSORS 22
05 MAINTENANCE 22
Before assembling, please read the maximum tightening torque for each type of screw, as indicated in this section.
—ANNEX A - REMOVING SLATS 25
—ANNEX B - DISPOSAL OF PACKAGING AND PRODUCT AT END OF USEFUL LIFE 26
—PERGOLA ASSEMBLING CHECKLIST 27

BIOCLIMATIC PERGOLA

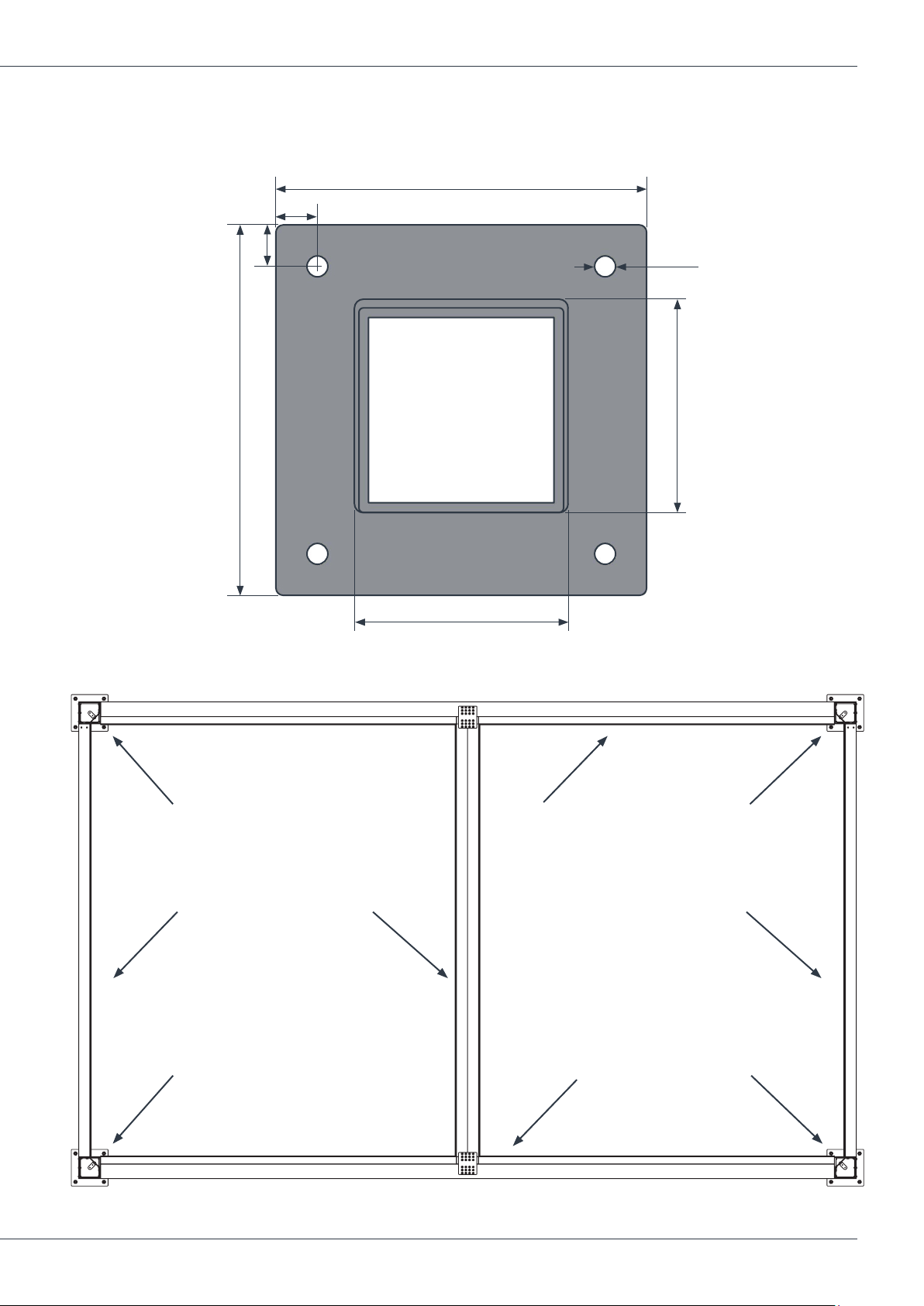

EXACT DIAGONALS

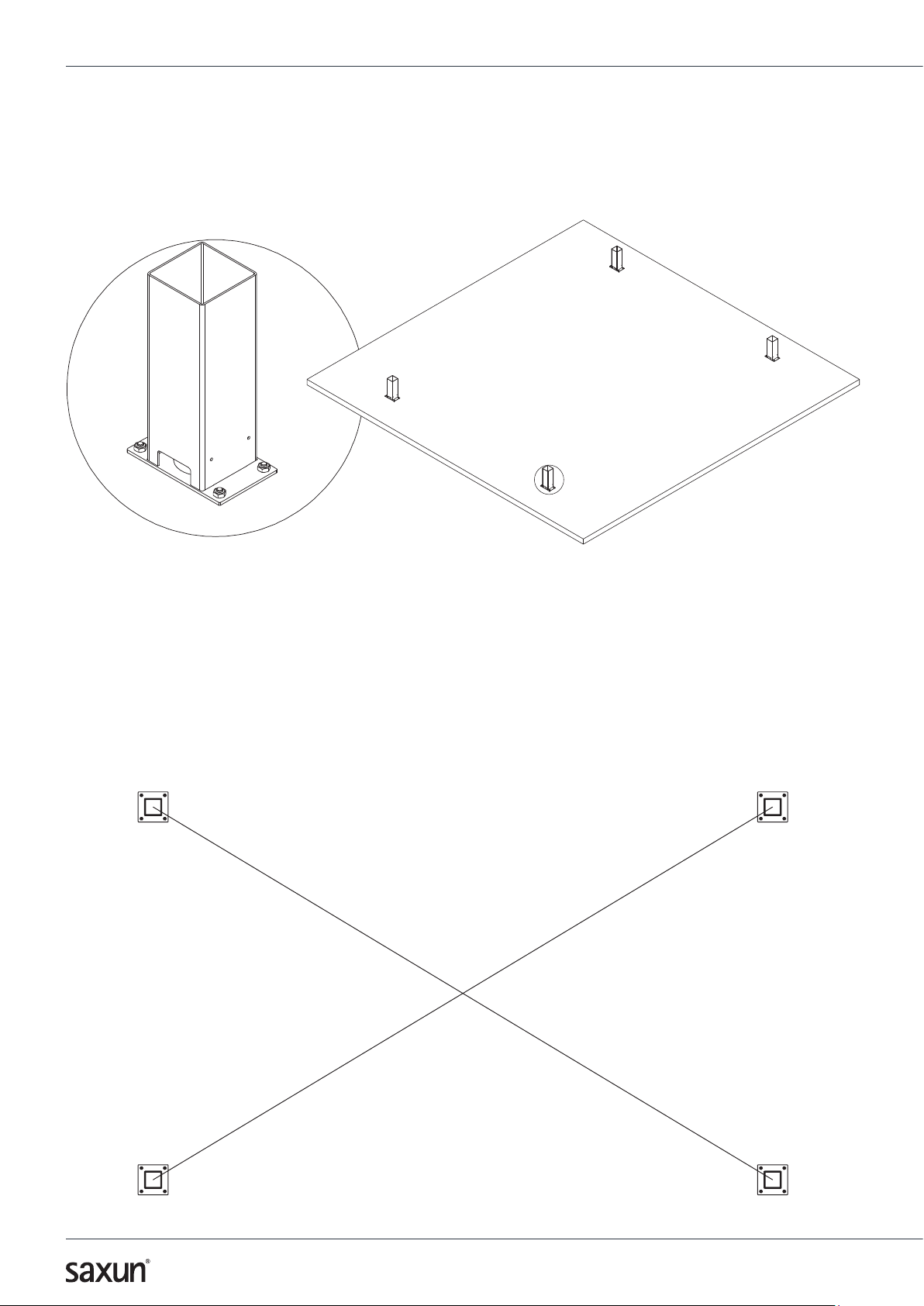

Measure the foundation in order to make sure that the levelling is correct.
Install the base fixings using M-12 screws (not included), with a quality of at least AISI 304 (stainless steel), leaving all
bases properly levelled.
Once the column bases are installed in place, measure the diagonal lines to ensure both distances are equal.
The correct installation of the column bases is critical for the pergola optimum operation.
01 INSTALLATION

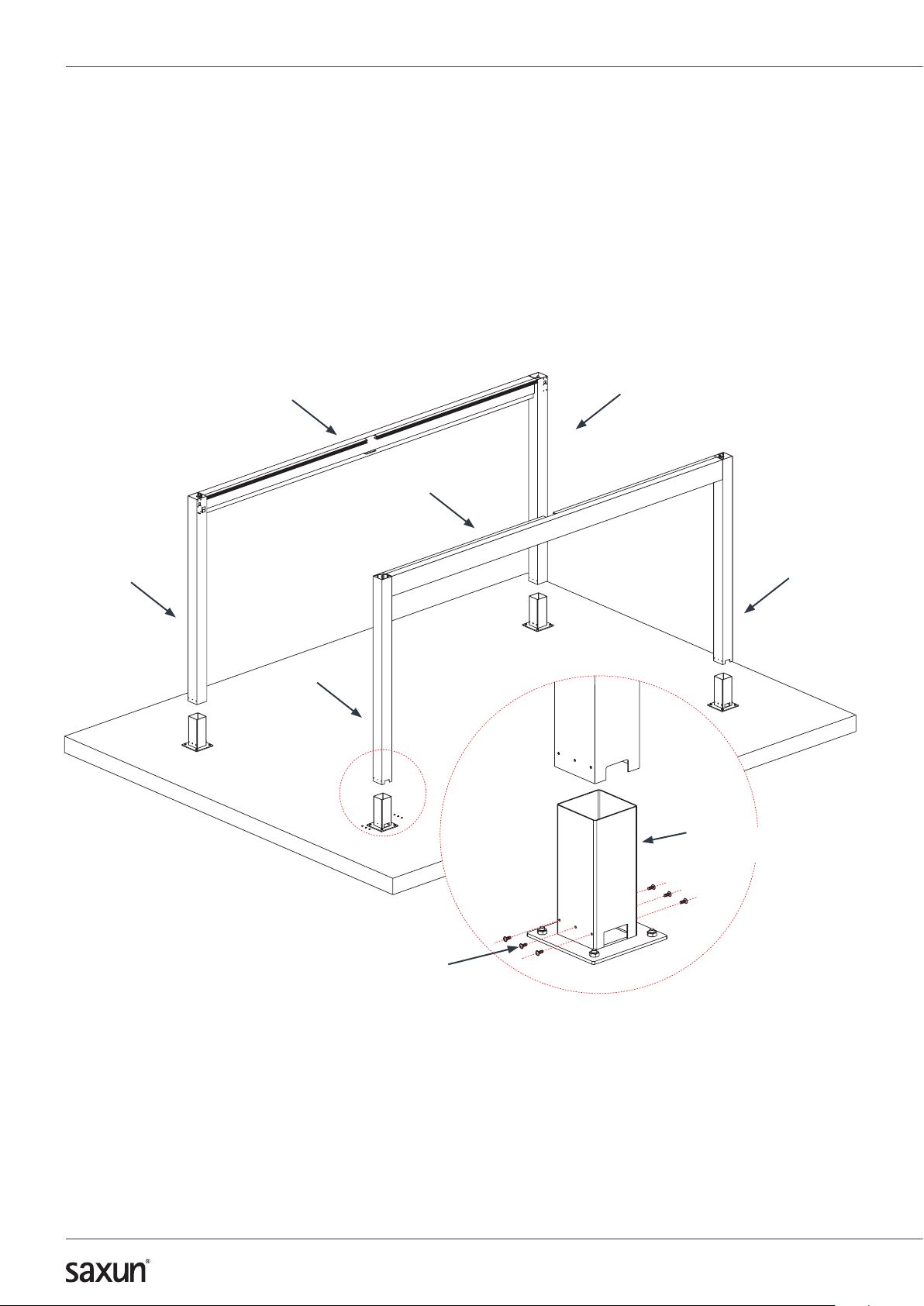

1.1 INSTALLING FIXING BASE COLUMNS SURFACE
FIXING SURFACE 304 STAIN-
LESS STEEL COLUMN BASE
Code 050214

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
3
OPENING BEAM
CLOSING BEAM
FIXING BASE COLUMNS SURFACE PLANE
LEFT BEAM RIGHT BEAMCENTRAL BEAM
COLUMN A
COLUMN B
COLUMN D
COLUMN C
250,00
250,00
28,00
28,00
144,00
144,00
Ø12,00

BIOCLIMATIC PERGOLA
OPENING CLOSING
OPENING CLOSING

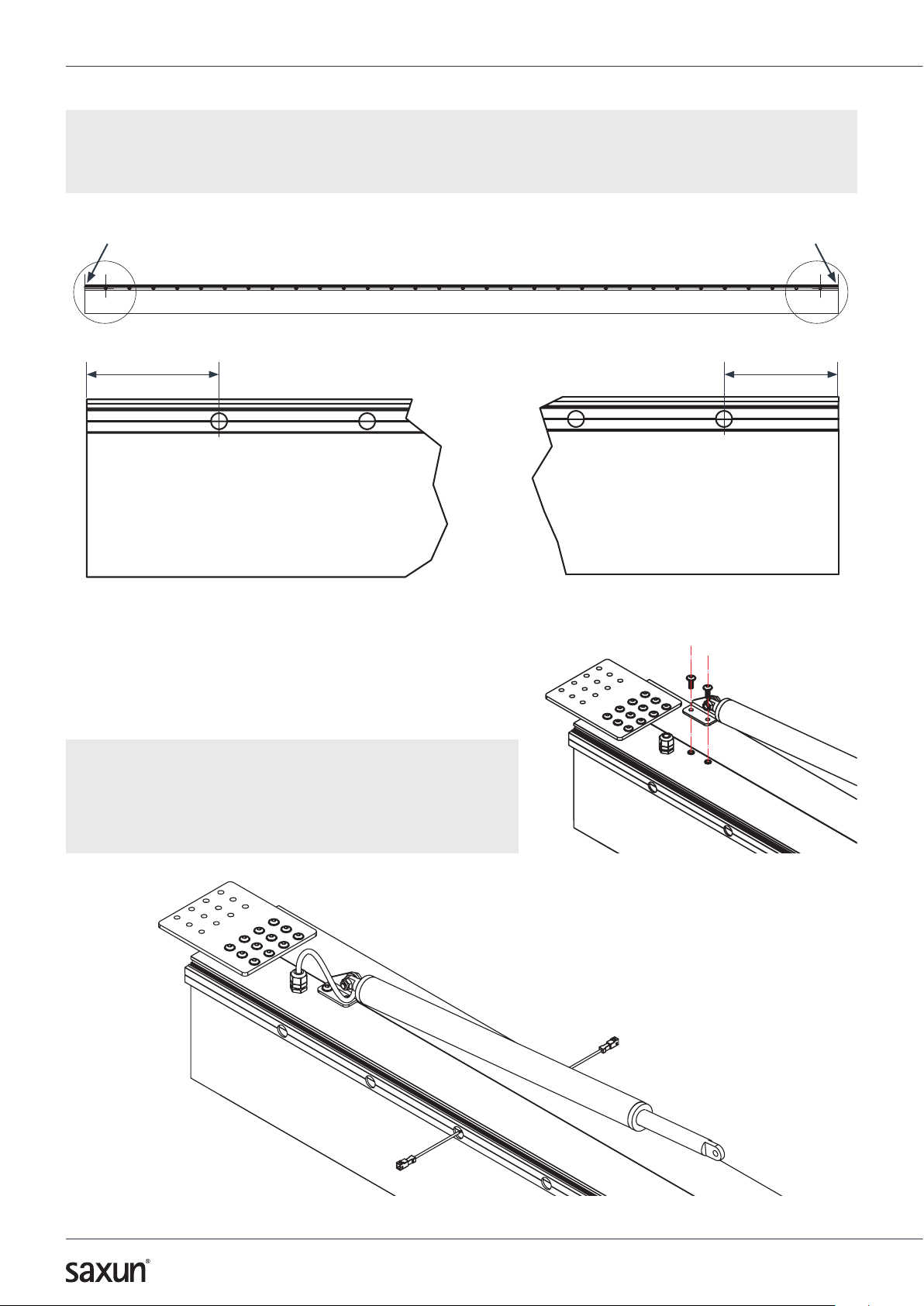

Install the motor on the central beam using the ULS ISO 7380 A2
M6x16 screws, inserting them in the pre-drilled threads created for
this purpose on the closing area of the central beam.
ATTENTION: Make sure you know which end of the left and right beam corresponds to the opening and closing. In
the figure, we show the distance from the first pre-drilled hole in the opening and in the closing.
ATTENTION: If the pergola is equipped with LED lines, you must
pass the LED connector cables through the corresponding slat
hole and take them to the closing area to pull the out through
the hole pre-drilled in the column for this purpose, as well as
the motor cable, which should be put through the cable gland.
134,00 116,00

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
5
CLOSING BEAM
OPENING BEAM
COLUMN A
COLUMN B
COLUMN D
COLUMN C
1.2 ASSEMBLING THE OPENING BEAM WITH THE A and B COLUMNS AND THE CLOSING BEAM WITH
THE C and D COLUMNS

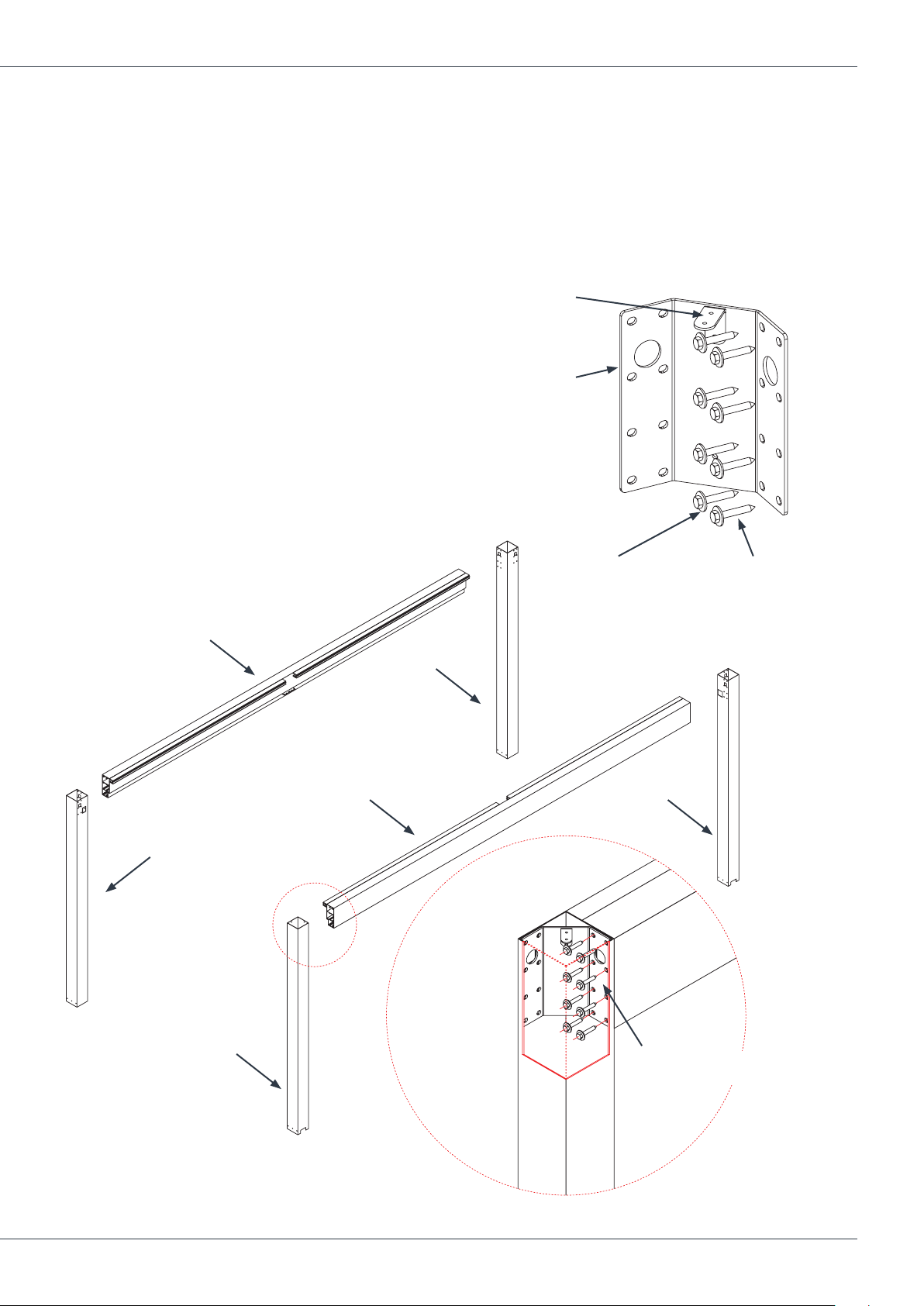

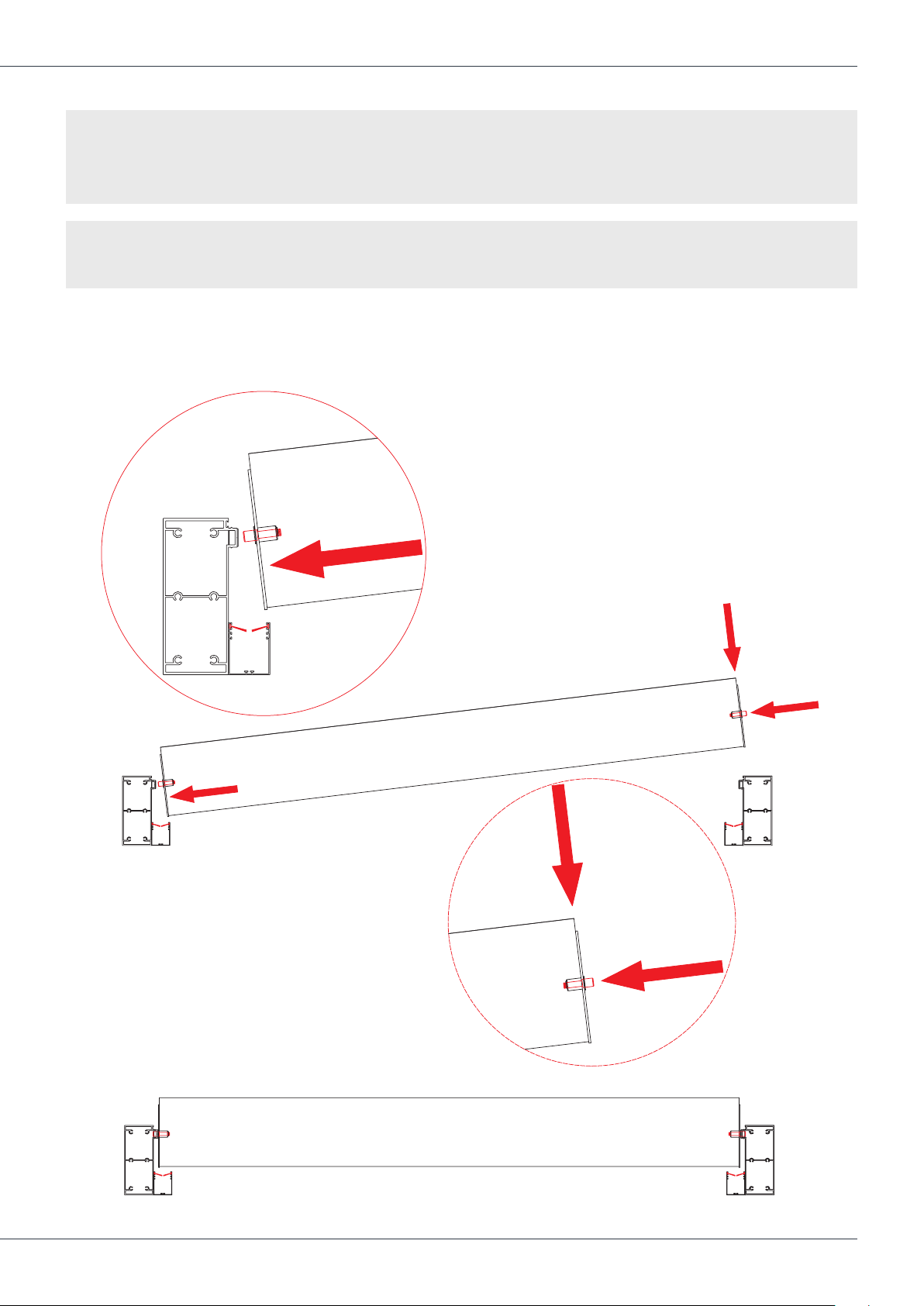

Join the A and B columns to the ends of the OPENING beam.
Join the C and D columns to the ends of the CLOSING beam.
Use the brackets and screws provided (see image).
Fasten the screws 1, 2 and 3 on the inner part of the column, use the washers provided.
SCREW DIN 7976
A2 M8x50
Code 050198
FLAT WASHER
DIN 125 A2 M8
Code 022839
COLUMN SIMPLE BRACLET
PERGOLA, BEAM S 242,5
Code 050265
HOLDER BRACKET
COLUMN CAP
Code 050262
COLUMN SIMPLE BRACLET
PERGOLA, BEAM S 242,5
Code 050265

BIOCLIMATIC PERGOLA
Keeping the opening and closing beams together with the columns, fasten them to the columns bases on the floor surface
using the ULS (ISO 7380) A2 M6x16 mm screws. Proceed as shown in the image.
CLOSING BEAM
OPENING BEAM
COLUMN A
COLUMN B
COLUMN D
COLUMN C
FIXING SURFACE 304 STAIN-
LESS STEEL COLUMN BASE
Code 050214
SCREW ULS (ISO 7380)
A2 M6x16
Code 051103

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
7
1.3 ASSEMBLING THE LEFT BEAM WITH THE A AND C COLUMNS
Join the LEFT beam, to the A and C columns.
Follow the screwing sequence.
Use the brackets and screws provided.
LEFT BEAM
SCREW DIN 7976
A2 M8x50
Code 050198
ARANDELA PLANA
DIN 125 A2 M8
Code 022339
COLUMN SIMPLE BRACKET
PERGOLA, BEAM S 242,5
Code 050265
HOLDER BRACKET
COLUMN CAP
Code 050262
COLUMN SIMPLE BRACKET
PERGOLA, BEAM S 242,5
Code 050265

BIOCLIMATIC PERGOLA
1.4 ASSEMBLING THE CENTRAL BEAM
When mounting the central beam, you should pass the
LED connectors and motor connection cable through to

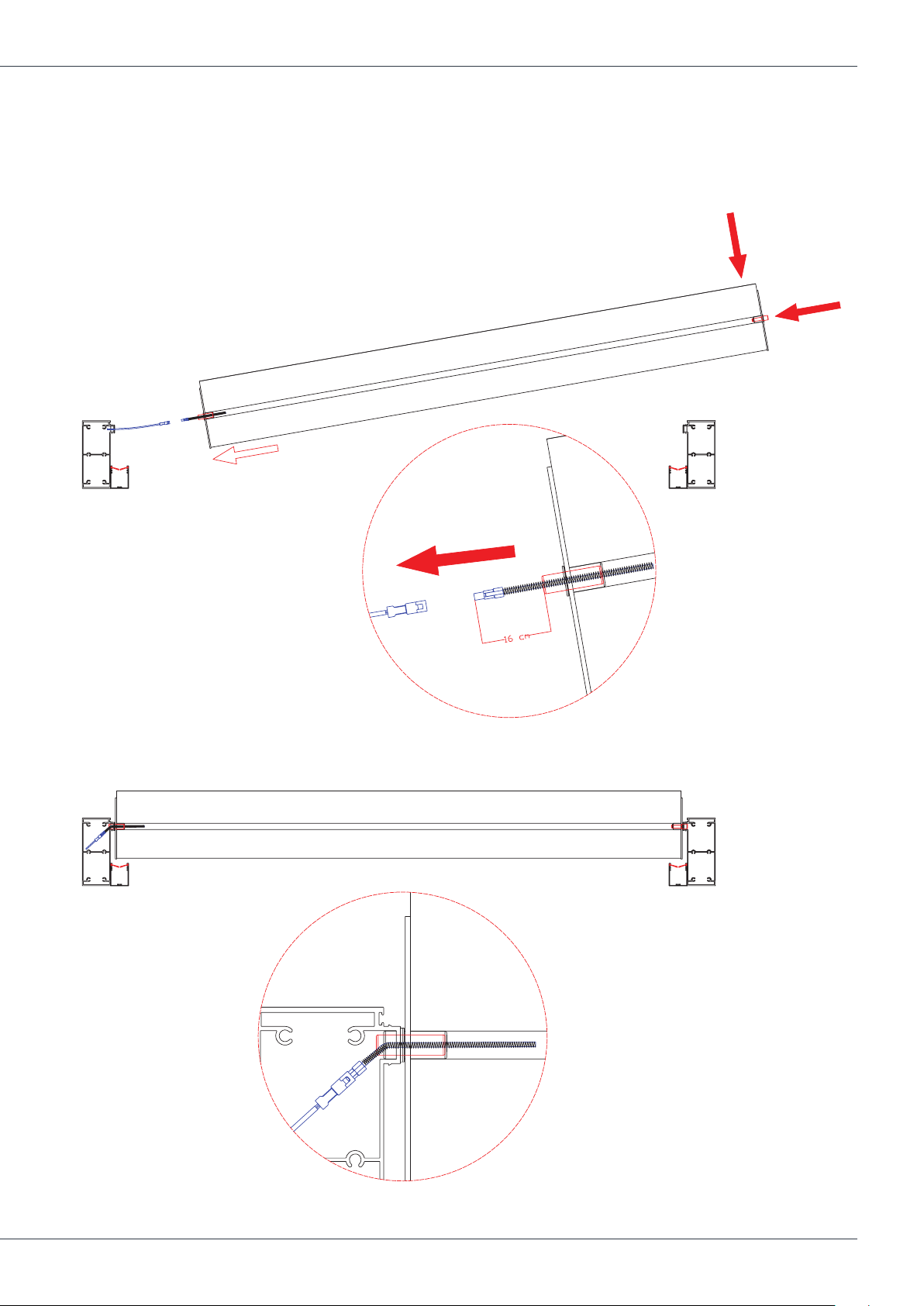

the closing beam using a purposely pre-drilled hole. Once
inserted into the closing beam, take them towards the re-
quired column to complete the connection.
Mount the CENTRAL beam between the opening and clos-
ing beams.
Match the holes in the top plates of the central beam
with the top rivet nuts on the opening and closing beams.
Simultaneously match the holes in the S duplex bottom
plate supporting the opening and closing beam.
Tighten all the plates using the ULS (DIN 7380) A2 M6x16
screws provided.
CENTRAL BEAM
SCREW ULS (ISO 7380)
A2 M6x16
Code 051103
SCREW ULS (ISO 7380)
A2 M6x16
Code 051103
TOP PLATE DUPLEX
Code 050251
BOTTOM PLATE DUPLEX
Code 050270

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
9
ATTENTION: Tighten the screws with the torque indicated in the maintenance section.

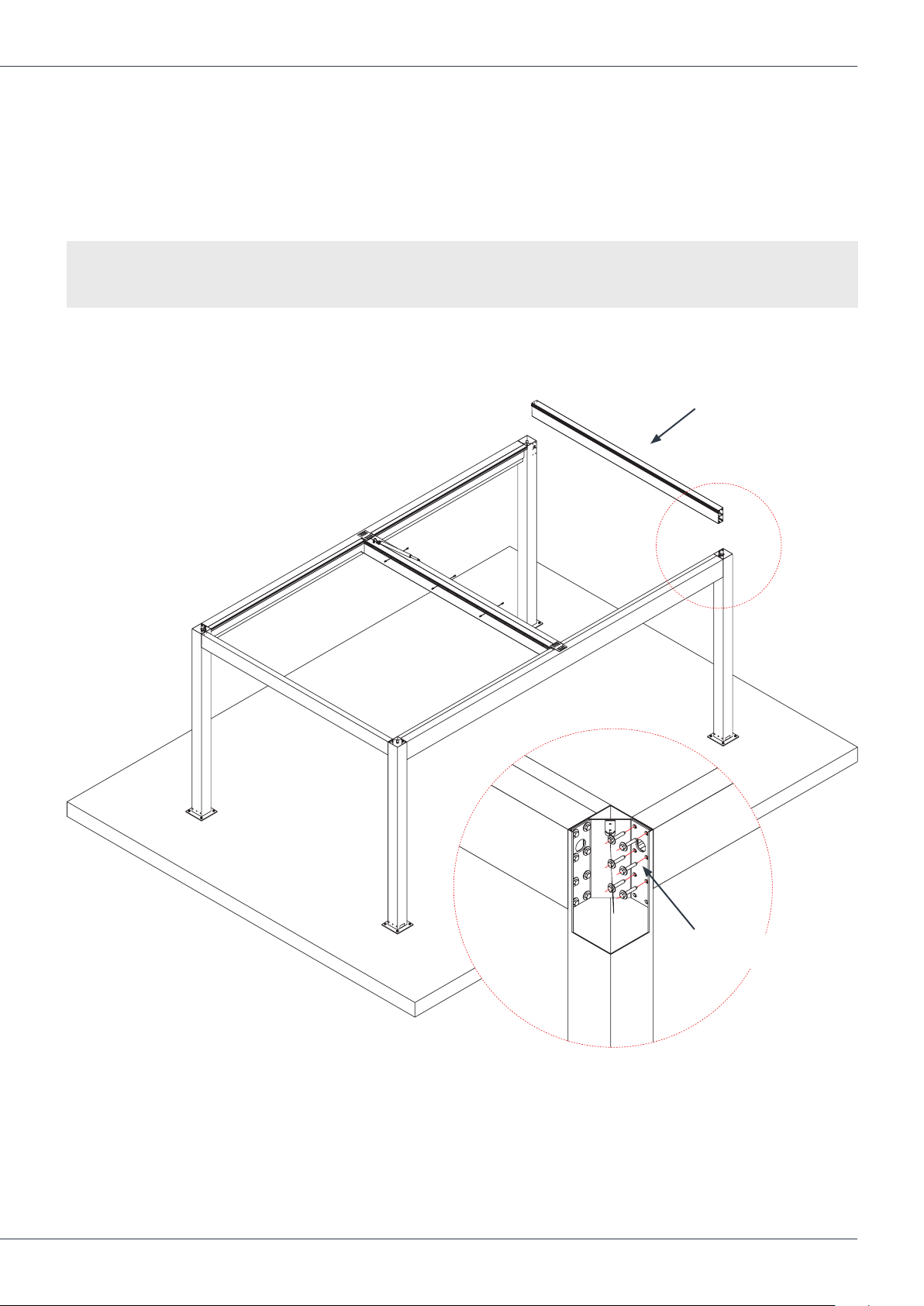

1.5 ASSEMBLING THE RIGHT BEAM WITH B and D COLUMNS
Join the RIGHT beam, to the B and D columns.
Follow the screwing sequence.
Use the brackets and screws provided.
RIGHT BEAM
S BEAM SINGLE
BRACKET 242,5
Code 050265

BIOCLIMATIC PERGOLA
OPENING CLOSING
1.6 JOINING THE SURFACE MANIFOLDS IN THE OPENING AND CLOSING BEAM
Apply the provided sealant between the contact sides of the OPENING and CLOSING beams and their corresponding sur-
face manifolds.
Clip the opening and closing manifolds (same profile, just in an inverted position). You will possibly need to use clamps
or wooden blocks to help you with the clipping.
OPENING SURFACE
MANIFOLD
CLOSING SURFACE
MANIFOLD

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
11
ATTENTION: Do not bypass this step, it is very important to seal the manifold joint properly (sealant provided).
Create a groove for the water run-o at
each end of both manifolds (use a ham-
mer and a flat screwdriver).
OPENING CLOSING
SEALANT

BIOCLIMATIC PERGOLA
Installing rubber on the last slat.
Installed in the opposite way to the rest of lasts.
The clippable closing gutter does not have rubber.
Installing rubber on the clippable opening gutter.
Installing rubber on the slats (150 slat step).
Installing rubber on the slats (150 to 160 slat step).
1.7 INSTALLING RUBBER
OPENING CLOSING

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
13
1.8 INSTALLING “U” DRAINING PROFILE, OPENING, CLOSING, CENTRAL AND LATERALS

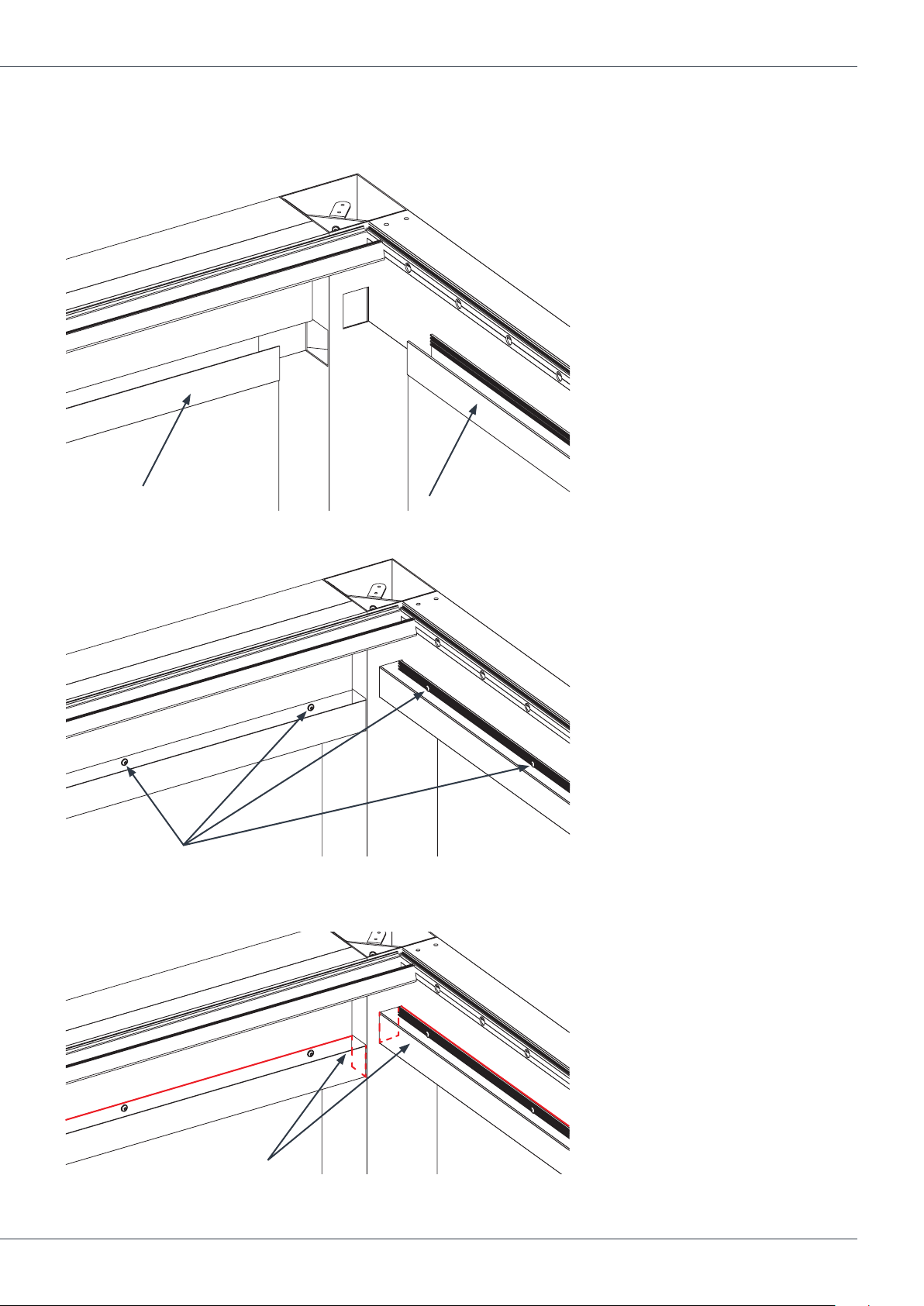

Check that all the “U” profile holes match
the M6 pre-drilled ones on the beam.
If all of them match, apply the sealant
between the “U” profile and the beam
after screwing the profiles with the ULS
(ISO 7380) A2x16 screws.
Use the sealant provided to seal the “U”
profiles to the beams and the joints that
could suer water leaks.
Install the “U” draining profile on the
LEFT and RIGHT beams. To do it, in-
sert the profile end through the drain-
ing hole pre-drilled on columns A and
B and leave it flush with the beam and
columns C and D.
Mount the U-shaped grooves on the
central beam, flush with the opening
and closing beams, just as you did with
the U-shaped drain grooves 62x65x2,5
along the opening beam, inserting the
A and B column ends into the closing
beam, flush with the C and D columns.
SEALANT
SCREW ULS
(ISO 7380) A2 M6x16
Code 051103
“U” 62x65x2,5
Code 050155 “U” 60x48
Code 008830

BIOCLIMATIC PERGOLA

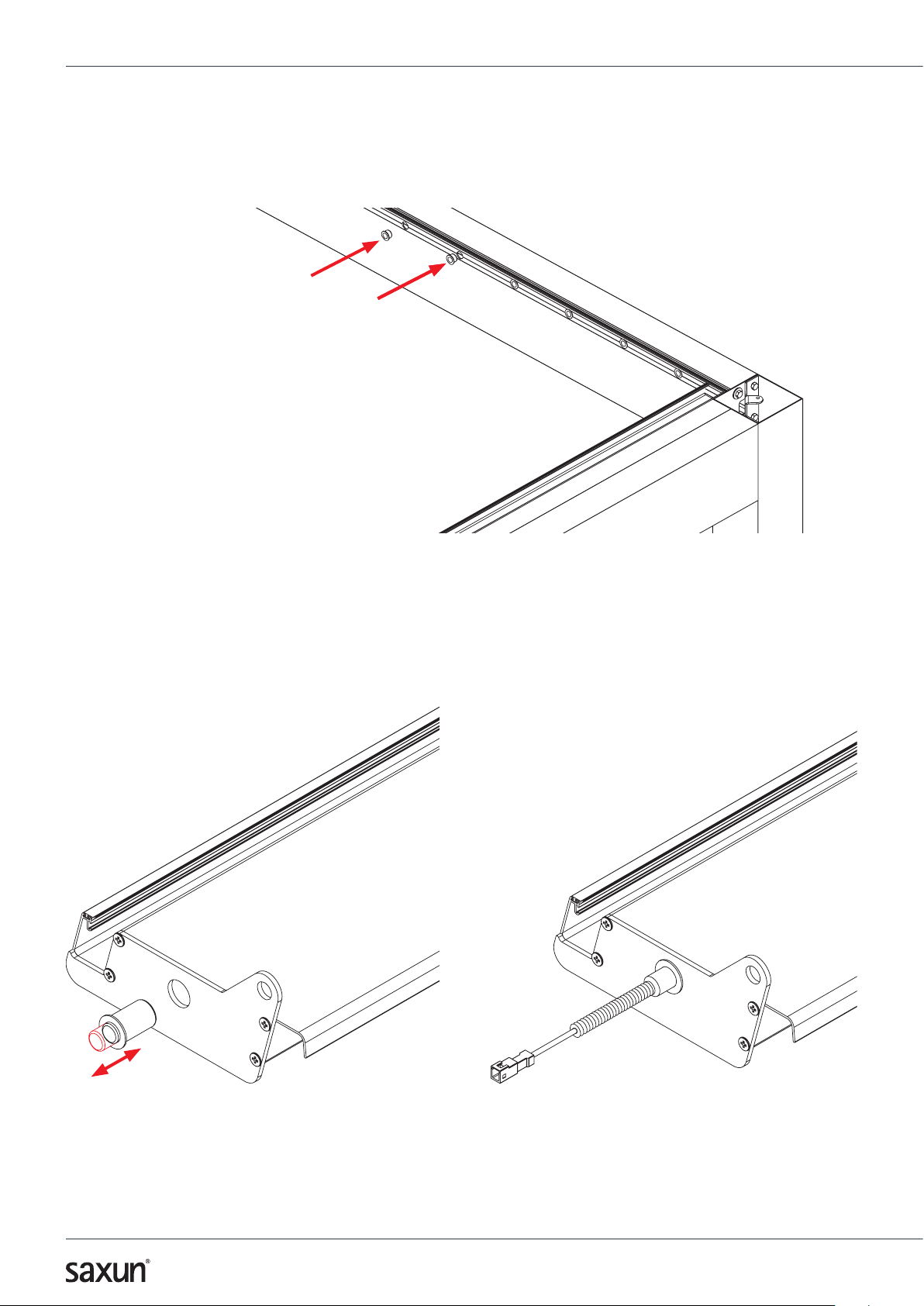

To install the slats without LED you will have a set of O-210 pivot-type caps, integrated by a 16,4x25 mm plastic cap and
a retractable stainless steel axle.
The slats with LED come already pre-instaled on one side with a hollow axle. The LED connector comes through this axle
and it has a protection spring. The O-210 retractable axle needs to be installed on the other end.
1.9 INSTALLING THE SLATS
Before installation of the slats, place the 16,6x11 mm anti-friction caps.

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
15
Start installing the slats from the CLOSING BEAM and from the top part of the pergola. Insert the slat axle into the left
beam, lower the right side at the same time you insert the retractable axle into the end cap and insert it into the anti-
friction cap of the right beam, so the slat is finally in place.
ATTENTION: Pay attention when installing the slats so there are no errors or confusion in their placement, opening,
closing, LED slats, etc.
If it was necessary to remove any of the slats, follow the steps described in annex A.

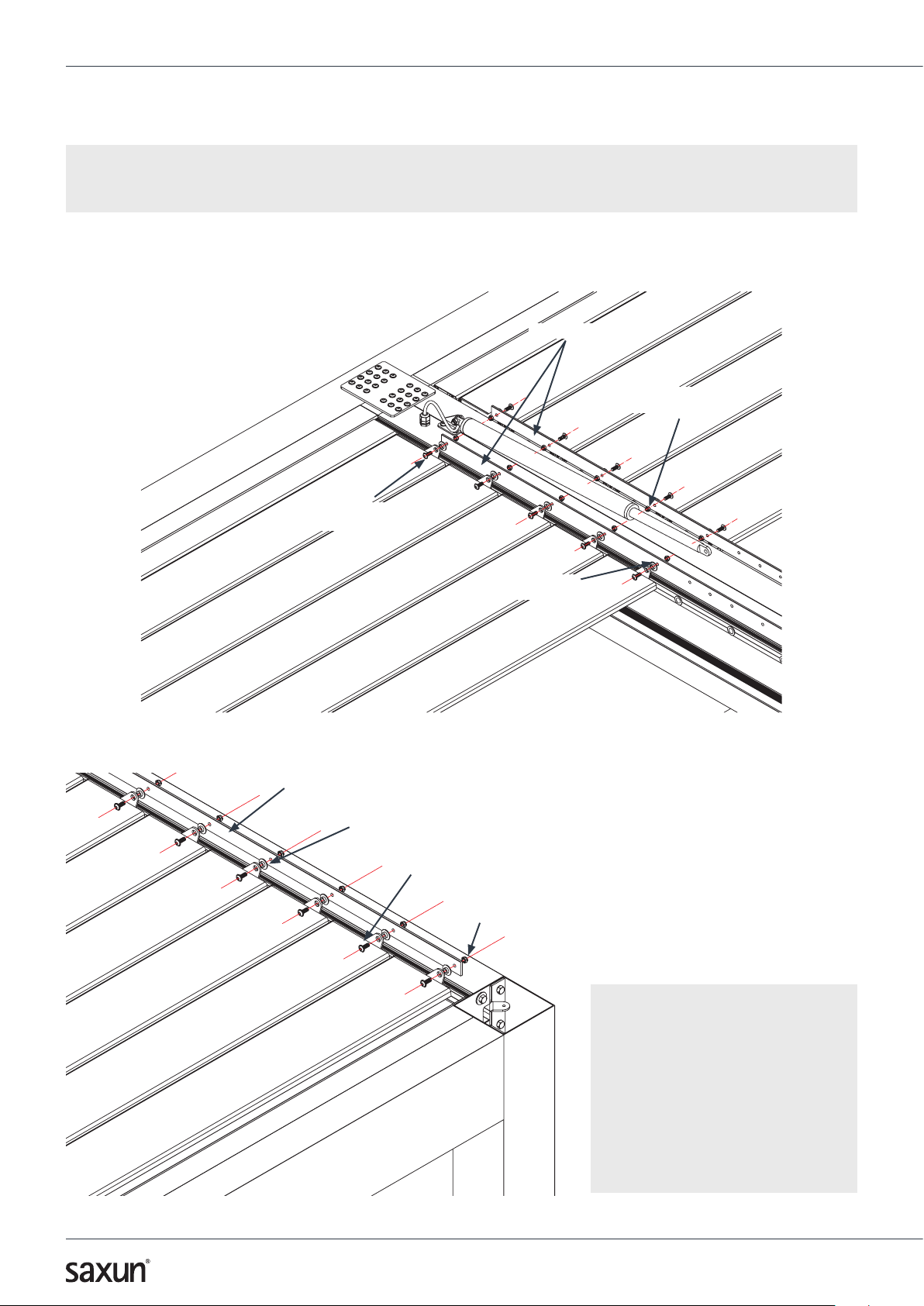

VERY IMPORTANT: The central beam transmission plates must be installed simultaneously with the mounting of
the slats in duplex pergola panels (install 2 or 3 slats, then install the plates).

BIOCLIMATIC PERGOLA
VERY IMPORTANT: The central beam transmission plates must be installed simultaneously with the mounting of
the slats in duplex pergola panels (install 2 or 3 slats, then install the plates).
ATTENTION: When installing the
plate in the slats, do not tighten
too much the screw nuts, so they
are set without tightening. Thus
the plate can perform manually
the opening and closing move-
ments with no friction whatso-
ever.
INSTALLING THE TRANSMISSION PLATE
To mount the motor there is a tandem axle holding the two central transmission plates. These have two pre-drilled holes
and must be installed towards the closing area nearest to the motor area, 5th or 6 th slat.
If you prefer, the LEFT and RIGHT beam plates can be mounted after all the slats have been inserted.
Join the plates to the end caps with their
corresponding ULS (ISO 7380) A2 M6x16
screws, 6,3 mm rimmed plastic caps and
M6 DIN 985 nut.
ULS (ISO 7380) A2 M6x16
Code 051103
ULS (ISO 7380) A2 M6x16
Code 051103
NUT M6 A2 DIN 985
Code 051048
NUT M6 A2 DIN 985
Code 051048
CASQUILLO CON REBORDE 6,3
Code 051033
RIMMED CAP 6,3
Code 051033
TRANSMISSION PLAT
TRANSMISSION PLAT

ASSEMBLY INSTRUCTIONS 4 COLUMNS DUPLEX P-150
17
When reaching a hole for LED slats, connect the connector and insert it into the beam (as shown in the images below).
As for the other slats, the installation is the same, inserting the connector axle into the beam with the LED installation and
the retractable axle into the other beam.

BIOCLIMATIC PERGOLA
When proceeding to mount the 5th or 6th slat, you will reach the area with the pre-drilled holes in the transmission plates,
intended to install the COMPLETE TANDEM AXLE SET with code: 050307.
The transmission plates have some pre-drilled holes to mount the driving tandem axle, which should be placed near the
CLOSING area.
There could be variations in the mounts for
the motor and tandem axles provided, but
all the pre-drilled holes made in the pergo-
la, as well as the screws and pins provided,
will be adequate for each case.
1.10 MOTOR INSTALLATION
You should already have the motor on the central beam, unless otherwise specified in the manufacturing order.
Steps to join the motor to the transmission plate tandem axle.
1Move the tandem axle, together with the transmission plates and mounted slats, until the tandem axle carrying
mount matches the motor rod.
2Fasten it by inserting the pin and cotter pins or screw provided.
1
2
2
TANDEM FULL SET
Code 050307
