SBS SBS-6000 User manual

SBS-6000
Battery Analyzer
User’s Manual
V2.0
Storage Battery Systems, Inc.

Exception Clause
This information and all other documents in printed or
electronic form are only provided for reference. Although
efforts have already been made to confirm the integrality and
accuracy of this information, the Storage Battery Systems, Inc.
Just offers this information and all other documents “ As Is
(the original) ” without any guarantee, and refuses to provide
any guarantees within the range permitted as wide as
possible, including but not limited to those guarantees
concerning the implicated marketability, non-infringement
and the suitability to specific applications In addition, the
Storage Battery Systems, Inc. Will not take the responsibility
for any damages due to the use of such information or other
documents (including but not limited to any direct, indirect,
inevitable or accidental ones). Though some contents may
supplement each other, no contents included in such
information or any other documents will make any
guarantees or statements of the Storage Battery Systems, Inc.
(or its suppliers or licensers), and any changes to those
clauses applicable to the license agreement of this software
as well.
Copyright
This product is under the protection of the copyright law.
Without the authorization in writing by the Storage Battery
Systems, Inc. In advance, no one is allowed to copy, print,
adapt, translate or abbreviate all or part of this product and
documents into any electronic or machine-readable forms,

unless otherwise expressly provided in this software license
agreement.
© All rights reserved 2005 –2012. Storage Battery Systems,
Inc.
DADI Science & Technology District, Liuzhou
New & High-tech industrial Development Zone,
Liuzhou, Guangxi, China
All rights reserved. Printed in China.
Trademark
Dadi is the registered trademark of the Storage Battery
Systems, Inc. In China and other countries. Pentium and Intel
are the registered trademarks of the Intel Corporation in
U.S.A. and other countries. Windows 2000 is the trademark of
the Microsoft Corporation in U.S.A. or other countries. Logos
such as ActiveX, Microsoft, NetMeeting, PowerPoint,
Windows, Windows NT and Windows are the registered
trademarks of the Microsoft Corporation in U.S.A. or other
countries. The names of other products and companies
mentioned may be the trademarks or registered trademarks
of their owners.
Safety matters
In the whole test process, please comply with common. safety
prevent norms. If you use the tester without this user manual,
and the tester is damaged, DADI Telecom won’t undertake
any responsibility. Please be sure to obey the following safety
norms, lest cause bodily injury or tester damage.

Warning
Battery charging
Charging the battery must use the charger from the manufacturer. You
can’t use any unauthorized charger, lest cause tester damage or
accident.
Battery replacement
Please use the manufacturer configured Li batteries. You can’t operate
the tester in inflammable or explosive environment. Do not use the
tester in environment with inflammable or explosive liquid or steam. In
this environment, it will be dangerous with any electrical instruments.
Open rear cover
Unless you want to replace modules, please don’t open rear cover or
bottom cover. The replace must be operated by formal trained stuff.
There is high voltage in some areas inside the tester which will cause
dangerous if it is mishandled.
LCD
If the LCD is damaged and liquid outflows, please don’t inhaled it into
mouth or splash on skin. If the liquid is splashed into eye or mouth,
please immediately rinse with water and go to the hospital; if the liquid
is splashed on skin or clothes, please wipe with alcohol firstly, and then
wash with soap and water. In addition, take care, don’t be scratched by
glass fragments, don’t touch the border of glass fragments.

Catalogue
Chapter 1 General................................................................................ 7
Chapter 2 Inspection............................................................................ 7
2.1 Unpack the Instrument ........................................................... 7
2.2 Accessory and Option ............................................................. 8
2.3 Power Supply .......................................................................... 8
Chapter 3 General operation and use guide........................................ 9
3.1 Operation standard................................................................. 9
3.2 Use notes............................................................................... 10
Chapter 4 Menu ................................................................................. 11

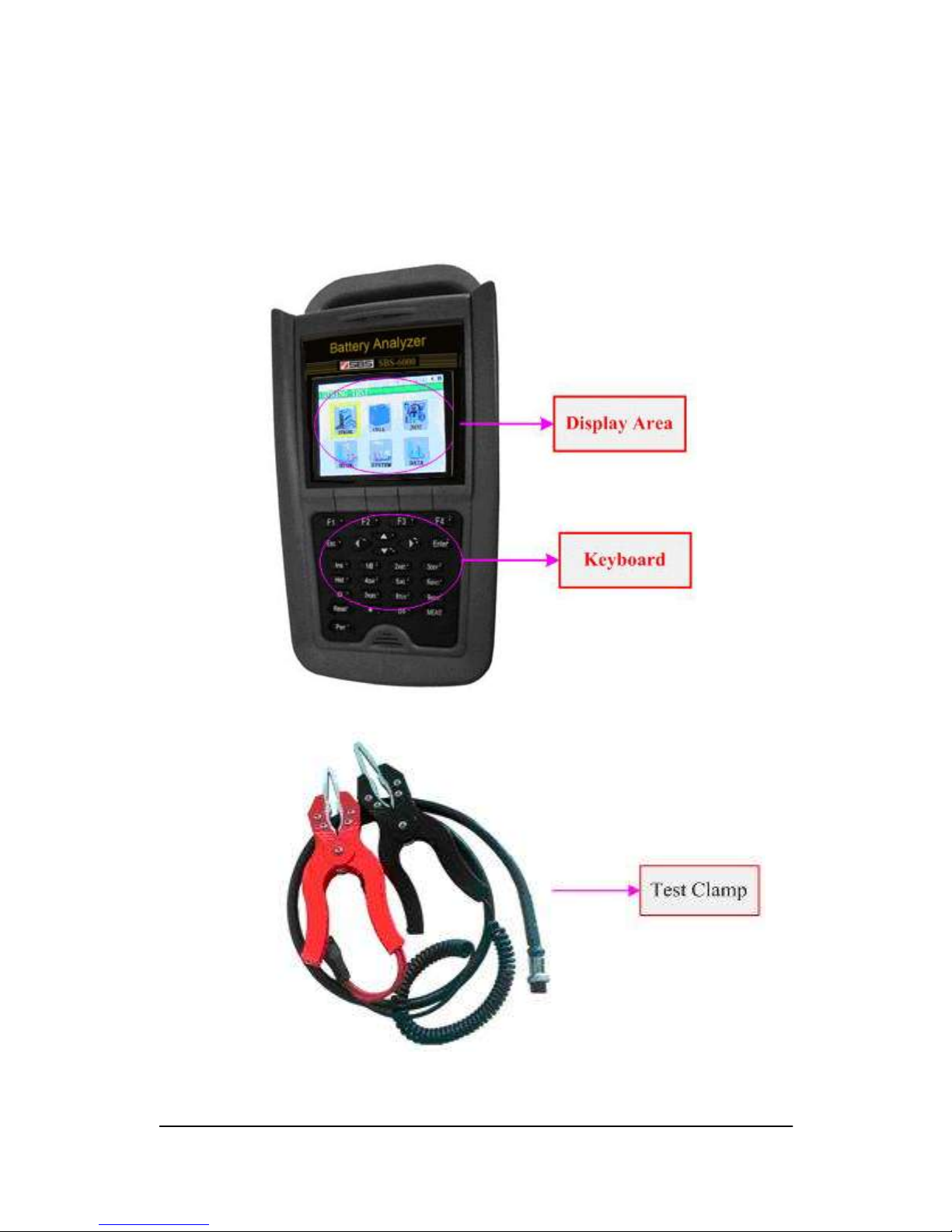

4.1 instrument front view ........................................................... 11
4.2 Instrument’s Buttons ............................................................ 12
4.3 instrument upside and interface........................................... 12
4.4 other parts ............................................................................ 13
Chapter 5 Operation Instructions ...................................................... 14
5.1 Power on/off ......................................................................... 14
5.2 Instruction of tester’s LCD display......................................... 14
5.3 Test Setting............................................................................ 15
5.3.1 String setting ............................................................... 16
5.3.2 Cell setting................................................................... 19
5.3.3 Conn setting ................................................................ 22
5.3.4 Data storage setting .................................................... 24
5.3.5 Alarm Threshold Setting.............................................. 25
5.3.6 Test type setting.......................................................... 26
5.3.7 Battery Sampling ......................................................... 27
5.3.8 Impedance Zero Adjustment Function........................ 30
5.4 Test Functions ....................................................................... 34
5.4.1 String Testing............................................................... 38
5.4.2 Cell Testing .................................................................. 39
5.4.3 Conn Testing................................................................ 40

5.4.4 Compare Functions ..................................................... 42
5.4.5 Re-test Functions......................................................... 44
5.4.6 Gear Setup................................................................... 45
5.4.7 Data save function....................................................... 47
5.5 System setting...................................................................... 48
5.5.1 Network setting........................................................... 49
5.5.2 Time setting................................................................. 50
5.5.3 Key voice setting ......................................................... 50
5.5.4 Regularly shutdown setting......................................... 51
5.5.5 Language setting ......................................................... 52
5.5.6 Restore default setting ................................................ 53
5.5.7 Back Light setting ........................................................ 54
5.5.8 Software Version......................................................... 54
5.6 Data Browsing ....................................................................... 55
5.6.1 String Data Browsing................................................... 56
5.6.2 Cell Data Browsing ...................................................... 60
5.6.3 Conn Data Browsing.................................................... 62
5.7 PC analysis software operation............................................. 67
5.7.1 Profile .......................................................................... 67
5.7.2 Installation and uninstall............................................. 67
5.7.3 Menus.......................................................................... 71
5.7.4 Functions of windows ................................................. 75
5.8 Instrument charging.............................................................. 82
5.9 Replace instrument battery .................................................. 82
Chapter 6 Summary Of Faults ............................................................ 83
Chapter 7 Technical Parameter .......................................................... 84
Service Information ................................................................................ 85

SBS-6000 7
Chapter 1 General
SBS-6000 Storage Battery Impendence Analyzer is the most powerful
and well performed storage battery test equipment. It is a
multipurpose impendence instrument and micro ohm meter with the
most complete functions and supports the domestic and foreign
standards. The equipment can test all kinds of battery like 2V, 4V, 6V, 8V,
12V, 24V, 48V, it can also test resistance of conductor and metal
connector, the test precision reaches 1μΩ. The analyzer adapts the
VLSI and powerful microprocessor, and can operate the data exchange
with RS232, TCP/IP port, meanwhile it adapts the large colorful LCD
screen, and the analyzer could achieve the analysis, display and report
output of testing data by itself. It is a top grade meter which is suitable
for military, communications operators and power department etc.
Chapter 2 Inspection
It’s absolutely necessary for you to read inspections before unpack
package and check the instrument or test. In this chapter, we would
like to help you know the initial work status of the instrument.
2.1 Unpack the Instrument
Before unpacking, please check whether there is any damage in the
carton and the bag. If any, please sort all of the articles per the packing
list and perform self-check according to instructions of the Section 2.4
until the instrument can work normally.
In case that damaged bag or incomplete articles happen or the
instrument cannot achieve function tests, please contact us
immediately.

8 SBS-6000
2.2 Accessory and Option
Accessories to the SBS-6000, please refer to the packing list. If received
articles are not the same with what is specified in the packing list,
please inform us immediately so as not to make any influence on using.
2.3 Power Supply
The SBS-6000 supports two power supply modes, DC and battery, with
a built-in large capacity rechargeable lithium battery for 8-hour long
consecutive operation after being fully charged.
When using external power supply, the battery will charge
automatically with the battery capacity shown on the right top corner
of LCD of SBS-6000 at any moment.
When using AC power, please use the AC charger accompanied, or the
instrument will be damaged.
Precautions:
！Don’t dispose wasted battery in water or fire for fear of backfire or
pollution.
! Don’t make the two poles of the battery in short circuit for fear of
dangers.
! Don’t make battery close to fire source or use in high temperature for
fear of severe personal injury.

SBS-6000 9
Chapter 3 General operation and use guide
3.1 Operation standard
Test interface
Please connect the wire to test interface, and then connect the wire to
tested line. Please don’t touch the bare metal part of test clips, lest
there is high voltage on wire.
RS232 port
Don’t connect with RS232 port with electricity, also don’t short-circuit
the interface by metal, otherwise easily damage the internal circuit.
Display
The new tester has a protective mask on LCD, please rip it before use.
Cleaning
This tester shell is made of plastic, please use dry and soft cloth to wipe
and clean, please do not use a volatile chemical agents, otherwise easy
cause discoloring or deformation.
Protection of shell and operation panel
Please don't spray the volatile chemical reagent onto shell or panel, or
don’t make them touch with rubber or PVC for long time, which easy to
cause fault.
Move tester
When you want to move the tester, please check the power wire and
cable, to ensure them unconnected with tester, and then take tester by
both hands.
Longtime unused
If the tester is longtime unused, the battery characteristics will getting
worse, or the battery need charging. If the charging time is very short
and operation time is also short, the tester has to be replaced.

10 SBS-6000
Faults
If the internal emit strange voice, smell or smoke, please immediately
shut off the tester and power supply, and contact us.
3.2 Use notes
When you use the tester for the first time, please fully charge the
battery.
If there appear abnormal pages or crashed, please shutdown the
tester and then restart again.
Please don’t let the tester in direct sunlight or close to heat
place, which maybe cause adverse affect to inside circuit or shell.
If the tester is moved to the environment which has higher
temperature or temperature changing quickly, the tester will
generate condensing. So, the best way is to leave the tester in the
new environment one hour before operation.

SBS-6000 11
Chapter 4 Menu
4.1 instrument front view
Host appearance
Test cable

12 SBS-6000
4.2 Instrument’s Buttons
Rst
Rst
F1 F2 F3 F4
Esc
Tab 1 @3 DEF2 ABC
4 GHI 6 MNO5 JKL
Help 7PQRS 9WXYZ8TUV
Reset A 00
Pwr
Enter
Rst
Rst
F1 F2 F3 F4F1 F2 F3 F4
Esc
Tab 1 @3 DEF2 ABC
4 GHI 6 MNO5 JKL
Help 7PQRS 9WXYZ8TUV
Reset A 00
Pwr
Enter
Power Key
Reset Key
Function Key
Number Key
Return Key
Confirm Key
Direction Key
Keyboard introduction
It includes power key, reset key, return key, function key, arrow key, OK
key and number key. The key functions are as follows:
Power key: power on/off. When the tester is on, press this key for a
while to close, when the tester appears anomaly and can not be closed
through closing icon or power key, press this key for a while (About 5
seconds) to shut off the tester.
Reset key: press this key to reset system.
Return key: press this key to return to last menu or cancel setting.
Function key: four keys F1, F2, F3 and F4, in different test and setting
interface, the function is different.
Direction key: up, down, left, right, move toward corresponding
direction by operating different cursor key.
Confirm key: press it for confirmation.
Number key: 0-9 ten numbers, press this key to input corresponding
number.
4.3 instrument upside and interface
Power Adaptor interface
Instrument power adaptor, input 50Hz AC 220V commercial power,

SBS-6000 13
allowed error range: ±10%, output 8.4V.
TEST CABLE test interface
TEST CABLE test interface is the special interface for battery resistance
test line.
Ethernet interface
This interface is standard RJ45 interface, use Ethernet crossed line.
RESERVE interface
Standby interface.
RS232 interface
Professional external RS232 parallel serial Line for the connection
between instruments & PC.
4.4 other parts
Test cable
Battery resistance test cable, connect with TEST CABLE interface at one
end, connect with tested battery at another end, red is positive, black is
negative.
Ethernet cable
The cable equipped with the instrument is crossed network cable for
connecting with PC. When Ethernet connection is normal, Ethernet
indicator on RJ45 interface is on.
RS232 Serial cable
Serial cable equipped with the instrument is RS232 Serial cable, it is
connected with PC for tester parameter setting and reading records.

14 SBS-6000
Chapter 5 Operation Instructions
5.1 Power on/off
Power on Instrument: Press the power on/off button, and it will display
LOGO icon and then enter into the below operation display:
STRING TEST 2011-05-10 09:01:23
测试设置
Power off instrument: A long press the power on/off button, about 5
seconds.
5.2 Instruction of tester’s LCD display
It will show the main display when power on the tester. It includes:
Battery indicator, Date and time, status bar and function icon.

SBS-6000 15
Capacity
Display
Function Ico
Function Name Date And
Time
STRING TEST 2011-05-10 09:01:23
测试设置
It includes series function icon, and each icon indicates a function.
Please select the related icon and click the ENTER button into a
function.
5.3 Test Setting
Functions description
Please process the parameter setting before test. It include: String
setting, Cell setting, Conn setting, Data Storage, Alarm Threshold
setting, test type setting, Battery sampling and zero resistance setting.
How to use
Select the related setting items, click <Enter> icon enter into the right
display. When the display shows in gray color it means that the display
was under browse mode without any parameters setting. Detail as
follow:

16 SBS-6000
TEST SETTING 2011-05-10 09:01:23
Enter
Esc
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Input Comp：
7. Set Test Type:
8. Sample Test:
Settings
functions
Navigation
Settings
content
Date \Time
And Power
function
keys
Station：01
String：01
V Type：2 V-0500AH
V Warning：02.00V
REF：
000.483mΩ
5.3.1 String setting
Functions description
Set the String setting parameters like: Station No., Group No., Battery
type, Low pressure alarm value and Group reference value. Battery
type includes battery voltage type and capacity. Low pressure alarm
value is the alarm threshold value of the measured battery, the
instruments will alarm when the measured voltage lower than the
threshold one.
It should process Alarm threshold and test type setting before String
setting. Details please check the chapter “Alarm Threshold Setting”and
“Test Type Setting”.
How to use
Select the “String Mode”on the main test setting display and click
<Enter> icon to process the String testing.
When you process the String Mode, the battery type, alarm threshold,
reference value and others all in gray color, it shows that the string is
already exist and you can not make change. Please amend Group No.

SBS-6000 17
and Station No. to build a new string and then set the related string
parameters. There have shortcut keys of some parameters, for the one
do not have shortcut keys, User’s can input NO.. Detail as follow:
TEST SETTING 2011-05-10 09:01:23
Enter
Esc
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Set Test Type：
7. Sample Test:
8. Zero Setting:
Station：01
String：01
V Type：2 V
V Warning：02.10V
REF：
000.483mΩ
Support voltage type: 2V, 4V, 6V, 8V, 12V, 24V. Click related shortcut
keys for setting, like below:
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Set Test Type：
Station：01
String：01
V Type：2 V- 0500AH
V Warning：02.10V
REF：
000.483mΩ
7. Sample Test:
8. Zero Setting:
More
2V 4V 6V

18 SBS-6000
Comparison threshold value setting include: Manual Input directly or
Select threshold value. Select threshold means choose the Built-in set
value. The Build-in values can get directly from the sampling battery
testing or the configured download software. Details please take the
chapter “Sampling Battery”for reference. Display of Manual Input
value as follow:
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Set Test Type：
Station：01
String：01
V Type：2 V- 0500AH
V Warning：02.10V
REF：
000.483mΩ
7. Sample Test:
8. Zero Setting:
Enter
Esc Srlect Input
During Conductance testing mode, manual input threshold value
display as follow:
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Set Test Type：
Station：01
String：01
V Type：2 V- 0500AH
V Warning：02.10V
REF：
2027S
7. Sample Test:
8. Zero Setting:
Enter
Esc Srlect Input

SBS-6000 19
Select the saved threshold value, click function key <-1><+1> to change
the serial No. and choose value. It will show in Gray color if it can not
configure. The display of select threshold value as follow:
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
2. Cell Mode:
3. Conn Mode:
4. Save Mode:
5. Set Warning:
6. Set Test Type：
Station：01
String：01
V Type：2 V- 0500AH
V Warning：02.10V
REF：001
2V:0500AH:0.483mΩ
7. Sample Test:
8. Zero Setting:
Enter
Esc Srlect Input
5.3.2 Cell setting
Functions description
Set the Cell setting parameters like: Battery type, Low pressure alarm
value and reference value. Battery type includes battery voltage and
capacity. Low pressure alarm value is the alarm threshold value of the
measured battery, the instruments will alarm when the measured
voltage lower than the threshold one.
How to use
Comparison threshold value setting include: Manual Input directly or
Select threshold value. Select threshold means choose the Built-in set
value. The Build-in values can get directly from the sampling battery
testing or the configured download software. Details please take the
chapter “Sampling Battery”for reference. Display of Cell setting as
follow:

20 SBS-6000
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
7. Sample Test:
V Type：2 V- 0500AH
V Warning：02.10V
REF：
000.483mΩ
2. Cell Mode:
3. Conn Mode:
6. Set Test Type：
4. Save Mode:
5. Set Warning:
8. Zero Setting:
More
2V 4V 6V
Support voltage type: 2V, 4V, 6V, 8V, 12V, 24V. Click related shortcut
keys for setting, like below:
TEST SETTING 2011-05-10 09:01:23
1. String Mode:
7. Sample Test:
V Type：2 V- 0500AH
V Warning：02.10V
REF：
000.483mΩ
2. Cell Mode:
3. Conn Mode:
6. Set Test Type：
4. Save Mode:
5. Set Warning:
8. Zero Setting:
More
2V 4V 6V
Comparison threshold value setting include: Manual Input directly or
Select threshold value. Select threshold means choose the Built-in set
value. The Build-in values can get directly from the sampling battery
