MODEL GC-STC-CS
THISMANUALCONTAINSTHEOPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TIONFORYOURSCAGACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURESTO KEEPYOURACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERSARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE,PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
OPERATOR’S MANUAL
PART NUMBER 03156

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all safety shields in place.
* Beforeperforminganymaintenance or service, stopthemachineand
remove the spark plug wire.
* Ifa mechanism becomes clogged,stop the engine andwait for all moving
parts to come to a complete halt before cleaning.
* Keephands,feetand clothing away from power-driven parts.
* Readthismanualcompletelyaswell as the Operator's Manual that came
withyourmower.
* Keepothersoff the tractor (onlyone person at atime).
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the op-
eration, transport, maintenance, and storage of the equipment.
WARNING
Thismanualcoversthe operating instructions
andillustratedparts list for:
GC-STC-CS with a serial number of A8100001 to A8199999

1
1. With the hopper door closed, engage the deck
drive.
2. Proceed to mow until the hopper is full.
A replacement manual is available from your
authorized Scag Service Dealer or by contacting:
Scag Power Equipment, Service Department at P.O.
Box 152, Mayville, WI 53050. You may also contact
us through our website at www.scag.com The
manual for this grass catcher can be downloaded by
using the model and serial number or use the contact
form to make your request. Please indicate the
complete model and serial number of your Scag
product when requesting replacement manuals.
2. Before removing the grass bags, disengage the
mower, stop the engine and wait for all
movement to stop.
3. ALWAYS turn the engine OFF, remove the key
and wait for all movement to stop before
servicing or cleaning the mower or the grass
catcher.
4. Do not modify or alter any component of the
grass catcher attachment or mower.
5. Do not allow any passengers to ride on the grass
catcher attachment or on the mower.
2.2 GRASS CATCHING OPERATION
WARNINGWARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
DANGER
DANGER
ROTATING BLOWER
BLADES
STOP ENGINE BEFORE
ENTERING CHUTE
CONTACT CAN INJURE
1.1 INTRODUCTION
This manual has been prepared to provide the
information you need to correctly assemble, operate,
and maintain this grass catcher. Read it carefully and
keep it for future reference.
The replacement of any part on this product by other
than the manufacturer's authorized replacement part
may adversely affect the performance, durability or
safety of this product.
USE OF OTHER THAN ORIGINAL SCAG
REPLACEMENT PARTS WILL VOID THE
WARRANTY.
If additional information or service is needed that is
not outlined in this manual, please contact your Scag
Power Equipment dealer. Scag dealers are trained in
the latest service methods and carry a full line of Scag
replacement parts.
When ordering parts, always provide the complete
model number of your catcher.
Allinformation providedinthismanualisbasedupon
information available at the time of printing. Scag
Power Equipment reserves the right to make changes
at any time without notice or obligation.
1.2 DIRECTION REFERENCE
The "Right" and "Left", "Front" and "Rear" of the
machine are referenced from the normal operating
position.
2.1 SAFETY AND OPERATING
INSTRUCTIONS
-NOTE-
To avoid personal injury, it is imperative that all
safety instructions be observed.
1. Read this operator's manual and the
operator's manual that is supplied with the
machine this attachment is used on.

2
3. When dumping the hopper into a disposal area:
A. Disengage the deck drive, apply the parking
brake and allow all moving parts to come to
a complete stop.
B. Pull downward on the hopper door handle to
allow the hopper sweeper to remove the
material from inside the hopper. See Figure
2-1.
C. Once the material has been completely
removed from the hopper, lift the hopper
door handle to close the hopper door and
lock into place. See Figure 2-2.
4. When dumping the hopper into a disposal area,
inspect the hopper debris screen for material.
When the debris screen is full of material, the
grass catching ability may suffer. Frequency of
cleaning the hopper debris screen will vary
dependingonconditions.
5. To clean the hopper debris screen;
A. Disengage the deck drive and allow all
moving parts to come to a complete stop.
B. Apply parking brake and shut off the engine.
C. Stand on the left side of the hopper
assembly.
D. Unhook the debris screen latches and
remove the debris screen from the hopper.
See Figure 2-3.
E. Remove material from the debris screen and
reinstall. Secure by latching the debris
screen latches.
6. When service is needed inside the hopper,
disengage the deck drive and allow all moving
parts to come to a complete stop, shut off the
engine and apply the parking brake. Rotate the
hopper door prop rod upward until it contacts the
hopper door. This will prevent the hopper door
from moving until the service is complete. See
Figure2-4.
Figure 2-1 GC-CS
FIGURE 2-1
LOCK
Fi
g
ure 2-2 GC-CS
FIGURE 2-2
Debris Screen
Latches
Fi
g
ure 2-3 GC-CS
FIGURE 2-3
Hopper Prop
Rod
Fi
g
ure 2-4 GC-CS
FIGURE 2-4
WARNING
WARNING
DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS
BURNING

3
3.1 ASSEMBLY INSTRUCTIONS FOR 48"
AND 52" CUTTER DECK
-NOTE-
Use the illustrated parts list as a part number
reference when following the assembly
instructions.
1. Remove all packaging materials. Lay out the
mounting hardware and the catcher assembly
parts for easy access. Prepare the work area
making sure that it is a clean, safe environment.
2. Remove the discharge chute from the cutter
deck. See Figure 3-1.
-NOTE-
Do not discard the discharge chute or
mounting hardware. The discharge chute
MUST be reinstalled anytime the grass
catcher is removed from the machine.
3. Remove the right side belt cover to gain access to
the spindle assembly. Remove the front u-nut
from the cutter deck bracket. See Figure 3-1.
5. Install the blower mounting bracket to the deck
using carriage bolts (p/n 04003-11), lockwashers,
and nuts. Do not fully tighten the hardware at
this time. See Figure 3-2, Page 4.
6. Install the blower assembly to the mounting
bracket and secure with the mounting pin.
See Figure 3-3, Page 4.
7. Align the blower assembly with the discharge
opening of the cutter deck. Tighten the hardware
for the mounting bracket. Then tighten the
hardware for the catch plate. See Figure 3-3,
Page 4.
8. Install the large hair pin through the rear hole in
the discharge chute mounting bracket. See
Figure 3-3, Page 4.
9. Install the belt to the spindle pulley. When
replacing the belt, see figure below.
FIGURE 3-1
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
REMOVE DISCHARGE
CHUTE AND
HARDWARE
REMOVE EXISTING
RT. SIDE BELT
COVER
INSTALL PULLEY
ON RH SPINDLE SHAFT -
ON TOP OF EXISTING
SPINDLE DRIVE
PULLEY
Figure 1- GC-STC install art
REMOVE U-NUT
-NOTE-
Retain the original belt cover. This cover
MUST be reinstalled anytime the
complete catcher system is removed.
4. Install the grass catcher pulley onto the spindle
assembly. Apply loctite to both pulley setscrews
and tighten. See Figure 3-1.
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
FRONT SIDE
IDLER PULLEY
BACK SIDE
IDLER PULLEY BLOWER
PULLEY
SPINDLE
PULLEY
-NOTE-
When installing this grass catcher on a machine
with a serial number range from 7630001 to
8479999, you will need to install part number
461764 for a 48" cutter deck or 461765 for a
52" cutter deck. This kit includes a new Turbo
Baffle and Deck Baffle.

4
PROPERLY
SERVICE
ENGINE
WITH
OIL
AND
FUEL.
FIGURE 3-2
FIGURE 3-3
ELASTIC STOP
NUT
FLATWASHER
CARRIAGE BOLT
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2005 GC-STC install art 3
BLOWER
ASSEMBLY
MOUNTING
BRACKET
MOUNTING PIN
TIGHTEN MOUNTING
BRACKET HARDWARE
HAIR
PIN
TIGHTEN
CATCH PLATE
HARDWARE

5
10. Install the new belt covers and secure. See
items number 1 and number 21 on page 10 of the
Blower Mounting Components section in the
Illustrated Parts List for proper installation.
11. Install the hopper mounting brackets to the
outside of the frame on the rear of the machine.
See Figure 3-4.
FIGURE 3-4
12. With help from an assistant, install the hopper
assembly to the machine by installing the
mountingpostinto thehoppermounting brackets
and secure with the ring pins. Tighten the bolts
and jam nuts. See Figure 3-5.
FIGURE 3-5
-NOTE-
The hopper dump handle can be installed on
either side for operator convenience. When
installing this grass catcher on a machine
with the Roll Over Protection System (ROPS),
the curved handle will need to be installed on
the right side.
13. Install the hose from the blower assembly
adapter to the hopper hood and secure using the
6-1/2"clamps.
14. Using the weight support bar as a guide, identify
the four corresponding mounting holes, and the
existing hardware that will need to be removed
in order to secure the weight support bar to the
front of the machine as shown. See Figure 3-6.
15. Install one 7/16-14 x 1-3/4" hex head bolt into
each of the four mounting holes in the weight
support bar, and through the matching holes in
the caster support weldment. Secure this
assembly to the front of the machine using the
7/16- .5" x 1-1/4" x .083" flatwashers, and the
7/16-14 elastic stop nuts. Torque hardware to
59 ft. lbs. See Figure 3-6.
Figure 4 A GC-STT Install Art
Hopper
Mounting
Brackets
Rear Frame
FIGURE 3-6
16. Operate and test.
Locking
Bolts
Locking
Bolts
Ring Pins
Ring Pins

6
1. Prepare the work area making sure that it is a
clean, safe environment.
2. Remove the rubber strap holding the adapter to
the blower assembly. See Figure 4-1.
3. Remove the pin and hair pin holding the blower
assembly to the mounting bracket on the cutter
deck and remove the blower assembly. See
Figure4-1.
FIGURE 4-1
4. Loosen the four (4) locking bolts and jam nuts.
Remove the two (2) pins holding the hopper
assembly to the mounting posts on the rear of the
machine. See Figure 4-2.
FIGURE 4-2
4.1 GRASS CATCHER REMOVAL
INSTRUCTIONS
5. With help from an assistant, remove the hopper
assembly from the mounting posts.
6. Re-install the side discharge chute to the opening
on the cutter deck. Replace the two outside
mounting bolts on the discharge chute with the
clevis pins (p/n 04064-15) and rue cotter pins
(p/n 04069-03). See Figure 4-3.
FIGURE 4-3
CLEVIS PIN
P/N 04064-15
CLEVIS PIN
P/N 04064-15
RUE COTTER PIN
P/N 04069-03
DISCHARGE
CHUTE
GC-STC removal art 3
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
BLOWER
ASSEMBLY MOUNTING
BRACKET
PIN
ADAPTER
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2004 GC-STC removal art 1
HAIR
PIN
2005 GC-STC removal art 2-A
Loosen
Locking
Bolts Remove
Mounting
Pins
Remove
Mounting
Pins
Loosen
Locking
Bolts

7
Notes

8
GC-STC 48" & 52" BLOWER HOUSING ASSEMBLY
WARNING
INSTALLBELTCOVERBEFORE
OPERATINGMACHINE
READOPERATOR'SMANUAL
2005 GC Blower Assembly
12
3
3
45
47
45
45
67
89
9
10
10
11
11
12
12
13
14
14
14
14
15
15
16
17
18
19
20 21
22
23
24
24
26
27
27
27
28
30
31
31
32
33
34
35
35
37
38
39 40
41
41
42
43
44 10
46
34
29
11
14
17
47
48
49
25
ROTATINGBLADESANDBLOWER
DANGER
DO NOT OPERATE MOWER
UNLESS GRASSCATCHER OR
DISCHARGE GUARDIS INSTALLED
Stop engine before cleaning or removing
DANGER
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
50
DANGER
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
51

9
GC-STC 48" & 52" BLOWER HOUSING ASSEMBLY
Ref. Part
No. Number Description
27 04019-04 Nut, Serr. Flange 3/8-16
28 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8
29 481377 Decal, Danger
30 461681 Blower Housing Assembly
31 04003-12 Bolt, Carr. 5/16-18 x 3/4" Gr.5
32 04063-06 Key, 1/4 x 1/4 x 1-1/2"
33 451683 Fan Weldment
34 483034 Bearing Assembly
35 04021-10 Nut, Elastic Stop 5/16-18
36 04040-04 Flatwasher, 5/16-.344 x .688 x .065
37 421319 Cover, Blower Housing
38 48136-02 Clamp, 8-5/8" Max Dia.
39 48135-09 Hose, 8.00" Dia. x 53" Long
40 482298 Pulley, 4-3/4" O.D. - 1" Bore
41 04012-04 Set Screw, 5/16-18 x 3/8"
42 451655 Frame, Blower Mount
43 481522 Spring, Main Drive
44 43212 Spacer
45 04019-03 Nut, Serr. Flange 5/16-18
46 461723 Adapter w/Strap
47 424094 Plate, Blower Catch
48 04062-05 Hair Pin Cotter, .243 x 4"
49 461680 Blower Housing Assembly, GC-STT
50 482080 Decal, Rotating Blower
51 481377 Decal, Blower
Ref. Part
No. Number Description
1 04067-07 Pin, Ring 2-1/4" Long
2 481547 Lanyard, Deck Height Pin
3 04019-02 Nut, Serr. Flange 1/4-20
4 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
5 04001-01 Bolt, Hex Head 1/4-20 x 3/4"
6 423298 Belt Cover, Rear
7 481428 Grip, Blower Lever
8 482300 Cap, Square
9 04024-02 Nut, Push On 3/8 Thread
10 04021-05 Lock Nut, 3/8-16
11 04041-07 Flatwasher, 3/8-.391 x .938 x .105
12 43277 Spacer
13 482299 Pulley, Idler 4" Dia.
14 04021-09 Nut, Elastic Stop 3/8-16
15 04030-04 Lockwasher, 3/8-16
16 423933 Plate, Catch Mounting
17 04003-05 Bolt, Carr. 3/8-16 x 1-1/2"
18 04001-54 Bolt, Hex Head 3/8-16 x 3" - 52"
04001-46 Bolt, Hex Head 3/8-16 x 2-1/4" - 61"
19 04001-81 Bolt, Hex Head 3/8-16 x 3-1/2"
20 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
21 461812 Idler Arm Assembly
22 482278 Belt, GC-STC
23 482079 Pulley, 3" O.D., GC-STC
24 04043-04 Washer, 3/8 Hardened
25 43575 Pivot, Idler
26 481039 Decal, Belt Cover

10
GC-STC 48" & 52" BLOWER MOUNTING COMPONENTS
1
2
3
4
5
6
6
78
9
10
10
11
12 13
14 15
15
16 17
18
19
20
390STC203B
21
22
6
RIGHT SIDE OF
CUTTER DECK SHOWN
UNDER SIDE OF
CUTTER DECK SHOWN
23
24
31
25
26
25
26
32
27
27
28
28
29
29
30
FOR MACHINES WITH A SERIAL
NUMBER BETWEEN
7630001 - 8479999
ONLY

11
GC-STC 48" & 52" BLOWER MOUNTING COMPONENTS
Ref. Part
No. Number Description
1 482612 Belt Cover, GC-STC
2 04029-04 Wingnut, Plastic 3/8" Small
3 482300 Cap, Square Vinyl
4 04021-08 Nut, Elastic Stop 1/4-20
5 461723 Adapter, Blower GC-STC, includes item #7
6 04040-14 Flatwasher, 1/4-.312 x .750 x .065
7 48137-04 Rubber Strap 7-3/4"
8 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
9 481625-01 Knob W/Stud, 3/8-16 x 1-1/4"
10 04064-15 Clevis Pin, 5/16 x 1-1/2"
11 04069-03 Pin, Rue Cotter 5/16 Dia.
12 04067-07 Pin, Ring 1/2 x 2-1/4"
13 481547 Lanyard
14 482587 Pulley, 4.0" Dia. 1.125 Bore
15 04012-04 Setscrew, 5/16-18 x 3/8"
16 04021-09 Nut, Elastic Stop 3/8-16
17 04030-04 Lockwasher, 3/8"
18 04041-07 Flatwasher, 3/8-.391 x .938 x .105
19 04003-11 Bolt, Carr. 3/8-16 x 1-1/4" Grade 5
20 451693 Mounting Post Weldment, Blower
21 423708 Belt Cover
22 04110-03 U-Nut
23 04017-05 Bolt, Hex Head 1/4-20 x 3/4"
24 04003-23 Bolt, Carriage 3/8-16 x 1"
25 04021-09 Nut, Elastic Stop 3/8-16
26 04041-07 Flatwasher, 3/8-.391 x .938 x .105
27 04001-09 Bolt, Hex Head 5/16-18 x 1"
28 04040-15 Flatwasher, 5/16-.375 x .875 x .083
29 04021-10 Nut, Elastic Stop 5/16-18
30 04019-02 Nut, Serrated Flange 1/4-20
31 423633 Baffle, 48"
423629 Baffle, 52"
32 423955 Baffle, Turbo 48" Deck
423956 Baffle, Turbo 52" Deck

12
A
AB
B
C
C
2005 CSHOPPEREXPLOD-STC
1
16
45
15
14
45
43
56
55
6
17
41
50
5
4
3
49
31
51 11
40
5859
25
12
8
9
34
49
50
24 34
29
4227
48
38 53
10 33
61
60 37
19
36
20
49
33
21
57
38
32
35 46 37
49
49
46
60
49
61
28
59
58
49
46
46
37
13
30
22
44
23
32
33
35
57
60
37
61
38
53
20
49 49
49 49
45
49
49
21
19
29
49
25 36
38
59
58
40
33
10
49
61
28
59
58
24
34
12
50
52
41
49 60
49 49
18
18
34
55 6
2
53
53
49
49
53
26
26
7
43
62
53
64
66
65
67
68
63
53
64
6566
63
69
70
54
71
71A
3365

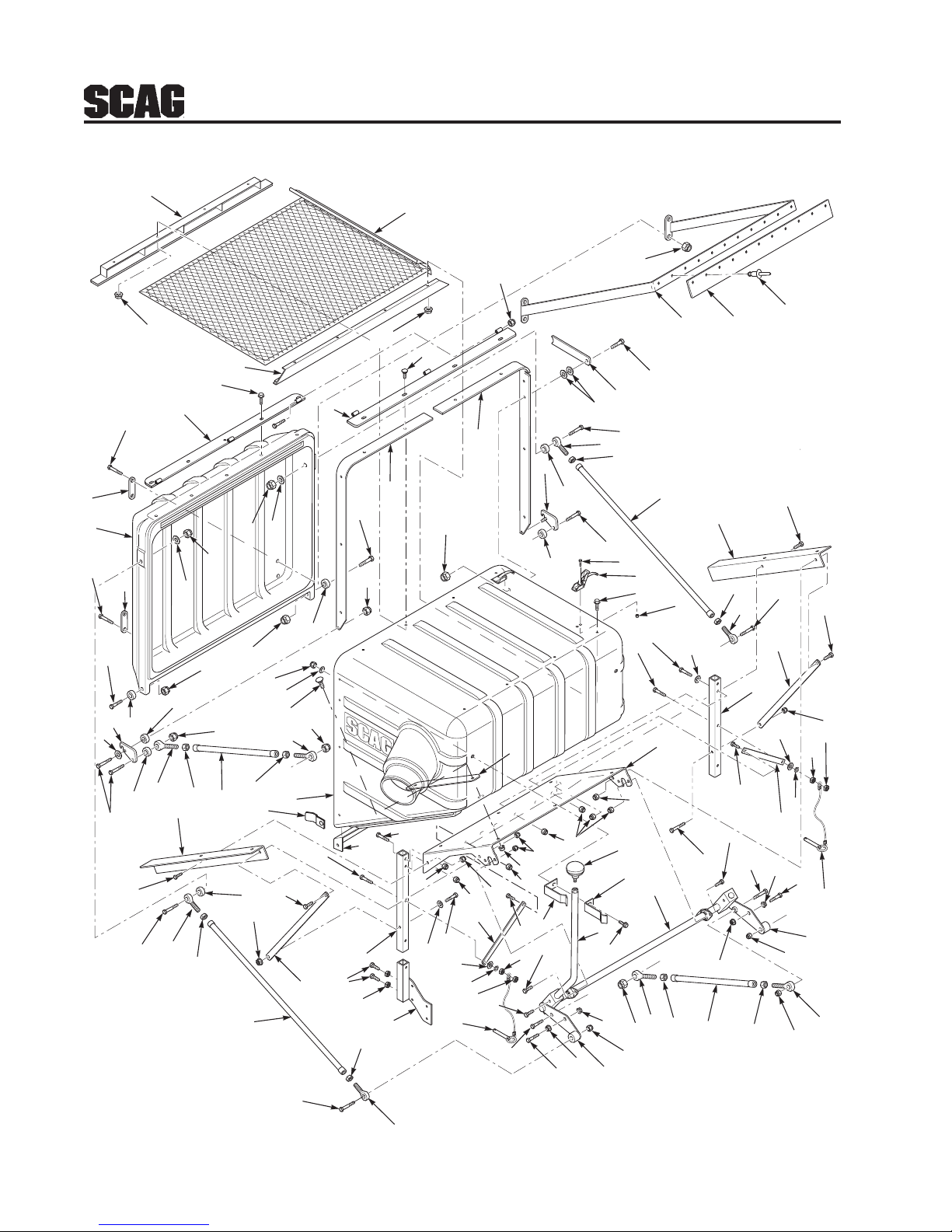

GC-STC-CS HOPPER COMPONENTS

13
GC-STC-CS HOPPER COMPONENTS
Ref. Part
No. Number Description
1 461627 Hopper, GC-STC-CS
2 482732 Door, GC-CS
3 461626 Sweeper Weldment, GC-CS
4 482777 Pad, Rubber
5 04090-02 Pop Rivet, 3/16 x .652
6 423834 Plate, Stiffener
7 423938 Support Frame, Hopper
8 423849 Hinge Bracket, L.H.
9 423850 Hinge Bracket, R.H.
10 423858 Bracket, Hopper Support
11 423837 Latch, Door Prop
12 423840 Plate, Latch
13 451599 Bellcrank Weldment, Upper
14 451601 Debris Screen Weldment
15 451602 Screen Support Weldment, Rear
16 451603 Screen Support Weldment, Front
17 451607 Hinge Weldment, Hopper
18 43631 Spacer
19 423851 Brace Stiffener, Short
20 423852 Tube, Upright
21 422386 Brace, Engine Mount
22 423862 Latch, Dump Rod Inner
23 423864 Latch, Dump Rod Outer
24 43063 Spacer
25 43282 Spacer
26 43277 Spacer
27 481309 Latch, Hood
28 43641 Linkage Assembly, Lower
29 43640 Linkage Assembly, Upper
30 481245 Knob
31 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4
32 04001-18 Bolt, Hex Head 3/8-16 x 3/4"
33 04001-19 Bolt, Hex Head 3/8-16 x 1"
34 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2"
35 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
36 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4"
37 04001-45 Bolt, Hex Head 3/8-16 x 2"
38 04001-46 Bolt, Hex Head 3/8-16 x 2-1/4"
39 04001-63 Bolt, Hex Head 5/16-18 x 3-1/2"
40 04001-77 Bolt, Hex Head 3/8-16 x 3-1/2"
41 04003-04 Bolt, Carriage 5/16-18 x 1"
42 04010-01 Screw, #10-32 x 1/2"
43 04017-16 Cap Screw, 5/16-18 x 3/4" Serr. Flan.
44 04017-17 Cap Screw, 5/16-18 x 1" Serr.Flan.
45 04019-03 Nut, 5/16-18 Serrated Flange
46 04019-04 Nut, 3/8-16 Serrated Flange
47 04020-12 Nut, 3/8-16 UNC Jam
48 04021-01 Nut, #10-32 Elastic Stop
49 04021-09 Nut, 3/8-16 Elastic Stop
50 04021-10 Nut, 5/16-18 Elastic Stop
51 04032-01 Washer, Special Wave
52 04040-15 Washer, 5/16-.375 x .875 x .083 Flat
53 04041-07 Washer, 3/8-.931 x .938 x .105 Flat
54 43642 Bushing, Hopper Latch GC-CS
55 04001-54 Bolt, Hex Head 3/8-16 x 3"
56 451598 Hinge Weldment, Door
57 481547 Lanyard
58 481538 Rod End Male, 3/8-24 L.H. Thread
59 04020-26 Nut, 3/8-24 UNF L.H.Thread
60 481539 Rod End Male, 3/8-24 R.H. Thread
61 04020-25 Nut, 3/8-24 UNF R.H.Thread
62 423865 Alignment Bracket, GC-CS
63 04001-31 Bolt, Hex Head 3/8-16 x 2-1/2"
64 04030-04 Lock Wasker, 3/8-16 Spring
65 04020-04 Nut, 3/8-16 UNC Zinc
66 04021-05 Nut, 3/8-16 Center Lock
67 04001-12 Bolt, Hex Head 5/16-18 1-3/4"
04012-10 Nut, 5/16-18 Elastic Stop (Not Shown)
68 44147 Rod, Dump Lever
69 423855 Bracket, Lower Stiffener
423859 Backing Plate, Hopper (Not Shown)
70 423836 Retainer Strip, Hopper
71 451726 Mounting Bracket Weldment, R.H.
71A 451725 Mounting Bracket Weldment, L.H.
Ref. Part
No. Number Description

14
GC-STC-CS DECALS
481039
482275
481327
483037
481377
483039

LIMITED WARRANTY- COMMERCIAL ACCESSORY
AnypartoftheScagcommercialaccessorymanufacturedbyScagandfound,inthereasonablejudgmentofScag,
tobedefectiveinmaterialorworkmanship,willberepairedorreplacedbyanAuthorizedScagServiceDealerwithout
chargeforpartsandlabor.
TheScagaccessory, includingany defectivepart,mustbe returned toanAuthorizedScag ServiceDealerwithin
thewarrantyperiod. The expense of delivering the accessory to the dealer for warranty work and the expense of
returningitbacktotheownerafterrepairorreplacementwillbepaidforbytheowner. Scag’sresponsibilityinrespect
toclaimsislimitedtomakingtherequiredrepairsorreplacements,andnoclaimofbreachofwarrantyshallbecause
forcancellationorrescissionofthecontractofsaleofanyScagmachine. Proofofpurchasewillberequiredbythe
dealer to substantiate any warranty claim. All warranty work must be performed by an Authorized Scag Service
Dealer.
Thiswarrantyislimited to90daysfromthe dateoforiginalretailpurchase foranyScagaccessory that isusedfor
commercialpurposes, oranyotherincome-producing purposeincludingrentaluse.
Thiswarrantydoes not coveranyaccessorythat hasbeensubjectto misuse,neglect,negligence,or accident, or
thathasbeenoperatedinanywaycontrarytotheoperating instructionsasspecifiedintheOperator'sManual. The
warranty does not apply to any damage to the accessory that is the result of improper maintenance, or to any
accessory or parts that have not been assembled or installed as specified in the Operator's Manual.
Thewarrantydoesnotcoveranyaccessory that has been altered or modified. In addition, the warranty does not
extendtorepairsmadenecessarybynormalwear,orby the use of parts or accessories which, inthereasonable
judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or
durability. This warranty does not cover engines and electric starters, which are warranted separately by their
manufacturer.
ScagPowerEquipmentreservestherighttochangeorimprovethedesignofanyaccessorywithoutassumingany
obligation to modify any accessory previously manufactured.
All other implied warranties are limited in duration to the 90 day warranty period. Accordingly, any such implied
warrantiesincludingmerchantability, fitness foraparticularpurpose, orotherwise,aredisclaimed intheirentirety
aftertheexpirationof theappropriateninetyday warrantyperiod. Scag’s obligationunderthiswarrantyis strictly
andexclusivelylimitedtotherepairorreplacementofdefectivepartsandScagdoesnotassumeorauthorizeanyone
toassumeanyotherobligationforthem. Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylasts,
so the above limitation may not apply to you.
Scagassumesnoresponsibilityforincidental,consequentialorotherdamagesincluding,butnotlimitedto,expense
forgasoline,oil,expenseofdeliveringthemachinetoanAuthorizedScagServiceDealerandexpenseofreturning
itbacktotheowner,mechanic’straveltime,telephoneortelegramcharges,rentalofalikeproductduringthetime
warrantyrepairsarebeingperformed,travel,lossordamagetopersonalproperty,lossofrevenue,lossofuseof
the mower, loss of time, or inconvenience. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

PART NO. 03156
PRINTED 8-2004
PRINTED IN USA
©2004
SCAG POWER EQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC
www.scag.com
