MODEL GC-STC-CSV
THISMANUALCONTAINSTHEOPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TIONFORYOURSCAGACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURESTO KEEPYOURACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERSARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE,PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
OPERATOR’S MANUAL
PART NUMBER 03183

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all safety shields in place.
* Beforeperforminganymaintenance or service, stop themachineand
remove the spark plug wire.
* Ifa mechanism becomes clogged,stopthe engine and waitfor all moving
parts to come to a complete halt before cleaning.
* Keephands,feetandclothing away from power-driven parts.
* Readthismanualcompletelyaswell as the Operator's Manual that came
withyourmower.
* Keepothersoff the tractor (onlyoneperson at a time).
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
WARNING
Thismanualcovers the operating instructions
andillustratedpartslist for:
GC-STC-CSV with a serial number of B9100001 to B9199999

1
1. With the hopper door closed, engage the deck
drive.
2. Proceed to mow until the hopper is full.
A replacement manual is available from your
authorized Scag Service Dealer or by contacting:
Scag Power Equipment, Service Department at P.O.
Box 152, Mayville, WI 53050. You may also contact
us through our website at www.scag.com. The
manual for this grass catcher can be downloaded by
using the model and serial number or use the contact
form to make your request. Please indicate the
complete model and serial number of your Scag
product when requesting replacement manuals.
2. Before dumping the debris, disengage the
mower, stop the engine and wait for all
movement to stop.
3. ALWAYS turn the engine OFF, remove the key
and wait for all movement to stop before
servicing or cleaning the mower or the grass
catcher.
4. Do not modify or alter any component of the
grass catcher attachment or mower.
5. Do not allow any passengers to ride on the grass
catcher attachment or on the mower.
2.2 GRASS CATCHING OPERATION
WARNINGWARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
DANGER
DANGER
ROTATING BLOWER
BLADES
STOP ENGINE BEFORE
ENTERING CHUTE
CONTACT CAN INJURE
1.1 INTRODUCTION
This manual has been prepared to provide the
information you need to correctly assemble, operate,
and maintain this grass catcher. Read it carefully and
keep it for future reference.
The replacement of any part on this product by other
than the manufacturer's authorized replacement part
may adversely affect the performance, durability or
safety of this product.
USE OF OTHER THAN ORIGINAL SCAG
REPLACEMENT PARTS WILL VOID THE
WARRANTY.
If additional information or service is needed that is
not outlined in this manual, please contact your Scag
Power Equipment dealer. Scag dealers are trained in
the latest service methods and carry a full line of Scag
replacement parts.
When ordering parts, always provide the complete
model number of your catcher.
Allinformation providedinthismanualisbasedupon
information available at the time of printing. Scag
Power Equipment reserves the right to make changes
at any time without notice or obligation.
1.2 DIRECTION REFERENCE
The "Right" and "Left", "Front" and "Rear" of the
machine are referenced from the normal operating
position.
2.1 SAFETY AND OPERATING
INSTRUCTIONS
-NOTE-
To avoid personal injury, it is imperative that all
safety instructions be observed.
1. Read this operator's manual and the operator's
manual that is supplied with the machine this
attachment is used on.

2
3. When dumping the hopper into a disposal area: 5. To clean the hopper debris screen;
A. Disengage the deck drive and allow all
moving parts to come to a complete stop.
B. Apply parking brake and shut off the engine.
C. Stand on the left side of the hopper
assembly.
D. Unhook the debris screen latches and
remove the debris screen from the hopper.
See Figure 2-3.
E. Remove material from the debris screen and
reinstall. Secure by latching the debris
screen latches.
6. When service is needed inside the hopper,
disengage the deck drive and allow all moving
parts to come to a complete stop, shut off the
engine and apply the parking brake. Rotate the
hopper door prop rod upward until it contacts the
hopper door. This will prevent the hopper door
from moving until the service is complete. See
Figure2-4.
FIGURE 2-1
FIGURE 2-2
Debris Screen
Latches
Fi
g
ure 2-3 GC-CS
FIGURE 2-3
Hopper Prop
Rod
Fi
g
ure 2-4 GC-CS
FIGURE 2-4
WARNING
WARNING
DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS
BURNING
LOCK
A. Disengage the deck drive, apply the parking
brake and allow all moving parts to come to
a complete stop.
B. Pull downward on the hopper door handle to
allow the hopper sweeper to remove the
material from inside the hopper. See Figure
2-1.
C. Once the material has been completely
removed from the hopper, lift the hopper
door handle to close the hopper door and
lock into place. See Figure 2-2.
4. When dumping the hopper into a disposal area,
inspect the hopper debris screen for material.
When the debris screen is full of material, the
grass catching ability may suffer. Frequency of
cleaning the hopper debris screen will vary
dependingonconditions.

3
3.1 ASSEMBLY INSTRUCTIONS FOR 48"
AND 52" CUTTER DECK
-NOTE-
Use the illustrated parts list as a part number
reference when following the assembly
instructions.
1. Remove all packaging materials. Lay out the
mounting hardware and the catcher assembly
parts for easy access. Prepare the work area
making sure that it is a clean, safe environment.
2. Remove the discharge chute from the cutter
deck. See Figure 3-1.
-NOTE-
Do not discard the discharge chute or
mounting hardware. The discharge chute
MUST be reinstalled anytime the grass
catcher has been removed from the machine.
3. Remove the right side belt cover to gain access
to the spindle assembly. Remove the front u-nut
from the cutter deck bracket. See Figure 3-1.
FIGURE 3-1
-NOTE-
Retain the original belt cover. This cover
MUST be reinstalled anytime the
complete catcher system is removed.
4. Install the grass catcher pulley onto the spindle
assembly. Apply loctite to both pulley setscrews
and tighten. See Figure 3-1.
5. Remove the "Custom-Cut" and "Turbo" baffles
from the cutter deck. Using the original
hardware, install the new "Custom-Cut" and
"Turbo" baffles. See Figure 3-2.
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
REMOVE DISCHARGE
CHUTE AND
HARDWARE
REMOVE EXISTING
RT. SIDE BELT
COVER
INSTALL PULLEY
ON RH SPINDLE SHAFT -
ON TOP OF EXISTING
SPINDLE DRIVE
PULLEY
Figure 1- GC-STC-V install art
REMOVE U-NUT
UNDER SIDE OF
VELOCITY-PLUS
CUTTER DECK SHOWN
Front Baffle
48V - 424401
52V - 424402
Turbo Baffle
48V - 424210
52V - 424211
FIGURE 3-2
-NOTE-
Do not discard the original "Custom-Cut"
or "Turbo" baffles. These baffles may be
reinstalled anytime the grass catcher has
been removed from the machine.
6. Install the blower mounting bracket to the deck
using carriage bolts (p/n 04003-11), lockwashers,
and nuts. Do not fully tighten the hardware at
this time. See Figure 3-3.
ELASTIC STOP
NUT
FLATWASHER
CARRIAGE BOLT
FIGURE 3-3
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED

4
12. Install the hopper mounting brackets to the
outside of the frame on the rear of the machine.
See Figure 3-5.
FIGURE 3-5
13. With help from an assistant, install the hopper
assembly to the machine by installing the
mountingpostinto thehoppermounting brackets
and secure with the ring pins. Tighten the bolts
and jam nuts. See Figure 3-6.
FIGURE 3-6
Figure 4 A GC-STT Install Art
Hopper
Mounting
Brackets
Rear Frame
PROPERLY
SERVICE
ENGINE
WITH
OIL
AND
FUEL.
7. Install the blower assembly to the mounting
bracket and secure with the mounting pin.
See Figure 3-4.
8. Align the blower assembly with the discharge
opening of the cutter deck. Tighten the
hardware for the mounting bracket. See Figure
3-4.
9. Install the quick pin through the rear hole in the
discharge chute mounting bracket. See Figure 3-
4.
FRONT SIDE
IDLER PULLEY
BACK SIDE
IDLER PULLEY BLOWER
PULLEY
SPINDLE
PULLEY
10. Install the belt to the spindle pulley. When
replacing the belt, see figure below.
FIGURE 3-4
11. Install the new belt covers and secure. See
items number 1 and number 21 on page 10 of the
Blower Mounting Components section in the
Illustrated Parts List for proper installation.
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2006 GC-STC-V install art 3
BLOWER
ASSEMBLY
MOUNTING
BRACKET
MOUNTING PIN
TIGHTEN MOUNTING
BRACKET HARDWARE
HAIR
PIN
QUICK
PIN
Locking
Bolts
Locking
Bolts
Ring Pins
Ring Pins
Hair
Pin

5
14. Install the hose from the blower assembly
adapter to the hopper hood and secure using the
6-1/2"clamps.

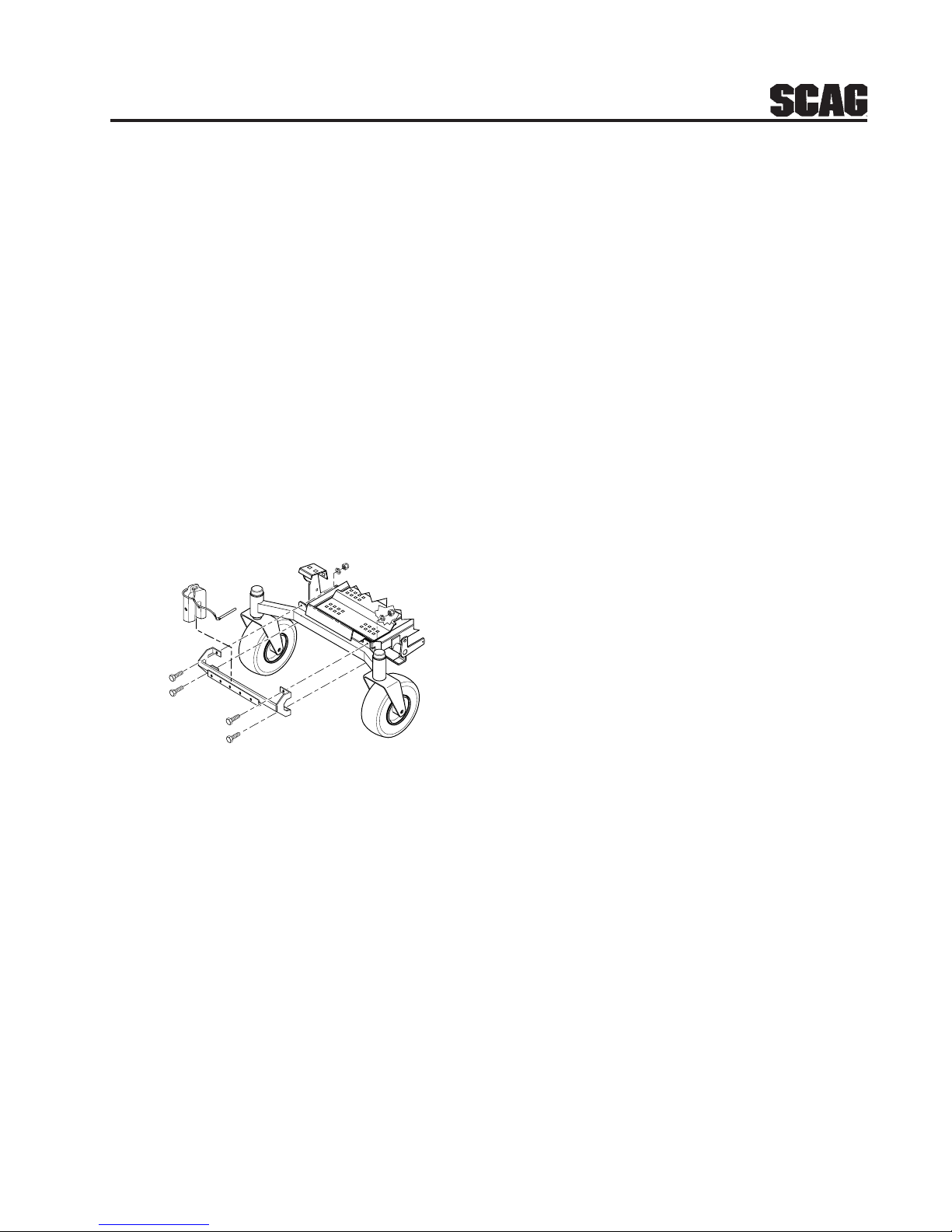

15. Using the weight support bar (p/n 451517) as a
guide,identifythefourcorrespondingmounting
holes, and the existing hardware that will need
to be removed in order to secure the weight
support bar to the front of the machine as
shown. See Figure 3-7.
16. Install one 7/16-14 x 1-3/4" hex head bolt into
each of the four mounting holes in the weight
support bar, and through the matching holes in
the caster support weldment. Secure this
assembly to the front of the machine using the
7/16- .5" x 1-1/4" x .083" flatwashers and the
7/16-14 elastic stop nuts. Torque hardware to
59 ft. lbs. See Figure 3-7.
FIGURE 3-7
17. Operate and test.

6
4.1 GRASS CATCHER REMOVAL
INSTRUCTIONS
2005 GC-STC removal art 2-A
Loosen
Locking
Bolts
Remove
Mounting
Pins
Remove
Mounting
Pins
Loosen
Locking
Bolts
1. Prepare the machine so there is easy and safe
access to the work area. Remove the key and
maintain all safety related work procedures.
Always wear eye and hand protection.
2. Remove the bag assemblies from the grass
catcher.
3. Remove the rubber strap holding the adapter to
the blower assembly and the large quick pin
securing the blower to the discharge mounting
bracket. See Figure 4-1.
4. Remove the belt, pin, hair pin and large quick pin
securing the blower assembly to the cutter deck
and remove the blower assembly. See Figure 4-
1.
FIGURE 4-1
5. Loosen the locking bolts and remove the two (2)
pinsholding thehoodassemblytothemounting
posts on the rear of the machine. See Figure
4-2.
FIGURE 4-2
6. With help from an assistant, remove the hopper
assembly.
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
7. Re-install the side discharge chute to the opening
on the cutter deck. Replace the two outside
mounting bolts on the discharge chute with the
clevis pins (p/n 04064-15) and rue cotter pins
(p/n 04069-03). See Figure 4-3.
8. Re-install the cutter deck belt cover.
FIGURE 4-3
CLEVIS PIN
P/N 04064-15
CLEVIS PIN
P/N 04064-1
5
RUE COTTER PIN
P/N 04069-03
DISCHARGE
CHUTE
GC-STC-V removal art 3
BLOWER
ASSEMBLY
MOUNTING
BRACKET
PIN & HAIR PIN
ADAPTER
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2006 GC-STC-V removal art 1
QUICK PIN

7
5.1 MAINTENANCECHART - RECOMMENDEDSERVICE INTERVALS
* Perform these maintenance procedures more frequently under extreme dusty or dirty conditions.
MAINTENANCE
HOURS
Break-In 8 20 40 100 200 500 Procedure Comments
(First 10)
X Check all hardware for tightness
X Inspect hose and adapter
X Check belt for proper alignment
X Inspect fabric bags
X *Check screen in hopper Remove debris from screen
X Inspect hose and adapter
X Inspect fabric bags
X Check condition of blower
X *Apply grease to blower bearings See figure below
X Check belt for proper alignment
GREASE FITTING
ON BEARING HOUSING
GREASE FITTING
ON BEARING HOUSING
BEHIND PULLEY

8
GC-STC-CSV 48" & 52" BLOWER HOUSING ASSEMBLY
2005 GC V+ Blower Assembly
45
47
45
4
7
8
9
9
10
10
11
11
12
12
13
14
14
14
14
15
15
16
17
18
19
20 21
22
23
24
24
27
27
28
30
31
31
32
33
34
35
35
37
38
39
40
41
41
42
43
44
10
46
34
29
11
14
17
48
36
25
ROTATINGBLADESANDBLOWER
DANGER
DONOTOPERATEMOWER
UNLESSGRASSCATCHEROR
DISCHARGEGUARDISINSTALLED
Stopenginebeforecleaningorremoving
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
6
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
5
DANGER
DANGER
47
11
14
WARNING
INSTALLBELTCOVERBEFORE
OPERATINGMACHINE
READ OPERATOR'S MANUAL
26
3
1
17
2
49
50

9
GC-STC-CSV 48" & 52" BLOWER HOUSING ASSEMBLY
Ref. Part
No. Number Description
27 04019-04 Nut, Serr. Flange 3/8-16
28 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8
29 483037 Decal, Danger
30 461931 Blower Housing Weldment
31 04003-12 Bolt, Carr. 5/16-18 x 3/4" Gr. 5
32 04063-06 Key, 1/4 x 1/4 x 1-1/2"
33 461796 Fan Weldment
34 483034 Bearing Assembly
35 04021-10 Nut, Elastic Stop 5/16-18
36 461930 Blower Housing Assembly, GC-STT
37 421319 Cover, Blower Housing
38 48136-02 Clamp, 8-5/8" Max Dia.
39 48135-09 Hose, 8.00" Dia. x 53" Long
40 482298 Pulley, 4-3/4" O.D. - 1" Bore
41 04012-04 Set Screw, 5/16-18 x 3/8"
42 461932 Frame, Blower Mount
43 481522 Spring, Main Drive
44 43212 Spacer
45 04019-03 Nut, Serr. Flange 5/16-18
46 461723 Adapter w/Strap
47 451821 Receiver Weldment, Mounting Post
48 04062-04 Hair Pin Cotter, .177 x 3-1/4"
49 424367 Dust Shield
50 04066-04 Quick Pin, 5/16" Dia.
Ref. Part
No. Number Description
1 04067-07 Pin, Ring 2-1/4" Long
2 481547 Lanyard, Deck Height Pin
3 04019-02 Nut, Serr. Flange 1/4-20
4 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
5 481377 Decal, Blower
6 482080 Decal, Rotating Blower
7 481428 Grip, Blower Lever
8 483223 Cap, Square
9 04024-02 Nut, Push On 3/8 Thread
10 04021-05 Lock Nut, 3/8-16
11 04041-07 Flatwasher, 3/8-.391 x .938 x .105
12 43277 Spacer
13 483209 Pulley, Idler 4" Dia.
14 04021-09 Nut, Elastic Stop 3/8-16
15 04030-04 Lockwasher, 3/8-16
16 424361 Plate, Catcher Mounting
17 04003-05 Bolt, Carr. 3/8-16 x 1-1/2"
18 04001-54 Bolt, Hex Head 3/8-16 x 3" - 52"
19 04001-81 Bolt, Hex Head 3/8-16 x 3-1/2"
20 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
21 461928 Idler Arm Assembly
22 482379 Belt, GC-STC
23 483189 Pulley, 3-1/2" O.D., GC-STC
24 04043-04 Washer, 3/8 Hardened
25 43575 Pivot, Idler
26 481039 Decal, Belt Cover

10
GC-STC-CSV 48" & 52" BLOWER MOUNTING COMPONENTS
UNDER SIDE OF
VELOCITY-PLUS
CUTTER DECK SHOWN
23
23
28
24
24
25
25
26
26
16
16
25
27
1
2
3
4
5
6
6
7
8
9
10
10
11
12 13
14 15
15
16
17
18
19
20
2006 GC-STC-V BMC
21
22
RIGHT SIDE OF
CUTTER DECK SHOWN

11
GC-STC-CSV 48" & 52" BLOWER MOUNTING COMPONENTS
Ref. Part
No. Number Description
1 483224 Belt Cover, GC-STC
2 04029-04 Wingnut, Plastic 3/8" Small
3 483223 Cap, Square Vinyl
4 04021-08 Nut, Elastic Stop 1/4-20
5 461723 Adapter, Blower GC-STC, includes item #7
6 04040-14 Flatwasher, 1/4-.312 x .750 x .065
7 48137-04 Rubber Strap 7-3/4"
8 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
9 481625-01 Knob W/Stud, 3/8-16 x 1-1/4"
10 04064-15 Clevis Pin, 5/16 x 1-1/2"
11 04069-03 Pin, Rue Cotter 5/16 Dia.
12 04067-07 Pin, Ring 1/2 x 2-1/4"
13 481547 Lanyard
14 482587 Pulley, 4.0" Dia. 1.125 Bore
15 04012-04 Setscrew, 5/16-18 x 3/8"
16 04021-09 Nut, Elastic Stop 3/8-16
17 04030-04 Lockwasher, 3/8"
18 04041-07 Flatwasher, 3/8-.391 x .938 x .105
19 04003-11 Bolt, Carr. 3/8-16 x 1-1/4" Grade 5
20 461894 Mounting Post Weldment, Blower
21 424326 Belt Cover, GC-STC-48V
424327 Belt Cover, GC-STC-52V
22 04110-03 U-Nut
23 04003-23 Bolt, Carriage 3/8-16 x 1"
24 04001-09 Bolt, Hex Head 5/16-18 x 1"
25 04040-15 Flatwasher, 5/16-.375 x .875 x .083
26 04021-10 Nut, Elastic Stop 5/16-18
27 424401 Baffle, Front 48" Deck
424402 Baffle, Front 52" Deck
28 424210 Baffle, Turbo 48" Deck
424211 Baffle, Turbo 52" Deck

12
GC-STC-CSV HOPPER COMPONENTS
A
A
B
B
C
C
2006 CSHOPPEREXPLOD-STC
1
16
45
15
14
45
43
56
55
6
17
41
50
5
4
3
49
31
51 11
40
58
59
25
12
8
9
34
49
50
24
34
29
42
27
48
38
53
10
33
61
60
37
19
36
20
49
33
21
57
38
32
35 46 37
49
49
46
60
49
61
28
59
58
49
46
46
37
13
30
22
44
23
32
33
35
57
60
37
61
38
53
20
49 49
49 49
45
49
49
21
19
29
49
25 36
38
59
58
40
33
10
49
61
28
59
58
24
34
12
50
52
41
49 60
49
49
18
18
34
55
6
2
53
53
49
49
53
26
26
7
43
62
53
64
66
65
67
68
68A
63
53
64
65
66
63
69
54
33
65
72

13
GC-STC-CSV HOPPER COMPONENTS
Ref. Part
No. Number Description
1 461627 Hopper, GC-STC-CS
2 482732 Door, GC-CS
3 461626 Sweeper Weldment, GC-CS
4 482777 Pad, Rubber
5 04090-02 Pop Rivet, 3/16 x .652
6 423834 Plate, Stiffener
7 423938 Support Frame, Hopper
8 423849 Hinge Bracket, L.H.
9 423850 Hinge Bracket, R.H.
10 423858 Bracket, Hopper Support
11 423837 Latch, Door Prop
12 423840 Plate, Latch
13 451838 Bellcrank Weldment, Upper
14 451601 Debris Screen Weldment
15 451602 Screen Support Weldment, Rear
16 451603 Screen Support Weldment, Front
17 451607 Hinge Weldment, Hopper
18 43631 Spacer
19 423851 Brace Stiffener, Short
20 423852 Tube, Upright
21 422386 Brace, Engine Mount
22 424405 Latch, Dump Rod Inner
23 424406 Latch, Dump Rod Outer
24 43063 Spacer
25 43282 Spacer
26 43277 Spacer
27 481309 Latch, Hood
28 43641 Linkage Assembly, Lower
29 43640 Linkage Assembly, Upper
30 481245 Knob
31 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4
32 04001-18 Bolt, Hex Head 3/8-16 x 3/4"
33 04001-19 Bolt, Hex Head 3/8-16 x 1"
34 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2"
35 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
36 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4"
37 04001-45 Bolt, Hex Head 3/8-16 x 2"
38 04001-46 Bolt, Hex Head 3/8-16 x 2-1/4"
39 04001-63 Bolt, Hex Head 5/16-18 x 3-1/2"
40 04001-77 Bolt, Hex Head 3/8-16 x 3-1/2"
41 04003-04 Bolt, Carriage 5/16-18 x 1"
42 04010-01 Screw, #10-32 x 1/2"
43 04017-16 Cap Screw, 5/16-18 x 3/4" Serr. Flan.
44 04017-17 Cap Screw, 5/16-18 x 1" Serr. Flan.
45 04019-03 Nut, 5/16-18 Serrated Flange
46 04019-04 Nut, 3/8-16 Serrated Flange
47 04020-12 Nut, 3/8-16 UNC Jam
48 04021-01 Nut, #10-32 Elastic Stop
49 04021-09 Nut, 3/8-16 Elastic Stop
50 04021-10 Nut, 5/16-18 Elastic Stop
51 04032-01 Washer, Special Wave
52 04040-15 Washer, 5/16-.375 x .875 x .083 Flat
53 04041-07 Washer, 3/8-.931 x .938 x .105 Flat
54 43642 Bushing, Hopper Latch GC-CS
55 04001-54 Bolt, Hex Head 3/8-16 x 3"
56 451598 Hinge Weldment, Door
57 481547 Lanyard
58 481538 Rod End Male, 3/8-24 L.H. Thread
59 04020-26 Nut, 3/8-24 UNF L.H. Thread
60 481539 Rod End Male, 3/8-24 R.H. Thread
61 04020-25 Nut, 3/8-24 UNF R.H. Thread
62 423865 Alignment Bracket, GC-CS
63 04001-31 Bolt, Hex Head 3/8-16 x 2-1/2"
64 04030-04 Lock Wasker, 3/8-16 Spring
65 04020-04 Nut, 3/8-16 UNC Zinc
66 04021-05 Nut, 3/8-16 Center Lock
67 423836 Retainer Strip, Hopper
68 451726 Mounting Bracket Weldment, R.H.
68A 451725 Mounting Bracket Weldment, L.H.
69 423855 Bracket, Lower Stiffener
423859 Backing Plate, Hopper (Not Shown)
Ref. Part
No. Number Description

14
GC-STC-CSV DECALS
481039
482275
481327
483037
481377
483039
483044

LIMITED WARRANTY- COMMERCIAL ACCESSORY
AnypartoftheScagcommercialaccessorymanufacturedbyScagandfound,inthereasonablejudgmentofScag,
tobedefectiveinmaterialorworkmanship,willberepairedorreplacedbyanAuthorizedScagServiceDealerwithout
chargeforpartsandlabor.
TheScagaccessory, includingany defectivepart,mustbe returned toanAuthorizedScag ServiceDealerwithin
thewarrantyperiod. The expense of delivering the accessory to the dealer for warranty work and the expense of
returningitbacktotheownerafterrepairorreplacementwillbepaidforbytheowner. Scag’sresponsibilityinrespect
toclaimsislimitedtomakingtherequiredrepairsorreplacements,andnoclaimofbreachofwarrantyshallbecause
forcancellationorrescissionofthecontractofsaleofanyScagmachine. Proofofpurchasewillberequiredbythe
dealer to substantiate any warranty claim. All warranty work must be performed by an Authorized Scag Service
Dealer.
Thiswarrantyislimited to90daysfromthe dateoforiginalretailpurchase foranyScagaccessorythat isusedfor
commercialpurposes, oranyotherincome-producing purposeincludingrentaluse.
Thiswarrantydoes not coveranyaccessorythat hasbeensubjectto misuse,neglect,negligence,or accident, or
thathasbeenoperatedinanywaycontrarytotheoperating instructionsasspecifiedintheOperator'sManual. The
warranty does not apply to any damage to the accessory that is the result of improper maintenance, or to any
accessory or parts that have not been assembled or installed as specified in the Operator's Manual.
Thewarrantydoesnotcoveranyaccessory that has been altered or modified. In addition, the warranty does not
extendtorepairsmadenecessarybynormalwear,orby the use of parts or accessories which, inthereasonable
judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or
durability. This warranty does not cover engines and electric starters, which are warranted separately by their
manufacturer.
ScagPowerEquipmentreservestherighttochangeorimprovethedesignofanyaccessorywithoutassumingany
obligation to modify any accessory previously manufactured.
All other implied warranties are limited in duration to the 90 day warranty period. Accordingly, any such implied
warrantiesincludingmerchantability, fitness foraparticularpurpose, orotherwise,aredisclaimed in theirentirety
aftertheexpirationof theappropriateninetyday warrantyperiod. Scag’s obligationunderthiswarrantyis strictly
andexclusivelylimitedtotherepairorreplacementofdefectivepartsandScagdoesnotassumeorauthorizeanyone
toassumeanyotherobligationforthem. Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylasts,
so the above limitation may not apply to you.
Scagassumesnoresponsibilityforincidental,consequentialorotherdamagesincluding,butnotlimitedto,expense
forgasoline,oil,expenseofdeliveringthemachinetoanAuthorizedScagServiceDealerandexpenseofreturning
itbacktotheowner,mechanic’straveltime,telephoneortelegramcharges,rentalofalikeproductduringthetime
warrantyrepairsarebeingperformed,travel,lossordamagetopersonalproperty,lossofrevenue,lossofuseof
the mower, loss of time, or inconvenience. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

PART NO. 03183
PRINTED 7-2005
PRINTED IN USA
©2005
SCAG POWER EQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC
www.scag.com
