Scag Power Equipment GC-STT-CSV User manual

MODEL GC-STT-CSV
THISMANUALCONTAINSTHEOPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TIONFORYOURSCAGACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURESTO KEEPYOURACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERSARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE,PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
OPERATOR’S MANUALOPERATOR’S MANUAL OPERATOR’S MANUALOPERATOR’S MANUAL
OPERATOR’S MANUAL
PART NUMBER 03187

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all safety shields in place.
* Beforeperforminganymaintenance or service, stop themachineand
remove the spark plug wire.
* Ifa mechanism becomes clogged,stopthe engine and waitfor all moving
parts to come to a complete halt before cleaning.
* Keephands,feetandclothing away from power-driven parts.
* Readthismanualcompletelyaswell as the Operator's Manual that came
withyourmower.
* Keepothersoff the tractor (onlyoneperson at a time).
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the op-
eration, transport, maintenance, and storage of the equipment.
WARNING
Thismanualcovers the operating instructions
andillustratedpartslist for:
GC-STT-CS52V with a serial number of B9500001 to B9599999
GC-STT-CS61V with a serial number of B9700001 to B9799999

1
1.1 INTRODUCTION
This manual has been prepared to provide the
information you need to correctly assemble, operate,
and maintain this grass catcher. Read it carefully and
keep it for future reference.
The replacement of any part on this product by other
than the manufacturer's authorized replacement part
may adversely affect the performance, durability or
safety of this product.
USE OF OTHER THAN ORIGINAL SCAG
REPLACEMENT PARTS WILL VOID THE
WARRANTY.
If additional information or service is needed that is
not outlined in this manual, please contact your Scag
Power Equipment dealer. Scag dealers are trained in
the latest service methods and carry a full line of Scag
replacement parts.
When ordering parts, always provide the complete
model number of your catcher.
Allinformation providedinthismanualisbasedupon
information available at the time of printing. Scag
Power Equipment reserves the right to make changes
at any time without notice or obligation.
A replacement manual is available from your
authorized Scag Service Dealer or by contacting:
Scag Power Equipment, Service Department at P.O.
Box 152, Mayville, WI 53050. You may also contact
us through our website at www.scag.com The
manual for this grass catcher can be downloaded by
using the model and serial number or use the contact
form to make your request. Please indicate the
complete model and serial number of your Scag
product when requesting replacement manuals.
1.2 DIRECTION REFERENCE
The "Right" and "Left", "Front" and "Rear" of the
machine are referenced from the normal operating
position.
2. Before dumping the debris, disengage the
mower, stop the engine and wait for all
movement to stop.
3. ALWAYS turn the engine OFF, remove the key
and wait for all movement to stop before
servicing or cleaning the mower or the grass
catcher.
4. Do not modify or alter any component of the
grass catcher attachment or mower.
5. Do not allow any passengers to ride on the grass
catcher attachment or on the mower.
WARNINGWARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
2.1 SAFETY AND OPERATING
INSTRUCTIONS
-NOTE-
To avoid personal injury, it is imperative that
all safety instructions be observed.
1. Read this operator's manual and the
operator's manual that is supplied with the
machine this attachment is used on.
DANGER
DANGER
ROTATING BLOWER
BLADES
STOP ENGINE BEFORE
ENTERING CHUTE
CONTACT CAN INJURE
2.2 GRASS CATCHING OPERATION
1. With the hopper door closed, engage the deck
drive.
2. Proceed to mow until the hopper is full.

2
A. Disengage the deck drive, apply the parking
brake and allow all moving parts to come to
a complete stop.
B. Pull downward on the hopper door handle to
allow the hopper sweeper to remove the
material from inside the hopper. See Figure
2-1.
C. Once the material has been completely
removed from the hopper, lift the hopper
door handle to close the hopper door and
lock into place. See Figure 2-2.
4. When dumping the hopper into a disposal area,
inspect the hopper debris screen for material.
When the debris screen is full of material, the
grass catching ability may suffer. Frequency of
cleaning the hopper debris screen will vary
dependingonconditions.
3. When dumping the hopper into a disposal area: 5. To clean the hopper debris screen;
A. Disengage the deck drive and allow all
moving parts to come to a complete stop.
B. Apply parking brake and shut off the engine.
C. Stand on the left side of the hopper
assembly.
D. Unhook the debris screen latches and
remove the debris screen from the hopper.
See Figure 2-3.
E. Remove material from the debris screen and
reinstall. Secure by latching the debris
screen latches.
6. When service is needed inside the hopper,
disengage the deck drive and allow all moving
parts to come to a complete stop, shut off the
engine and apply the parking brake. Rotate the
hopper door prop rod upward until it contacts the
hopper door. This will prevent the hopper door
from moving until the service is complete. See
Figure2-4.
FIGURE 2-1
FIGURE 2-2
Debris Screen
Latches
Fi
g
ure 2-3 GC-CS
FIGURE 2-3
Hopper Prop
Rod
Fi
g
ure 2-4 GC-CS
FIGURE 2-4
WARNING
WARNING
DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS
BURNING
LOCK

3
3.1 ASSEMBLY INSTRUCTIONS
-NOTE-
Use the illustrated parts list as a part number
reference when following the assembly
instructions.
1. Remove all packaging materials. Lay out the
mounting hardware and the catcher assembly
parts for easy access. Prepare the work area
making sure that it is a clean, safe environment.
2. Remove the discharge chute from the cutter
deck. See Figure 3-1.
-NOTE-
Do not discard the discharge chute or
mounting hardware. The discharge chute
MUST be reinstalled anytime the grass
catcher has been removed from the machine.
FIGURE 3-1
RIGHT SIDE OF 52"
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
REMOVE DISCHARGE
CHUTE AND
HARDWARE
REMOVE EXISTING
RT. SIDE BELT
COVER
INSTALL PULLEY
ON RH SPINDLE SHAFT -
ON TOP OF EXISTING
SPINDLE DRIVE
PULLEY
REMOVE (2)
U-NUTS
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
3. Remove the right side belt cover to gain access
to the spindle assembly. Remove the u-nuts
from the cutter deck bracket. See Figure 3-1.
4. Install the grass catcher pulley onto the spindle
assembly. Apply loctite to both pulley setscrews
and tighten. See Figure 3-1.
6. Install the blower mounting bracket to the deck
using 1/2-13 x 1-1/2" hex head bolts (p/n 04001-
71), 1/2" spring lockwashers (p/n 04030-06), and
1/2-13 elastic stop nuts (p/n 04021-07). See
Figure 3-3, Page 4. Do not fully tighten the
hardware at this time.
7. This step is for 52" cutter decks only.
Block the right front side on the cutter deck and
remove the hang chain. Install the deck lift link.
Secure using hex head bolts (p/n 04001-32,
04001-20), flatwashers (p/n 04041-07), spacers
(p/n 43212), and serrated flange nuts (p/n 04019-
04). See Figure 3-3, page 3.
5. Remove the "Custom-Cut" and "Turbo" baffles
from the cutter deck. Using the original
hardware, install the new "Front" and "Turbo"
baffles. See Figure 3-2.
FIGURE 3-2
-NOTE-
Do not discard the original "Custom-Cut"
or "Turbo" baffles. These baffles may be
reinstalled anytime the grass catcher has
been removed from the machine.
UNDER SIDE OF
VELOCITY-PLUS
CUTTER DECK SHOWN
Front Baffle
52V - 424402
61V - 424403
Turbo Baffle
52V - 424211
61V - 424212

4
PROPERLY
SERVICE
ENGINE
WITH
OIL
AND
FUEL.
DISCHARGE CHUTE OPENING FRONT OF
CUTTER DECK
REAR OF
CUTTER DECK
VIEW FROM RIGHT SIDE
OF CUTTER DECK Figure 2-52"GC-STT install art
CUTTER DECK
BELL CRANK
LIFT LINK
SPACER
SPACER
NUT
NUT
WASHER
BOLT, 3/8-16
x 1-1/2"
BOLT, 3/8-16
x 1-1/4"
FIGURE 3-3
52" Cutter Deck
61" & 72" Cutter Decks
DISCHARGE CHUTE OPENING FRONT OF
CUTTER DECK
REAR OF
CUTTER DECK
VIEW FROM RIGHT SIDE
OF CUTTER DECK
Figure 2-61"GC-STT install art

5
FIGURE 3-4
8. Install the blower assembly to the mounting
bracket and secure with the mounting pin and
hair pin. See Figure 3-4.
9. Align the blower assembly with the discharge
opening of the cutter deck. Tighten the
hardware for the mounting bracket. Install the
quick pin through the rear hole in the discharge
chute mounting bracket. See Figure 3-4.
10. Install the new belt cover from the cutter deck to
the blower mounting bracket and secure with the
originalbeltcover plasticwingnuts.

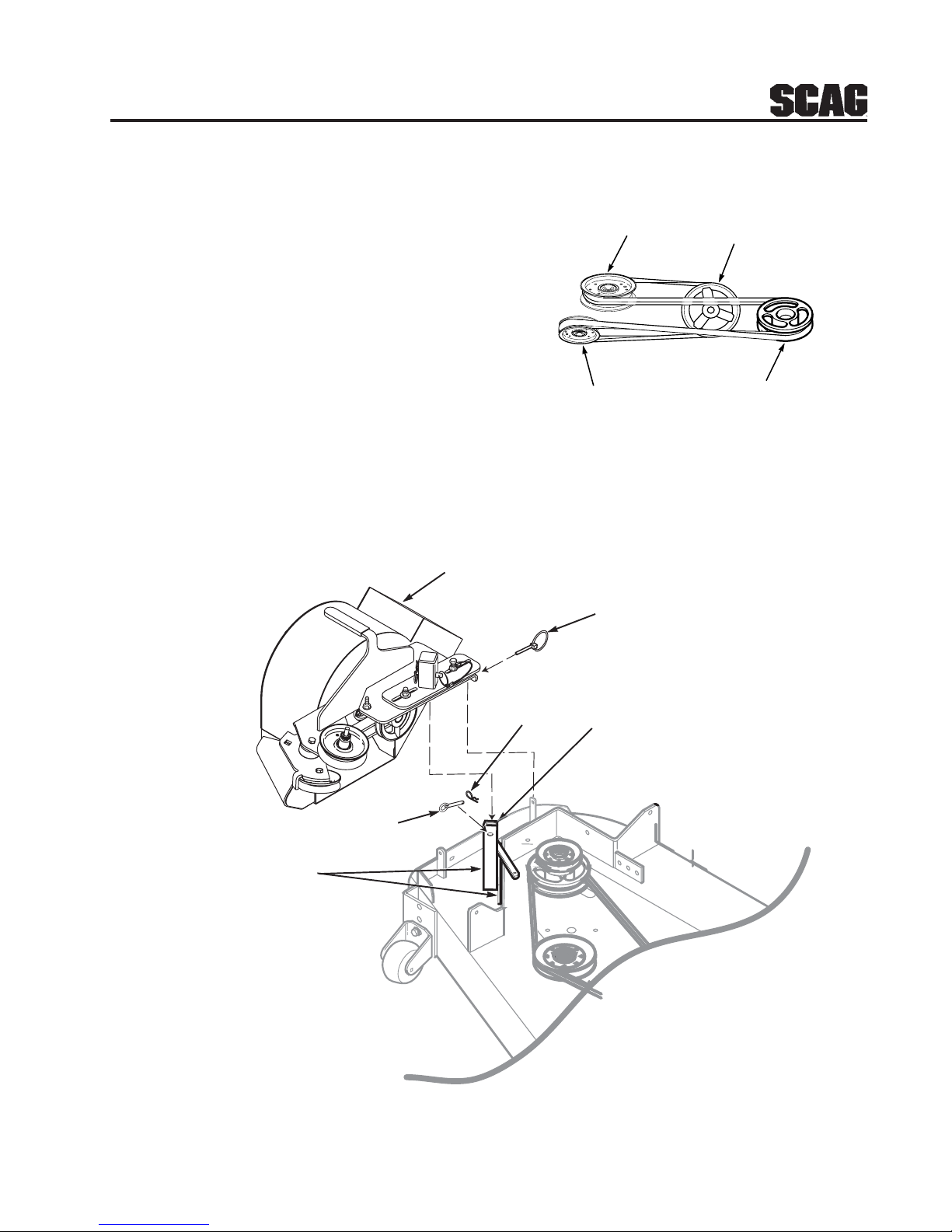

11. Install the belt to the spindle pulley. When
replacing the belt, see figure below.
FRONT SIDE
IDLER PULLEY
BACK SIDE
IDLER PULLEY BLOWER
PULLEY
SPINDLE
PULLEY
12. Install the plastic belt cover and secure with the
plastic wing nuts. See Page 12 of the Illustrated
Parts List for proper installation.
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2006 GC-STC-V install art 3
BLOWER
ASSEMBLY
MOUNTING
BRACKET
MOUNTING PIN
TIGHTEN MOUNTING
BRACKET HARDWARE
HAIR
PIN
QUICK
PIN

6
13. Install the hopper mounting brackets (p/n 451512
& p/n 451595) to the outside of the frame on the
rear of the machine using 3/8-16 x 1" hex head
bolts (p/n 04001-19) and 3/8-16 elastic stop nuts
(p/n 04021-09). See Figure 3-7, Page 7.
14. Install the catcher support bracket onto the rear
of the machine and secure with 5/16-18 x 1"
carriage bolts (p/n 04003-04) and 5/16-18
serrated flange nuts (p/n 04019-03) See Figure
3-5.
15. With the help of an assistant, install the hopper
assembly into the hopper mounting brackets.
See Figure 3-7, Page 7.
Catcher Support Bracket
FIGURE 3-5
16. Install the hose from the blower assembly to the
hopper assembly. Secure using the 8-1/2"
clamps.
-NOTE-
When installing this catcher on machines
equipped with an air cooled engine the
discharge hose should be shortened to
56" in length.
WEIGHT SUPPORT BAR
BAR CLAMP
ELASTIC STOP
NUT
WEIGHT (5x)
LANYARD
PIN
BOLT
2002 GC-STT Install Art 3-5
17. Install the weight support bar to the front of the
machine by resting it directly on top of the caster
support arms and sliding it tight against the frame
of the machine. Secure the weight bar to the
machine using (2) bar clamps, (4) 3/8-16 x 1-1/2"
bolts and (4) 3/8-16 elastic stop nuts. See Figure
3-6.
18. Install the weight assemblies to the weight
support bar and secure them to the bar using the
1/2"x 6-1/4" pin and lanyard. See Figure 3-6.
19. Operate and test.
FIGURE 3-6

7
FIGURE 3-7
Liquid
Cooled
Only
Note:
Illustration is for reference only. Some parts have been
removed for visual purposes and may vary depending
on model.
Hopper
Assembly
Frame
Item # Part # Description
1 04001-19 Bolt, Hex Head 3/8-16 x 1"
2 04021-09 Nut, Elastic Stop 3/8-16
3 04066-03 Quick Pin
4 423670 Spacer, Hitch
5 451512 Hitch Bracket Weldment
451595 Hitch Bracket Weldment, Floating
1
1
12
2
3
3
4
5
5
2

8
1. Prepare the work area making sure that it is a
clean, safe environment.
2. Remove the rubber strap holding the adapter to
the blower assembly. See Figure 5-1.
3. Remove the belt from the spindle pulley and the
quick pin securing the blower to the discharge
mountingbracket.
4. Remove the pin and hair pin securing the blower
assembly to the mounting bracket on the cutter
deck and remove the blower assembly. See
Figure5-1.
5. Remove the two (2) pins holding the hopper
assembly to the mounting brackets on the rear of
the machine. See Figure 5-2.
6.1 GRASS CATCHER REMOVAL
INSTRUCTIONS
6. With the help of an assistant, remove the hopper
assembly.
7. Remove the front weights by removing the quick
pins.
8. Re-install the side discharge chute to the opening
on the cutter deck. Replace the two (2) outside
mounting bolts on the discharge chute with the
clevis pins (p/n 04064-15) and rue cotter pins
(p/n 04069-03). See Figure 5-3.
9. Re-install the cutter deck belt cover.
FIGURE 5-3
REMOVE
REMOVE
PULL HOOD
ASSEMBLY OUT
FIGURE 5-1
FIGURE 5-2
WARNING
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
BLOWER
ASSEMBLY
MOUNTING
BRACKET
PIN & HAIR PIN
ADAPTER
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
2006 GC-STC-V removal art 1
QUICK PIN
CLEVIS PIN
P/N 04064-15
CLEVIS PIN
P/N 04064-1
5
RUE COTTER PIN
P/N 04069-03
DISCHARGE
CHUTE
GC-STC-V removal art 3

9
5.1 MAINTENANCECHART - RECOMMENDEDSERVICE INTERVALS
* Perform these maintenance procedures more frequently under extreme dusty or dirty conditions.
MAINTENANCE
HOURS
Break-In 8 20 40 100 200 500 Procedure Comments
(First 10)
X Check all hardware for tightness
X Inspect hose and adapter
X Check belt for proper alignment
X Inspect fabric bags
X *Check screen in hopper Remove debris from screen
X Inspect hose and adapter
X Inspect fabric bags
X Check condition of blower
X *Apply grease to blower bearings See figure below
X Check belt for proper alignment
GREASE FITTING
ON BEARING HOUSING
GREASE FITTING
ON BEARING HOUSING
BEHIND PULLEY

10
GC-STT-V BLOWER HOUSING ASSEMBLY
2005 GC V+ Blower Assembly
45
47
45
4
7
8
9
9
10
10
11
11
12
12
13
14
14
14
14
15
15
16
17
18
19
20 21
22
23
24
24
27
27
28
30
31
31
32
33
34
35
35
37
38
39 40
41
41
42
43
44 10
46
34
29
11
14
17
48
36
25
ROTATINGBLADESANDBLOWER
DANGER
DONOTOPERATEMOWER
UNLESSGRASSCATCHEROR
DISCHARGEGUARDISINSTALLED
Stopenginebeforecleaningorremoving
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
6
DANGER
ROTATINGBLOWER
BLADES
STOPENGINEBEFORE
ENTERINGCHUTE
CONTACTCANINJURE
5
DANGER
DANGER
47
11
14
WARNING
INSTALLBELTCOVERBEFORE
OPERATINGMACHINE
READ OPERATOR'S MANUAL
26
3
1
17
2
49
50

11
1 04067-07 Pin, Ring 2-1/4" Long
2 481547 Lanyard, Deck Height Pin
3 04019-02 Nut, Serr. Flange 1/4-20
4 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
5 481377 Decal, Blower
6 482080 Decal, Rotating Blower
7 481428 Grip, Blower Lever
8 483223 Cap, Square
9 04024-02 Nut, Push On 3/8 Thread
10 04021-05 Lock Nut, 3/8-16
11 04041-07 Flatwasher, 3/8-.391 x .938 x .105
12 43277 Spacer
13 483173 Pulley, Idler 3-1/2" Dia. - 52"
483209 Pulley, Idler 4" Dia. - 61"
14 04021-09 Nut, Elastic Stop 3/8-16
15 04030-04 Lockwasher, 3/8-16
16 424361 Plate, Catcher Mounting
17 04003-05 Bolt, Carr.3/8-16 x 1-1/2"
18 04001-54 Bolt, Hex Head 3/8-16 x 3" - 52"
19 04001-81 Bolt, Hex Head 3/8-16 x 3-1/2"
20 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
21 461xxx Idler Arm Assembly - 52"
461928 Idler Arm Assembly - 61"
22 483182 Belt, GC-STC
23 483189 Pulley, 3-1/2" O.D., GC-STC
24 04043-04 Washer, 3/8 Hardened
25 43504 Pivot, Idler Long - 52"
43575 Pivot, Idler - 61"
26 482871 Decal, Belt Cover - 52"
481039 Decal, Belt Cover - 61"
GC-STT-V BLOWER HOUSING ASSEMBLY
Ref. Part
No. Number Description
27 04019-04 Nut, Serr. Flange 3/8-16
28 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8
29 483037 Decal, Danger
30 461931 Blower Housing Weldment w/Decals
31 04003-12 Bolt, Carr.5/16-18 x 3/4" Gr.5
32 04063-06 Key, 1/4 x 1/4 x 1-1/2"
33 461796 Fan Weldment
34 483034 Bearing Assembly
35 04021-10 Nut, Elastic Stop 5/16-18
36 461930 Blower Housing Assembly, GC-STT
37 421319 Cover, Blower Housing
38 48136-02 Clamp, 8-5/8" Max Dia.
39 48135-14 Hose, 8.00" Dia. x 60.50" Long
40 482298 Pulley, 4-3/4" O.D. - 1" Bore
41 04012-04 Set Screw, 5/16-18 x 3/8"
42 461932 Frame, Blower Mount
43 481522 Spring, Main Drive
44 43212 Spacer
45 04019-03 Nut, Serr. Flange 5/16-18
46 461723 Adapter w/Strap
47 451822 Receiver Weldment, Mount Post - 52"
451821 Receiver Weldment, Mount Post - 61"
48 04062-04 Hair Pin Cotter, .177 x 3-1/4"
49 424367 Dust Shield
50 04066-04 Quick Pin, 5/16" Dia.
Ref. Part
No. Number Description

12
GC-STT-V BLOWER MOUNTING COMPONENTS
UNDER SIDE OF
VELOCITY-PLUS
CUTTER DECK SHOWN
23
23
28
24
24
25
2526
26
16 16
25
27
1
2
3
4
5
6
6
78
9
10
10
11
12 13
14 15
15
16 17
18
19
20
2006 GC-STC-V BMC
21
22
RIGHT SIDE OF
CUTTER DECK SHOWN

13
GC-STT-V BLOWER MOUNTING COMPONENTS
Ref. Part
No. Number Description
1 483225 Belt Cover, GC-STT - 52"
483227 Belt Cover, GC-STT - 61"
2 04029-04 Wingnut, Plastic 3/8" Small
3 483223 Cap, Square Vinyl
4 04021-08 Nut, Elastic Stop 1/4-20
5 461723 Adapter, Blower GC-STT, includes item #7
6 04040-14 Flatwasher, 1/4-.312 x .750 x .065
7 48137-04 Rubber Strap 7-3/4"
8 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4"
9 481625-01 Knob W/Stud, 3/8-16 x 1-1/4"
10 04064-15 Clevis Pin, 5/16 x 1-1/2"
11 04069-03 Pin, Rue Cotter 5/16 Dia.
12 04067-07 Pin, Ring 1/2 x 2-1/4"
13 481547 Lanyard
14 482587 Pulley, 4-1/2" for 52" Deck
482377 Pulley, 5-1/2" for 61" Deck
15 04012-04 Setscrew, 5/16-18 x 3/8"
16 04021-09 Nut, Elastic Stop 3/8-16
17 04030-04 Lockwasher, 3/8"
18 04041-07 Flatwasher, 3/8-.391 x .938 x .105
19 04003-11 Bolt, Carr. 3/8-16 x 1-1/4" Grade 5
20 461418 Mounting Post Weldment, Blower - 52"
461894 Mounting Post Weldment, Blower - 61"
21 423427 Belt Cover, GC-STT-52V
424329 Belt Cover, GC-STT-61V
22 04110-03 U-Nut
23 04003-23 Bolt, Carriage 3/8-16 x 1"
24 04001-09 Bolt, Hex Head 5/16-18 x 1"
25 04040-15 Flatwasher, 5/16-.375 x .875 x .083
26 04021-10 Nut, Elastic Stop 5/16-18
27 424402 Baffle, Front 52" Deck
424403 Baffle, Front 61" Deck
28 424211 Baffle, Turbo 52" Deck
424212 Baffle, Turbo 61" Deck

14
GC-STT-CSV HOPPER COMPONENTS
A
AB
B
C
C
2006 GC-STT-CSV Hopper
1
16
45
15
14
45
43
56
55
6
17
41
50
5
4
3
49
31
51 11
40
5859
25
12
8
9
34
49
50
24 34
29
4227
48
38 53
10 33
61
60 37
19
36
20
4
9
33
21
57
38
32
35 46 37
49
49
46
60
49
61
28
59
58
49
46
46
37
13
30
22
44
23
32
33
35
60
37
61
38
53
20
49 49
49 49
45
49
49
21
19
29
49
25 36
38
59
58
40
33
10
49
61
28
59
58
24
34
12
50
52
41
49 60
49 49
18
18
34
55 6
2
53
53
49
49
53
26
26
7
43
62
64
66
65
67
68
63
69
70
54
38
38
49
49
57
71
53
72
53

15
GC-STT-CSV HOPPER COMPONENTS
Ref. Part
No. Number Description
1 483038 Hopper, GC-STT-CS
2 482732 Door, GC-CS
3 461626 Sweeper Weldment, GC-CS
4 482777 Pad, Rubber
5 04090-02 Pop Rivet, 3/16 x .652
6 423834 Plate, Stiffener
7 423938 Support Frame, Hopper
8 423849 Hinge Bracket, L.H.
9 423850 Hinge Bracket, R.H.
10 423858 Bracket, Hopper Support
11 423837 Latch, Door Prop
12 423840 Plate, Latch
13 451838 Bellcrank Weldment, Upper
14 451601 Debris Screen Weldment
15 451602 Screen Support Weldment, Rear
16 451603 Screen Support Weldment, Front
17 451607 Hinge Weldment, Hopper
18 43631 Spacer
19 423830 Brace Stiffener, Short
20 423828 Tube, Upright
21 422386 Brace, Engine Mount
22 423862 Latch, Dump Rod Inner
23 423864 Latch, Dump Rod Outer
24 43063 Spacer
25 43282 Spacer
26 43277 Spacer
27 481309 Latch, Hood
28 43641 Linkage Assembly, Lower
29 43640 Linkage Assembly, Upper
30 481245 Knob
31 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4
32 04001-18 Bolt, Hex Head 3/8-16 x 3/4"
33 04001-19 Bolt, Hex Head 3/8-16 x 1"
34 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2"
35 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4"
36 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4"
37 04001-45 Bolt, Hex Head 3/8-16 x 2"
38 04001-46 Bolt, Hex Head 3/8-16 x 2-1/4"
39 04001-63 Bolt, Hex Head 5/16-18 x 3-1/2"
40 04001-77 Bolt, Hex Head 3/8-16 x 3-1/2"
41 04003-04 Bolt, Carriage 5/16-18 x 1"
42 04010-01 Screw, #10-32 x 1/2"
43 04017-16 Cap Screw, 5/16-18 x 3/4" Serr. Flan.
44 04017-17 Cap Screw, 5/16-18 x 1" Serr.Flan.
45 04019-03 Nut, 5/16-18 Serrated Flange
46 04019-04 Nut, 3/8-16 Serrated Flange
47 04020-12 Nut, 3/8-16 UNC Jam
48 04021-01 Nut, #10-32 Elastic Stop
49 04021-09 Nut, 3/8-16 Elastic Stop
50 04021-10 Nut, 5/16-18 Elastic Stop
51 04032-01 Washer, Special Wave
52 04040-15 Washer, 5/16-.375 x .875 x .083 Flat
53 04041-07 Washer, 3/8-.931 x .938 x .105 Flat
54 43642 Bushing, Hopper Latch GC-CS
55 04001-54 Bolt, Hex Head 3/8-16 x 3"
56 451598 Hinge Weldment, Door
57 04066-03 Pin
58 481538 Rod End Male, 3/8-24 L.H. Thread
59 04020-26 Nut, 3/8-24 UNF L.H.Thread
60 481539 Rod End Male, 3/8-24 R.H. Thread
61 04020-25 Nut, 3/8-24 UNF R.H.Thread
62 423865 Alignment Bracket, GC-CS
63 04001-19 Bolt, Hex Head 3/8-16 x 1"
64 04021-09 Nut, 3/8-16 Elastic Stop
65 451512 Hitch Bracket Weldment
66 451595 Hitch Bracket Weldment, Floating
67 04001-51 Bolt, Hex Head 3/8-16 x 3-3/4"
68 423690 Support Bracket, Catcher
69 423855 Bracket, Lower Stiffener
423859 Backing Plate, Hopper (Not Shown)
70 423836 Retainer Strip, Hopper
71 451596 Frame Weldment
Ref. Part
No. Number Description

16
GC-STT-CSV DECALS
481039
482275
481327
483037
481377
482080
483044

LIMITED WARRANTY- COMMERCIAL ACCESSORY
AnypartoftheScagcommercialaccessorymanufacturedbyScagandfound,inthereasonablejudgmentofScag,
tobedefectiveinmaterialorworkmanship,willberepairedorreplacedbyanAuthorizedScagServiceDealerwithout
chargeforpartsandlabor.
TheScagaccessory, includingany defectivepart,mustbe returned toanAuthorizedScag ServiceDealerwithin
thewarrantyperiod. The expense of delivering the accessory to the dealer for warranty work and the expense of
returningitbacktotheownerafterrepairorreplacementwillbepaidforbytheowner. Scag’sresponsibilityinrespect
toclaimsislimitedtomakingtherequiredrepairsorreplacements,andnoclaimofbreachofwarrantyshallbecause
forcancellationorrescissionofthecontractofsaleofanyScagmachine. Proofofpurchasewillberequiredbythe
dealer to substantiate any warranty claim. All warranty work must be performed by an Authorized Scag Service
Dealer.
Thiswarrantyislimited to90daysfromthe dateoforiginalretailpurchase foranyScagaccessorythat isusedfor
commercialpurposes, oranyotherincome-producing purposeincludingrentaluse.
Thiswarrantydoes not coveranyaccessorythat hasbeensubjectto misuse,neglect,negligence,or accident, or
thathasbeenoperatedinanywaycontrarytotheoperating instructionsasspecifiedintheOperator'sManual. The
warranty does not apply to any damage to the accessory that is the result of improper maintenance, or to any
accessory or parts that have not been assembled or installed as specified in the Operator's Manual.
Thewarrantydoesnotcoveranyaccessory that has been altered or modified. In addition, the warranty does not
extendtorepairsmadenecessarybynormalwear,orby the use of parts or accessories which, inthereasonable
judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or
durability. This warranty does not cover engines and electric starters, which are warranted separately by their
manufacturer.
ScagPowerEquipmentreservestherighttochangeorimprovethedesignofanyaccessorywithoutassumingany
obligation to modify any accessory previously manufactured.
All other implied warranties are limited in duration to the 90 day warranty period. Accordingly, any such implied
warrantiesincludingmerchantability, fitness foraparticularpurpose, orotherwise,aredisclaimed in theirentirety
aftertheexpirationof theappropriateninetyday warrantyperiod. Scag’s obligationunderthiswarrantyis strictly
andexclusivelylimitedtotherepairorreplacementofdefectivepartsandScagdoesnotassumeorauthorizeanyone
toassumeanyotherobligationforthem. Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylasts,
so the above limitation may not apply to you.
Scagassumesnoresponsibilityforincidental,consequentialorotherdamagesincluding,butnotlimitedto,expense
forgasoline,oil,expenseofdeliveringthemachinetoanAuthorizedScagServiceDealerandexpenseofreturning
itbacktotheowner,mechanic’straveltime,telephoneortelegramcharges,rentalofalikeproductduringthetime
warrantyrepairsarebeingperformed,travel,lossordamagetopersonalproperty,lossofrevenue,lossofuseof
the mower, loss of time, or inconvenience. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

PART NO. 03187
PRINTED 7-2005
PRINTED IN USA
©2005
SCAG POWER EQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC
www.scag.com
