scandia Supremacy 300 User manual

SERIES 1
SUPREMACY RANGE
OWNERS MANUAL
Scandia Heating (Aust) Pty Ltd
Head Office
58 Access Way
Carrum Downs VIC 3201
Australia
[phone]
[e-mail]
www.scandiastoves.com.au
Supremacy 200
Supremacy 300
Version 1.2
Contents of manual may be updated without notice.
For the latest version of this manual please refer to our website: www.scandiastoves.com.au

Wood heater safety 1
Before installing your wood heater 2
Installation 4
Operating your wood heater 9
Wood heater maintenance 11
Trouble shooting 13
Warranty 14

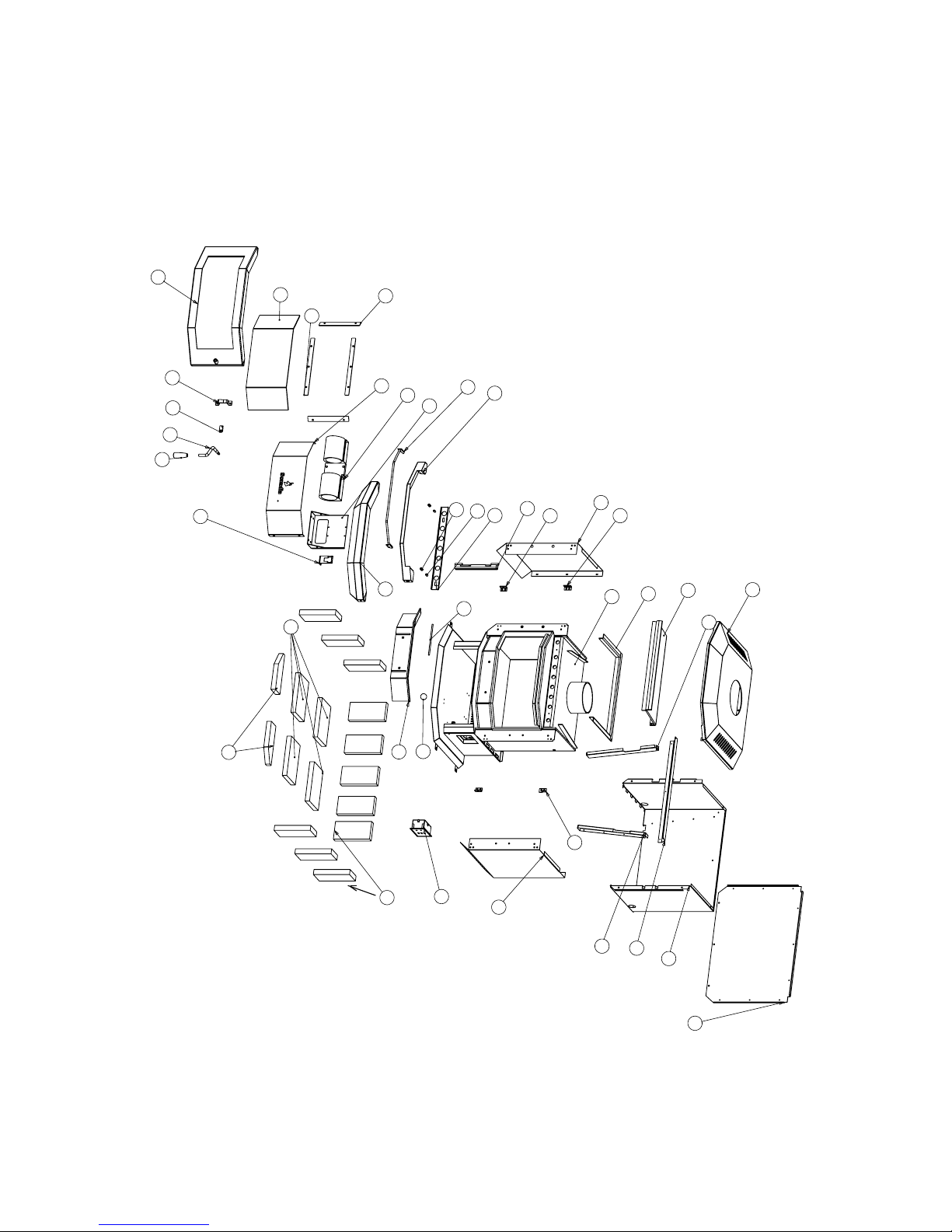

Exploded diagram 16
Spare parts list 18
SCANDIA SUPREMACY RANGE
Model Name Model Number
Supremacy 200 SCSP200
Supremacy 300 SCSP300
CONTENTS
INTRODUCTION
Congratulations on purchasing a genuine Scandia Wood heater. When cared for properly, these high quality,
finely crafted wood heaters will offer many years of reliable performance. This instruction manual has been
developed to ensure optimum performance from your Scandia wood heater. It’s very important that you
thoroughly read and understand all instructions before using your new wood heater.
COUNCIL REQUIREMENTS
Check Local Council Requirements Eg. permits
When installing, operating and maintaining your wood heater, follow the guidelines presented in these instructions,
and make them available to anyone using or servicing the wood heater.
Your city, town, state or territory may require a building permit to install a solid fuel burning appliance.
Always consult your local building inspector or local council to determine what regulations apply in your area.
Your wood heater must be installed by a qualified person whose
work conforms with local council regulations, Australian standards
&manufacturers recommendations. Failure to do so will void your
warranty and could possibly void any home insurance.
Please note:
1.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the electrical supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or similarly qualified
persons in order to avoid hazard.
4. Never place combustible items such as but not limited to furniture, fabric or wood within the specified clearances
tocombustibles.
5. The burning of wood gives off gases which can be extremely dangerous. Wood heaters are designed so that under
normal operating circumstances these gases pass up the flue chimney system and cannot escape into your home,
however it is important that your flue system is properly installed and that you check all joints regularly to ensure that
there are no cracks or gaps, check the door sealing rope and replace when damaged/worn. We recommend a smoke
alarm be fitted in rooms where wood heaters are installed. Do not use your wood heater in a room where negative
pressure conditions exist. Negative pressure environments can cause products of combustion to be drawn from the
fireplace into the room. Caution should be taken when using any form of extraction in a room where a wood heater is
installed.
6. This appliance is designed to specifically burn dry hardwood. Do not burn rubbish, driftwood, flammable liquids
oranysubstance containing salts or corrosives.
7. Creosote and soot may accumulate in your flue pipe and chimney. This may ignite, causing a chimney fire. If you suspect
a chimney fire close down the air controls on the wood heater, if the fire persists evacuate people from the building
and call the Fire Brigade. To prevent the accumulation of soot or creosote, check flue and chimney regularly and clean
as necessary. Good burning, hot wood heaters will generally cause a lot less build-up than slow burning wood heaters,
likewise dry wood will cause less build-up than wet wood. We recommend a fire extinguisher be available where wood
heaters are in operation. In the event of a chimney fire do not re-light the wood heater until the heater and the flue
chimney system have been thoroughly checked and repaired/replaced as necessary.
8. Wood heaters get extremely hot and should not be touched when lit. When young children are in the area, we
recommend the use of a suitable fire guard around the wood heater. Always wear protective gloves when reloading
wood heater.
9. Never over-fire your wood heater. If external parts of your wood heater are glowing red then the wood heater is
over-firing and your draught settings should be reduced. Never interfere with the draught mechanisms or adjust your
air settings outside those limits set when the wood heater is manufactured. Never use a secondary fan to supply or
extract air to the wood heater.
10. All users of the wood heater should be aware of the contents of this manual. Please leave this manual where it is
accessible to wood heater users and do not allow anyone to use the wood heater that is unfamiliar with its correct
operation.
11. Never use the wood heater if any parts are missing or damaged, only use genuine parts as replacements.
Never modify your wood heater.
WOOD HEATER SAFETY
When properly maintained and operated your wood heater should give you many years of service,
however there are important safety aspects of these products that you need to be aware of when operating a wood heater.
2.

3.
BEFORE INSTALLING YOUR WOOD HEATER
You need to consider the following to ensure the safe operation of your wood heater:
- Provision of adequate air to support efficient combustion of the fuel.
- A well sealed flue/chimney system, hereinafter referred to as the “flue system”.
- The protection of combustible materials in proximity of the wood heater.
- A suitable base on which to place your wood heater.
ADEQUATE PROVISION AIR
It is essential for the safe and efficient use of your wood heater that you provide an adequate air supply to your wood heater.
This may mean the provision of an outside air supply to the room, especially if there are extraction units such as cooker hoods or
clothes dryers in the vicinity. Failure to do so will mean that fuel is burned inefficiently causing smoke, blackening the glass and may
also cause smoke to come back into the room. As a simple check for this open a door or window in the room and check if the wood
heater burns more efficiently.
WELL SEALED FLUE SYSTEM
Under no circumstances should you use aluminum or galvanized steel pipes for your wood heater flue. Always fit pipes with the
narrow crimped side down, this allows any creosote to run down the inside of the pipe and not to come out and cause an unsightly
mess and possible fire hazard.
Pipe bends should be kept to a minimum and we do not recommend using more than 2 bends on any installation. Flues must not
pass through ceilings, floors, attics, roofs, or combustible walls without adequate and approved insulation being provided to protect
combustible materials.
The chimney and flue provide a means of taking combusted fuel from the wood heater, as well as a draught to enable the wood
heater to work. It is essential that the flue system is kept in good condition and there are no breaks or cracks allowing contact with
any other combustible materials of the house. It is also essential that the flue system is kept clean and seals are maintained to ensure
the draught is not lost.
The open end of the flue system must be above the height of the apex of the building and any other obstructions, such as trees,
which are within 3 meters (10ft) of the flue system. Failure to do this will affect the efficiency of the wood heater and may cause
down draughts which will mean dangerous products of combustion are emitted into the room.
Under no circumstances should the flue pipe be less than 6” (152mm) internal diameter.
CLEARANCES TO COMBUSTIBLES
It is extremely important that you respect required installation distances and that you respect local installation regulations.
This is for your safety! The manufacturer is not responsible for the product, if it is not installed following these recommendations.
These clearances may only be reduced by means approved by the regulatory authority.
A combustible surface is anything that can burn (i.e. plaster, wall paper, wood, fabrics etc.) These surfaces are not limited to those
that are visible and also include materials that are behind non-combustible materials. If you are not sure of the combustible nature
of a material, consult your local fire officials.
HEARTH REQUIREMENTS
The floor protector must consist of 9mm thick bellis board which has a thermal resistance of 0.1m2 K/W, per 9mm thickness or
equivalent. Scandia have a complete range of suitable ready to install hearth pads for straight wall and corner installations.

4.
SCSP200 SCSP300
ASide of heater to side wall 350 400
BCentre of heater flue to rear wall 341 438
CRear of heater to rear wall 150 250
DFront of heater to hearth front 300 300
EMinimum hearth width 950 1040
FMinimum hearth depth 972 975
GRear corner of heater to wall 75 75
HMinimum Corner Hearth Depth 1120 1292
E
F
A
C
D
B
D
G
GH
E
F
A
C
D
B
D
G
GH
Manufacturers recommendation: Keep all combustible materials at least 1.22 metres (4 feet) away from the appliance.
This include rugs, fabrics, furnishings, papers, firewood, etc. NEVER dry clothing on or within 1.22 metres of the appliance.
All measurements are in ‘mm’
When using Scandia default decorative mesh flue kit (fitted with an additional heat shield)
INSTALLATION
CLEARANCES TO COMBUSTIBLES

1. Locate wood fire in it’s proposed position according to manufacturers recommendations.
2. Use a plumb bob to mark the ceiling in line with the centre of the flue collar.
3. Check that the outer casing will clear all combustible materials by 25mm. Determine positions of noggins to avoid
cutting, otherwise headers must be installed for strength.
4. Cut a 305mm diameter hole in the ceiling. Directly above cut a hole in the roof to accommodate outer casing.
5. Fix the angle brackets to the joists so that the drop box (first length of located casing) is located in the centre of the hole.
5.
ANTI DOWN DRAFT COWL
ROOF
COVER CONE
SECURE COVER CONE TO CASING W/ SCREW
ROOF FLASHING (NOT SUPPLIED IN KIT)
MIDDLE 8” GALVANISED CASING
OUTER 10” GALVANISED CASING
RAFTER
JOIST
CEILING
HEATER
HEATER FLUE COLLAR
DECORATIVE CASING POSITION, SEAM TO REAR
CERAMIC SPACERS
ANGLE BRACKET
CEILING COLLAR FIXED WITH SCREW,
WITH CERAMIC SPACERS BETWEEN
CEILING COLLAR AND THE CEILING
INNER 6” STAINLESS STEEL FLUE
(CRIMPED END DOWN)
180 FIXED HEAT SHIELD
Min 150mm of drop box must
extend from any combustible
surface including ceiling
Min 25mm from outer
casing to any combustible
material
Min 25mm
LOCATION TAG
INSTALLATION ....continued

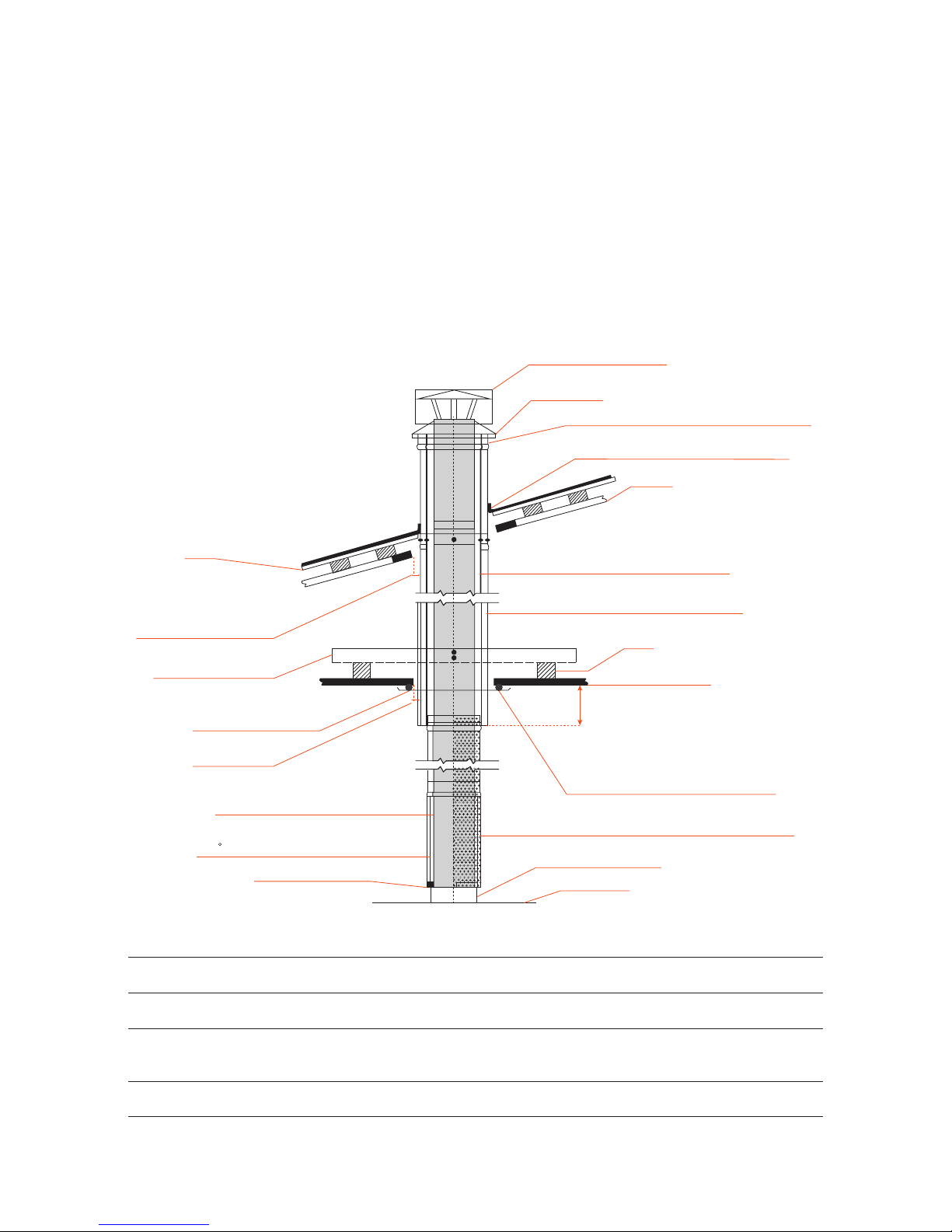

FOR CONNECTING INTO A STANDARD INSTALLATION
USING SCANDIA DEFAULT FLUE KITS
The following drawing is meant as a guide only. Your wood heater must be installed by a qualified person whose work conforms
with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2001) &manufacturers recommendations.
Scandia wood heaters are independently tested to Australian Standards using a Scandia flue kit, we always recommend using
aScandia flue kit when installing a Scandia wood fire.

6. Position the drop box between the angle brackets, keeping a 25mm clearance to combustibles. The located end
of the drop box must protrude no less than 150mm down from the ceiling or any combustible material. Fix the drop
box to the angle brackets.
7. Add the remaining casings to the required height. Australian/New Zealand Standards state that “the flue pipe shall
extend not less than 4.6m above the top of the floor protector”. If the flue pipe is within 3 metres of the ridge, the flue
pipe must protrude at least 600mm above the ridge of the roof. If the distance from the ridge is more than 3 metres,
the flue pipe must protrude at least 1000mm above roof penetration. Additional lengths of casing and flue may be
required to achieve this. The flue pipe must be more than 3 metres from any nearby structure. Other clearances may
beapplicable, it is up to the installer to ensure compliance with all regulations. See Figure 1 and 2 on P7.
8. Install roof flashing (Additional accessory, not supplied in flue kit)
9. Secure the Ceiling Collar in place using ceramic spacers and screws provided.
10. Insert crimped end of the upper decorative flue (without internal stainless steel heat shield) up into the drop box.
Then insert the crimped end of the lower decorative flue (with the internal stainless steel heat shield) up into bottom
ofthe upper decorative flue. The lower decorative flue features locating tags on the non crimped end which rest on
theheater flue collar. The solid heat shield section of the decorative mesh and stainless steel inner heat shield is to face
the wall.
11. Feed stainless steel flue through decorative flue and drop box through to the required height. Assemble flue pipes
tight together as you go ensuring seams are straight. Secure each joint with three stainless steel rivets or screws spaced
equally. Clean any finger prints or oils off stainless steel flue with methylated spirits.
12. Trim the inner flue to the same height as the outer casing. Place cover cone and cowl over stainless steel flue &push
cover cone over gal casing. Fix cover cone to gal casing with stainless steel pop rivets or screws.
FOR CONNECTING INTO EXISTING MASONRY CHIMNEY
Any chimney should be fully intact with no holes or missing bricks. We recommend a chimney register be installed above any
installation into a masonry fireplace minimising heat loss up the chimney. The top of the chimney must be sealed using a chimney
plate which should be sealed in place with a mortar mix.
Active flue should be trimmed in line with the top of the chimney if it meets the minimum height requirements under AS/NZS
2918. If additional lengths are required to fulfill this requirement these lengths must be cased. The flue should always be finished
with a cowl and cone.
6.
INSTALLATION ....continued

MINIMUM INSTALLATION CLEARANCES
7.
FIGURE 2
FIGURE 1

1. Remove all loose items from the fire box. First install the top baffle. Place the baffle in the firebox with the bent edges
facing the same direction as in the below drawings.
2. Lift the front edge of the baffle up and rest it on the top of the front baffle support lugs, continue to lift the rear of the
baffle over the rear lugs, you will need to slide the baffle forward to clear the rear lugs.
3. Once the rear of the baffle is above the rear lugs slide the baffle all the way to the back of the firebox and rest the rear
of the baffle on the rear lugs, ensuring the baffle is touching the rear wall of the firebox.
4. Next install the firebricks. First install the side and rear firebricks, place the firebrick retainer in place on the top of the
firebricks as shown in the below diagram.
5. Install the base firebricks. Push side firebricks all together leaving any gap at the front of the heater. Push rear firebricks
together leaving any gaps even on each side. Push base firebricks together leaving even gap around outside.

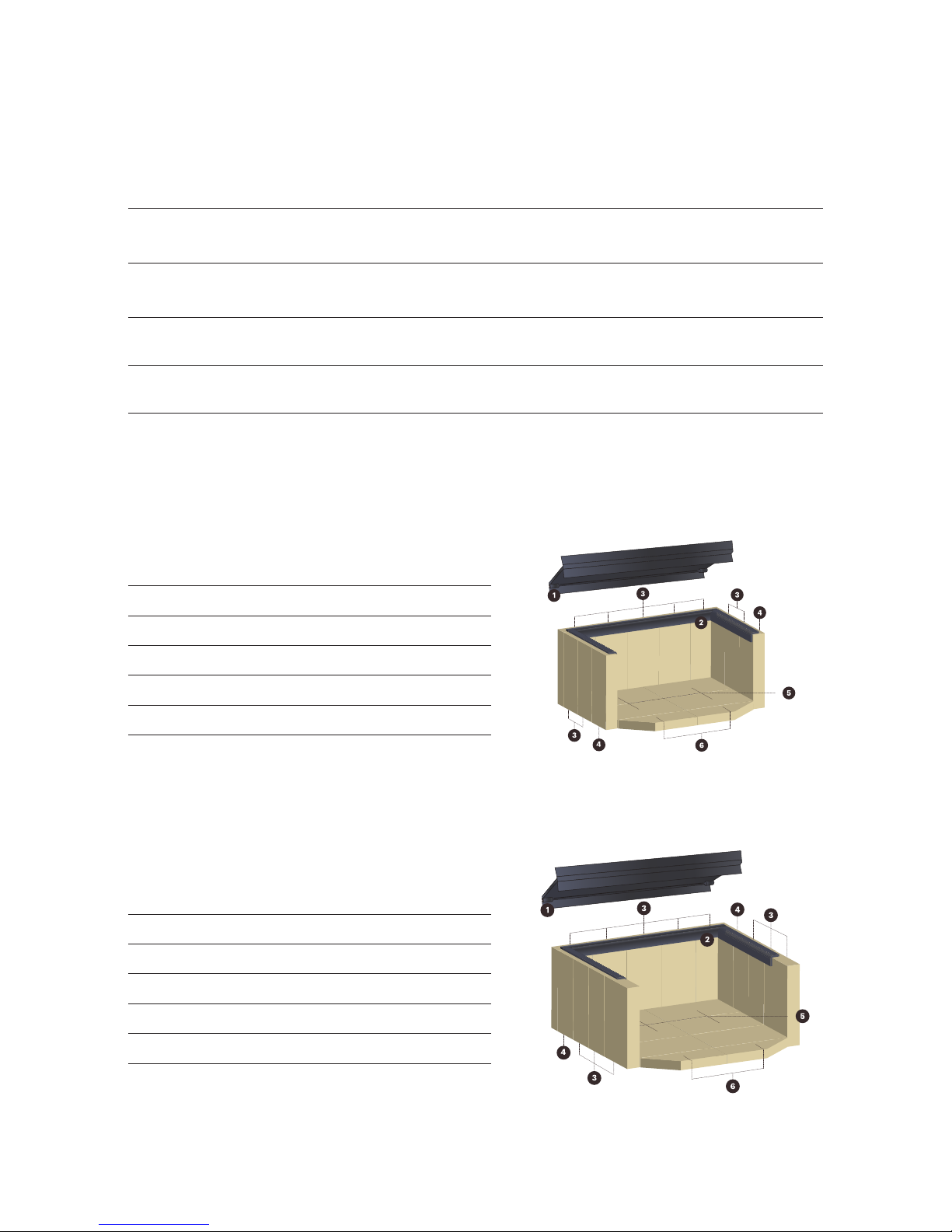

FIREBOX ASSEMBLY:
SCSP200
1Top Baffle
2Firebrick Retainer
3Firebricks - 200mm x 98mm x 25mm - Qty 9
4Firebrick - 200mm x 108mm x 25mm - Qty 2
5Firebrick - 218mm x 144mm x 25mm - Qty 4
6Firebrick - 218mm x 75mm x 25mm - Qty 2 (Mitred)
SCSP300
1Top Baffle
2Firebrick Retainer
3Firebricks - 200mm x 108mm x 25mm - Qty 11
4Firebrick - 200mm x 98mm x 25mm - Qty 2
5Firebrick - 269mm x 116mm x 25mm - Qty 6
6Firebrick - 269mm x 105mm x 25mm - Qty 2 (Mitred)
8.
INSTALLATION ....continued

When operating, this unit will get extremely hot. Do Not Touch, use tools where
necessary. You should begin using your wood heater by lighting small fires which get
progressively larger. We recommend lighting approximately 5 small fires before you put
the wood heater into full service. Allow the wood heater to fully cool between each
of these fires. There may be some smell and a small amount of smoke from the wood
heater during the initial operations. This is perfectly normal and is merely the curing of
the wood heater paint. Opening a window or door to provide additional ventilation
will help alleviate this.
WARNING: FIRST OPERATION OF STOVE
Step 1
Plug the supplied power lead into the heater
and into a power outlet
Step 2 Locate fan control on pedestal and turn on
Step 3
Adjust 3 speed fan as desired via remote or
heater control on the side of unit
1Fan Speed 1
2Fan Speed 2
9.

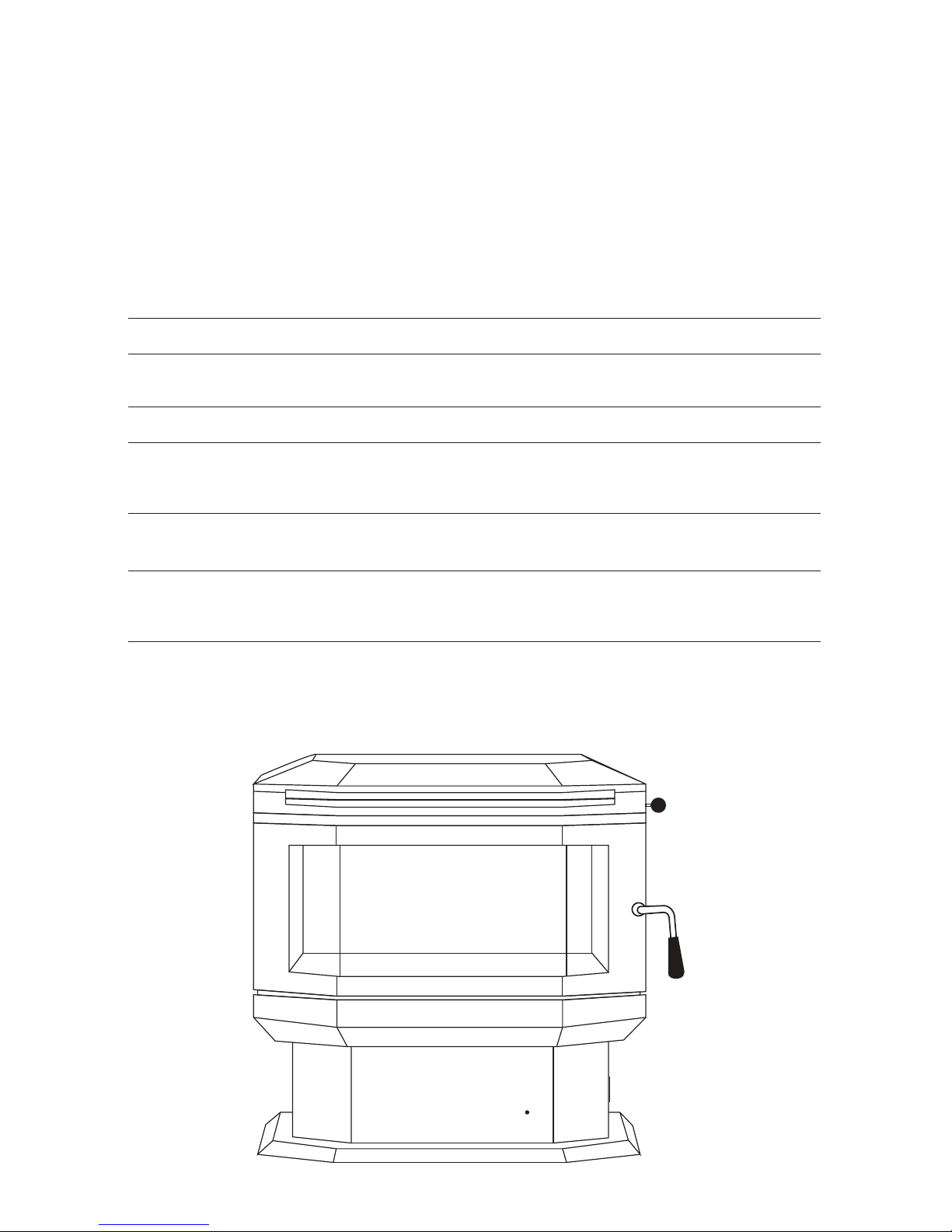

CLOSED
OPEN
1Fan Power Cord
2Fan Controls
3
Air Slide to control primary air intake
4Remote Sensor
FUEL
Your wood heater is designed to burn dry hardwood only.
It is NOT designed to burn the following:
FAN OPERATION
CONTROLS AND THEIR USE
FAN CONTROL
• Soft wood
• Treated or painted wood
• Paper or cardboard, other than small amounts
used to light stove.
• Plastics
• Synthetic fuel or logs that are not approved
for solid fuel stoves
• Household rubbish
• Liquid fuels
Burning these or other products for which the wood heater was not designed may damage the wood heater and cause a fire
hazard or release toxic fumes.
Fuel should be stored in a dry place; wood should be dried for at least 1 year and have a moisture content of less than 20%. Wet
wood may cause serious creosote build up, which may damage your flue system and even your wood heater. Therefore the use of
green, sappy or wet wood is strongly discouraged.
OPERATING YOUR WOOD HEATER
3Fan Speed 3
4Turn Fan ON / OFF

10.
OPERATING YOUR WOOD HEATER ....continued
AIR CONTROLS
Your wood heater needs air to burn the fuel. This air is supplied through a primary air slide at the right side of the front of your
wood heater above the door. On the SCSP200and SCSP300 secondary air is drawn into thetop rear of the firebox which is not
adjustable.
Primary air, as the name suggests, is used for the initial burning of the fuel and is also used to keep the stove glass clean.
Secondary air is used for secondary combustion, which makes the stove more efficient and reduces emissions.
The settings of the primary air control very much depends on draught and local conditions and after a few fires, you should
haveagood idea of the best settings for your wood heater. The air slide control should be fully opened when lighting the fire.
Once the fire is established, the air slide control may be adjusted as required. Reducing the air intake will cause the wood heater to
burn slower. This may cause some blackening of the stove glass, but this should burn off once the wood heater is burning brightly
again.
LIGHTING THE FIRE
Open the fire door, lay a few crumpled sheets of paper or firelighters on the firebox base then a few small dry pieces of sticks
orkindling.
Open the air inlet controls. Now light the paper, close the fire door when the kindling has caught fire (allow about 10 minutes for
this to happen) add larger pieces of dry wood, until the fire box is half filled. When the larger pieces of wood have caught fire, add
full sized logs. Close the air controls to the point where the required burn rate is obtained.
REFUELING
Before refueling your wood heater, turn the air supply to high for a few moments until there is a good fire in the heater. This will
ensure there is no build-up of harmful gases in the wood heater when the door is opened and will also get the new fuel burning
quickly and not allow it to kill the fire. Open the door slowly in case any logs or coal have fallen against the glass. Opening the door
quickly may result in smoke being drawn into the room.
To reload the wood heater, open the door and feed the fuel in slowly always using either tongs, a small shovel along with
protective gloves. Do not overfill the wood heater. It is always better to put in small loads often rather than big fills less frequently.
Woodshould be loaded in a front to back direction, this helps air flow as well as reducing the risk of logs falling forward. Close the
door gently after wood heater is reloaded.
OVERNIGHT BURNING
Your wood heater is designed to maximise burn times. Best results are achieved when you establish a good fuel bed in the wood
heater and allow it to burn for about 30 minutes before closing the air slide control fully.
When you return to your wood heater, fully open the air slide control until you have a good fire and then set to normal operating
levels. Do not add fuel until the fire bed is hot and red. Then add a little for the first time and allow that to ignite before adding
more. During overnight burning, the wood heater glass may blacken, but when a hot fire is established again this should burn off.

1. Check your flue system for build up of soot or creosote and for signs of damage to joints.
2. To check flue outlet remove top of baffle by lifting and pulling out at end. Use a flashlight to check flue outlet.
Clean and repair as necessary. Always replace top baffle before relighting stove.
3. Check that glass is not cracked or chipped and that the sealing rope is in good condition. Replace as necessary.
4. When the room is dark, use a strong flashlight to check the sealing of the wood heater at the edge and corners for
leaks. Any leaks or cracks found should be repaired with fire cement or damaged parts should be replaced with genuine
spare parts.
5. During periods in inactivity or infrequent use, regularly alternate the position of the flue damper.
We also recommend placing a silica bag in the firebox to absorb any moisture which may cause rust.
6. Check that wood heater door is tight and well sealed when closed. Place a strip of paper into the wood heater and
close the door, try to pull out paper. You should feel some resistance to your pull, check several points around the door.
If it pulls out too easily, replace the rope and seal in place with a suitable high temperature sealant.
7. Check baffle plate and firebricks. Baffle plate should be replaced if a hole appears in the surface of the plate.
Firebricksshould be replaced when they start to crumble or the firebox is exposed.
11.
WOOD HEATER MAINTENANCE
CHECK YOUR WOOD HEATER REGULARLY
Initially, we recommend you check your flue system at least once per month. After the first few months you will notice a pattern
of soot and creosote build up and you can then determine an inspection interval for checking soot and creosote build up that is
suitable for your wood heater installation.
Other checks, as listed below, should be carried out at least twice per year. If you notice anything wrong at any time it should
be repaired immediately. Never use a wood heater that is in any way damaged or has a damaged flue.

WOOD HEATER MAINTENANCE ....continued
ASH REMOVAL
When the stove is out and completely cold you may remove the ash using an ash vacuum or a steel bucket with a lid and shovel.
Place a cover over the bucket so that when removing the bucket the ash does not blow about your house.
CARE OF GLASS
At times, especially when the air controls are turned to low settings or when damp wood is used, the wood heater glass will blacken.
This is caused by fuel that is not completely burnt, but the build-up on the inside of the glass will normally burn off when a good
hot fire is established in the wood heater.
There may be times however when you need to clean the glass. To do this, use a soft cloth and a non-abrasive glass cleaner.
Only ever clean the glass when the wood heater is cold. For best results select from Scandia’s range of glass cleaning products.
When loading fuel into the wood heater, always make sure it is not protruding out through the door opening, as this may break the
glass when you close the door. This is especially relevant when loading logs. Always close the door gently.
If the glass does crack when the wood heater is lit, let the fire die out. Do not open the door until the wood heater has fully cooled.
Replace the glass with the specified replacement part before re-using the wood heater.
DOOR ADJUSTMENTS
Door closing tension adjustment - As door seals age the seal beds into the heater body, this will allow air to be drawn in any gaps
created. Remove the grub screw from the door handle shaft on the inside of the door, this will allow the handle to rotate 360O.
Rotate the handle 1 full turn anti-clockwise and shut the door. Repeat this step until the door offers a little resistance to close.
Replace the grub screw. Over tightening may cause the door to distort and break the glass. If the door is at maximum adjustment
this generally means the door seal will need replacing.
REPLACING PARTS
Always use genuine replacement parts. Only ever make replacements when the wood heater is cold.
All replacement parts can be ordered from www.scandiastoves.com.au.
SURFACE FINISH
To clean your heater wipe lightly with a damp cloth or dust with a duster. Some cleaning products may leave stains on the wood
heater surface. Never use abrasive cloths as these may scratch the surface; take caution when using microfiber cloths as they can
leave swirl marks if used in a circular motion. Painted wood heaters can be re-painted by using a good quality, high temperature
wood heater paint. When re-painting, make sure there is plenty of ventilation and follow the manufacturer’s instructions. Allow the
paint to fully dry before lighting the stove and allow extra ventilation for the first couple of fires as some fumes may emit from the
stove as the paint cures.
Scandia high temp enamel is available at your local Scandia retailer.
Visit www.scandiastoves.com.au for details.
12.

TROUBLE SHOOTING
GLASS BLACKENS
Glass usually blackens when:
SMOKE IN ROOM
If the wood heater is properly installed it should not emit uncomfortable volumes of smoke into your room.
Acharacteristic of bay window models is the accumulation of smoke in the window on low burn which can result in
apuffof smoke being released into the room when the door is opened. To minimise this occurrence fully open the
air slide 30 seconds prior to opening the door on any bay window model. If the level of smoke seems excessive check
to ensure that the room is not airtight. This can easily be checked by opening a door or window. If the smoking stops
you need to provide an additional air supply into the room. If this is not the problem, check if your chimney is blocked
or obstructed and that you are not getting a down draught caused by the location of the open end of the flue pipe or
chimney. If the problem persists contact your installation company and ask them to check the check the installation for
any anomalies.
FIRE BURNING TOO QUICKLY
This is usually caused by too much draught or air.
1. That the air controls are opened.
2. There is no blockage in the flue system.
3. That the open end of the flue is above the height of any nearby obstructions.
4. That there is a sufficient air supply into the room and that this supply is not being taken by an extractor fan.
1. Firstly try reducing the air supply to the wood heater by closing down your air controls, if this fails then you may have
to adjust the door or you may have damage to the sealing.
2. Close a thin strip of paper in the door, check to see if the paper stays in place or pulls out. If the paper pulls out easily
you may need to adjust or replace the door seal.
3. Check to see if the glass moves within the door frame. If it does you may need to tighten the glass retainer screws.
4. Check the condition of the door sealing rope and the glass seal tape.
1. The fuel is not being burned efficiently because of starvation of air.
2. Bad quality or damp fuel is being used.
Please note: For optimum efficiency always use a good quality dry hardwood.
13.
Many people under estimate the importance of using a professional installer with experience in wood heating who adheres to Australian
Standards to install their wood fire.
If you are having issues with your wood fire not working the way you think it should, we implore you to speak to your installer first; they can help
you with issues such as burning too much or too little wood, smoke in the room when you open the door, blackened glass or build-up of creosote
during use. A professional installer can also provide guidance on whether the problem is a manufacturing issue; in this instance we will work with
the contractor to resolve any issues as soon as possible for you.
It is important to remember that all flue installations must be compliant with Australian Standards. A heater installed with a non-compliant flue
configuration will not perform as advertised or as tested.
FIRE NOT BURNING
A wood heater not burning is generally caused by either a shortage of air and/or incorrect or damp fuel.
If fuel is not the problem check:

WARRANTY
SCANDIA LIMITED WARRANTY
This limited warranty is given by Scandia Heating (Aust) Pty Ltd (ACN 005 868 093) (Scandia or we) to the original retailpurchaser
(you) of the wood heater to which this Warranty applies.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Youare also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
doesnot amount to a major failure.
The benefits that this Warranty provides are in addition to other rights and remedies available to you under the Australian
Consumer Law. This Warranty does not limit those rights and remedies.
For this Warranty to apply, you must fully complete the Warranty Registration Form
via scandiastoves.com.au/warranty. Alternatively you can complete the Warranty
Registration Card and mail it to our mail address (below) within 30 days after the
original purchase. By completing this form, you also agree that, to the extent permitted
by law, our liability to you on any basis in relation to the wood heater (other than under
the Australian Consumer Law) is limited to our obligations under this Warranty.
IMPORTANT
SCOPE OF WARRANTY
If a defect in material or workmanship appears in the following parts within the corresponding warranty period after the date of
the original purchase, such as to make the wood heater unfit for normal home use; and you comply with the requirements below
regarding making a claim, then, subject to the exclusions below, we will replace or repair the relevant part or (at our option) replace
the entire wood heater with the same or comparable model.
PART WARRANTY PERIOD
Firebox 15 Years
All other parts (Including fans, other electrical items,
topbaffles, firebrick retainers) 1 Year
To the extent permitted by law, our liability under this Warranty is limited to this replacement or repair obligation.
14.
TROUBLE SHOOTING ....continued
CHIMNEY FIRE
Chimney fires occur when soot and creosote that have built up in the flue system ignite. If the wood heater is operated properly
and the flue checked and cleaned regularly then chimney fires should not occur. These fires can be very dangerous and must be
avoided. Try to maintain good, hot fires in the wood heater whenever possible and at least once in every firing open the air controls
and allow the wood heater to burn on full for a short while until the entire fire bed is glowing red.
Check your flue system regularly for build-up of soot and creosote and clean as necessary. Chimney fires can be detected by sparks
coming from the top of the chimney, a roaring sound coming from the area of the stove or chimney or vibration in the stove or
chimney. In the event of a chimney fire, close the air controls, evacuate the building and call the fire department. Do not relight
the stove after a chimney fire until the stove and flue have been checked and any necessary repairs have been carried out.

1. Where the defect is not due to the original design or manufacture of the part (including where the wood heater,
part or accessory has been subject to accident, abuse, alteration, misuse or neglect or has been installed, inspected,
operated or maintained negligently or not in accordance with applicable local laws and regulations and the
manufacturer’s printed instructions, if any)
2. Where the firebricks, top baffle or fibreglass seal have not been replaced after becoming damaged or worn
3. To any accessories or optional parts
4. To any glass, paint, firebrick, fibreglass seal sold or used with the wood heater
5. To any surface rust which may occur in transit, storage or use.
This includes installations in close proximity to coastal areas and salt water which may cause rust to the appliance.
1. The model and serial number of the wood heater
2. The place, price and date of purchase
3. Reasonable details of the defect
To obtain replacement or repair under this Warranty, the wood heater must be returned to the original place of purchase
(andcollected from there once the replacement or repair is complete) at your cost. Scandia will not be responsible for any
associated freight, disconnection or re-installation costs (including labour costs). Scandia will only be responsible for transport
of the wood heater from the original place of purchase to Scandia’s premises (and back), and replacement or repair in accordance
with this Warranty.
REGISTER ONLINE
Register your product warranty online by visiting:
www.scandiastoves.com.au/warranty
Your data will be used by Scandia to provide you with
information about your purchase upon request.
REGISTER BY MAIL
Alternatively, please complete the attached warranty
card within 30 days of installation and return to:
Scandia Heating (Aus) Pty Ltd.
58 Access Way, Carrum Downs
Victoria, Australia, 3201.
REGISTER YOUR PRODUCT
15.
WARRANTY ....continued
EXCLUSIONS
This Warranty does not apply:
HOW TO MAKE A CLAIM
Any claim under this Warranty must be in writing to our mail address below. It must be sent within the applicable warranty period
and must state:

SUPREMACY 200 EXPLODED DIAGRAM
16.
38
10
17
31
1
27
32
30
2
7
3
14
36
18
15
11
13
20
19
21
22
40
6
28
39
29
33
12
8
23
37
5
16
24
25
35
9
34
26
4
项目号 零件号 说明 数量
1炉体组焊（Supremacy 200） 1 2内衬板（Supremacy 200） 1 3右侧板（Supremacy 200） 1 4镜向右侧板（Supremacy 200） 1 5炉门焊接（Supremacy 200） 1 6下装饰盒（Supremacy 200） 1 7炉体后板（Supremacy 200） 1 8底座前盖（Supremacy 200） 1 9门轴组焊（Supremacy 200） 1
10 SCWB 200 挡烟板焊接 1 11 挡灰板焊接（Supremacy 200） 1 12 把手杆（Supremacy 200） 1 13 SCP200-2 调风木把手 1 14 砖1-S 11 15 底砖（Re-S） 4 16 玻璃 1 17 SCWB 200 内部支撑架 1 18 底砖1（Supremacy 200） 2 19 风门板焊接（Supremacy 200） 1 20 风门拉杆（Supremacy 200） 1 21 SCWB 200 风门卡柱 2 22 SCWB 200 风门弹簧 2 23 锁片SCWB140 1 24 玻璃压板（Supremacy 200） 2 25 玻璃压板1（Supremacy 200） 2 26 固定板（Supremacy 200） 1 27 固定板1（Supremacy 200） 1 28 SCWB 200 风机固定板 1 29 SCWB 200 风机（双叶轮） 1 30 导风板（Supremacy 200） 1 31 后导风板（Supremacy 200） 1 32 镜向后导风板（Supremacy 200） 1 33 把手套SS200 1 34 固定板2（Supremacy 200） 2 35 上装饰盒焊接（Supremacy 200） 1 36 开关装配 1 37 锁扣 200-A 200 新西兰款 200 1 38 顶板焊接（Supremacy 200） 1 39 装饰杆焊接（Supremacy 200） 1 40 红外接收器支架（Supremacy 200） 1

SUPREMACY 300 EXPLODED DIAGRAM
17.
32
33
26
40
27
25
7
2
3
22
43
39
35
1
12
14
15
29
28
6
42
10
23
31
37
11
18
36
38
16
13
5
8
24
17
19 20 41
9
34
21
4
项目号 零件号 说明 数量
1炉体组焊（Supremacy 300） 1 2内衬板（Supremacy 300） 1 3右侧板（Supremacy 300） 1 4镜向右侧板（Supremacy 300） 1 5炉门焊接（Supremacy 300） 1 6下装饰盒（Supremacy 300） 1 7炉体后板（Supremacy 300） 1 8底座前盖（Supremacy 300） 1 9门轴组焊（Supremacy 300） 1
10 挡灰板焊接（Supremacy 300） 1 11 把手杆（Supremacy 200） 1 12 SCP200-2 调风木把手 1 13 玻璃 1 14 底砖2（Supremacy 300） 2 15 风门拉杆（Supremacy 300） 1 16 SCWB 200 风门卡柱 2
17 SCWB 200 风门弹簧 2
18 锁片SCWB140 1
19 玻璃压板（Supremacy 300） 2 20 玻璃压板1（Supremacy 300） 2 21 固定板（Supremacy 200） 1 22 固定板1（Supremacy 200） 1 23 SCWB 200 风机固定板 1 24 SCWB 200 风机（双叶轮） 1 25 导风板（Supremacy 300） 1 26 后导风板（Supremacy 300） 1 27 镜向后导风板（Supremacy 300） 1
28 SCWB 300 砖1-L 11 29 SCWB 300 底砖（Re-L） 6 30 SCWB 300 木包装 1
31 风门板焊接（Supremacy 300） 1 32 SCWB 300 支撑架 1
33 SCWB 300 挡烟板焊接 1 34 固定板2（Supremacy 200） 2 35 SCWB 200 砖1 2
36 上装饰盒焊接（Supremacy 300） 1
37 把手套SS200 1
38 锁扣 200-A 200 新西兰款 200 1 39 开关装配 1 40 顶板焊接（Supremacy 300） 1 41 装饰杆焊接（Supremacy 300） 1 42 红外接收器支架（Supremacy 200） 1 43 烟筒隔热板焊接（Supremacy 300） 1

18.
SUPREMACY 200 SPARE PARTS LIST
LEGEND PART QTY SCANDIA PART NO.
1 Body weldment-2016 1 SPS2001
2 Inner heat shield-2016 1 SPS2002
3 Right side external heat shield-2016 1 SPS2003
4 Left side external heat shield-2016 1 SPS2004
5 Door frame weldment-2016 1 SPS2005
6 Lower decorative grill-2016 1 SPS2006
7 Rear heat shield-2016 1 SPS2007
8 Pedestal front panel-2016 1 SPS2008
9 Door hinge bracket weldment-2016 1 SP00019
10 Baffle weldment-2016 1 SP20033
11 Ash deflector weldment-2016 1 SPS2009
12 Handle shaft-2016 1 SPS0001
13 Air slide handle knob-2016 1 SPS0002
14 Side and rear brick, 2016 11 SPS2011
15 Bottom brick,2016 4 SP20006
16 Glass 1 SPS2013
17 Brick retainer, 2016 1 SP20035
18 Bottom brick- edge cutted,2016 2 SPS2012
19 Air slide plate weldment,2016 1 SPS2014
20 Air slide control rod, 2016 1 SPS0003
21 Air slide locating bush, 2012-2016 2 SP00022
22 Air slide adjusting spring, 2012-2016 2 SP00023
23 Door latch, 2012-2016 1 SP00020
24 Glass retainer, long end,2016 2 SPS2015
25 Glass retainer, short end,2016 2 SPS2016
26 Upper decorative grill bracket left side-2016 1 SPS2017
27 Upper decorative grill bracket right sid-2016 1 SPS2018
28 Fan mounting plate, 2012-2016 1 SP20038
29 Double barrel fan, 2012-2016 1 SPS0008
30 Top air deflector-2016 1 SPS2019
31 Rear air deflector, left side,-2016 1 SPS2020
32 Rear air deflector, right side-2016 1 SPS2021
33 Door handle barklite, 2016 1 SPS0009
34 Lower decorative grill bracket-2016 2 SPS2022
35 Upper decorative grill weldment, 2016 1 SPS2023
36 Electric button assembly,2016 1 SPS0011
37 Door latch on body,2016 1 SPS0010
38 Top plate welment - 2016 1 SPS2024
39 Decorative rod weldment - 2016 1 SPS2025
40 Remote sensor bracket,2016 1 SPS0012
Firebrick set 1 SPS2010
43 Flue kit additional heat shield 1 SPS3027
Firebrick set 1 SPS3012
