Scantool 280 GSHE User manual

Industrivej 3-9
DK-9460 Brovst
Denmark
Tel.: +45 98 23
60 88
Fax: [phone]
07.05.21
Manual
SCANTOOL
Metal cutting bandsaw
280 GSHE

1

2
EC Declaration of Conformity
hereby declares that
SCANTOOL metal cutting band saw 280 GSHE is manufactured in accordance
with the provisions of the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) –
The Machinery Directive (order no. 561 of 25 June 1994 with subsequent
amendments)
2006/42/EC: Directive on machinery-safety
2004/108/EC: Directive on Electromagnetic Compatibility
2006/95/EC: Low Voltage Equipment Safety directive
Also in accordance with:
•The council directive of 19 February 1973 (73/23/EEC) – The Low Voltage
Directive – with later amendments (order no. 797 of 30 August 1994)
•The council directive of 3 May 1989 (89/336/EEC) – The EMC Directive – with
later amendments (order no. 796 of 5 December 1991 with subsequent
amendments)
SCANTOOL A/S
Industrivej 3-9
9460 Brovst
Denmark
www.scantool-group.com
Tel: [phone]
Fax.: [phone]

3

4
Table Of Contents Page No
1 Overall Aspect ……………………………………………………….…………….…
2 Safety Rules For All Tools ……………………………………………………….….
3 Specification ……………………………………………………………….…………
4 Features …………………………………………………………………….……..….
5 Transportation & Install …………………………………………………….………
6 Minimum Room Space For Machine Operation ………………………….……….
7 Make Proper Tooth Selection ……………………………………………….……....
8 BI-Metal Speeds And Feeds …………………………………………………...…….
9 Use Of Main Machine Parts …………………………………………………..…….
10 Maintaining ……………………………………………………………………..……
11.Trouble shooting …………………………………………………………….….……
12 Parts Lists&Drawing …………………………………………………………….….
13 Circuit Diagram ………………………………………………….……….…………
CAUTION
Install saw blade and blade guard
before use. Set proper blade tension
to prevent any danger caused by
damaged saw blade or work piece.
2
3~4
5
6
6~7
7
8
8~9
9~13
13
14~15
16~24
25~26

5
The swivel vise base of handle
1.Overall Aspect
Move Vise
The blade tension handle The start
The move vise handle
Vise base
Angle Sale
Base
Coolant pump
Saw arm
Control Panel
The vise fixed of handle

6

7

8
WARNING: FAILURE TO FOLLOW THESE RULES
MAY RESULT IN SERIOUS PERSONAL INJURY
As with all machinery there are certain hazards involved with operation and use of the machine. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator may
result.
This machine was designed for certain applications only. We strongly recommend that this machine NOT
be modified and/or used for any application other than for which it was designed. If you have any
questions relative to its application DO NOT use the machine until you contact with us and we have
advised you.
Your machine might not come with a power socket or plug. Before using this machine, please
do ask your local dealer to install the socket or plug on the power cable end.
3.SPECIFICATION
MOTOR
900W
Saw Blade Speed MPM 20 ~ 80 (60HZ)
FPM 70 ~ 270 (60HZ)
Blade Size(mm)
27x0.9x2450
Dimension L x W x H (mm)
1250x600x1420
Packing
N.W. / G.W. (kgs)
210 / 230
Measurement
1300x630x950
Sets per 20’ CTNR
48 sets
Cutting
Capacity
0°
○(mm/inch)
225 / 8.75 “
□(mm/inch)
200x200 / 7.8“x7.8“
+ 45°
○(mm/inch)
160 / 6.25“
□(mm/inch)
140x140 / 5.5“x5.5“
+60°
○(mm/inch)
90 / 3.5“
□(mm/inch)
90x90 / 3.5“x3.5 “

9
Fig. A
4.FEATURES:
1. This machine is useful for cutting normal steel, steel pipe, and provides cutting angle at + 0°and
- 60°by the swivel head.
2. A tooth selection chart was provided on the machine for cutting reference.
3. Variable speed control gives convenient selection of speeds. (This machine comes with a
standard 2-speed motor. But can be purchased with a AC driven motor as an option.)
4. This machine is using manual cutting by pulling down the saw bow by hand. Start(press) button
is located at the handle of the saw bow. Motor stops when button was released.
5. Stability of the machine, plus working table height is 950 mm, conforming to human
engineering.
6. The one-inch blade and carbide guide provide better result of the cutting surface and efficiency.
7. The one-piece casting and one time CNC processing provide better rigidity and precision of the
machine.
8. The one-piece and full coverage blade cover conforms to CE stipulation. Well coolant fluid
collection system provides clean and dry, and safety of the working area.
9. Chip pan underneath the working table prevents coolant fluid leaking and keep floor dry.
10. Coolant for cutting,, water : oil = 40 : 1 oil specification.
5.TRANSPORTATATION & INSTALLATION:
5-1. UNPACKING:
1. Transportation to desired location before unpacking, please use-lifting jack. (Fig. B)
2. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine.
ALLWAYS KEEP PROPER FOOTING & BALANCE WHILE MOVING THIS MACHINE.
5-2. TRANSPORTATION OF MACHINE:
As this machine weights 208kgs(458.6lbs) it is recommended that
the machine be transported with help of lifting jack.
Transportation Recommendation:
1. Tighten all locks before operation.
2. Always keep proper footing & balance while moving this
machine, and only use a heavy duty of fiber belt to lift the
machine as per Fig. A.
3. TURN OFF the power before wiring & be sure machine is
properly grounded. Overload & circuit breaker are
recommended for safety wiring.
4. Tighten 4 bolts to base holes after
machine is balanced.
5. Check carefully if the saw blade is running in counter-
clockwise direction if not, reverse the wiring per circuit
diagram,
then repeat the running test.
6. Keep machine always out from sun, dust, wet, or raining area.
Fig, B

10
5-3. Installation:
(1) Always Keep proper footing & balance while moving this 208kgs
machine. And only use heavy-duty fiber belt to lift the machine as
per Fig. (C).
(2) Hang the machine up, away from the floor, take away the 4 pads
and assemble them on the auxiliary stand. Fix the machine on the
auxiliary stand and lock the connection nut.
(3) Finish removing this wooden case/crate from the machine. Unbolt
the machine from the crate bottom.
(4) Position & tighten 4 bolts into base holes properly after machine in
balance.
(5) Turn off the power before wiring & be sure machine is in proper
grounding. Overload & circuit breaker is recommended for safety
wiring.
(6) Keep machine always out from sun, dust, wet, raining area.
5-4. CLEANING & LURICATING
(1) Your machine has been coated with a heavy grease to protect it in shipping. This coating should be
completely removed before operating the machine. Commercial degreaser, kerosene or similar solvent
may be used to remove the grease from the machine but avoid getting solvent on belts or other rubber
parts.
(2) After cleaning, coat all bright work with a light lubricant. Lubricate all points. with a medium
consistency machine oil.
6.MINIMUM ROOM SPACE FOR MACHINE OPERATION
CFig. C
1420 mm
600 mm
1250 mm

11
7. MAKE PROPER TOOTH SELECTION
For maximum cutting efficiency and lowest
cost per cut, it is important to select the blade
with the right number of teeth per inch (TPI) for
the material being cut. The material size and
shape dictate tooth selection.
TOOTH
SELECTION
You need to consider:
The width of the cut - That is, the distance in
the cut that each tooth must travel from the point
it enters the work-piece until it leaves the work-
piece, and
1.The shape of the work-piece.
Squares, Rectangles, Flats
(Symbol : ■)
Locate the width of cut on the chart.
(Inches on the outer circle and
millimeters on the inner circle.) Select
the tooth pitch on the ring marked with
the square shape which aligns with
the width of cut.
EXAMPLE: 6" (150mm) square, use a
2/3 Vari-Tooth.
Round Solids (Symbol : ●)
Locate the diameter of your work-
piece on the chart. Select the tooth
pitch on the ring marked with the
round shape which aligns with the size
of stock you are cutting.
EXAMPLE: 4" (100mm) round, use a
3/4 Vari-Tooth.
Tubing, Pipe, Structural ( Symbol :
O H ^ )
Determine the average width of cut by
dividing the area of the work-piece by
the distance the saw blade must travel
to finish the cut. Locate the average
width of cut on the chart. Select the
tooth Ditch on the ring marked with
the tubing and structural shape, which
aligns with the average width you are
cutting.
EXAMPLE: 4"(100mm) outside diameter,
3"(75mm) inside diameter tubing.
4"(100mm) OD =12.5 sq.ln. (79cm2)
3"(75 mm ) ID = 7.0 sq.ln. (44cm2)
Area = 5.5 sq.ln. (35cm2)
5.5 sq.ln. (35cm2) / 4" (100mm)
distance =1.38(35mm) average width
1.38" (35mm), use a 4/6 Vari-
Tooth
NOTE: The band speed and cutting
rate recommendations presented on
this chart are approximations and are
to be used as a starting point for most
applications. For exact sawing
parameters' consult your saw blade
supplier.
8. BI-METAL SPEEDS AND FEEDS
These figures are a guide to cutting 4"(100mm)
material (with a 314 Vari-Tooth) when using a
cutting fluid.
Increase Band Speed: 15% When cutting
1/4"(6.4mm) material (l0/l4 Vari-Tooth)
12% When cutting
3/4"(19 mm) material (6/10 Vari-Tooth)
10% When cutting 1-
1/4"(32 mm) material(5/8 Vari-Tooth)
5% When cutting 2-
1/2" (64 mm) material(4/6 Vari-Tooth)
Decrease Band Speed: 12% When cutting
8"(200mm) material(2/3 Vari-Tooth)
MATERIAL
ALLOY
ASTM NO.
BAND SPEED
FT./MIN
M/MIN
Copper
Alloy
173,932
314
96
330,365
284
87
623,624
264
81
230,260,272
244
74
280,264,632,655
244
74
101,102,110,122,
172
234
71
1751,182,220,51
0
234
71
625,706,715,934
234
71

12
630
229
70
811
214
65
Carbon
Steel
1117
339
103
1137
289
88
1141,1144
279
85
1141 HI
STRESS
279
85
1030
329
100
Carbon
Steel
1008,1015,1020,
1025
319
97
1035
309
94
1018,1021,1022
299
91
1026,1513
299
91
A36(SHAPES),104
0
269
82
1042,1541
249
76
1044,1045
219
67
1060
199
61
1095
184
56
Ni-Cr-Mo
8615,8620,8622
239
73
Alloy Steel
4340,E4340,8630
219
67
8640 199 61
E9310
174
53
Tool Steel
A-6
199
61
A-2
179
55
A-10
159
49
D-2
90
27
H-11,H-12,H-13
189
58
Stainless
Steel
420
189
58
430
149
46
410,502
140
43
414
115
35
431
95
29
440C
80
24
304,324
120
36
304L
115
35
347
110
33
316,316L
100
30
416
189
58

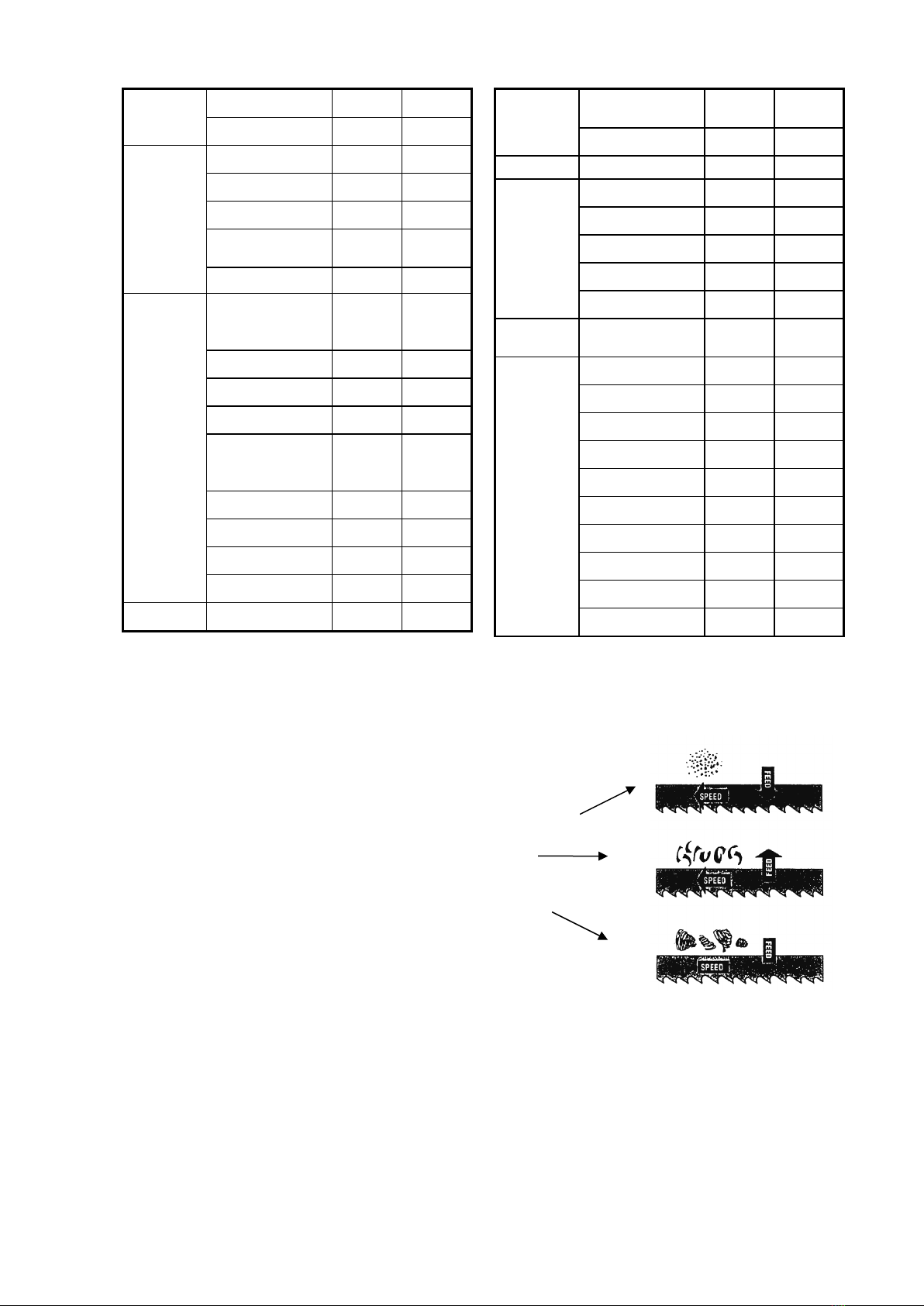

TELLTALE CHIPS
Chips are the best indicators of correct feed force. Monitor
chip information and adjust feed accordingly.
Thin or powdered chips – increase feed rate or reduce
band speed.
Burned heavy chips – reduce feed rate and/or band
speed.
Curly silvery and warm chips – optimum feed rate and
band speed.
9. USE OF MAIN MACHINE PARTS
9-1. POWER SYSTEMS AND CONTROL PANEL
Before connecting your machine to an electrical power system, be sure the motor shaft is running in
the correct direction.
Refer to the electrical wiring diagram supplied with your machine for instructions.
on how to connect saw to power source. Power must be cut off when wheel cover is opened or
during repairing.
Please check the moving direction of the blade. If the blade is moving in the wrong direction, please
re-connect the wire.
9-2 STARTING AND STOPPING MACHINE ( with handle switch)

13
1. The motor will be stopped when the Frame touch the Limit switch (K).
2.The coolant system will run and stop with blade operation.
3. Start the motor by turning the start button (K), Push the button (L) to start blade saw. Unhand
button (B) stop The motor.
9-3. AUTO / MANUAL MODE OPERATION
In the event of incorrect operation or dangerous,condition, press the E-STOP button (D) to
immediately shut off all functions of the saw. Twist the emergency stop button clockwise (cw) to reset.
Note: Resetting the E-STOP button will not start the machine.
1. AUTO MODE OPERATION
1-1 Close the handle on the hydraulic ball valve (I) by turning it counterclockwise (ccw).
1-2 Turn the flow control knob (AH) clockwise (cw) to shut off the hydraulic flow. This will prevent
the saw bow from dropping when the ball valve is opened.
1-3. Increase the bow weight. Rotate the wing nut (AI) counterclockwise (ccw) to decrease the
tension on the spring.
1-4. Load piece part and clamp securely.
1-5. Turn the main switch (F) to "ON". Check to see that indicator light (A) is lit.
1-6. Set the blade speed with control knob (G).
1-7 Set switch (D) counterclockwise (ccw) to auto mode
1-8 Press the green start button (B). The saw motor and the coolant pump motor should both
start.
1-9 Open the ball valve (I) clockwise (cw).
1-10 Turn the flow control knob (AH) clockwise (cw) to slow down the descent or
counterclockwise (ccw) to speed it up.
2. MANUAL MODE OPERATION
2-1 Close the handle on the hydraulic ball valve (I) by turning it counterclockwise (ccw).
2-2 Turn the flow control knob (AH) clockwise (cw) to shut off the hydraulic flow. This will prevent
the saw bow from dropping when the ball valve is opened.
2-3 Reduce the bow weight. Rotate the wing nut (AI) clockwise (cw)to increase the tension on the
spring.
2-4 Load piece part and clamp securely.
2-5 Turn the main switch (F) to "ON". Check to see that the indicator light (A) is lit.
2-6 Set the blade speed with control knob (G).
2-7 Set switch (D) to manual mode for trigger operation.
2-8 While firmly holding the control handle of the saw bow, open ball valve (I) clockwise (cw).
2-9 Fully open the flow control knob (AH) counterclockwise (ccw).
2-10 Squeeze the start trigger to energize the blade motor and lower saw bow to begin cutting.
2-11 When saw bow reaches bottom limit, the micro switch (K) is actuated and shuts off the saw
motor.
2-12 Return the saw bow to its start position and close ball valve (I).
2-13. Unclamp and reset the piece part to continue the next cutting cycle.
K
L

14
9-4. ADJUSTING UPWARD AND DOWNWARD TRAVEL OF SAW ARM
The downward travel of the saw arm should be adjusted so that when the
saw arm is in the extreme downward position, the teeth of the blade will
not touch the table surface. The stop screw (N) is used to adjust the
distance between blade and table surface. After the distance is adjusted,
tighten lock nut.
The screw (M) is used to adjust the saw arm upward angle, tighten lock
nut.
.
9-5. ADJUSTING BLADE TENSION AND BLADE TRACKING
To tension the blade, turn the blade tension handle (fig. 1)(A)
clockwise. The scale is graduated to indicate blade tension of
20,000, 30.000 and 35,000 pounds per square inch (psi). For
carbon blades, the blade should be tensioned at 20,000 psi. For bi-
metal blades (similar to the one supplied with the machine), the
blade should be tensioned at 30,000 or 35,000 psi. Always release
blade tension at the end of each working day to prolong blade life.
Make sure the blade is tensioned correctly before checking or
adjusting tracking. The blade is tracking properly when the back of
the blade is just lightly touching the wheel flanges of both wheels
while the machine is running.
9-6. ADJUSTING CUTTING WIDTH
First loosen screw (A) (fig.2). Move the left blade guide bar
to the suitable position. Then tighten screw (A).
Fig.1
A Fig. 2
M N
A
B
C
D
E
F
G
AH
I

15

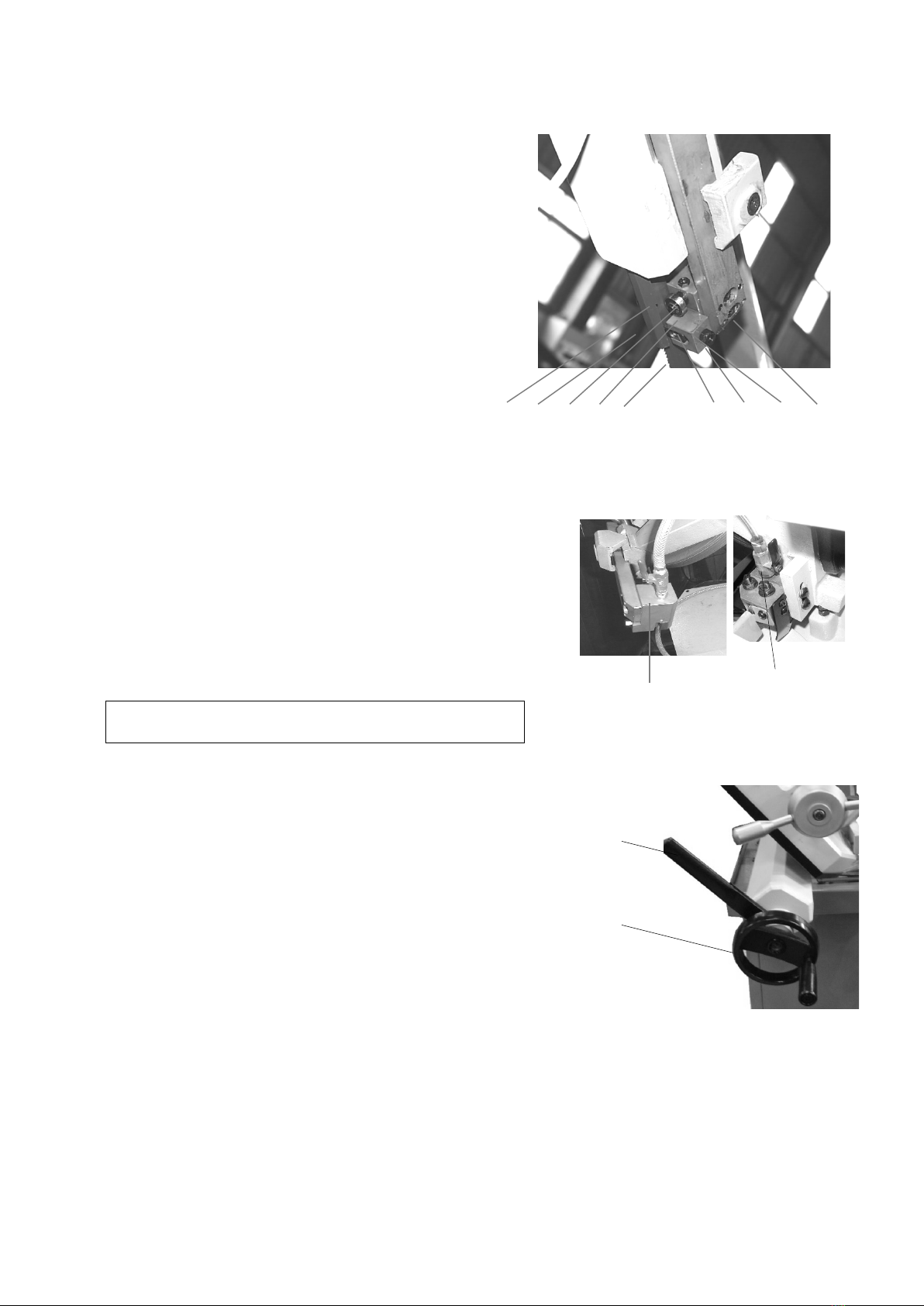

9-7. ADJUSTING BLADE GUIDE ROLLER BEARINGS, CARBIDE BLADE GUIDES AND BACK-UP
BEARINGS AND CLEARING THE CUTTING CHIP
Before making the following adjustments, make sure the
blade is tracking and tensioned properly:
1.The back of the blade (A) (fig3) should ride against the
back-up block (B). To adjust, loosen set screw (C) and
move
the guide block (D) up or down, until it lightly touches the
back of the blade .
2.The saw blade (A) should also ride between and lightly
touch the two blade guide roller bearings (E) and (F) (fig.
9) The front bearing (E) (fig. 9) is mounted on an eccentric,
and can easily be adjusted suit blade thickness by
loosening set screw (G) and turning shaft (E).
3.The carbide blade guides (H) (fig 9) should also be
adjusted so they lightly touch the blade by loosening
screw (K).
4. The blade guide roller bearings, carbide guides
and backup bearing on holder (fig 9 ) should be
adjusted in the same manner.
5. Cutting chips on the blade will be cleared by the steel brush.
9-8. BLADE AND COOLING SYSTEM
The use of proper cutting fluid is essential to obtain maximum
efficiency from a band saw blade. The main cause of tooth failure
is excessive heat build-up. This is the reason that cutting fluid is
necessary for long blade life and high cutting rates. cutting area
and blade wheels should be kept clean at all time.
The rate of coolant flow is controlled by the stop valve lever (A)
(fig. 4), which directs the coolant onto the blade. The lever (A) is
shown in the off position.
9-9. OPERATING THE TRU-LOCK VISE SYSTEM INSTRUCTIONS
To operate, proceed as follows:
1) Raise the arm 2” above the work piece; close the cylinder
valve to maintain the arm 2” above the work piece.
2) Put your work piece on the table. Move the vise handle (A)
upwards to an angle of 45 degree (a-Half opened) to loosen
the vise. Move the vise jaw bracket against the work piece
by turning the rectangular handle (B) . Push down on the
vise handle (A) to lock the work piece in position.
3) To loosen the work piece from the vise, hold the work piece
and lift the vise handle (A) to a 90 degree position
(completely opened). Remove work piece.
CONTINUED CUTTING:
When you need to cut a work piece many times, just raise the vise handle (A) to loosen and adjust work
piece position. Then push down on the same handle to tighten. You can also push the vise handle (A)
down first, and then tightening the vise by turning the rectangular handle (B) clockwise. After finishing
the cut, you can loosen the work piece by turning rectangular handle only. This Tru-Lock Vise System
has a 4mm tightening travel when the rectangular handle is completely opened. There is only a 2mm
tightening travel necessary for normal metal materials. The operator can tighten the work piece by
pushing down the vise handle (A) with a certain amount of pressure depending on hardness of work
piece.
A F G E H Fig.3 B K D C
A Fig.4 A
A
B
Fig.5
Always keep the floor dry to prevent slip or any accident.

16
9-10. VARIABLE CUTTING ANGLE SELECTION
Please proceed as follows to obtain
desired cutting angle. The swivel range is
from 0° to 60°clockwise. Before swinging
the base, make sure there is nothing in
the way, or any interference.
1. Pull out the bar (A) (fig. 6) swing and
hold the bar.
2.Push to turn the swivel base to desired
angle. Refer to scale on (B) for degree.
3.Lock the bar (A), then start the cutting.
9-11. REMOVING AND INSTALLING THE BLADE
When it is necessary to replace the blade, proceed as follows:
1. Raise the saw frame about
6" and close the feed on/off
knob by turning it clockwise
as far as it will go (fig 8).
2. Move the blade guide arm
to the right.(Fig.9).
3. Disconnect the machine
from the power source.
Loosen cover screw,
remove cover (A), open the
cover (B), remove cover
(C) , then clean the chips and dirt inside the machine.
4. Release blade tension (F) (fig 9)
by turning the blade tension hand-
wheel counterclockwise.
5. Remove the blade from both wheels and out of each blade guide. But remove side (B) saw blade.
When totally released, then remove the side (A).
6. Make sure the teeth of the new blade are pointing in the right direction. IF necessary, turn the
blade inside out.
7. Place the new blade on the wheels. In the blade guides and adjust blade tension and blade guides.
10.MAINTAINING
That's easier to keep machine in good condition or best performance by means of maintaining it at any
time than remedy it after it is out of order.
(1) Daily Maintenance (by operator)
(a) Fill the lubricant before starting machine everyday.
(b) If the temperature of spindle caused over-heating or strange noise, stop machine immediately
to cheek it for keeping accurate performance.
(c) Keep work area clean; release vise, cutter, work-piece from table; switch off power source;
take chip or dust away from machine and follow instructions lubrication or coating rust proof oil
before leaving.
(2) Weekly Maintenance
(a) Clean and coat the cross leading screw with oil.
(b) Check to see if sliding surface and turning parts lack of lubricant. If tile lubricant is insufficient,
fill it.
(3) Monthly Maintenance
(a) Check if the fixed portion has been loose.
(b) Lubricate bearing worm, and worm shaft to avoid the wearing.
(4) Yearly Maintenance
(a) Adjust table to horizontal position for maintenance of accuracy.
(b) Check electric cord, plugs, switch, at least once a year to avoid loosening or wearing.
B Fig.7
Fig.6 A
Fig.8 A B Fig.9 C F

17
11. TROUBLE SHOOTING
Symptom
Possible Cause(s)
Corrective Action
Machine can not be started
1.Power is not plugged; the power light
on control panel is not on.
2.Motor can not be started; power was
cut by limit switch.
3. Operation button can not be normally
operated.
1. Check the motor specification;
connect the power with correct
power supply. Make sure the
power light in on.
2.
Make sure the cover is in correct
position.
3.Push th
e emergency button;
return it to original position. Then
release the emergency button.
Excessive Blade
Breakage
1. Materials loosen in vise.
2. Incorrect speed or feed
3.Blade teeth spacing too large
4.Material too coarse
5.Incorrect blade tension
6.Teeth in contact with material before
saw is started
7. Blade rubs on wheel flange
8. Miss-aligned guide bearings
9. Blade too thick
10.Cracking at weld
1. Clamp work securely
2. Adjust speed or feed
3. Replace with a small teeth
spacing blade
4. Use a blade of slow speed
and small teeth spacing
5. Adjust to where blade just
does not slip on wheel
6. Place blade in contact with
work after motor is starred
7. Adjust wheel alignment
8. Adjust guide bearings
9. Use thinner blade
10. Weld ag
ain, beware the welding
skill.
Premature Blade Dulling
1. Teeth too coarse
2. Too much speed
3. Inadequate feed pressure
4.Hard spots or scale on material
5. Work hardening of material.
6.Blade twist
7. Insufficient blade
8. Blade slide
1. Use finer teeth
2. Decrease speed
3. Decrease spring tension on
side of saw
4. Reduce speed, increase feed
pressure
5. Increase feed pressure by
reducing spring tension
6. Replace with a new blade, and
adjust blade tension
7. Tighten blade tension
adjustable knob
8. Tighten blade tension
Unusual Wear on
Side/Back of Blade
1.Blade guides worn.
2.Blade guide bearings not adjust
properly
3.Blade guide bearing bracket is loose
1.Replace.
2.Adjust as per operators manual
3.Tighten.
Teeth Ripping from
Blade.
1. Tooth too coarse for work
2. Too heavy pressure; too slow speed.
3. Vibrating work-piece.
4. Gullets loading
1. Use finer tooth blade.
2. Decrease pressure, increase
speed
3. Clamp work piece securely
4. Use coarser tooth blade or
brush to remove chips.
Motor running too hot
1. Blade tension too high.
2. Drive belt tension too high.
3. Blade is too coarse for work
4. Blade is too fine for work
5. Gears aligned improperly
6. Gears need lubrication
1. Reduce tension on blade.
2. Reduce tension on drive belt.
3. Use finer blade.
4. Use coarse blade.
5. Adjust gears so that worm is in
center of gear.
6. Check oil path.

18
7. Cut is binding blade
7. Decrease reed anti speed
Bad Cuts (Crooked)
1. Feed pressure too great.
2. Guide bearings not adjusted
properly
3. Inadequate blade tension.
4. Dull blade.
5. Speed incorrect.
6. Blade guides spaced out too much
7. Blade guide assembly loose
8. Blade truck too far away from wheel
flanges
1. Reduce pressure by increasing
spring tension on side of saw
2. Adjust guide bearing, the
clearance can not greater than
0.001.
3.
Increase blade tension by adjust
blade tension
4. Replace blade
5. Adjust speed
6. Adjust guide space.
7. Tighten
8. Re-track blade according to
operating instructions.
Bad Cuts (Rough)
1. Too much speed or feed
2. Blade is too coarse
3. Blade tension loose
1. Decrease speed or feed.
2. Replace with finer blade.
3. Adjust blade tension.
Blade is twisting
1. Cut is binding blade.
2. Too much blade tension
1. Decrease reed pressure.
2. Decrease blade tension.
Saw arm can not
be raised up after
pushing the raising
button
1.Improper setting of depth gauge
1. Press the emergency stop
Button and RESET.
2. Check the upper limit switch
and stop round
Position. Make sure the limit
switch is always underneath the
stop round bar.
3. Check the oil gauge ; make
sure the oil is in proper range.
4. Check the motor revolution
direction; make sure the motor
revolution is in
clock-wise direction.

19
