Schäfer SPULBOY NU User manual

OPERATION MANUAL
UNIQUE!
100% HYGIENIC
CLEAN GLASSES
Schäfer Produkte GmbH
Simonshöfchen 53
42327 Wuppertal/Germany
Phone: [phone]
E-Mail: [e-mail]
www.spuelboy.de
NU® LINE
SPÜLBOY NU®
SPÜLBOY NU®water+

Your NU® /NU® water+ glasswasher
consists of the following parts:
• 1 x Unit incl. pre-wash and rinsing system
• 1 x Bayonet middle brush with head
• 1 x Brush strip
• 1 x Overflow pipe
• 1 x Water connection hose incl.
easy clix®connector and 3/8“connection
Optional:
• Drain hose (portable)
• Cut-out template (built-in)
• Detergent (tablets + sanitizer powder)
Purpose
This SPÜLBOY®glasswasher is used for the
hygienic cleaning of serving receptacles in
the catering sector, such as glasses,
tankards and carafes.

Device components
brush head
bayonet middle brush
brush strip
overflow pipe
2 step head valve
upper glass protection
connection hose
easy clix®with
3/8˝ thread
suction feet
W/H/D: 39.7 x 33.7 x 27cm
Canister Ø: 17cm - 20cm (oval)
Internal glass height: 26cm
Weight: 3kg (net)
Dimensions
& Weight

Spare parts & accessories
..........................................................................................................................................................................
NU®brush head, standard 1700370
NU®brush head, big 1700372
..........................................................................................................................................................................
NU®bayonet middle brush with head, standard 1700360
NU®bayonet middle brush, XL with big head 1700362
..........................................................................................................................................................................
NU®brush strip, standard 1700350
NU®brush strip, XL 1700352
..........................................................................................................................................................................
NU®2 step head valve, orange 1700522
NU®water+ 2 step head valve, grey 1700524
..........................................................................................................................................................................
NU®upper glass protection, orange 1700532
NU®connection hose with easy clix®1700692
..........................................................................................................................................................................
..........................................................................................................................................................................
NU®glass washing tablets 1700410
NU®sanitizer powder 1700412
NU®cleaning set 1700414
(Glass washing tablets, Sanitizer powder & Brush head, standard)
.........................................................................................................................................................................
Art.- name Art.- no.
Art.- name Art.- no.
..........................................................................................................................................................................
100% HYGIENE!
SPÜLBOY®CLEANSER

Setup & assembly
Attach the enclosed
connection hose to the
device.
Please make sure that the
sealing ring is lodged in
thedesignated groove on
the unit side to avoid leaks.
Set the safety slide to OFF,
attach the connector to the
NU®connection nozzle and
then engage the solide in the
ON position, thus activating
the lock.
A ”clix” signals a safe
connection.
Connect the end of the
water connection hose to
the drinking water supply.
1
CLIX
2
3

2
0
8
4
4
bar
6
bar
3/8”
1
waste water
easy clix®
rinsefresh
water
1connect the device
to the main water supply
(3/8” or likewise)
2regulate the water
pressure between
2 to max. 4 bar
3check the system
• fill in fresh water
• fill in SPÜLBOY®tab
• check horizontal
water flow
ready to use
How to install?

First commissioning
fresh
water
push
hours
4-6
1check and keep the
cleanliness of the device
and the work environment
2fill the pre-sink with fresh
water; the NU® water+
per push button
3place an original
SPÜLBOY®tab into
the pre-washing canister
4renew the NU®tab,
if during the rinsing (!)
no more foam forms
(after appr. 6 hours)

1move the glass with
steady up and down
movements completely
over the brush, at least
3-4 times
don‘t twist!
2let the glass drain off
briefly over the
pre-washing canister
3push down the
2 stage valve for at least
2-3 seconds; rinse until
the glass inside and
outside is clearly cleaned
How to clean a glass?
Step 1 Step 2

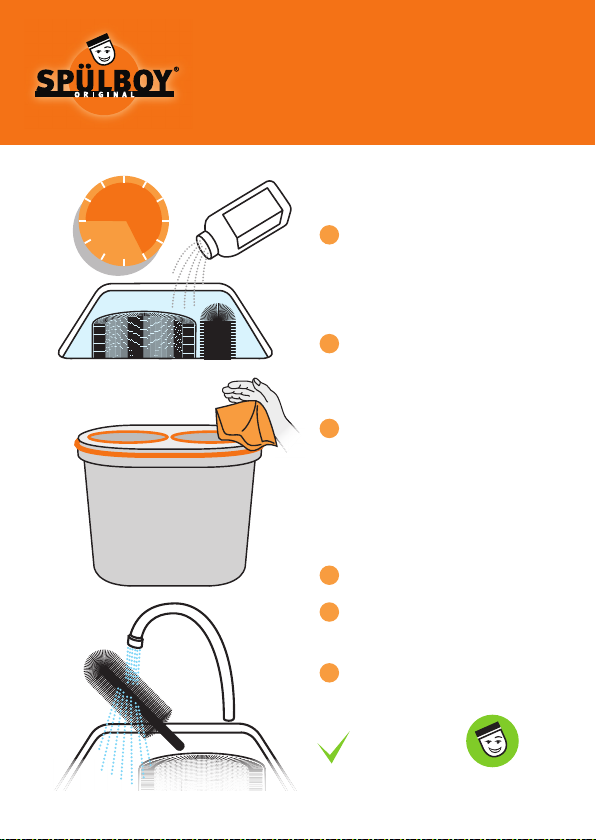

How to clean SPÜLBOY®?
End of the day:
1take off the brushes
and place them with
NU®brush sanitizer
into a bucket /sink
2fill up the sink with
warm water and wait
for appr. 12 hours
3wipe off the device
thoroughly with
a clean sponge
In the morning:
1rinsing brushes clean
2place the brushes
back into the device
3fill-up with fresh water
and new tab
ready to use
12
hours

In case of glass damage:
fresh water
1stop the rinsing
process immediately
2take the device off
the water pressure
3let the water
drain out of the
pre-washing canister
4take off the brushes
carefully and rinse
them clean
5carefully remove
all broken glas
6place the brushes
back into the device
7check the system
Attention!

•Continuously check the visual cleanliness
of the NU®/ NU®water+.
•Check the connection hose and hose connections
for damage or leaks.
•Clean the glasswasher at a maximum temperature
of 70 °C in a dishwasher.
•The minimum pressure is 2 bar, the permissible
maximum pressure is 6 bar (static).
•The glasswasher must only be operated in its original
condition and with original spare parts.
•Stop the washing cycle immediately in case of broken
glass and clean the unit thoroughly as described;
proceed extremely cautiously and carefully remove all
fragments of glass.
•Do not tip any food leftovers or other drink residues
into the unit! This can lead to blockages of the water
drain and therefore have a negative impact on the
cleaning results.
Safety instructions!
Turn off the tap at the end of operation,
disconnect the SPÜLBOY®from the water
connection and clean the device and the
brushes. (see section CLEANING THE DEVICE)

Warranty
The original SPÜLBOY®warranty
Schäfer Produkte GmbH offers you a manufacturers warranty of
2 years from the date of purchase. We remedie all defects free
of charge during this period, which are proven to be due to faulty
material or workmanship and substantially impair its function.
Other claims are excluded, e.g. wear down on brushes.
The warranty does not cover damage resulting from failure to
follow the operating instructions, improper handling or normal wear
and tear.
The warranty becomes void in case of any kind of intervention not
authorised by Schäfer Produkte GmbH. If a repair should be necessary,
please send the NU® without accessories, cleaned and well packed,
with a description of the fault and proof of purchase, directly to
Schäfer Produkte GmbH. The statutory warranty rights towards the
seller and any possible seller warranties remain unaffected.
Loss of warranty for:
• Improper handling
• Improper cleaning
• Inappropriate use
• Destruction of the unit by force
• Opening of the glasswasher
• Use of caustic or
chlorinated products

Sustainability & disposal
We are responsible
•certified according to DIN 6653-3
for manual glasswashers
•Company certification according to
DIN EN ISO 9001:2015
•100% hygiene without power consumption
•100% cleanliness with the lowest fresh
water consumption: Ø 8cl per glass cleaning
•Highest efficiency with minimal use of
100% biodegradable Glass washing tabs
and brush cleaners
•
SPÜLBOY®uses only high-quality
and REACH-tested plastics.
• SPÜLBOY®glasswashers are
fully recyclable. SPÜLBOY®ist a
member of RESY Organisation für
Wertstoffentsorgung GmbH.
Please dispose of disused devices in
the plastic waste bin provided for this
purpose and the paper packaging in
the paper bin.
