Schellenberg Controller 5 Channel User manual

Controller 5 Channel
GB
TR
SK
NO
IT
LV
RO
XS
NL
UA
HR
AL
PT
SE
BG
IS
DE
GR
CZ
DK
PL
LT
SI
BA
FR
RU
HU
FI
ES
EE


3
DE
GB
FR
NL
PL
IT
ES
PT
CZ
SK
HU
HR
SI
RO
BG
deutsch �������������������������������������������������������������������
english ��������������������������������������������������������������������
français �������������������������������������������������������������������
nederlands ��������������������������������������������������������������
polski ����������������������������������������������������������������������
italiano ��������������������������������������������������������������������
español �������������������������������������������������������������������
português ���������������������������������������������������������������
český ����������������������������������������������������������������������
slovenčina ��������������������������������������������������������������
magyar ��������������������������������������������������������������������
hrvatski �������������������������������������������������������������������
slovenski jezik ���������������������������������������������������������
român ���������������������������������������������������������������������
български ��������������������������������������������������������������
6
12
18
24
30
36
42
48
54
60
66
72
78
84
90


5
GR
TR
RU
UA
LT
LV
EE
SE
DK
NO
FI
AL
BA
XS
IS
ελληνικά �����������������������������������������������������������������
türk �������������������������������������������������������������������������
русский ������������������������������������������������������������������
yкраїнський �����������������������������������������������������������
lietuvos �������������������������������������������������������������������
latvijas ��������������������������������������������������������������������
eesti ������������������������������������������������������������������������
svenska ������������������������������������������������������������������
dansk ����������������������������������������������������������������������
norsk �����������������������������������������������������������������������
suomi ����������������������������������������������������������������������
shqiptar �������������������������������������������������������������������
bosanski �����������������������������������������������������������������
српски ��������������������������������������������������������������������
icelandic �����������������������������������������������������������������
96
102
108
114
120
126
132
138
144
150
156
162
168
174
180

6
INHALTSVERZEICHNIS
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Sicherheit und Hinweise �������������������������������������������������������
Technische Daten �����������������������������������������������������������������
Anzeigen- und Tastenerklärung ��������������������������������������������
Montage ��������������������������������������������������������������������������������
Funk-Handsender Programmierung
Rohrmotor: Adresse zuweisen ���������������������������������������������
Programmiermodus starten ��������������������������������������������������
Kanalwahl�������������������������������������������������������������������������������
Funk-Handsender mit Rohrmotor koppeln ���������������������������
Rohrmotor-Drehrichtung prüfen �������������������������������������������
Drehrichtung ändern �������������������������������������������������������������
Endlage oben einstellen �������������������������������������������������������
Endlage unten einstellen �������������������������������������������������������
Programmiermodus beenden �����������������������������������������������
Zwischenlage setzen (optional) ��������������������������������������������
Zwischenlage löschen ����������������������������������������������������������
Zwischenlage anfahren ���������������������������������������������������������
Endlage anfahren ������������������������������������������������������������������
Weitere Funk-Handsender anlernen ������������������������������������
Einstellungen des Funk-Handsenders löschen ��������������������
Werksreset ����������������������������������������������������������������������������
7
10
11
187
190
192
192
193
195
196
197
199
201
201
203
205
205
206
209
211
Urheberrechtlich geschützt, 2016, Alfred Schellenberg GmbH� Alle Rechte vorbehalten�
Jede vom Urheberrechtsgesetz nicht zugelassene Verwertung, insbesondere Verviel-
fältigung, Übersetzung, Verarbeitung bzw� Weitergabe von Inhalten in Datenbanken
oder anderen elektronischen Medien und Systemen, ist verboten�

76
DE
SICHERHEIT UND HINWEISE
Sehr geehrte Kundin, sehr geehrter Kunde,
bitte lesen Sie vor der Montage und Inbetriebnahme
diese Anleitung vollständig durch� Beachten Sie alle
Sicherheitshinweise, bevor Sie mit den Arbeiten
beginnen� Bewahren Sie die Anleitung auf und
weisen Sie jeden Benutzer auf eventuelle Gefahren hin, die im
Zusammenhang mit diesem Produkt stehen� Übergeben Sie die
Anleitung bei einem Besitzerwechsel auch dem Nachbesitzer�
Bei Schäden, die durch unsachgemäßen Gebrauch oder durch
fehlerhafte Montage entstehen, erlischt die Garantie und jeder
Gewährleistungsanspruch�
SICHERHEITSHINWEISE
Es besteht Verletzungsgefahr durch Stromschlag�
Vor Arbeiten an elektrischen Anlagen muss diese
spannungsfrei geschaltet werden�
Das Produkt nur in trockenen Räumen verwenden�
Die funkbetriebene Rollladenanlage muss während des Betriebs
einsehbar sein, insbesondere wenn die Rollladenanlage durch
mehr als einen Funk-Handsender angesteuert wird�
Halten Sie Personen aus dem Fahrbereich der Rollladenanlage
fern� Es besteht Verletzungsgefahr�
Das Produkt ist kein Spielzeug, halten Sie Kinder davon fern�
Es besteht Verletzungs- und Erstickungsgefahr durch
Kleinteile des Produktes und der Verpackung�

8
Für den Betrieb einer Rollladenanlage über einen
Funk-Handsender müssen die landesspezischen Bestimmun-
gen beachtet werden�
Batterien nur durch den gleichen Typ ersetzen, LR03 / AAA�
Den Rohrmotor nicht über Endlagen fahren�
Beschädigungsgefahr!
CE-ERKLÄRUNG UND EG-KONFORMITÄT
Das Produkt erfüllt die geltenden Anforderungen der europäi-
schen und nationalen Richtlinien� Die Konformität wurde nach-
gewiesen, die entsprechenden Erklärungen und Unterlagen sind
beim Hersteller hinterlegt�
Nicht im Hausmüll entsorgen! Das Produkt ist recy-
clingfähig und kann im Wertstohof oder an einer
anderen Sammelstelle für elektrischen Hausmüll ab-
gegeben werden�
R&TTE 1999/5/EG

98
DE
BESTIMMUNGSGEMÄSSE VERWENDUNG
Das Produkt nur mit Geräten verbinden, die vom Hersteller dafür
zugelassen sind�
Eine andere oder darüber hinausgehende Verwendung des
Produktes gilt als nicht bestimmungsgemäß�
Das Produkt darf nicht in Bereichen mit hohem Risiko der
Störung Dritter (z�B� Krankenhäuser, Flughäfen oder ähnlichen
Einrichtungen) betrieben werden�
Es besteht kein Schutz vor Störungen durch andere ordnungs-
gemäß aufgebaute und betriebene Funkanlagen, insbesondere
durch solche, die im gleichen Frequenzbereich arbeiten�
Die über das Produkt betriebenen Rollladenanlagen müssen in
einem einwandfreien Zustand sein�
Für Folgeschäden, Sachschäden und Personenschäden
bei nicht bestimmungsgemäßer Verwendung haftet die
Alfred Schellenberg GmbH nicht�
Der Betrieb des Produktes in der Nähe von Geräten mit magne-
tischer Strahlung oder metallischen Flächen beeinträchtigt die
störungsfreie Funktion�
Die Reichweite des Produktes ist durch europäische
Verordnungen und Richtlinien des Gesetzgebers begrenzt�
Die Reichweite des Funk-Handsenders beträgt ca� 150 Meter
auf freiem Feld und ca� 20 Meter im Gebäude�

10
NUTZUNGSHINWEISE
Pro Kanal können bis zu 5 Rohrmotoren angelernt werden� Alle
5 Rohrmotoren werden über den Funk-Handsender gleichzeitig
angesteuert� Hierbei werden auch unterschiedlich programmier-
te Endlagen bei Fenstern und Türen berücksichtigt� An einen
Rohrmotor können bis zu 5 Funk-Handsender angelernt werden�
TECHNISCHE DATEN
Sendefrequenz 868,4 MHz
Reichweite auf freiem Feld bis zu 150 Meter
Reichweite im Gebäude bis zu 20 Meter
Spannungsversorgung 3 V DC
Batterietyp 2 x LR03 / AAA
Schutzart IP 20
Umgebungstemperatur 0° bis 50° Celsius
Die baulichen Gegebenheiten beeinträchtigen die
Reichweite und Funktion des Funk-Handsenders�

1110
DE

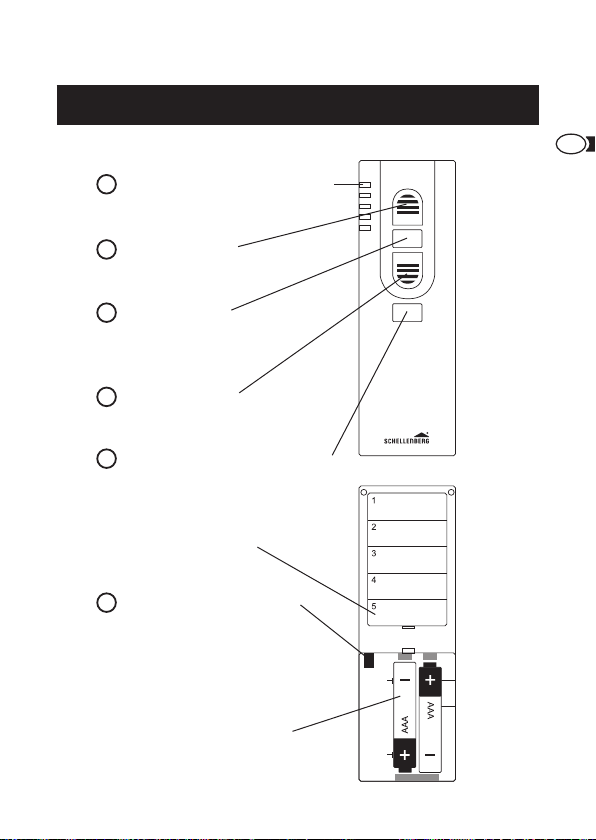

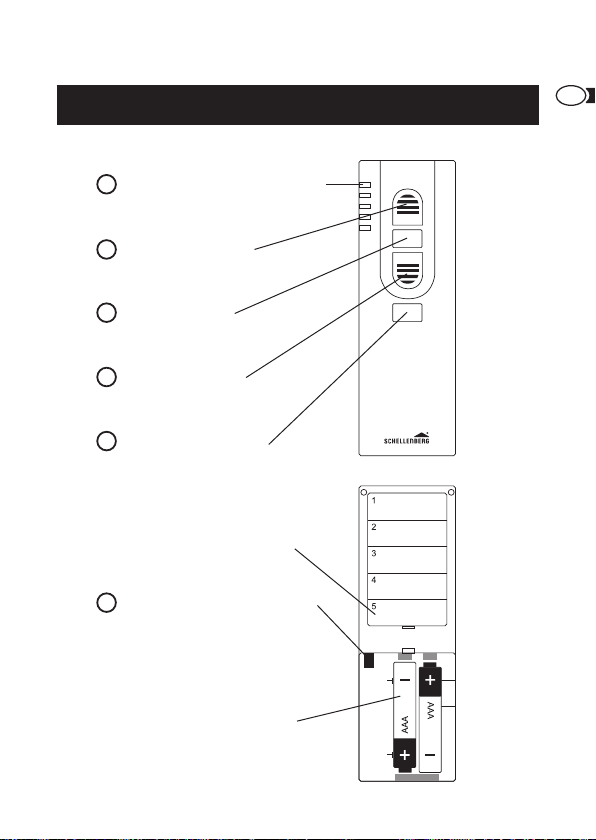

ANZEIGEN- UND TASTENERKLÄRUNG
Beschriftungsfelder
Taste Programmierung
Ein- und Ausschalten des
Programmiermodus� Taste
bendet sich im Batteriefach
auf der Rückseite�
Batteriefach 2x (AAA)
Rückseite
6
LED-Anzeige / Kanal 1-5
Blinkt während der
Programmierung�
Taste Auahrt
Rollladen/Markise fährt
nach oben / aus�
Taste Stopp
Stoppt die Auf-/Abfahrt
des Rohrmotors�
Taste Abfahrt
Rollladen/Markise fährt
nach unten /ein�
Taste Kanalwahl
Durch Bestätigen der Taste
erfolgt die Auswahl des
gewünschten Kanals�
Vorderseite
1
3
4
5
2

12
TABLE OF CONTENTS
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Safety and notices ����������������������������������������������������������������
Technical data �����������������������������������������������������������������������
Display and key explanation �������������������������������������������������
Installation �����������������������������������������������������������������������������
Hand-held wireless remote control programming
Tubular motor: address assignment �������������������������������������
Programming mode start ������������������������������������������������������
Channel selection ������������������������������������������������������������������
Pairing the hand-held wireless remote control with the
tubular motor �������������������������������������������������������������������������
Tubular motor rotation check ������������������������������������������������
Tubular motor direction change ��������������������������������������������
Setting the upper end position ����������������������������������������������
Setting the lower end position ����������������������������������������������
Concluding the program mode ���������������������������������������������
Intermediate position deletion �����������������������������������������������
Intermediate position approach ��������������������������������������������
Intermediate position approach ��������������������������������������������
End position approach ����������������������������������������������������������
Pairing of other hand-held wireless remote controllers �������
Deleting the settings of the hand-held wireless remote
controller �������������������������������������������������������������������������������
Factory default reset �������������������������������������������������������������
13
16
17
187
190
192
192
193
195
196
197
199
201
201
203
205
205
206
209
211
Copyright protected, 2016 Alfred Schellenberg GmbH All rights reserved� Any use,
in particular reproduction, translation, processing or transmission of content into
databases or other electronic media and systems beyond the authorization provided
by the copyright legislation is strictly prohibited�

1312
GB
SAFETY AND NOTICES
Dear customers,
please completely read this instruction manual before
the installation and commissioning� Observe all
safety instructions before you begin executing any
work� Keep the instruction manual stored at hand and
advise each user about possible dangers that are related to this
product� In case of a change in ownership pass on the instruction
manual to the new owner� In case of damages which are caused
by misuse or improper installation the warranty and any warran-
ty claim will be void�
SAFETY INSTRUCTIONS
There is a risk of injury from electric shock� Before
working on electrical equipment, it must be complete-
ly de-energized�
Only operate the hand-held wireless remote control in dry rooms
(IP20)�
The radio-controlled shutter system must be accessible during
operation, especially when the shutter system is controlled by
more than one hand-held wireless remote controller�
Keep people away from the movement range of the roller shutter
system� There is a risk of injury�
The hand-held wireless remote control is not a toy, keep children
away from it�
There is a danger of injury and suocation from small parts of
the hand-held wireless remote controller and the packaging�

14
When operating a shutter system via a hand-held wireless remo-
te controller the country-specic regulations must be observed.
Only replace the batteries with the same type, LR03 / AAA�
Do not move the tubular motor beyond the end positions�
Risk of damage!
CE DECLARATION AND CONFORMITY
The product meets the applicable requirements of the European
and national guidelines 1999/5/EC� Conformity was evidenced,
the corresponding EC declaration of conformity is included with
the product or can be requested from the after-sales service
section� E-mail address: customerservice@schellenberg�de
Do not dispose of together with household waste�
The product is recyclable and can be deposited at a
recycling centre or a collection station for electrical
household waste�
R&TTE Directive 1999/5/EC

1514
GB
INTENDED USE
Only connect the hand-held wireless remote control with
devices that are approved by the manufacturer for the
respective use�
Using the hand-held wireless remote control for other purposes
is considered contrary to its designated use�
The hand-held wireless remote control may not be operated in
areas with high risk or if third parties are disturbed (for example,
hospitals, airports and similar facilities)�
There is no protection from interference from other properly
constructed or operated radio equipment, particularly by those
who work in the same frequency range�
The roller shutter systems which are operated with the
hand-held wireless remote control must be in a awless
condition�
The Alfred Schellenberg GmbH shall not be liable for any
consequential damage, property damage and personal injury
due to improper use�
The operation of the hand-held wireless remote control in the
vicinity of equipment that emits electromagnetic radiation or has
metal surfaces can aect the correct operation.
The range of the hand-held wireless remote control is limited by
European regulations and legislative directives�
The range of the hand-held wireless remote control is approx�
150 meters in the open eld, and 20 meters within buildings.

16
NOTES REGARDING THE USE
Per channel, up to 5 tubular motors can be paired� All 5 tubular
motors can be controlled simultaneously via the hand-held
wireless remote control. Dierently programmed end positions
in windows and doors will be considered, too� A single tubular
motor can be paired with up to 5 hand-held wireless remote
controllers�
TECHNICAL DATA
Transmission frequency 868,4 MHz
Range in the open eld up to 150 meters
Range within buildings up to 20 meters
Power supply 3 V DC
Battery type 2 x LR03 / AAA
Protection class IP 20
Ambient temperature 0° to 50° Celsius
The structural conditions aect the range and function
of the hand-held wireless remote control�

1716
GB
DISPLAY AND KEY EXPLANATION
Labeling elds
programming button
On/o switching of the
programming mode� The
button is located in the
battery compartment on the
rear side�
Battery compartment
2x (AAA)
Rear side
6
LED display / channel 1-5
Flashes during the
programming�
open button
Shutter/awning moves
upwards/extends�
stop button
Stops the up/down
movement of the
tubular motor�
close button
Shutter/awning moves
downwards/retracts�
channel selection button
This button can be used to
select the desired channel�
Front side
1
3
4
5
2

18
TABLE DES MATIÈRES
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Sécurité et consignes �����������������������������������������������������������
Caractéristiques techniques �������������������������������������������������
Explication des achages et des touches ���������������������������
Montage ��������������������������������������������������������������������������������
Programmation du radioémetteur portatif
Moteur tubulaire : Assigner une adresse ������������������������������
Démarrer le mode de programmation ����������������������������������
Sélection du canal ����������������������������������������������������������������
Connecter le radioémetteur portatif au moteur tubulaire �����
Contrôler le sens de rotation du moteur tubulaire ����������������
Modier le sens de rotation ��������������������������������������������������
Régler le point d‘extrémité supérieur ������������������������������������
Régler le point d‘extrémité inférieur ��������������������������������������
Quitter le mode de programmation ���������������������������������������
Régler le point intermédiaire (en option) ������������������������������
Eacer le point intermédiaire ������������������������������������������������
S‘approcher du point intermédiaire ��������������������������������������
S‘approcher du point d‘extrémité ������������������������������������������
Soumettre d‘autres émetteurs portatifs à l‘apprentissage ���
Eacer les réglages du radioémetteur portatif ���������������������
Réajustage des réglages départ usine ���������������������������������
19
22
23
187
190
192
192
193
195
196
197
199
201
201
203
205
205
206
209
211
Soumis au droit d‘auteur, 2016 Alfred Schellenberg GmbH� Tous droits réservés�
Défense de toute utilisation non autorisée par le droit d‘auteur, et notamment de la
reproduction, de la traduction, de la transformation ou de la transmission des contenus
des bases de données ou des autres médias et systèmes électroniques�

1918
FR
SÉCURITÉ ET CONSIGNES
Chers clients, chères clientes,
veuillez lire cette notice complètement avant le
montage et la mise en service� Consigne importante
Respectez toutes les consignes de sécurité avant de
commencer les travaux� Conservez cette notice et
indiquez à chaque utilisateur les éventuels dangers en liaison
avec ce produit� En cas de changement de propriétaire, la notice
doit être cédée au propriétaire suivant� Pour les dommages,
résultant d‘une utilisation non conforme ou d‘un montage
incorrect, tout droit à la garantie s‘éteint�
CONSIGNES DE SÉCURITÉ
Une décharge électrique entraîne un risque de
blessure� Avant de travailler sur les installations
électriques, ces dernières doivent être mises hors
tension�
Utiliser le radioémetteur portatif uniquement dans des locaux secs�
Le volet roulant radiopiloté doit pouvoir être surveillé pendant le
fonctionnement, notamment lorsqu‘il est asservi par plusieurs
radioémetteurs portatifs�
Maintenez à distance les personnes du champ d‘action du volet
roulant� Un risque de blessure existe�
Le radioémetteur portatif n‘est pas de jouet ; les enfants doivent
être tenus à distance�
Un risque de blessure et d‘étouement existe du fait des petites
pièces du radioémetteur portatif et de l‘emballage�

20
Lors du fonctionnement d‘un volet roulant piloté par un radio-
émetteur portatif, il faut respecter les dispositions spéciques au
pays d‘utilisation�
Remplacez les batteries exclusivement par des batteries de
même type, LR03 / AAA�
Ne pas faire passer le moteur tubulaire au-delà des positions
nales. Risque d‘endommagement !
DÉCLARATION CE ET CONFORMITÉ
Le produit satisfait aux exigences en vigueur des directives
européennes et nationales. La conformité a été justiée, la
déclaration de conformité CE correspondante accompagne le
produit ou peut être demandée auprès du service après-vente�
Adresse e-mail : service�clientele@schellenberg�de
Ne pas éliminer avec les déchets ménagers !
Le produit est recyclable et peut être amené dans une
déchèterie avec tri sélectif ou dans un point de collec-
te pour déchets électriques ménagers�
Directive RTTE 1999/5/CE
Table of contents
Languages:
