Scheucher CAREboy User manual

CAREboy Instruction Manual
Multifunctional cordless waxer and cleaner

2
CAREboy
Battery
Charging indicator
Push to open
Water level display
Aluminium alloy tube
Rotary plate
LED-illumination
Plastic cover
Handle
Spray button
Moping | waxing
switch
Power adapter
Nozzle

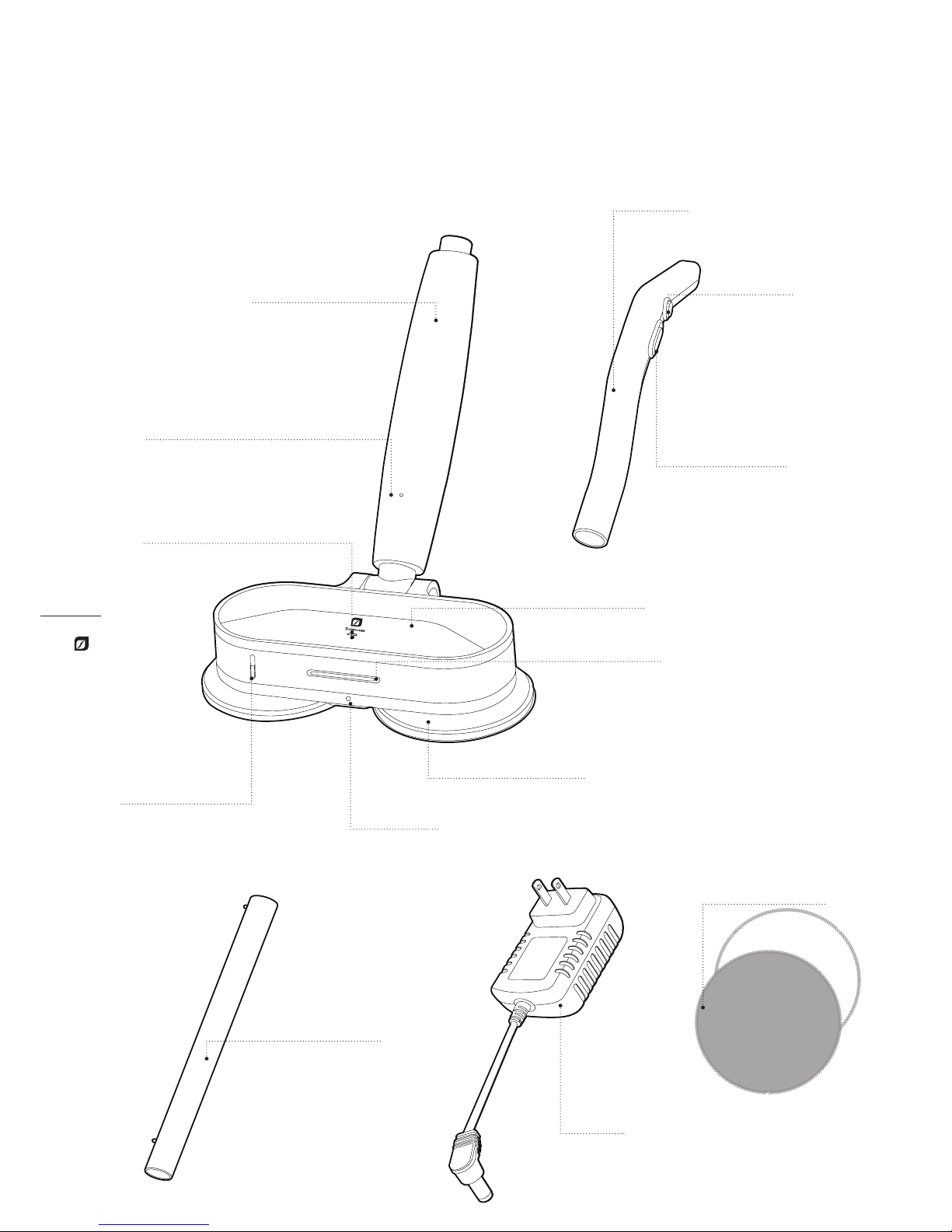

PRODUCT AND PARTS
SCHEMATIC DRAWING
Moping | waxing pads
(2 pcs. blue, 2 pcs. green)

3
CAREboy
Spray button
Moping | waxing
switch
We reserve the right to continuously change the product design and improve the product technology without notice.
Rated voltage 14.4 V
Rated power 60 W
Noise 60 dB
Battery capacity 4000 mAh
Charging time 3 hours
Run time > 30 min.
Water tank capacity 330 ml.
Dimensions 130 x 40 x 9,5 cm
Weight 3,7 kg
ATTENTION
1. Only suitable for even/smooth surfaces such as parquet, wooden floor, stone, tiles, ceramic, laminate, vinyl floor etc. Do not
use on wall or window or other uneven surfaces.
2. Do not put in water or other liquid. Clean with damp cloth.
3. Do not touch the moving parts when working.
4. Put moping pads or waxing pads on the rotary plates before use.
5. Only use recommended care and cleaning products. Other products can only be used on own risk and responsibility.
Do not fill in any liquids containing solvents.
*This product is only for floor care. Users are responsible for error usage for this product.
Moping | waxing pads
(2 pcs. blue, 2 pcs. green)
SPECIFICATION
SCHEUCHER CAREBOY

4
CAREboy
ASSEMBLY INSTRUCTIONS
Pic 1
Pic 2
Pic 1
Pic 2
Pic 1
Pic 2
1. Install the handle
1.1. Connect the terminal of the handle to the port which is on the top of alu-
minum alloy tube (see picture 1).
1.2. Put the aluminum alloy tube into the bottom of handle. Rotate the aluminum
alloy tube until it gets locked in the handle (See picture 2)
2. Install the main body
2.1. Connect the terminal of the aluminum alloy tube to the port which is on side
of the main body (see picture 1).
2.2. Put the aluminum alloy tube into the product body. Rotate the aluminum
alloy tube until it gets locked (see picture 2).
3. Install battery ( No need for new product)
3.1. Remove the screws and open the cover ( see picture 1)
3.2. Connect the terminals correctly ( see picture 2)
3.3. Recharge the battery monthly to keep good battery performance.
Non-original battery may damage the product.

5
CAREboy
1. Add water/waxing oil/detergents

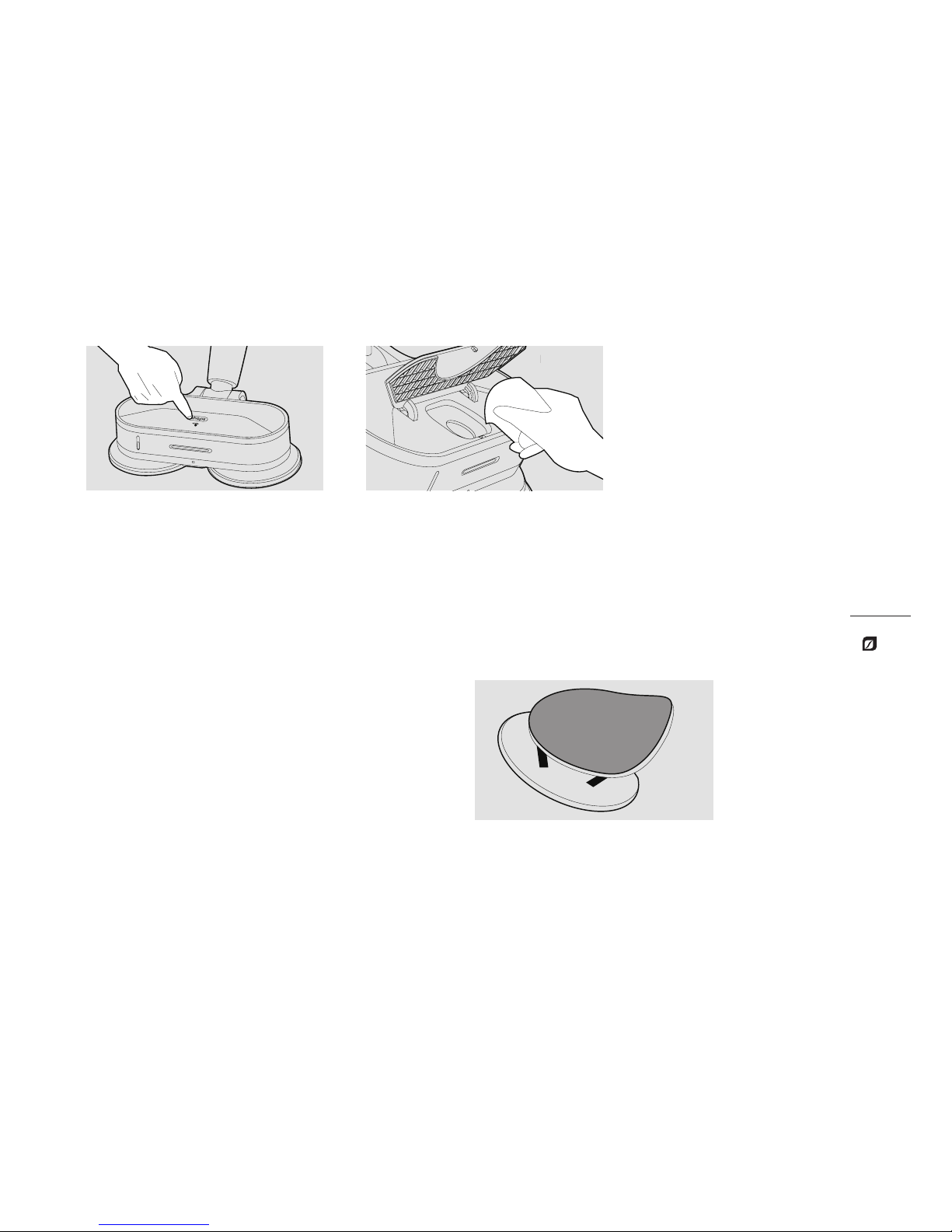

1.1. Push the “PUSH” button to open the plastic cover (See picture 1)
1.2. Remove the rubber plug and fill the water tank with water or waxing oil or diluted detergent in appropriate amount. (see picture 2)
1.3. If necessary, clean surplus quantities with an absorbent cloth and close the cover.
*Always keep some water or other suitable liquid in the water tank to avoid water pump idling.
2. Charging
2.1. Fully charge the battery before first use
2.2. Always use the original charger to charge the battery
2.3. A slow flashing LED (about one flashing every second) indicates low battery. Please charge the battery in time.
4. USING CAREboy
4.1. Fix pads on the rotary plates.
4.2. Fill in Scheucher PARQUET CARE (for maintaining your oiled/waxed parquet floor) OR Scheucher
PARQUET CLEANER (diluted with water as indicated) (for cleaning your parquet floor) into the tank.
4.3. Choose the speed of rotation by moving the selector switch. Low speed is intended for cleaning your parquet floor,
high speed is for polishing of the care wax oil.
4.4. Move CAREboy slowly forwards and backwards and spray care wax oil or detergent on the parquet floor as required.
Observe the spray distance to avoid contamination of walls or furniture.
4.5. Clean floor before you apply PARQUET CARE.
4.6. Only use clean pads for PARQUET CARE.
4.7. Please empty the tank, if you do not want to use your CAREboy for an extended period of time, fill in water, clean the nozzle with a few
sprays and then empty the water.
3. Replace PADS
3.1. Use the original cleaning or waxing pads
3.2. Put the adhesive side of the pad on the rotary plate (see picture 1)
3.3. Power o and hold the edge of the pad and then slightly pull o
the pad.
OPERATING INSTRUCTIONS
Pic 1 Pic 2
Pic 1

6
CAREboy
PROBLEM CAUSES SOLUTION
Water spray failure
Tank is empty Fill tank
There is air in the water pipe Push spray button several times to expel the air
Nozzle blocking
Spray nozzle/water injector
blocked
Clean nozzle opening with a needle
Hard components are contained in
the liquid.
Leeren Sie den Tank und füllen Sie den Tank neu auf.
Motor stops workink and
LED flashes rapidly
Over-current protection Restart aer a few seconds.
LED flashes once every
second
Low battery Recharge battery
Motor stops, LED lights
properly
Motors over-temperature protec-
tion
Stop using and turn o the switch. Cool it naturalls and reuse
it.
Please note:
1. Temperature increases in the long continuous uninterrupted running process of the motor. Over-temperature protection starts upon
over-heated motors. Turn o the switch, cool the product naturally and reuse
2. Don‘t keep it working for more than 20 minutes for one time
3. Do not apply any force load on the machine
FAQ:
How to clean the pad?
Clean pads aer cleaning your floor with clear water. In case of heavy contamination, wash the pads in the washing machine at max. 60
° C. Aer using care wax oil, immediately wash the pads in the washer at a maximum of 60 ° C. This prevents the risk of self-ignition and
you can reuse the pads.
Where can I buy pads, battery, care and maintenance products?
Please contact your local Scheucher dealer.
Will it damage the floor when the rotary plates rotate at high speed?
Fitted with so and thick-anti-abrade pads, the rotary plates make no damage to the floor.
Can it clean dirt or dust?
Our special pads can absorb dirt, dust or liquid amounting to several times pad’s weight.
How do I correctly clean my parquet floor with CAREboy?
First, clean the floor with a vacuum cleaner to remove coarse dirt. Fill PARQUET CLEANER in the tank and clean the parquet floor by
slowly moving CAREboy back and forth. Spray the cleaner as needed on the floor. Work in partial surfaces. Due to the high absorption
capacity of the pads, a too wet cleaning is automatically avoided. Follow the instructions of Scheucher PARKETT CLEANER.
TROUBLE SHOOTING

7
CAREboy
How do I correctly use PARQUET CARE my parquet floor with CAREboy?
Clean the floor as described before. Empty the tank and fill in PARKETT CARE care oil into the tank. Replace the pads and use the green
care pads. Spray PARQUET CARE on the floor and polish it at high speed by slowly moving the CAREboy back and forth. Work in partial
areas and spray it onto the floor as needed. Avoid a visible, wet oil film on the parquet floor.
ATTENTION: Over waxed floors may become slippery and cause danger. Follow the instructions of PARQUET CARE.
How do I correctly charge my CAREboy?
When the battery becomes empty, the rotational speed of the rotary plates drops and the motor stops.
Use only the original charger to recharge the battery. During charging, the LED lights up red as soon as charging is completed, the LED
lights up green.
How long does it take to charge the battery?
A complete charge takes 2.5 to 3 hours.
If the machine does not work out as intended, please read the operating instructions first. If you can‘t find a solution, please contact
your dealer or contact us at www.scheucherparkett.at.
Nr. NAME AMOUNT BEMERKUNG
1 CAREboy waxer and cleaner 1
2 Charger Europe 230 V 1
3 Waxing pads (green) 2 use for care with Scheucher Parquet CARE
4 Cleaning pads (blue) 2 use for cleaning with Scheucher Parkett CLEANER
5 Manual 1 in German and English language
Designed for Scheucher in USA, Made in China.
Mamibot Manufacturing USA Inc.
Orange St. #600, Wilmington, New Castle,
19899 Delaware, USA.
CONTENT
