Schier SV10 User manual

Contents
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Getting to Know the SV10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Buried Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
On the Floor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
INSTALLATION GUIDE
SV10 Wastewater Sampling Port
6455 Woodland Dr. | Shawnee, KS 66218 | 913-951-3300 | schierproducts.com © Copyright 2023 Schier, All Rights Reserved
MODEL NUMBER:
SV10
DESCRIPTION: Wastewater Sampling Port
PART #: 8065-001-01
DATE: 01/01/2023 REV: ECO:
page 1 of 10

When Installing Interceptor Inside
Fernco or similar
rubber flow
restriction end
cap

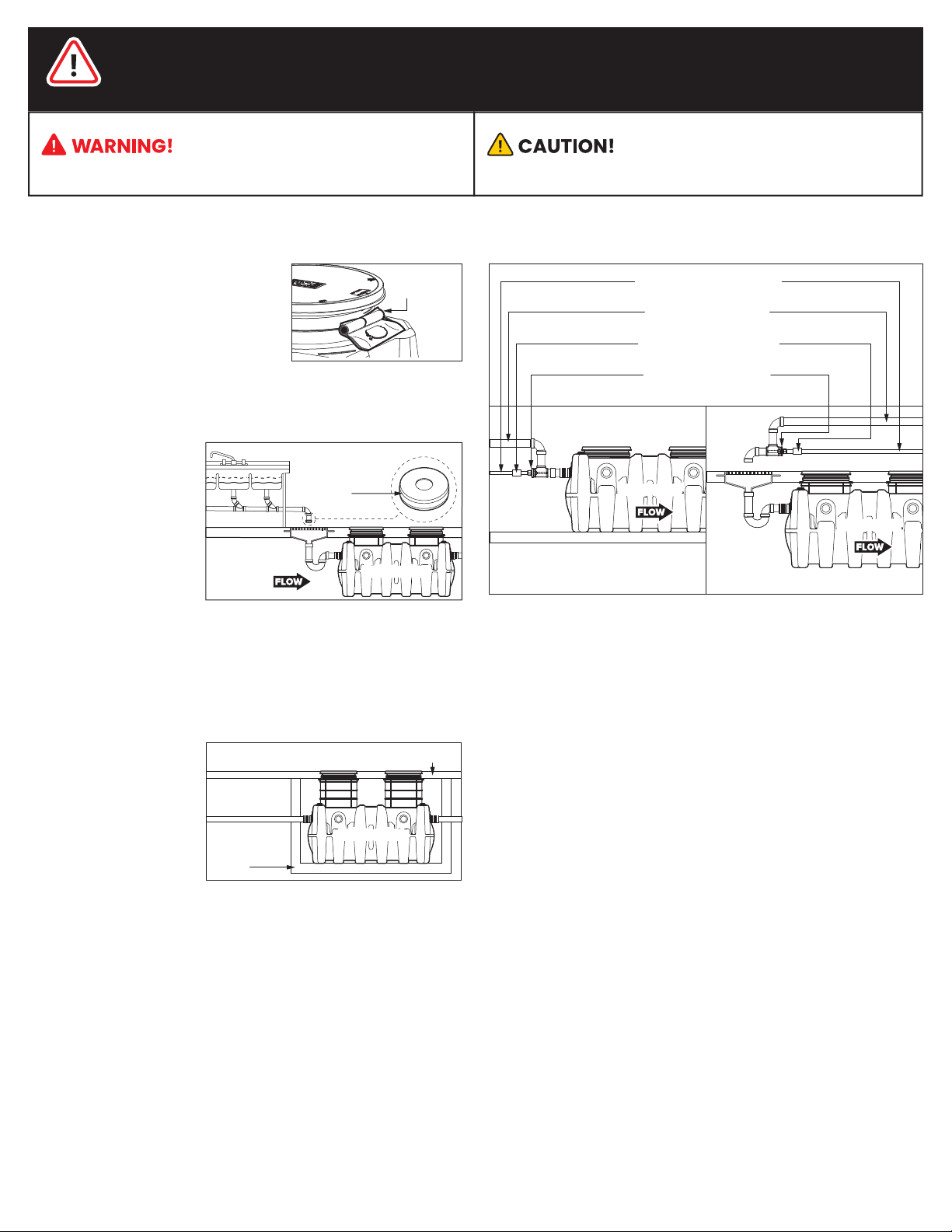

SPECIAL PRECAUTIONS
Installation Instructions
Hydrostatic Slabs (or Pressure Slabs)
High Temperature Kitchen Water
concrete slab subject to hydrostatic pressure
watertight
concrete
vault
Do not install this unit in any manner
except as described in these instructions.
Doing so may result in property damage, personal injury or death.
installation
instructions
DO NOT AIR TEST UNIT OR RISER SYSTEM!
For Schier Grease Interceptor Installations - Failure to follow this guidance voids
your warranty
cold water supply line
high temperature
euent ( > 150º F)
approved backflow
prevention assembly
DTV (drain water
tempering valve)
directly connected indirectly connected
If water is entering the interceptor at excessive temperature (over 150º F), a
drain water tempering valve (DTV) and approved backflow prevention assembly
must be installed. Most state and local plumbing codes prohibit water above
150º F being discharged into the sanitary sewer. Water above 150º F will
weaken or deform PVC Schedule 40 pipe, poly drainage fixtures like
interceptors and erode the coating of cast iron (leading to eventual failure).
Installation instructions and additional
components are included with the
interceptor. Read all instructions prior to
installation. This interceptor is intended to
be installed by a licensed plumber in
conformance with all local codes.
If your dishwashing sink(s)
discharges into a floor
drain/sink (drain), you must
regulate the flow into the drain
to avoid an overflow of water
onto the kitchen floor. This can
be done by installing a valve or
flow restriction cap on the sink
piping that discharges into the
drain. See drawing for
guidance. For detailed
guidance on indirect connections, go to:
webtools.schierproducts.com/Technical_Data/Indirect_Connections.pdf
When installed under a
hydrostatic slab (slab
designed to withstand
upward lift, usually caused by
hydrostatic pressure)
interceptor must be enclosed
in a watertight concrete vault.
InterceptorInterceptor
InterceptorInterceptor
InterceptorInterceptor
InterceptorInterceptor
SV10 Installation Guide page 2 of 10

SPECIAL PRECAUTIONS
AGS1
The wet weight of the interceptor combined with
high temperature kitchen water creates the
potential for tank deformation when installed
above grade. In these situations Above Grade
Support Kit model AGS1 or AGS2 should be
installed to maintain structural integrity. AGS1 is
required for some GB-250 installations. AGS2 is
required for all GB-500 installations.
Above Grade Installation Support
(for Models GB-250 and GB-500 Only)
Install unit on solid, level surface in
contact with the entire footprint of unit
base; for suspended installations design
trapeze to support the wet weight of the
unit. Do not partially support unit or
suspend unit using metal U-channel to
create a trapeze.
Fully Support Base of Unit
For above grade installations ensure heavy
inlet and outlet piping (such as cast iron or
long runs) is properly supported or suspended
during the entire installation process to
prevent connection failure or damage to
bulkhead fittings.
Support Inlet and Outlet Piping
pipe supports
concrete floor
suspended installation
DO NOT
COMPACT
BACKFILL
For Schier Grease Interceptor Installations - Failure to follow this guidance voids your
warranty
Interceptors and risers are not designed
to withstand water table height in
excess of the top of the unit when
buried (see figure). If it is possible for
this to occur, install the interceptor and
risers in a water-tight concrete vault or
backfill with concrete or flowable fill
(wet concrete and flowable backfill
should be poured in stages to avoid
crushing the interceptor). At risk areas
include but are not limited to tidal surge
areas, floodplains and areas that
receive storm water. Great Basin™
models that are direct buried in high water table scenarios must be installed with an
anchor kit. Models GB-50, GB-75, and GB-250 use model AK1 anchor kit. Model
GB-500 uses model AK2 anchor kit for use with deadmen anchors. Models
GB-1000, GGI-750 and GGI-1500 use model AK3 anchor kit for use with deadmen
anchors.
max water table height for
direct burial
model AK1
anchor kit
High Water Table Installations
InterceptorInterceptor
InterceptorInterceptor
InterceptorInterceptor
SV10 Installation Guide page 3 of 10

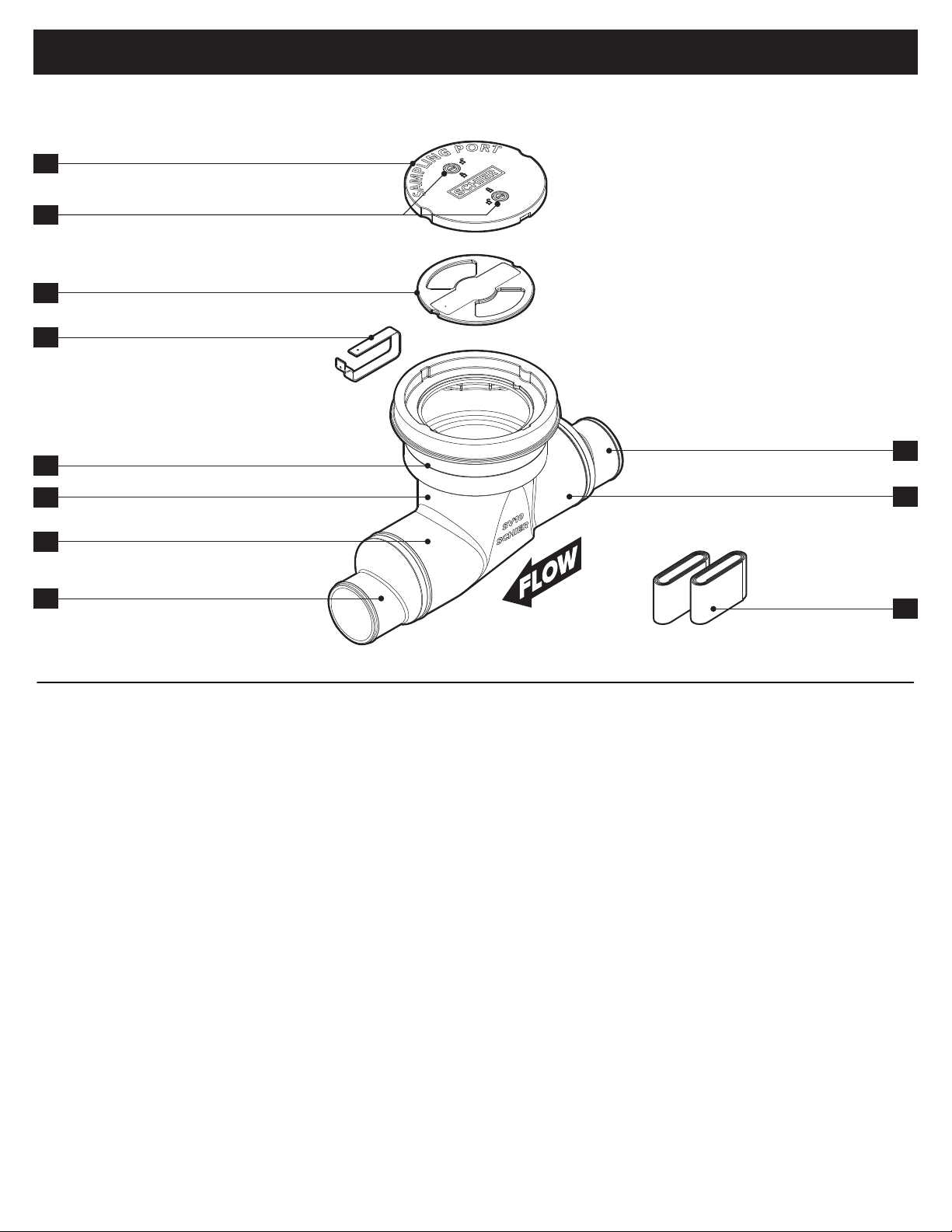

GETTING TO KNOW THE SV10
1. Polyethylene Cover with Gasket
2. Quarter-Turn Camlock
Cover Bolts (x2)
3. Safety Star
4. Safety Star Tether
5. Riser Cut Line
6. Sampling Port Body
7. 6" Plain End Outlet Connection
(achieved by cutting o the 4"
connection at the trim line)
8. 4" Plain End Outlet Connection
(standard)
9. 4" Plain End Inlet Connection
(standard)
10. 6" Plain End Inlet Connection
(achieved by cutting o the 4"
connection at the trim line)
11. 2" x 33" Butyl Mastic Tape Roll (x2)
1
2
3
4
6
5
7
8
9
10
11
SV10 Installation Guide page 4 of 10

Special Precautions
BURIED INSTALLATION
Install sampling port as close as possible to and downstream
from interceptor being served
1
Provide at least 16"
clearance above unit for
routine maintenance.
2
16" min.
3 Risers
(94") Max
4
Max Water Level
Risers are
not designed
to retain water
5
3ODOR ALERT!
Interceptor is not a sewer gas trap. All
upstream fixtures must be trapped
1Test sampling port for water tightness
1a
For base unit testing, cap both connection points with 4"
flexible PVC caps. Remove cover and fill with water to just
above the highest connection.
Inspect unit and connections for leaks. Check water level at
specific time intervals per local code.
1b
Have a Leak?
Call customer care at 913-951-3300
Hours 8am-5pm CST, M-F
SIDE VIEW
Fill Line
SV10 Installation Guide page 5 of 10

4 Wet or Air Test Piping Per Local Code
Doing so may result in property damage, personal injury or death.
DO NOT AIR TEST UNIT OR RISER SYSTEM! Have a Leak?
Call customer care
at 913-951-3300
Hours 8am-5pm CST, M-F
Excavate hole at least 12" larger than sampling port on all
sides and 6" deeper than port bottom.
Lay a level bed of well-packed, crushed aggregate
(approximately 3/4" size rock or sand, with no fines) in the
base of hole.
2a 2b
6" or more
12" 12"
6"

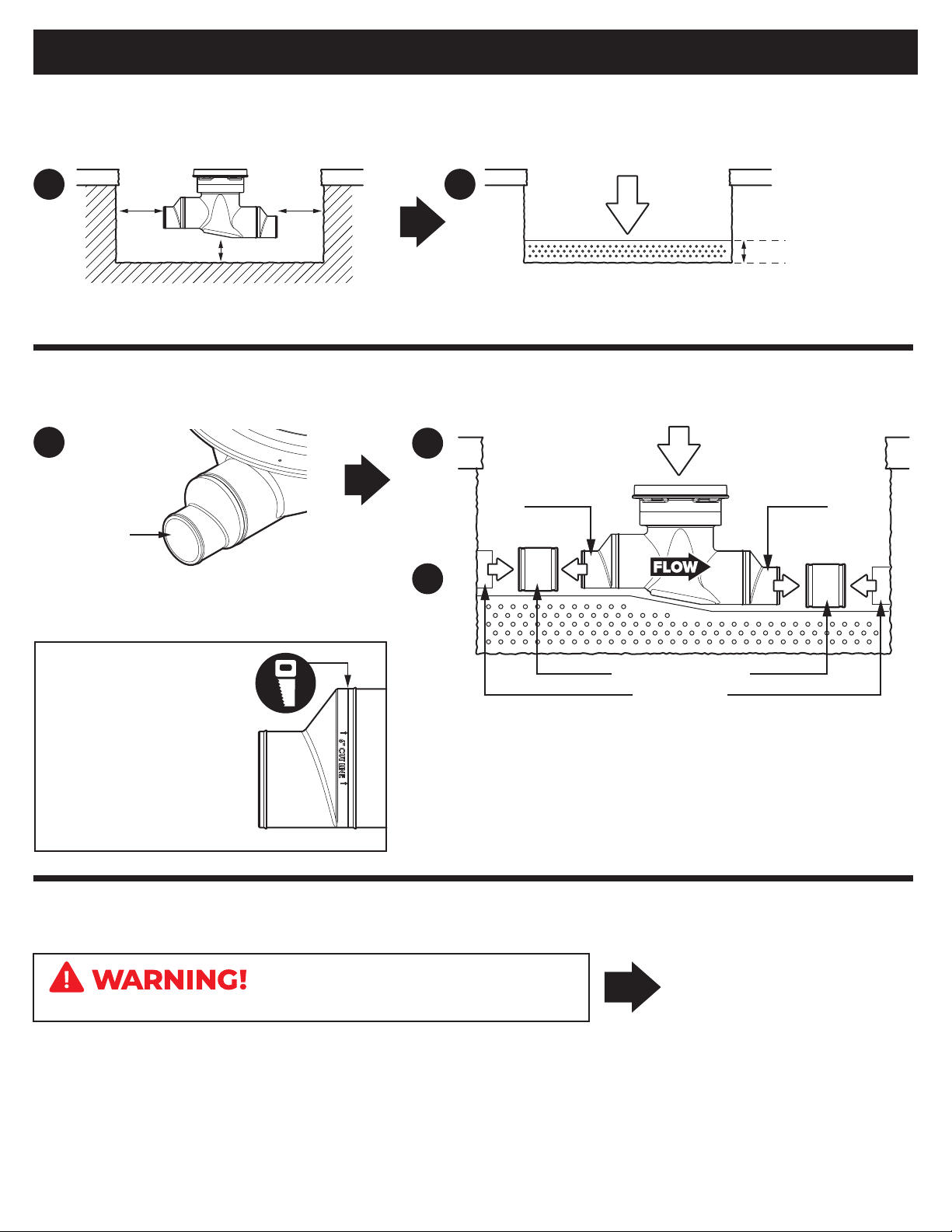

2 Excavate Burial Pit
BURIED INSTALLATION
4" Plain End
3b
3b1
3 Connect Piping
3a
Lower unit into pit and set level. Mechanically couple inlet and
outlet drainage lines to unit.
IMPORTANT! Make sure the sampling port is correctly aligned.
The SV10 outlet is 2" lower than the inlet to facilitate sample
retrieval and comply with local codes. DO NOT install backwards
as doing so will result in improper drainage slope.
Do not solvent weld. Vent per local code.
Flexible PVC Couplings
Drainage Lines
The SV10 sampling port comes from the factory
ready to connect to 4" drain lines.
6" Connections Only
Cut o the 4" connections
at the premarked cut
lines. Remove any burrs
from the cut.
INLET OUTLET
SV10 Installation Guide page 6 of 10

BURIED INSTALLATION

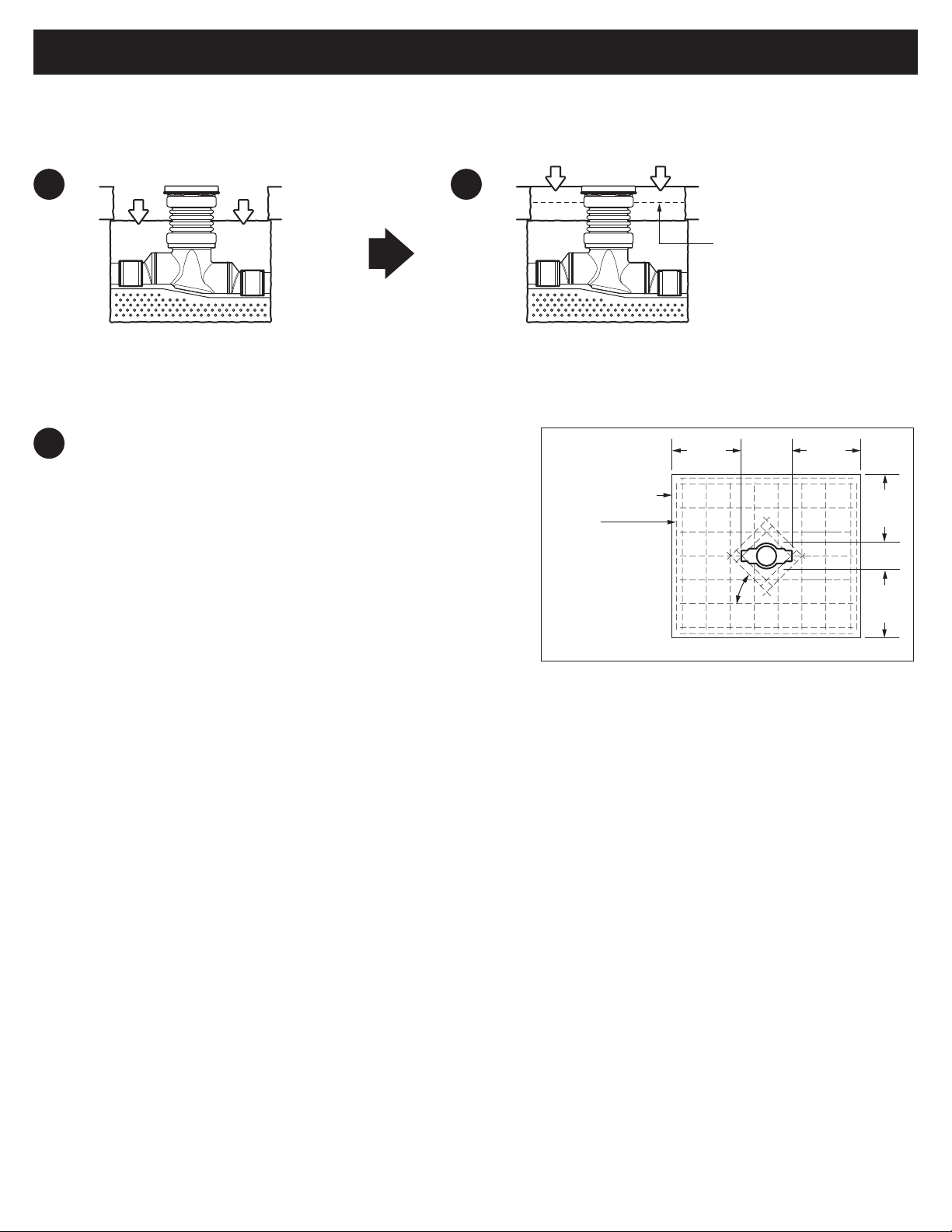

5 Bring Cover Flush-to-Grade
The SV10 is ready for burial depth of 14-1/2" from finished grade to bottom of unit (or 10-1/4" to centerline of inlet, 12-1/4" to centerline
of outlet). Deeper burials will require adding a risers.
Measure dimension X to determine riser height needed.
5a
Disconnect the SV10 and remove it from the
burial pit. Cut the SV10 at the Riser Cut Line,
freeing the cover adapter from the sampling
port body.
5b
Riser Height Risers
Needed Required
>0" - 31" FCR3 (x1)
>31" - 64" FCR3 (x2)
>64" - 97" FCR3 (x3)
See instructions included with FCR10
for installation details.
Install Schier Riser(s) FCR10
5c1
6
OR Install Your Own Riser. The SV10 is designed to accommodate any
non-perforated, 8" nominal diameter drain pipe for riser use. Sch. 40 PVC or
corrugated drain pipe is recommended.
5c2
Return the SV10 to the burial pit and
reconnect the drain lines
45
Place the cover/cover adapter onto
the top of the riser and check to
see if flush with grade. If too high,
remove cover and trim riser as
needed.
2
Insert Riser into
SV10 Body.
1
Cut riser to a length
2" longer than the riser
height needed.
Secure cover/cover adapter using the
other piece of the provided butyl mastic
tape. Make sure joint is completely
sealed and cover is level and
flush-to-grade.
Use 1 piece of the provided
butyl mastic tape to secure the
riser joint. Make sure joint is
completely sealed and riser is
aligned square to the SV10
Body.
3
x+2"
SV10 Installation Guide page 7 of 10

BURIED INSTALLATION
6 Backfill and Finished Grade
TOP VIEW 18"
min
18"
min
45º
18"
min
18"
min
Concrete Slab
Rebar
Pour concrete slab to finished grade.
6b
Vehicular Trac Areas:
Minimum 8" thick concrete slab with rebar required. Thickness of concrete
around covers to be determined by specifying engineer. If trac loading is
required the concrete slab dimensions shown are for guideline purposes only.
Concrete to be 28 day compressive strength to 4,000 PSI. Use No. 4 rebar (ø
1/2") grade 60 steel per ASTM A615: connected with tie wire. Rebar to be 2-1/2"
from edge of concrete and spaced in a 12" grid with 4" spacing around access
openings.
Pedestrian Trac or Greenspace Areas:
Minimum 4" thick concrete slab with rebar required.
6b1
Rebar
6a
Backfill evenly around tank using crushed aggregate
(approximately 3/4" size rock or sand with no fines) or flowable fill.
Do not compact backfill around unit.
SV10 Installation Guide page 8 of 10

Special Precautions
Install sampling port as close as possible
to and downstream from interceptor
being served
1
ON THE FLOOR INSTALLATION
ODOR ALERT!
Sampling port is not a sewer gas trap. All
upstream fixtures must be trapped
3
ODOR ALERT!
Do not install air
gap on outlet side
of sampling port.
2
Provide at least 16"
clearance above unit for
routine maintenance.
16" min.
4
1Test sampling port for water tightness
1a
For base unit testing, cap both connection points with 4"
flexible PVC caps. Remove cover and fill with water to just
above the highest connection.
Inspect unit and connections for leaks. Check water level at
specific time intervals per local code.
1b
Have a Leak?
Call customer care at 913-951-3300
Hours 8am-5pm CST, M-F
SIDE VIEW
Fill Line
SV10 Installation Guide page 9 of 10

ON THE FLOOR INSTALLATION
2 Connect Piping
2a
4" Plain End
The SV10 sampling port comes from the factory
ready to connect to 4" drain lines.
6" Connections Only
Cut o the 4" connections
at the premarked cut
lines. Remove any burrs
from the cut.
3 Wet or Air Test Piping Per Local Code
Doing so may result in property damage, personal injury or death.
DO NOT AIR TEST UNIT OR RISER SYSTEM! Leak? Call customer care at
913-951-3300
8a – 5p M – F CST
FLOOR BELOW INSTALLATION DETAIL
Mechanically couple inlet and
outlet drainage lines to unit.
IMPORTANT! Make sure the
sampling port is correctly
aligned. The SV10 outlet is 2"
lower than the inlet to facilitate
sample retrieval and comply
with local codes. DO NOT
install backwards as doing
so will result in improper
drainage slope.
Do not solvent weld. Vent
per local code.
2b
vent per
local code
DETAIL
Flexible PVC
Coupling
Plain End
Fitting
Drain line
INLET
OUTLET
SV10 Installation Guide page 10 of 10
