Schuchmann Momo motion User manual

Instructions for use.
momo motion. The tried-and-tested tricycle with E-drive.
momo motion.

Many thanks.
Dear Customer
At this point we would like to thank you for placing your trust in our company and for
purchasing our product. We ask you to read through the Instructions for use carefully
prior to initial commissioning of the product, and to observe them. Please note that
guidelines and representations in these Instructions for use may deviate from your pro-
duct due to diering equipment. We reserve the right to make technical modifications.
Important information!
Ensure that these Instructions for use remain with the product.
Your schuchmann Team

03 Contents.
1. Preparation. .................................................................................. 05
1.1 Delivery...............................................................................................................................05
1.2 Safety measures prior to use.................................................................................05
1.3 Safe disposal .................................................................................................................05
1.3.1 Packaging..............................................................................................................05
1.3.2 Product...................................................................................................................05
1.4 Where to store the Instructions for use.............................................................05
2. Product description. ...................................................................... 06
2.1 General information....................................................................................................06
2.2 Handling and transport...........................................................................................06
2.3 Application areas, use according to the intended purpose................06
2.4 Use not in accordance with the intended purpose / warning guide-
lines............................................................................................................................................08
2.5 Equipment for basic model....................................................................................09
2.6 Product overview.........................................................................................................09
2.7 Overview of equipment / accessories ..............................................................10
2.8 Drive possibilities .......................................................................................................... 15
2.9 E-drive................................................................................................................................ 16
2.10 Light system...................................................................................................................17
3. Settings. ....................................................................................... 18
3.1 Presettings ........................................................................................................................ 18
3.1.1 Handlebar adjustment .................................................................................... 18
3.1.2 Saddle adjustment ........................................................................................... 19
3.2 Brakes................................................................................................................................ 20
3.2.1 Parking brake ......................................................................................................20
3.2.5 Backpedal brake............................................................................................... 21
3.3 Tyres and hoses ............................................................................................................ 21
3.4 Chains and chain maintenance........................................................................... 21
4. Accessories. .................................................................................. 22
4.1 Dynamic back and pelvic guide pelotte pads .............................................22
4.1.1 Width adjustable back and pelvic guide pelotte pads.................22
4.2 Headrest...........................................................................................................................22
4.3 Push bar............................................................................................................................23
4.4 Brake for accompanying escorts ........................................................................23
4.5 Handlebar lock limiter ...............................................................................................23
4.6 Holding bracket with mount.................................................................................. 24
4.7 Universal mount ........................................................................................................... 24
4.8 Crank shortener (continuously adjustable).....................................................25
4.9 Crank shortener ............................................................................................................25
4.10 Special crank for knee contracture..................................................................25

04 Contents. 04
5. Foot positioner. ............................................................................ 26
5.1 Exercise bike pedals ....................................................................................................26
5.2 Foot fixation pedals....................................................................................................26
5.3 Foot pans.........................................................................................................................26
5.4 Foot pans with leg guidance ................................................................................27
5.5 Foot pans with dynamic leg guidance.............................................................27
6. Strap systems. .............................................................................. 28
6.1 Chest strap...................................................................................................................... 28
6.2 Positioning vest ............................................................................................................ 28
6.3 Groin harness, T-shaped..........................................................................................29
6.4 4-point pelvic harness ..............................................................................................29
6.5 Manual fixation..............................................................................................................29
7. Repairs and cleaning. .................................................................... 30
7.1 Care and maintenance.............................................................................................30
7.2 Repairs................................................................................................................................ 31
7.3 Spare parts ......................................................................................................................32
7.4 Duration of use and re-use .....................................................................................32
7.5 Torque information.......................................................................................................32
8. Technical data. .............................................................................. 33
9. Guarantee. .................................................................................... 33
10. Identication. ............................................................................. 34
10.1 EC declaration of conformity............................................................................... 34
10.2 Serial number / date of manufacture............................................................ 35
10.3 Product version........................................................................................................... 35
10.4 Issue of the document............................................................................................ 35
10.5 Name and address of the manufacturer, specialist dealer supplying
the product .......................................................................................................................... 35

05 1. Preparation.
1.1 Delivery
On receiving the product, please check it for completeness, lack of faults
and any transport damage. Check the goods in the presence of the deli-
vering company. Should transport damage have occurred, please arrange
for an inventory (determination of the faults) to be made in the presence of
the forwarder. Please send a complaint in writing to the specialist dealer
responsible.
1.2 Safety measures prior to use
Correct usage of the tricycle requires precise and careful
training of the accompanying person. We ask you to read through the
Instructions for use carefully prior to initial commissioning of the
tricycle, and to observe them. Cushioned parts may become warm when
exposed to direct sunlight. Cover these parts or protect the equipment from
direct sunlight.
1.3 Safe disposal
In order to preserve and protect the environment, to prevent
environmental pollution and to improve the recycling of raw materials, plea-
se note the disposal instructions in points 1.3.1 and 1.3.2.
1.3.1 Packaging
The product packaging should be stored in case the product needs
to be transported again. Should you have to return the product for
repairs or in case of a guarantee claim, please if possible use the
original box so that the product is optimally packaged.
Separate the packaging materials for recycling according to their classifi-
cation. Do not leave packaging materials unattended, as they are a pos-
sible source of danger.
1.3.2 Product
Separate the raw materials used in the product for recycling
according to their classification (see material information under Point 2.1).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these Inst-
ructions for use remain with the product in case of re-use.

06 2. Product description.
2.1 General information
All base frames are made of aluminium, which is non-corroding and
powder-coated. All other materials used are protected against corrosion
through the use of stainless steel, aluminium or plastic. All important parts,
such as the saddle, handlebars or also the pedals, can be individually
adapted to the individual requirements. The special accessories allow
children and teenagers to be positioned for example around the upper body
or in the lower leg / foot area. The tricycles generally have a brake hub /
backpedal hub brake on the rear wheel (except for those with a rigid
sprocket) and an air pressure-independent parking brake on the front wheel.
2.2 Handling and transport
The momo motion. is not designed to be carried, as it is fitted with tyres.
Should you have to carry the equipment due to obstacles, ensure that all
moving parts are tightened. Then two people should position themselves
next to the tricycle, grip it on the left and right of the frame and carry it
to the required location. To transport the tricycle, reduce all adjustments
to their most compact size (saddle height, handlebar height, remove
accessories etc.).
2.3 Application areas, use according to the intended purpose
Indications
The momomotion. is suitable for children and adolescents with neuromuscular
(neurological, orthopaedic and neurodegenerative) disorders (such as
cerebral palsy and muscular dysplasia and atrophy, rheumatism) as well as
cardiovascular diseases and chromosomal abnormalities associated with
hypotension. Due to their motor limitations (reduced muscle strength and
endurance, cardio-respiratory limitations, joint mobility limitations, etc.), these
patients have limited use of foot pedal-operated tricycles.
The momo motion. is used to support physiotherapeutic treatment, the trai-
ning of balance reactions and movement coordination (alternating leg mo-
vements, eye-hand coordination, training isolated arm and leg movements).
The function of start-up assistance is particularly important.
It is also used for the specific development of muscle strength and enduran-
ce (with appropriate indication also for avoiding overloading of the muscles
with simultaneous function preservation). The mobility of the joints is suppor-
ted and the restrictions are counteracted by insucient cardio-respiratory
function of the patients. The function of residual power support is hereby
emphasised.

07 2. Product description.
Contraindications
In general, the indications for riding a bicycle should be approved by a doctor
or orthopedist. It should therefore be clarified prior to procurement whether
contraindications exist for the patient. In general, any type of pain repre-
sents a contraindication.
For roadworthy tricycles, the following components are specified in accor-
dance with the German Road Trac Regulations:
• Two brakes functioning independently of one another
• A bicycle bell with a clear ring
• Headlamps, rear lamp with reflectors, large-area reflectors, pedal
reflectors, 2 yellow spoke reflectors or white reflecting rings on each
wheel, and front reflectors in the design tested for the construction type.
• A bicycle trailer may only be used on bicycles with a sturdy frame and
fork construction. Also important are strong bicycle brakes at the front
and rear. Users must remember that the riding characteristics of the
loaded trailer change substantially in comparison to operation of the
bicycle on its own.

08 2. Product description.
2.4 Use not in accordance with the intended purpose / warning guidelines
• Only ride if the bicycle is in proper condition!
• Correct usage of the product requires precise and careful training of
the accompanying person.
• Replace bent handlebars and handlebar stems immediately!
• Continued use or repair means a risk of breakages.
• The vehicle may only be used on stable and flat ground.
• Please observe the "Technical data" in these instructions for use for the
maximum permitted patient weight.
• Always wear light-coloured and distinctive clothing!
• Always be ready to brake, in particular in steep terrain and sections
which are not easy to assess!
• Show consideration for other people who are walking or hiking!
• Do not hang loads on the handlebars; this compromises the travel
safety.
• Test the fastenings for the pedal cranks, pedals and, if applicable, the
wheels regularly
• For your own safety, we recommend that you always use your vehicle
with a helmet. Please ensure in particular that the helmet is of good
quality. It should accord at least with the legal regulations or
recommendations (standard: EN 1078 or ANS)!
• Check that the brakes, lights and bell function properly prior to each
journey!
• Secured screws must not be loosened, otherwise the guarantee is lost.
• Ensure that your vehicle accords with the legal requirements!
• Do not use headphones, for example, so that you can remain aware of
warning sounds.
• If a push bar is mounted, this may only be used to guide the bicycle.
The push bar is NOT suitable for moving, lifting or tilting the bicycle!
• In wet conditions, the braking distance of your bicycle will become
longer. Therefore, always ensure that your speed remains such that you
can stop at any time.
• The tricycles are not suitable for carrying a second person. The
consequences arising from such a use shall not fall within the
scope of responsibility of the manufacturer.
• The bicycle basket may only bear loads of up to 20 kg.
• When adjusting the tricycle there is the risk of trapping
or crushing limbs.
• Users who have diculty reading must have someone read these
Instructions for use aloud so that they understand how to use
the product.

09 2. Product description.
2.5 Equipment for basic model
• with Heinzmann Direct Power
Motor (36V, 250W, impulse torque
60Nm)
• Aluminium frame with extra-low
access point
• Rim brake with separate parking
brake
• Angle adjustable handlebar stem
• Handlebar damper for stabilisati-
on when moving straight on
• Lighting system according to StV-
Zo, which is powered by the Li-ion
high-power battery (11Ah)
• incl. mudguards and basket
2.6 Product overview
The Fig. below is intended to show you the designation of the most
important components as well as the terms which you will find in these
Instructions for use.
Saddle
Basket
Dynamic
Back pelotte pad
Angle adjustable
handlebar stem
E-drive
Pedal
Aluminium frame with
extra-low access point
Lever for parking brake
V-brake
Display for E-drive
Gear system
T-saddle post
Holding bracket
Mudguard
Battery for E-drive
Handlebars

10 2. Product description.

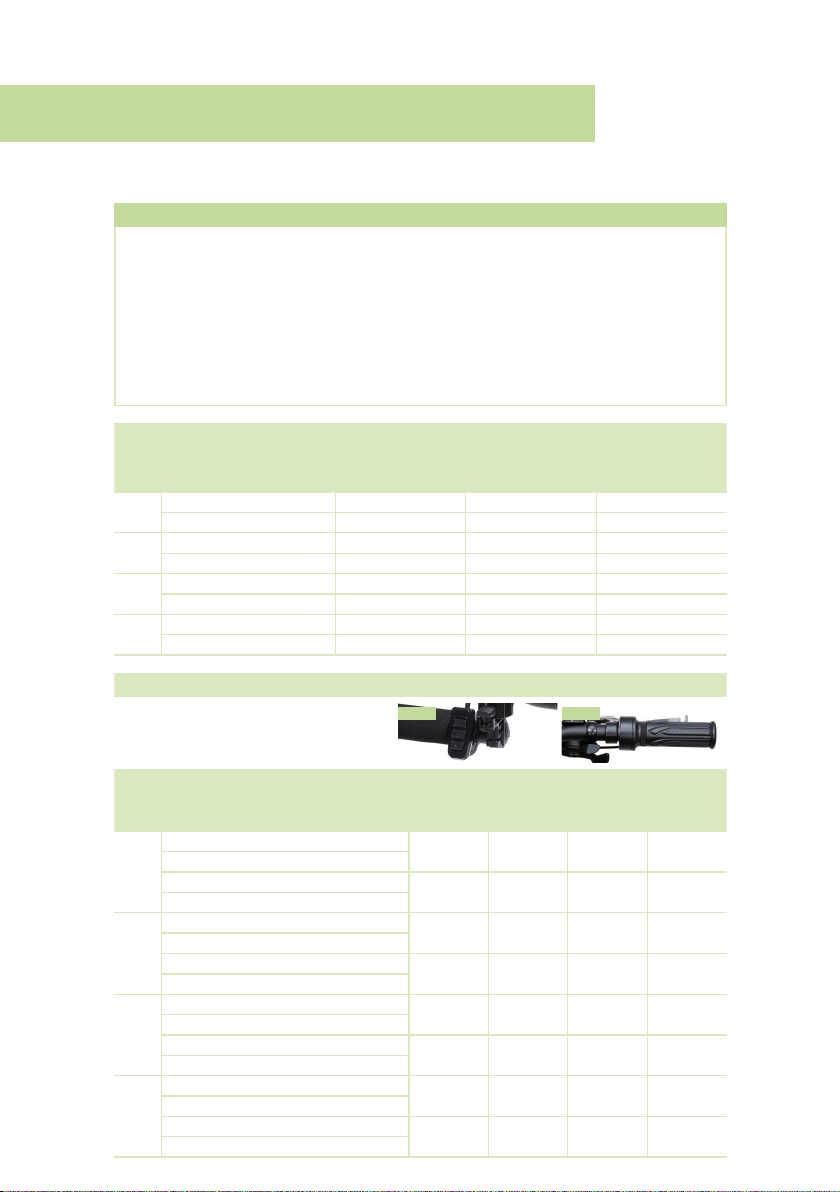

2.7 Overview of equipment / accessories
DirectPower E-drive from Heinzmann
The new momo motion. is equipped with the DirectPower E-drive from Heinzmann. This allows us to oer you
a wear-free and silent direct drive. The motor is designed to be brushless and without gears. This minimises
maintenance and wear and eliminates motor noise. The recuperative system automatically recharges when
driving downhill or braking. This means that the range can be increased by up to 15 %. The existing force of
the user is measured by a force sensor integrated in the bottom bracket, and the assistance from the electric
drive is adjusted.
Choose the suitable E-drive for the momo motion. from the following configurations. You can choose whether
the drive should be equipped with or without start-up assistance. In addition, you can choose between a
beginner version and an advanced version. The dierence here is the start-up and the top speed of the
various modes Eco, Standard and Power, which can be selected via the display. An analysis cable can be used
to change the selected version at a later date.
DirectPower E-drive from Heinzmann – without start-up assistance
for
size Revision Start-up handling / top speed
Eco Standard Power
16“ Beginner (36 02 070) gentle / 4 km/h medium / 4 km/h strong / 6 km/h
Advanced (36 02 071) medium / 6 km/h strong / 8 km/h strong / 10 km/h
20“ Beginner (36 03 070) gentle / 4 km/h medium / 4 km/h strong / 6 km/h
Advanced (36 03 071) medium / 6 km/h strong / 8 km/h strong / 12 km/h
24“ Beginner (36 04 070) gentle / 6 km/h medium / 8 km/h strong / 12 km/h
Advanced (36 04 071) gentle / 10 km/h medium / 15 km/h strong / 20 km/h
26“ Beginner (36 05 070) gentle / 6 km/h medium / 8 km/h strong / 12 km/h
Advanced (36 05 071) gentle / 10 km/h medium / 15 km/h strong / 20 km/h
DirectPower E-drive from Heinzmann – with start-up assistance
Select whether the start-up assistance should
be activated by pressing the button (Fig. 1) or
by twist handle (Fig. 2)
for
size Revision
Start-up handling / top speed
Start-up
assistance Eco Standard Power
16“
Beginner with twist handle (36 02 072) 4 km/h mild /
4 km/h
medium /
4 km/h
strong /
6 km/h
Beginner with button (36 02 073)
Advanced with twist handle (36 02 074) 6 km/h medium /
6 km/h
strong /
8 km/h
strong /
10 km/h
Advanced with twist handle (36 02 075)
20“
Beginner with twist handle (36 03 072) 4 km/h mild /
4 km/h
medium /
4 km/h
strong /
6 km/h
Beginner with button (36 03 073)
Advanced with twist handle (36 03 074) 6 km/h medium /
6 km/h
strong /
8 km/h
strong /
12 km/h
Advanced with twist handle (36 03 075)
24“
Beginner with twist handle (36 04 072) 6 km/h mild /
6 km/h
medium /
8 km/h
strong /
12 km/h
Beginner with button (36 04 073)
Advanced with twist handle (36 04 074) 6 km/h mild /
10 km/h
medium /
15 km/h
strong /
20 km/h
Advanced with twist handle (36 04 075)
26“
Beginner with twist handle (36 05 072) 6 km/h mild /
6 km/h
medium /
8 km/h
strong /
12 km/h
Beginner with button (36 05 073)
Advanced with twist handle (36 05 074) 6 km/h mild /
10 km/h
medium /
15 km/h
strong /
20 km/h
Advanced with twist handle (36 05 075)
Fig. 1 Fig. 2

11 2. Product description.

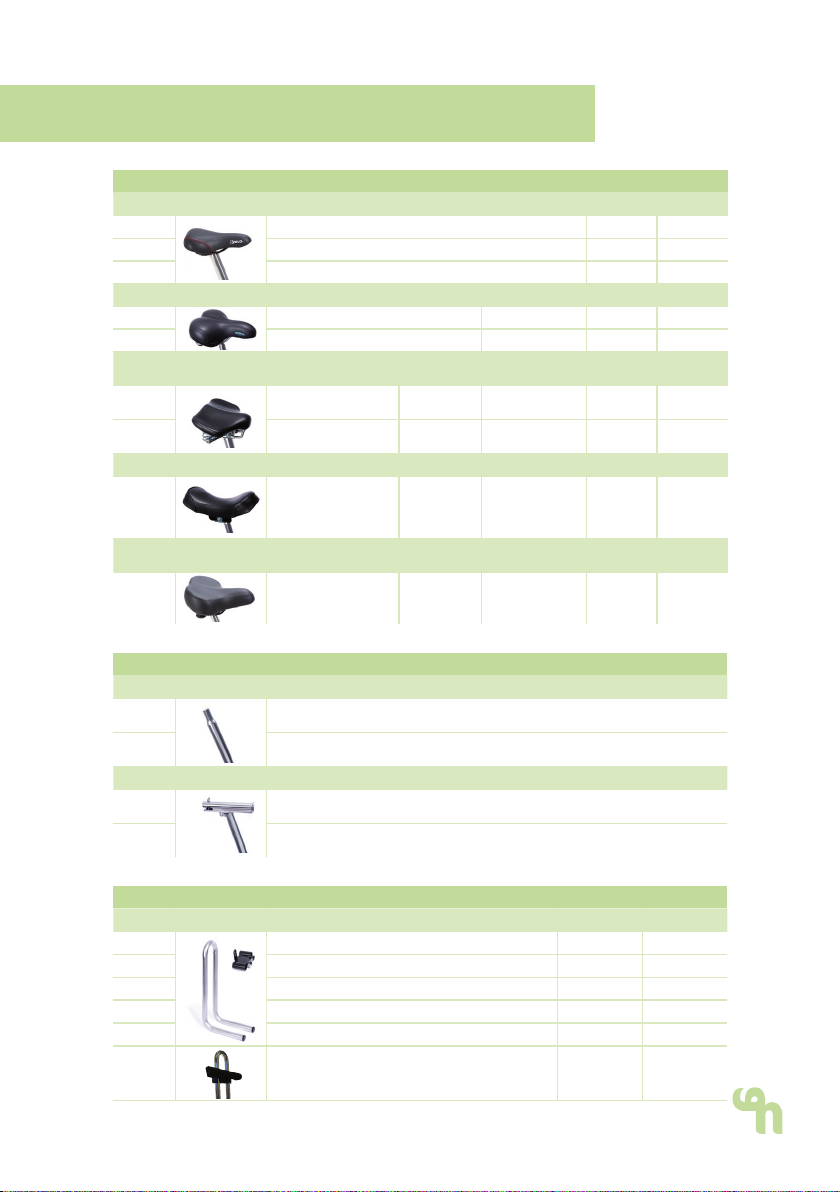

Saddle posts
Art. No. Saddle post
3702004 Standard saddle post Size 2 for 16"
3703004 Standard saddle post Size 3 for 20" - 26"
Art. No. T-saddle post
3702005 T-saddle post Size 1 for 12"
3703005 T-saddle post Size 3 for 24" + 26"
Saddle
Art. No. Saddle Width Length
3701001 Standard saddle Size 1 15 cm 21 cm
3702001 Standard saddle Size 2 15 cm 24 cm
3703001 Standard saddle Size 3 18 cm 26 cm
Art. No. Saddle Rear width Front width Length
3701024 Gel saddle Size 1 19 cm 4 cm 24 cm
3702024 Gel saddle Size 2 24 cm 7 cm 27 cm
Art. No. Saddle Rear width Front width Rear length Length
total
3701003 Saddle seat with ischium
depressions Size 1 20.5 cm 4 cm 9.5 cm 14.5 cm
3702003 Saddle seat with ischium
depressions Size 2 24 cm 4 cm 9.5 cm 14.5 cm
Art. No. Saddle Rear width Width in centre Front width Length
3700010
Unicycle saddle –
Banana-shaped
(Step length increases
by 2 cm)
11 cm 6 cm 8 cm 25 cm
Art. No. Saddle Rear width Front width Rear length Length
total
3700023
Moped saddle (Inside
leg length increases
by 2 cm)
26 cm 9.5 cm 12 cm 25 cm
Holding bracket
Art. No. Holding bracket with mount Max. height* Depth
3701007 Holder bracket Size 1 20 cm 12 cm
3702007 Holder bracket Size 2 30 cm 12 cm
3703007 Holder bracket Size 3 37 cm 12 cm
3704007 Holder bracket Size 4 53 cm 12 cm
3709007 Holder bracket, customer-made ___ cm ___ cm
3702055 Universal bracket – for harnesses when not using
pelotte pads (width = 27.5 cm)
* Max. height: *Measured on a standard saddle up to the top edge of the back pelotte pad

12 2. Product description.

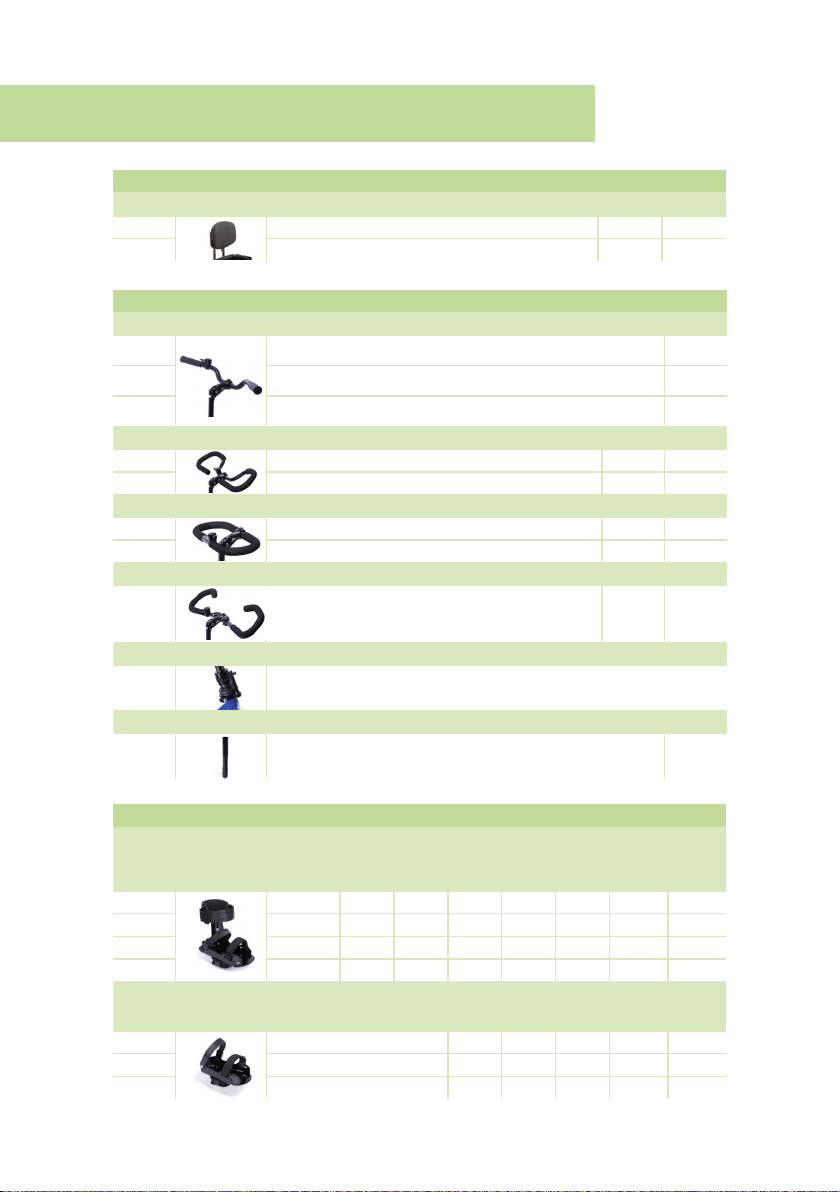

Foot pans
Art. No.
Foot pans
with leg
guidance
Min.
width at
front
Max.
Front
width
Min.
width at
rear
Max.
Rear
width
Length
Min.
height
of leg
guidance
Max.
height
of leg
guidance
3701018 Size 1 8.7 cm 10.4 cm 5.7 cm 7.4 cm 17.4 cm 15 cm 18.5 cm
3702018 Size 2 9.5 cm 12 cm 6.7 cm 9.2 cm 20.1 cm 18 cm 22 cm
3703018 Size 3 11.5 cm 14 cm 8.1 cm 10.6 cm 23.8 cm 21 cm 26 cm
3704018 Size 4 11.5 cm 14 cm 8.1 cm 10.6 cm 23.8 cm 28 cm 36 cm
Art. No. Foot pans
Min.
width
at front
Max.
width
at front
Min.
width
at rear
Max.
width at
rear
Length
3701017 Foot pans Size 1 8.7 cm 10.4 cm 5.7 cm 7.4 cm 17.4 cm
3702017 Foot pans Size 2 9.5 cm 12 cm 6.7 cm 9.2 cm 20.1 cm
3703017 Foot pans Size 3 11.5 cm 14 cm 8.1 cm 10.6 cm 23.8 cm
Handlebars
Art. No. Classic handlebars – black Width
3702011 Classic handlebars for 16" 50 cm
3703011 Classic handlebars for 20" 58 cm
3704011 Classic handlebars for 24"-26" 61 cm
Art. No. Touring handlebars Width Depth
3701012 Touring handlebars Size 1 55 cm 17 cm
3702012 Touring handlebars Size 2 58 cm 17 cm
Art. No. Round handlebars Width Depth
3701013 Round handlebars Size 1 40 cm 17 cm
3702013 Round handlebars Size 2 43 cm 25 cm
Art. No. Multifunctional handlebars – suitable for 20" – 26" Width Depth
3702014 Multifunctional handlebars 61.5 cm 16.5 cm
Art. No. Handlebar lock limiter – adjustable up to direction determination
3703006 Handlebar lock limiter Size 2 for 16" - 26"
Art. No. Handlebar extension Length
3702022 Handlebar extension Size 2 for 16" - 26" 10 cm
Headrest
Art. No. Headrest Width Height
3701029 Headrest Size 1 20 cm 15 cm
3702029 Headrest Size 2 23 cm 18 cm

13 2. Product description.
Pedals
Art. No. Pedals Depth
3700013 Foot positioning pedals – with bike toe clips and compensation weights 13 cm
Art. No. Pedals Width
3700014 Exercise bike pedals 12 cm
Back pelotte pads
Art. No. Dynamic back pelotte pads – padded with strap and mount Width
3701008 Dynamic back pelotte pad Size 1 20 - 30 cm
3702008 Dynamic back pelotte pad Size 2 25 - 35 cm
3703008 Dynamic back pelotte pad Size 3 30 - 40 cm
Art. No. Width adjustable back pelotte pad - padded, including mount Width
3701025 Width adjustable back pelotte pad Size 1 20 - 28 cm
3702025 Width adjustable back pelotte pad Size 2 25 - 33 cm
3703025 Width adjustable back pelotte pad Size 3 30 - 36 cm
Pelvic supports
Art. No. Dynamic pelvic guidance pelotte pad – padded, with strap and
mount Width
3701009 Dynamic pelvic guidance pelotte pad Size 1 20 - 30 cm
3702009 Dynamic pelvic guidance pelotte pad Size 2 25 - 35 cm
3703009 Dynamic pelvic guidance pelotte pad Size 3 30 - 40 cm
Art. No. Width adjustable back guidance pelotte pad - padded, including
mount Width
3701026 Width adjustable pelvic guidance pelotte pad Size 1 20 - 28 cm
3702026 Width adjustable pelvic guidance pelotte pad Size 2 25 - 33 cm
3703026 Width adjustable pelvic guidance pelotte pad Size 3 30 - 36 cm
Foot pans
Art. No.
Foot pans
with dy-
namic leg
guidance
Min.
width
at front
Max.
width
at front
Min.
width
at rear
Max.
width
at rear
Length
Min.
height
of leg
guidance
Max.
height
of leg
guidance
3701035 Size 1 8.7 cm 10.4 cm 5.7 cm 7.4 cm 17.4 cm 15 cm 18.5 cm
3702035 Size 2 9.5 cm 12 cm 6.7 cm 9.2 cm 20.1 cm 18 cm 22 cm
3703035 Size 3 12 cm 15 cm 8.8 cm 11.8 cm 24 cm 20.5 cm 25.5 cm

14 2. Product description.
Fixations
Art. No. Chest strap – for the width adjustable back pelotte pad Width Length
3701050 Chest strap Size 1 5 cm 18.5 cm
3702050 Chest strap Size 2 6.5 cm 25.5 cm
3703050 Chest strap Size 3 7 cm 30.5 cm
Art. No. Positioning vest – for the width
adjustable back pelotte pad
Inside
width
Total
width
Side
height Total height
3701051 Positioning vest size 1 8 cm 25 cm 10 cm 28 cm
3702051 Positioning vest size 2 9 cm 30 cm 12 cm 30 cm
3703051 Positioning vest size 3 12 cm 34 cm 16 cm 35 cm
Art. No.
Groin strap, T-shaped – for the
width adjustable pelvic pelotte
pad
Width
Seat
surface
Front
width
Length
Seat
surface
Total length
3701052 Groin harness, T-shaped Size 1 24 cm 23 cm 15 cm 32 cm
3702052 Groin harness, T-shaped Size 2 26 cm 26 cm 17 cm 34 cm
3703052 Groin harness, T-shaped Size 3 28 cm 28 cm 19 cm 38 cm
Art. No.
4-point pelvic harness - for the
width adjustable pelvic pelotte
pad
Width
Exterior
parts
Width
Centre
section
Length
Exterior
parts
Length
Centre
section
3701053 4-point pelvic harness Size 1 7 cm 7 cm 12 cm 12 cm
3702053 4-point pelvic harness Size 2 9 cm 8.5 cm 13 cm 14 cm
3703053 4-point pelvic harness Size 3 11.5 cm 11 cm 15 cm 16 cm
Handlebars
Art. No. Push bar - height adjustable, removable and equipped with an integrated
antirotation lock
3600012 Push bar
Art. No.
Brake for accompanying escort – incl. motor switch-o (can only be used in
connection with push bar)
with push bar)
3608012 Brake for accompanying escorts

15 2. Product description.
2.8 Drive possibilities
The momo motion. can be equipped
with the following drives:
Freewheel brake hub (with backpedal
brake)
The freewheel brake hub allows the user
to stop and start pedalling as they wish.
They can brake by pedalling backwards.
3 or 7-gear freewheel brake hub (with
backpedal brake)
Using the 3 or 7-gear freewheel brake hub, the user can stop and start
pedalling at will. They can brake by pedalling backwards. The user-friendly
3 or 7-gear hub gear system permits switching of gears when the tricycle
is at a standstill. Switching takes place using the twist grip shifter on the
handlebars.
3-gear freewheel brake hub, can be ridden backwards
The user can stop and start pedalling at will with the 3-gear freewheel bra-
ke hub. In addition, they can ride backwards. The user-friendly 3-gear hub
gear system permits switching of gears at a standstill. Switching takes place
using the twist grip shifter on the handlebars.
7-gear freewheel brake with wheel brake (without backpedal brake)
In the 7-gear freewheel hub with wheel brake forward, the movement
can be interrupted as desired and be converted in free backwards
pedaling in further forward drive. The user-friendly 7-gear hub gear system is
suitable for any terrain and also permits switching of gears when the bicycle
is at a standstill. Switching takes place using the twist grip shifter on the
handlebars.

16
2.9 E-drive
The momo motion. is already equipped
with Heinzmann Direct Power Motor (36V,
250W, impulse torque 60Nm) in the basic
model.
Switching the E-drive on and o
To switch the e-drive on and o, press
and hold the "MODE" button (A).
Switching the lighting on and o
To turn the lights on and o, press and
hold the button (B).
Selecting/changing assistance levels
To select or change the assistance level
(Eco, Standard or Power), briefly press the
buttons (Bor C). The set level can also
be ready from the bar (D) on the display.
Activate start-up assistance by button
(if integrated)
To activate the start-up assistance press
and hold the button (C).
Activate start-up assistance via twist
grip (if integrated)
To activate the start-up assistance, turn
the twist grip (E) towards the body.
Brake handle
When the brake handle (F) is
actuated, the e-drive is switched o
and reactivated as soon as thew brake handle (F) is released.
2. Product description.
B
A
C
D
E
F

17 2. Product description.
2.10 Light system
The lighting system on the momomotion.
is powered by the Li-ion high-power
battery (11Ah).
Battery
The battery can be locked and
removed for charging. To charge, plug
the charging cable (A) into the rear of
the opening provided. You can read the
progress of loading at any time via the
charge level indicator (B). The charging
time totals approx. 6 hours.
Battery service life
The manufacturer of the E-drive, HEINZMANN, guarantees a minimum of 600
charging cycles for the battery. Appropriate handling / storage and initial
loading (see HEINZMANN user manual) increases its service life.
Range
The mileage of the momo motion. depends on a wide variety of factors:
route (gradients), load / rider weight, level of assistance selected, driving
style. HEINZMANN achieves a range of 40 to 80 km per battery charge.
Please also note the HEINZMANN instructions for use.
BA

18 3. Settings.
Settings and adjustments to the product or accessories may only be made by
people who have been given the necessary instructions by a medical product
advisor. Please ensure that none of the user's extremities are in the respective
area when making adjustments of any kind to minimise the risk of injury.
3.1 Presettings
The momo motion. is supplied completely
assembled. Prior to initial use, however, the
following pre-settings must be made.
3.1.1 Handlebar adjustment
You can find our scope of delivery for
handlebars on page 11 of these Instructions for
use.
Height of handlebars
To adjust the height of the handlebars,
remove the protective cap from the hexagon
socket (A), loosen the hexagon socket (A) and
adjust the stem (B) to the required height. By
tapping the head of the hexagon socket (E) lightly
with a hammer, the stem in the fork steerer will
loosen. Then re-tighten the hexagon socket.
Ensure that the marking for the minimum
insertion depth (C) remains on the stem in the
fork steerer and therefore cannot be seen.
Handlebar adjustment
To adjust the handlebar position, loosen the clamping screws (D), bring the
handlebars into the required position and then firmly re-tighten the clam-
ping screws (D).
To change the tilt angle on the stem, please loosen the clamping screw (F).
The steerer factory setting is 20°. In this way you can change the distance
between the saddle and the handlebars, and adjust the required handle
height. Then firmly re-tighten the screws again.
After each adjustment, please retighten all screw connections!
After adjustment of the handlebars, there must still be no tension placed
on the brake cables. If necessary, extend the cables!
F
D
A
B
E
C
D

19 3. Settings.
3.1.2 Saddle adjustment
You can find our selection of saddle forms on
page 11 of these Instructions for use.
Saddle height
The height of the saddle can be adjusted
on the frame saddle tube (A) by pulling the
saddle post in or out. In order to adjust the
height, please loosen the clamp (B) and bring
the saddle into the required height. Align the
saddle and tighten the clamp (B) so tightly
that the saddle support no longer twists. The saddle height is to be re-set
based on the inseam length. Here any contractures of the knees must be
taken into consideration. The saddle height should be inspected when
the user is sitting on the saddle. The leg extension should not total 0°. In
the upper position of the pedal, the knee flexion should not be more than
90°. Should it not be possible to achieved this setting through the saddle
height, it is possible to undertake further settings through crank shortening
(see point 4.9 - 4.11).
Adjusting the saddle horizontally
Every saddle (except for the unicycle saddle)
can be minimally adjusted horizontally. To do
this, loosen the nuts (D) with a size 13 wrench
and push the caliper block (C) forwards or
backwards on the seat stays.
Adjusting the saddle with t-saddle post
horizontally
In order to check the horizontal saddle
position, turn the pedal crank horizontally
forwards and put the foot (while the rider is
sitting on the saddle) onto the pedal. Once
the lower leg is vertical, the saddle position
is correct. You can also loosen the two nuts
(D) under the saddle using a size 13 wrench,
push the saddle to the rear or forwards and
re-tighten the nuts.
During adjustment, the saddle post may not
be pulled out over the respective marking, as in this case sufcient clam-
ping cannot be guaranteed. The markings are in part designed differently.
After each adjustment, please retighten all screw connections!
C
B
A
D

20 3. Settings.

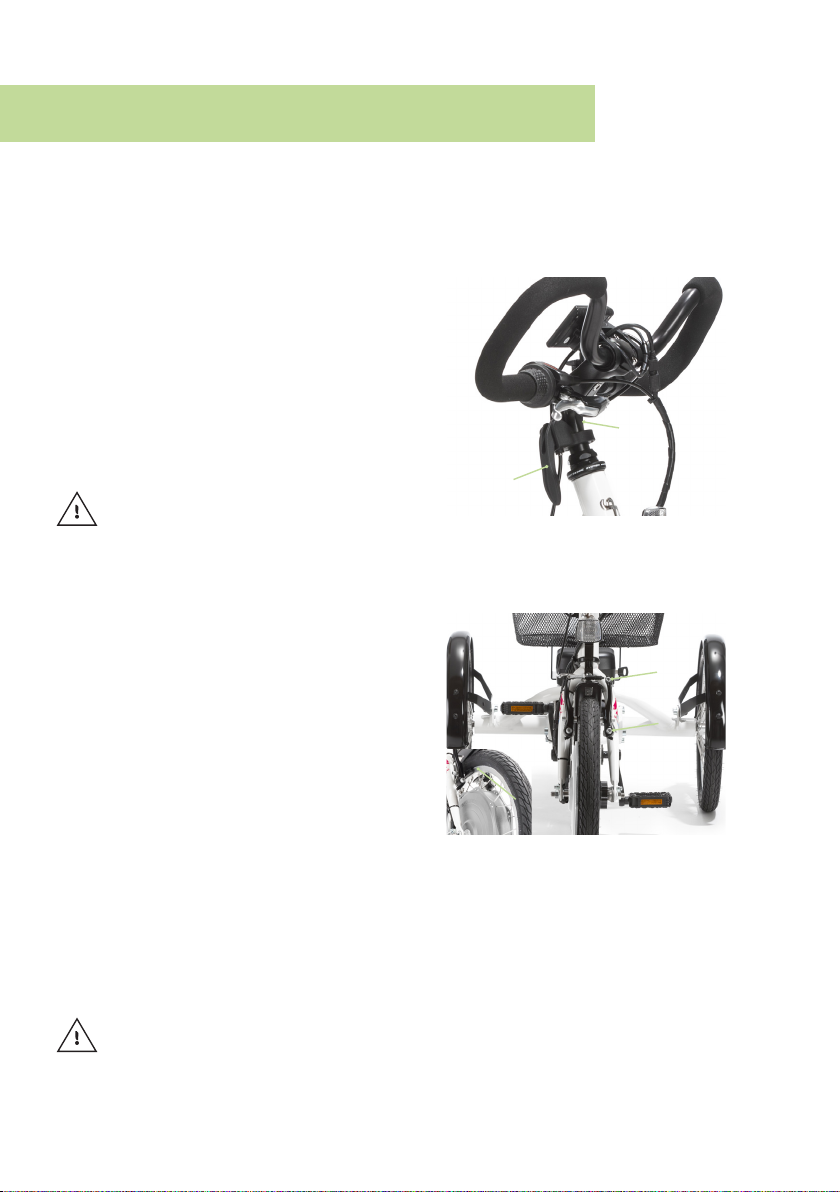

3.2 Brakes
Various brakes are available for the momo motion. depending on the
individual requirements of the user.
3.2.1 Parking brake
The parking brake supports the use
when climbing on and o the tricycle
and secures it against inadvertently
rolling away. To activate the parking
brake, press the lever (A) on the hand-
lebar stem (B) downwards. To release
the parking brake, push the lever up
again.
Always ensure that the brake or the
brake blocks function correctly and
have been adjusted (see below).
Adjustment of the parking brake or brake blocks
Ensure that the braking function
immediately takes eect on actuation
of the parking brake lever, taking the
necessary backlash into account.
Due to "settling" of the Bowden-
cables and the natural wear on the
brake blocks, it is necessary to reset the
brake after a certain amount of time
or replace the brake blocks. Each gap
between the rim and the brake lining
should not be larger than 1.5 mm. To
do this, loosen the clamping screw (C),
press the brake blocks together by hand, pull the Bowden cable taut and
then re-tighten the clamping screw. If the brake blocks are not accurately
aligned with the rim edge (D), you must readjust them accordingly. In order
to change the alignment of the brake blocks, loosen the screws (E). Leave
this work to your specialist dealer in case of any uncertainty.
After each adjustment of the cantilever (V) brake, carry out a brake test.
The brake blocks may only be replaced by ones in an identical design.
Observe the manufacture name or marking and the type designation. New
brake blocks do not achieve the required braking effect until they have been
used multiple times.
A
B
C
D
E
