SCHUNK ROTA-M flex 2+2 Series User instructions

Translation of Original Operating Manual
Manual Lathe Chucks
ROTA-M flex 2+2
Assembly and Operating Manual
Superior Clamping and Gripping

Imprint
2 01.00|1416054_ROTA-M2 + 2 |en
Imprint
Copyright:
This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights
reserved. Any reproduction, processing, distribution (making available to third parties),
translation or other usage - even excerpts - of the manual is especially prohibited and
requires our written approval.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 1416054
Version: 01.00 |23/04/2020|en
© H.-D. SCHUNK GmbH & Co.
All rights reserved.
Dear Customer,
thank you for trusting our products and our family-owned company, the leading
technology supplier of robots and production machines.
Our team is always available to answer any questions on this product and other solutions.
Ask us questions and challenge us. We will find a solution!
Best regards,
Your SCHUNK team
H.-D. SCHUNK GmbH & Co.
Spanntechnik KG
Lothringer Str. 23
D-88512 Mengen
Tel. [phone]
Fax [phone]
[email protected]
schunk.com

Table of Contents
01.00|1416054_ROTA-
M2 + 2 |en
3
Table of Contents
1
General .................................................................................................................... 5
1.1
About this manual .................................................................................................... 5
1.1.1
Presentation of Warning Labels.................................................................... 5
1.1.2
Applicable documents................................................................................... 6
1.1.3
Sizes............................................................................................................... 6
1.2
Warranty................................................................................................................... 6
1.3
Scope of delivery ...................................................................................................... 6
2
Basic safety notes .................................................................................................... 7
2.1
Intended use............................................................................................................. 7
2.2
Reasonably foreseeable misuse ............................................................................... 7
2.3
Constructional changes ............................................................................................ 8
2.4
Spare parts................................................................................................................ 9
2.5
Chuck jaws ................................................................................................................ 9
2.6
Environmental and operating conditions............................................................... 10
2.7
Personnel qualification........................................................................................... 11
2.8
Personal protective equipment.............................................................................. 12
2.9
Notes on safe operation......................................................................................... 12
2.10
Transport ................................................................................................................ 13
2.11
Malfunctions........................................................................................................... 13
2.12
Disposal................................................................................................................... 13
2.13
Fundamental dangers............................................................................................. 14
2.13.1
Protection during handling and assembly .................................................. 14
2.13.2
Protection during commissioning and operation ....................................... 14
2.13.3
Protection against dangerous movements................................................. 15
2.13.4
Notes on particular risks ............................................................................. 15
3
Technical data ......................................................................................................... 18
3.1
Lathe chuck data..................................................................................................... 18
3.2
Dimensions ............................................................................................................. 19
3.3
Clamping force / speed diagrams........................................................................... 21
3.4
Calculations for clamping force and speed ............................................................ 23
3.4.1
Calculation of the required clamping force in case of a given rpm............ 23
3.4.2
Calculation example: required initial clamping force for a given speed .... 26
3.4.3
Calculation of the permissible speed in case of a given initial clamping
force ............................................................................................................ 27
3.5
Grades of Accuracy................................................................................................. 28
3.6
Permissible imbalance DIN ISO 21940-11 .............................................................. 28

Table of Contents
4 01.00|1416054_ROTA-M2 + 2 |en
4
Torques per screw ................................................................................................... 28
5
Assembly................................................................................................................. 29
5.1
Installing and connecting ....................................................................................... 29
5.2
Testing the spindle nose......................................................................................... 30
5.3
Assembly................................................................................................................. 30
5.3.1
Assembly of the lathe chuck (with cylindrical recess) ................................ 31
5.3.2
Assembly preparation for lathe chuck with reduction or expansion adapter
plate ............................................................................................................ 32
5.3.3
Assembly preparation for lathe chuck with direct mounting..................... 33
6
Function .................................................................................................................. 34
6.1
Function and handling............................................................................................ 34
6.2
Function test before use ........................................................................................ 34
6.3
Replacement or renewal of jaws............................................................................ 35
6.4
Clamping the workpiece......................................................................................... 36
6.5
Compensation / workpiece dimensions................................................................. 37
7
Maintenance ........................................................................................................... 38
7.1
Lubrication.............................................................................................................. 38
7.2
Maintenance intervals............................................................................................ 38
7.3
Disassembling and assembling the chuck .............................................................. 38
7.4
Assembling the lathe chuck.................................................................................... 40
8
Remedies for faults ................................................................................................. 43
9
Storage.................................................................................................................... 45
10
Disposal .................................................................................................................. 45
11
Spare parts .............................................................................................................. 46
12
Drawing................................................................................................................... 48
13
Translation of the original declaration of incorporation........................................... 49
14
Appendix on Declaration of Incorporation, as per 2006/42/EC, Annex II, No. 1 B ..... 50

General
01.00|1416054_ROTA-
M2 + 2 |en
5
General
About this manual
This manual contains important information for a safe and
appropriate use of the product.
This manual is an integral part of the product and must be kept
accessible for the personnel at all times.
Before starting work, the personnel must have read and
understood this operating manual. Prerequisite for safe working is
the observance of all safety instructions in this manual.
Illustrations in this manual are provided for basic understanding
and may differ from the actual product design.
In addition to these instructions, the documents listed under
(1.1.2, Page 6) are applicable.
Presentation of Warning Labels
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Danger for persons!
Non-observance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons!
Non-observance can lead to irreversible injury and even death.
CAUTION
Dangers for persons!
Non-observance can cause minor injuries.
CAUTION
Material damage!
Information about avoiding material damage.
1
1.1
1.1.1

General
6 01.00|1416054_ROTA-M2 + 2 |en
Applicable documents
• General terms of business*
• VDI guideline 3106
Sizes
This operating manual applies to the following sizes:
• ROTA-M flex 2+2 260
• ROTA-M flex 2+2 315
• ROTA-M flex 2+2 400
• ROTA-M flex 2+2 500
• ROTA-M flex 2+2 630
Warranty
The warranty period is 24 months after delivery date from factory
or 500 000 cycles*, if it is used as intended, under the following
conditions:
• Observe the applicable documents, (1.1.2, Page 6)
• Observe the ambient conditions and operating conditions,
(2.6, Page 10)
• Observance of the specified care and maintenance instructions
(7, Page 38)
Parts touching the workpiece and wear parts are not included in
the warranty.
* A cycle consists of a complete clamping process ("Open" and
"Close").
Scope of delivery
1
Manual lathe chuck in the ordered variant
4
Mounting screws
8
T-nuts with screws or 4 combi T-nuts (for variant with 60°
fine serration)
1
Assembly key
1
Actuation keys
1
Eye bolt
1
Assembly and Operating Manual
1.1.2
1.1.3
1.2
1.3

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
7
Basic safety notes
Intended use
The product is used to clamp workpieces in machine tools or
assembly devices during machining.
• Rotation of the lathe chuck can be initiated by the machine
during machining or the lathe chuck can be at rest. The use of
coolants during machining is permitted.
• Use top jaws with a suitable interface and associated T-nuts.
• Workpiece specifications:
– Workpiece temperature between 0°C and 100°C.
– Interference circuit diameter of the workpiece must be
smaller or at most equal to the outer diameter of the lathe
chuck.
– Sufficient rigidity in the elastic range to absorb the clamping
force.
• The necessary speed of rotation and the clamping force of the
lathe chuck must be determined by the operator for the
respective clamping task, however the technical data engraved
on the lathe chuck should never be exceeded!
Any other use is not as intended.
Reasonably foreseeable misuse
Any use other than that defined under "Appropriate Use" or any
use that goes beyond that definition is considered improper use
and is prohibited.
Examples of foreseeable misuse:
• Operation by unauthorized personnel:
– incorrect mounting of the top jaws.
– incorrect actuation of the lathe chuck.
– incorrect feeding of the workpiece.
• Clamping in stroke end position of the lathe chuck:
– The clamping point is too close or directly on the stroke end
position of the lathe chuck, which means that the desired
clamping force will not act on the workpiece.
• Use of jaws that are too high or a clamping area that is too
high.
2
2.1
2.2

Basic safety notes
8 01.00|1416054_ROTA-M2 + 2 |en
• Due to the clamping force and height of the clamping area, a
moment load acts on the guideways of the lathe chuck. This
must not exceed the maximum value.
• Incorrect application parameters for the machining situation.
No determination of the clamping force or maximum speed of
rotation required for the clamping situation. These parameters
can be calculated from the desired machining situation.
• Exceeding the technical data of the lathe chuck. Actuation with
an actuation moment that is too high, rotation above the
maximum speed of rotation.
• Use on machines other than machine tools or assembly
devices.
• Use as a safety component.
• Carelessness, lack of concentration.
• Clamping of insufficiently rigid workpieces, clamping of
workpieces that do not meet the specifications:
– The rigidity of the workpiece is not sufficient to provide the
lathe chuck with the necessary resistance that will allow the
clamping force to build up.
• Use for stationary or rotating processes where there is no
workpiece or the workpiece is not clamped.
• Use of chuck jaws that have not been approved by SCHUNK
(self-built, third-party products).
• Removing the release mechanism from the actuation key.
• By removing the release mechanism, the actuation key can
remain on the lathe chuck.
Constructional changes
Implementation of structural changes
By conversions, changes, and reworking, e.g. additional threads,
holes, or safety devices can impair the functioning or safety of the
product or damage it.
• Structural changes should only be made with the written
approval of SCHUNK.
2.3

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
9
Spare parts
Use of unauthorized spare parts
Using unauthorized spare parts can endanger personnel and
damage the product or cause it to malfunction.
• Use only original spare parts or spares authorized by SCHUNK.
Chuck jaws
Requirements of the chuck jaws
Accumulated energy can make the product unsafe and risk the
danger of serious injuries and considerable material damage.
• Only change chuck jaws if no residual energy can be released.
• Do not use welded jaws.
• The chuck jaws must be designed to be as light and as low as
possible. The clamping point must be as close as possible to the
lathe chuck face (clamping points at a greater distance lead to
greater surface pressure in the jaw guidance and can
significantly reduce the clamping force).
• If, for constructional reasons, the special chuck jaws are heavier
than the top jaws assigned to the lathe chuck, greater
centrifugal forces must be taken into account when defining
the required clamping force and the recommended speed of
rotation.
• The maximum recommended speed of rotation may only be
operated in conjunction with maximum actuating force and
only with the lathe chuck in optimum, fully functioning
condition.
• After a collision, the lathe chuck and the chuck jaws must be
subjected to a crack test before being used again. Replace
damaged parts with original SCHUNK spare parts.
• Renew the chuck jaw mounting bolts if there are signs of wear
or damage. Only use bolts with a quality of 12.9.
2.4
2.5

Basic safety notes
10 01.00|1416054_ROTA-M2 + 2 |en
Environmental and operating conditions
Spatial limitations
The lathe chuck is operated in the
machining area of a machine tool or
an assembly device.
Interfaces
• Lathe chuck-machine/device:
mounting surface,
• Lathe chuck-workpiece: chuck
jaws.
• Lathe chuck-human: actuation
key, lubrication nipple.
Field of application
Industry
Environmental
limitations • Temperature range: 15°C to 60°C.
• Media: coolant.
Material limitations
• Auxiliary and operating materials:
grease LINOMAX plus, anti-rust oil
Branotect, Renolit HLT2.
• Materials used: steel alloys,
elastomers, aluminum alloys,
brass.
Safety data sheet for LINOMAX plus available at www.schunk.com
Required ambient conditions and operating conditions
Incorrect ambient and operating conditions can make the product
unsafe, leading to the risk of serious injuries, considerable material
damage and/or a significant reduction to the product's life span.
• Make sure that the product is used only in the context of its
defined application parameters, (3, Page 18).
• Make sure that the product is a sufficient size for the
application.
• Only use high-quality cooling emulsions with anti-corrosive
additives during processing.
Clamping force measurement
Depending on the operating conditions, the function and clamping
force must be checked after a certain period of operation (7.2,
Page 38). Only perform the clamping force test with a calibrated
clamping force tester.
2.6

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
11
If the clamping force has dropped too much or if the base jaws and
piston no longer move properly, the chuck must be disassembled,
cleaned, and relubricated (7, Page 38).
Personnel qualification
The following personal qualifications are necessary for the various
activities related to the product:
Due to its technical training, knowledge and experience, qualified
personnel is able to perform the delegated tasks, recognize and
avoid possible dangers and knows the relevant standards and
regulations.
The user has been instructed by the operator regarding the tasks
entrusted to them and the potential dangers of inappropriate
behavior. The user may only carry out tasks that go beyond the
use in normal operation if this is indicated in this manual and the
operator has expressly instructed them to do so.
• Order all work to be performed only by appropriately qualified
personnel.
• Personnel must have read and understood the complete
manual before beginning any work on the product.
• Observe national accident prevention regulations and the
general safety notes.
Inadequate qualification of personnel
Work on the product by inadequately qualified personnel can lead
to serious injuries and considerable material damage.
2.7
Qualified personnel
User

Basic safety notes
12 01.00|1416054_ROTA-M2 + 2 |en
Personal protective equipment
Use of personal protective equipment
Personal protective equipment serves to protect staff against
danger which may interfere with their health or safety at work.
• When working on and with the product, observe the
occupational health and safety regulations and wear the
required personal protective equipment.
• Observe the valid safety and accident prevention regulations.
• Wear protective gloves to guard against sharp edges and
corners or rough surfaces.
• Wear heat-resistant protective gloves when handling hot
surfaces.
• Wear protective gloves and safety goggles when handling
hazardous substances.
• Wear close-fitting protective clothing and also wear long hair in
a hairnet when dealing with moving components.
Notes on safe operation
An incorrect manner of working can make the product unsafe and
risk the danger of serious injuries and considerable material
damage.
• Avoid any manner of working that may interfere with the
function and operational safety of the product.
• Use the product as intended.
• Observe the safety notes and assembly instructions.
• Do not expose the product to any corrosive media.
• Rectify malfunctions as soon as they occur.
• Observe the care and maintenance instructions.
• Observe the current safety, accident prevention, and
environmental protection regulations for the application field
of the product.
2.8
2.9

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
13
Transport
Handling during transport
Incorrect handling during transport may impair the product's
safety and cause serious injuries and considerable material
damage.
• When handling heavy weights, use lifting equipment to lift the
product and transport it by appropriate means.
• Secure the product against falling during transportation and
handling.
• Stand clear of suspended loads.
Malfunctions
Behavior in case of malfunctions
• Immediately remove the product from operation and report
the malfunction to the responsible departments/persons.
• Order appropriately trained personnel to rectify the
malfunction.
• Do not recommission the product until the malfunction has
been rectified.
• Test the product after a malfunction to establish whether it still
functions properly and no increased risks have arisen.
Disposal
Handling of disposal
The incorrect handling of disposal may impair the product's safety
and cause serious injuries as well as considerable material and
environmental harm.
• Follow local regulations on dispatching product components for
recycling or proper disposal.
2.10
2.11
2.12

Basic safety notes
14 01.00|1416054_ROTA-M2 + 2 |en
Fundamental dangers
General
• Observe safety distances.
• Never deactivate safety installations.
• Before commissioning the product, take appropriate protective
measures to secure the danger zone.
• Disconnect power sources before installation, modification,
maintenance, or calibration. Ensure that no residual energy
remains in the system.
• Do not reach into the open mechanism or movement area of
the product during operation.
Protection during handling and assembly
Incorrect handling and assembly
Incorrect handling and assembly may impair the product's safety
and cause serious injuries and considerable material damage.
• Have all work carried out by appropriately qualified personnel.
• For all work, secure the product against accidental operation.
• Observe the relevant accident prevention rules.
• Use suitable assembly and transport equipment and take
precautions to prevent jamming and crushing.
Incorrect lifting of loads
Falling loads may cause serious injuries and even death.
• Stand clear of suspended loads and do not step into their
swiveling range.
• Never move loads without supervision.
• Do not leave suspended loads unattended.
Protection during commissioning and operation
Falling or violently ejected components
Falling and violently ejected components can cause serious injuries
and even death.
• Take appropriate protective measures to secure the danger
zone.
• Never step into the danger zone during operation.
2.13
2.13.1
2.13.2

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
15
Protection against dangerous movements
Unexpected movements
Residual energy in the system may cause serious injuries while
working with the product.
• Switch off the energy supply, ensure that no residual energy
remains and secure against inadvertent reactivation.
• Never rely solely on the response of the monitoring function to
avert danger. Until the installed monitors become effective, it
must be assumed that the drive movement is faulty, with its
action being dependent on the control unit and the current
operating condition of the drive. Perform maintenance work,
modifications, and attachments outside the danger zone
defined by the movement range.
• To avoid accidents and/or material damage, human access to
the movement range of the machine must be restricted.
Limit/prevent accidental access for people in this area due
through technical safety measures. The protective cover and
protective fence must be rigid enough to withstand the
maximum possible movement energy. EMERGENCY STOP
switches must be easily and quickly accessible. Before starting
up the machine or automated system, check that the
EMERGENCY STOP system is working. Prevent operation of the
machine if this protective equipment does not function
correctly.
Notes on particular risks
DANGER
Risk of fatal injury from suspended loads!
Falling loads can cause serious injuries and even death.
• Stand clear of suspended loads and do not step within their
swiveling range.
• Never move loads without supervision.
• Do not leave suspended loads unattended.
• Wear suitable protective equipment.
2.13.3
2.13.4

Basic safety notes
16 01.00|1416054_ROTA-M2 + 2 |en
DANGER
Possible risk of fatal injury to operating personnel if a jaw
breaks or if the lathe chuck fails because the technical data have
been exceeded and a workpiece is released or parts fly off
• The technical data specified by the manufacturer for using the
lathe chuck must never be exceeded.
• The lathe chuck may only be used on machines and facilities
that fulfill the minimum requirements of the EC Machinery
Directive; specifically, they must have effective technical
measures to protect against possible mechanical hazards.
DANGER
Possible risk of fatal injury to operating personnel from clothing
or hair being caught on the lathe chuck and being dragged into
the machine
Loose clothing or long hair may become caught on projecting
parts of the lathe chuck and be drawn into the machine.
• The machines and equipment must fulfill the minimum
requirements of the EC Machinery Directive; specifically, they
must have effective technical measures to protect against
potential mechanical hazards.
• Always wear tight-fitting clothing and a hairnet when working
on the machine and the lathe chuck.
CAUTION
Danger of limbs being crushed by opening and closing of the
chuck jaws during manual loading and unloading or when
replacing moving parts.
• Do not reach between the jaws.
• Wear safety gloves.
• Observe the safety and accident prevention regulations during
operation of the chuck, especially in connection with
machining centers and other technical equipment.

Basic safety notes
01.00|1416054_ROTA-M2 + 2 |
en
17
CAUTION
Risk of damage due to incorrect choice of clamping position for
chuck jaws on workpiece.
If an incorrect clamping position is chosen for the chuck jaws on
workpiece, the base and top jaws may become damaged.
• The T-nuts for connecting the top jaws to the base jaws must
not protrude beyond the base jaws in the radial direction.
• The diameter of the workpiece may not be bigger than the
chuck diameter.

Torques per screw
18 01.00|1416054_ROTA-M2 + 2 |en
Technical data
Lathe chuck data
ROTA-M flex 2+2
260
315
400
500
630
Max. actuation moment [Nm]
120
120
200
250
250
Max. clamping force [kN]
100
100
150
180
180
Max. speed [rpm]
2700
2200
1500
1100
950
Overall stroke per jaw [mm]
9.5
9.5
14.5
17.8
17.8
Compensation per jaw [mm]
5.1
5.1
7.9
10
10
Weight mit base jaws [kg]
41.7
62.9
124.8
227.2
307.4
Weight of base jaws [kg]
0.93
1.2
2.07
0.577
4.91
Mass moment of inertia [kgm2]
0.36
0.81
2.54
7.27
14.14
Centrifugal torque of base jaw [kgm]
McGB
0.08
0.11
0.262
0.577
0.925
Spindle holder ISO 702-4
No. 8
(220 H6)
No. 11
(300 H6)
No. 15
(380 H6)
No. 15
(380 H6)
No. 15
(380 H6)
Operating temperature
+ 15°C to + 60°C
Ensure minimal weight for all jaws.
For the respective machining task, the permissible speed of
rotation for a given initial clamping force or the required clamping
force for a given speed of rotation must be calculated according to
VDI 3106, whereby the maximum speed of rotation or the
maximum clamping force of the lathe chuck must not be
exceeded. The calculated values must be checked by dynamic
measurement. Functional monitoring must be performed
according to the guidelines of the insurance association.
3
3.1

Torques per screw
01.00|1416054_ROTA-
M2 + 2 |en
19

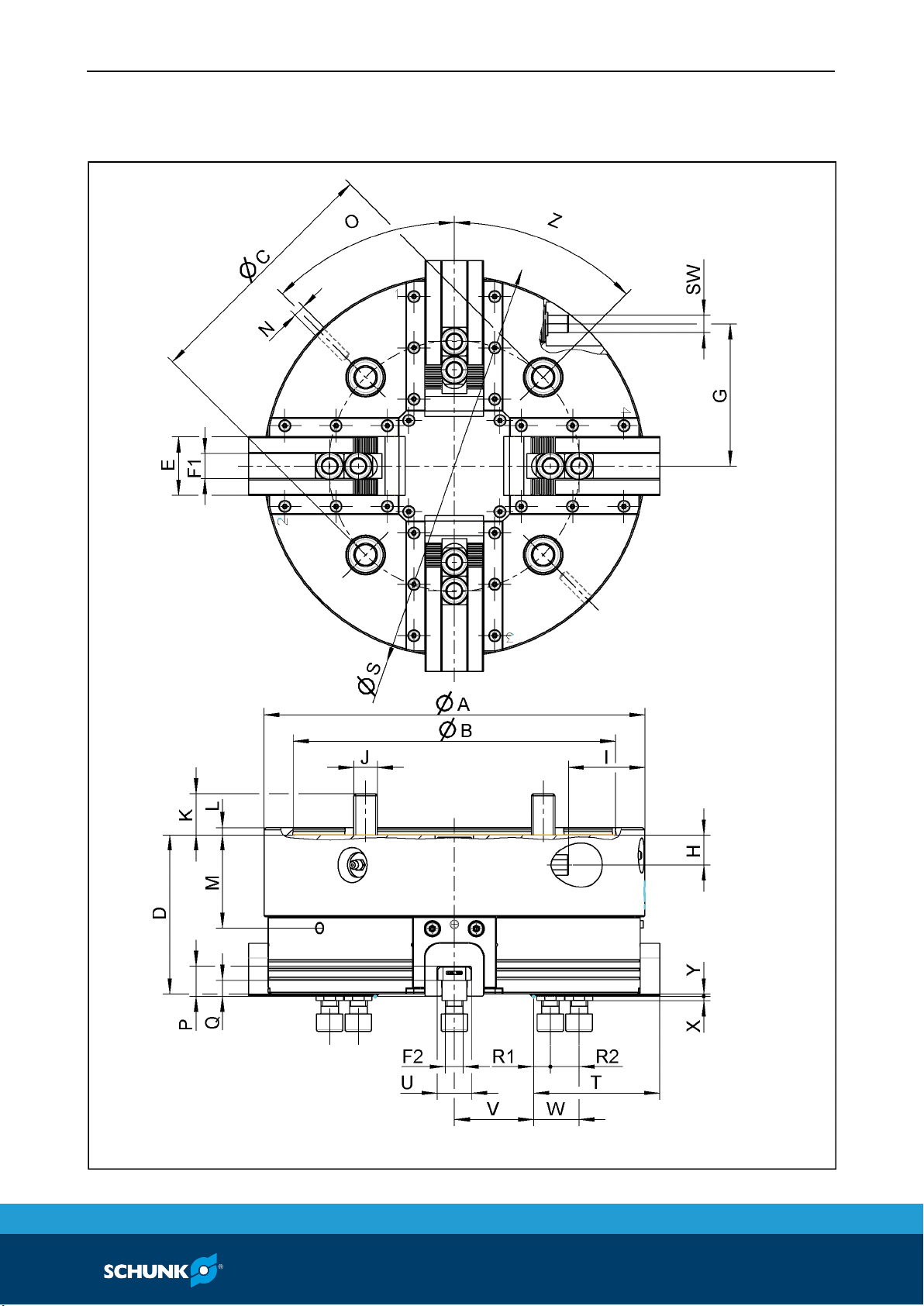

Dimensions
3.2

Torques per screw
20 01.00|1416054_ROTA-M2 + 2 |en
Index
260 SV90°
(60°)
315 SV90°
(60°)
400 90SV°
(60°)
500 SV90°
630 SV90°
A [mm]
260
315
400
500
630
W [mm]
220
220
380
380
380
C [mm]
171,4
171,4
330,2
330,2
330,2
D [mm]
108,5
108,5
138
160
160
E [mm]
40
40
50
60
60
F1 H7 [mm]
17 (14)
17 (14)
21 (21)
25,5
25,5
F2 [mm]
M12
M12
M16
M20
M20
G [mm]
97
97
145
181
181
H [mm]
20,5
20,5
28
31
31
I [mm]
52,1
79,6
88,1
102,7
167,7
J [mm]
M16
M16
M24
M24
M24
K [mm]
28
28
31
31
31
L [mm]
5
5
6
6
6
M [mm]
63,5
63,5
83
94
94
N [mm]
(transport)
M8
M8
M12
M16
M16
O [°]
45
45
45
45
45
P [mm]
20,5 (19,5)
20,5 (19,5)
25 (26)
26
26
Q [mm]
11 (10)
11 (10)
13,5 (13,5)
14,5
14,5
R1 min [mm]
11,5 (13,1)
11,5 (13,1)
16,7 (14)
18,8
18,8
R2 min [mm]
19,5 (25)
19,5 (25)
25 (30)
31
31
S max [mm]
283,4
335,9
432,4
534,1
663,1
SW [mm]
12
12
16
19
19
T [mm]
86,2
112,9
145,1
183
248
U [mm]
23,5 (21,5)
23,5 (21,5)
30,5
36,5
36,5
V min [mm]
44,6
44,6
55,1
64,6
64,4
V max [mm]
54,1
54,1
69,6
82,4
82,2
W max [mm]
77 (75,5)
95 (96,2)
133,2 (131,9)
169,2
234,2
X [mm]
3 (1,8)
3 (1,8)
2,5 (2,8)
3,3
3,3
Y [mm]
1,6
1,6
1,6
2
2
Z [°]
45
45
50
45
45
