SCHUNK SWG 25 User instructions

Translation of the original manual
2-Finger Angular Gripper SWG 25
Opening angle 6.5° with food grade grease
ID.-No 30074722
Assembly and Operating Manual
Superior Clamping and Gripping

Imprint
2 01.01|Ident.-Nr. 30074722|en
Imprint
Copyright:
This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely
supplied to our customers and operators of our products and forms part of the product.
This documentation may not be duplicated or made accessible to third parties, in particu-
lar competitive companies,
without our prior permission.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 30086139
Edition: 01.01 |14/02/2018|en
© SCHUNK GmbH & Co. KG
All rights reserved.
Dear customer,
congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for
the highest precision, top quality and best service.
You are going to increase the process reliability of your production and achieve best
machining results – to the customer's complete satisfaction.
SCHUNK products are inspiring.
Our detailed assembly and operation manual will support you.
Do you have further questions? You may contact us at any time – even after purchase.
Kindest Regards
Yours SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 – 134
D-74348 Lauffen/Neckar
Tel. [phone]
Fax [phone]
[email protected]
www.schunk.com

Table of contents
01.01|Ident.-Nr. 30074722|
en
3
Table of contents
1
About this manual.................................................................................................... 4
1.1
Warnings................................................................................................................... 4
1.2
Variants..................................................................................................................... 5
1.3
Applicable documents ............................................................................................. 5
2
Basic safety notes .................................................................................................... 6
2.1
Intended use............................................................................................................. 6
2.2
Not intended use ...................................................................................................... 6
2.3
Environmental and operating conditions................................................................. 6
2.4
Product safety........................................................................................................... 6
2.5
Personnel qualification............................................................................................. 7
2.6
The use of personal protective equipment.............................................................. 7
2.7
Notes on particular risks........................................................................................... 8
3
Warranty................................................................................................................. 10
4
Scope of delivery ..................................................................................................... 11
5
Accessories.............................................................................................................. 12
5.1
Sensors.................................................................................................................... 12
6
Technical Data ........................................................................................................ 13
7
Assembly................................................................................................................. 14
7.1
Mechanical connection .......................................................................................... 14
7.2
Air connection ....................................................................................................... 15
7.3
Sensors.................................................................................................................... 17
7.3.1
Programmable magnetic switch (MMS-P).................................................. 17
8
Trouble shooting ..................................................................................................... 21
8.1
The module does not move?.................................................................................. 21
8.2
The module does not travel through the entire stroke? ....................................... 21
8.3
The gripping force drops? ...................................................................................... 22
8.4
The magnetic switch does not function? ............................................................... 22
9
Maintenance ........................................................................................................... 23
10
Accessories kit......................................................................................................... 23
11
Translation of original declaration of incorporation................................................. 24

About this manual
4 01.01|Ident.-Nr. 30074722|en
About this manual
This instruction is an integral part of the product and contains im-
portant information for a safe and proper assembly, commission-
ing, operation, maintenance and help for easier trouble shooting.
Before using the product, read and note the instructions, especial-
ly the chapter "Basic safety notes".
Warnings
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Danger for persons.
Non-compliance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons.
Ignoring a safety note like this can lead to irreversible injury and
even death.
CAUTION
Dangers for persons.
Non-observance can cause minor injuries.
NOTICE
Material damage
Information about avoiding material damage.
WARNING
Warning about hand injuries
1
1.1

About this manual
01.01|Ident.-Nr. 30074722|
en
5
Variants
This operating manual applies for the following variations
• 2-Finger Angular Gripper SWG 25
Opening angle 6.5° with food grade grease
ID-No. 30074722
Applicable documents
• General terms of business
• SCHUNK catalog Gripping modules
• Assembly and Operating manuals of the accessories
The documents listed here, can be downloaded on our homepage
www.schunk.com
1.2
1.3

Basic safety notes
6 01.01|Ident.-Nr. 30074722|en
Basic safety notes
Intended use
The product was designed to grip and to temporarily and securely
hold workpieces and objects.
The product is intended for installation in a machine/system. The
requirements of the applicable guidelines must be observed and
complied with.
The product may be used only in the context of its defined applica-
tion parameters (6, Page 13).
The product is designed for industrial use.
To use this unit as intended, it is also essential to observe the
technical data and installation and operation notes in this manual
and to comply with the maintenance intervals.
Not intended use
Use which is not specified as an intended use is for instance when the
product is for example used as a pressing tool, stamping tool, lifting
tool, guide for tools, cutting tool, tensioning mean, boring tool.
Environmental and operating conditions
• Make sure that the product and the top jaws are a sufficient
size for the application.
• Make sure that the environment is free from splash water and
vapors as well as from abrasion or processing dust. Exceptions
are products that are designed especially for contaminated en-
vironments.
Product safety
Dangers arise from the product, if:
• the product is not used in accordance with its intended purpose.
• the product is not installed or maintained properly.
• the safety and installation notes are not observed.
Avoid any manner of working that may interfere with the function
and operational safety of the product.
Wear protective equipment.
NOTE
More information are contained in the relevant chapters.
2
2.1
2.2
2.3
2.4

Basic safety notes
01.01|Ident.-Nr. 30074722|
en
7
Personnel qualification
The assembly, initial commissioning, maintenance, and repair of
the product may be performed only by trained specialist person-
nel. Every person called upon by the operator to work on the
product must have read and understood the complete assembly
and operating manual, especially the chapter "Basic safety notes"
(2, Page 6). This applies particularly to personnel only used oc-
casionally, such as maintenance personnel.
The use of personal protective equipment
When installing or removing the product, observe the relevant health
and safety at work rules and use the required personal protective
equipment (protective gloves, safety boots and safety goggles).
2.5
2.6

Basic safety notes
8 01.01|Ident.-Nr. 30074722|en
Notes on particular risks
The general rule is:
• Remove the energy supplies before installation, modification,
maintenance, or adjustment work.
• Ensure that no residual energy remains in the system.
• Do not move parts by hand when the energy supply is connected.
• Do not reach into the open mechanism or the movement area
of the unit.
• Perform maintenance, modifications, and additions outside the
danger zone.
• For all work, secure the product against accidental operation.
• Take particular care during maintenance and disassembly.
• Only qualified personnel may disassemble the product.
2.7

Basic safety notes
01.01|Ident.-Nr. 30074722|
en
9
CAUTION
Possible risk of injury due to electrostatic energy!
Components or assembly groups may become electrostatically
charged. When touched, the electrostatic discharge can trigger a
startle response, which can result in injuries.
• The operator must ensure that all components and assembly
groups are included in the local equipotential bonding in line
with the applicable regulations.
NOTE
• The equipotential bonding must be installed by a specialist
electrician in line with the applicable regulations, paying partic-
ular attention to the actual conditions in the working environ-
ment.
•
The effectiveness of the equipotential bonding must be verified
by a specialist electrician through regular safety measurements.
WARNING
Risk of injury from objects falling and being ejected
• The danger zone must be surrounded by a safety fence during
operation.
WARNING
Risk of injury when the machine/system moves unexpectedly.

Warranty
10 01.03|SWG 10 - 50|en
Warranty
If the product is used as intended, the warranty is valid for 12
months from the date of delivery from the production facility un-
der the following conditions:
• Intended use in 1-shift operation
• Observe the environmental and operating conditions
Parts touching the work piece and wear parts are not part of the
warranty.
3

Accessories
01.03|SWG 10 -
50|en
11
Scope of delivery
The scope of delivery includes
• 2-Finger Angular Gripper SWG, ID-No. 30074722
• Enclosed pack
4

Accessories
12 01.01|Ident.-Nr. 30074722|en
Accessories
A wide range of accessories is available for this module.
For information about which accessories can be used with the ap-
propriate product version ☞catalog.
Sensors
Overview of the compatible sensors
Designation
Type
Programmable magnetic switch
MMS-P
Optical switch
ONS
• Exact type designation of the compatible sensors see ☞catalog.
• If you require information on sensor operation, contact your
SCHUNK contact person or download information from our
homepage. www.schunk.com
5
5.1

Technical Data
01.01|Ident.-Nr. 30074722|
en
13
Technical Data
Opening angle per jaw [°]
max. 6,5°
Closing torque [Nm]
0.28
closing torque generated by spring
[Nm]
0.08
Min. pressure [bar]
4.0
Max. pressure [bar]
6.5
Nominal working pressure [bar]
6.0
Max. permissible finger length [mm]
22.0
Max. permitted weight per finger
[kg]
0.028
IP rating
30
Min. ambient temperature [°C]
-10
Max. ambient temperature [°C]
90
Noise emission [dB(A)]
≤ 70
Lubricants:
Sliding guides
O-rings / seals
Klüberpaste UH1 114-155 (H1)
Renolit G7 FG1
More technical data are included in the catalog data sheet. Which-
ever is the latest version.
6

Assembly
14 01.01|Ident.-Nr. 30074722|en
Assembly
Mechanical connection

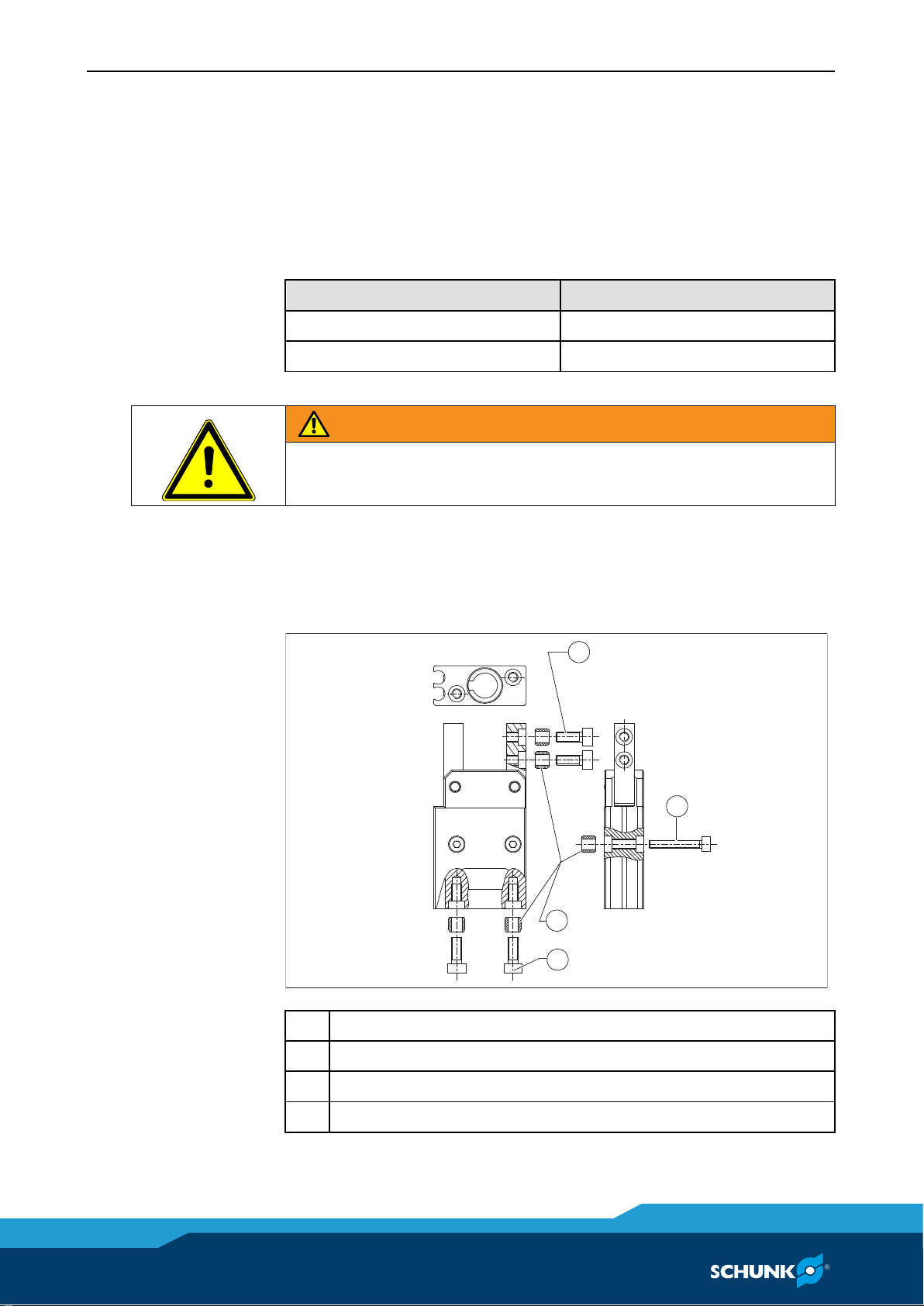

The values relate to the entire bolting surface.
Requirements for levelness of the bolting surface (Dimensions in mm)
Diameter
Permissible unevenness
< 100
< 0.02
> 100
< 0.05
WARNING
Risk of injury when the machine/system moves unexpectedly!
Switch off power supply.
The centering sleeves required for centering during the fastening
of the gripper and for the fixation of the gripper fingers are includ-
ed in the accessories kit.
1
2
3
4
Assembly options
1
Finger mounting
2
Lateral gripper fastening
3
Centering sleeves for fixing
4
Gripper fastening from below
7
7.1
Check the evenness
of the bolting surface
Mounting

Assembly
01.01|Ident.-Nr. 30074722|
en
15
NOTE
•
For attachment from behind or lateral fix the modular unit with
the locating holes intended for this purpose.
• Secure the module unit with the securing holes intended for
this purpose.
• Secure the top jaws with the securing holes intended for this
purpose.
NOTICE
Magnetic fields and magnetisable materials can disturb the
monitoring by proximity switches. Only use screws made of
stainless steel for fastening the grippers (non-magnetisable
screws). Fastening plates, fixing brackets etc. should not be
made out of non-magnetisable materials such as aluminium or
plastics.
Air connection
WARNING
Risk of injury when the machine/system moves unexpectedly!
Switch off power supply.
NOTICE
Damage to the gripper is possible!
If the maximum permissible finger weight or the permissible mass
moment of inertia of the fingers is exceeded, the gripper can be
damaged.
• A jaw movement always has to be without jerks and bounce.
• You must therefore implement sufficient reduction and/or
damping.
• Observe the diagrams and information in the catalog data
sheet.
7.2

Assembly
16 01.01|Ident.-Nr. 30074722|en
NOTICE
Observe the requirements for the air supply (

6, Page 13).
1
2
Air connection
Thread diameter of the air connections
Item
Connection
SWG 25
1
Gripper "Closed"
M3
2
Gripper "Open"
M3
• Open only the air connections that are needed.
• Close unused main air connections using the screw plugs from
the enclosed pack.
• For a hose-free direction connection, use the O-rings from the
enclosed pack.

Assembly
01.01|Ident.-Nr. 30074722|
en
17
Sensors
The module is prepared for a number of sensors. Other sensors
can be used with a mounting kit.
• If you require further information on sensor operation, contact
your SCHUNK contact person or download information from
our homepage.
• Technical data for the sensors can be found in the data sheets
(included in the scope of delivery).
Programmable magnetic switch (MMS-P)
Magnetic switch (MMS-P 22)
1
Mounting screw
4
Teach-button
2
Center sensor elements
5
LED display
3
LED display
6
Rips for cable tires
Connection diagram PNP-4 conductor (MMS-P 22)
7.3
7.3.1

Assembly
18 01.01|Ident.-Nr. 30074722|en
Types available for order (see catalog):
• MMS-P 22-S-M8-PNP
• MMSK-P 22-S-PNP
• V2-M8-4-2XM8-3
The MMSK-P 22-S-PNP features a cable with open strands so that
it can be connected by means of terminal contacts.
The V2-M8-4-2XM8-3 distributor is used to convert the 4-pin con-
nector plug of the MMS-P 22-S-M8-PNP sensor to two standard
M8 plugs with 3 pins each.
NOTICE
Sensor can be damaged during assembly.
• Do not exceed the maximum tightening torque of 10 Ncm for
the set screws.
NOTE
Ferromagnetic material changes the switching positions of the
sensor. For example: Adapter plate made of ordinary steel.
At fe
rromagnetic adapter plates:
• The module must firstly be mounted on the adapter plate
• Then, the positions of the magnetic switch have to be set
1 To relieve the cable, the electronics have to be fixed in place
using cable ties (7).
There are ribs (6) in place on the electronics for mounting
purposes.
M
ounting of
the sensor

Assembly
01.01|Ident.-Nr. 30074722|
en
19

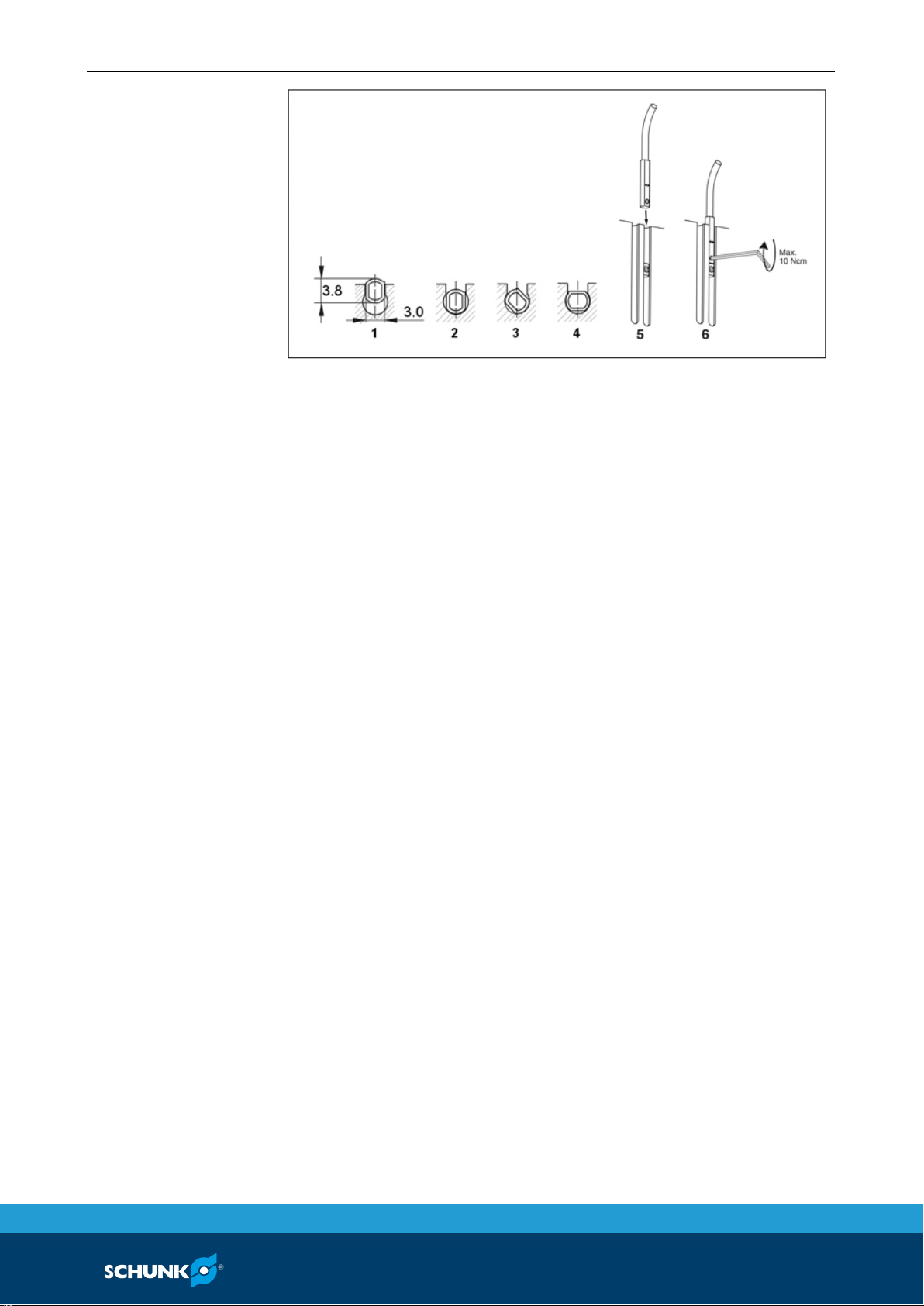

2 Turn in the sensor (1 - 4).
OR
Push the sensor axially into the slot until it contacts the stop (5).
3 Fix the sensor with an Allen wrench (6).
4 Keep the Teach-Button (4) pressed for 2 seconds.
After 2 seconds LED 1 (3) is flashing
5 Move the module into position 1 (e.g. "0 - position").
6 Press the Teach-Button (4) briefly.
LED 1 (3) lights up and LED 2 (5) is flashing.
7 Move the module manually into position 2 (e.g. "-2mm").
LED 1 (3) should turn out as soon as the switching point 1 is left.
8 Press the Teach-Button (4) briefly.
LED 2 (5) lights up.
The switching points are set.

Assembly
20 01.01|Ident.-Nr. 30074722|en
The hysteresis to both switching points will be adjusted automati-
cally corresponding to the characteristics of the magnetic field.
The user can set the switching and trigging points of each position a
little bit closer than for the automatic mode. The trigging point is
closer to the switching point. At the same time the susceptibility to
trouble and damage increases. In the mode of the lowest hysteresis,
an error signal (such as jitter or untimely switch off) can be avoided,
if the sensor is protected against all types of disturbances (i.e. by
shielding). Frequent types of disturbances are change in tempera-
ture and electro-magnetic influences.
Within the closest fine-teach mode, SCHUNK cannot guarantee
EMC-compatibility any more.
The hysteresis adjustment is used for the manual adjustment of the
switching points (if necessary).
In case that the hysteresis automatically determined by the sensor
should be too high or too low after “the adjustment of the switching
points”, you may correct the value as follows.
The sensor avoids a too small hysteresis during hysteresis adjustment.
The lowest securely detectable difference in stroke is ≤10 % of the
nominal stroke.
1 Press the Teach-button (4) for 5 seconds.
LED 1 (3) will flash up after 2 seconds.
LED 1 will stop after 5 seconds.
2 Release the Teach-button.
3 Move the gripper to the "switch-off point for switching point
1" position.
4 Press the Teach-Button (4) briefly.LED 1 (3) will light up twice.
5 Move the gripper to the "switch-off point for switching point
2" position.
6 Press the Teach-Button (4) briefly.
LED 2 (5) will light up twice.
The mounting of the sensor MMS-P is completed.
Adjusting the
hysteresis
