schupp RUBIN 131435 User manual

EN
INSTRUCTIONS FOR USE
RUBIN
Therapy couches
131435
[UDI-RUBIN]
[Actual instruction manual.]

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
2
RUBIN
Imprint
Imprint
Manufacturer
Production
DE-MF-000010127
SCHUPP GmbH & Co KG
Glattal Street 78
D-72280 Dornstetten-Aach
Internet: www.schupp.shop
SCHUPP GmbH & Co KG
Neunecker Street 18
D-72290 Lossburg-Wittendorf
Copyright
The document including all illustrations is protected by copyright. Any
use outside the limits of copyright law without the consent of the
manufacturer is prohibited and punishable by law.
This applies in particular to duplications, translations, as well as the
storage and processing in electronic systems.
Infringements give rise to a claim for damages and may have penal
consequences.
All rights reserved.
© 2022 SCHUPP GmbH & Co KG
Warranty / Liability
These instructions for use are obligatory before
carefully and completely before putting the product into
operation!
For correct use of the medical device, observe all instructions and
safety notes!
The instructions for use must always be accessible to all users!
You can call up the current status of the instruction manual online:
We reserve the right to make technical changes within the scope of
further development of the therapy couch without prior notice. All
information is non-binding. Misprints excepted.
We accept no liability for damage and malfunctions caused by
operating errors and non-compliance with these operating instructions.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
3
RUBIN
Index
TABLE OF CONTENTS
Direct link enabled [press the CTRL key and click on the chapter name].
1.0 General......................................................................................................4
2.0 Safety regulations....................................................................................4
2.1 Safety signs - Symbols.............................................................................................. 4
2.2 Standards applied........................................................................................................ 5
2.3 Intended use................................................................................................................... 5
3.0 Safety instructions...................................................................................6
3.1 General.............................................................................................................................. 6
3.2 Safety instructions for delivery / unpacking.................................................... 7
3.3 Safety instructions for commissioning.............................................................. 7
4.0 Warranty / Guarantee...............................................................................8
5.0 Disclaimer.................................................................................................8
6.0 Function and operation...........................................................................9
6.1 Set-up and installation............................................................................................... 9
6.2 Height adjustment with lifting cylinder .............................................................. 9
6.3 Height adjustment with electric motor ............................................................. 10
6.4 Adjustment of the headrest upholstery (1 & 3 parts)................................. 12
6.5 Adjustment of the arm part upholstery (3 parts).......................................... 12
6.6 Adjustment of the roof / kyphosis - position................................................. 13
6.7 Adjustment of the footrest upholstery............................................................. 13
6.8 Setting as a chair........................................................................................................ 14
6.9 Adjustment of the Trendelenburg position.................................................... 14
6.10 Wheeled frame............................................................................................................. 15
6.11 Paper roll holder......................................................................................................... 15
6.12 Equipment, optional assemblies......................................................................... 16
6.13 Accessories.................................................................................................................. 17
7.0 Spare and wear parts.............................................................................17
8.0 Service life, maintenance and care ......................................................17
8.1 Maintenance.................................................................................................................. 17
8.2 Personal precautions ............................................................................................... 18
8.3 Care and cleaning...................................................................................................... 19
8.4 Surface disinfection.................................................................................................. 19
9.0 Assistance in case of malfunctions .....................................................20
10.0 Product label ..........................................................................................21
11.0 Disposal..................................................................................................22
12.0 Technical data........................................................................................22
12.1 Switching diagrams - Enable coding................................................................. 25
13.0 Declaration of Conformity.....................................................................25
14.0 Contact....................................................Fehler! Textmarke nicht definiert.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
4
RUBIN
SAFETY
1.0 General
With the requirements and specifications of physiotherapists, this therapy couch was developed in close cooperation for
the professional therapy area. Special attention was paid to the safety of the couch, the components of the integrated
safety, the comfort of the couch as well as durability and service life.
The design and manufacture of the therapy couch comply with the current safety principles of the BfArM and take into
account the generally accepted state of the art. The couch does not impair the safety or condition of patients or the
safety and health of users or third parties.
"Made in Germany" as well as the use of the highest quality materials guarantee a long and reliable functionality of the
therapy couch when used as intended.
All therapy tables from SCHUPP GmbH & Co.KG are developed in the Black Forest / Baden Württemberg and
manufactured with regional suppliers. The assembly of the therapy tables takes place in our ISO certified production
facility and thus guarantees a high and always consistent processing quality.
2.0 Safety regulations
2.1 Safety signs - Symbols
Safety-relevant sections, instructions or notes are highlighted by the following symbols. Please familiarize yourself with
the definitions before reading the operating instructions.
Indicates an immediate danger for users, patients and third parties, which can result in death or
serious injury.
DANGER
Indicates a potentially hazardous situation which may result in a low or
injury to the user, patient or third party or to damage to the medical device.
or on other objects.
Warning
Warning of danger of pinching and crushing when adjusting the therapy couch
Warning
Warning of electrical voltage
Warning
Indicates a possible danger to property which may result in property damage.
Caution
It is essential to follow the instructions for use
Additional notes, application tips, useful information

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
5
RUBIN
SAFETY
2.2 Standards applied
The therapy couch has been developed and manufactured according to the latest state of the art and in compliance
with national/international guidelines. It complies with the following guidelines:
EU MDR (Medical Device
Regulation) 2017/745
This product is a class I medical device according to the EU Medical Device
Regulation.
DIN EN ISO 10993-1:2017-04
Biological evaluation of medical devices
DIN EN 60601-1:2013-12
Medical electrical equipment: General requirements for safety including
essential performance characteristics
DIN EN 62366-1:2015 + A1:2020
Medical devices - Application of fitness for use to medical devices
Machinery Directive 2006/42/EC
Medical hydraulic equipment - General requirements for safety
2.3 Intended use
The therapy couch of the company Schupp GmbH & Co KG is a medical device of class 1.
(EU MDR 2017/745) and is intended exclusively for professional use by medically trained personnel and instructed
users for the proper positioning and storage of patients during therapeutic healing and medical treatments or for the
short-term examination of patients in the rooms provided for this purpose.
The Schupp company does not give any guarantee regarding the suitability of the therapy couch for a specific
therapeutic or diagnostic purpose. The therapist determines the appropriate form of application.
The therapy couch is not intended or equipped for hydrotherapy or for domestic or radiological applications. Also, the
electrically operated couches must not be used in areas with flammable gases, vapours or increased humidity. In case
of non-observance, this can lead to considerable damage to the couch as well as endanger the patient, user or third
parties.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
6
RUBIN
SAFETY
3.0 Safety instructions
3.1 General
For your own safety as well as the safety of the patient and third parties, familiarize yourself with the limits and dangers
associated with the use of the "electrically height-adjustable therapy couch" before using it for the first time.
Observe all safety and warning instructions! Also observe the safety and warning instructions when using devices
together!
These operating instructions contain important information on safe handling, operation, care and
maintenance.
The instructions are an integral part of the therapy couch and must always be kept within reach for
all users.
In the event of a change of ownership or location, these instructions must be handed over with the
couch. Failure to comply with these instructions will result in the loss of warranty and guarantee
claims!
Observe the additional regional and country-specific rules and regulations for occupational safety
and accident prevention that apply to the place of use.
The operator may only use the therapy couch within its intended purpose for therapy and treatment.
The operator may only allow qualified personnel or persons instructed and authorised in work safety
and accident prevention regulations to work on the therapy couch.
Caution
The operator must ensure that all users have read and understood the instructions, warnings and
safety notes in these instructions and are sufficiently informed about their operation. This must be
checked at regular intervals.
The operator must ensure that the therapy couch cannot be operated by unauthorised persons
when unattended.
The user must ensure that children are always supervised and do not stay in the area of the therapy
couch. This can lead to serious accidents.
The operator may only allow trained persons to work on the therapy couch for cleaning and care.
When leaving the therapy couch, it must be secured in such a way that unauthorised adjustment is
not possible. This can lead to serious accidents.
The therapy couch / pads are not sterile. Open wounds or skin irritations must not come into contact
with the padding material.
DANGER
When leaving the therapy couch, it must be secured in such a way that unauthorised adjustment is
not possible. For absolute safety, we recommend pulling the mains plug out of the socket when the
therapy couch is unattended.
When using additional devices (e.g. red light or heat emitters), the user must ensure that the
therapy couch cannot be adjusted unintentionally or accidentally. Safety distances must be
observed exactly.
The operator has a duty of care towards his employees. We therefore recommend safe footwear to
prevent the risk of injury.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
7
RUBIN
SAFETY
3.2 Safety instructions for delivery / unpacking
The therapy couches are 100% visually inspected and checked for electrical and mechanical
function before shipment. The couch has left the factory in perfect and operational condition.
Remove the transport securing strap under the head section and in the frame!
Attention when opening the packaging! Do not use pointed or sharp objects, the padding could be
directly damaged.
Check immediately after receipt of the shipment for completeness of the delivery as well as for
packaging damage. In the event of damage, this must be claimed immediately from the carrier and
must be noted immediately on the shipping documents.
If damage to the medical device is detected, this must be reported in writing to Schupp GmbH &
Co. KG within 2 working days.
After this period, warranty claims arising from transport damage can no longer be asserted.
3.3 Safety instructions for commissioning
Treatments may only be carried out on a therapy couch that is in perfect condition in terms of
safety; there is no danger from electrical energy.
The therapy couch may only be actively connected to the mains during treatment.
The voltage and frequency of the house mains supply must correspond to the specifications on the
type plate. Otherwise operation is prohibited.
The stretcher has been designed exclusively for use under normal conditions indoors.
The therapy couch should be placed on a firm and level surface with adequate free space for the
user.
Warning
Observe the acclimatisation time before commissioning.
The power cable must be positioned in such a way that it does not get jammed between the moving
parts of the couch - and - so that nobody can trip over it. Strong tensile loads as well as running
over with the couch must be avoided.
Do not fix any cables or hoses to the frame, as they can be torn off by the couch movement.
The mains plug must be disconnected for all activities inside the couch.
When using additional devices (e.g. red light or heat emitters), safety distances must be strictly
observed. Uncontrolled adjustment may result in burns to the skin or upholstery.
When moving or lifting the wheeled frame of the stretcher, no patient may be on the stretcher
(overloading and danger of tipping over).
Treatments are only allowed with the wheel frame retracted.
Caution
Personally keep enough distance when adjusting and driving the couch.
Before or during each position adjustment of the couch, make sure that no persons or objects
(children, animals, chairs, stools....) are in the moving area of the couch.
Also do not store any objects for use (e.g. covers, towels, belts, cushions....) in the area of the
frame!
Never load the arm, foot and/or head section with the total weight of the patient (danger of tipping
over) - a maximum load of 30kg is permitted.
Warning
Neither the therapist nor the patient may use the arm or head section as a sitting, kneeling, or
Abusing the ascender.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
8
RUBIN
SAFETY
There is a risk of entrapment when adjusting the height!
Observe during each position adjustment,
that no part of the patient's body
or third parties between the moving parts or
between the upholstered part and the frame.
The danger points are marked on the couch with
marked with appropriate warning signs.
Warning
Never exceed the maximum static load capacity of:
200kg (131435)!!
Regular inspection of the technical condition by the operator is required.
Regular monitoring or maintenance of wear parts such as operating and adjustment elements, gas
springs, hydraulic cylinders, motors and pads.
Faults must be rectified immediately, damaged components must be replaced without delay and
the couch must not be used until it has been repaired.
To ensure safety, only use original accessories from Schupp. Incorrect accessories can lead to
material damage to the couch or to injuries!
Caution !
Repair and maintenance only by the manufacturer or personnel authorized by the manufacturer.
The couch may not be modified without the written permission of the manufacturer. Conversions
and technical modifications are not permitted.
When used outside the intended purpose or when using additional devices, it is the responsibility
of the operator to comply with the limit values for the safety of medical electrical systems in
accordance with DIN EN 60601-1 and following.
The customary national laws / regulations must be observed when operating this therapy couch.
Observe the necessary safety inspections according to MPBetreibV (Medical Devices Operator
Ordinance), BetrSichV (Operational Safety Ordinance) and DGUV (German Social Accident
Insurance).
4.0 Warranty / Guarantee
Schupp GmbH & Co KG guarantees you a therapy couch free of material and processing defects. The couch was
thoroughly tested before shipment and 100% approved in the final production test.
The warranty period is 60 months on the couch frame, 12 months on upholstered parts, 24 months on all other
components of the therapy couch, with the exception of wear parts, and begins at the time of delivery. Please be sure to
keep the invoice as proof of purchase.
Parts or components of the couch that prove to be defective within these periods can be sent in for compensation after
prior consultation with the service department. The product liability ends 10 years after the product has been placed on
the market. The manufacturer is no longer obliged to provide replacement parts or accessories.
The General Terms and Conditions for Deliveries and Services as well as the guarantee and warranty provisions of
Schupp GmbH & Co. KG [current version at: www.schupp.shop] shall apply.
The therapy couch may only be repaired or modified by the manufacturer or by a person or company authorised by the
manufacturer! Otherwise the warranty claim will expire!
5.0 Disclaimer
We expressly draw your attention to the fact that no liability is accepted for personal injury and/or damage to property
caused by failure to observe the instructions for use, by incorrect or negligent operation, maintenance, servicing and
repair or by improper use of the therapy couch or its accessories, or by exceeding the performance limits of the couch.
This also applies to the effects of foreign bodies, modifications, additions and conversions to the table which impair or
could impair safety.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
9
RUBIN
FUNCTION
6.0 Function and operation
6.1 Set-up and installation
Place the therapy couch at the desired treatment location and remove the protective foil from the couch. Do not use a
cutter, knife or similar pointed tools for this. The upholstery could be damaged.
The packaging is made of environmentally friendly and recyclable materials and can be disposed of properly at a
collection point. Also note when setting up:
Carry the couch only by the lower metal frame, under no circumstances use the railing / all-round switch bar, head
section or arm sections as a carrying handle!
Remove the transport securing strap under the head section and in the frame before commissioning!
Couch can be positioned in the room via activated wheel frame! Then retract the wheels again. The couch must
stand firmly on the floor for use!
Note the width of the couch - Do not push the couch against a door frame! Upholstery can burst open!
The stability in case of small unevenness in the floor can be
improved by unscrewing the level adjustment at the feet of
the couch frame.
In the case of an energetically operated therapy couch, it should be positioned near a power socket!
Lay the mains cable in such a way that there is no danger, use cable bridges if necessary!
Check whether the operating voltage of the therapy couch (label) corresponds to the mains voltage!
The therapy couch is immediately ready for operation after connection to the mains voltage.
6.2 Height adjustment with lifting cylinder
The height is adjusted by means of a lifting cylinder via a foot pedal on both sides of the couch.
To raise or lower the lying surface, press the foot pedal
down or up and then release the pedal.
Repeat this until the lying surface is in the position you
desire.
In the upper end position, the pedal can be depressed freely.
Damage to the lifting cylinder cannot occur. In the lower end
position, the movement stops automatically.
►Please inform patient beforehand and secure against slipping if necessary!
►The patient must always keep his limbs on the upholstered surfaces of the couch!
►Moving parts - Do not use the pedals of the lifting cylinder as a step or climbing aid!
Warning.
►The adjustment of the lying surface can and may be carried out under load!
When lowering the pad (without patient) from the highest position, additional pressure can initially be applied to
the pad with the hand in order to initiate the lowering process more quickly!

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
10
RUBIN
FUNCTION
6.3 Height adjustment with electric motor
The adjustment of the height by means of an electric motor is carried out by a hand switch, foot switch or a
railing/round switch on all sides of the couch.
HAND & FOOT SWITCH
The electric height adjustment is operated by a double-
pressure actuation of the hand switch (release coding) or
the foot switch in order to prevent an unintentional or
unauthorized adjustment.
To adjust the height, the same direction button on the
handset or foot switch must be pressed twice in quick
succession. The drive is already enabled with the second
actuation.
Now the lying surface can be raised or lowered. With
Lying surface moves upwards
Lying surface moves downwards
the drive moves in the desired direction as long as the
switch remains pressed. Releasing the button immediately
interrupts the adjustment process.
Manual switch
Foot switch
Foot switch fixed
Once the height adjustment has been completed, within
3 seconds, before the couch switches off automatically.
If the interruption is greater than 3 seconds, you must
execute the double-pressure release again. For switching
diagram, see technical data.
The times are permanently coded in the drive and cannot be
changed.
The therapy couch must not be operated by unauthorised persons when unattended!
Children must always be supervised and are not allowed in the area of the therapy couch!
►Cleaning and care personnel must always be instructed in occupational safety.
DANGER!
►Moving parts - keep your distance when adjusting the position!
►Always detach the hand control from the frame to adjust the couch!
Warning.
►When adjusting, make sure that the cable of the hand switch, foot switch cannot be crushed or otherwise
damaged!
►Make sure that no one gets trapped between the arm section, head section and floor when the therapy
couch is at a low height.
►Accidental, single or permanent actuation by a weight of an object or a person does not lead to lowering of
the frame.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
11
RUBIN
FUNCTION
ALL-ROUND SWITCH BRACKET, RAILING
The electrical height adjustment is also operated by a
double-pressure actuation of the rotary switch bracket or the
rail switch (release coding) in order to prevent unintentional
or unauthorised adjustment.
To adjust the height, the railing must be actuated twice in
quick succession in the same direction. After the second
actuation, the drive is released.
Now the lying surface can be raised or lowered. With
*Press down with the foot: Lying surface moves
upwards
*Lift the railing with your foot - lying surface
moves downwards
the drive moves in the desired direction as long as the railing
switch remains pressed. Releasing the button immediately
interrupts the adjustment process.
If the height adjustment is finished, a correction can be
made within 3 seconds before the couch switches off
automatically. If the interruption is longer than 3 seconds,
you have to execute the double-press release again. For
switching diagram see technical data.
The therapy couch must not be operated by unauthorised persons when unattended!
Children must always be supervised and are not allowed in the area of the therapy couch!
►Cleaning and care personnel must always be instructed in occupational safety.
DANGER!
►Moving parts - keep your distance when adjusting the position!
►Never use the all-round switch bracket or railing as a step or climbing aid!
Warning.
►Accidental, single or permanent actuation by a weight of an object or a person does not lead to lowering of
the frame.
►Make sure that no one gets trapped between the arm section, head section and floor when the therapy
couch is at a low height.
The lifting screw motor is designed for short-time operation. In case of strong and continuous overload, the
motor is automatically switched off by the integrated thermal fuse to prevent further damage. After approx. 20-
30 minutes the motor is ready for operation again!
When adjusting the lying surface with very heavy patients, the motor works more slowly than with light patients.
This condition is due to the design and does not represent faulty operation of the adjustment drive.
►Observe the maximum dynamic load capacity of the couch of:
200kg (131435)!
Sink
Lift

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
12
RUBIN
FUNCTION

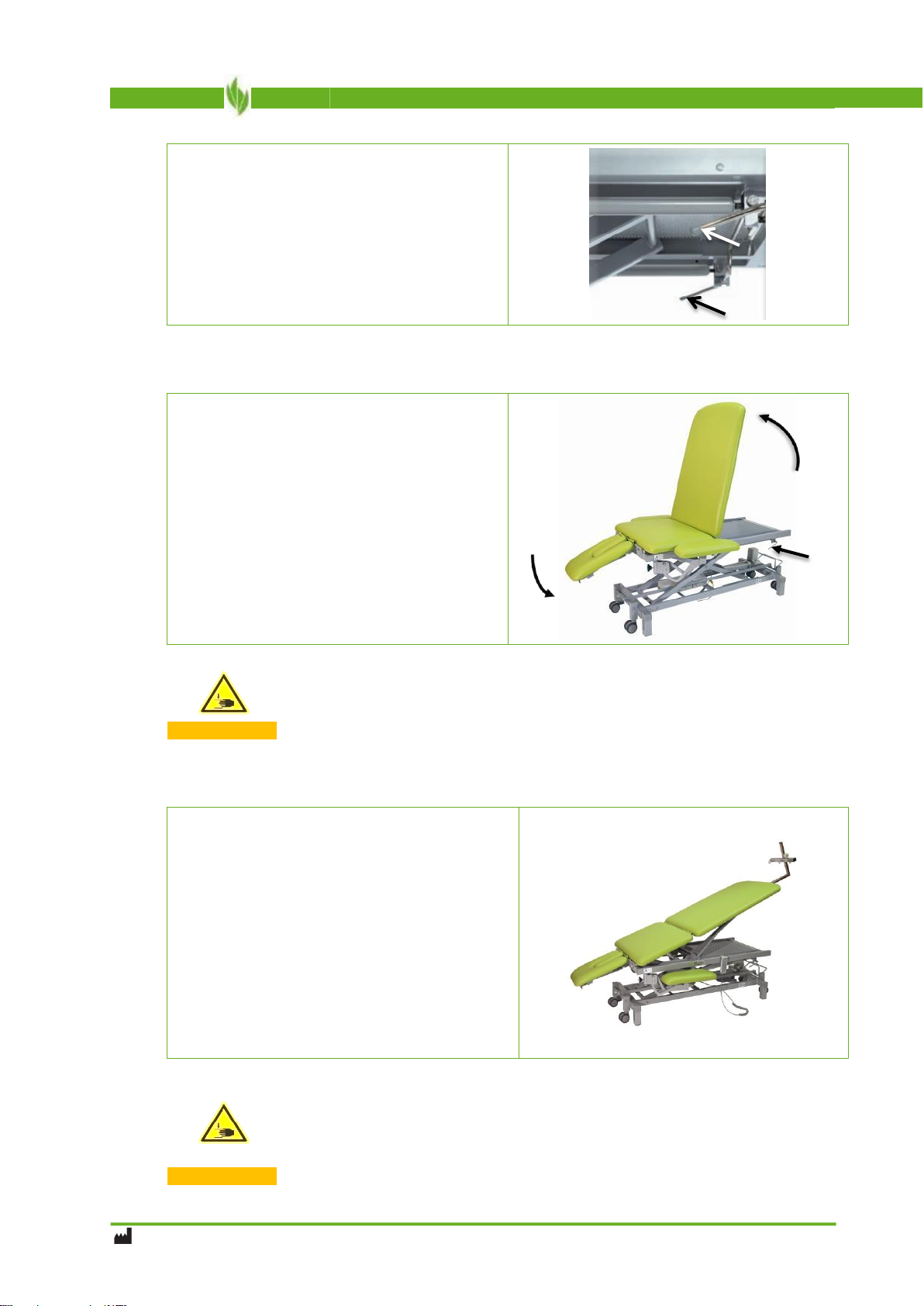

6.4 Adjustment of the headrest upholstery (1 & 3 parts)
You can raise or lower the headrest upholstery continuously
by pressing the operating lever under the headrest
upholstery in the direction of the upholstery surface and
simultaneously moving the headrest up and down.
After releasing the actuating lever, the gas pressure spring,
which is blocked in the direction of tension and compression,
holds the headrest cushion securely in its newly adjusted
position.
The nose slot insert can be inserted or removed depending
on the application.
►Moving parts - Do not press the operating lever of the head section upwards in an uncontrolled
manner!
Neither the therapist nor the patient may sit, kneel or stand on the head section of the couch!
►The head section may be loaded with a maximum of 30kg!
Warning.
6.5 Adjustment of the arm part upholstery (3 parts)
With the 3-piece headrest (optional), both armrests can be
adjusted completely independently of each other.
The respective arm sections can be swivelled sideways to
the body section with the holder (up to 180°).
In addition, the armrest upholstery is rotatably mounted on
the frame to ensure optimum contact with the body part
upholstery.
The star handle under the body part makes it easy to fix the
arm parts.
Make sure that all star knobs are tightened again after each
adjustment.
The armrest cushions can be lowered in 4 stages over a
range of up to 25 cm.
To adjust an armrest, lift the arm section at the front end and
at the same time push the arm section down at the rear end
to the desired position.
In the starting position, there must be a gap about the width
of your hand between the arm section pad and the body
section pad, otherwise turn the arm section pad to the
correct position.
To reset, simply pull the arm section upwards.
► Watch your hands when adjusting the armrest cushions!
Warning.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
13
RUBIN
FUNCTION
6.6 Adjustment of the roof / kyphosis - position
Press down the locking levers located on both sides next to
the upholstery center section with one hand and hold the
body section upholstery with the other hand.
The now unlocked gas pressure spring supports the
adjustment process of the cushion depending on the
patient's weight load. As a rule, the cushion must be pulled
up slightly with the second hand.
Release the locking lever as soon as the pads are in the
desired roof position. Lowering the upholstery parts is done
by simultaneously pressing the locking lever down and
pushing the body part upholstery down.
In the optional version with electric motor, the roof position is
realized with a hand switch or foot switch. The adjustment
takes place evenly and independently of the patient's weight.
The motor only works during permanent actuation of the
corresponding switch. In the end positions the movement
stops automatically.
► Watch out for hands and objects when adjusting the body part pads!
►Position adjustment - inform patient beforehand and secure against slipping if necessary!
Warning.
6.7 Adjustment of the footrest upholstery
The adjustment of the footrest cushion is carried out with
the support of two gas traction springs.
You can raise or lower the footrest cushion by pressing
down the operating lever under the footrest cushion and
simultaneously moving the footrest cushion up and down.
Release the operating lever as soon as the pad is in the
desired position.
The gas traction springs, which are blocked again in the
direction of pull and push, hold the footrest cushion
securely in its newly adjusted position.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
14
RUBIN
FUNCTION
The adjustment of the footrest is damped by means of the
gas traction springs in order to avoid sudden and rapid
movements of the cushion.
The extension force of the gas traction springs is
dimensioned for a loaded footrest cushion. To reset an
unloaded footrest, an increased amount of force is
required.
6.8 Setting as a chair
To adjust the couch as a chair, both the foot
section and the head section upholstery must
be set to the maximum deflection.
The operating lever on the side of the footrest
allows the footrest to be adjusted to a treatment
position of your choice.
The headrest is adjusted by releasing the
operating lever under the headrest cushion.
► Watch out for hands and objects when adjusting the body part pads!
Do not press the locking lever of the footrest upholstery upwards in an uncontrolled manner!
►Position adjustment - inform patient beforehand and secure against slipping if necessary!
►Do not load the foot section pad with the maximum patient weight!
Warning.
6.9 Adjustment of the Trendelenburg position
To adjust the Trendelenburg position, both the head and
body section and the foot section cushion must be brought
into deflection.
The headrest is adjusted by releasing the operating lever
under the headrest cushion.
The locking levers located on both sides next to the
upholstery centre section allow the body part upholstery to
be adjusted.
The operating lever on the side of the footrest allows the
footrest to be adjusted to the appropriate treatment position.
►Do not press the operating lever of the headrest cushion upwards in an uncontrolled manner!
►Do not press down the operating lever of the body part cushion in an uncontrolled manner!
► Watch out for hands and objects when adjusting the body part pads!
Do not press the operating lever of the footrest upholstery upwards in an uncontrolled manner!
►Position adjustment - inform patient beforehand and secure against slipping if necessary!
►Do not load the foot section pad with the maximum patient weight!
Warning.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
15
RUBIN
FUNCTION

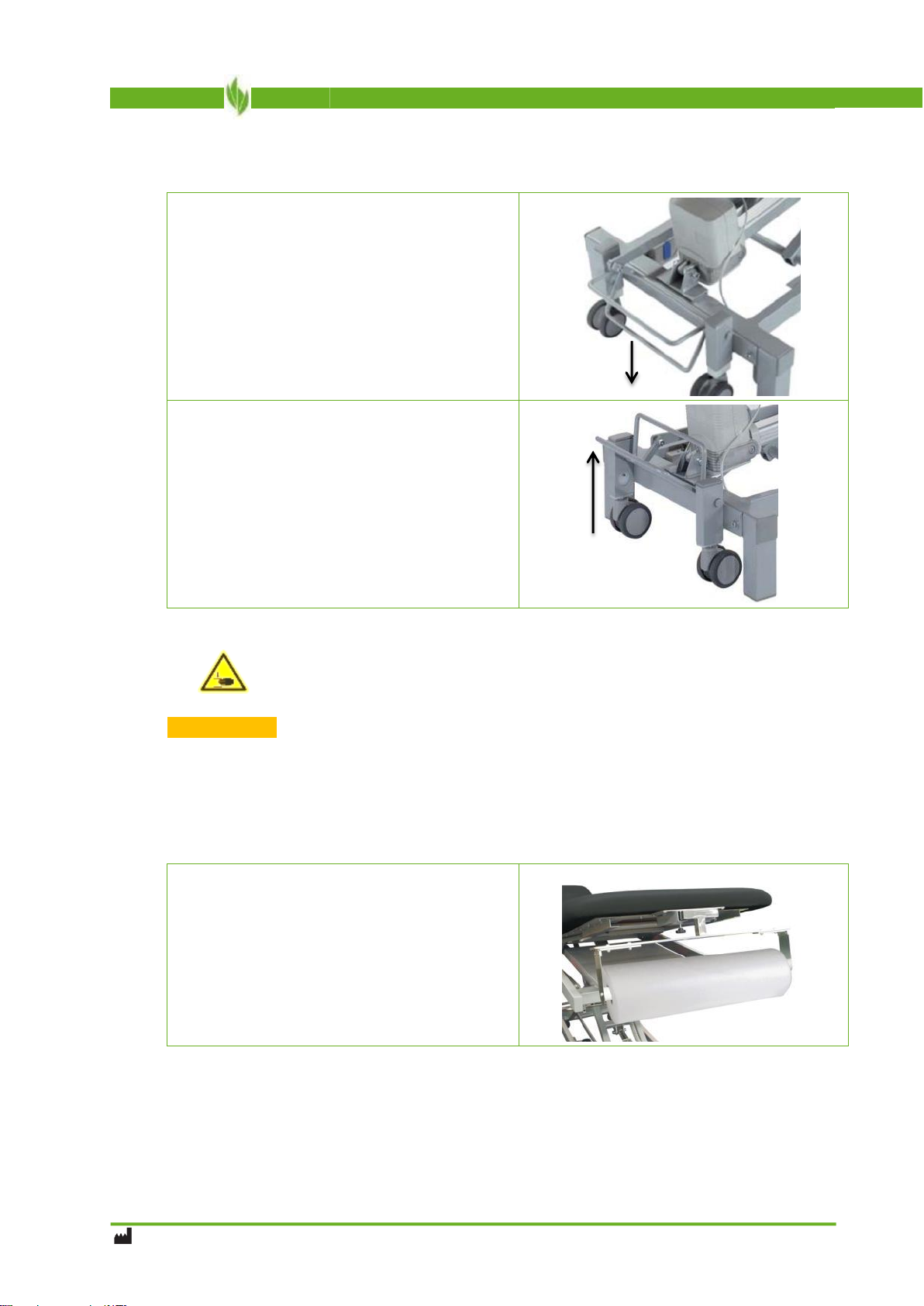

6.10 Wheeled frame
For better positioning during treatment, for easier relocation
in the practice or for cleaning and care, the couch can be
equipped with a cushioned wheel frame.
"Active" - wheels extended:
Push the operating pedal of the wheel frame on the head
and foot section side of the couch downwards with your foot
as far as it will go.
The couch is lifted at the head and foot end and can now be
moved in any direction with the castors.
"Inactive" - wheels retracted:
Pull up the operating pedal of the wheel frame on the head
and foot section side of the couch with your foot.
The couch is lowered onto the feet and now stands firmly on
the ground again.
The wheel frame is designed for moving the stretcher without a patient (overload)!
►For stability, treatments must only be carried out with the wheel frame inactive!
Never extend or retract the wheel frame while a patient is on the stretcher!
►The shock generated during lowering can cause pain and injury in sensitive patients (e.g. with
spinal disease)!
►Only operate the gearshift pedals with your feet, there is a risk of crushing if you operate them with
your hands!
Warning.
6.11 Paper roll holder
The therapy couch can be equipped with the option "paper roll holder". The paper roll holder is mounted under the
upholstery or on the frame on the narrow side of the foot section. The holder can accommodate paper rolls with a width
of up to 59cm.
Place the paper roll on the spigot of a holder.
With the other hand, pull the opposite bracket outward.
Place the paper roll on the spigot of this holder from below.
Release the holder.
For optimal adjustment of the paper roll holder to the roll
width, the fastening screws can be loosened.
active
inactive

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
16
RUBIN
EQUIPMENT
6.12 Equipment, optional assemblies
Type of couch
RUBIN
Art no:
131435
Medical device
●
Integrated safety [IS], enable coding of the
drive
●
Foot switch
○
Foot switch, fixed
○
Manual switch
●
All around switch bracket, railing
○
Height adjustment, hydraulic, two-sided
operation
●
Height adjustment, electric, 8000N
○
Height adjustment, electric, 10000N, extra
fast
○
Wheel frame, with antistatic castors, ball
bearing guided
○
Special frame, colour
○
Load capacity 150kg
Load capacity 200kg
●
Load capacity 250kg
Cushion
Pad width 65 cm
●
Pad width 80 cm
○
imitation leather, 6cm, durable composite
structure
●
imitation leather, 8cm, Comfort de Luxe
padding, extra soft
○
Head section incl. nose slot adjustable with
GDF, +30° / -55°.
●
Head section 3 tgl. incl. nose slit adjustable
with GDF, +30° / -55°, arm sections can be
lowered up to 25cm and swivelled 180
○
Nose slit insert
●
Headboard Pro Comfort, one-piece with 3
different inserts. Inserts
Lying surface 2 parts
Lying surface 4 parts
Lying surface 3 parts, head part, foot part
adjustable with GDF, +75
Lying surface 5 parts, head section, foot
section adjustable with GDF, +75°.
Lying surface 5 parts, head part, foot part
adjustable with GDF, +75°, roof kyphosis
with GDF
●
Lying surface widening due to swivelling
armrest upholstery
○
Upholstery colours
37
Special upholstery, motif, embroidery
○
Paper roll holder
○
Lounger protective cover 600x400
○
● Standard equipment
○ optional

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
17
RUBIN
MAINTENANCE & CARE
6.13 Accessories
Type of couch
Art no:
RUBIN
Art no:
131435
Manual switch H
448582
●
Foot switch H
448583
●
Gas pressure spring
head section
402099
●
Gas pressure spring
footrest
435699
●
Kyphosis gas strut
401799
Mains cable PVC
Hanning
448584
●
Protective cover
600x400
190999
●
Accessories for couch type
7.0 Spare and wear parts
Repairs must not impair the safety of the couch. Therefore, they may only be carried out by the manufacturer or
persons authorized for this purpose. Only original spare parts from the manufacturer may be used for repairs.
If you notice any defects or wear on your therapy couch, please inform us using the contact details provided (see last
page). This also applies to type plates and labels.
When contacting us, always state the couch type, the article number and the serial number. This data can be found on
the type plate on the frame of the foot section end of the couch (see chapter 10).
Our service staff will be happy to assist you in defining the fault and in selecting the correct spare and wear parts such
as: Arm, foot, head or body pads, swivel castors, foot plugs, arm section guides as well as operating parts for the
electric height adjustment.
8.0 Service life, maintenance and care
The therapy couch you have purchased is designed for an extremely long service life. The limiting factor here is the
drive, which is designed for a lifetime of max. 10 years or 100000 cycles. After this time, depending on the condition of
the table, the drive can be replaced by our service department, provided regular inspection and maintenance.
8.1 Maintenance
In order to ensure the safety of the patient and user and to protect the therapy couch from damage, expert use and
regular maintenance in accordance with DIN 31051 are required. We recommend that you have the table serviced
every 1-2 years by professionally trained Schupp employees or by authorised specialist dealers. Within the scope of
the maintenance, all prescribed safety checks are carried out in accordance with current safety regulations:
►Testing of medical technology according to DIN EN 62353 (VDE 0751-1), annually and in case of
changes
►BetriebSichV (Ordinance on Industrial Safety and Health)
►MPBetreibV (Medical Devices Operator Ordinance)
DGUV (German Social Accident Insurance); Regulation 3 (formerly BGV A3)
carried out.
►Electrical voltage - keep your distance!
►Before carrying out any maintenance work, disconnect the recliners with electric motor from the
power supply by removing the mains plug of the motor connection cable from the mains socket!
Warning.

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
18
RUBIN
MAINTENANCE & CARE
8.2 Personal precautions
To maintain functionality and comfort, it is recommended to check the therapy couch regularly by visual inspection (at
least 4 times per year). You can take some precautions yourself to prolong the life of the couch. These are:
Guides and joints
The therapy couch you have purchased is designed for an extremely long service life. The guides
and joints are therefore low-maintenance. If the height adjustment is not used for a longer period of
time or after very intensive use, the proper function should be checked regularly. If necessary, the
joints can be lightly re-oiled with a fine-mechanical oil. Also visually check the screw connections,
weld seams, locking pins and bolts for completeness and mechanical integrity.
Couch drive
The electric motor is maintenance-free and does not need to be oiled or greased. The piston rod of
the drive should be regularly cleaned of dust with a soft cloth.
If the electric motor / therapy couch is not used for a longer period of time, it should be
disconnected from the mains supply.
Power cable
Check the power cord regularly. If it is damaged, it must be replaced immediately. Please contact
the Schupp service department for this purpose.
Wheeled frame
To ensure smooth running of the wheel frame or wheels, the axles of the wheels can be lightly re-
oiled with a fine mechanical oil if necessary.
►Electrical voltage - keep your distance!
►Before carrying out any maintenance work, disconnect the recliners with electric motor from the
power supply by removing the mains plug of the motor connection cable from the mains socket!
Make sure that no water or moisture gets into the plugs or plug connections during cleaning.
Warning.
►Regular inspection/maintenance and compliance with technical tests do not relieve the user of his
responsibility for the safety of the patient and the proper functioning of his treatment systems!
Heads up!
No tools are to be used during the visual inspection. In case of any abnormalities, inform the service
department immediately!

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
19
RUBIN
MAINTENANCE & CARE
8.3 Care and cleaning
The upholstery of the therapy couch must be treated very gently despite the highest leather quality. The surfaces
should be cleaned or disinfected after each treatment.
In case of light soiling, clean the upholstery immediately with a soft cloth, a household sponge or a soft household
brush in combination with lukewarm soapy water. The use of a commercially available microfibre cloth is particularly
recommended.
Soap suds can be used in concentrated form for heavy soiling. Repeat brushing if necessary. After cleaning, wipe with
clean water until there is no more cleaner on the leatherette.
Moisture residues must be dried off with a soft cloth!
To avoid stains penetrating the material, they should be removed immediately. The use of abrasive cleaning agents
(scouring agents) or solvents (nitro, acetone, etc.) leads to damage and, after a short time, to brittleness and
discoloration of the artificial leather surface.
► The upholstery must not be cleaned with alcoholic or chemical solvents such as thinner, petrol or
similar!
► Do not use chlorides, synthetic detergents, wax polishes or aerosol sprays for cleaning.
Warning.
Always disconnect the mains plug before cleaning!
►Electrical voltage - never clean the therapy couch with water jets!
Warning.
Cleaning and disinfection of the couch, including the upholstery, may only be carried out with a
suitable and approved disinfectant cleaner.
Discoloration - The manufacturer is not responsible for material discoloration of the synthetic
leather due to contact with denim or other textiles.
8.4 Surface disinfection
The cleaning and disinfection of the couch, including the upholstery, may only be carried out with suitable disinfectant
cleaners (observe application concentration!).
The currently released disinfectants / disinfectant cleaners vary depending on the manufacturer and leather type. Our
sales and/or service staff can provide you with the latest release documents if required. You can also call up the
current status online:
[Plata, Pandoria Plus]
[AKV_Amalfi]

220822 SCHUPP GmbH & Co KG
72280 Dornstetten-Aach | Glattal Straße 78 | T: +49 (0) 7443/243-0 | F: +49 (0) 7443/243-255 | [e-mail] | www.schupp.shop
20
RUBIN
TROUBLESHOOTING
9.0 Assistance in case of malfunctions
Symptoms
Possible causes
Measures
Pads cannot be aligned
mechanically
If the couch has not been used
for a longer period of time, the
supporting gas pressure springs
can become stiff.
Gas strut defective.
In this case, the lever of the gas pressure spring
must be pulled completely upwards. With the
other hand, move the lying surface completely
up and down several times.
Exchange gas strut
No function of the couch drive
Motor is not connected to the
power supply
Fuse is defective
Cables are damaged
Check that the couch is properly connected to a
230V socket and that this socket is live.
Check the fuse in the house distribution box.
Check the power cable for damage.
Check supply line of hand or foot switch for
damage. Check whether the connecting cables
of the switching elements are correctly plugged
into the motor.
Engine noise
Contact the Schupp service department (see last
page).
No or limited function Hand or
foot switch
Wear
Pollution
Switching elements defective
Exchange hand / foot switch
Unplug the hand or foot switch from the motor.
Remove screws from cable cover,
Plug the of the new switching element back onto
the switch connector:
Replace cap and screws to secure.
