schwa-medico EMP 4 Expert User manual

EMP 4 Expert
Four-channel transcutaneous muscle stimulator
Art. No. 104004
Operating Instructions Art. No. 100866-V01

Intended use  3
Important safety instructions                         3
Device description 4
Explanation of symbols  4
Specifications 5
Operation 6
Operation modes 8
Parameter  8
Biofeedback13
Programmes16
Rechargeable battery21
Readjustments, alterations and repairs                  22
Guarantee22
Cleaning and care of the device                       22
Classification 22
Technical checks 22
Combination23
Scope of supply23
Accessories24
Contents
  Operating Instructions EMP 4 Expert

  Operating Instructions EMP 4 Expert
1.Intendeduse
The EMP4Expert device was designed for transcutaneous muscle
and nerve electrostimulation Please do not use this device for any
other purpose
.Importantsafetyinstructions
Please read the Operating Instructions carefully before using the
device!
Toensuresafeuseofthedevice
• Only use the EMP4Expert with original accessories
• Keep the EMP4Expert away from water or other fluids
• Do not drop the EMP4Expert, handle it incorrectly or expose it
to extreme temperatures or high humidity (only use at tempera-
tures between 10 °C and 40 °C and at a relative humidity below
90 %)
• Never use the EMP4Expert when it is not functioning properly
or when it is damaged in any way
• Store the EMP 4 Expert in its original packaging after use to
protect it from damage and contamination
Precautions
Patients with an implanted electronic device (e g pacemaker)
should not undergo electrotherapy with the EMP4Expert before
consulting a doctor The EMP4Expert may only be connected to
one person at a time
Warning!
Connecting the patient at the same time to a high-frequency surgi-
cal unit may cause burns under the electrodes
Operation near (e g 1 m from) a short wave or microwave device
may cause fluctuations in the baseline values of the electrotherapy
device
The minimum area of the electrodes should not be less than 2 cm2

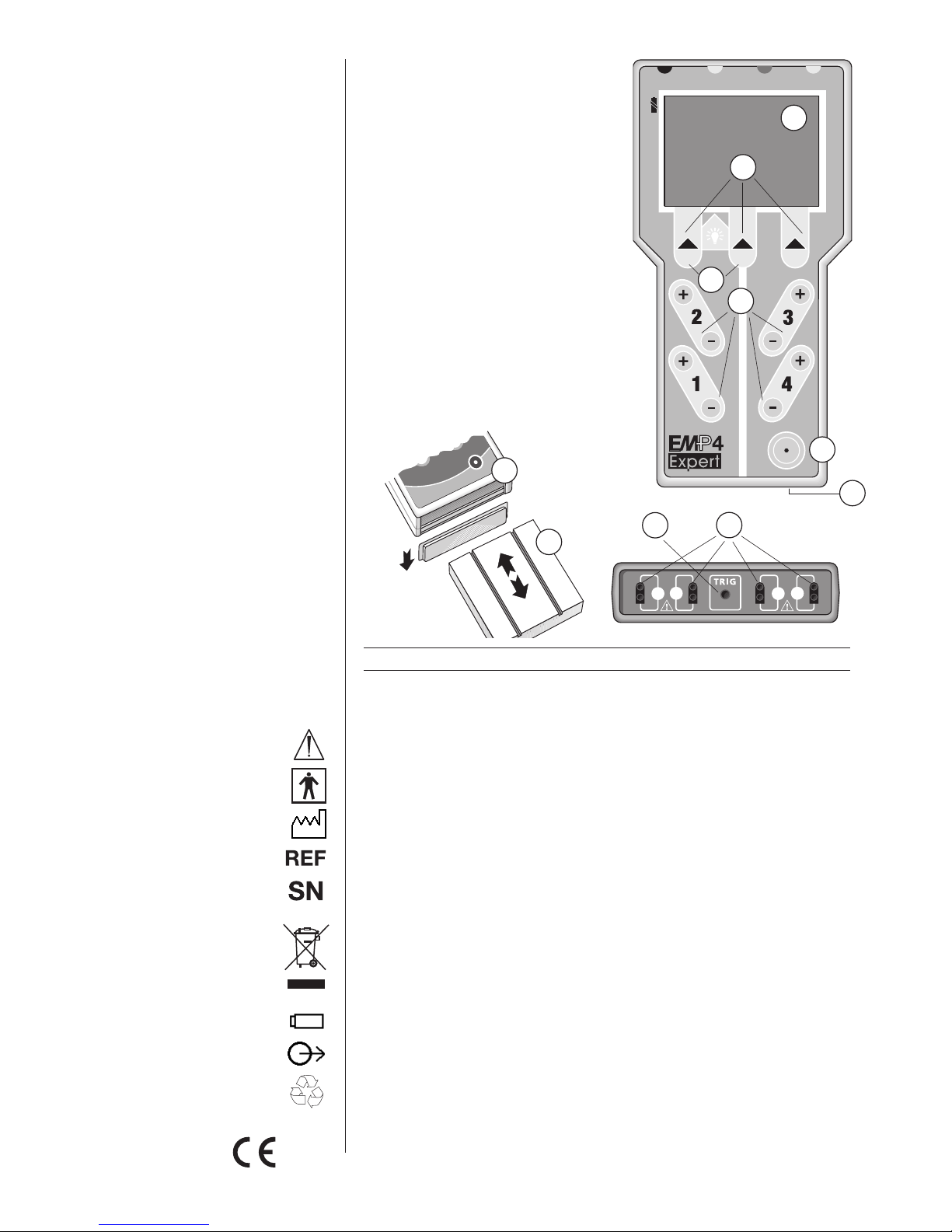

.Devicedescription
1 Display
2 Menu keys
3 Modification keys
4 Illumination (the instrument
panel lighting is switched on
or off by pressing both keys at
the same time)
5 On/Off key
6 Battery compartment
7 Rechargeable battery
8 Out hubs
9 Connection for EasyTrain MYO
4.Explanationofsymbols
Attention: Read Operating Instructions!
BF type application part Protection against electric shock
The year of construction of the product follows this symbol
The article or order number of the product follows this symbol
The serial number of the product follows this symbol
This equipment is marked with the recycling symbol It means that at the
end of the life of the equipment you must dispose of it separately at an
appropriate collection point and not place it in the normal domestic waste
stream This will benefit the environment for all
The technical data of the internal accumulator follow this symbol
The maximum output parameters of the product follow this symbol
The product contains a NiMH accumulator This accumulator ist reusable
Please observe the regulations for reuse
Conform with Council Directive 93/42/EEC of 14 June 1993 concerning
medical devices
 4 Operating Instructions EMP 4 Expert
1
432
1
6
4
2
3
ab
0197
NiMH
5
6
78
9

  Operating Instructions EMP 4 Expert
Biphasic,symmetrical
withoutpausewith
outputshortcircuit
controlelement
Biphasic,asymmetrical
withoutputshortcircuit
controlelement
Biphasic,symmetrical
withpausewithout
outputshortcircuit
controlelement
Changeinoutputcurrent
dependingonload
.Specifications
Four-channel muscle stimulator with electrically insulated channels,
constant current characteristic, output short circuit control element
(AKS) and 30 integrated programmes
Output current ± 100 mA (with 1kΩ real)
Frequencies 1-120 Hz
Pulse width 50-500 µs (positive pulse)
Current consumption 50 mA
Current supply 96 V NiMH rechargeable battery
External knob system External knob in operation mode BFB
(25 mm jack hub dual plug)
Dimensions approx 175 mm x 90 mm x 30 mm
Weight approx 280 g without accessories

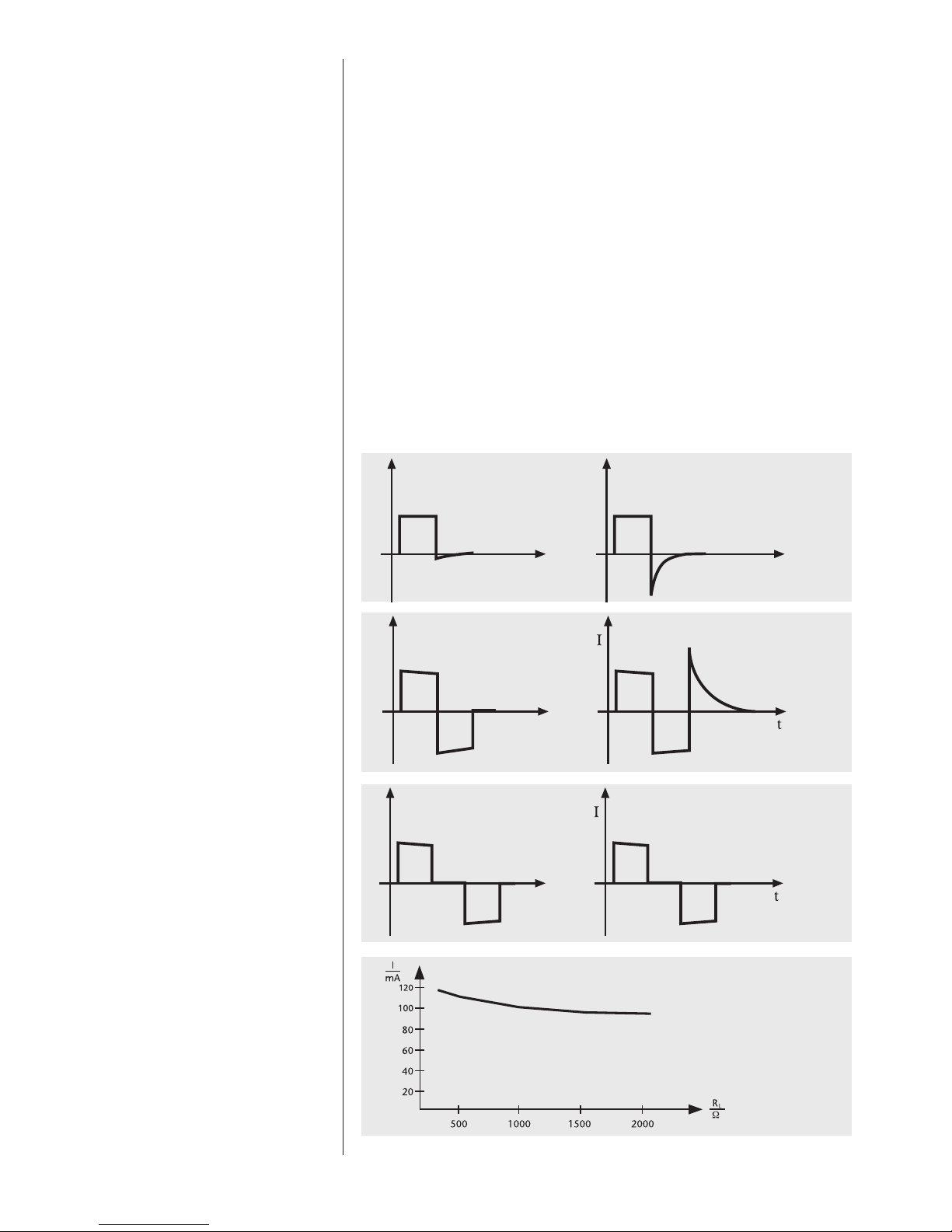

Pulseforms
U
t
U
t
I
t
U
t
with1kΩloadreal withANSI00
U
t
U
t
I
t
U
t
with1kΩloadreal withANSI00
U
t
U
t
I
t
U
t
with1kΩloadreal withANSI00

6.Operation
6.1OperatingtheEMP4Expert
Insert the rechargeable battery into the battery compartment be-
fore starting the device To do this, remove the cover of the battery
compartment Insert the rechargeable battery into the battery
compartment with the metal contacts facing the device and the
guide grooves facing upwards To close the battery compartment,
put the cover back into place
Caution: Rechargeable battery only pre-charged. Charge before
usingforthefirsttime.

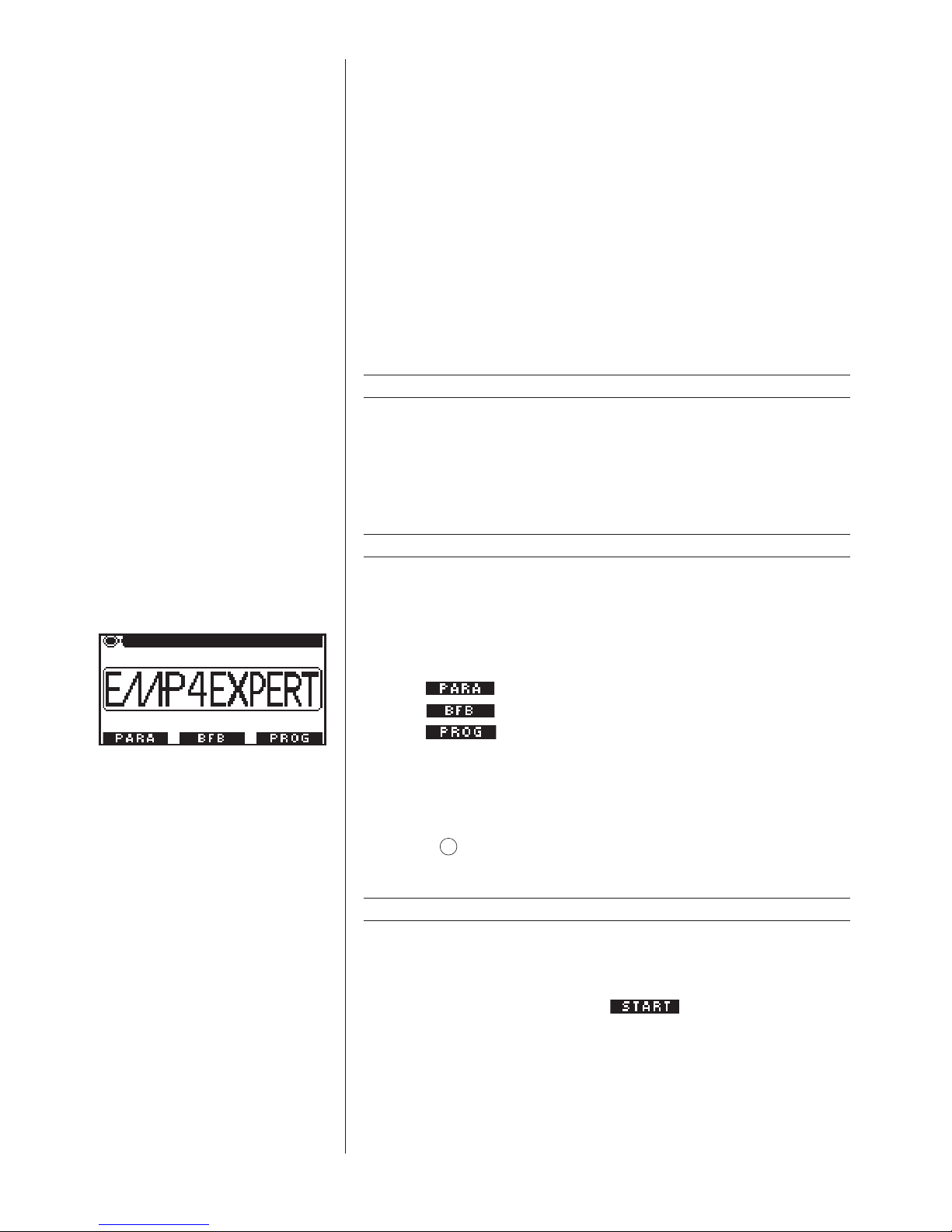

6.Switchingonthedevice
Switch on the device by pressing the on/off key once The opening
screen appears on the display
6.Selectinganoperationmode(openingscreen)
The opening screen appears after switching on the device
Use the menu keys to select the desired operation mode
Use the key to select the operation mode PARAMETER
Use the key to select the operation mode BIOFEEDBACK
Use the key to select the operation mode PROGRAMME
The operation modes are described detailed in chapter 7 „Operation
modes“
Use the 4 key to display current settings and to change them if
necessary
6.4Startingstimulation
Start stimulation by pressing the key Use the modifica-
tion keys to set intensity to a pleasant value
 6 Operating Instructions EMP 4 Expert
-

  Operating Instructions EMP 4 Expert
6.Stoppingstimulation
Stimulation may be stopped at any time in two different ways:
Use the key to stop stimulation
The on/off key switches off the appliance and stops stimulation
6.6Settings
Different screen languages and the display’s contrast may be set
Use the key to return to the previous setting The
current settings will be saved
Use the key to select the language
Use the key to set the display’s contrast
6.Switchingoffthedevice
Pressing the on/off key will switch off the device
The EMP4Expert will switch itself off when no key is pressed for 3
minutes or when stimulation is not started
SETUP
ENGLISH

.Operationmodes
Description of the 3 operation modes:
•Parameter
•Biofeedback
•Programme
.1Parameter
All parameters may be individually set in this mode and, if necessa-
ry, saved at four different addresses

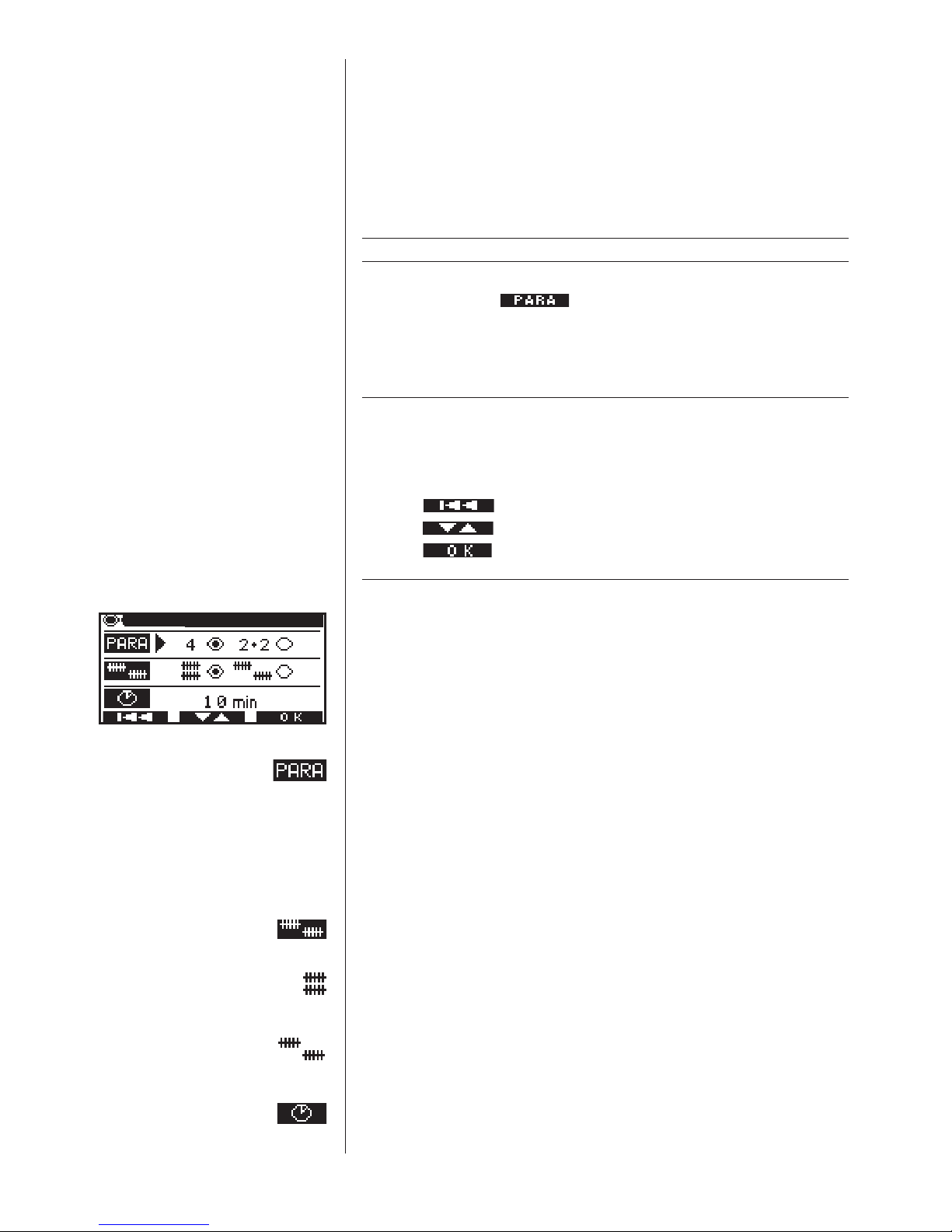

.1.1Settingthestimulationparameters
On the next screen, the parameters may be altered within their
respective limits by using the modification keys
Use the key to return to the previous setting
Use the key to select the next parameter
Use the key to go to the next screen

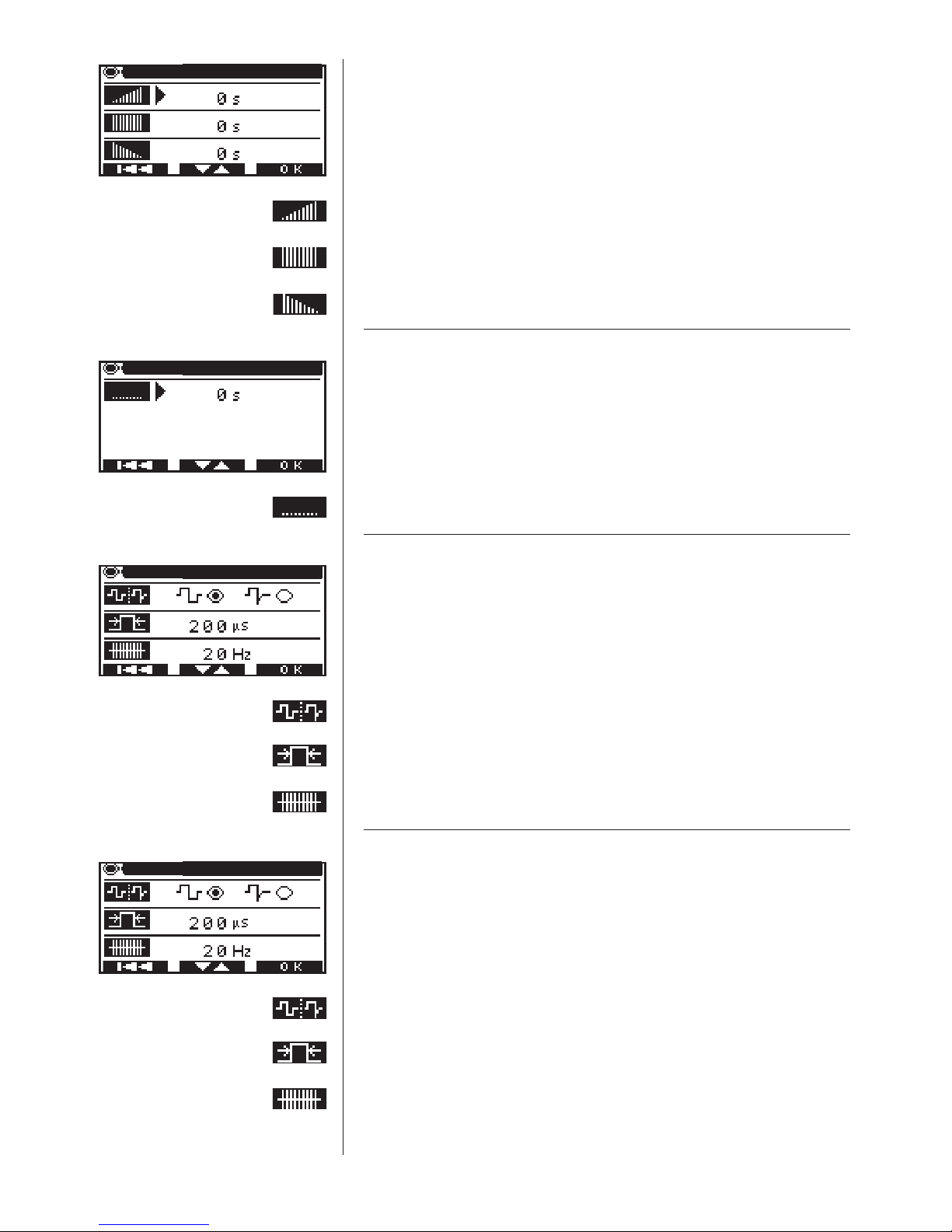

Generalparameter1
The parameters indicated here apply to all 4 channels The values
may be changed by using the modification keys
Stimulationmode
Intensity modulation in all 4 channels
Intensity modulation in channels 1 and 2
Continuous modulation in channels 3 and 4
Agonist/Antagonist
Standard stimulation
All 4 channels work simultaneously
Agonist/Antagonist stimulation
Channels 1 and 2 switch with channels 3 and 4
Timer (0 = no treatment time)
4
+
  Operating Instructions EMP 4 Expert
GENERAL

  Operating Instructions EMP 4 Expert

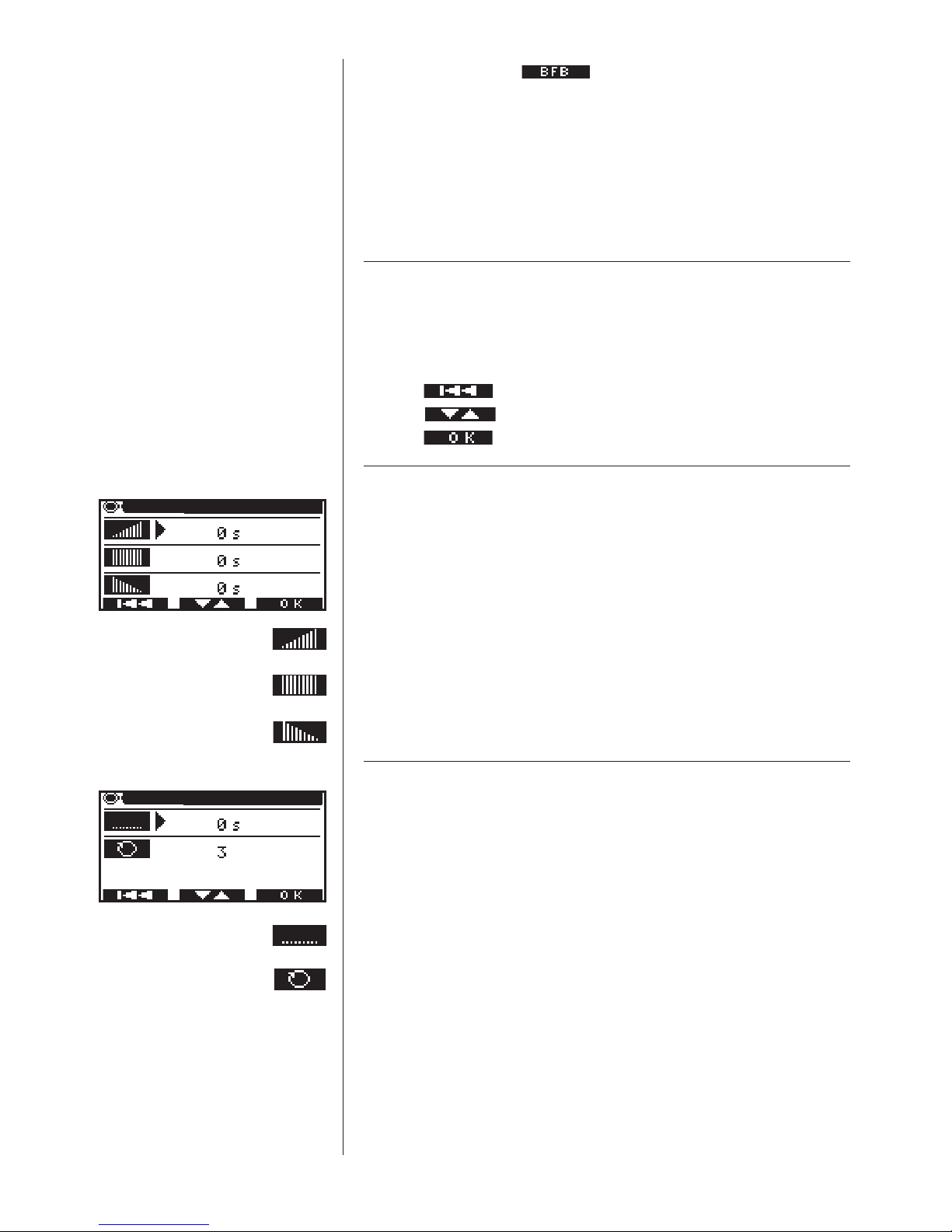

Generalparameter
The parameters indicated here apply to all 4 channels The values
could be changed by using the modification keys
Increasing ramp
Work
Decreasing ramp
Generalparameter
The parameters indicated here apply to all 4 channels The values
could be changed by using the modification keys
Pause

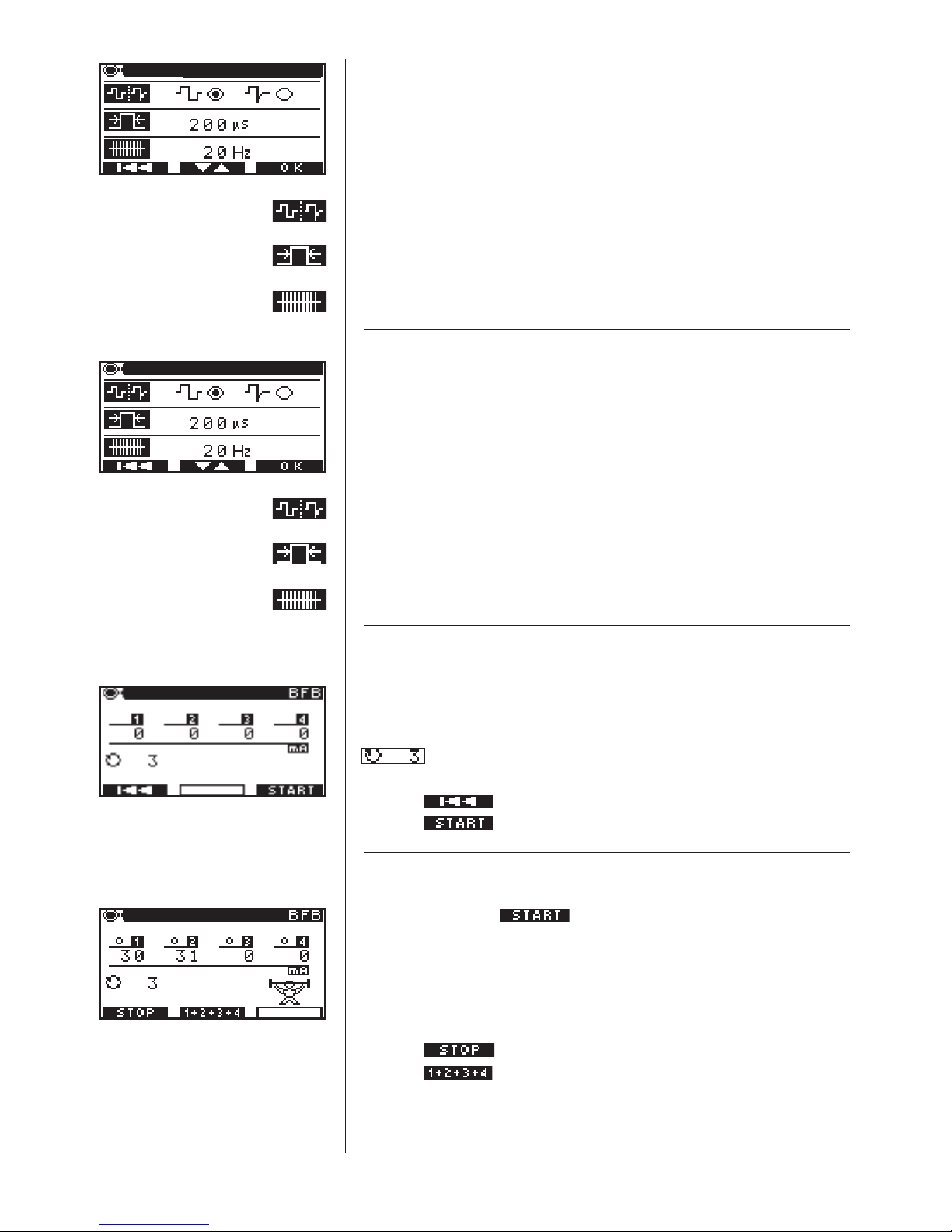

Specialparameterchannels1+
The parameters indicated here apply to channels 1 and 2 only The
values could be changed by using the modification keys
Pulse form channels 1 and 2
Pulse width channels 1 and 2
Frequency channels 1 and 2
Specialparameterchannels+4
The parameters indicated here apply to channels 3 and 4 only The
values could be changed by using the modification keys
Pulse form channels 3 and 4
Pulse width channels 3 and 4
Frequency channels 3 and 4
GENERAL
GENERAL
CHANNEL 1+2
CHANNEL 3+4

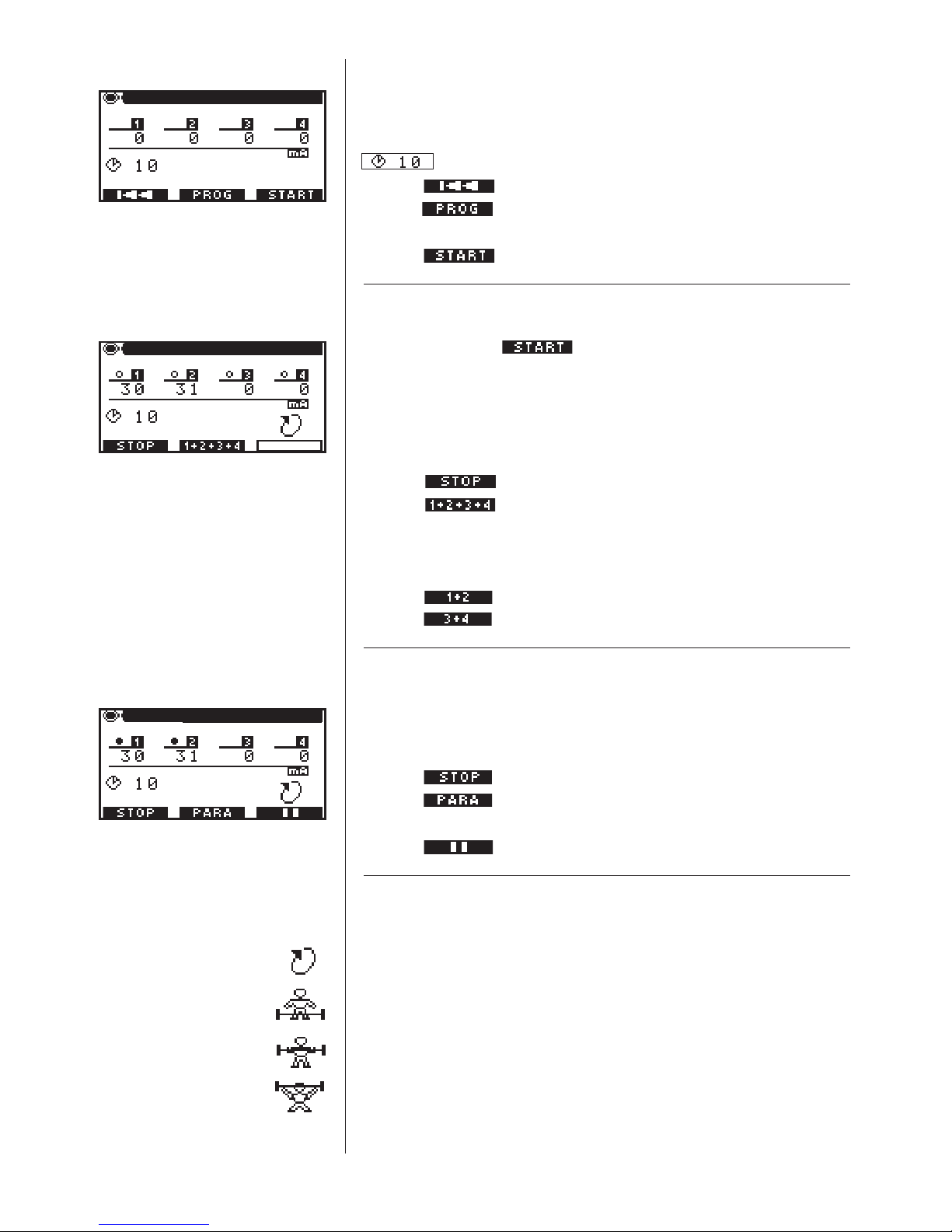

.1.Stimulationscreen
All necessary parameters are displayed on the stimulation screen
and stimulation may be started
shows the remaining duration of the stimulation
Use the key to return to the previous setting
Use the key to save the current parameter setting (please
refer to chapter 717)
Use the key to start stimulation
.1.Settingintensity
After pressing the key, intensity of all channels without
set intensity modulation (ramps), can be set with the modification
keys to a pleasant value
The flashing dot marks this setting mode
Use the key to stop stimulation
Use the key to increase intensity of all 4 channels simul-
taneously
Agonist/Antagonist stimulation:
Use the key to increase intensity of channels 1 and 2
Use the key to increase intensity of channels 3 and 4

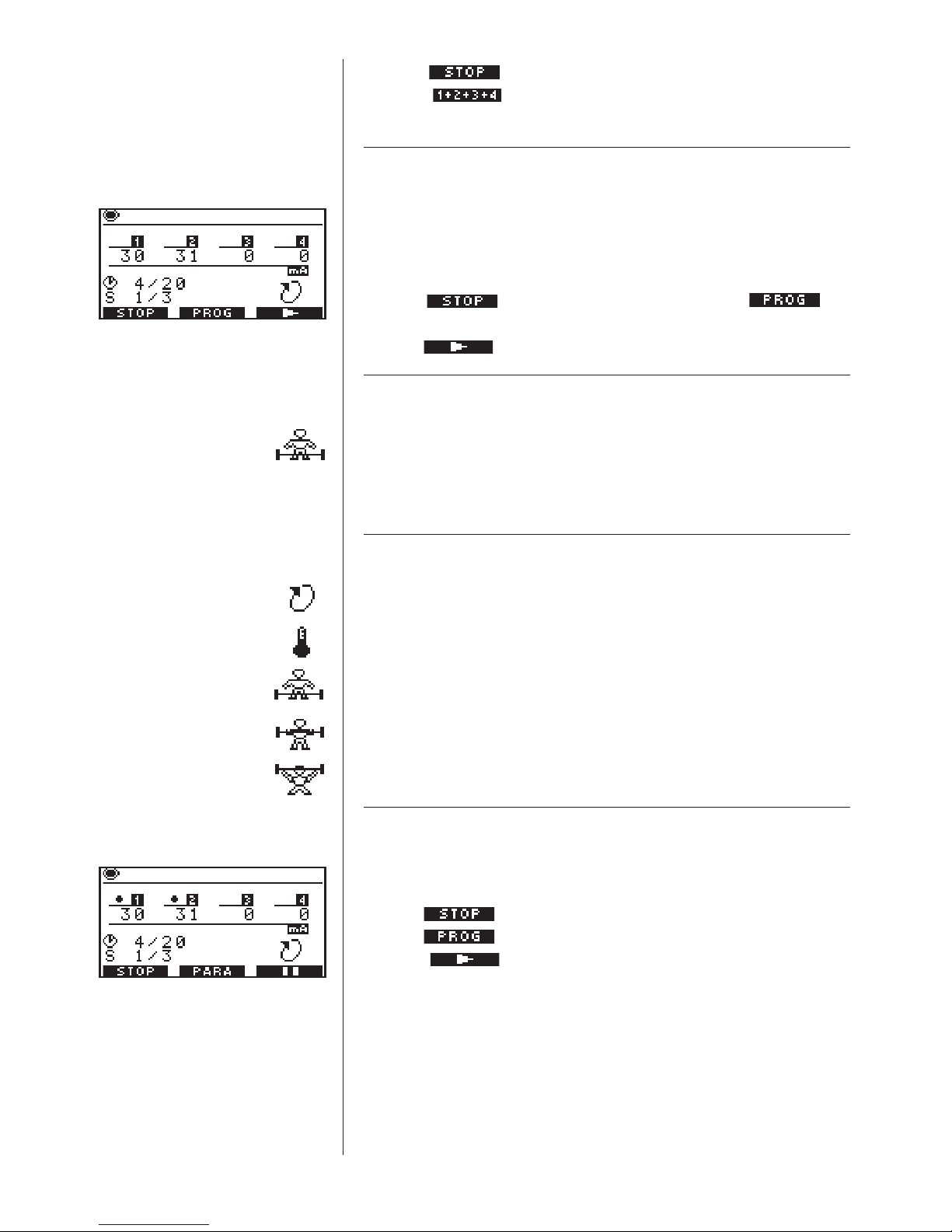

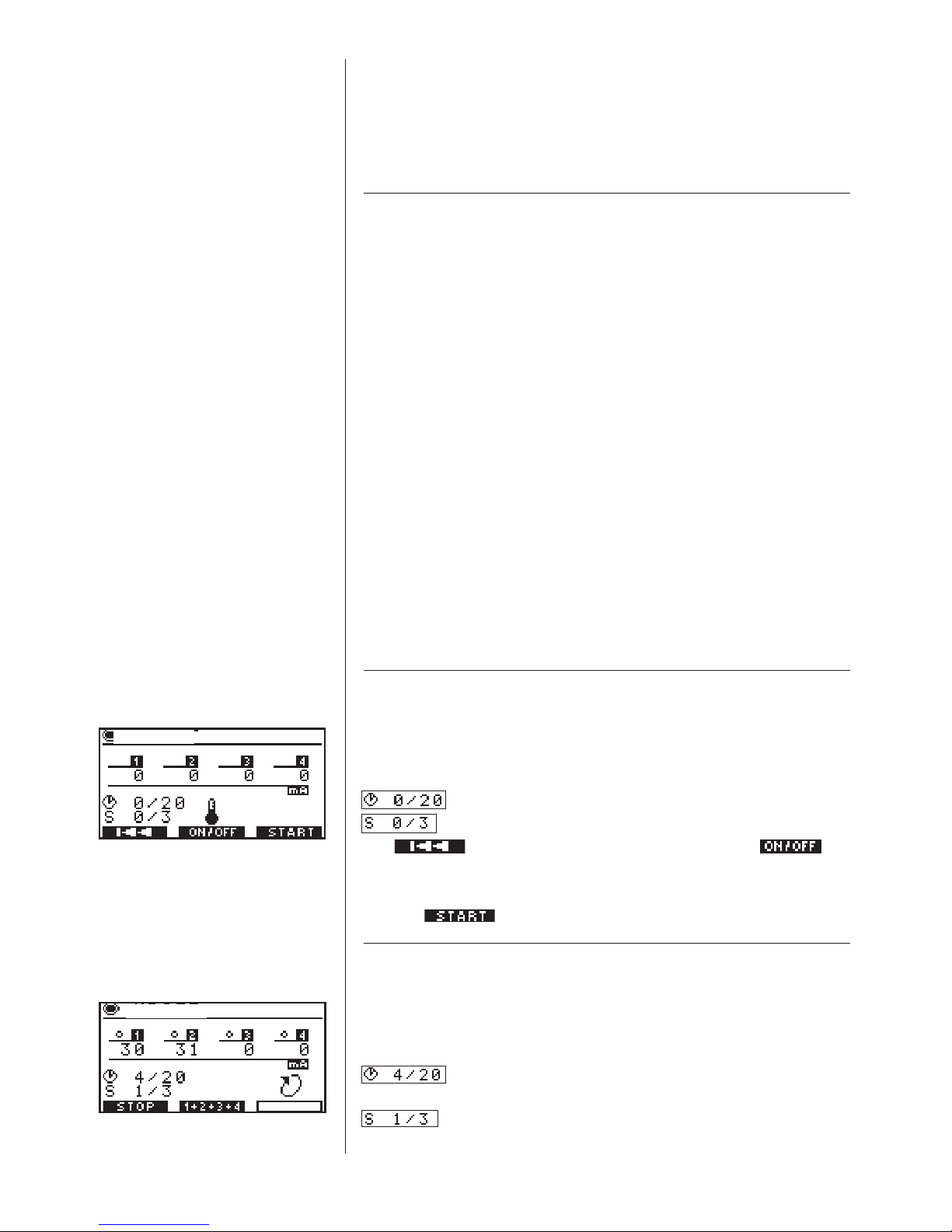

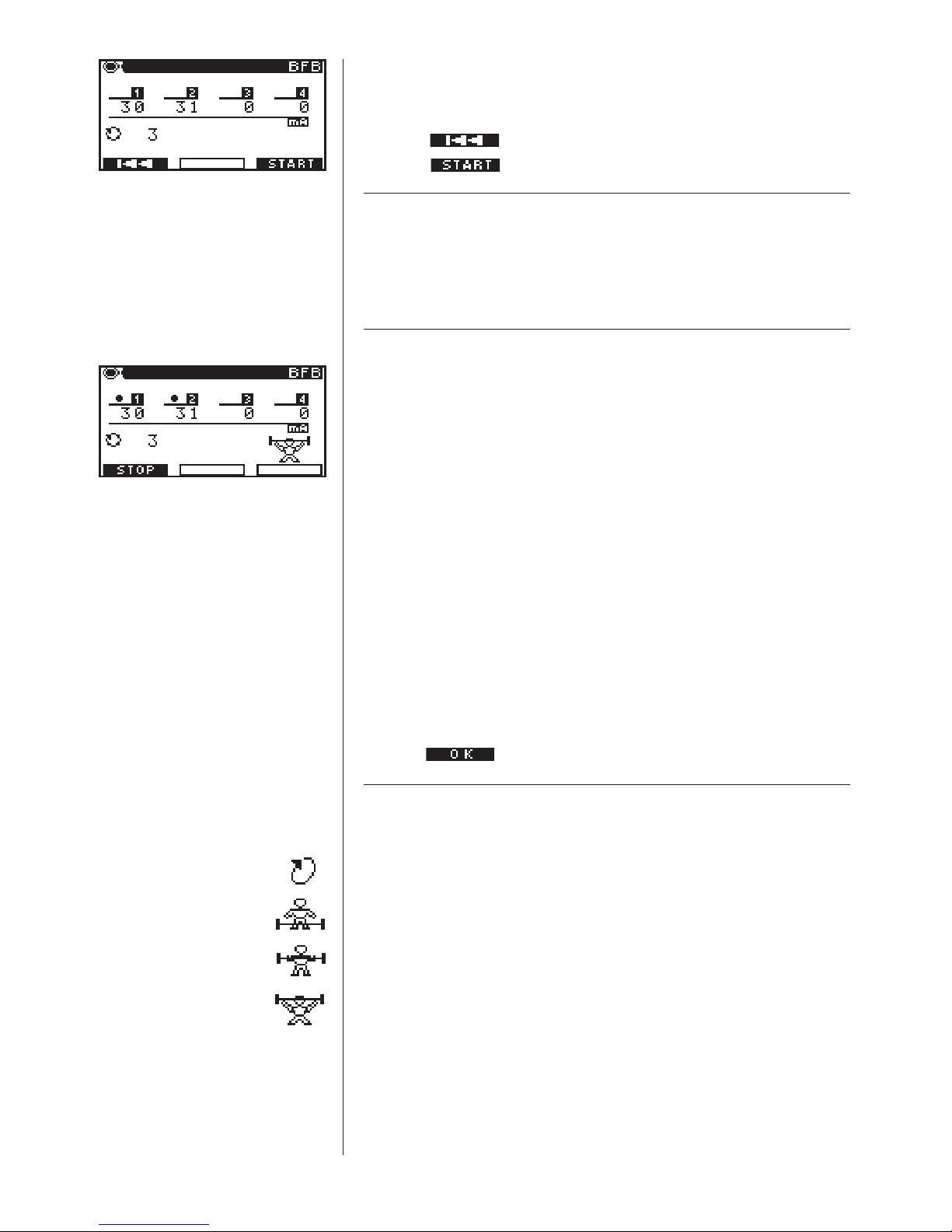

.1.4Startingstimulation(runningtheprogramme)
The EMP4 Expert will run the programme after setting intensity
(flashing circels) The stimulation icons and the flashing dots mark
the course of stimulation
Use the key to stop stimulation
Use the key to check set parameters and to change them
if necessary
Use the key to interrupt stimulation (pause)
.1.Stimulationicons
Standard stimulation
Intensity modulation: Pause
Intensity modulation: Ramp
Intensity modulation: Work
 10 Operating Instructions EMP 4 Expert
PARAMETERS
PARAMETERS
PARAMETERS

.1.6Stimulationpause
Stimulation is stopped during the stimulation pause No pulses are
generated
Use the key to stop stimulation
Use the key to continue stimulation with a 1 second
ramp
.1.Savingsetparameters
Four parameter settings could be saved They could be in the
operation mode „Programme“ in the programme group Userpro-
gramme

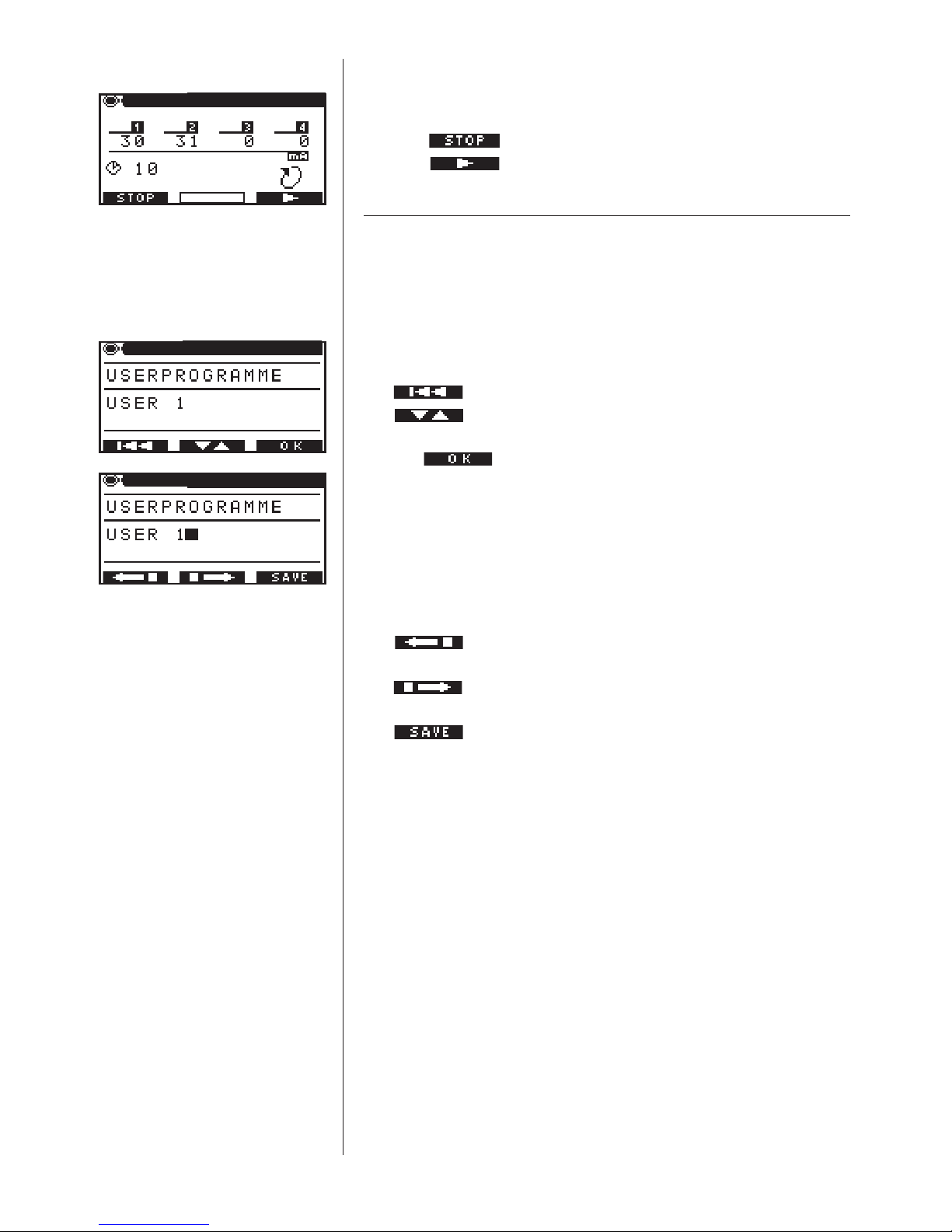

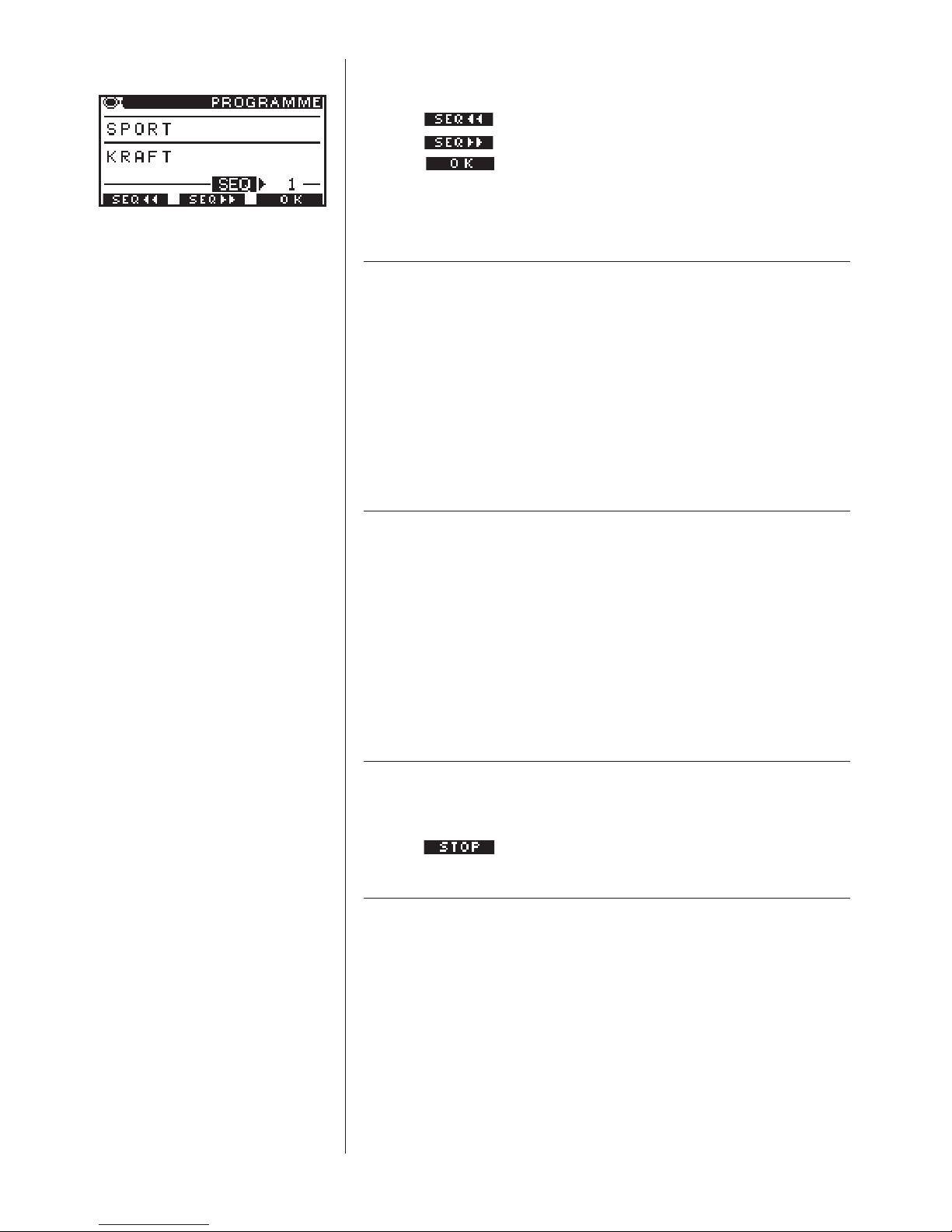

Programmeselection
The key is used to return to the previous screen
The key is used to select the next programme
(USER 14)
Use the key to select the current programme
Enteringaprogrammedescription.
After selecting the programme, the description (USER 14) can
be changed
The symbol over the flashing cursor may only be changed by using
the modification keys The available symbols are listed below
The key will move the cursor one position to the left or
to the line above
The key will move the cursor one position to the right or
to the line below
The key will award the current parameter settings to the
selected programme This includes saving the entered description
Symbols available for programme description:
0 1 2 3 4 5 6 7 8 9 : ; < = > ?
@ A B C D E F G H I J K L M N O
P Q R S T U V W X Y Z [ / ] ^ _
` a b c d e f g h i j k l m n o
p q r s t u v w x y z { | } ~ SPACE
 11 Operating Instructions EMP 4 Expert
PARAMETERS
PROGRAMMES
PROGRAMMES

.1.Changingintensityduringstimulation
During stimulation, intensity can be changed at any time by
pressing the modification keys The flashing dot belonging to the
channel becomes a circle Intensity can be varied
In programmes with an intensity modulation, the channel to be
changed is brought to the set intensity with an intensity ramp
lasting 1 second
If intensity is not changed for 5 seconds, the programme course
is continued
.1.Electroderecognition
The device constantly monitors correct connection of the electrodes
and cables If an electrode becomes detached from the skin or the
connection between the cables and the electrodes or cables and
device is interrupted, the device ends the stimulation on the corre-
sponding channel The intensity for this channel is set at 0 A short
acoustic signal indicates this process
Stimulation is also automatically stopped (acoustic signal) if inten-
sity is increased without a correctly connected electrode pair
.1.10Stoppingstimulation
Stimulation may be stopped at any time in two different ways:
Use the key to stop stimulation
The on/off key switches off the appliance and stops stimulation
.1.11Switchingofftheappliance
Pressing the on/off key will switch off the device
The EMP4Expert will switch itself off when no key is pressed for 3
minutes or when stimulation is not started
 1 Operating Instructions EMP 4 Expert

 1 Operating Instructions EMP 4 Expert
.Biofeedback
In this operation mode a stimulation cycle before set with an in-
tensity also before set can be started by using the start key or an
external knob (trigger) The number of stimulation cycles can be
adjusted
A stimulation cycle consists of: Ramp – Work – Ramp – Pause
..1Settingthestimulationparameters
On the next screen, the parameters may be altered within their
respective limits by using the modification keys
Use the key to return to the previous setting
Use the key to select the next parameter
Use the key to go to the next screen
Generalparameter1
The parameters indicated here apply to all 4 channels The values
could be changed by using the modification keys
Increasing ramp
Work
Decreasing ramp
Generalparameter
The parameters indicated here apply to all 4 channels The values
could be changed by using the modification keys
Pause
Number of stimulation cycles
GENERAL
GENERAL

Parameterschannels1+
The parameters indicated here apply to channels 1 and 2 only
The values could be changed by using the modification keys
Pulse form channels 1 and 2
Pulse width channels 1 and 2
Frequency channels 1 and 2
Parameterschannels+4
The parameters indicated here apply to channels 3 and 4 only
The values could be changed by using the modification keys
Pulse form channels 3 and 4
Pulse width channels 3 and 4
Frequency channels 3 and 4
..Stimulationscreen
All necessary parameters are displayed on the stimulation screen
and stimulation may be started
shows the number of stimulation cycles
Use the key to return to the previous setting
Use the key to start stimulation
..Presetintensity
After pressing the key, intensity of all channels, without
set intensity modulation (ramps), can be set with the modification
keys to a pleasant value
The flashing dot marks this setting mode
Use the key to stop stimulation
Use the key to increase intensity of all 4 channels simul-
taneously
 14 Operating Instructions EMP 4 Expert
CHANNEL 1+2
CHANNEL 3+4

 1 Operating Instructions EMP 4 Expert
..4Standbymode
After setting intensity (flashing dot) the EMP4Expert stops stimu-
lation The set intensities remain
Use the key to return to the previous setting
Use the key to start stimulation
..Externalknob
Between the out hubs of the device is an opening for an external
knob The device recognizes automatically in the stand by mode via
this opening a current selection signal and starts stimulation
..6Startingstimulation
Either after the key has been pushed again or by recognition of a
valid trigger signal at the external knob opening the EMP4Expert
starts the stimulation cycle
The stimulation icon and the flashing circles indicate the process
of the stimulation cycle
The set stimulation cycle (Ramp - Work - Ramp - Pause) is run once
with the preset intensity values Then the EMP4Expert falls back
into stand-by mode
With each stimulation cycle run, the stimulation cycle counter
drops by one value If all pre-selected stimulation cycles are worked
off, the intensity values will be reset to zero and the stimulation
cycle counter will recharged with the pre-selected value
Use the key to stop stimulation
..Stimulationicons
Standard stimulation
Intensity modulation: Pause
Intensity modulation: Ramp
Intensity modulation: Work

..Electroderecognition
The device constantly monitors correct connection of the electro-
des and cables If an electrode becomes detached from the skin or
the connection between the cables and the electrodes or cables
and device is interrupted, the device ends the stimulation on the
corresponding channel The intensity for this channel is set at 0
A short acoustic signal indicates this process Stimulation is also
automatically stopped (acoustic signal) if intensity is increased
without a correctly connected electrode pair
..Stoppingstimulation
Stimulation may be stopped at any time in two different ways:
Use the key to stop stimulation
The on/off key switches off the appliance and stops stimulation
..10Switchingofftheappliance
Pressing the on/off key will switch off the device
The EMP4Expert will switch itself off when no key is pressed for 3
minutes or when stimulation is not started
.Programmes
In this operation mode the 30 integrated programmes, as well as
the parameter adjustments (user programmes) set in the operation
mode „Parameter“ can be retrieved and started
..1Selectingaprogrammegroup
The available programme groups may be selected according to
needs and desires via this screen
Use the key to switch from upper to lower body stimulation
(lower body-increased pulse width)
Use the key to change the programme group displayed
Use the key to accept the programme group displayed
Availableprogrammegroups:
• Pain therapy
• Atrophy therapy
• Incontinence
• Muscle strength
• Sports
• Fitness–Beauty
• Relaxation
• Userprogrammes (operation mode „Parameter“)
 16 Operating Instructions EMP 4 Expert
PROGRAMMES
SPORTS

 1 Operating Instructions EMP 4 Expert
Paintherapy
Atrophytherapy
Incontinence
Muscletraining
Sports
Fitness–Beauty
Relaxation
..Selectingprogrammes
Select the desired programme from the available programmes on
this screen
Use the key to return to the previous settings
Use the key to change the programme displayed
Use the key to accept the programme displayed
Availableprogrammes
TENS Modulation
TENS Burst
TENS Han
TENS 80 Hz/2 Hz
Gate Control Dynamics
Kaada 2 Hz
Gate Control 80 Hz
Contractures
Atrophy therapy 1
Atrophy therapy 2
Atrophy prophylaxis
Urinary incontinence
Stress incontinence
Mixed incontinence
Muscle training stage 1
Muscle training stage 2
Force training
Explosive force
Capillarisation
Active recovery
Buttocks forming
Thigh forming
Calf forming
Abdomen forming
Cellulite treatment
Venous reflux calf
Venous reflux calf + thigh
Low-frequent dynamic relaxation
Dynamic massage
Contracture massage
PROGRAMMES
SPORTS
FORCE TRAINING

User 1
User 2
User 3
User 4
(Settings entered by the user in the operation mode „Parameter“)
..Sequences
Programmes now consist of sequences A sequence is a period
within a programme with the same parameters
Sequencealteration
Automatic
Sequence alteration is automatic at the end of a sequence Se-
quence alteration is signalled by a sound before the end of the
sequence Every new sequence begins with a short ramp
Manual
Sequence changements can also be made manually Please refer to
chapter 7310 „Manual sequence change”
Sequentialintensity
In case of an automatic sequence alteration, the set intensity for
the first sequence will adapt to the new parameters in terms of
percentage Intensity may then be adapted manually after this
process
..4Startscreen
Via the stimulation screen a stimulation can be started with the
above chosen programmes
The current programme is at the top of the screen
identifies the duration of the programme
identifies the number of programme sequences
The key shows the previous display Use the key
to skip the first sequence (this function is only available on
programmes with a warm-up sequence)
Use the key to start stimulation
..SettingIntensity
Intensity on all channels may be set to the desired values by
pressing the modification keys after the start key
The flashing circles identify this stimulation
identifies the time left of the current sequence and the
entire programme
also identifies the current sequence
Userprogrammes
 1 Operating Instructions EMP 4 Expert
STRENGTH
STRENGTH

 1 Operating Instructions EMP 4 Expert
Use the key to stop stimulation
Use the key to increase intensity on all 4 channels
simultaneously
..6Startingstimulation(runningtheprogramme)
The EMP4Expert will run the programmes after setting the inten-
sity (flashing circles)
The stimulation icons and the flashing circles identify stimulation-
run
Use the key to stop stimulation Use the ke y
to display programme parameters
Use the key to interrupt stimulation (pause)
..Stimulationduringpause
Some of the programmes contain an integrated stimulation pause
During this pause stimulation runs with a low frequency and low
intensity Intensity during this pause stimulation is 3/4 of the set
intensity
..Stimulationicons
Standard stimulation
Warm-up sequence
Intensity modulation: Pause
Intensity modulation: Ramp
Intensity modulation: Work
..Stimulationpause
Stimulation is stopped during the stimulation pause No pulses are
generated
Use the key to stop stimulation
Use the key to switch to the sequence alteration screen
Use the key to continue stimulation with a 1 second
ramp
STRENGTH
STRENGTH

..10Manualsequencechange
A new sequence may be selected by using the modification keys
Use the key to reduce the sequence meter
Use the key to increase the sequence meter
Use the key to adopt the entered sequence
Stimulation will restart by setting intensity (setting period-flashing
cycles) whenever a new sequence is selected
..11Changingintensityduringstimulation
During stimulation, intensity can be changed at any time by
pressing the modification keys The flashing dot belonging to the
channel becomes a circle Intensity can be varied
In programmes with an intensity modulation, the channel to be
changed is brought to the set intensity with an intensity ramp
lasting 1 second If intensity is not changed for 5 seconds, the
programme course is continued
..1Electroderecognition
The device constantly monitors correct connection of the electrodes
and cables If an electrode becomes detached from the skin or the
connection between the cables and the electrodes or cables and
device is interrupted, the device ends the stimulation on the corre-
sponding channel The intensity for this channel is set at 0 A short
acoustic signal indicates this process
Stimulation is also automatically stopped (acoustic signal) if inten-
sity is increased without a correctly connected electrode pair
..1Stoppingstimulation
Stimulation may be stopped at any time in two different ways:
Use the key to stop stimulation
The on/off key switches off the appliance and stops stimulation
..14Switchingofftheappliance
Pressing the on/off key will switch off the device
The EMP4Expert will switch itself off when no key is pressed for 3
minutes or when stimulation is not started
 0 Operating Instructions EMP 4 Expert
