schwa-medico SPORECUP XTR2 User manual

HOLISTIC HEALTH
EN
SPORÉCUP XTR2
2-CHANNEL MUSCLE STIMULATOR
FOR SPORTS AND FITNESS
Operating Manual Art.-Nr. 101478-V01

2
schwa-medico Operating Manual - SPORÉCUP XTR2
Content
Intended use 3
Safety Instructions 3
To ensure safe usage of the product 3
Contraindications 4
Contraindications TENS/EMS
in pregnancy 4
Side effects 4
Operating elements 5
Description of the symbols 6
Technical specification 6
Pulse forms 7
Operating the SPORÉCUP XTR2 7
Connecting cables and electrodes 7
Switching-ON the XTR2 7
Selecting a program 7
Selecting an area of stimulation 8
Setting the intensity 8
Terminating the stimulation 8
Locking the key pad 8
Switching-OFF the timer 9
Switching-OFF the stimulator 9
Charging the battery 9
Programs overview 10
Recovery 10
Setting of intensity levels 12
General information 13
Adjustments, modifications
and repairs 13
Warranty 13
Guarantee 13
Maintenance and cleaning 13
Classification 13
Technical check 13
Delivery content 14
Accessories 15
Stimex self-adhesive electrodes 15
Silicone electrodes 15

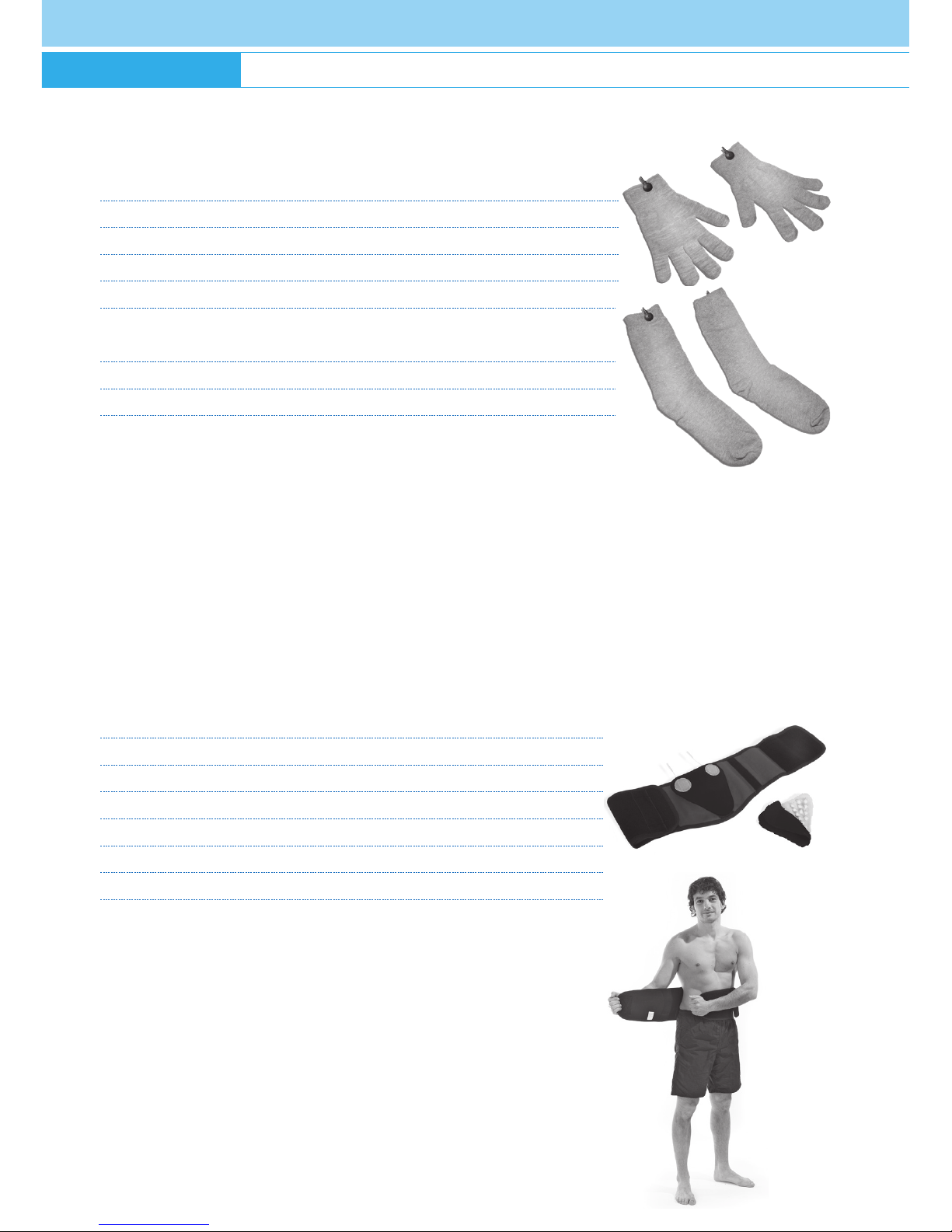

Garment electrodes: gloves and socks 15
MedicoBack P-Type 16

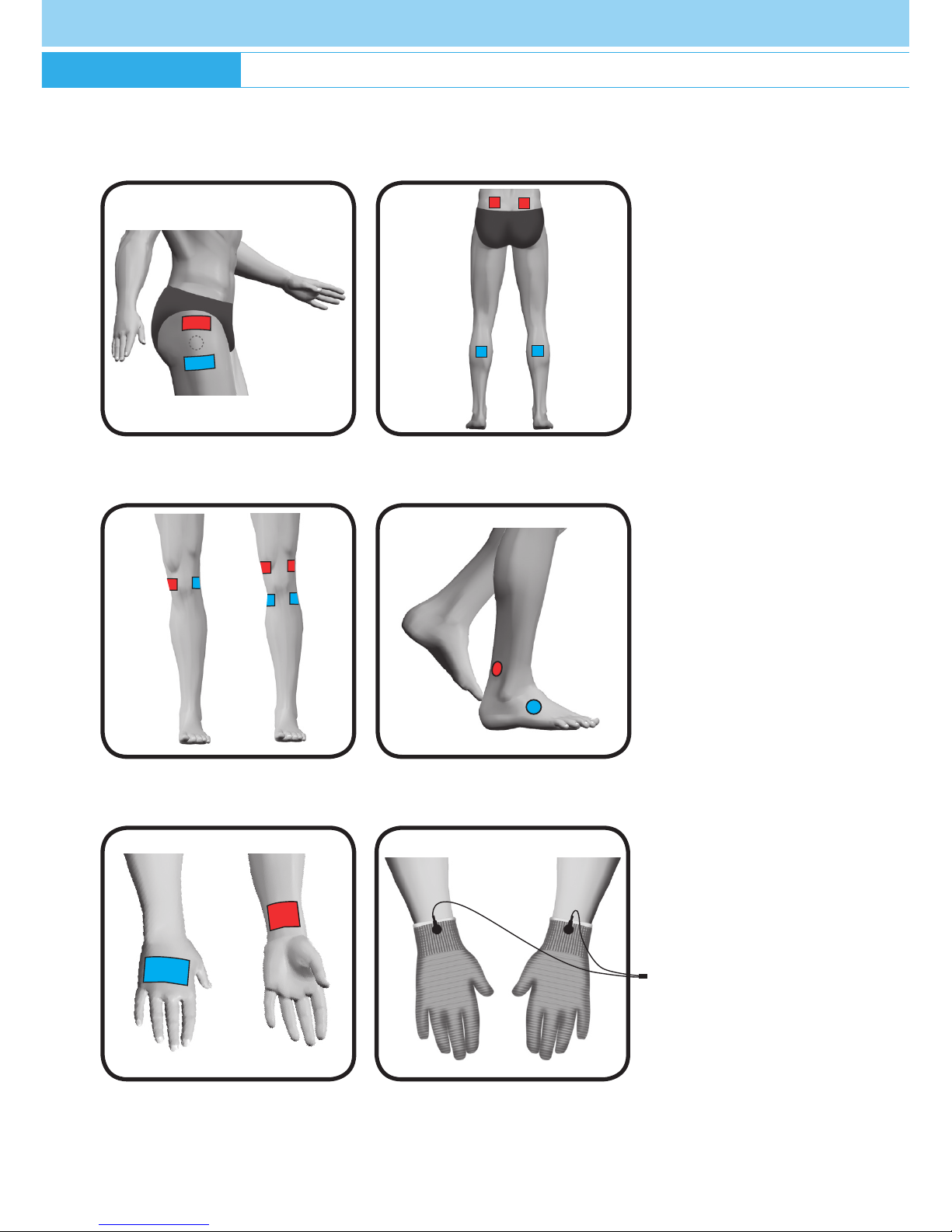

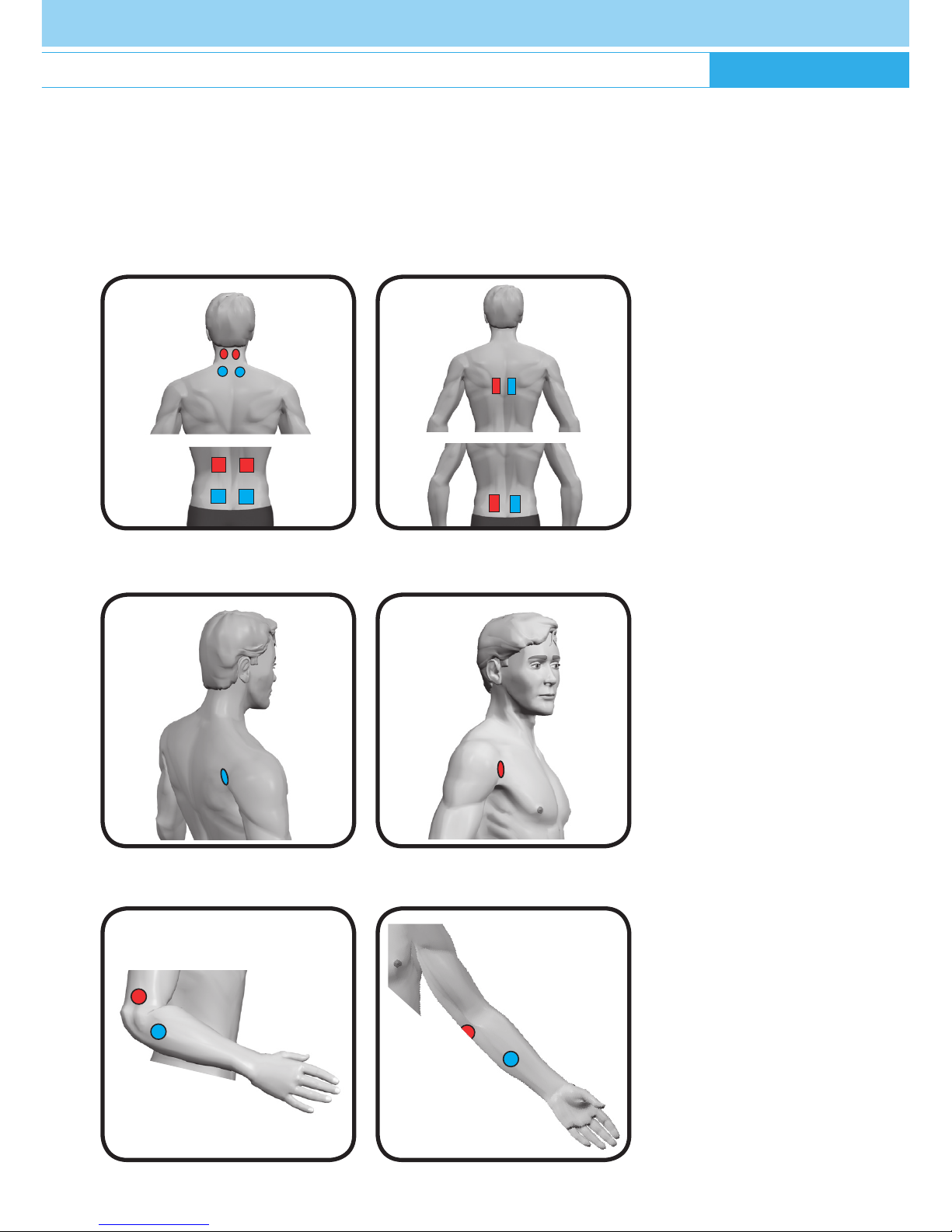

Electrode placement 17
For pain treatment 17
For dynamic stimulation 19
For muscle stimulation 20
For aestethics programs 22

3
English
Intended use
The SPORÉCUP XTR2 has been designed as a device for the generation of
transcutaneous electrical stimulation of the nerves and muscles on humans and
may not be used for any other purposes. Please read the operating instructions
carefully before using the SPORÉCUP XTR2.
Safety Instructions
To ensure safe usage of the product
Please read the instructions for use carefully prior to using the product!
1 The XTR2 may only be used with original accessories.
2 Keep XTR2 away from water and other liquids.
3 Never use the XTR2 if it functions incorrectly or has been damaged.
4 Advice that stimulation should not be applied across or through the head,
directly on the eyes, covering the mouth, on the front of the neck, (especially
the carotid sinus), or from electrodes placed on the chest and the upper back
or crossing over the heart.
5 The used electrodes must not be smaller than 2 cm².
6 Any electrodes that have current densities exceeding 2 mA/cm² may require
the special attention of the operator.
7 It is only allowed to connect up the XTR2 to one person.
8 It is not allowed to use the XTR2 during operating machines or during opera-
tions which needs elevated concentration. Pay attention particulary at road
trac.
9 Do not allow XTR2 to be dropped, handled incorrectly, exposed to extreme
temperatures or high humidity (only use at temperatures between 10 °C and
40 °C and a relative humidity of less than 90 %).
10 Care must be taken when the XTR2 is used on or in the proximity of children.
11 Store the XTR2 in the original packaging after use to protect it against damage
and soiling.
Warning!
»The simultaneous connection of the patient to a high-frequency surgical device
may lead to burns beneath the electrodes. Operation in the vicinity of a short
wave or microwave device may cause fluctuations in the output value of the
XTR2.

4
schwa-medico Operating Manual - SPORÉCUP XTR2
»Simultaneous connection of a patient to a high frequency surgical ME equipment
may result in burns at the site of the stimulator electrodes and possible damage
to the XTR2.
»Operation in close proximity (e.g. 1 m) to a shortwave or microwave therapy ME
equipment may produce instability in the XTR2 output.
»Application of electrodes near the thorax may increase the risk of cardiac
fibrillation.
Contraindications
In which cases shall a patient not use the device – or if – only with consultation
of a medical practitioner?
»Patients with implanted electronic devices (pace maker etc.)
»Patients with cardiac dysrhythmia
»Patients with Seizure disorder (epilepsy)
»Patients with skin irritations in the area of the electrode application
»Patients with malignant diseases (tumours) in the area of the application
Contraindications TENS/EMS in pregnancy
In addition to the general contraindications of TENS/EMS applies:
»The use of TENS during pregnancy should always be coordinated with the atten-
ding physician and the midwife, taking into account the benefits and the risks
»Patients who have experienced abortion or premature delivery, should not use
TENS during pregnancy
»Patients with preterm labour TENS should not use TENS during pregnancy
»TENS should not be used during the first three months of pregnancy or only
after a careful risk assessment. In particular, stimulation in the area of the uterus
should be avoided
»From the 4th month of pregnancy onwards TENS should not be applied near
the uterus. This applies to all electrode placements in the area of the abdomen,
pelvis and lower back
»The use of TENS is permissible during childbirth
Side eects
»Pain caused by the stimulation: The stimulation can be perceived as uncomfor-
table/painful if the electric current is too intensive or if the electrodes have been
positioned unfavorably. Unpleasant side eects can be avoided by adjusting
the intensity, using another program with other parameters and the possible
re-positioning of the electrodes.

5
English
»Skin intolerance which can result from the electrodes, the electrode gel or the
electric current impulses: The physician should be consulted in cases of redde-
ning, burning, itching or blistering under the electrodes or in the vicinity of the
electrodes. Slight skin reddening of short duration in the area of the electrodes
following stimulation is quite normal because blood circulation has been impro-
ved by the eects of the stimulation.
»Muscular pain: If the stimulation has been too intense or too long muscular aches
in terms of sore muscle can occur. Shorten the treatment time and the intensity of
stimulation at the beginning of muscle stimulation to avoid muscle ache.
Operating elements
The XTR2 has been designed for the generation of nerve and muscle stimulation
on human beings. All parameters can be adjusted via the press keys and are
indicated on the large display.
1. Display
2. Menu key (Program choice)
3. Key to set dierent functions
4. Modification keys to adjust
parameters and to modify the
intensity
5. ON/OFF key
6. Output sockets for the cables
7. Output socket for the battery
charger
8. ON/OFF commutator
TIMER
Hz s1
5
4
2
3
TIMER
Hz s
6
8
7

6
schwa-medico Operating Manual - SPORÉCUP XTR2
Description of the symbols
Attention: Read accompanying documents, especially user manual!
Type BF applied part
Date of manufacture
Manufacturer
Catalogue number
Serial number
Environment
Do not dispose of the appliance with the normal household waste at the
end of its life, but hand it in at an ocial collection point for recycling. By
doing this you will help to protect the environment.
By labelling with CE mark, the manufacturer asserts that the product fulfills
all relevant requirements of the respective EC Directives. A conformation
assessment process has been successfully completed. The identification
number in respect of the conformation assessment process is given in
accordance with the CE labelling of the relevant notified body.
Technical specification
Two-channel nerve and muscle stimulator with electrically insulated channels,
constant current characteristic, output short circuit control element (AKS),
30 integrated pre-set programs.
Output current: 100 mA (with an actual resistor of 1kΩ)
Frequency range: 0.5-120 Hz
Impulse width: 60-300 μs
Nominal current: 15 mA
Power supply: integrated rechargeable battery Ni-mH 4.8 V
Dimensions: 10.9 x 6 x 2.5 cm
Weight: approx. 150 g

7
English

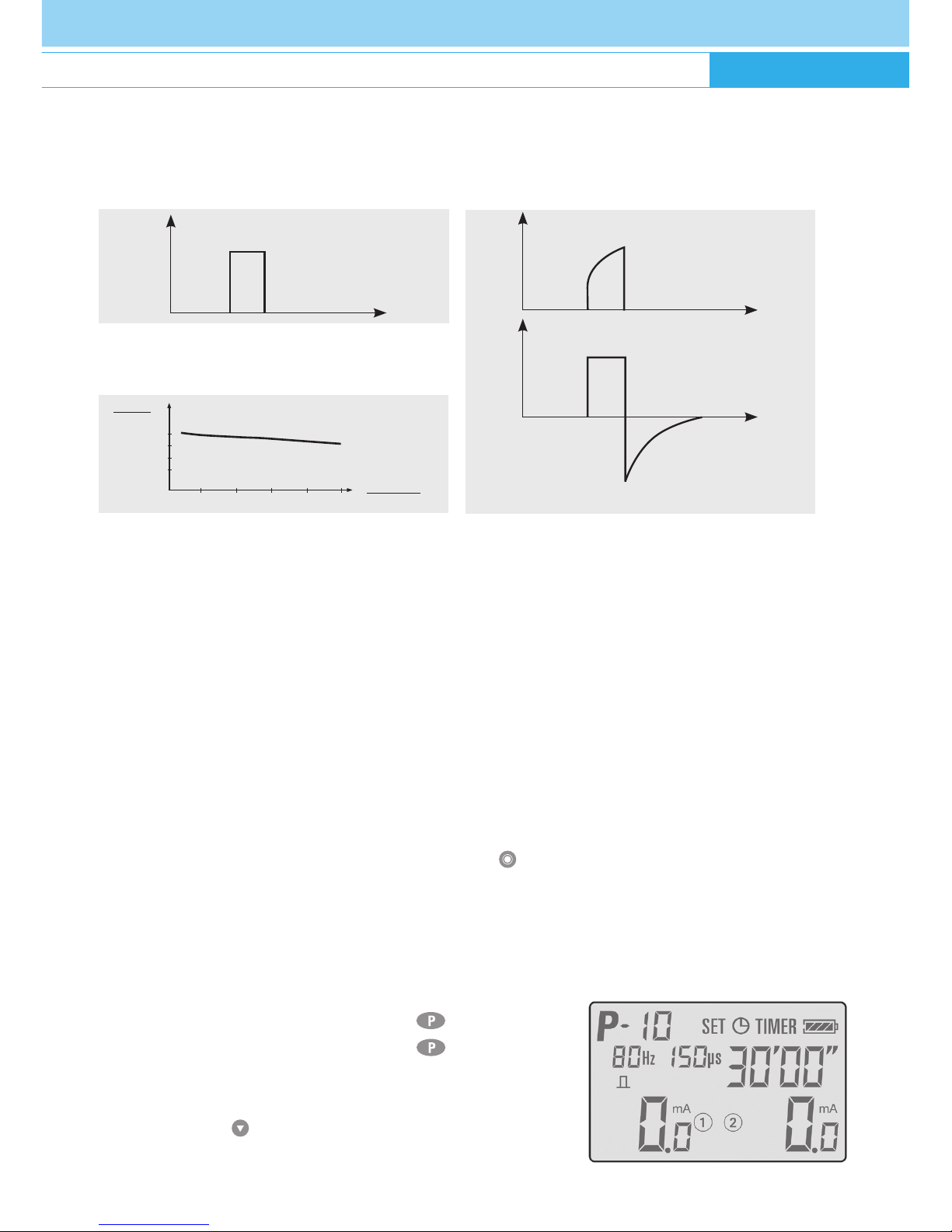

Pulse forms
with 1 kΩload real with ANSI/AAMI standard load
change in output current
depending on load
Operating the SPORÉCUP XTR2
Connecting cables and electrodes
»Connect the electrodes with the cable(s) (always 2 electrodes per cable).
»Connect the cable(s) to the XTR2 (no. 6).
»Place the electrodes on the desired area (see examples on chapter Electrode
Placement).
Switching-ON the XTR2
»Switch the commutator (no. 8) to the ON position.
»Switch on the stimulator by pressing the key (no. 5). The program shown on
the display is the last which was used during the previous session.
If the display shows a key symbol on the upper left side, the XTR2 has previously
locked a specific program (see chapter locking the key pad).
Selecting a program
Select a program by pressing the key. To scroll
through the programs, press the key as often
as necessary until you have selected the program
of your choice. To return to the previous program,
press the left keys. Selecting a program is only
possible if the keypad has not been locked on one
specific program (see chapter locking the key pad).
500 1000 1500 2000
20
40
60
80
2500
Strom I
mA
Widerstand RL
Ω
current
mA
resistance
Ω
voltage
time
current
time
current,
voltage
time

8
schwa-medico Operating Manual - SPORÉCUP XTR2
Selecting an area of stimulation
Depending on the selected program you can choose between upper and lower
limbs.
Press the key to change the pulse width of the selected programs. The pulse
width is increased for lower limbs.
Programs with a possibility of upper and lower limbs stimulation:
P1, P5, P6, P7, P9, P10, P15-P29
Recommendation:
Higher pulse width for lower limb stimulation
Lower pulse width for upper limb stimulation
Setting the intensity
Start the stimulation by increasing the intensity with the key of the channel(s)
connected to the electrodes.
key to increase the intensity
key to decrease the intensity
The intensity of each channel is displayed on the
screen. The intensity can be set between 0 and
100 mA. By keeping the intensity keys pressed, the
intensity will increase/decrease more rapidly.
Terminating the stimulation
You can terminate the stimulation at any time by pressing the key. When the
therapy time is completed the stimulation terminates automatically. If you press
the key the stimulation stops and the XTR2 switches o.
Locking the key pad
Choose the desired program by pressing the key (see chapter selecting a
program).
Press and hold for 3 seconds the key and the right key to lock the stimulator
on the chosen program. The XTR2 can now only be used with the chosen program.
A key symbol appears on the display adjacent to the program number. All keys
except the intensity and the ON/OFF keys are locked into this mode. Use the same
key combination to unlock the stimulator.

9
English
Switching-OFF the timer
You can use the XTR2 with or without timer. All programs run for 30 minutes.
Press and hold for 3 seconds the key and the left key. The total therapy time
appears on the display. Press the key to switch o the timer. The symbol “— — —
—“ appears on the display. Press the key to save the changes.
Switching-OFF the stimulator
Press the key to turn o the XTR2. If the battery level is too low or if the stimulator
has not been used for the previous 2 minutes, it turns o automatically.
Charging the battery
The battery level is shown on the display with a
battery symbol with 4 lines. If the battery level is
too low the stimulator switches o automatically
and cannot be turned on again. The battery
needs to be re-charged.
»Switch the commutator to the OFF position
(no. 8)
»Connect the charger with the XTR2
(socket no. 7)
»Connect the charger to the mains circuit.
The diode on the charger illuminates in red.
»Charge the stimulator until the diode on the
charger illuminates in green.
»The battery is fully charged if the light on the
charger appears in green.
Important!
Do not forget to switch the commutator ON
again after charging.
TIMER
Hz s

10
schwa-medico Operating Manual - SPORÉCUP XTR2
Programs overview
Recovery
Sessions of “recovery” stimulation are highly recommended after strong muscular
eorts. Using Sporécup XTR2 and its dynamic stimulation after a competition or
an intensive training session oers a better recovery of your muscles thanks to
the faster reduction of the lactid acid blood level and thanks to the vasodilatation
eect on the capillary vessel. This way the athlete avoids the next day’s heavy legs.
The active recovery with Sporécup XTR2 allows a faster and better recuperation
of the muscles with no supplement charge for the body compared to traditional
recovery sessions. Use recovery programs within 3 hours after the eorts.
»Increase blood flow
»Emphasize release endorphin
»Eliminate muscle contraction
»Accelerate relax muscles

11
English
P1 Recovery after endurance training
P2 Recovery after competition
P3 Recovery after force training
P4 Recovery with dynamic stimulation
P5 Cramp treatment
P6 Next day regeneration
P7 Venous return (dynamic stimulation)
P8 Heavy legs
P9 Treatment of hematoma
RELAXATION
P10 Slow dynamic massage
PAIN TREATMENT
P11 Cervical pain
P12 Low back pain
P13 Lumbosciatica
P14 Tendinitis
P15 Joint pain
P16 Chronic pain / endorphinic
SPORT
P17 Resistance
P18 Endurance
P19 Strength
P20 Explosive strength
P21 Hypertrophy / body building
REHABILITATION
P22 Amyotrophy prevention
CAPILLARIZATION
P23 Capillarization 1st phase
P24 Capillarization 2nd phase
FITNESS
P25 Muscle starter
P26 Toning/muscle building
AESTHETICS
P27 Shaping
P28 Cellulolipolyse
P29 Vascularization adipose tissue
P30 Buttocks & abs training

12
schwa-medico Operating Manual - SPORÉCUP XTR2
Setting of intensity levels
Do not try to achieve a higher and higher level of intensity. Set the intensity in
such a way that you get a comfortable feeling during the stimulation. Increase the
intensity carefully to a maximum tolerable and then reduce it slightly step by step
to a comfortable level.
Note that the intensity settings change depending on the stimulation area and the
time. This is normal and can be explained as follows:
• Resistance of the skin:
Dry skin has a lower conductivity level than damp skin (due to sweating). The
skin does not show the same resistance to linear current on all parts of the body.
For example, the resistance level of horny skin can be twice that of the skin in
the hollow of the knee. The innervation diers greatly according to the area of
the body. This results in a dierence of sensitivity.
• Volume of the muscle mass:
If you stimulate muscles with a high volume you will automatically need to set a
higher intensity than for the stimulation of small muscles.
• Muscle fatigue:
A tired muscle will only tolerate a lower intensity.
• Age of electrodes:
Self-adhesive electrodes do not last forever. You can use them up for up to 60
stimulation sessions. This depends on the quality of the electrodes but also on
the skin of the user. Old electrodes have a higher resistance and their conducti-
vity levels decline. It is important to replace electrodes regularly.
• Adaption to the current:
The nerves adapt rapidly to the current. It is normal to feel “less current” after a
few minutes of stimulation with specific parameters. In such a case feel free to
increase the intensity in order to get the best results.
• Frequency and pulse width:
Frequencies and pulse widths dier depending on the programs. Therefore the
intensity cannot be set at the same lever for all the programs even if the elect-
rodes are placed in the same position. The higher the frequency is set, the lower
you will be able to set the intensity. The higher the pulse width is set, the lower
you will be able to set the intensity.

13
English
General information
Adjustments, modifications and repairs
The manufacturer is only responsible for the safety and performance of the XTR2
when readjustments, alterations and repairs are carried out by authorised persons
and when the XTR2 is used in accordance with the operating instructions.
Warranty
Legal right of warranty is applied according to German Civil Code.
Guarantee
The manufacturer issues a guarantee of 12 months from the date of purchase.
The guarantee does not apply in the following cases:
»damage due to improper handling
»defects the customer is aware of on the date of purchase
»damage caused by the customer
»or wearing parts and consumable supplies like, for instance, battery, cables and
electrodes.
Maintenance and cleaning
No special cleaning or care agents are required for the XTR2. Clean the stimulator
with a soft, flu-free cloth. Please ensure that no moisture permeates the
stimulator. If moisture does permeate the stimulator, a technical check must be
carried out before re-use.
Classification
In accordance with the Law on Medical Devices, the XTR2 is classified as being a
Class IIa medical device.
Safety checks (§11 MPBetreibV) [Medical Devices Operator Ordinance]
As an operator, you are legally obligated to perform safety checks for this product
every 24 months (in accordance with generally accepted technical standards).
The safety checks comprise:
1. Checking the accompanying documents to ensure that the instructions for
use and the medical device log are present
2. Checking the equipment to ensure it is complete
3. Visual inspection
- for mechanical damage
- of all lines and plug connectors for damage

14
schwa-medico Operating Manual - SPORÉCUP XTR2
4. Functional safety
- Checking the output signals at a load resistance of 1 kΩ
(Voltage and current)
- Checking the output signals at an ANSI load resistance
(Voltage and current)
- Checking the frequency
- Checking the pulse width
On request, we will be happy to carry out the safety checks for you (fee applies).
Delivery content
Item no. Article Quantity
104064 SPORÉCUP XTR2 1
106351 Cable Type 5.15 2
283400 Self-adhesive electrodes 50x50 mm (4 pieces) 1
101062 Charger 3PN0508S 1
Transportation bag 1
101478 Instruction manual 1

15
English
Accessories
The SPORÉCUP XTR2 may only be used together with all accessories referred
below. The manufacturer cannot guarantee the security of the stimulator if it is
not used with original accessories.
Stimex self-adhesive electrodes
Item no. Description Quantity
281000 Stimex 32 mm round 4
282000 Stimex 50 mm round 4
283400 Stimex 50x50 mm 4
283600 Stimex 50x90 mm 2
283000 Stimex 50x130 mm 2
283100 Stimex 80x130 mm 2
281027 Stimex sensitive 50x50 mm 4
Silicone electrodes (to be used with contact gel)
Item no. Size Quantity
107090 20 mm round 2
107075 40x28 mm 2
107011 38x45 mm 2
107010 48x48 mm 2
107050 70x65 mm 2
107070 70x140 mm 2
108000 contact gel (tube, 60 g) 1
Garment electrodes: gloves and socks
Stimex electrode gloves and socks used in combination with a schwa-medico
electrotherapy unit are ideal for home treatment. They provide stimulation of the
entire hand and/or foot and ankle and avoid the sometimes tiresome attachment
of self-adhesive electrodes to the hand or the foot.

16
schwa-medico Operating Manual - SPORÉCUP XTR2
Gloves
Item no. Article Size Quantity
107014 Stimulation gloves S 1 pair
107021 Stimulation gloves M 1 pair
107022 Stimulation gloves L 1 pair
Socks
Item no. Article Size Quantity
107023 Stimulation socks M 1 pair
107024 Stimulation socks L 1 pair
MedicoBack P-Type
Low back support bandage with pelotte and integrated electrodes to be used
with the XTR2.
MedicoBack P-type oers patients lumbar vertebrae stabilisation and support as
well as easy nerve stimulation thanks to the integrated electrodes. The pelotte
with its massage nubs intensifies the pain relieving eect. MedicoBack P-type may
be used for light or acute pain as well as for chronic pain in the lower back area.
Item no. Article Size Length
107034 MedicoBack P-type S 80-90 cm
107036 MedicoBack P-type M 90-100 cm
107037 MedicoBack P-type L 100-110 cm
107038 MedicoBack P-type XL 110-120 cm
107039 MedicoBack P-type XXL 120-130 cm
MedicoBack P-Type is including:
1 low back support bandage
1 pelotte
1 cover for the pelotte with integrated electrodes
1 cover pelotte without integrated electrodes
8 gel pads

17
English
Electrode placement
Electrode placement for pain treatment (P11 - P16)
Back pain
1
1
2
2
Shoulder pain
Epicondylitis radialis Epicondylitis ulnaris

18
schwa-medico Operating Manual - SPORÉCUP XTR2
Arthrosis (hip) Sciatic pain
1
1
2
2
Gonarthrosis/knee pain Ankle joint pain
2
2
1
1
Polyarthritis

19
English
Carpal tunnel syndrome Pain of achilles tendon/heel pain
Electrode placement for dynamic stimulation (P4, P7, P8, P10,
P12, P13)
The stimulation is not administered simultaneously on both channels.
The current flows from one electrode to the other just like a wave
undulating on the body. This kind of stimulation is far more comfortable
than traditional neuro-muscular stimulation. Dynamic stimulation can
be used with high frequency parameters for an improved pain control
or with low frequency parameters for optimized muscle stimulation. This
treatment method also has an enhanced eect on lymphatic drainage
stimulation. The placement of electrodes for dynamic stimulation
depends on the direction of stimulation (rising/falling stimulation or
sideways stimulation).
Rising or falling stimulation Sideways stimulation
for back or legs for gluteus or stomach muscle

20
schwa-medico Operating Manual - SPORÉCUP XTR2
2 2
1 1 1 1
2 2
Rising wave:
channel 2
channel 1
Falling wave:
channel 1
channel 2
Electrode placement for muscle stimulation
Hand flebo Hand extensor Biceps
