Schwinn 220 Recumbent Bike 2012 model User manual

ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com

2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 5
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Leveling the Bike 18
Moving the Bike 18
Important Safety Instructions - Owner’s 19
Features 20
Console Features 21
Contact Heart Rate (CHR) 23
Operations 25
Adjustments 25
Initial Setup 26
Quick Start / Manual Program 26
Workout Program Selection 26
User Setup Mode 26
Custom Workout 29
Profile Programs 29
Fitness Test 30
Results/Cool Down Mode 31
Pausing or Stopping 31
User Statistics 31
Console Setup 33
Maintenance 34
Troubleshooting 36
Nautilus, Inc., (800) NAUTILUS / [phone], www.NautilusInc.com - Customer Service: North America
[phone], [email protected] | outside U.S. +01-360-859-5180, [email protected] |
Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered
trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®
and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners.
TABLE OF CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty, go to: www.SchwinnFitness.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

3
!This icon means a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposure
to bystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoing
the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward
movements on your own.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethe
safety of this machine and will void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacementpartsandhardware.
Failure to use genuine replacement parts can cause a risk to users, keep the machine from
operating correctly and void the warranty.
• Donotuseorputthemachineintoserviceuntilthemachinehasbeenfullyassembledand
inspected for correct performance in accordance with the Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.Keepthe
Manual for future reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrect
function.
IMpORTANT SAFETY INSTRUCTIONS
— ASSEMBLY

4
FCC Compliance
!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe
•
•
•
•
•
•
300lbs. (136kg).
•
•
•
•
•
•
SAFETY WARNING LABELS AND
SERIAL NUMBER

5
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the
locationmustbeonahard,levelsurface.Allowaworkoutareaofaminimum95”x61”(2.4mx
1.5m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,
and the left (counterclockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt
through the holes.
5.Theassemblyrequires2people.
Maximum User Weight: 300 lbs. (136 kg)
Power Requirements:
Operational Voltage: Operational Voltage 9VDC
Operating Current: 1500 mA
Regulatory Approvals:
AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V60Hz
Input, 9VDC, 1500mA Output.
Class 2 or LPS.
SpECIFICATIONS
51.5 ”
(130.8 cm)
25” (63.5 cm)
55” (139.8 cm)
determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6
Item Qty Description Item Qty Description
1 1 Main Frame 10 1 AC Adapter
2 1 Seat Rail 11 1 Left Pedal
3 1 Rear Frame 12 1 Right Pedal
4 1 Seat Back 13 1 Front Stabilizer
5 1 Seat Bottom 14 1 Rear Stabilizer
6 1 Seat Frame 15 1 Seat Rail Bracket
7 1 Handlebar, Side 16 1 Water Bottle Holder
8 1 Console Mast 17 1 Media Support
9 1 Console
9
10
6
14
13
7
8
5
4
12
3
12
11
15
16
17
pARTS

7
Item Qty Description Item Qty Description
A 4 FlatHeadHexScrewM8x16 E 4 Curved Washer M8
B13 ButtonHeadHexScrewM8x16 F 8 ButtonHeadHexScrewM8x45
C 4 ButtonHeadHexScrewM8x20 G 4 Cap
D21 Flat Washer M8
A B D E F GC
6 mm
HARDWARE / TOOLS
Tools
Included Not Included
(recommended)

8
1. Attach Stabilizers to Frame
Note: Make sure the Schwinn®decal on the Rear Stabilizer faces outward from the machine.
ASSEMBLY
A
6 mm
X4
1
13
314

9
2. Connect Rear Frame to Main Frame
Note: Hardware is pre-installed and not on the Hardware Card.
NOTICE: Do not crimp Console Cable.
6 mm
X5

10
4. Attach Seat Back and Bottom to Seat Assembly
F
D
6 mm
X8
4
5
3. Attach Handlebar to Seat Frame
B
D
6 mm
X4
6
7

11

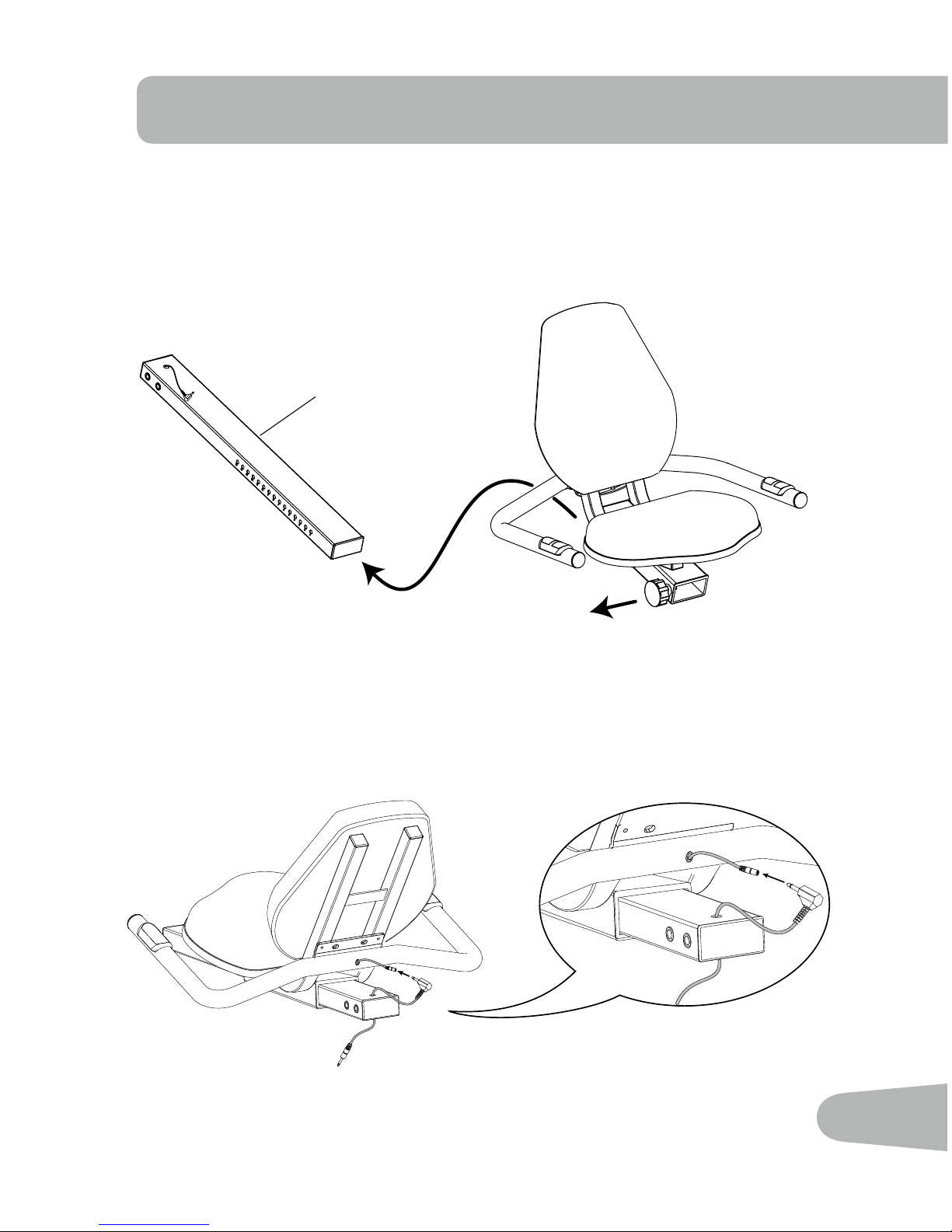

5. Slide the Seat Assembly onto the Seat Rail
Note:LocktheAdjustmentKnobintooneoftheSeatRaillockingholes.
NOTICE: Do not crimp Heart Rate Cable.
2
6. Connect Heart Rate Cable to Seat Assembly

12
8. Install Seat Rail Assembly to Frame Assembly
NOTICE: Do not crimp Heart Rate Cables.
7. Attach Seat Rail Bracket to Seat Rail
B
6 mm
X2
D
15
6 mm
6 mm
C
D
X4
B
D
X3

13
9. Connect Cables and Attach Console Mast to Frame Assembly
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not
crimp Console and Heart Rate Cables.
Note: Do not fully tighten the hardware.
6 mm
X4
E
B
8

14
10. Connect Cables to Console
Note: Remove the pre-installed screws from the back of
the console before you connect the cables.
9
X4
11. Attach Console to Console Mast
NOTICE: Do not crimp the cables.
Note: Use the screws from Step 10
to attach the console.

15
12. Adjust the Console and Console Mast and Tighten Hardware
Note: To install the Media Support, slide it into the holes at the top of the console.
17
9

16

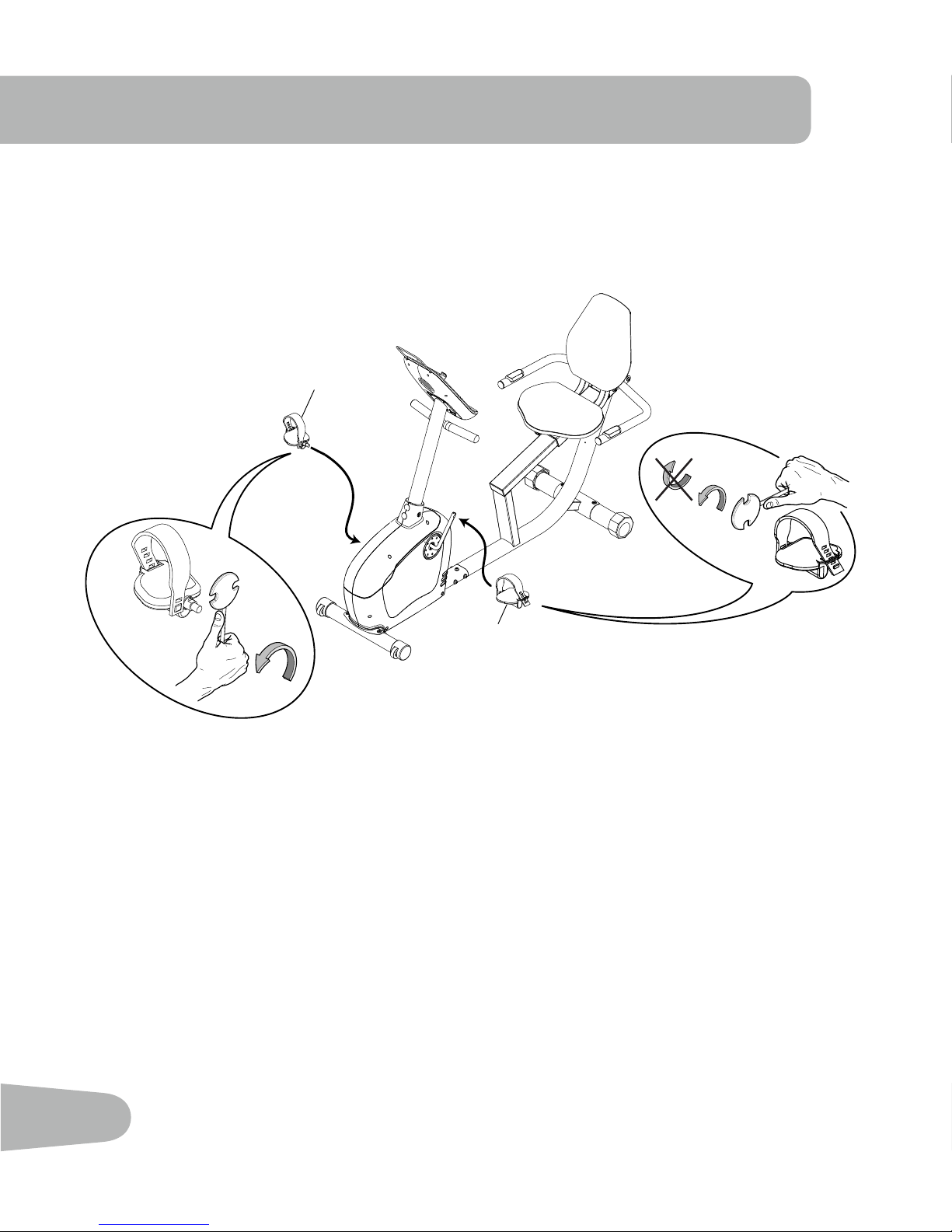

13. Attach Pedals to Frame Assembly
12
11

17

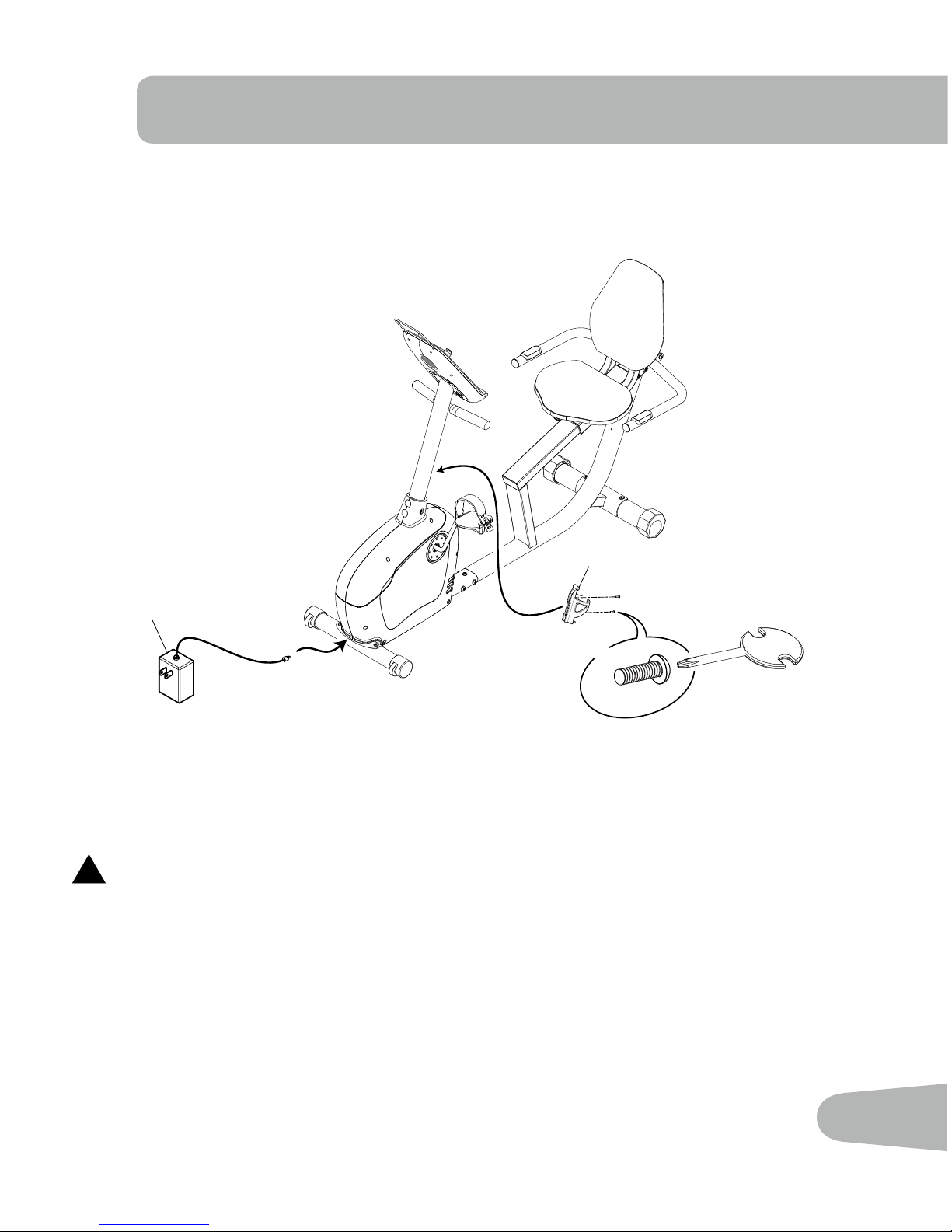

14. Attach Water Bottle Holder and Power Cord
Note: Hardware is pre-installed on Mast and not on Hardware Card.
15. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Be sure to record the serial number in the field provided at the front of this manual.
!Do not use or put the machine into service until the machine has been fully assembled and
inspected for correct performance in accordance with the Owner’s Manual.
10
X2
16

18
Leveling Your Bike
The levelers are the polygonal end caps on the Rear Stabilizer. Turn the end cap to adjust the level.
Makesurethebikeislevelandstablebeforeyouexercise.
Moving Your Bike
To move the recumbent bike, carefully lift the rear end of the bike and slowly push the bike to the
desired location.
NOTICE: Be careful when you move the bike. All abrupt motions can affect the computer operation.
BEFORE YOU START

19
!This icon means a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Before using this equipment, obey the following warnings:
!ReadandunderstandthecompleteManual.KeeptheManualforfuturereference.
Read and understand all warnings on this machine. If at any time the Warning stickers
become loose, unreadable or dislodged, contact Nautilus®Customer Service for
replacement stickers.
• Childrenmustnotbeletonorneartothismachine.Movingpartsandotherfeaturesofthe
machine can be dangerous to children.
• Notintendedforusebyanyoneunder14yearsofage.
• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainor
tightness in your chest, become short of breath, or feel faint. Contact your doctor before you
use the machine again. Use the values calculated or measured by the machine’s computer for
reference purposes only.
• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffound
in this condition. Monitor the Seat, Pedals, and Crank Arms closely. Contact Nautilus®
Customer Service for repair information.
• Maximumuserweightlimit:300lbs.(136kg).Donotuseifyouareoverthisweight.
• Thismachineisforhomeuseonly.
• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputngers
orotherobjectsintomovingpartsoftheexerciseequipment.
• Setupandoperatethismachineonasolid,level,horizontalsurface.
• MakethePedalsstablebeforeyousteponthem.Usecautionwhenyousteponandoffthe
machine.
• Disconnectallpowerbeforeservicingthismachine.
• Donotoperatethismachineoutdoorsorinmoistorwetlocations.Keepthefootpedalsclean
and dry.
• Keepatleast19.7”(0.5m)oneachsideofthemachineclear.Thisistherecommendedsafe
distanceforaccessandpassagearoundandemergencydismountsfromthemachine.Keep
third parties out of this space when machine is in use.
• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedin
this manual.
• CorrectlyadjustandsafelyengageallPositionalAdjustmentDevices.Makesurethatthe
Adjustment Devices do not hit the user.
IMpORTANT SAFETY INSTRUCTIONS

20
FEATURES
A Console G Pedals
B Handlebars, Upright H Leveler
C Shrouded Main Frame I Adjustable Seat
D Transport Wheel J Contact Heart Rate (CHR) Sensors
E Stabilizer KHandlebars, Side
F AC Adapter Plug L Water Bottle Holder
B
A
C
D
E
E
F
G
H
I
J
K
H
L
