Chapter 1

Overview

This document provides operating instructions for the SG-1V224ST Upright.

All features described in this document may not appear on every machine. Your machine may have only

features supported by your software version, jurisdiction, and machine configuration.

CAUTION: KEEP ALL DOORS CLOSED UNTIL THE UNIT IS

SECURED IN PLACE TO PREVENT INSTABILITY. THE

UNIT MUST BE SECURED IN PLACE BEFORE OPENING

ANY DOORS FOR MAINTENANCE OR SERVICE.

FOR CABINETS WITH A TYPE Y ATTACHMENT, IF THE

POWER CORD IS DAMAGED, IT MUST BE REPLACED BY

BALLY, ITS SERVICE AGENT, OR SIMILARLY QUALIFIED

PERSONS TO AVOID A HAZARD.

This document may describe procedures for equipment that do not apply to

all cabinet configurations, or that may require additional components. Each

regulatory jurisdiction may have controls, policies and, procedures that you

must follow. You are responsible for understanding and abiding by the rules

that apply in your environment.

To meet Regulatory Safety Compliance requirements, only use replacement

parts supplied by Bally.

When performing service, inspect gaskets for damage and if damaged

replace with parts supplied by Bally.

WA R N I N G : Disconnect the EGM from its power source during service and when

replacing parts.

Overview TwinStar™ Upright (SG-1V224ST) Operator Instructions

6 SG-1V224ST [I] Prerequisites

CONFIDENTIAL.

Prerequisites

Installation may require the following additional items:

• Locks (quantity 5 to 9 depending upon your machine configuration

• Category 5 network cables (quantity and length depending upon your machine configuration and

your floor plan)

• Tools for locks

• 22mm (7/8-inch), 11mm (7/16-inch) and 10mm (39/100-inch) socket or wrench

• Needle nose pliers

• Phillips head screw driver

• Allen wrenches

• Game Stand Drill Template (DT-STAND-0003), if applicable

Additional information

The following documents provide additional information:

• Service Manual and User Guide 1456703: CPU-4X Control Subsystem

• Service Manual and User Guide 1458262: ArgOS 2.X Operating System

• Service Manual 1488034: TwinStar™ Upright (SG-1V224ST)

Environmental Protection and Recycling

This product bears a recycling mark in accordance with the Waste from Electrical Electronic

Equipment (WEEE) European Commission Directive 2012/19/EU. This mark indicates that

the product should be deposited at an appropriate facility to enable recovery and recycling in

accordance with all applicable laws. To identify an environmentally sound disposal method

for this product or its component parts, please contact the responsible government authority

in your area. For information on available product take-back programs, see our websites

https://www.sggaming.com/Customer-Center/Games-Support/WEEE-Directive or

http://www.scientificgames.com.

NOTE: Download additional manuals from www.scientificgames.com.com or order

by phone at 1 877-462 255. Outside the United States, call +1 702 532 7755.

TwinStar™ Upright (SG-1V224ST) Operator Instructions Overview

Electrical Specifications SG-1V224ST [I] 7

CONFIDENTIAL.

Electrical Specifications

Physical Specifications

Recommended Operating Environment

Equipment Requirements

NOTE: Typical currents are provided for reference only. Actual current use will

depend upon machine configuration and the addition of supplemental

equipment such as systems monitoring and progressive equipment.

Description Value

Line Voltage 120 V AC at 60 Hz (230 VAC at 50 Hz)

Surge State Current 3.4 Amps at 120 V AC (1.65 Amps at 240 V AC)

Operating State Current 2.9 Amps at 120 V AC (0.70 Amps at 240 V AC)

Fuse Limited Rated Current 6.3 Amps at 120 V AC (3 Amps at 230 V AC)

Heat Generated 1128 BTU/Hr

CAUTION: To prevent increased maintenance from temperature and humidity related

stress on the machine, operate it within the recommended guidelines.

Description Value

Weight (Un-crated including Flammable Weight) 140.6 kg (310 lbs)

Flammable Weight 22.4 kg (49.5 lbs)

Height 1958 mm (77.1 inches)

Width 673 mm (26.5 inches)

Depth 709 mm (27.9 inches)

Description Value

Temperature Range 4-40 Degrees Celsius

(39.2 - 104 Degrees Fahrenheit)

Humidity (Maximum) 90%

CAUTION: To prevent tipping, injury, or damage, install the machine on a Scientific

Games stand. Installing the machine on a different stand may compromise

safety approvals.

Description Part Number

Anti-Tip Stand, 18-inch High 219002-(options)

Anti-Tip Stand with Sound Chair accommodations, 18-inch High 219300-(options)

Overview TwinStar™ Upright (SG-1V224ST) Operator Instructions

8 SG-1V224ST [I] Dimensions

CONFIDENTIAL.

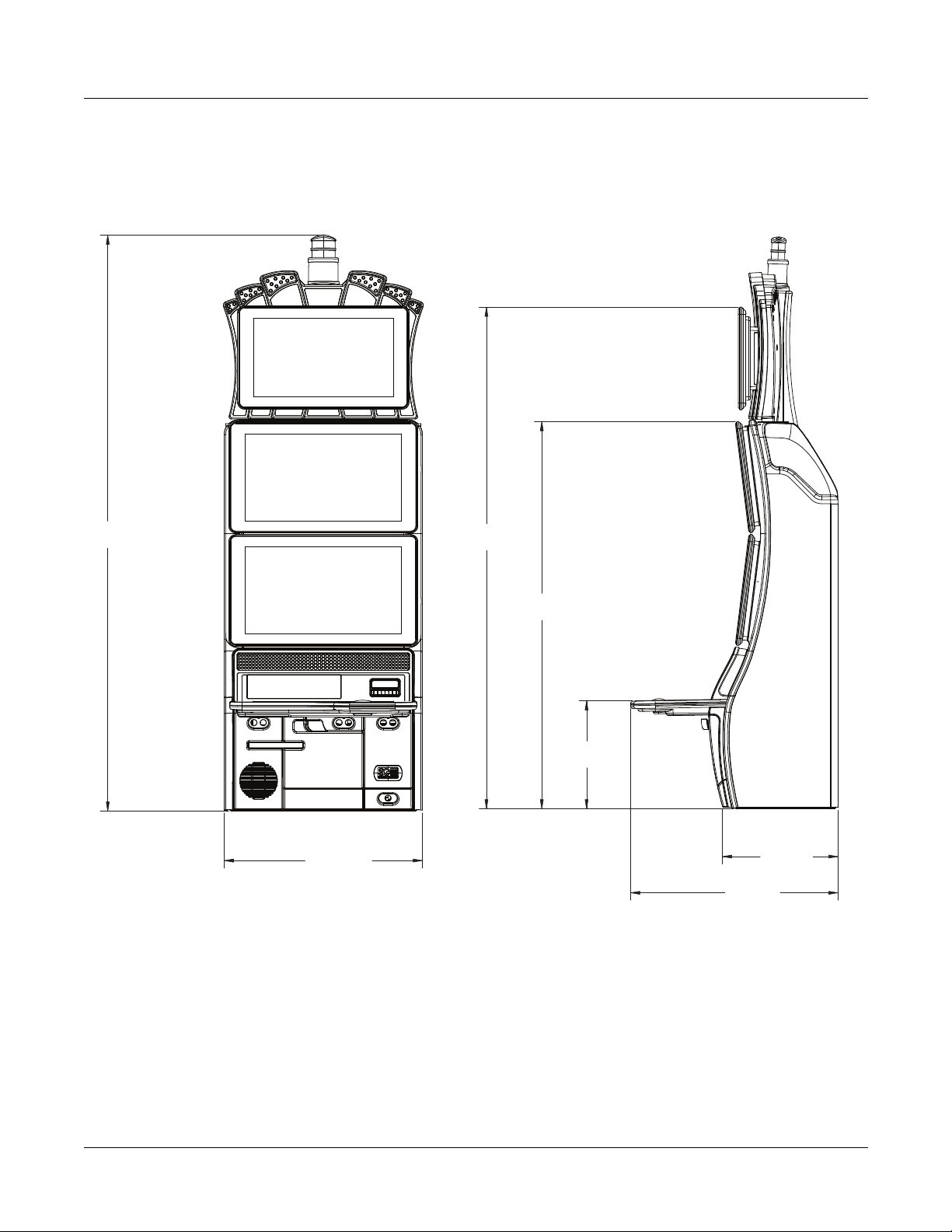

Dimensions

673 mm

26.5 inches

1958 mm

77.1 inches

373 mm

14.7 inches

709 mm

27.9 inches

395 mm

15.6 inches

1328 mm

52.3 inches

1719 mm

67.7 inches

TwinStar™ Upright (SG-1V224ST) Operator Instructions Overview

Anti-Tip Stands SG-1V224ST [I] 9

CONFIDENTIAL.

Anti-Tip Stands

Part Numbers for Anti Tip Stands

Part Number Description

219002-61430 Anti-Tip Stand, 14-inch High

219300-C1430 Anti-Tip Stand with Sound Chair accommodations, 14-inch High

For additional options or selections, contact the Customer Service Department at 1877-462 2559.

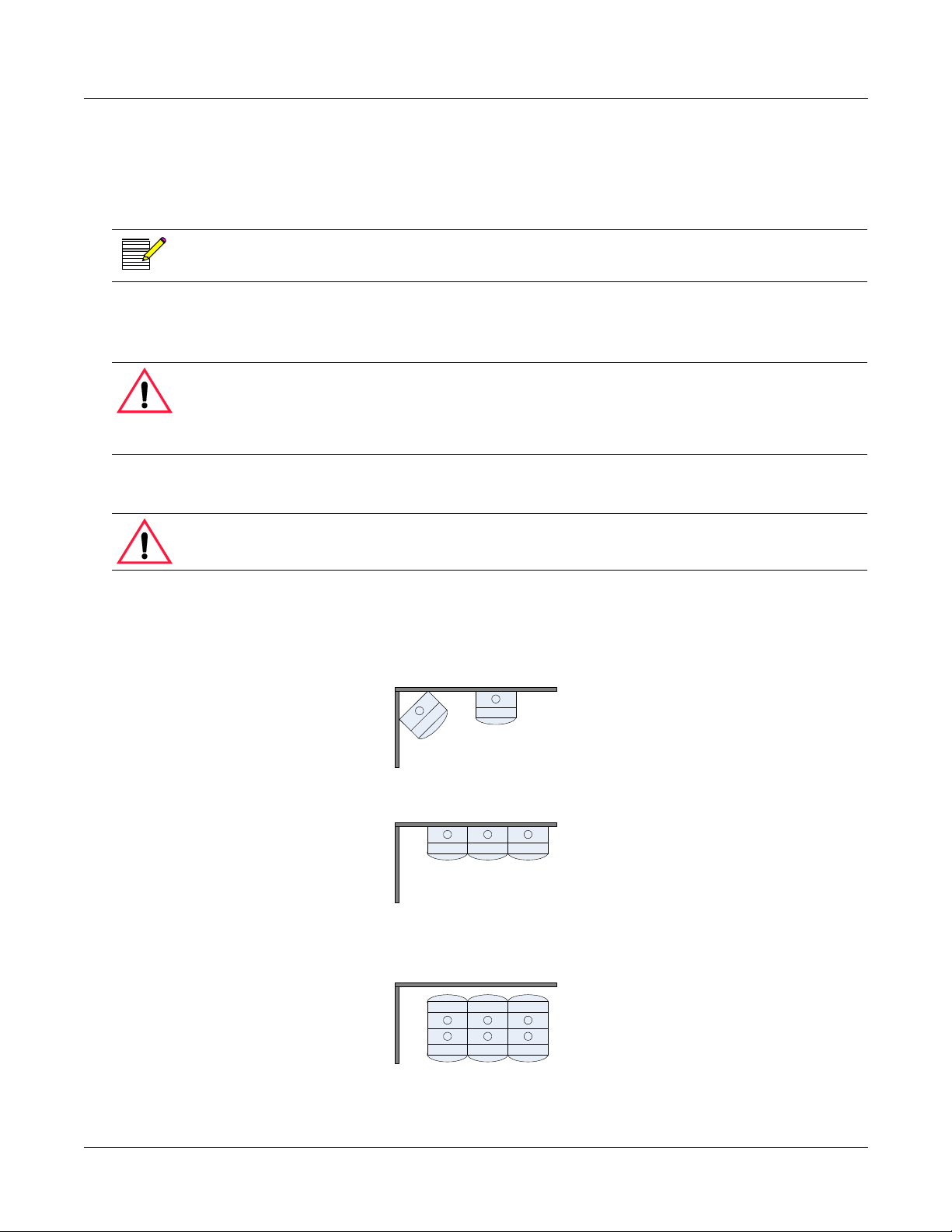

CAUTION: A freestanding cabinet installation requires an anti tip stand.

FINISH: 01-99 = POWDER COAT

PER BALLY SPEC 200200

AA-ZZ = LAMINATE

PER BALLY SPEC 200300

STAND HEIGHT

STAND SERIES

219002 or 219300-XXXXX

Overview TwinStar™ Upright (SG-1V224ST) Operator Instructions

10 SG-1V224ST [I] Lock and Cam Specification

CONFIDENTIAL.

Lock and Cam Specification

Door and Lock Locations

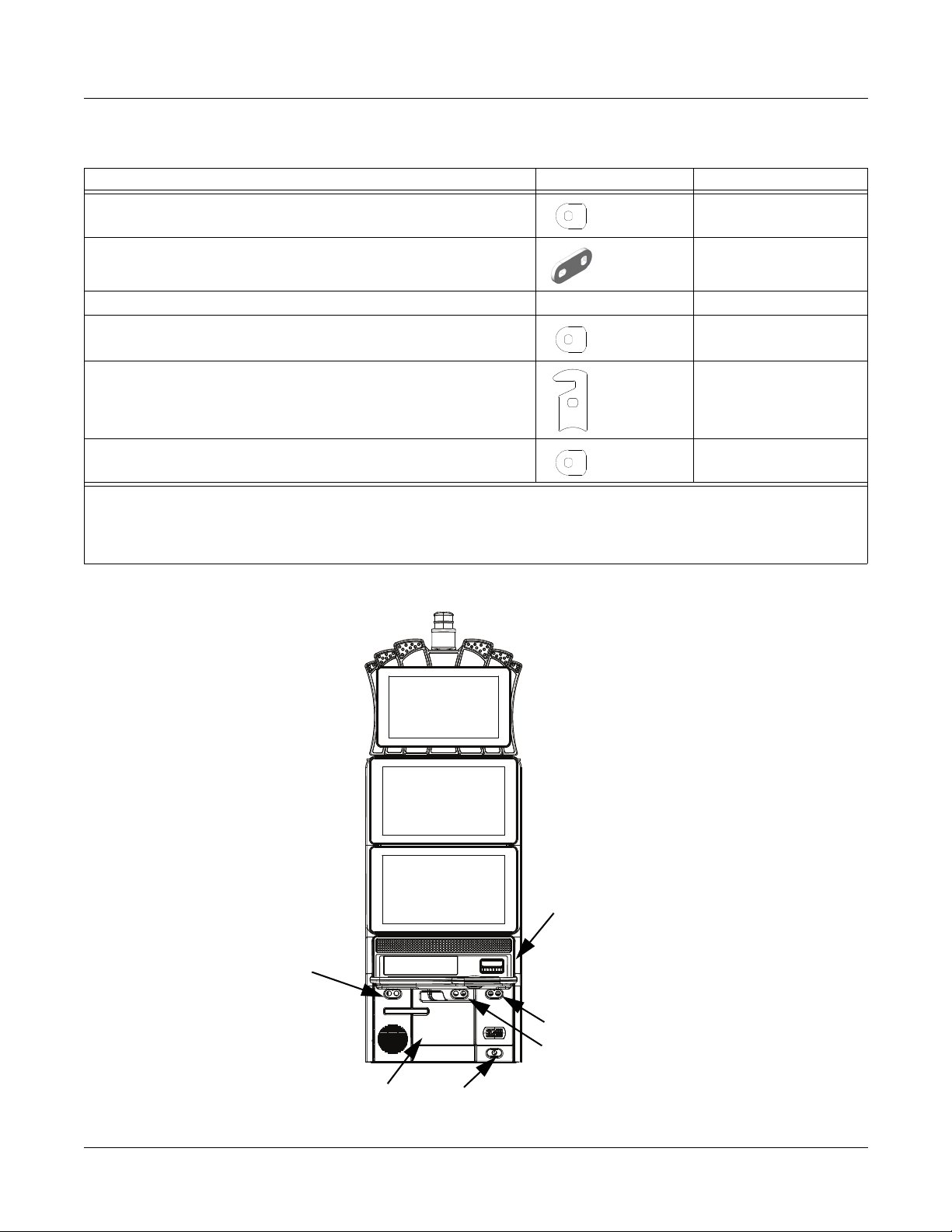

Lock Location Illustration Part Number

Belly Door Cam, Secondary 258802

Bill Acceptor Chassis Cam 200454

Bill Acceptor Chassis Lock Spacer, 1/8 Inch — 205052

Bill Acceptor Drop Door Cam, Secondary 258802

Main Door Lock Cam 258801

Main Door Lock Cam, Secondary 258802

TIP: To avoid delays, purchase your machine locks well before your planned installation. Purchase several spare

machine locks from your lock manufacturer and keep them available. See your product manuals for additional

lock and cam information. For additional options or selections for your lock manufacturer, contact your Scientific

Games Representative.

Main Door

(Lower Monitor)

Attendant Key Switch

Belly Door

Main Door Lock

Topper

Upper Monitor

Pillow Assembly)

Belly Door Lock

Cash Box Door Lock

TwinStar™ Upright (SG-1V224ST) Operator Instructions Overview

Door and Lock Locations SG-1V224ST [I] 11

CONFIDENTIAL.

Installing the Main Door Lock

• Location: at the center of the cabinet, below the deck

• Unlocking Rotation: clockwise

•Cam:

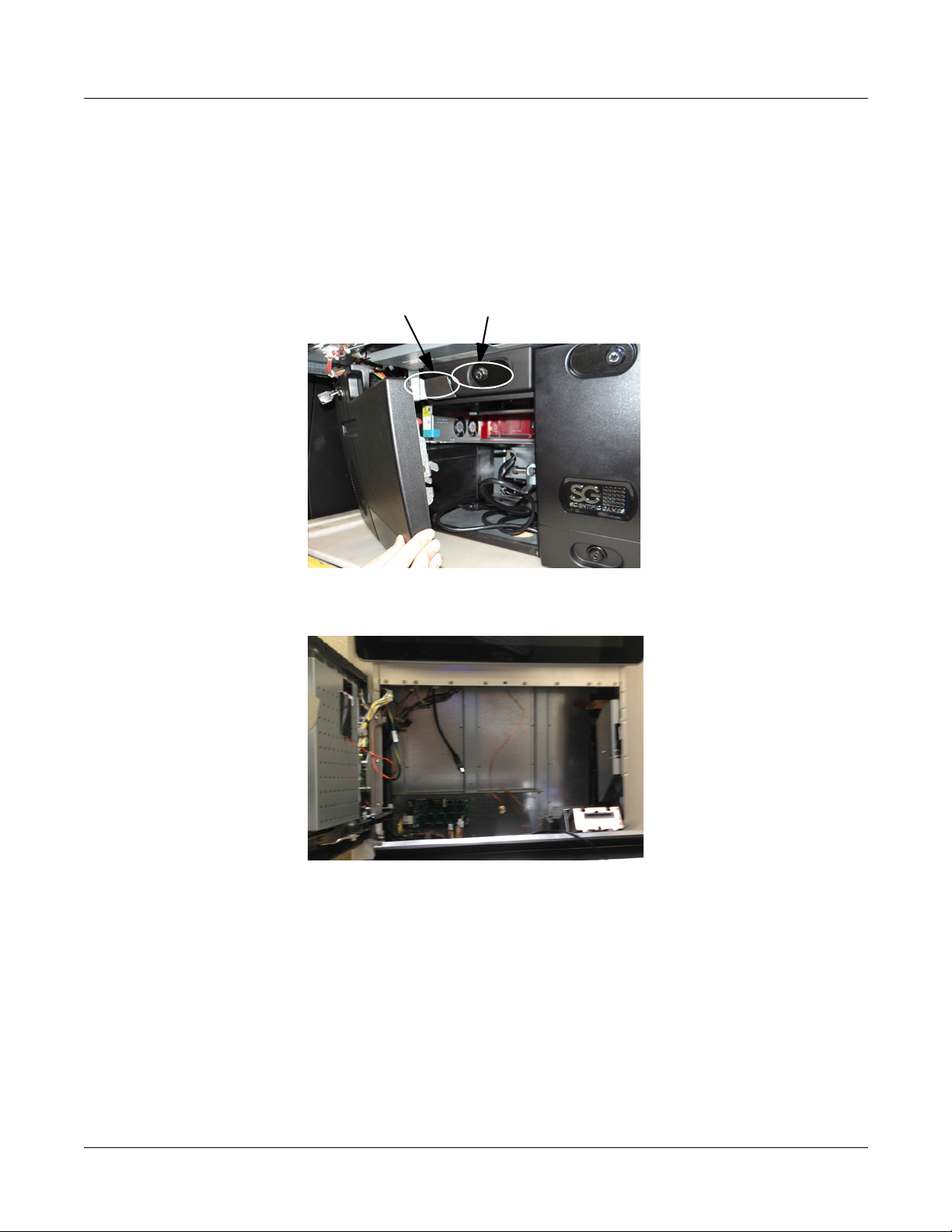

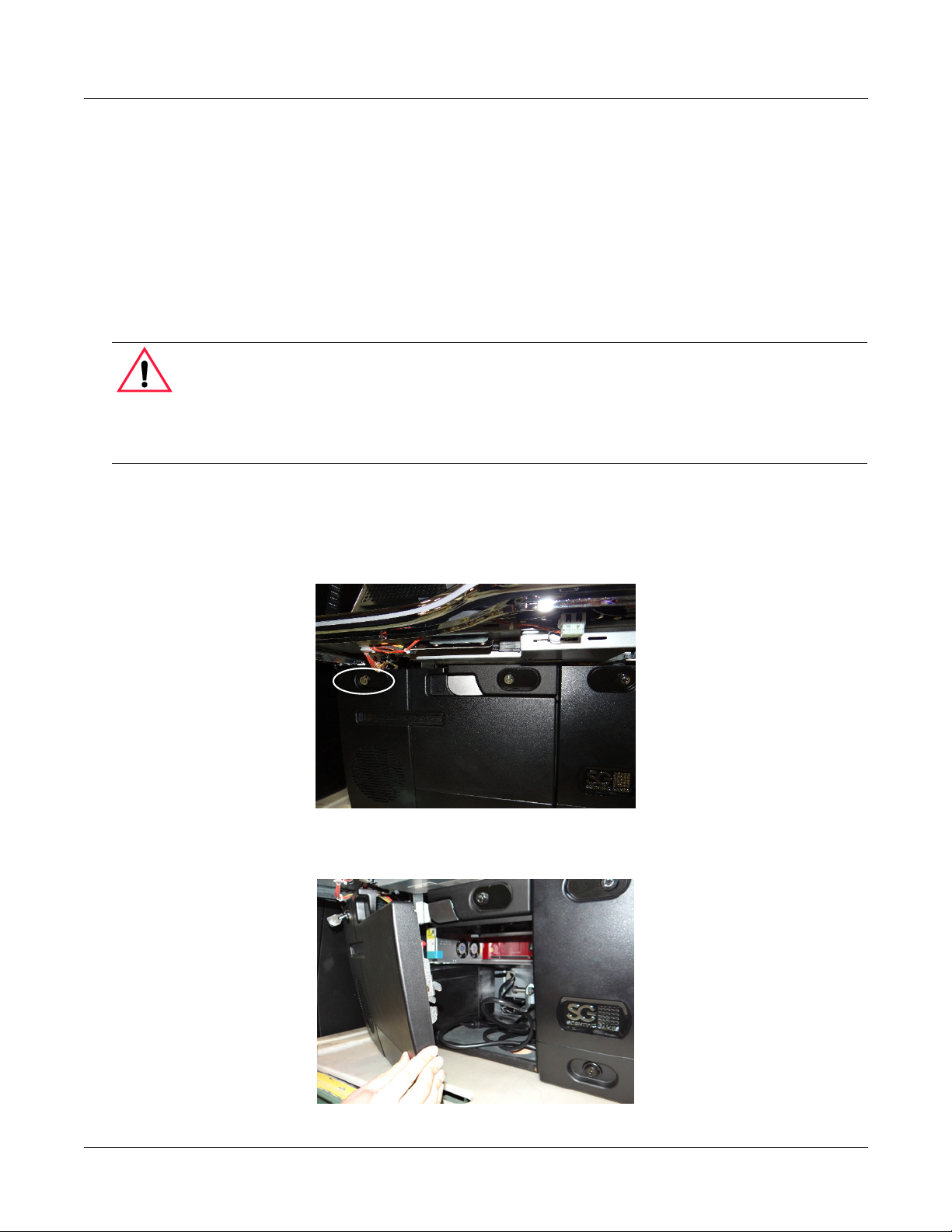

STEP 1. Unlock the belly door by inserting the key into the left lock and turning it to the right.

STEP 2. Upon unlocking, the belly door opens slightly. Grasp the right edge of the belly door and pull

outward.

STEP 3. Unlock the cash box door by inserting the key into the right lock, turning it to the right, and

lowering the door.

Overview TwinStar™ Upright (SG-1V224ST) Operator Instructions

12 SG-1V224ST [I] Door and Lock Locations

CONFIDENTIAL.

STEP 4. Remove the cover from the bottom of deck by removing six screws securing the deck bottom

cover plate.

STEP 5. Unlock the main door by inserting the key into the center lock and turning it to the right to

release the handle.

STEP 6. Grasp the handle from the left edge and pull it forward until the main door separates from the

lock.

STEP 7. Grasp the right side of the main door and open it from right to left.

Four Screws on the Right SideTwo Screws on the Left Side

Main Door Release Handle Main Door Lock

TwinStar™ Upright (SG-1V224ST) Operator Instructions Overview

Door and Lock Locations SG-1V224ST [I] 13

CONFIDENTIAL.

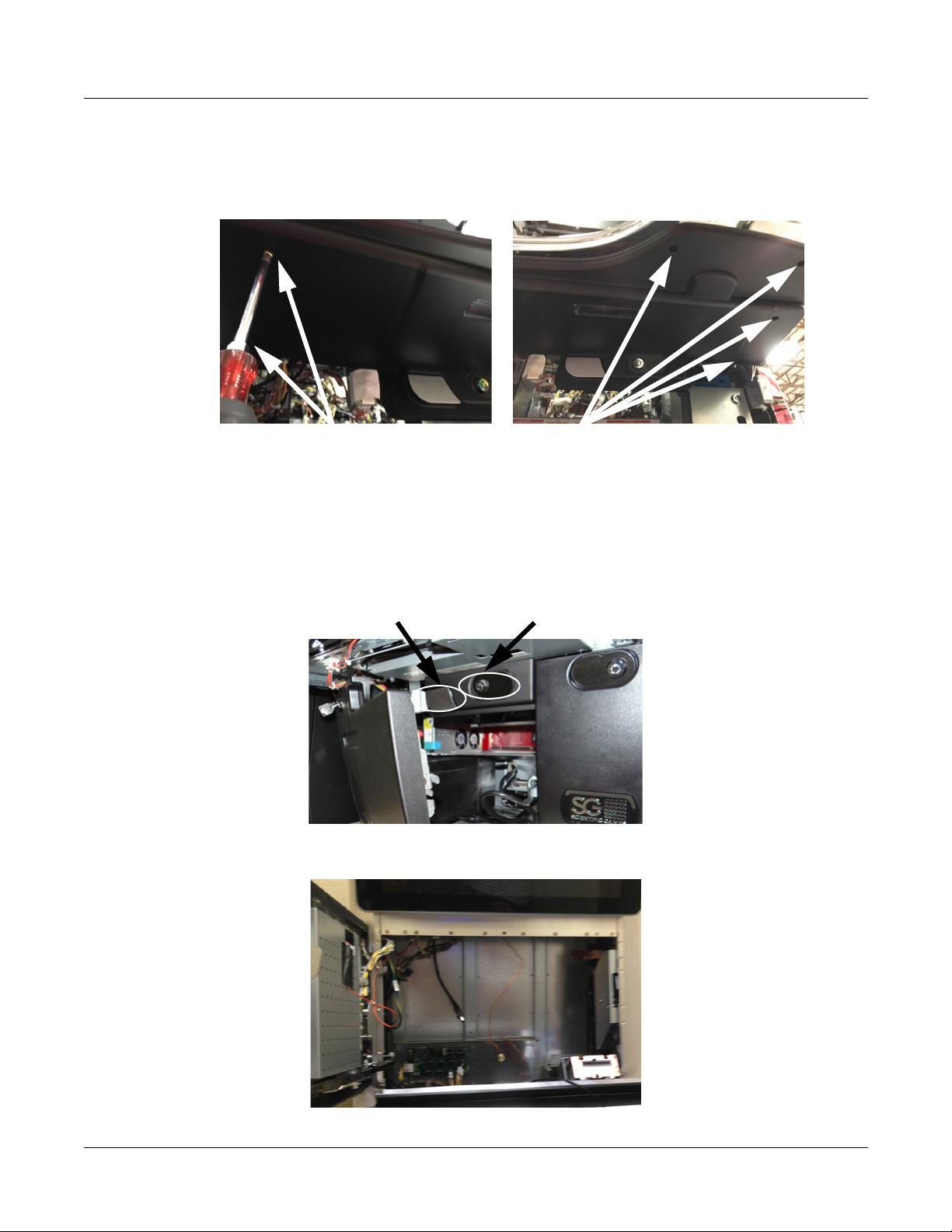

STEP 8. With the main door open, open the pillow assembly by grasping the top of the trim and tilting

it towards yourself.

STEP 9. To access the main door lock pod assembly, remove four screws from behind the main door.

Note that a symbol of a lock identifies each of the lock pod screws.

STEP 10. Detach the main lock pod assembly from the cabinet.

Screws with Lock Symbols

Lock Pod Assembly

Overview TwinStar™ Upright (SG-1V224ST) Operator Instructions

14 SG-1V224ST [I] Door and Lock Locations

CONFIDENTIAL.

STEP 11. Insert the provided cover plate into the main lock.

STEP 12. Install the main lock.

Cover Plate

Unpacking and Inspecting the Machine SG-1V224ST [I] 15

TwinStar™ Upright (SG-1V224ST) Operator Instructions

CONFIDENTIAL.

Chapter 2

Getting Started

Unpacking and Inspecting the Machine

STEP 1. Remove any external packaging.

STEP 2. Verify that the serial numbers on the cabinet match the shipping documents.

STEP 3. Unpack and remove all loose parts from the cabinet such as extra cables, lock cams, and

mounting hardware.

STEP 4. Inspect interior cable and circuit board connections and ensure they are firmly connected.

CAUTION: SECURE THE MACHINE TO THE WALL, FLOOR, OR

BACK-TO-BACK WITH ANOTHER MACHINE. THE

MACHINE MUST BE BOLTED TO THE WALL, FLOOR, OR

OTHER MACHINE BEFORE OPENING DOORS.

See “Securing the Machine” on page 16.

Getting Started TwinStar™ Upright (SG-1V224ST) Operator Instructions

16 SG-1V224ST [I] Securing the Machine

CONFIDENTIAL.

Securing the Machine

STEP 1. Ensure the new location has appropriate power and network cabling installed.

STEP 2. Move the machine to the desired location using a lifting or moving device such as a hand

truck.

STEP 3. Place the machine on its base at the desired location using a lifting device.

• Do not place the machine on any wires or cables.

• For two or more cabinets, place cabinets side-by-side or back-to-back.

• Example - For one cabinet, install against a wall or in a corner.

• Example - For a single line of cabinets, install against a wall.

• Example - For multiple, freestanding, even numbers of cabinets not positioned against

a wall, install back-to-back.

NOTE: Changes in floor configuration may require rerouting power and CAT-5

cables.

CAUTION: The machines are heavy. To prevent injuries and damage, always wear a back

brace, work with a partner, and do not use the tower light to grip the

machine. To move the machine easily over a carpeted area, use a hand truck

with solid—not air-filled—tires.

CAUTION: Ensure the sides and back of the cabinet are not exposed or accessible by

players.

TwinStar™ Upright (SG-1V224ST) Operator Instructions Getting Started

Securing the Machine SG-1V224ST [I] 17

CONFIDENTIAL.

• Example - For multiple, freestanding, odd numbers of cabinets not positioned against a

wall, install in pods.

STEP 4. Open the belly door and remove the speaker by removing two screws and disconnecting the

speaker cable. See “Accessing the Belly Door” on page 19.

STEP 5. Secure the machine to the base with four bolts using the provided holes.

NOTE: For pod configurations, fasten adjacent stands together using the Stand

Hinge Bracket with Mounting Hardware Kit (1400978-104).

CAUTION: To prevent tipping, always secure the cabinet firmly to the stand using the

Cabinet Stand Mounting Hardware Kit (205343).

Two Screws

Speaker Cable

Holes for Four Bolts

Getting Started TwinStar™ Upright (SG-1V224ST) Operator Instructions

18 SG-1V224ST [I] Securing the Machine

CONFIDENTIAL.

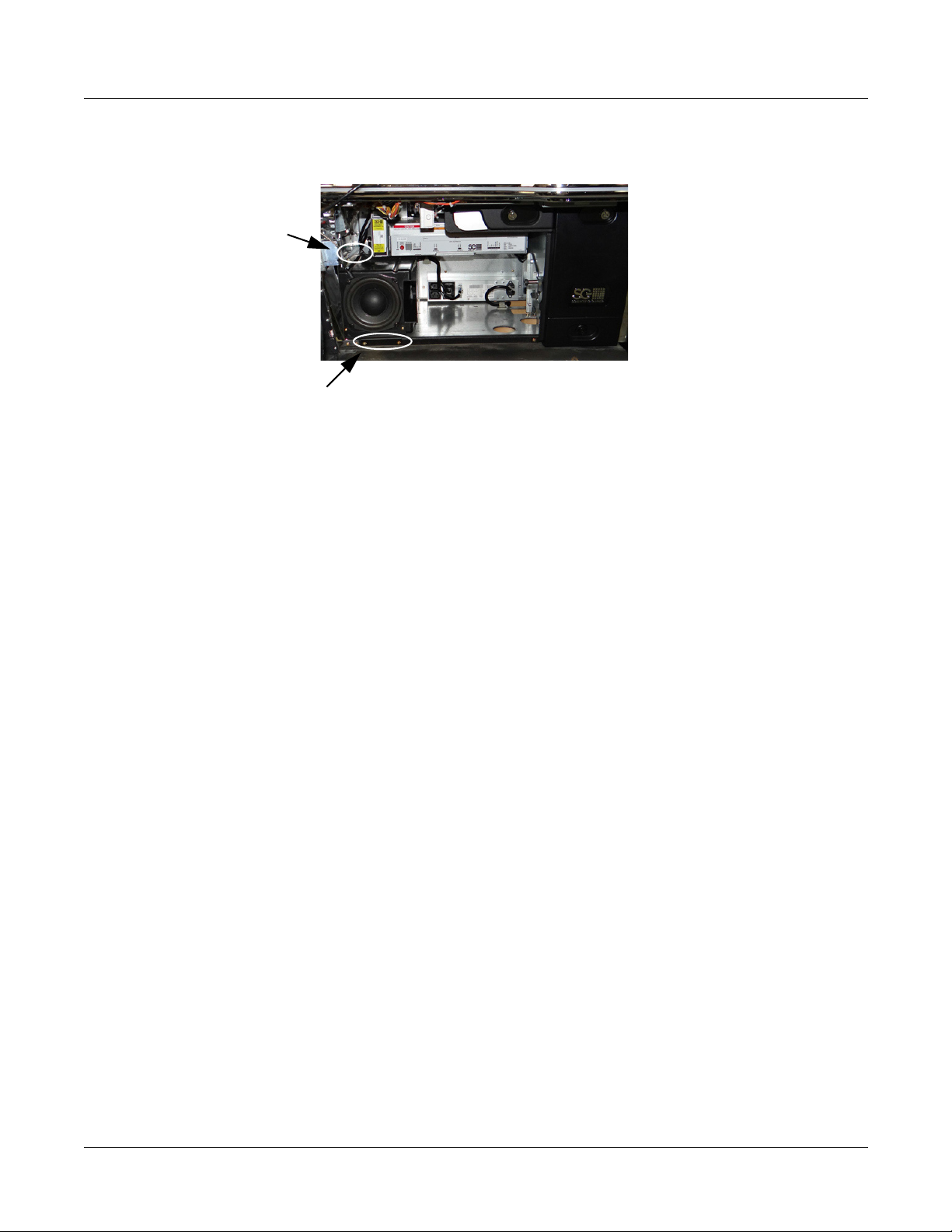

STEP 6. Connect the speaker cable and secure the speaker with two screws.

Two Screws

Speaker Cable

TwinStar™ Upright (SG-1V224ST) Operator Instructions Getting Started

Opening and Closing Doors SG-1V224ST [I] 19

CONFIDENTIAL.

Opening and Closing Doors

Use the following instructions to ensure safe and correct operation:

• Secure doors with locks installed according to instructions from your lock manufacturer.

• When closing doors, always ensure the door frame areas are free from foreign objects and that the

door latches securely.

• Do not apply excessive force.

Accessing the Belly Door

STEP 1. To unlock the belly door, insert the key into the left lock and turn it to the right.

STEP 2. Upon unlocking, the belly door opens slightly. Grasp the right edge of the belly door and pull

outward.

CAUTION: THE MACHINE MUST BE BOLTED TO THE WALL,

FLOOR, OR OTHER MACHINE BEFORE OPENING

DOORS.

See “Securing the Machine” on page 16.

Getting Started TwinStar™ Upright (SG-1V224ST) Operator Instructions

20 SG-1V224ST [I] Opening and Closing Doors

CONFIDENTIAL.

Accessing the Main Door

STEP 1. To unlock the main door, insert the key into the center lock and turn it to the right to release

the handle.

STEP 2. Grasp the handle from the left edge and pull it forward until the upper portion of the main

door separates from the lock.

STEP 3. Grasp the right side of the main door and open it from right to left.

Main Door Release Handle Main Door Lock

Other manuals for TWINSTAR UPRIGHT

This manual suits for next models

Table of contents

Other Scientific Games Arcade Game Machine manuals

Scientific Games

Scientific Games WaveXL BH-1CC49ST Specifications

Scientific Games

Scientific Games TWINSTAR UPRIGHT User manual

Scientific Games

Scientific Games TWINSTAR SLANT Specifications

Popular Arcade Game Machine manuals by other brands

Roberto Sport

Roberto Sport COLLEGE SIX Assembly instructions

GCE

GCE Vectrex LIGHT PEN Mail Plane manual

Sega

Sega VIRTUA COP owner's manual

IGT

IGT Cobalt 27 Service manual

Homing

Homing TREASURE ISLAND manual

Merit

Merit Blue MAXX Removal/Installation Instructions

Tecway

Tecway TRIPLE TURN manual

Roxor

Roxor In the Groove Owner's and service manual

Barron Games

Barron Games X-Putt Operator's guide

MADEFORARCADE

MADEFORARCADE MANUAL COINPUSHER manual

BMI Gaming

BMI Gaming SHIRTS AND SKINS Operator's manual

RHINO PLAY

RHINO PLAY MO1632F Assembly instructions

Super Wing

Super Wing 42 Inch Ice Man manual

Magic Play

Magic Play Zombie War Water Shooting Game instructions

Ice

Ice MONOPOLY ROLL-N-GO manual

Icegame

Icegame Harpoon Lagoon Owner's and service manual

jakar

jakar BOXER FIGHTER Operator's manual

Bally

Bally Tron Upright Parts and Operating Manual

Scientific Games TWINSTAR UPRIGHT Specifications

Popular Arcade Game Machine manuals by other brands
