WAVE XL™ (BH-1CC49ST) OPERATOR INSTRUCTIONS
Cabinet Setup
5 November 2018 1510978 [B]

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
2
All ® notices signify marks registered in the United States. The look and feel of the games described and displayed herein and the individual
components and displays of such games are trade dress of Scientific Games Corp. and its Subsidiaries.
© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. Confidential.
Scientific Games Corporation
6601 Bermuda Road
Las Vegas, Nevada 89119, USA
1 855 777 7435 (Toll Free)
1 702 897 7150
http://www.scientificgames.com
This document (“Document”) has been provided to you by Scientific Games Corporation or one or more of its directly or indirectly wholly
owned companies (collectively, “Scientific Games”). This Document contains a variety of: (a) materials and other items relating to products or
services of Scientific Games or its licensors or other third parties, including layout, information, text and scripts, data, files, images,
photographs, pictures, artwork, designs, graphics, logos, drawings, charts, button icons, instructions, illustrations, advertising copy,
technology, interactive features,“look and feel,” and the compilation, assembly and arrangement of the materials of the Document, and
copyrightable material; (b) service marks, trademarks, logos, trade names and trade identities of Scientific Games or its licensors or third
parties, when applicable; and (c) other forms of intellectual property (all of the foregoing in (a), (b) and (c), collectively, “Content”). This
Document and the Content are owned or controlled by Scientific Games or its licensors or third parties, when applicable. All right, title, and
interest in and to the Content is the property of Scientific Games or its licensors, when applicable, and is protected by the intellectual
property laws of the United States and elsewhere to the fullest extent possible. All ® notices signify marks registered in the United States by
Scientific Games or its licensors, when applicable. Scientific Games grants the intended recipient a limited, non-exclusive, revocable,
non-assignable, personal, and non-transferable license to view and/or print one copy of the Content, but Scientific Games or its licensors, as
the case may be, retain ownership of such Content. The foregoing limited license does not provide the intended recipient with any ownership
of, or any other intellectual property interest in, any Content and this license may be immediately suspended or terminated for any reason, by
Scientific Games in its sole discretion, and without advance notice or liability.
This Document has been provided to you solely for use in operating the product described herein. The specifications and information
contained in this documentation are subject to change without notice. All statements, information, illustrations, specifications and
recommendations in this documentation are believed to be accurate, but are provided without warranty of any kind, express or implied. The
product information referenced in this Document is being provided by Scientific Games as is.

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Contents 3
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preventing Injury and Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Environmental Protection and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Environment (Recommended) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dimensions for Cabinet with Topper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2 Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unpacking and Inspecting the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

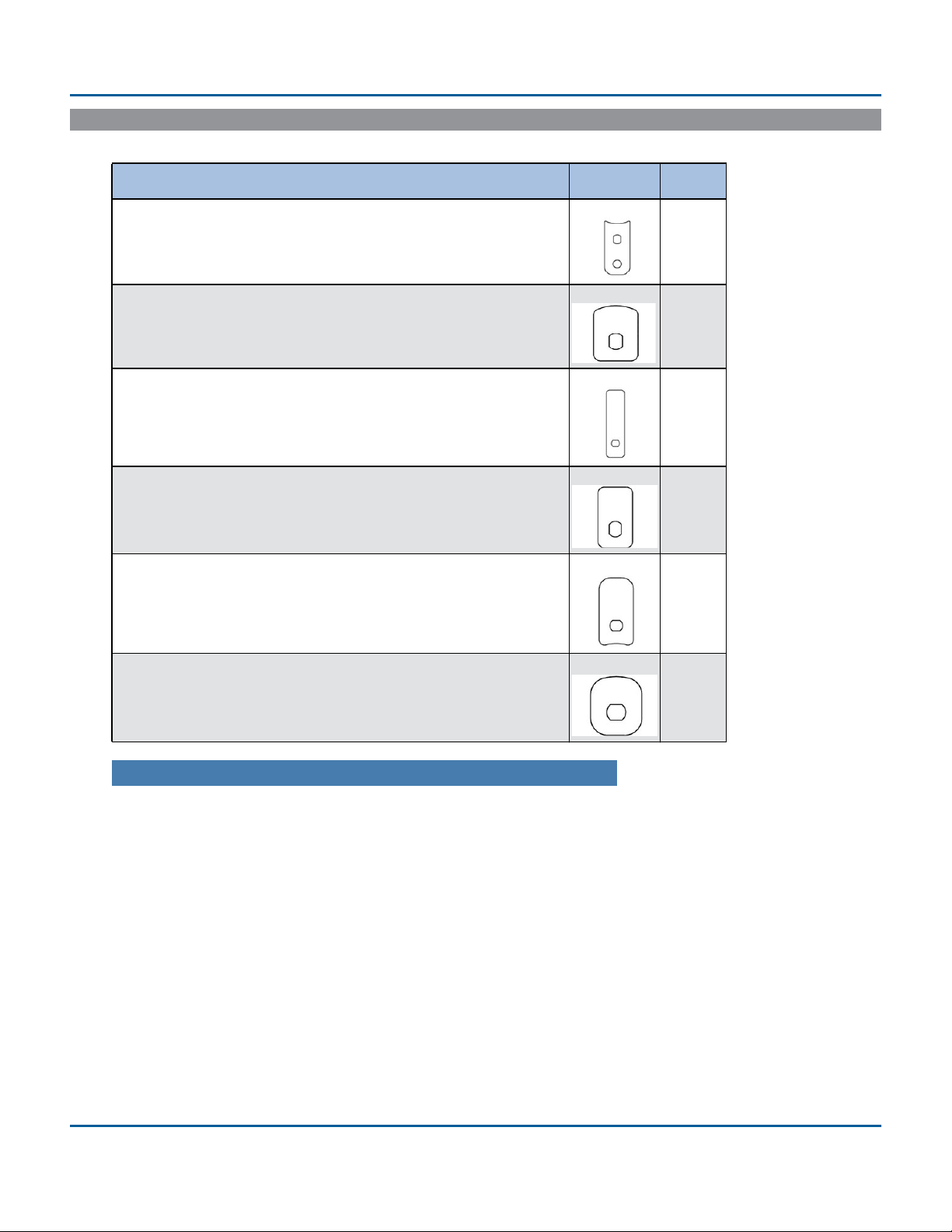

Lock and Cam Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Door and Lock Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Opening and Closing Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

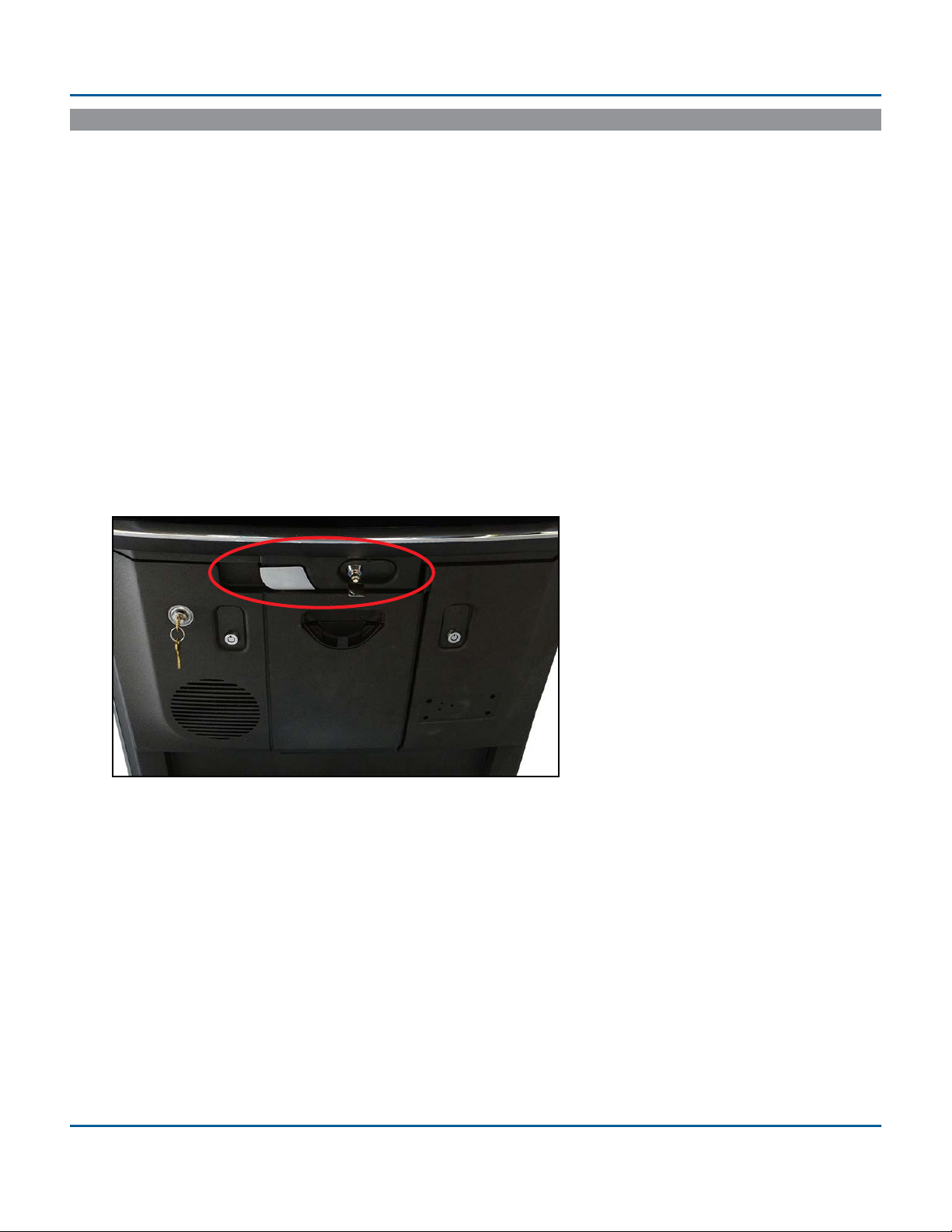

Open and Close the Main Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

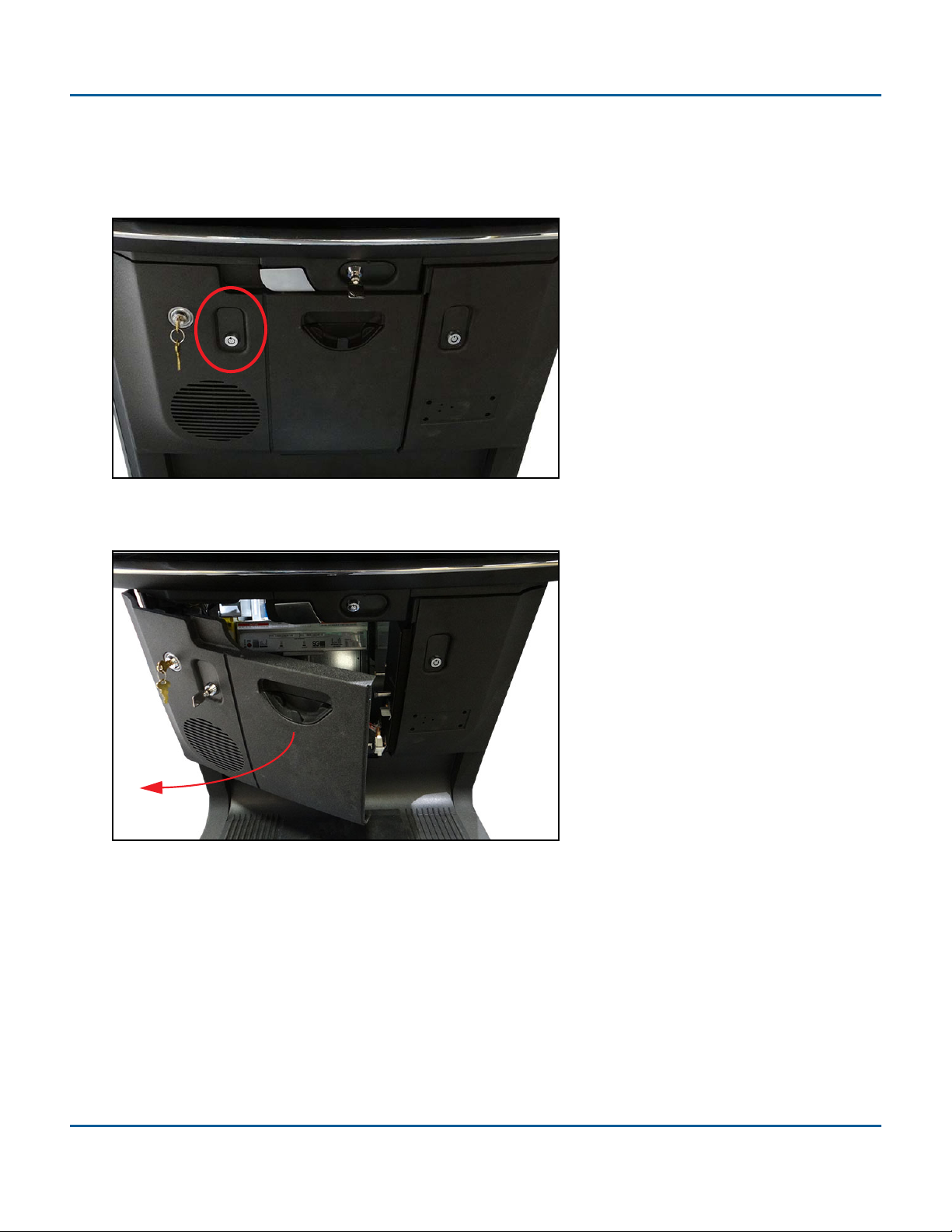

Open and Close the Lower Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open and Close the Bill Acceptor Cash Box Access Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Accessing the Lower Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Securing the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 3 Operational Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Attendant Pays and Canceling Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Collecting Bills from the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Refilling the Printer Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Chapter 4 Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Preface 4
Preface
This preface includes the following topics:
Revision History on page 4
Reference Information on page 4
Contact Information on page 4
Preventing Injury and Damage on page 4
Environmental Protection and Recycling on page 5
Revision History
Rev. A, 6 September 2018-MO-Initial Release
Rev. B, 5 November 2018-MO-Changed CPU in Spare Parts List
Reference Information
Revocation Bulletins, Service Manuals, and other documents are available online at
https://www.sggaming.com/members/login. To request a login and password, select Request New Login.
The following documents provide additional information:
Service Manual and User Guide for your ArgOS 2.X Operating System
Service Manual 1493373: CPU-4.2.2.X Control Subsystem
Design Guidelines SY-TP007000-500: Player Tracking System Design Guidelines for Wave XL (x500) Cabinet with
49-Inch Curved Monitor
Contact Information
Preventing Injury and Damage
Preventing Shock: Always remove power from the machine before starting any service tasks.
Preventing ESD: Always use appropriate ESD mitigation procedures.
Replacing the Power Cord: If the power cord is damaged, it must be replaced by the manufacturer (Scientific
Games Corporation), its service agent, or similarly qualified persons to avoid a hazard.
Properly Secure and Vent All Equipment: Before starting any service tasks, the cabinet, top or accessory box,
and machine must be correctly secured and installed, with adequate ventilation, as described in the
corresponding product manual or guide to avoid injury and equipment damage.
Ladder Safety: Follow all company mandated ladder safety procedures. Do not exceed the maximum load
rating of a ladder. Be aware of the ladder load rating and of the weight it is supporting, including the weight of
any tools or equipment.
Region Telephone Email
Americas + 1 877 748 3387 [email protected]
Asia Macau 853 625 22559 [email protected]
Singapore 65 8522 7465
Australia/New Zealand Australia 1 800 837 668 [email protected]
New Zealand 0800 476 321
Europe/Middle East/Africa (EMEA) [phone] [email protected]

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Preface 5
Environmental Protection and Recycling
Environmental Protection and Recycling
T
his product bears a recycling mark in accordance with the Waste from Electrical Electronic
Equipment (WEEE) European Commission Directive 2012/19/EU. This mark indicates that the
product should be deposited at an appropriate facility to enable recovery and recycling in
accordance with all applicable laws. To identify an environmentally sound disposal method for
this product or its component parts, please contact the responsible government authority in
your area. For information on available product take-back programs, see our websites
https://www.sggaming.com/Customer-Center/Games-Support/WEEE-Directive or
http://www.scientificgames.com.

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 1 Overview 6
Chapter 1 Overview
This chapter includes the following topics:
Prerequisites on page 6
Electrical Specifications on page 7
Physical Specifications on page 7
Operating Environment (Recommended) on page 7
Dimensions on page 8
This document provides operating instructions for the Wave XL (BH-1CC49ST), a base hybrid cabinet with CPU-4X, a
49-inch concave curve video monitor, and standard top. Your machine only displays the features supported by your
software version, jurisdiction, and machine configuration; not all features display on every machine. If any feature does
not apply to your machine, proceed to the next section.
CAUTION
This document may describe procedures for equipment that do not apply to all
cabinet configurations or may require additional components. Each regulatory
jurisdiction may have controls, policies, and procedures you must follow. You are
responsible for understanding and abiding by the rules that apply in your
environment.
Prerequisites
This installation may require the following additional items:
Locks (quantity 5 to 9 depending on your machine configuration)
Category 5 network cables (quantity and length depending on your machine configuration and your floor plan
layout)
Tools for locks
22 mm (7/8-inch), 11 mm (7/16-inch), and 10 mm (25/64-inch) socket or wrench
Nut driver
Needle nose pliers
Phillips head screwdriver
Set of Allen wrenches
Operating system software manual for your machine

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 1 Overview 7
Electrical Specifications
Electrical Specifications
NOTE
Typical currents are provided for reference only. Actual current use will depend
upon machine configuration and addition of supplemental equipment such as,
but not limited to, the following: systems monitoring equipment, progressive
equipment, and service equipment.
Physical Specifications
Operating Environment (Recommended)
CAUTION
To prevent temperature and humidity related stress on the machine, operate the
machine within the recommended guidelines. Operating the machine outside the
recommended guidelines may increase the required maintenance.
Table 1 Electrical Specifications
Description Value
Line Voltage 120-240 VAC
Surge State Current 3.5 Amps
Operating State Current 3.3-1.7 Amps
Max Load 6.0 Amps
Power Consumption 1265 BTU/HR
Table 2 Physical Specifications
Description Cabinet with Topper
Weight
Weight (Un-crated including Flammable
Weight)
425 lb (192.8 Kg)
Flammable Weight 21 lb (9.5 Kg)
Dimensions
Length 2590 mm (101.95 inches)
Width 780 mm (30.70 inches)
Depth 851 mm (33.52 inches)
Table 3 Operating Environment
Description Cabinet with Topper Cabinet without Topper
Temperature Range 4-40 Degrees Celsius
(39.2 - 104 Degrees Fahrenheit)
4-40 Degrees Celsius
(39.2 - 104 Degrees Fahrenheit)
Humidity (Maximum) 90% 90%

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 1 Overview 8
Dimensions
Dimensions
Dimensions for Cabinet with Topper
All measurements in the figure below are in inches (millimeters), Figure 1.
Figure 1 Front and Side Views for Cabinet with Topper

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 9
Chapter 2 Instructions
This chapter includes the following topics:
Unpacking and Inspecting the Machine on page 9
Lock and Cam Specification on page 10
Door and Lock Locations on page 11
Opening and Closing Doors on page 12
Securing the Machine on page 19
Unpacking and Inspecting the Machine
1Remove the plastic packaging, if any.
2Verify the serial numbers on the cabinet match the shipping documents associated with the installation.
CAUTION
All serial numbers must match the shipping documents associated with the
installation. Never remove serial numbers from any equipment.
3Inspect the cabinet for any shipping damage, such as dents or scratches.
4Unpack and remove all loose parts from any boxes or bags containing cables, lock cams, and mounting
hardware.
5Remove all plastic or paper packing materials from any interior assemblies, such as a printer.
6Inspect the interior cables and ensure they are firmly connected.
7Inspect the circuit board assemblies for loose connections.
NOTE
During shipping, cables may become disconnected and circuit boards may
become unseated. If so, firmly reattach the disconnected parts before proceeding.
8Locate and open the logic door.
9Re-seat the flash media in the sockets, if necessary.
10 If the machine is damaged or any parts are missing, contact your Distributor or Customer Service
Representative for Return Merchandise Authorization (RMA) information.
CAUTION
If a new machine is damaged and awaiting replacement parts, do not remove any
existing parts from it for use in another machine.

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 10
Lock and Cam Specification
Lock and Cam Specification
NOTE
To avoid delays, purchase your machine locks well before your planned
installation date. Purchase several spare machine locks from your lock
manufacturer and keep them available. If necessary, use a 1.6 mm lock spacer
(200455) or a 28.6 mm spacer (202035-00003 and S-00231-984).
Table 4 Lock and Cam Specifications
Lock Location Cam
Illustration
Cam Part
Number
Lower Door Single Lock 1497145
Lower Door Double Lock 1508485
Bill Acceptor Cash Box Access Door Single Lock 1497144
Bill Acceptor Cash Box Access Door Double Lock 1508483
Bill Acceptor Cash Box Door Single Lock 1497471
Bill Acceptor Cash Box Door Double Lock 1508657

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 11
Door and Lock Locations
Door and Lock Locations
Figure 2 Door and Lock Locations
Table 5 Door and Lock Location Figure Legend
Callout Description
A Audit Key Switch
B Main Door Lock
C Lower Cabinet Panel
DBill Acceptor Cash Box Access Door
EMonitor (Main Door)
C
E
D
B
A

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 12
Opening and Closing Doors
Opening and Closing Doors
Use the following instructions to ensure the safe and correct operation of door equipment:
Secure doors with locks installed according to instructions from your lock manufacturer.
Inspect door latches, brackets, pins, hinges, and gas springs (if applicable) for wear or damage and replace, if
necessary.
When opening and closing doors, always hold or support doors and use the provided latch release
mechanisms, handles, or knobs.
When closing doors, ensure the door frame areas are free of foreign objects and closes securely. Do not apply
excessive force.
To avoid damaging latches when closing the door, use the door handles or knobs to hold latches in the open
position. Close the door, then gently release the handle or knob (for applicable doors).
Open and Close the Main Door
Use the following instructions to open the main door:
1Turn the main door lock clockwise.
2Pull the silver handle next to the main door lock, Figure 3.
Figure 3 Main Door Lock Location

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 13
Opening and Closing Doors
3Holding the monitor on each side, lift the main door, Figure 4.
Figure 4 Raising the Main Door
Use the following instructions to close the main door:
1Holding the monitor on each side, lower the main door until it rests parallel with the machine.
2Still holding the sides of the monitor, push the main door towards the machine until it clicks into place, Figure 5.
Figure 5 Lowering the Main Door

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 14
Opening and Closing Doors
Open and Close the Lower Door
Use the following instructions to open the lower door:
1Turn the lower door lock clockwise, Figure 6.
Figure 6 Lower Door Lock Location
2Swing the door from right to left, Figure 7.
Figure 7 Opening the Lower Door

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 15
Opening and Closing Doors
Use the following instructions to close the lower door:
1Swing the lower door from left to right until the door securely connects to the cabinet, Figure 8.
Figure 8 Closing the Lower Door
Open and Close the Bill Acceptor Cash Box Access Door
Use the following instructions to open the bill acceptor cash box access door:
1Turn the bill acceptor cash box access door lock clockwise, Figure 9.
Figure 9 Cash Box Access Door Lock Location

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 16
Opening and Closing Doors
2Swing the bill acceptor cash box access door from left to right, Figure 10.
Figure 10 Opening the Cash Box Access Door
Use the following instructions to close the bill acceptor cash box access door:
1Swing the bill acceptor cash box access door from right to left until the door securely connects to the cabinet,
Figure 11.
Figure 11 Closing the Cash Box Access Door

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 17
Opening and Closing Doors
Accessing the Lower Cabinet
Use the following instructions to open the lower cabinet panel, Figure 12:
Figure 12 Lower Cabinet Panel Location
1Open the lower door and the bill acceptor cash box access door.
2Pull the tab at the top of the lower cabinet panel toward you, Figure 13.
Figure 13 Opening the Lower Cabinet Panel

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 18
Opening and Closing Doors
Use the following instructions to close the lower cabinet panel:
1Align the bottom of the lower cabinet panel with the base of the machine.
2Align the white plastic squares with the top of the lower cabinet.
3Push the lower cabinet panel toward the machine until it clicks into place, Figure 14.
Figure 14 Closing the Lower Cabinet Panel

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 19
Securing the Machine
Securing the Machine
Use the following instructions to install the machine:
1Ensure the new location has appropriate power and network cabling installed.
NOTE
Changes in floor configuration may require reconfiguring and running new power
and CAT-5 cables.
2Move the machine to the desired location using a lifting or moving device, such as a hand truck.
CAUTION
The machines are heavy. To prevent injuries and damage, always wear a back
brace, work with a partner, and do not use the tower light to move the machine. To
move the machine easily over a carpeted area, use a hand truck with solid tires. Do
not use air-filled tiles.
3Place the machine at the desired location.
CAUTION
Ensure the back and sides of the cabinet are not exposed or accessible by players.
a Do not place the machine on any wires or cables.
b For two or more cabinets, place the cabinets side-by-side or back-to-back and, if applicable, secure each
cabinet to an adjacent cabinet.
c Example – For one cabinet, install against a wall or in a corner, Figure 15.
Figure 15 Single Cabinet Example
d Example – For a single line of cabinets, install against a wall, Figure 16.
Figure 16 Single Line of Cabinets Example
e Example – For multiple, freestanding, even numbers of cabinets not positioned against a wall, install
back-to-back, Figure 17.
Figure 17 Multiple Freestanding Cabinets, Back-to-Back
f For multiple, freestanding, odd numbers of cabinets not positioned against a wall, install in pods, Figure 18.
Figure 18 Multiple Freestanding Cabinets, Pods

© 2018 Scientific Games Corp. and its Subsidiaries. All rights reserved. Unauthorized Distribution Prohibited. CONFIDENTIAL
Wave XL™ (BH-1CC49ST) Operator Instructions 1510978 [B] 5 November 2018
Chapter 2 Instructions 20
Securing the Machine
g For multiple, grouped, even numbers of cabinets not positioned against a wall, install in tower, Figure 19.
Figure 19 Multiple Grouped Cabinets, Tower
