Scilogex HB120-S User manual

 

12300388
User Manual
HB120-S LED Digital Dry Bath
Please read the User Manual carefully before use, and follow
all operating and safety instructions!
Technical specifications and outline are subject to change
without prior notice.
www.scilogex.com

Contents
Preface
Service
Warranty
1.Safety Instructions
2.Proper Use
3.Inspection


4.Control 
 
!
5.Trial Run!
6.Function: Heating"
7.Function: timing"
8.Faults#
9.Maintenance and Cleaning#
10.Associated Standards and Regulations$
11.Specifications
12.Ordering Information

1
Preface
Welcome to the “Dry Bath User Manual”. Users should
read this Manual carefully, follow the instructions and
procedures, and be aware of all the cautions when using this
instrument.
Service
Service
When help needed, you can always contact the service
department of manufacturer for technical support in the
following ways:
SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: [phone]
Fax: [phone]
[email protected]
www.scilogex.com
Please provide the customer care representative with the
following information
• Serial numberon the rear panel
• Certification
• Description of problem (i.e., hardware or software)
• Methods and procedures adopted to resolve the problems
• Your contact information
Warranty
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to

2
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim

3
1. Safety Instructions
Warning!
•Read the operating instructions carefully
before use.
•Ensure that only trained staff works with the
instrument.
Risk of burn!
•Caution when touch the housing parts and
the dry bath which can reach temperature of
120°C.
•Pay attention to the residual heat after
switching off.
Protective ground contact
•Make sure that socket must be grounded
(protective ground contact) before use.
• When working wear personal safety guards to avoid the
risk from:
- Splashing and evaporation of liquids
- Release of toxic or combustible gases
• Set up the instrument in a spacious are on a stable, clean,
non-slip, dry and fireproof surface. Do not operate the
instrument in explosive atmospheres, with hazardous
substances or under water.
• Temperature must always be set at least 50lower than
the fire point of the media used.
• Be aware of hazards due to:
- Flammable materials or media with a low boiling
temperature
- Overfilling of media
- Unsafe container
• Process pathogenic materials only in closed vessels.
• Check the instrument and accessories prior to each use.
• Do not use damaged components. Safe operation is only
guaranteed with the accessories provided by the
manufacturer. Accessories must be securely attached to
the device and can’t come off by themselves. Always
disconnect the plug before fitting accessories.
• The instrument can only be disconnected from the main
power supply by pulling out the main or the connector plug.
• The voltage stated on the label must correspond to the
main power supply.
• Ensure that the main power supply cable does not touch
the dry bath. Do not cover the device.
• The instrument may only be opened by experts.

4
2. Proper Use
The instrument is designed for heating liquids in schools,
laboratories or factories.
• Observe the minimum distances between the devices,
between the device and the wall and above the assembly
(min. 100 mm)
>100mm

Figure 1
This device is not suitable for using in residential areas or
other constraints mentioned in Chapter 1.
3. Inspection
3.1 Receiving Inspection
Unpack the equipment carefully and check for any damages
which may have arisen during transport. Please contact
manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not plug it into the power line.
3.2 Listing of Items
The package includes the following items:
Items Qty
Main unit 1
Power cable 1
User Manual 1
Table 1

5
4. Control
4.1 Control elements
Time switch button
Parameter
setting knob
Temperature switch
button
LED display
Power switch
LED light

Figure 2 Dry bath
Table 2
Items Descriptions
Temperature
switch button
Press the button, can set the target
temperature
Time switch
button Press the button, can set the target time
LED Display LED displays the real working state
and all settings.
LED Lignt The LED light shows green when the
parameter is set
Parameter setting
knob
Rotate the knob to set the target
parameters, press the knob to turn on
the settings.
Power Switch Switch ON or OFF the instrument.

6

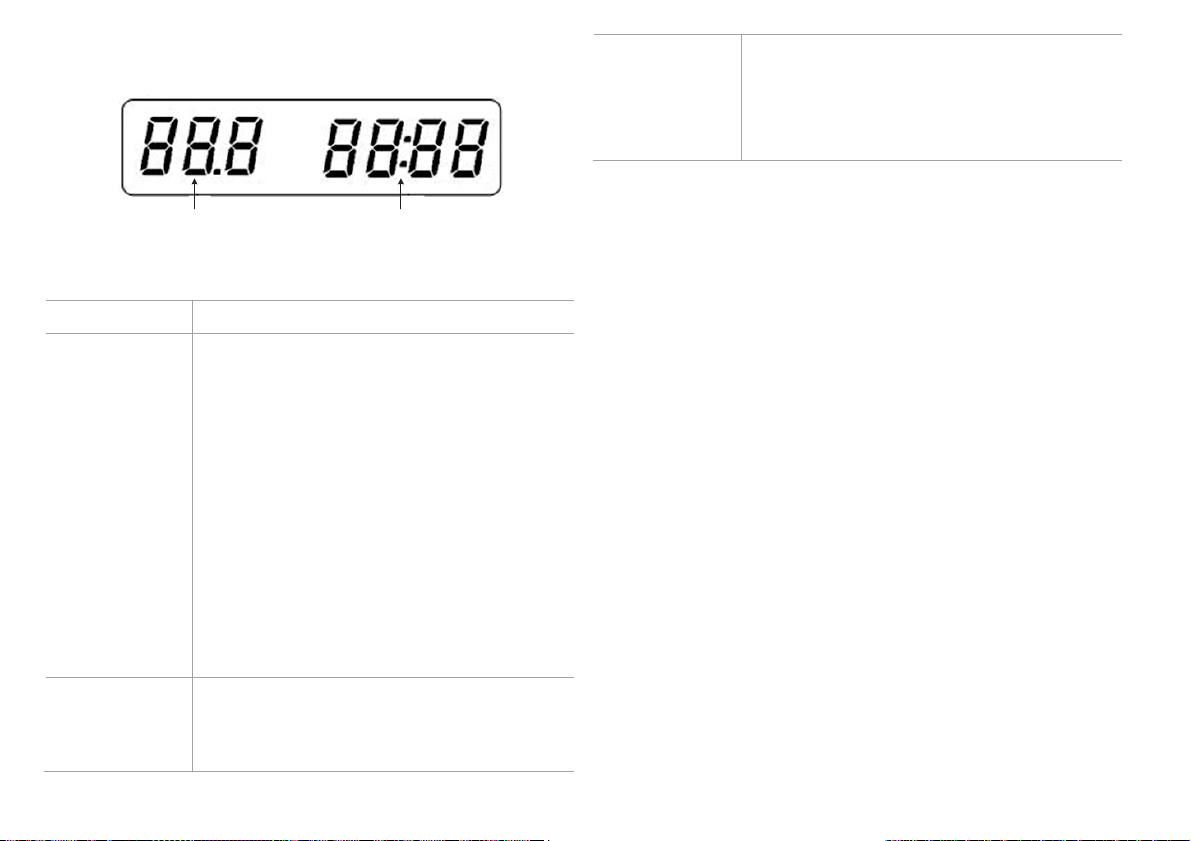

4.2 Display
Temperature display area Time display area

Figure 3 Digital hotplate model
Characters Descriptions
Temperature
display area
Press the temperature switch button, the
characters in temperature display area will
be flashing, and then rotate the parameter
setting knob to set the target temperature,
press the parameter setting knob to turn on
the setting.
When the heating function is switched
ON, the LED temperature light will turn
green, and the temperature display area
displays the temperature real value until
real temperature reaches the set point.
Time display
area
Press the time switch button, the
characters in time display area will be
flashing, and then rotate the parameter
setting knob to set the target time, press
the parameter setting knob to turn on the
setting. The LED time light will turn
green, then start countdown.
Table 3
5. Trial Run
• Make sure the required operating voltage and power
supply voltage match.
• Ensure the socket must be properly grounded.
• Add the medium into the vessel
• Place vessel on the work plate.
• Plug in the power cableensure the power is on and begin
initializing.
• Set the target temperature and begin.
• Set the time, if not, the machine will work continuously
• Observe the LED display
• Stop the heating and stirring functions.
If these operations above are normal, the device is ready to
operate. If not, the device may be damaged during
transportation, please contact manufacturer/supplier for
technical support

7
6. Function: Heating
The device is controlled by digital temperature control
technology, and it has a over temperature protection, the
safety temperature is 140
Press the temperature switch button, the characters in
temperature display area will be flashing, and then rotate
the parameter setting knob to set the target temperature,
press the parameter setting knob to turn on the setting.
Note:
•Set the temperature via rotating the parameter setting
knob slowly to the target value.
•When the heating function is switched on, the LED
displays the temperature value on the left-hand side.
•The heating function is switched on or off by pushing
heating knob.
The instrument automatically displays the last running
speed and temperature parameters once turned on.
Generally, the LED screen cannot display the actual
temperature of sample in the vessel or dry bath surface,
temperature differences as following:
Dry bath center and outer edge.
The sample in the vessel and dry bath surface.
7. Function: Timing
The device can work in accordance with the timing mode or
continuous operation mode.
Timing Mode: Press the time switch button, the characters
in time display area will be flashing, and then rotate the
parameter setting knob to set the target time, press the
parameter setting knob to turn on the setting.
During operation, motion can be stopped at any time by
pressing the speed/timer control knob. If the knob is
pressed again, motion will start again and the timer will
restart countdown. When the timer reaches zero, the unit
will be automatically halted.
Continuous Mode: Press the time switch button, the
characters in time display area will be flashing, make sure
the setting time is zero, press the parameter setting knob to
turn on the continuous operation mode.

8
8. Faults
•Instruments can’t be power ON
Check whether the power line is unplugged
Check whether the fuse is broken or loose
•Fault in power on self test
-Switch OFF the unit, then switch ON and reset
the instruments to factory default setting.
If these faults are not resolved, please contact
manufacturer/supplier.
9. Maintenance and Cleaning
•Proper maintenance can keep instruments working
properly and lengthen its lifetime.
•Do not spray cleanser into the instrument when
cleaning.
•Unplug the power line when cleaning.
•Only use recommended cleansers:
Dyes Isopropyl alcohol
Construction materials Water containing tenside
/ Isopropyl alcohol
Cosmetics Water containing tenside
/ Isopropyl alcohol
Foodstuffs Water containing tenside
Fuels Water containing tenside
Table 4
•Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not harm the
instrument. Wear the proper protective gloves during
cleaning of the instrument.

Note:
•Electronic device can not clean with
cleanser.
•If you require maintenance service, must be
cleaned the instrument in advance to avoid
pollution of hazardous substances, and to
send back into original packing.
•If the instrument will not use for a long time,
please switch off and place in a dry, clean,
room temperature and stable location.

9
10.Associated Standards and
Regulations
Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards:
EN 61326-1
Associated EU guidelines:
EMC-guidelines: 89/336/EWG
Instrument guidelines: 73/023/EWG

Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.

10
11.Specifications
Items Specifications
Voltage [VAC] 100~120
Frequency [Hz] 50/60
Power [W] 160
Dimension of blocks[mm] 15095
Heating temperature range Room temp. +5° -
120 °C
Temperature display LED
Control accuracy ±0.5°C
Safety temperature 140 °C
Timer yes
Time setting range 1 -99h59min
Operation type Continuous/ timed
operation
Dimensions[WDH mm] 17529085
Weight[kg] 1.6without heating
block
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80%
Protection class according to DIN
EN 60529 IP 21

Table 5
12.Ordering Information
Cat No. Descriptions
521111019999 HB120-S, LED digital dry bath, USA
plug, 100-120V, 50Hz/60Hz
521111129999 HB120-S, LED digital dry bath,, Cn
plug, 200-240V, 50Hz/60Hz
521111229999 HB120-S, LED digital dry bath,, Euro
plug, 200-240V, 50Hz/60Hz
521111329999 HB120-S, LED digital dry bath,, UK
plug, 200-240V, 50Hz/60Hz
Table 6


SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: [phone]
Fax: [phone]
[email protected]
www.scilogex.com
