Scilogex SK-R1807-E User manual

!
!
Rocking Shaker & 3D Shaker
User Manual
SK-R1807-E
Analog Rocking Shaker
SK-D1807-E
Analog 3D Shaker
SK-R1807-S
LED Digital Rocking Shaker
SK-D1807-S
LED Digital 3D Shaker
Please read the User Manual carefully before use, and
follow all operating and safety instructions!
Technical specifications and outline are subject to change
without prior notice.
www.scilogex.com

!
!
!
Contents!
Preface!................................................................................!1!
Service!................................................................................!1!
Warranty!.............................................................................!1!
1.!Safety Instructions!......................................................!2!
2.!Proper Use!..................................................................!3!
3.!Inspection!....................................................................!3!
3.1!Receiving!Inspection!.............................................!3!
3.2!Listing!of!Items!......................................................!3!
4.!Control!........................................................................!4!
4.1!Analog!Model!........................................................!4!
4.2!LED!Digital!Model!..................................................!5!
5.!Operation!....................................................................!7!
5.1!Analog!Model!........................................................!7!
5.2!LED!Digital!Model!..................................................!7!
6.!Faults!..........................................................................!8!
7.!Maintenance and Cleaning!..........................................!8!
8.!Associated standards and regulations!........................!10!
9.!Specification!.............................................................!11!
10.!Order Information!.....................................................!12!

!
1!
!
!
Preface
Welcome to the “Rocking Shaker & 3D Shaker User
Manual”. Users should read this manual carefully, follow
the instructions and procedures, and beware of all the
cautions when using this instrument.
Service
When help needed, you can always contact the service
department of manufacturer for technical support in the
following ways:
SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: [phone]
Fax: [phone]
[e-mail]
www.scilogex.com
Please provide the customer care representative with the
following information:
•Serial number ( on the rear panel )
•Certification
•Description of problem ( i.e., hardware or software )
•Methods and procedures adopted to resolve the
problems
•Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.

!
2!
!
!
1. Safety Instructions
Warning!
•Read the operating instructions carefully
before use.
•Ensure that only trained staff works with the
instrument.
Protective ground contact！
•Ensure the socket must be grounded
(protective ground contact) before use.
•When working wear personal safety guards to avoid
the risk of:
CSplashing liquids
CBroken glass containers
•Follow the safety instructions, guidelines and accident
prevention regulations.
•Do not touch the running parts, moving instrument
care not rolling your fingers.
•Set up the instrument in a spacious area on a stable,
clean, non-slip, dry and fireproof surface. Do not
operate the instrument in explosive atmospheres, with
hazardous substances or under water.
•If the instrument does not run smoothly, please
decrease the motor speed.
•Firmly secure the accessories and vessels in place to
avoid damage or risk.
•Preparation of samples may lead to dangerous
flammable. Only process samples that will not react
dangerous.
•Use the standard accessories listed in the “accessories”
section, and follow the instructions to use accessories
to ensure safety. Please!switch off the power before
assembly of accessories, confirm the instrument and
accessories are intact before switch on each time.
•The instrument only be opened by expert，please
switch off before use.
•The voltage stated on the nameplate must correspond
to the mains voltage.
•Do not cover the instrument during running.!Prevent
the collision and extrusion to instrument and
accessories.
•Keep away from high magnetic field.

!
3!
!
!
2. Proper Use
The instrument is designed for mixing sticky substance in
schools, laboratories or factories. It can be installed on a
variety of impeller, for different viscosity of the medium.!
This instrument is not suitable for using in residential areas
or other constraints mentioned in Chapter 1.
Do not use the accessories recommended by the
manufacturer, or failure to use the instructions, may be
caused unsafe situation.
3. Inspection
3.1 Receiving Inspection
Unpack the instrument carefully and check for any damages
which may have arisen during transport. If it happens,
please contact manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not connect to the power line.
3.2 Listing of Items
Items
Qty
Main unit
1
Power cable
1
User manual
1

!
4!
!
!
4. Control

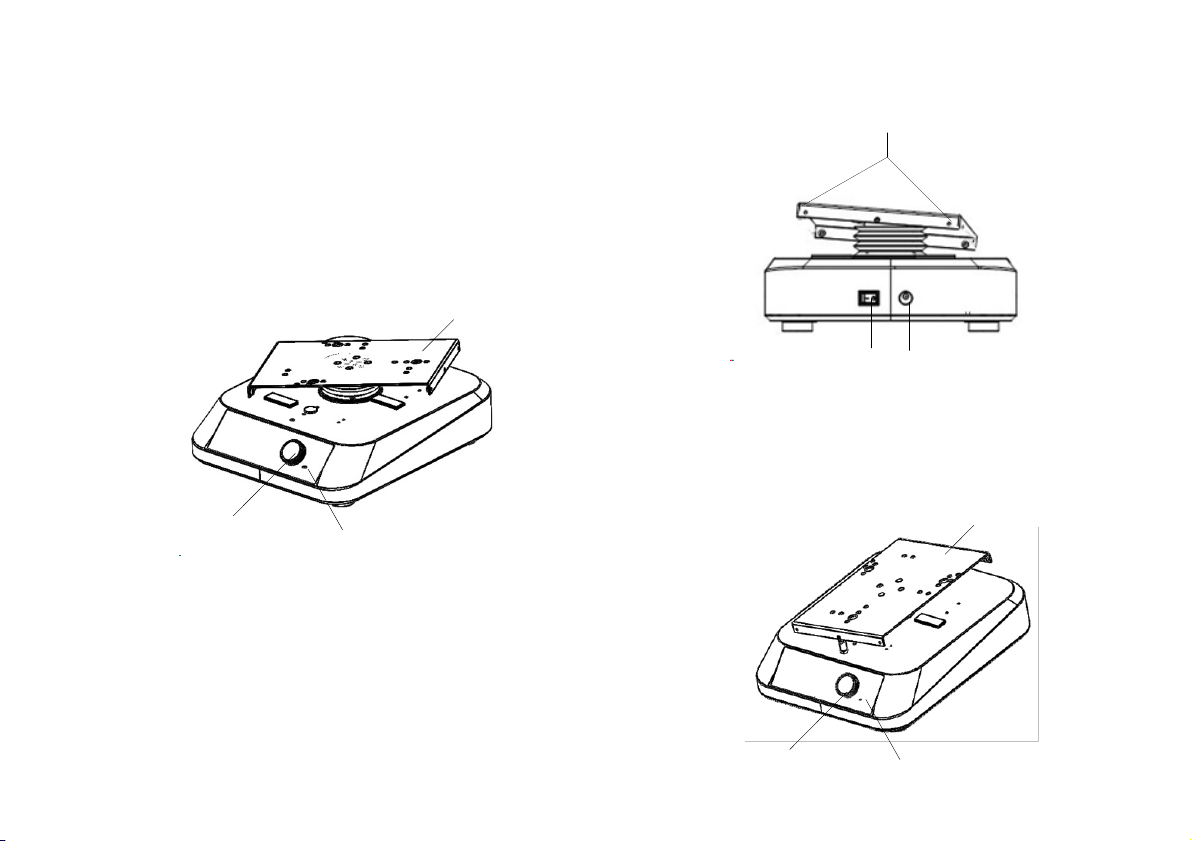

4.1 Analog Model
Shaking table
Speed control knob
Power light
!
Power switch Power interface
Screws
Analog 3D Shaker
Shaking table
Speed control knob
Power light

!
5!
!
!
Power switch Power interface
Screws
Analog Rocking shaker
Items
Descriptions
Speed control knob
Set target speed.
Power switch
Switch ON/OFF instrument.
Power interface
Connect the power cable
Power light
Green LED display light
Screw
Install the platform.

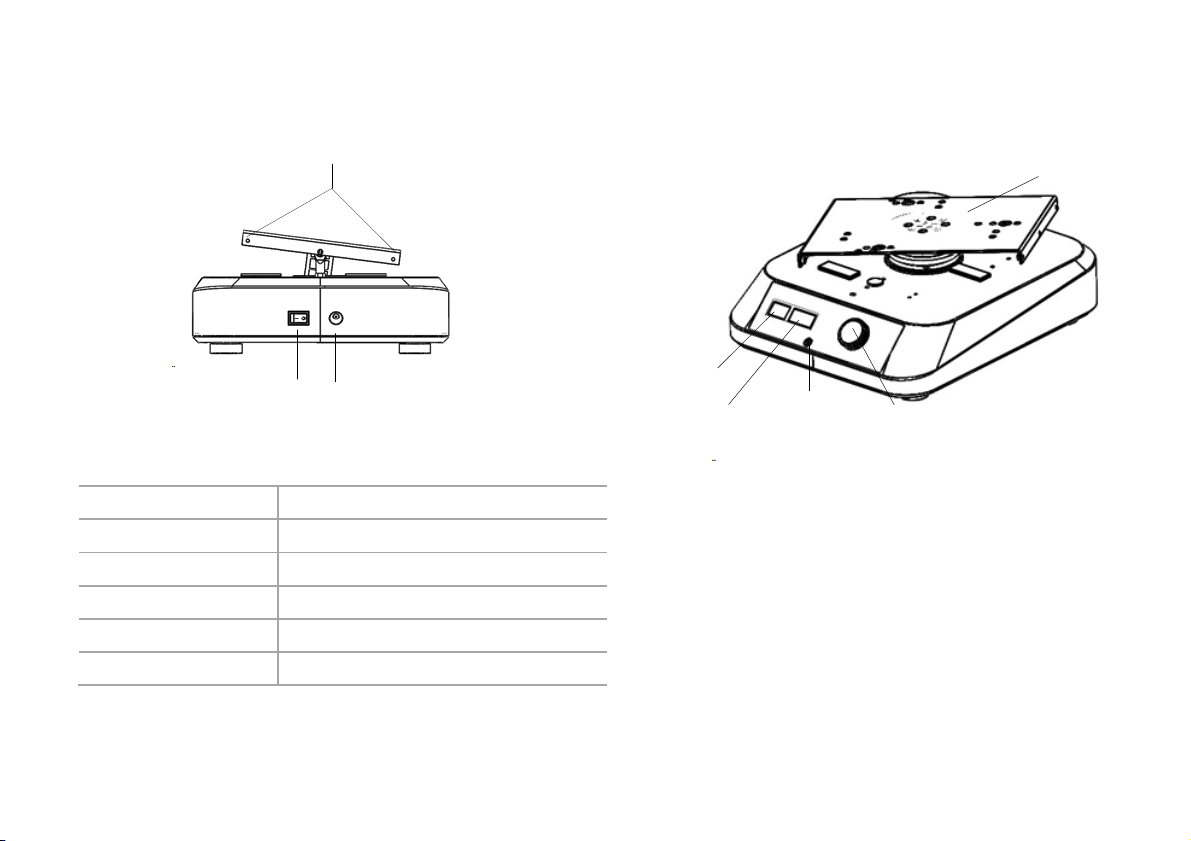

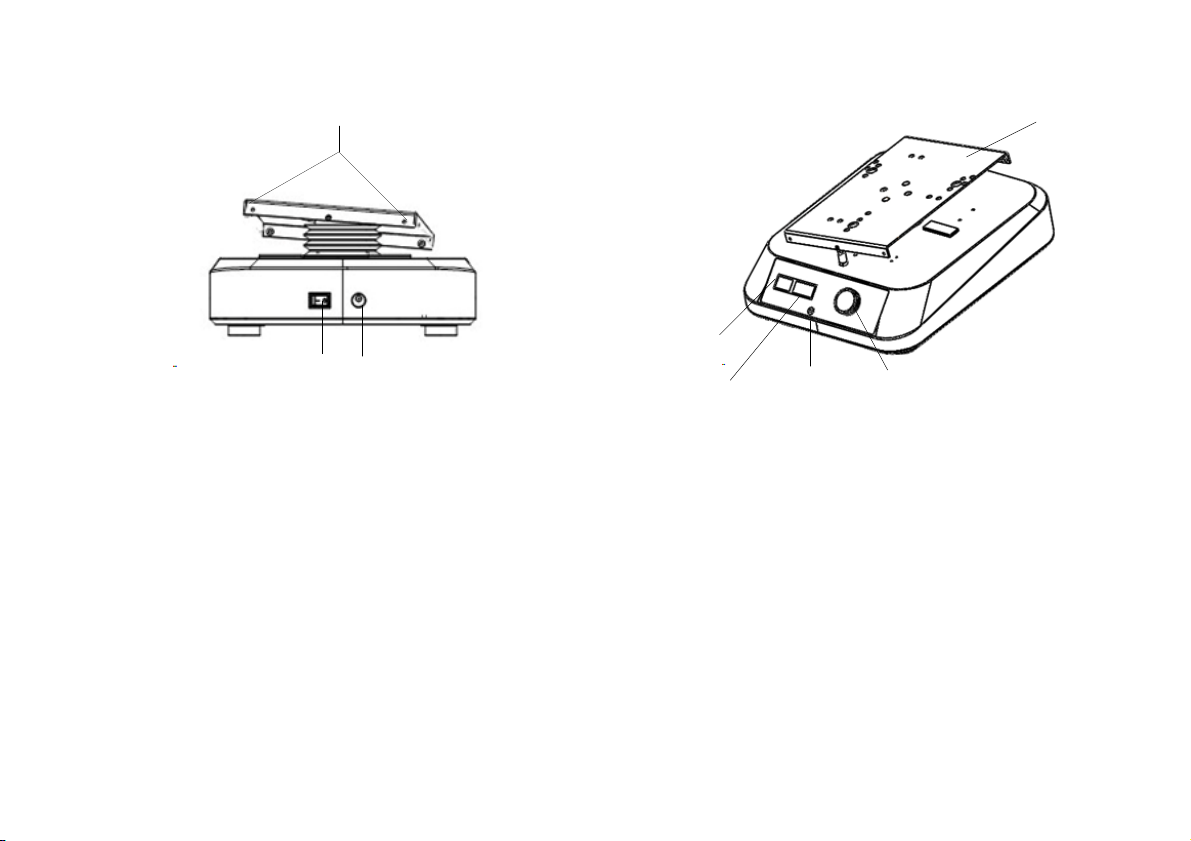

4.2 LED Digital Model
Shaking table
Parameter
adjusting knob
Mode switch
button
Speed
display
Time
display

!
6!
!
!
Power switch Power interface
Screws
LED Digital 3D shaker
Shaking table
Parameter
adjusting knob
Mode switch
button
Speed
display
Time
display

!
7!
!
!
Power switch Power interface
Screws
LED Digital Rocking shaker
Items
Default settings
Mode switch button
Mode
Shift speed and time setup mode
Parameter adjusting
knob
Set speed and time by rotating the
knob. Push on/off to start/stop
rotating function.
Speed display
Display the set speed values.
Time display
Display the set time values.
Power switch I/O
Switch ON or OFF the instrument.
Shaking table
Shaking.
Screw
Install the platform.
5. Operation
5.1 Analog Model
•Place the instrument in safe and stable surface, ensure
the required operating voltage and power supply
voltage matched.
•Connect the power cable.
•Install the platform.
•Switch ON the instrument.
•Rotate the speed control knob clockwise to set target
speed, and the shaking function will be switched on.
•Rotate the speed control knob to the left-most position
to switch off the shaking function.
•Switch OFF the instrument.
5.2 LED Digital Model
•Place the instrument in safe and stable surface, ensure
the required operating voltage and power supply
voltage matched.

!
8!
!
!
•Connect the power cable.
•Install the platform.
•Switch ON the instrument.
•The instrument begins self-checking.
•When initialization is over, LED displays the last
running values of speed and timer.
•Rotate the speed/timer control knob to set target speed.
a. Press the mode switch button to choose the speed
or timer setup interface. When the character of LED
display is flashing, rotate the parameter adjusting knob
to set the target parameter. Press the knob to start the
motion.
b. During operation, motion can be stopped at any
time by pressing the parameter adjusting knob. If the
knob is pressed again, motion will start again and the
timer will continue to countdown. When the timer
reaches zero, the unit will be automatically halted.
c. When the timer is set to be 00:00, start the
continuous motion.
•Switch OFF the instrument.
!
If these operations above are normal, the instrument is
ready to operate. If not, the instrument may be damaged
during transportation, please contact technical support of
manufacturer/supplier.
Note:
The speed value can be altered during shaking.
6. Faults
•When switched ON, the instrument does not work
!Check whether the power cable is connected
•Motor!speed!cannot!reach!set!value!
!Check whether it is overloaded
7. Maintenance and Cleaning
•Proper maintenance can keep instrument working
properly and lengthen its lifetime.
•Do not spray cleanser into the instrument when
cleaning.
•Do not remove the power line when cleaning. Only
use recommended cleansers:
Dyes
Isopropyl alcohol
Construction
Water containing tenside /

!
9!
!
!
Materials
Isopropyl alcohol
Cosmetics
Water containing tenside /
Isopropyl alcohol
Foodstuffs
Water containing tenside
Fuels
Water containing tenside
•Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not damage the
instrument. Wear the proper protective gloves during
cleaning of the instrument.!
Note:
•Electronic device cannot clean with cleanser.
•If you require maintenance service, must be
cleaned the instrument in advance to avoid
pollution of hazardous substances, and to
send back into original packing.
•If the instrument will not use for a long time,
please switch off and place in a dry, clean,
room temperature and stable location.

!
10!
!
!
8. Associated standards and regulations
Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards:
EN 61326-1
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
!
!
!

!
11!
!
!
9. Specification
Items
Specifications
Analog Model
LED Digital
Model
Voltage [VAC]
100-240
100-240
Frequency [Hz]
50/60
50/60
Motor rating
input[W]
16
16
Motor rating
output[W]
10
10
Shaking motion
Rocking/3D
Rocking/3D
Tile Angel [o]
±7°
±7°
Max. load capacity
（with platform )
[Kg]
3
3
Motor type
DC motor
DC motor
Speed range[rpm]
0-80
10-80
Dimensions[W×H×D
mm]
330×270×120!
330×270×120!
Items
Specifications
Analog Model
LED Digital
Model
Operation type
Continuous
Continuous/time
d
Time setting range
-
1min-19h59min
Weight[kg]
2.7
2.7
Permissible ambient
temperature[℃]
5-40
5-40
Permissible relative
humidity
80%
80%
Protection class acc.
DIN EN60529
IP21
IP21
!
!
!
!
!
!
!
!

!
12!
!
!
10.Order Information
Cat. No.
Descriptions
833132019999
SK-R1807-E, Analog Rocking Shaker,!
See-saw wave, angle 7°, US plug,
100V-240V, 50Hz/60Hz
833132119999
SK-R1807-E, Analog Rocking Shaker,!
See-saw wave, angle 7°,CN plug,
100V-240V, 50Hz/60Hz
833132219999
SK-R1807-E, Analog Rocking Shaker,
See-saw wave, angle 7°, Euro plug,
100V-240V, 50Hz/60Hz
833132319999
SK-R1807-E, Analog Rocking
Shaker!, See-saw wave, angle 7°,UK
plug, 100V-240V, 50Hz/60Hz
834112019999
SK-D1807-E, Analog 3D Shaker, 3D
gyratory, angle 7°, US plug,
100V-240V, 50Hz/60Hz
834112119999
SK-D1807-E, Analog 3D Shaker, 3D
gyratory, angle 7°, CN plug,
100V-240V, 50Hz/60Hz
834112219999
SK-D1807-E, Analog 3D Shaker, 3D
gyratory, angle 7°, Euro plug,
100V-240V, 50Hz/60Hz
834112319999
SK-D1807-E, Analog 3D Shaker, 3D
gyratory, angle 7°, UK plug,
100V-240V, 50Hz/60Hz
833131019999
SK-R1807-S, LED Digital Rocking
Shaker,!See-saw wave, angle 7°, US
plug, 100V-240V, 50Hz/60Hz
833131119999
SK-R1807-S, LED Digital Rocking
Shaker,! See-saw wave, angle 7°,CN
plug, 100V-240V, 50Hz/60Hz
833131219999
SK-R1807-S, LED Digital Rocking
Shaker, See-saw wave, angle 7°, Euro
plug, 100V-240V, 50Hz/60Hz
833131319999
SK-R1807-S, LED Digital Rocking
Shaker!, See-saw wave, angle 7°,UK
plug, 100V-240V, 50Hz/60Hz
834111019999
SK-D1807-S, LED Digital 3D Shaker,
3D gyratory, angle 7°, US plug,
100V-240V, 50Hz/60Hz

!
13!
!
!
834111119999
SK-D1807-S, LED Digital 3D Shaker,
3D gyratory, angle 7°, CN plug,
100V-240V, 50Hz/60Hz
834111219999
SK-D1807-S, LED Digital 3D Shaker,
3D gyratory, angle 7°, Euro plug,
100V-240V, 50Hz/60Hz
834111319999
SK-D1807-S, LED Digital 3D Shaker,
3D gyratory, angle 7°, UK plug,
100V-240V, 50Hz/60Hz

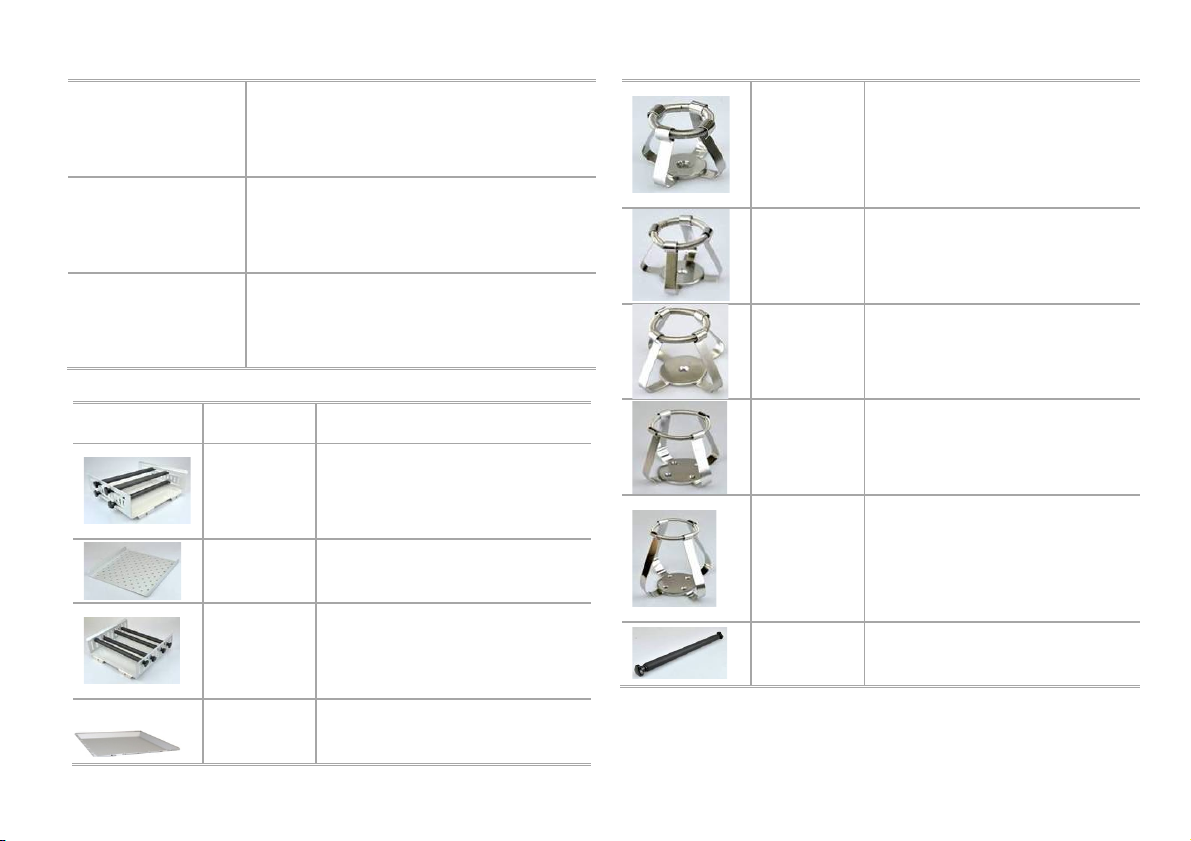

Accessories
Cat. No.!
Descriptions
18900025
SK 180.1 Universal
attachment with 3 bars
18900026
SK180.2 Fixing clip
attachment
18900038
SK180.3 Lengthways roller
attachment
18900039
SK180.4 Dish Attachment
with non-slip mat
18900029
Fixing clip for flask volume
25 ml
18900030
Fixing clip for flask volume
50 ml
18900031
Fixing clip for flask volume
100 ml
18900032
Fixing clip for flask volume
200/250 ml
18900033
Fixing clip for flask volume
500 ml
18900037
Bar for SK180.1 Universal
attachment，black

!
!
SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: [phone]
Fax: [phone]
[e-mail]
www.scilogex.com!
