Scilogex SCI100-S User manual

Ver.20181126
R
R
Ro
o
ot
t
ta
a
ar
r
ry
y
y E
E
Ev
v
va
a
ap
p
po
o
or
r
ra
a
at
t
to
o
or
r
r
Operation Instructions
LED Digital Rotary Evaporator
Please carefully read the Instructions, and use the product safely
under the direction of the Instructions.
If any information of shapes and performance indicators changes,
we will not notify this otherwise.

Disclaimer
•The intellectual property right on the manual belongs
to Dragon Laboratory Instruments Limited (hereinafter
referred to as “the Company”), i.e. relevant copyright
belongs to the company.
•Products of the company are under the patent
protection of China and other countries and regions
(including obtained patents and patents being applied
for).
•We elaborately prepared the manual in the attitude of
being responsible for the users. But we can’t guarantee
that the contents of the manual are fully correct. If any
occasional or subsequent loss is caused by the use of
the Manual, the company will not be liable for this at
all.
•The manual is a pure technical document, free of any
implication or oblique hint of any third party.
Moreover, we won’t be liable for any user’s
misunderstanding upon the printer’s error(s).
•The company and any of the company’s employees
will not bear any liability for direct/indirect loss of
information or stop of business (if any) caused by the
information of the manual or the product it mentions.
•The company reserves the right to change specification
and price of the product.
•If any information of the manual changes, we will not
notify this otherwise.
•The manual and any content of it must not be copied,
abstracted or modified in any form without the
company’s written approval in advance.

Contents
Introduction.........................................................................1
How to acquire help ............................................................1
Warranty..............................................................................1
1. Safety notes .................................................................2
2. Scope of application....................................................5
3. Inspection ....................................................................6
3.1 Open-package inspection.......................................6
3.2 Package list............................................................6
4. Control and display .....................................................6
4.1 Control...................................................................6
4.2 Display...................................................................9
5. Installation and testing...............................................11
5.1 Installation...........................................................11
5.2 Testing .................................................................14
6. Fault diagnosis...........................................................14
7. Maintenance and cleaning.........................................15
8. Relevant standards.....................................................16
9. Technical parameters.................................................16

Rotary Evaporator
1
Introduction
Welcome to use the Operating Instructions of Rotary
Evaporator. Users are advised to read carefully this manual
before using this instrument, operate the instrument
according to the instructions contained herein and be aware
of all precautions
How to acquire help
If you encounter any problems or need help while installing
or using this instrument, please immediately contact the
After-sales Service Department of the manufacturer /
supplier.
Please prepare the following information and materials:
•Product serial number (on the instrument nameplate)
•Warranty card
•Description of problem phenomenon
•The method and operating steps you have undertaken
to resolve the problem
•Your contact details including telephone number, fax
number and email address
Warranty
According to the manufacturer’s warranty clause, the
warranty period of the product is 24 months (since the
purchase date) provided that it is used by the normal
operation method under the normal service conditions
specified in the Manual. This warranty does not cover any
performance degradation of or damage to the instrument
due to incorrect installation or operation, unauthorized
disassembly or repair or any other violations of the
operating instructions contained herein. If any related
problem described in the terms of warranty occurs, please
contact the manufacturer / supplier.

Rotary Evaporator
2
1. Safety notes
•Please carefully read the Manual before operating the
product, and observe the specifications on safe
operation.
•Please properly keep the operating instructions for
easy reference in case of need.
•Please ensure only suitably trained personnel can
operate this instrument.
•Please comply with the safety rules, personal safety
and accident prevention norms, especially when
creating vacuum!
•According to the type of medium handled, please wear
suitable protective devices when operating the
instrument; otherwise, the following dangers may
occur:
- Splatter of liquids
- Fly-out of parts
- Contamination of human body, hair or clothes by
splattered substances
•Warning! Inhale of contact with toxic liquids, gases,
spatters, vapor, dust, biological or microbiological
medium might cause damage to the operator.
•Place the instrument on a stable, clean, antiskid, dry
and fireproof table surface.
•Make sure there is sufficient space above the
instrument and the glass assembly might exceed the
height of the instrument.
•Before use, please carefully examine the instrument
and accessories especially the glass assembly for any
damage. Please do not use any damaged parts.
•Ensure the glass assembly is free of stress! Each of the
following reasons might result in damage to the glass
assembly:
- Stress due to incorrect installation
- Effect of external mechanical force
- Sharp change to the ambient temperature
•Ensure the instrument will not move due to vibration
when turning on the instrument.
•Note the danger caused by the following
circumstances:
- Flammable substance
- Flammable low-boiling-point medium
- Breakage of glass component
•Warning! Never distill or heat any substance whose
ignition point is lower than the temperature set for the

Rotary Evaporator
3
safety of the heating bath.
•The heating bath’s safety temperature shall at least
25 °C lower than the ignition point of the medium
being handled.
•Please don’t operate or use this instrument in an
explosive environment or underwater or use this
instrument to handle any dangerous substance.
•This instrument is only suitable for the medium that
does not react with the energy generated in the
handling process in a way that might cause danger.
Meanwhile, the substance being handled may not
produce danger due to energy generated in any other
manner such as illumination reaction.
•The instrument must be monitored all the time when
operating the instrument.
•Please don’t operate this instrument under
overpressure.
•To ensure the effective condensation of the motor
system, please do not block the vent of the motor
system.
•Only use of the accessories in the list of “optional
accessories” can guarantee the operational safety.
•Please refer to the operating instructions for heating
kettle.
•Please refer to the operating instructions for optional
accessories.
•Please use this instrument in a closed fume hood or
other suitable protective device.
•Select the distilling device according to the amount to
be distilled and the distillation type. The condenser
must work normally. Please monitor the flow rate of
the coolant at the outlet of the cooler.
•To prevent pressure buildup, the glass assembly shall
be kept vented when operating under normal pressure,
such as keeping the condenser open.
•Please note that gases, vapor or other substances can
pose danger through overflow from the upper opening
of the condensation tube. To minimize or avoid such
danger, please take suitable measures, such as
connecting the cooling tube and scrubbing bottle or
other effective extraction devices downwards.
•The glass evaporating flask may not be heated on one
side. The rotating evaporating flask must rotate at the
heating phase.
•The glass assembly’ design pressure tolerance is
10mbar. The venting valve (see the part of “Testing”)

Rotary Evaporator
4
must be opened before heating and once again after
cooling. When performing vacuum distillation, the
steam must be condensed before release or released
safely.
If the residue after distillation is likely to be
decomposed when exposed to oxygen, please add only
gas for stress release into it.
•Warning! Please be careful be avoid the formation of
peroxides, as the decomposition of peroxides
accumulated in the distillation process might result in
explosion.
Please protect any liquid forming peroxides from ray
of light, especially ultraviolet irradiation. Please be
careful to examine formation of any peroxides before
distillation and to remove the peroxides if any. Many
organics are easy to form peroxides, such as
methoxypyridine, diethyl ether, dioxane,
tetrahydrofuran, unsaturated hydrocarbostyril, such as
tetrahydronaphthalene, diene, isopropylbenzene,
ketone and solutions of the aforesaid substances.
•Warning! The heating bath, heating medium,
evaporating flask and glass assembly might become
hot in the operation process and remain hot for a while
after stop of the operation! Before further operation,
please let each part cool down.
•Note: be careful to avoid boiling delay! When the
instrument is not started up and rotated, never heat the
evaporating flask! Sudden appearance of foams or
gases indicates that the medium inside the evaporating
flask begins decomposing. Please immediately shut
down the heating bath and lift the evaporating flask
above the heating bath, keep the surrounding danger
area well ventilated and inform surrounding personnel.
•Note! When the evaporating flask rotates, never
operate the instrument. Before the motor is started up,
please lower the evaporating flask down to the heating
bath, otherwise the boiling heating medium might
splatter.
•When operating the instrument, if necessary, please
reduce the motor speed to prevent the medium in the
heating bath from splattering.
•When operating the instrument, never touch any
rotating parts. Due to the instrument or fabrication
problems, the instrument might be unbalanced,
possibly damaging the glass assembly. When
imbalance or abnormal noise occurs, please

Rotary Evaporator
5
immediately turn off the instrument or reduce the
rotation speed.
•In case of powering on after power failure, the
instrument will not automatically be started up.
•The power supply to the instrument will be
disconnected only when the instrument is turned off or
the power plug is pulled off.
•The power socket must be easy to operate.
•The actual supply voltage must be consistent with the
voltage specified on the instrument’s nameplate.
•The power socket must be grounded.
•To prevent possible infiltration of outside liquid,
moving parts must be mounted in place.
•Ensure the instrument and its accessories are protected
from extrusion and collision.
•Only professional repairman may open the instrument.
2. Scope of application
This instrument is designed for such application
environments as schools, labs and factories, in conjunction
with the optional accessories recommended by the
manufacturer, which may be used for:
•Rapid softening of distilled liquid
•Distillation of solutions or suspensions
•Crystallization, synthesis or cleaning of chemicals
•Drying of powder or particulate substances
•Recovery of solvents
This instrument is intended for use in the following
environment:
•Altitude: ≤2,000m ASL;
•Ambient temperature: 0-40°C;
•Voltage fluctuation: within the range of -10%~+10%
of normal value (the product is designed for indoor
socket);
The product is unusable in residential area or under the
restrictions specified in Chapter 1.

Rotary Evaporator
6
3. Inspection
3.1 Open-package inspection
If you find any damage on the package, please specify the
damage on the receipt. If you find any internal damage after
opening the package, please contact supplier or
manufacturer.
Caution:
1. If you find any visible damage on the
product, please don’t connect the product to
power supply.
3.2 Package list
Name
Qty.
Main unit
1
Heating bath
1
Power cable
2
Vertical glass assembly
1
Operating manual
1
Table 1
4. Control and display
4.1 Control

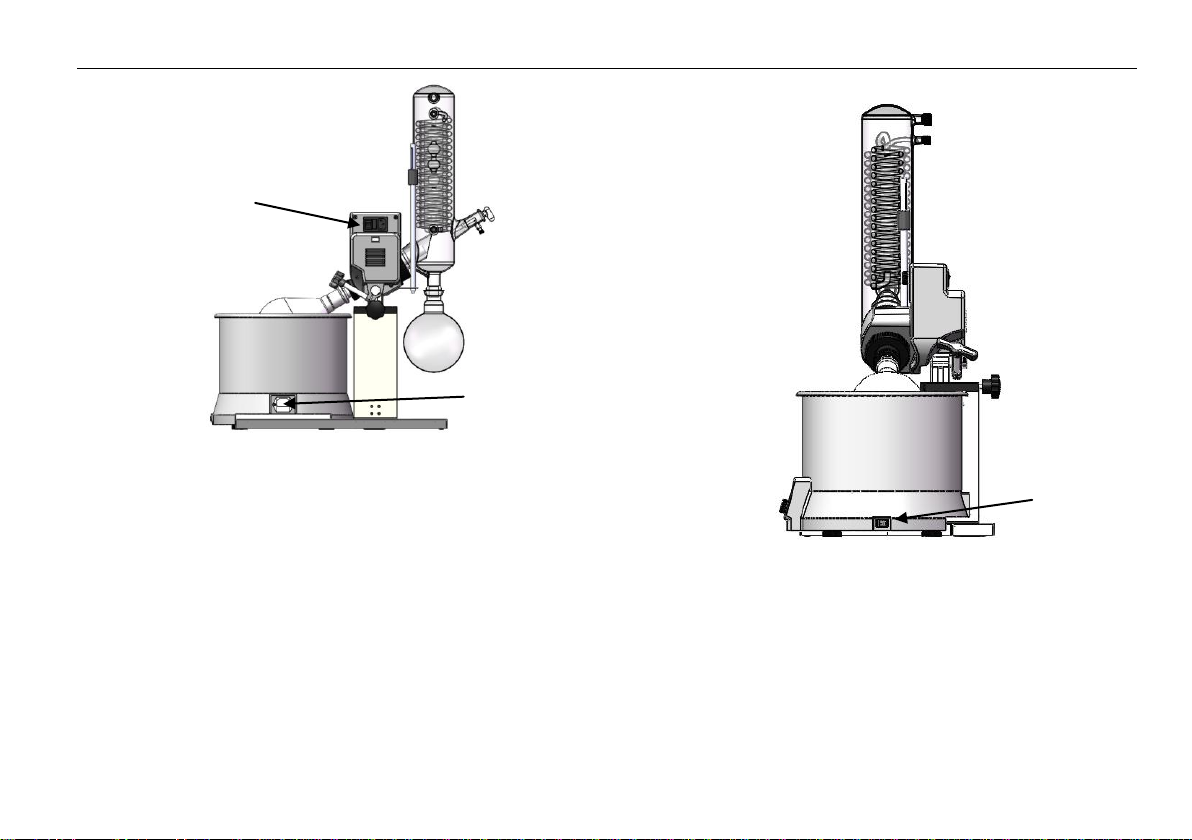

Fig. 1
Condenser
Receiving
flask
Motor
Rotary head control panel
Heating bath
Control panel
Evaporating flask

Rotary Evaporator
7
Fig. 2
Fig. 3
Main unit
three-in-one switch
Heating bath
power interface
Heating bath
power switch

Rotary Evaporator
8
Fig. 4
Fig. 5
Name
Description
LED display
Indicates the current working status and
parameter setting.
Forward
indicator
The indicator is on when the instrument
is in the state of forward rotation only
Reverse
indicator
The indicator is on when the instrument
is rotating forwardly and reversely in
turn
Forward and
reverse
rotation
interval
setting button
Int
Press this key to enter the state of
setting the forward and reverse rotation
interval time. Turning the adjustment
knob can set the intermittent left and
right rotation time within the range of
1-999 sec. When set to 0 sec, the
instrument rotates forward only
Adjustment
knob
Turn the knob clockwise to increase the
parameter and counterclockwise to
decrease the parameter
Press this key to start / stop the
instrument
Water mode
indicator
The indictor is on when the heating bath
is in the water bath mode
LED
display
Forward
indicator
Reverse
indicator
Forward and reverse
rotation interval setting
button
Adjustment
knob
Water mode
indicator
Oil mode
indicator
Heating
indicator
Temperature
adjustment
knob

Rotary Evaporator
9
Oil mode
indicator
The indicator is on when the heating
bath is in the oil bath mode
Heating
indicator
The indicator is on when the Heating
bath is in the heating state
Temperature
adjustment
knob
Turn the knob clockwise to increase the
parameter and counterclockwise to
decrease the parameter
Press this key to start / stop the
instrument
Press the key for 3s to switch the
heating mode
Heating bath
power switch
Turn on / off the main power supply to
the heating bath
Table 2
4.2 Display
After the main unit is turned on, the interface is on and
indicates the real-time speed:

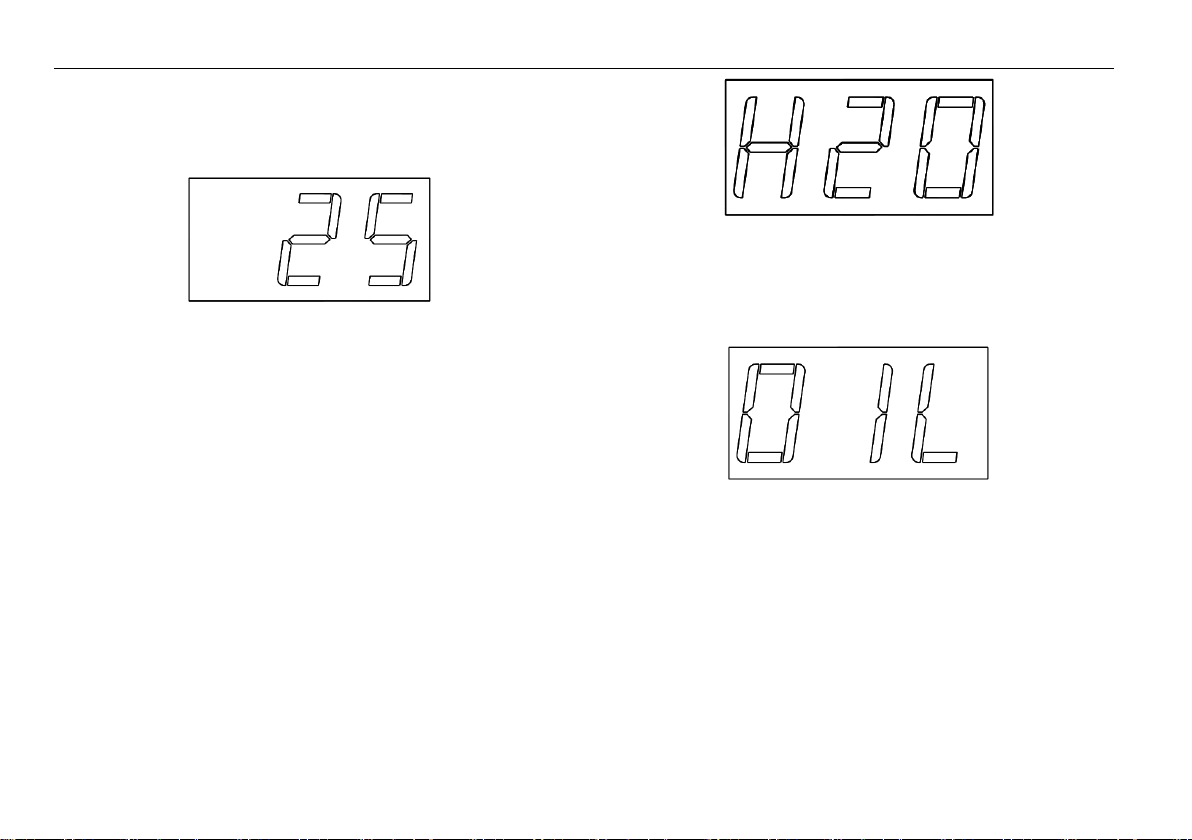

Fig. 6
This interface indicates the real-time speed. Turn the
adjustment knob to set the speed and press the adjustment
knob to start the instrument. The rotation speed can be
changed by turning the adjustment knob while the
instrument is in operation. After setting, the interface
automatically changes to real-time speed.
Press the “INT” key to stop the motor, with LED indicating
“txxx” (xxx is the intermittent operation interval, to be set
within 1-999sec), as shown in the figure.
Fig. 7
Turning the adjustment knob can adjust the forward and
reverse rotation interval time. The instrument only rotates
forward when the forward and reverse rotation interval time
is 0.
After setting, by pressing the “INT” key, the interface
changes to the real-time speed display.

Rotary Evaporator
10
When the heating bath is turned on, water mode is the
default mode, the water mode indicator is on and the
interface is on, indicating the real-time temperature:
Fig. 8
Turn the temperature adjustment knob to set the target
temperature of the heating bath. After setting, by pressing
the knob, the heating indicator is on and the heating process
begins. In the heating process, the target temperature can be
changed by turning the knob. After setting, the interface
automatically changes to real-time temperature.
Press the knob for 3s to switch the heating mode, with the
corresponding indicator being on.
Water bath mode display:
Fig. 9
Oil bath mode display:
Fig. 10

Rotary Evaporator
11
5. Installation and testing
5.1 Installation

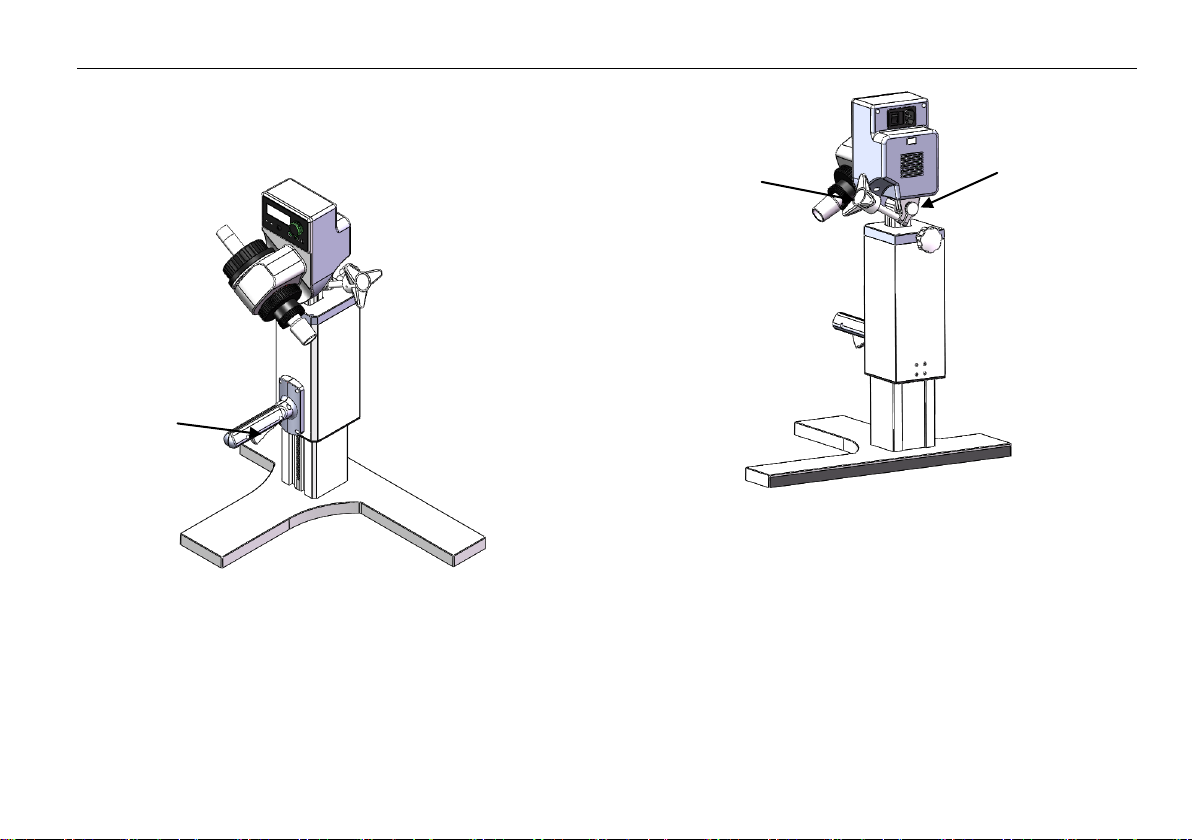

Fig. 11
•Place the main unit on a flat tabletop and squeeze the
handle switch (a) to lift it to the highest position.
Fig. 12
•Tighten the screw (b) by hand, adjust the angle of the
motor head and tighten the rotating head locking nut (c)
to prevent accidental rotation.
b
a
c

Rotary Evaporator
12
Fig. 13

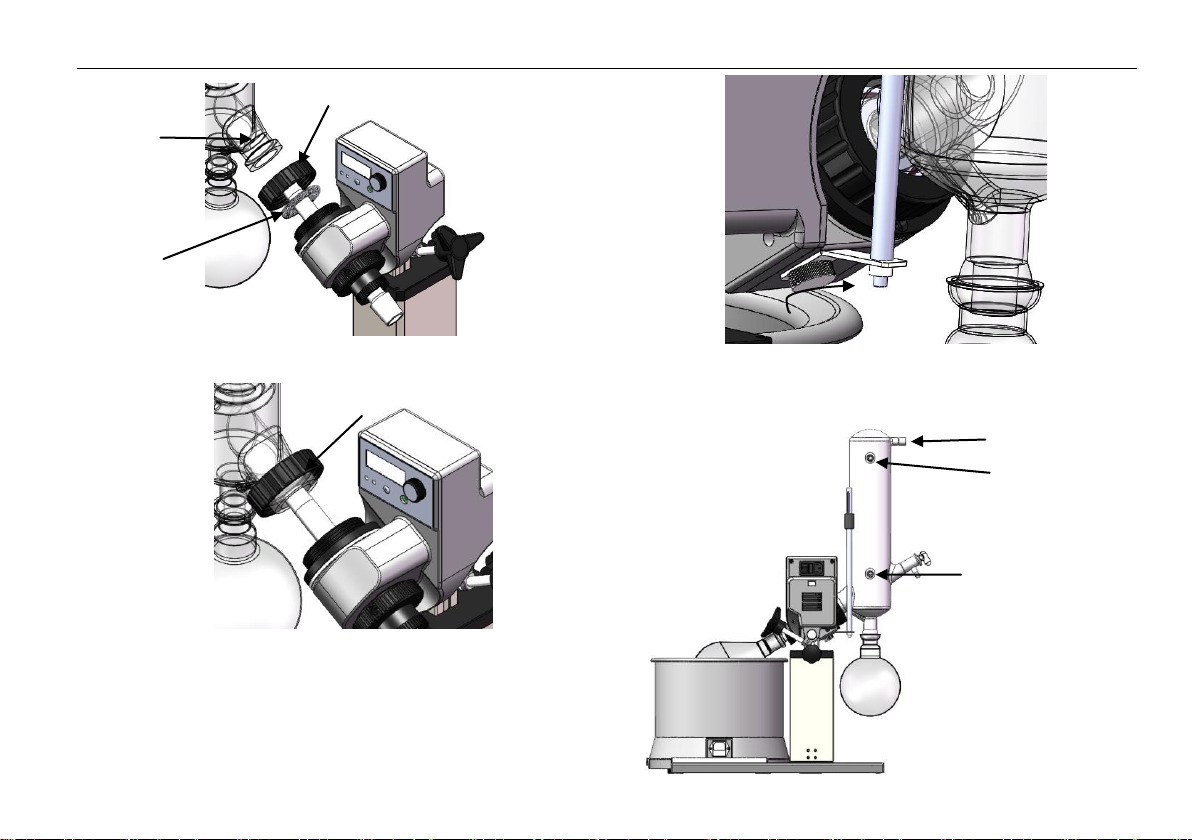

•Rotate the locking device (d) (Fig. 12) by 60°
counterclockwise to mount the evaporating tube in
place, and rotate the locking device (d) clockwise for
locking
•Mount the seal ring (Fig. 13 and Fig. 14)
Fig. 14
Fig. 15
•Mount the condenser (f) (Fig. 15 and Fig. 16)
-Slide the locking nut (g) and pressure spring (h)
onto the condenser.
-Screw down the locking nut (g) by hand
d
e

Rotary Evaporator
13
Fig. 16
Fig. 17
•Mount the fixing device for the vertical condensation
glass assembly (Fig. 17)
Fig. 18
•Piping connection (Fig. 18)
f
Condensate inlet
Vacuum tube interface
g
h
g
Condensate outlet

Rotary Evaporator
14
Fig. 19
Note:
To ensure good sealing performance, each glass
ground joint may be coated with a layer of sealing
grease.
5.2 Testing
•Check that whether working voltage specified on the
nameplate matches with power network voltage
•Power socket should be grounded properly
•Switch on the power and turn on the power switch
•Turn the adjustment knob to set the target speed
•Press the forward and reverse rotation interval setting
button to set the forward and reverse rotation interval
time. If set to “0”, the instrument only rotates forward.
•Press the temperature adjustment knob for several
seconds to switch between the water and oil bath
modes.
•Turn the temperature adjustment knob to set the target
temperature (up to 90℃under the water bath mode).
•Press the temperature adjustment knob to start heating
•Squeeze the handle switch to place the evaporating
flask into the heating bath
•Press the adjustment knob to start rotation
Normal work of the product during the operations above
means the product can be put into normal service. If
abnormal work occurs, which means the product may be
damaged during transport, please contact the after-sales
service center of local supplier or manufacturer.
Note:
Please don’t remove the evaporating flask and
receiving flask while the instrument is in
operation.
If the vacuum pump is not used, keep the vacuum
tube interface open.
6. Fault diagnosis
•The instrument’s digital tube is not on when the power
switch is turned on
-Check that whether the connection of power line
is
-Check that whether power fuse is damaged or
loose.
•ERR 001, indicating driving motor overcurrent.
-Check the revolving shaft for any blockage and

Rotary Evaporator
15
remove the foreign object if any.
•ERR 002, indicating abnormal speed.
-Turn off the instrument and restart it.
•ERR 003, indicating excessively high temperature.
-Turn off the heating bath and restart it when its
temperature falls to the room temperature.
•ERR 004 refers to the sensor failure
-Change of temperature sensor
If the above faults can not be cleared, please contact the
manufacturer/supplier.
7. Maintenance and cleaning
Operate and maintain the product properly, so that it is in a
good working state, which can extend the service life of the
product. In routine service, keep the product dry and clean,
remove the spilled liquid quickly, clean the outer surface
with a non-grinding cleaner, and do not connect the power
supply until all surfaces are dry. If liquid or moist solid
enters the product, please disconnect the power supply
quickly and leave off, and contact the manufacturer /
supplier for more advice.
•Keep the product clean, and the cleaning solution is
not allowed to flow into the machine.
•Power must be disconnected before maintenance and
cleaning, and please use our recommended methods to
clean the product. The method to clean:
Dye
Isopropanol
Building
materials
Aqueous solution / isopropanol with
active agent
Cosmetic
Aqueous solution / isopropanol with
active agent
Food
Aqueous solution with active agent
Fuel oil
Aqueous solution with active agent
•You can consult the manufacturer about the materials
that are not listed in the above table. Before using
other cleaning methods, the user must confirm with the
manufacturer / supplier that the method will not
damage the instrument. When cleaning the product,
please wear suitable protective gloves.

Rotary Evaporator
16
8. Relevant standards
The product structure conforms to the following safety
standard:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
The product structure conforms to the following EMC
standard:
EN 61326-1
Conforming to the following EU standards:
EMC standard: 89/336/EWG
Mechanical design standard: 73/023/EWG
9. Technical parameters
Item
Main unit
Heating bath
Voltage [VAC]
100-240
200-240/100-120
Frequency [Hz]
50/60
50/60
Power [W]
45
1010
Motor
DC brushless
-
Speed range [rpm]
20-200
-
Display
LED
Temperature range [°C]
Room
temperature
-180
-
Temperature control accuracy
[°C]
-
±1 (oil ±3)
Lifting method
Manual
-
Lifting travel [mm]
110
-
Forward and reverse rotation
interval setting [s]
1-999
-
Cautions:
•The electronic device cannot be cleaned with
detergent.
•The instrument to be repaired must be
cleaned while the contamination of
hazardous substances must be avoided, and
the instrument must be put back to the
original packaging box for sending.
•When the product is not used for a long time,
please store the product with power off and
place it in a dry, clean and smooth place in
normal temperature.

Rotary Evaporator
17
External dimension [W x D x
H, mm]
440×320×450
300×300×240
Weight [kg]
7
3
Allowable ambient
temperature [°C]
5-40
Allowable RH
80%
DIN EN60529 protection
class
IP20
USB
Yes
