Scosche CIVIC 4-DR 2001 User manual

155
© 2000 SCOSCHE INDUSTRIES, INC. ALL RIGHTS RESERVED
FOR MORE INFORMATION VISIT www.scosche.com
OR CALL SCOSCHE INDUSTRIES, INC. AT 800-363-4490
2001
HONDA
CIVIC
4-DR
NOTE: THISMANUALISBASED ONCAREFULLY DOCUMENTEDRESEARCH.ABSOLUTE
ACCURACY IS ATTEMPTED BUT NOT GUARANTEED. USETHIS MANUAL AS A REFERENCE
GUIDE. SCOSCHE, INC. CANNOT BE RESPONSIBLE FOR INCONSISTENCIES THAT MAY OCCUR..
..
.
Year: 2001 Make: Honda Model: Civic
IN-DASHAPPLICATION:
Dash Type: Single DIN w/Pocket Kit:HA1567 Harness: HA08
AntennaAdapter:None FactoryAmplifier: None
FRONT SPEAKERS:
Door Speakers: 7” 3-Hole Speaker in factory adapter Depth 1 1/2”
WHENINSTALLING AN AFTERMARKET5¼”OR 6½”SPEAKER, SAH6 ADAPTERIS REQUIRED.
REAR SPEAKERS:
Rear Speakers: 7” 3-Hole speaker mounted to rear deck Depth 18”
WHEN INSTALLING AN AFTERMARKET 5 ¼”OR 6 ½“ SPEAKERS, SAH6 ADAPTER IS NEEDED.
WIRE COLOR CODES:
+12V Constant = White/Red
+12V Accessory Switched = Red/Yellow
-12V Chassis Ground = Black
+12VIllumination = Red/Black
+12V Dimmer = Red
PowerAntenna = N/A
Amp Remote = N/A
LF+ = Green/Black
LF- = Light Green
RF+ = Green/Yellow
RF- = Grey/Red
LR+ = Blue/White
LR- = Blue/Black
RR+ = Violet
RR- = Blue/Yellow1

156
© 2000 SCOSCHE INDUSTRIES, INC. ALL RIGHTS RESERVED
FOR MORE INFORMATION VISIT www.scosche.com
OR CALL SCOSCHE INDUSTRIES, INC. AT 800-363-4490
NOTE: THIS MANUAL IS BASED ON CAREFULLY DOCUMENTED RESEARCH. ABSOLUTE
ACCURACY IS ATTEMPTED BUT NOT GUARANTEED. USETHIS MANUAL AS A REFERENCE
GUIDE. SCOSCHE, INC.CANNOT BE RESPONSIBLE FOR INCONSISTENCIES THAT MAY OCCUR..
..
.
2001 Honda Civic
Sedan
PRELIMINARY: Disconnectthe negative batterycable.
ANTENNA:Thefactory antenna islocatedrear window.

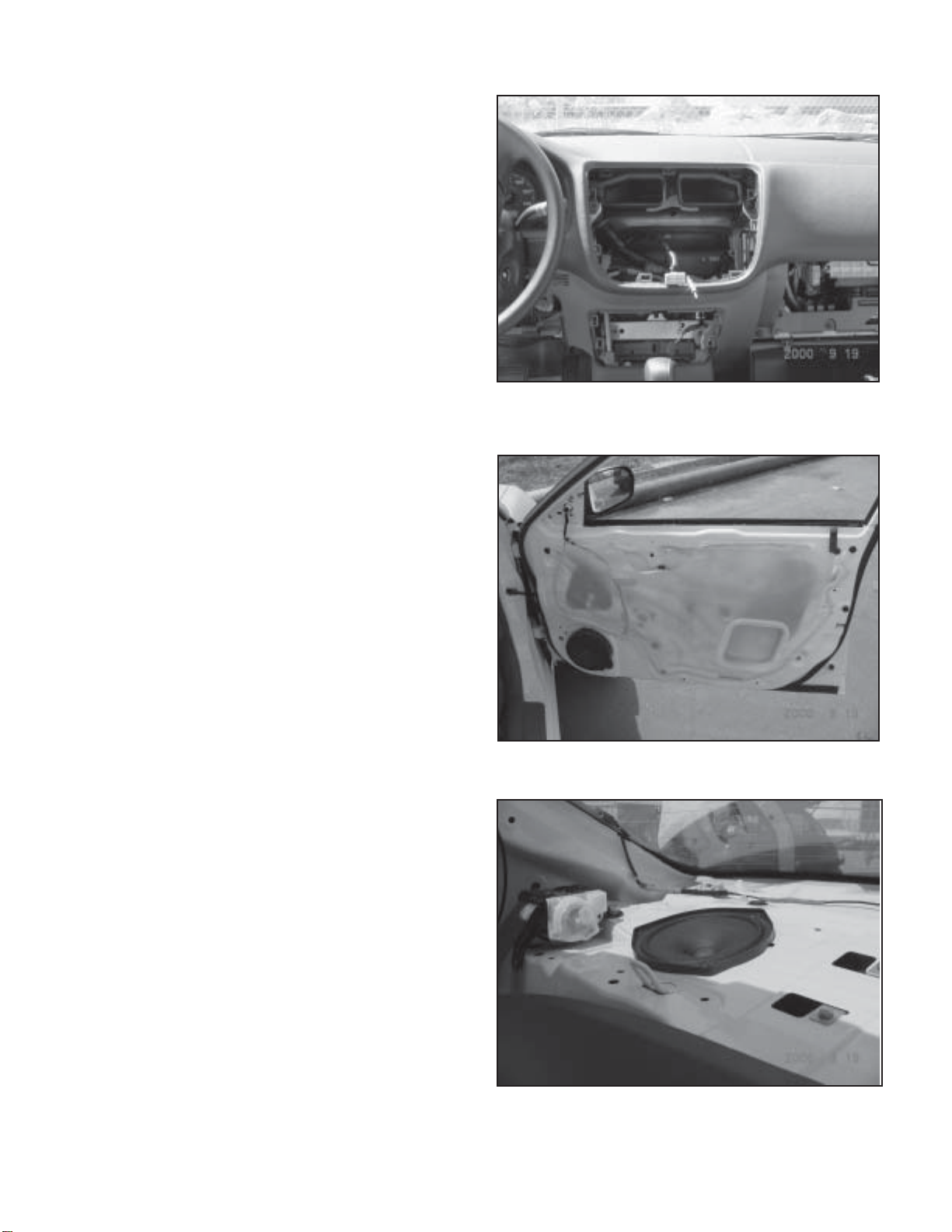

RADIOREMOVALAND IN-DASH INSTALLATION:
Note: The factory stereo provision is for a DINandHalf
radio with a pocket. When installing an aftermarket
DIN size radio, a dash installation kit is needed. We
recommend the Scosche HA1567B installation kit.
1. Usingpanel removal tool,pry out lowerdash panel
pocket,unplug and remove.
2. Exract (2) Philips screws from bottom of radio bezel
assembly.
3. Pry out radio bezel assembly, disconnect and remove.
FRONT DOOR SPEAKER REMOVALAND INSTALLATION:
Note: The factory speaker provision is for a 6 1/2" speaker
mounted to a factory adapter. When installing an
aftermarket 5 ¼ or 6 ½” speaker no adapter is
required.
1. Using small pick, pry off screw cover in interior door handle
andextract (2)Philips screws, removehandle.
2. Removewindowtriangle using panelremovaltool.
3. Usingpanel removal tool,pry off coveron bottom ofdoor
pulland extract (2) Philips screws.
4. Pry off door panel by pulling out then up, disconnect and
remove.
5. Push in on tabs of speaker adapter to release, disconnect
speakerandremove.
REARSPEAKERREMOVALAND INSTALLATION:
Note: The factory speaker provision is for a 6 ½”
mounted to the factory metal. When installing an
aftermarket speaker a speaker adapter is not required.
1. Fold rear seats down, pull back weatherstripping on B
pillarpanels and remove.
2. Remove outer seat sections by extracting (2) 10 mm
bolts and pulling up.
3. Pull up and out on rear deck to remove, disconnect
third brake light.
4. Extract (3) 10 mm bolts from speaker, disconnect and
remove.
Note: Screws accessed through lower panel.
