Scott Aerator AquaSweep 15000 User manual

We at Scott Aerator thank you for your purchase. It is our goal to ensure that you are completely
satised with your new AquaSweep and that it continues to operate smoothly for many years
to come. Please take a few moments to read through this document for proper assembly,
installation and maintenance to maximize the operating life of the unit.
This Kit Includes
1 - AQUASWEEP HOUSING
1 - STAINLESS-STEEL POLE
1 - DOCK MOUNTING PLATE
1 - STAINLESS STEEL WIRE BASKET
1 - PACKET OF LUBRICATING COMPOUND
2 - THUMB SCREWS
3 - SMALL SELF TAPPING SCREWS
4 - LARGE SELF TAPPING SCREWS
Tools Needed
ONE 3/8" WRENCH OR SOCKET SCREWDRIVER
ONE PHILLIPS STYLE SCREW DRIVER
TWO 1/2" WRENCHES (OR PLIERS)
AquaSweep
Dock Mount

Assembly Instructions

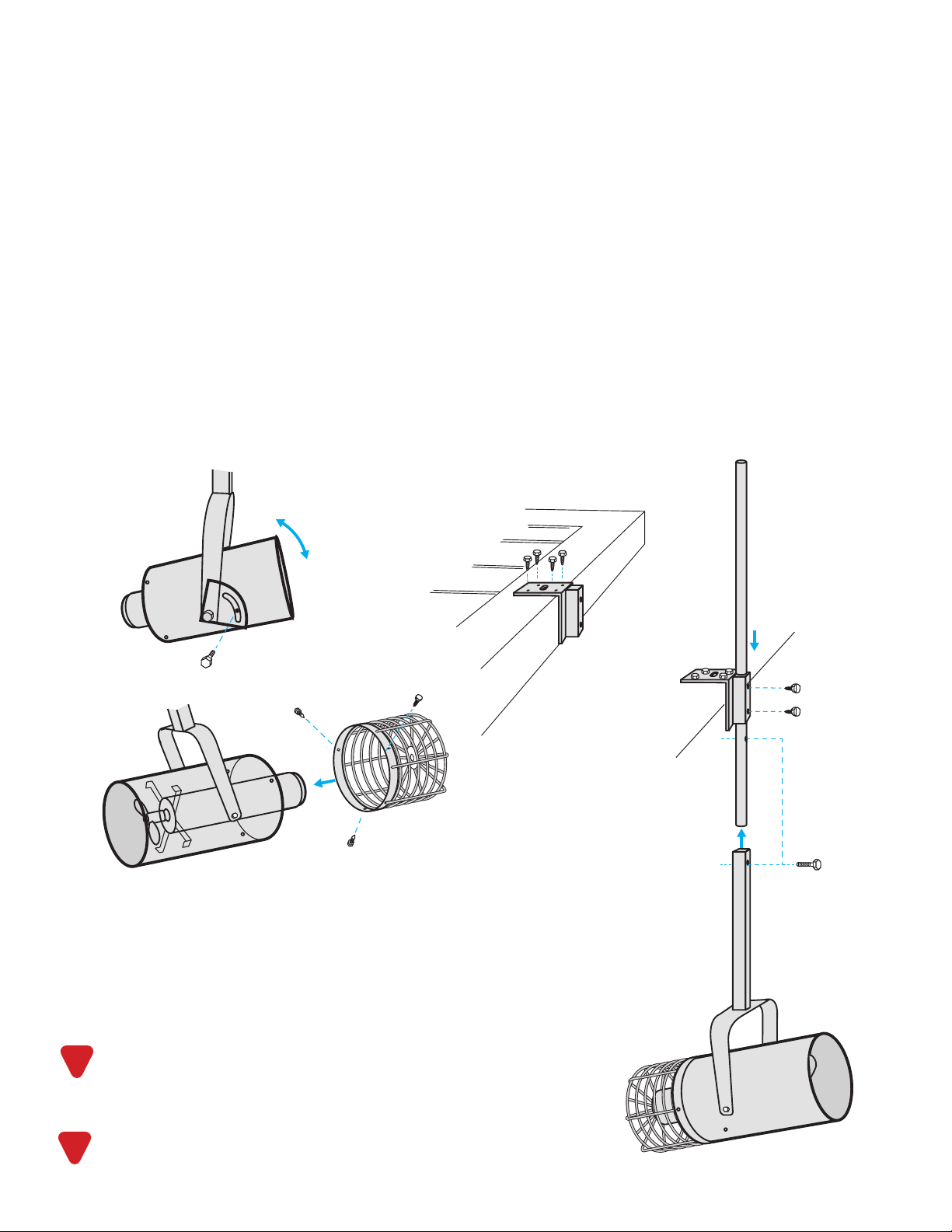

1. Begin the assembly of your AquaSweep dock mount model by removing the stainless-steel bolt from the yoke
assembly. Adjust the gray AquaSweep housing to the desired angle for water ow and secure in place with the
stainless-steel bolt. Fig. 1
2. The next step is to fasten the stainless-steel basket to the intake side of the gray AquaSweep housing.
This is easily done by aligning the 3 basket eyelets with the 3 pre-drilled holes on the housing and fastening
with the 3 small self-tapping screws provided. Fig 2
3. Secure the dock mounting bracket to your wooden or metal dock, utilizing the 4 large self-tapping screws. Fig. 3
4. Once the dock mounting bracket has been secured, the stainless-steel pole can be inserted thru the dock mounting
bracket. Simply loosen the 2 thumb screws from the dock plate sleeve, insert the pole from the top thru the
sleeve by approximately 12 inches, and then retighten the 2 thumb screws. Fig. 4
The AquaSweep dock mount model easily adjusts for varying water levels by loosening the 2 thumb screws from the
dock mounting bracket and raising or lowering the AquaSweep. Please note, the 2 thumb screws are coated with a
special lubricating compound specically designed for stainless-steel to ensure proper function. An extra packet of this
compound has been included with your AquaSweep purchase; periodic lubrication of the 2 thumb screws is
required for years of problem free use and for warranty validation.
5. Now, slide the yoke assembly over the bottom of the stainless-steel pole and secure with the bolt provided. Fig. 5
6. Finally, power can be supplied to your AquaSweep utilizing a standard 110 volt receptacle protected by a GFCI.
Extension cords should not be used. Disconnect power when swimmers are present.
Always use a GFCI
Always disconnect the power
when swimmers are present
!
Adjusting the position of the AquaSweep while in operation will cause
the dock plate thumb screws to strip, resulting in permanent damage
to the dock plate. Always disconnect power before adjusting the
AquaSweep, and keep the dock plate thumb screws lubricated.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
YOKE ASSEMBLY
DOCK
MOUNTING
BRACKET
12"
SS BASKET
!
Do NOT use an extension cord
to supply power to the motor
!

Maintaining your AquaSweep Dock Mount Model
Most of our products require very little to any maintenance. Under normal operating
conditions, you should enjoy many years of trouble free service from the unit. As a rule
of thumb, the propeller assembly on our AquaSweep should be changed every ve
years. This is a simple procedure that can be done on-site. When the unit is removed
from the water for the propeller switch, it would be a good opportunity to wash the unit
down with high pressure water. Once the unit is clean, a visual inspection of the entire
aerator is recommended to be certain nothing is restricting water ow.
The Scott Aerator Company has engineered all of its water features to eliminate the need
for time consuming and costly winterizing products and procedures. Simply reverse the
order of the assembly instructions and place in a dry, safe storage area.
MOTOR RATING
1/3 HP
115V
1/2 HP
115V/230V
3/4 HP
230V
1 HP
230V
WATTS 630 670 680 1217
AMPS 8 10/5 7 8.2
GALLONS/MIN 300 400 450 500
*Longer power cords available
ITEM# DESCRIPTION FLOW RATE FLOW
DISTANCE HEIGHT WEIGHT VOLTS RATED IN- PUT AMPS WATTS
15000 1/3 HP
DOCK MOUNT 300 GPM 40 FT 73” 40 LBS 115 8630
16000 1/2 HP
DOCK MOUNT 400 GPM 50 FT 89” 55 LBS 115 10 680
AquaSweep Dock Mount Model Specications

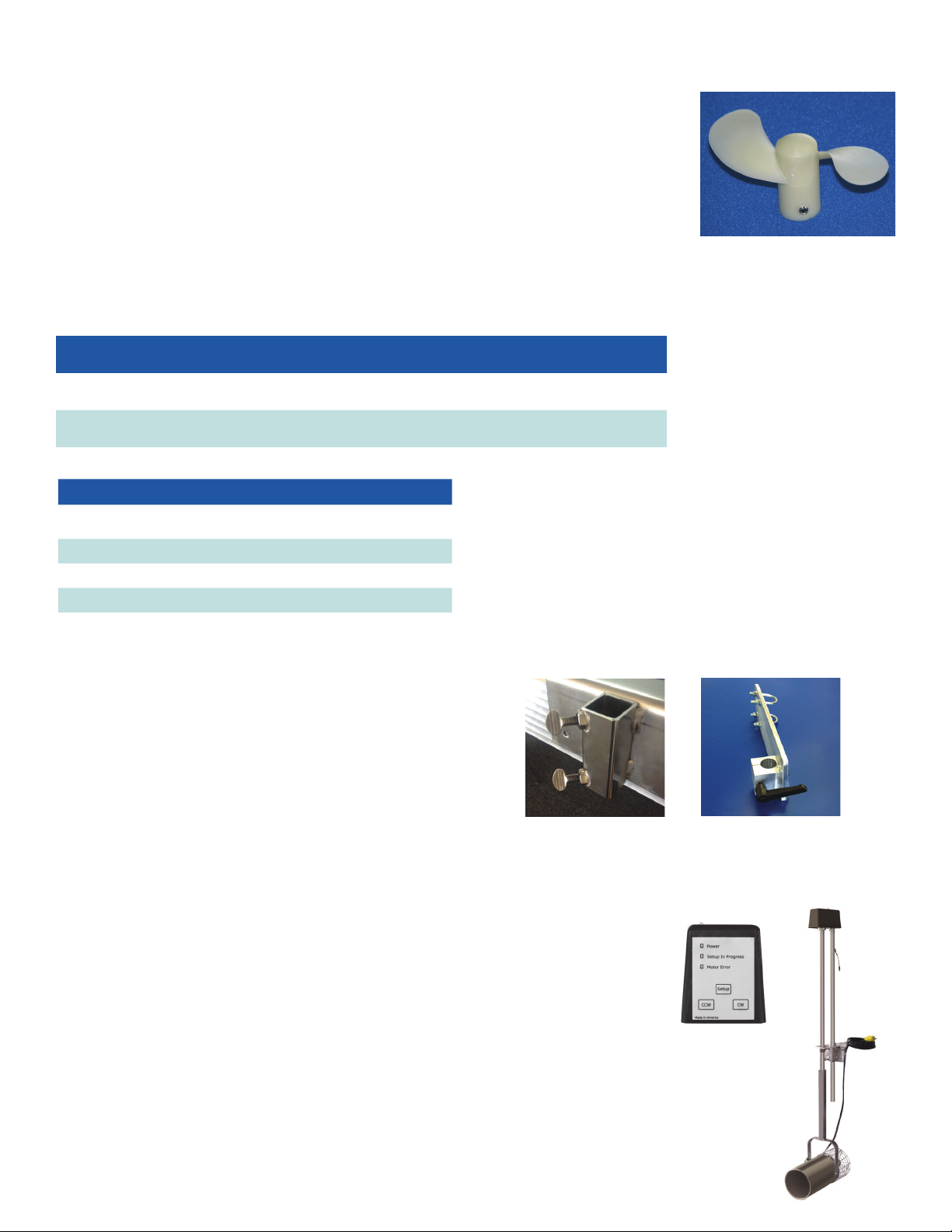

Propeller
Part # 30005
Dock Platform
Mounting Bracket
Part #20026
Dock Post
Mounting Bracket
Part #16501
Oscillator
Part #165750
Fully Programmable Oscillator (optional accessory)
Our fully programmable oscillator attachment makes moving muck even easier. No
need to turn the AquaSweep in its mounting; the oscillator does it for you! We pre-
program the oscillator to rotate the AquaSweep in 20 degree increments every 20
minutes; you set it for any radius you wish. Then plug it in and forget about it!
Mounting options
The standard dock platform mounting bracket (included) will
accommodate most standard docks. If your application requires
special mounting equipment, please give us a call and we’d be
happy to assist.

The Scott Aerator Awesome Warranty
All standard Scott Aerator products are unconditionally
warranted for ve years against motor defects in materials
or workmanship, under normal operating conditions. All
other product components are warranted for one year from
date of purchase. Scott Aerator will repair or replace failed
parts under warranty when the defective unit is returned
to the factory, shipping prepaid, and factory inspection
establishes that the part was defective. The unit must be
returned to the factory prior to shipment of replacement
parts. All parts replaced under this warranty will be returned
with shipping prepaid. Scott Aerator will not be liable for
consequential damage nor for any costs associated with
removal or attempts to repair components in the eld.
