Scott Fetzer Meriam M1000 User manual

A trusted leader in measurement
and calibration solutions.
Copyright © 2018 Meriam®
User Manual
M Digital Calibrator
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Contents
General Information...................................................................................................................................
Notification Statements...................................................................................................
Glossary......................................................................................................................................
General warnings and cautions.......................................................................................................
Preventing injury ..................................................................................................................
Safety symbols.......................................................................................................................
Sample label for General Purpose digital calibrators................................
Fire or explosion hazard..................................................................................................
For General Purpose Series .........................................................................................
Do not exceed pressure limits....................................................................................
Sensors.................................................................................................................................................................
Customer calibration .............................................................................................................................
Calibrate the M1000 by using the keypad:.....................................................
1. User Zero............................................................................................................................
2. Restore Factory Calibration.................................................................................
3. User Span (Respan)...................................................................................................
Digital calibrator........................................................................................................................................
Battery.......................................................................................................................................
Batteries...................................................................................................................................
The display.............................................................................................................................

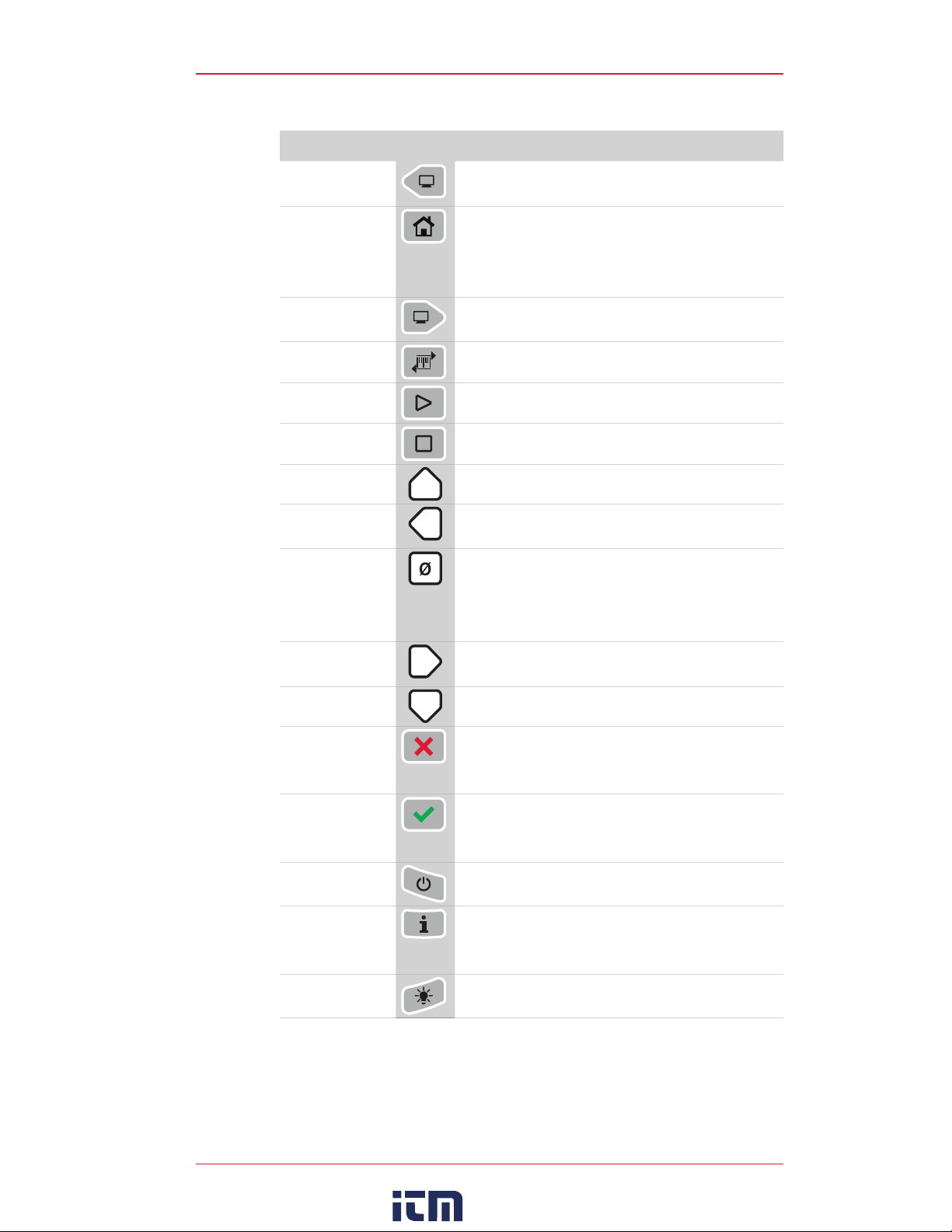

Keypad: Description of the keys............................................................................
The backlight........................................................................................................................
Measurement units..........................................................................................................
Auto O (Automatic shut o)...................................................................................
What does the Zero (ø) key do?.............................................................................
Specifications ..............................................................................................................................................
Sensors: type and range..............................................................................................
Temperature..........................................................................................................................
Relative Humidity..............................................................................................................
Vibration ..................................................................................................................................
Ingress specifications....................................................................................................
Altitude specifications...................................................................................................
Keypad......................................................................................................................................
Media Compatibility........................................................................................................
Battery Type..........................................................................................................................
EMC compliance ...............................................................................................................
Dimensional specifications........................................................................................
Weight.......................................................................................................................................
Enclosure ................................................................................................................................
Maintenance and cleaning................................................................................................................
Cleaning...................................................................................................................................
Prepare the digital calibrator for storage.........................................................
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Help.......................................................................................................................................................................
Register your product....................................................................................................
Find downloads and documents ...........................................................................
Meriam Contact Information...........................................................................................................
Contact us..............................................................................................................................
Repair or Calibration.......................................................................................................
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
General Information
Notification Statements
Disclaimer
Every precaution has been taken in the preparation of this
manual. Nevertheless, Meriam assumes no responsibility for
errors or omissions or any damages resulting from the use of
the information contained in this publication, including, without
limitation, incidental, special, direct or consequential damages.
MERIAM MAKES NO REPRESENTATIONS OR WARRANTIES
WITH RESPECT TO THE ACCURACY OR COMPLETENESS OF
THE CONTENTS HEREOF AND SPECIFICALLY DISCLAIMS ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE. Meriam reserves the right to
revise this publication and to make changes from time to time in
the content hereof without obligation to notify any person of such
revision or changes.
In no event shall Meriam be liable for any indirect, special,
incidental, consequential, or punitive damages or for any lost
profits arising out of or relating to any services provided by
Meriam or its ailiates.
It is not possible for Meriam to identify all foreseeable uses or
misuses, therefore all persons involved in commissioning, using,
or maintaining this product must satisfy their self that each
intended application is acceptable.
Copyright
This publication is proprietary to Meriam and no ownership
rights are transferred. Neither this manual, nor any of the material
contained herein, may be reproduced without the prior written
consent of Meriam.
Trademark information
Design Patent D769,141 for the digital calibrator’s LCD display.
All other trademarks are the property of their respective owners.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Glossary
Words and phrases with their definitions or explanations.
Words &
phrases
Definitions or explanations
Blinking • It indicates the active edit field on an edit
screen.
• It indicates the displayed value is not actively
changing (like Hold or stopped Test).
FS • FS is the abbreviation of Full Scale.
Home • Home is the first screen that displays after
turning on the digital calibrator. It’s the screen
with measurements and units on it.
• After you press the Home key in many other
screens, the digital calibrator returns you to
Home.
Key and
button
• A key refers to hardware push-buttons on the
keypad that you can press.
• A button refers to an area in meriSuite CG that
you can tap or click to select functions.
Isolated • The word isolated refers to the sensing
element being separated from the media. It
is commonly used in the phrases Absolute
Isolated (AI) pressure and Compound Isolated
(CI) pressure.
Customer
Calibration
• Customer calibration refers to any calibration
done outside of Meriam with non-Meriam
traceability.
• Customer calibration includes: Multipoint
calibration or adjustment.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
General warnings and cautions
Preventing injury
Failure to follow all instructions could result in injury:
▪Read the entire manual before using the digital calibrator.
▪Understand the contents before using the digital calibrator.
▪Follow all safety warnings and instructions provided with this
product.

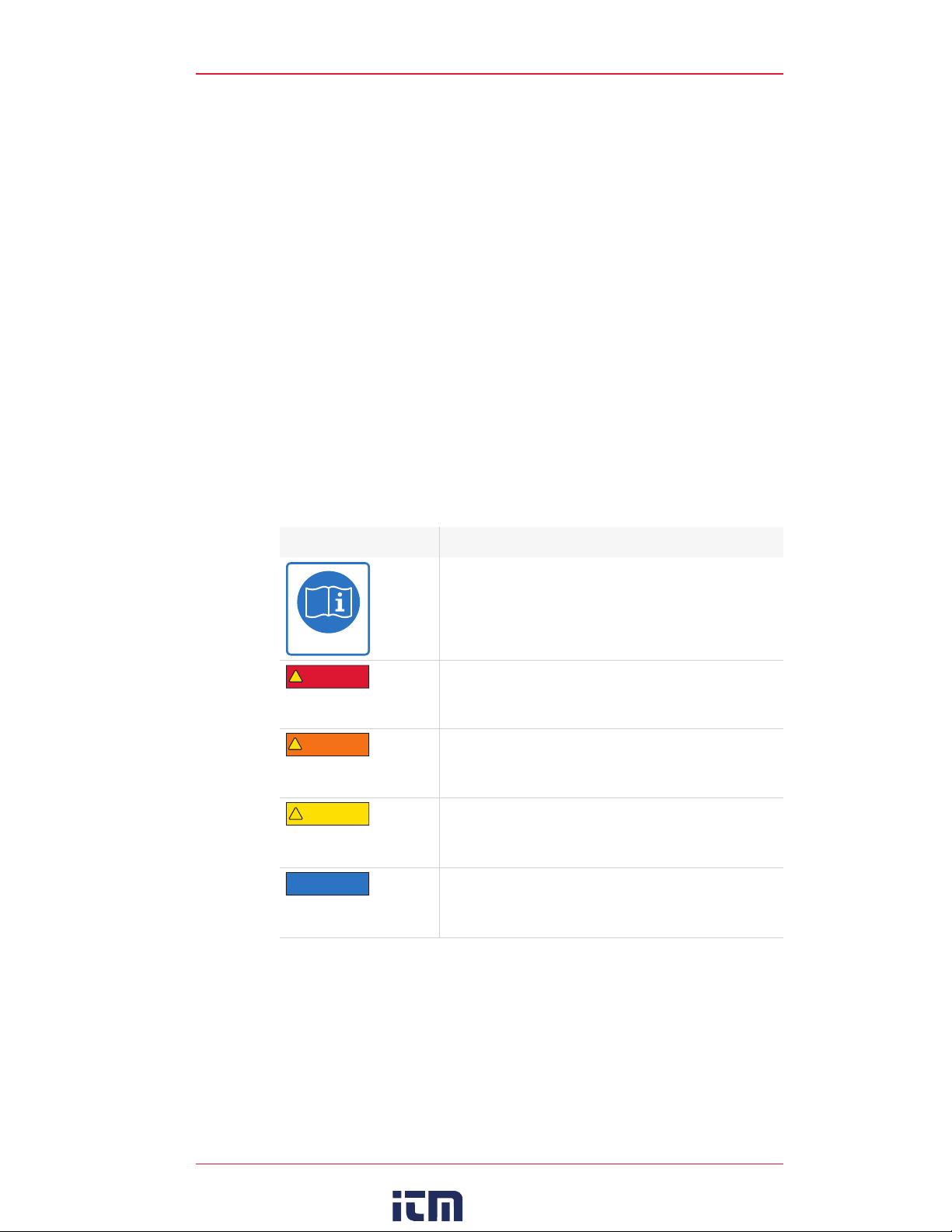

Safety symbols
The following table defines the safety symbols, signal words,
and corresponding safety messages used in the manual. These
symbols:
▪Identify potential hazards.
▪Warn you about hazards that could result in personal injury or
equipment damage.
Safety symbols Explaining the symbols
Read directions
before using
This is the Read directions before using
symbol. This symbol indicates that you
must read the instruction manual.
DANGER
!
Indicates a potentially hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING
!
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION
!
Indicates a potentially hazardous situation
which, if not avoided, could result in minor
or moderate injury.
NOTICE
Indicates information essential for
proper product installation, operation or
maintenance.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Sample label for General Purpose digital
calibrators
All M1000 Series models are available for general-purpose use.
General Purpose (GP) versions are identified by the name plate
located on the rear of the unit under the protective rubber boot. A
sample of the General Purpose name plate is shown below:
USA |designed|engineered|assembled
For repair or calibration |
General Purpose
Four 1.5 V alkaline AA batteries
Operating Temperature:
–10 ºC < Ta < 50 ºC
Refer to manual for use and
safety precautions.
For use only
in non-hazardous
locations.
WARNING
!
Fire or explosion hazard
DANGER
!
▪Do not use General Purpose versions in hazardous areas.
▪Do not use General Purpose versions in areas that may
contain flammable gas or vapors, combustible dusts or
ignitable fibers where an unintended spark can cause a fire or
explosion.
For General Purpose Series
CAUTION
!
Substitution of components may impair operation and safety.
▪Disconnect power before servicing.
▪Do not power the digital calibrator with a combination of new
and old batteries.
▪Do not power the digital calibrator with a combination of
batteries from dierent manufacturers.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Do not exceed pressure limits
WARNING
!
▪Do not exceed the Pressure Limits listed in the Specifications
section of this manual.
▪Failure to operate within the specified pressure limit could
result in minor or moderate injury.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Sensors
Use two wrenches to install or remove pressure connections
Connection: 1/8” female NPT, 316L SS.
▪Always use a 3/4 in. wrench on the pressure manifold when
you install or remove the 1/8 in. NPT fitting.
▪Applying torque to the manifold can damage the plastic
enclosure and voids the warranty.
▪Do not over tighten.
Carefully equalize the pressure
Avoid these two issues with dierential sensors:
1. Connecting pressure to the incorrect pressure port on DN
dierential pressure modules may cause damage to the
pressure sensor.
2. Applying pressure to either port before both connections are
made.
NOTICE
Apply pressure to both dierential ports at the same time.
Note: See Overrange limit in the section called Specifications
concerning overrange pressure limits. If over pressure damage
occurs, you must return the digital calibrator to the factory for
sensor replacement.
www. .com [e-mail]1.800.561.8187

9R723-A March 2019
User Manual for M1000 Digital Calibrator  of 
Sensor manifold types
ZM1000-CNXXXX
ZM1000-DNXXXX
ZM1000-ANXXXX
