TAURUS RACK
TAURUS CHAIN GP

2
SAFETY INFORMATION
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral and essential part of the product and must be supplied to the user;
Read them carefully as they contain important indications for the safe installation, use and maintenance.
1. These instructions must be kept and forwarded to all possible future users of the system.
2. This product must be used only for that which it has been expressly designed.
3. Any other use is to be considered improper and therefore dangerous.
4. The manufacturer cannot be held responsible for possible damage caused by improper or unreasonable use.
5. Avoid operating in the proximity of the hinges or moving mechanical parts.
6. Do not enter the path of the moving gate while in motion.
7. Do not obstruct the motion of the gate as this may cause a situation of danger.
8. Do not allow children to play or stay within the path of the moving gate.
9. Keep remote control or any other control devices out of the reach of children, in order to avoid possible involuntary
activation of the gate operator.
10. In case of break down or malfunctioning of the product, disconnect from the main power source. Do not attempt to
repair or intervene directly, contact only qualified personnel for repair.
11. Failure to comply with the above may create a situation of danger.
12. All cleaning, maintenance or repair work must be carried out by qualified personnel.
13. In order to guarantee that the system works efficiently and correctly it is important to have the manufacturer's
instructions on maintenance of the gate and operator carried out by qualified personnel.
14. In particular, regular checks are recommended in order to verify that the safety devices are operating correctly.
All installation, maintenance and repair work must be documented and made available to the user.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF INJURY OR DEATH:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4.Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates
the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and
retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving
6. KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. PEDESTRIANS MUST USE SEPARATE ENTRANCE.
8. Every gate operator installation MUST have secondary protection devices against entrapments, such as edge
sensors and photo beams more in particular in places where the risk of entrapments is more likely to occur
9. SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
An appliance shall be provided with an instruction manual.
The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance.
The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and
shall stress the importance of proper grounding.
The installation instructions shall inform the installer that permanent wiring is to be employed as required by local
codes, and instructions for conversion to permanent wiring shall be supplied.
INFORMATION SHALL BE SUPPLIED WITH A GATE OPERATOR FOR:
a. The required installation and adjustment of all devices and systems to effect the primary and secondary protection
against entrapment (where included with the operator).
b. The intended connections for all devices and systems to effect the primary and secondary protection against en-
trapment. The information shall be supplied in the instruction manual, wiring diagrams, separate instructions, or the
equivalent.
VEHICULAR GATE OPERATORS (OR SYSTEMS)
A vehicular gate operator shall be provided with the information in the instruction manual that defines the different
vehicular gate operator Class categories and give examples of each usage. The manual shall also indicate the use for
which the particular unit is intended as defined in Glossary, Section 3. The installation instructions for vehicular gate
operators shall include information on the Types of gate for which the operator is intended.

3
A gate operator shall be provided with the specific instructions describing all user adjustments required for proper
operation of the gate. Detailed instructions shall be provided regarding user adjustment of any clutch or pressure relief
adjustments provided. The instructions shall also indicate the need for periodic checking and adjustment by a qualified
technician of the control mechanism for force, speed, and sensitivity.
Instructions for the installation, adjustment, and wiring of external controls and devices serving as required protection
against entrapment shall be provided with the operator when such controls are shipped with the operator.
Instructions regarding intended installation of the gate operator shall be supplied as part of the installation instructions
or as a separate document. The following instructions or the equivalent shall be supplied where applicable:
IMPORTANT INSTALLATION INSTRUCTIONS
1. Install the gate operator only when:
a. The operator is appropriate for the construction of the gate and the usage Class of the gate
b. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 4 feet
(1.22 m) above the ground to prevent a 2-1/4 inches (57.2 mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position
c. All exposed pinch points are eliminated or guarded
d. Guarding is supplied for exposed rollers
2. The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a
separate access opening. The partial access opening shall be designed to promote pedestrian usage. Locate the gate
such that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
3. The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent
structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access
areas.
4. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do
not over-tighten the operator clutch or pressure relief valve to compensate for a damaged gate.
5. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving and
AWAY FROM THE GATE PATH PERIMETER.
6. Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and
where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or
easily accessible controls shall have a security feature to prevent unauthorized use.
7. The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not
cause the operator to start.
8. A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible
9. FOR GATE OPERATORS UTILIZING A NON-CONTACT SENSOR:
a. See instructions on the placement of non-contact sensors for each Type of application
b. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the
gate is still moving
c. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as the
perimeter reachable by a moving gate or barrier
10. FOR A GATE OPERATOR UTILIZING A CONTACT SENSOR:
a. One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post-mounted both inside and outside of a vehicular horizontal slide gate.
b. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
c. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
d. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor
and the gate operator is not subjected to mechanical damage.
e. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where the transmission of the signals is not obstructed or
impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall function
under the intended end-use conditions.
f. One or more contact sensors shall be located on the inside and outside leading edge of a swing gate. Additionally, if
the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel,
one or more contact sensors shall be located on the bottom edge.
g. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
INSTRUCTION REGARDING INTENDED OPERATION OF THE GATE OPERATOR SHALL BE PROVIDED AS PART OF THE USER
INSTRUCTIONS OR AS A SEPARATE DOCUMENT. THE FOLLOWING INSTRUCTIONS OR THE EQUIVALENT SHALL BE PROVIDED

4
NOTICE
As for misunderstandings that may arise refer to your area distributor or call our help desk. These instructions are part
of the device and must be kept in a well-known place. The installer shall follow the provided instructions thoroughly.
SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit
authorization will preserve the manufacturer from whatsoever responsibility. The installer shall provide warning
notices on not assessable further risks. SEA USA Inc. in its relentless aim to improve the products, is allowed to make
whatsoever adjustment without giving notice. This doesn’t oblige SEA to up-grade the past production. SEA USA Inc.
cannot be deemed responsible for any damage or accident caused by product breaking, being damages or accidents
due to a failure to comply with the instructions herein. The guarantee will be void and the manufacturer responsibility
will be nullified if SEA USA Inc. original spare parts are not being used. The electrical installation shall be carried out by
a professional technician who will release documentation as requested by the laws in force. Packaging materials such
as plastic bags, foam polystyrene, nails etc must be kept out of children’s reach as dangers may arise.
TO RESPECT THE LAWS IN FORCE IT IS RECOMMENDED TO USE THE ENCODER WITH THE ELECTRONIC CONTROL UNIT
UL 325 ED. 6th ENTRAPMENT PROTECTION REQUIREMENTS
VEHICULAR GATE OPERATOR CLASSES
Residential Vehicular Gate Operator-Class I: A vehicular gate operator (or system) intended for use in garages or
parking areas associated with a residence of one-to-four single families
Commercial/General Access Vehicular Gate Operator-Class II: A vehicular gate operator (or system) intended for
use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel,
garages, retail store, or other buildings accessible by or servicing the general public
Industrial/Limited Access Vehicular Gate Operator–Class III: A vehicular gate operator (or system) intended for
use in an industrial location or building such as a factory or loading dock area or other locations not accessible by or
intended to service the general public
Restricted Access Vehicular Gate Operator–Class IV: A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading dock area or other locations not accessible by or intended to
service the general public
THIS VEHICULAR GATE OPERATOR MUST BE INSTALLED WITH AT LEAST TWO INDEPENDENT ENTRAPMENT PROTECTION MEANS
AS SPECIFIED IN THE TABLE BELOW
HORIZONTAL SLIDE
VERTICAL LIFT - VERTICAL PIVOT
ENTRAPMENT
PROTECTION
TYPES
TYPE A
TYPE B1
TYPE B2
TYPE C
Inherent entrapment protection system
Non-contact sensors such as photoelectric sensors or equivalents
Contact sensors such as edge sensors or equivalent devices
Inherent force limiting, inherent adjustable clutch or inherent pressure relief device
TYPE D Actuating device requiring constant pressure to maintain opening or closing motion of the gate
SWING
VERTICAL BARRIER (ARM)
A , B1*, B2* or D A , B1*, B2*, C or D
GATE OPERATOR CATEGORY (Effective January, 12 2016)
NOTES:
1. The same type of device shall not be used for both entrapment protection means. Use of a single device to cover
both the opening and closing directions is in accordance with the requirement; however, a single device is not required
to cover both directions. Tice installer is required to install entrapment protection devices in each entrapment zone
2. FOR VERITICAL BARRIERS ONLY: Barrier gate operators (arm) that is not intended to move toward a rigid object
closer than 16 inches (406 mm) are not required to be provided with a means of entrapment protection
* B1 and B2 means of entrapment protection MUST be MONITORED

5
PERIODIC MAINTENANCE
Starting on Jan. 12, 2016, new UL 325 changes take effect, bringing a series of new mandates for the gate
operator industry. Here’s a quick guide to the key modifications
1. ENTRAPMENT-PROTECTION DEVICES: Gate operators are required to have a minimum of two independent means of
entrapment protection where the risk of entrapment or obstruction exists. A manufacturer can use two inherent-type
systems, two external-type systems, or an inherent and an external system to meet the requirement. However, the
same type of device cannot be used for both means of protection.
2. MONITORING REQUIRED: An external non-contact sensor or contact sensor may be used as a means of entrapment
protection. However, the sensor must be monitored once every cycle for:
a. the correct connection to the operator
b. the correct operation of the sensor
If the device is not present, not functioning, or is shorted, then the gate operator can only be operated by constant
pressure on the control device. Portable wireless controls will not function in this case.
3. ENTRAPMENT RISK IDENTIFICATION: As in the past, it’s up to the installer to examine the installation and determine
where a risk of entrapment or obstruction exists. Manufacturers are required to provide instructions for the placement
of external devices, but they give only examples of suggested entrapment protection in their installation manuals. If the
installer identifies a risk of entrapment or obstruction, at least two independent means of entrapment protection are
required.
4.TERMINOLOGY CHANGE: The terms «primary» and «secondary» have been removed in the description of entrapment
protection devices. This was done to emphasize that all entrapment protection devices are equally important.
5. THE END OF TYPE E: Type E (audible alarm) devices can no longer be used for entrapment protection. This change
was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate
operator classes are now required to have an audio alarm that sounds when two successive obstructions are
encountered via a contact-type system.
6. ACCESS CONTROL LOCATION FOR EMERGENCY USE: An exception has been added in the manufacturer’s instructional
requirements for the location of controls that operate the gate.
The instructional requirements state that these controls must be at least 6' away from any moving part of the gate. In
the new exception, «Emergency access controls only accessible by authorized personnel (e.g., fire, police, EMS) may
be placed at any location in the line-of-sight of the gate».
7. BARRIER-ARM OPERATOR EXCEPTION: An exception has changed for barrier-arm gate operators requiring entrapment
protection. The previous exception stated that a barrier-arm operator did not require entrapment protection if the arm
did not move toward a rigid object closer than 2". The distance has been reduced to 16" so it more closely aligns with
the industry-defined entrapment protection provisions in ASTM F2200.
8. GATE OPERATOR CLASS II AND CLASS III DEFINITIONS: The definitions for installation classes for gate operators were
modified. Class II now includes commercial locations accessible to the general public. Class III was refined to specify
industrial locations not accessible to the general public. These changes, while seemingly minor, may affect which gate
operator is suitable for a particular installation location.
CHANGES TO UL 325 ED. 6TH FOR GATE OPERATORS
Clean and grease parts in movement (wheels, counter-connecting rod, release, etc.)
Check for corroded parts and replace if necessary
Check if the screws and all mounting hardwares are properly tighten
Check the conditions of wear and tear of the devices in movement
Check the correct drain of the rainwater
Check the integrity of the connection cables
Inspect the track for any signs of cracking or separation
Ensure that the gate moves freely
YEARLY
YEARLY
YEARLY
YEARLY
YEARLY
YEARLY
YEARLY
YEARLY
Check and confirm the proper operation of all safety devices (photocells, edge sensors etc)
Check and confirm the operation of all installed accessories
Check and confirm the operation of the manual release
Check the battery conditions and be sure that connections are free of corrosion
Verify the functionally of the battery backup, or power failure option
TURNING OFF THE POWER
BY MAIN SOURCE TURNED-OFF
TURNING ON THE POWER
YEARLY
YEARLY
YEARLY
YEARLY
YEARLY
ALL THE ABOVE DESCRIBED OPERATIONS MUST BE MADE EXCLUSIVELY BY AN AUTHORIZED INSTALLER

6
GATE WARNINGS AND PRECAUTIONS
INSTALL THE WARNING SIGNS!
1/2”
1/4”
5”
!
WARNING
Moving Gate Can Cause
Serious Injury Or Death
- KEEP CLEAR ! Gate may move at any
time without prior Warning.
- Do not let children operate the gate or
play in the gate area.
- This entrance is for vehicle only.
Pedestrians must use separate entrance
NOT FOR PEDESTRIAN OPENING! KEEP CONTROLS AWAY!
MECHANICAL STOPS
WARNING
Moving Gate Can Cause
Serious Injury Or Death
- KEEP CLEAR ! Gate may move at any time
without prior Warning.
- Do not let children operate the gate or play in
the gate area.
- This entrance is for vehicle only.
Pedestrians must use separate entrance
WARNINGS
SEA operators have been designed for the automation of gates for vehicles use only
Be aware to avoid the crossing of the gate path because it is very dangerous for pedestrians
Make sure that no person could activate the automation or act on it from the outside
Install the warning signs on each side of the gate and in avisible zone to inform the
pedestrians about the danger they run when passing or resting in the environment of the gate
For more safety SEA advises to install mechanical stops and infrared photocells
Check that the gate is in good running order before the installation:
the gate must be rigid and straight and must run smoothly throughout its travel
the length of the gate must comply with the max. length recommended for each operator model
the weight of the gate must comply with max. weight recommended for each operator model
the lower gate slideway must be perfectly straight, horizontal and without any obstacles which could
obstruct the gate sliding (see images A - B - C)
the lower sliding wheels must be equipped with greasable or watertightened bearings
the upper gate slideway must be perfectly straight and placed so that the gate is in vertical position
respect the distances in the image F; the distance between the end of the gate (in full opening position)
and the eventual wall must be of 5 inches at least, to allow the complete sliding without impact (G)
the mechanical stops must always be installed in order to avoid any possible derailment of the gate
the upper gate slideway must be provided with rollers (see images D - E)
B
AC
D
H
G
F
E
I
JK

7
12
5
6
3
8
7
4
11,81
9,17
6,30
4,72
1000 Lbs
Installation from chapter 3
MAX. GATE WEIGHT
MAX. USAGE RATE
MOTORS
TAURUS RACK 120V/24V
30%
GENERAL FEATURES
COMPONENTS
APPLICATION CHART
Fig. 1
Fig. 2a
DIMENSIONS (inches)
40%
1 Adjustable foundation
plate
2 Anchor bolts
3 Pinion protection
4 Pinion
5 Release system
6 Electronic control unit
7 Magnetic encoder
-optional-
8 Limit switch
-optional-
Fig. 2b
TAURUS is a grease lubricated motor-reducer designed for the automation of sliding gates.
It is IRREVERSIBLE to allow a perfect and safe closing of the gate avoiding the installation of the electric lock.
It is equipped with a RELEASE SYSTEM - placed on the head of the external box - allows the manual opening
and closing in the event of a power failure.
It is also equipped with an ELECTRONIC CLUTCH DEVICE which guarantees the control of the gate thrust.
Moreover, the electronic inversion system through ENCODER, makes the TAURUS a safe and reliable
operator and allows to comply with the Laws in force in the Countries where the product is installed
TAURUS is also available in version with limit-switch or without limit-switch
11,81
13,58
TAURUS RACK 120V
TAURUS CHAIN GP
TAURUS RACK 120V/24V
TAURUS RACK 120V
TAURUS CHAIN GP
TAURUS RACK
TAURUS CHAIN GP
Installation from chapter 8

8
TAURUS RACK 120V/24V
120V (±5%) 50/60 Hz
350W
3,2 A
60 µF
30%
-4°F +131°F
INTEGRATED 302°F
23 Lbs
IP 55
7,8 In/s
-
15Nm
1000 Lbs
ELECTRONIC
ELECTROMECHANICAL
120V (±5%) 50/60 Hz
350W
3,2 A
60 µF
30%
-4°F +131°F
INTEGRATED 302°F
25 Lbs
IP 55
-
11 In/s
15Nm
1000 Lbs
ELECTRONIC
ELECTROMECHANICAL
120V (±5%) 50/60 Hz
110W
1,8 A
-
40%
-4°F +131°F
-
24 Lbs
IP 55
9 In/s - ADJUSTABLE
-
15Nm
1000 Lbs
ELECTRONIC
ELECTROMECHANICAL
TECHNICAL DATA
POWER SUPPLY
MOTOR POWER
ABSORBED CURRENT
STARTING CAPACITOR
USAGE RATE
OPERATING TEMPERATURE
THERMAL PROTECTION
OPERATOR WEIGHT
PROTECTION CLASS
Z16 PINION - OPENING SPEED
Z17 PINION - OPENING SPEED
MAXIMUM TORQUE
GATE MAX. WEIGHT
ANTI-CRUSHING CLUTCH
LIMIT SWITCH (IF INSTALLED)
The indicated usage rate is valid only for the first operating hour and at a 68°F temperature
TAURUS RACK 120V TAURUS CHAIN GP 120V
1 - GATE ARRANGEMENT
Before the installation, check that all gate parts (fixed and mobile) have a strong and non-deformable
structure; also make the following checks:
a) The gate must be rigid and compact;
b) The lower gate slideway must be perfectly straight, horizontal and without any obstacles which could
obstruct the gate sliding;
c) The lower sliding wheels must be equipped with greasable or watertightened bearings;
d) The upper slideway must be perfectly straight and placed so that the gate could be in vertical position;
e) The mechanical stops of the gate must always be installed in order to avoid any possible derailment
!
WARNING
Moving Gate Can Cause
Serious Injury Or Death
- KEEP CLEAR ! Gate may move at any
time without prior Warning.
- Do not let children operate the gate or
play in the gate area.
- This entrance is for vehicle only.
Pedestrians must use separate entrance
1
3
11
13
10
12
12
4
5
6
7
8
9
2 - ELECTRIC WIRINGS
2
RECOMMENDED CABLES NUMBER AND SECTION
FOR WIRINGS TO THE CONTROL UNIT
* Increase the cable section in case of distance from
the control unit
11) CONTROL UNIT BOX
12) MECHANICAL STOPS
13 WARNING SIGNS
1) OPERATOR
2) PHOTOCELL TX
3) PHOTOCELL RX
4) FLASHING LAMP
5) ANTENNA
6) SAFETY EDGE
7) EXTERNAL RECEIVER
8) KEY-BUTTON
9) KEYPAD
10) DIFFERENTIAL SWITCH 16A/30mA
4 X AVG16/18
2 X AVG22
4 X AVG22
2 X AVG22
4 X AVG22
4 X AVG22
4 X AVG22
3 X AVG16/18
1 X RG58
*
2 X AVG22
Example
of installation
of operator
and accessories
Fig. 3

9
Z16
Z20
3,93 inches
4,25 inches
MINIMUM Q DIMENSION
2,44’’
Fig. 5
Q
PLINTH
5,90
9,84
Fig. 4
To install the foundation plate it is necessary to:
3.1. Prepare a concrete basement according to the dimensions shown in Fig. 4; The foundation plate and
the anchor bolts must be concreted inside the basement
IF ALLOWED BY THE GATE STRUCTURE, IT IS RECOMMENDED TO LIFT THE FOUNDATION PLATE OF ABOUT
1,96 inches FROM THE GROUND, IN ORDER TO AVOID EVENTUAL WATER STAGNATION.
3.2. Before cementing the plate insert a flexible plastic pipe of at least in diameter into the 1,18 inches
special hole of the plate
3.3. Before concreting the plate, make sure that it is perfectly levelled and that the distance of 2.48 - 2.67
inches as shown in Fig. 5 is respected
3 - INSTALLATION OF THE FOUNDATION PLATE for «TAURUS RACK»
ELECTRIC
CABLES
PIPE
3
16,53
Dimensions
in inches
Fig. 6
4 - CABLE PASSAGE ARRANGEMENT for «TAURUS RACK»
The operator is provided with seven holes for electric
cables passage - Fig. 6;
Always keep the power cables (120V~) separate from the
low voltage command cables (24V).
Always run cables in separate sheaths to prevent
interferences!
5 - INSTALLATION OF THE OPERATOR «TAURUS RACK»
5.1. Insert the 4 grub screws into the special holes, in order to adjust the gearmotor height on the plate Fig. 7
At the end of installation check if the 4 grub screws are well gripped on the foundation plate
5.2. Fix the gear motor to the foundation plate using the 2 included nuts, adjusting the side position so to
respect the shown quota in Fig. 5
Fig. 7
FIX THE ADJUSTING
GRUB-SCREWS
FIX THE GEAR MOTOR
ON THE FOUNDATION
PLATE
2,48’’ - 2,67’’
Fig. 8

10
6 - GEAR RACK MOUNTING for «TAURUS RACK»
ABC
Fig. 9 Fig. 10 Fig. 11
6.1. Release the operator and open the leaf completely;
6.2. Fix on each gear rack element the support pawls with the appropriate lock screws, making sure to put
them in the upper part of the hole (Fig. 9) ;
6.3. Lean the gear rack element on the toothed pinion of the operator in parallel to the ground slideway of the
gate, as shown in Fig. 10 and electrically weld the central pawl B to the gate structure .
Manually move the gate until pawl C is placed in front of the pinion and fix it through electric welding. Repeat
the same procedure for pawl A after having placed it in front of the pinion;
6.4. Make sure that all the gear rack elements are perfectly aligned and correctly placed (the teeth must be in
phase). It is suggested to oppose an element to two aligned elements as shown in Fig. 12;
6.5. Repeat the above described operation for all the remaining rack elements which have to be installed;
6.6. To avoid that the gate weights down the pinion (Fig.13) lift up the whole rack about 0,06 inches.
Caution!: Keep a gap of about 0,02 inches between pinion tooth and gear rack tooth;
6.7. Make sure that the gear rack works at the midpoint of the pinion along all the rack elements, if
necessary, adjust the length of the spacers
PLASTIC RACK,
STEEL CORE
TO BE SCREWED
STEEL RACK
TO BE WELDED
0,06 inches
Fig. 12 Fig. 13
7 - LIMIT SWITCH ADJUSTMENT - FOR «TAURUS RACK» WITH LIMIT SWITCH
7.1.  
- Fully open the gate
- Place the plate on the rack according to the desired gate stop position; fix the plate on the rack using screws
7.2.  
- Fully close the gate
- Place the plate on the rack according to the desired gate stop position; fix the plate on the rack using screws
GATE
GATE
GATE
For further details on adjustments of the limit switch, refer to the programming manual of the electronic control unit

 

 
Fig. 14 Fig. 16
Fig. 15

11

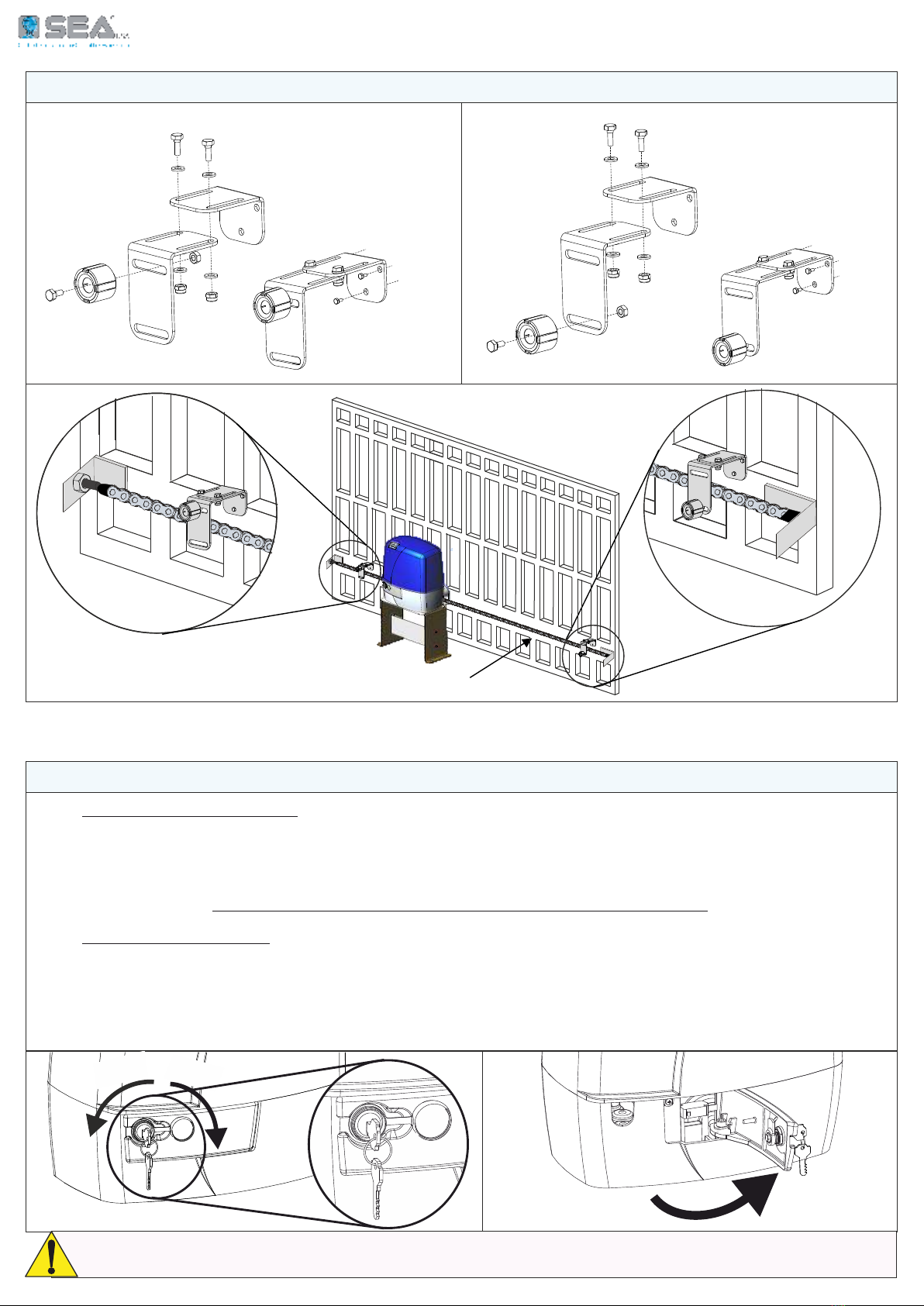

8 - FOUNDATION BASE ASSEMBLY for «TAURUS CHAIN»
3,35’’
10,87’’
HOLES
DISTANCE
Fig. 17 Fig. 18
9 - INSTALLATION OF THE OPERATOR ON THE FOUNDATION BASE
Fig. 19

12
6,30
1,00 inch
11,81

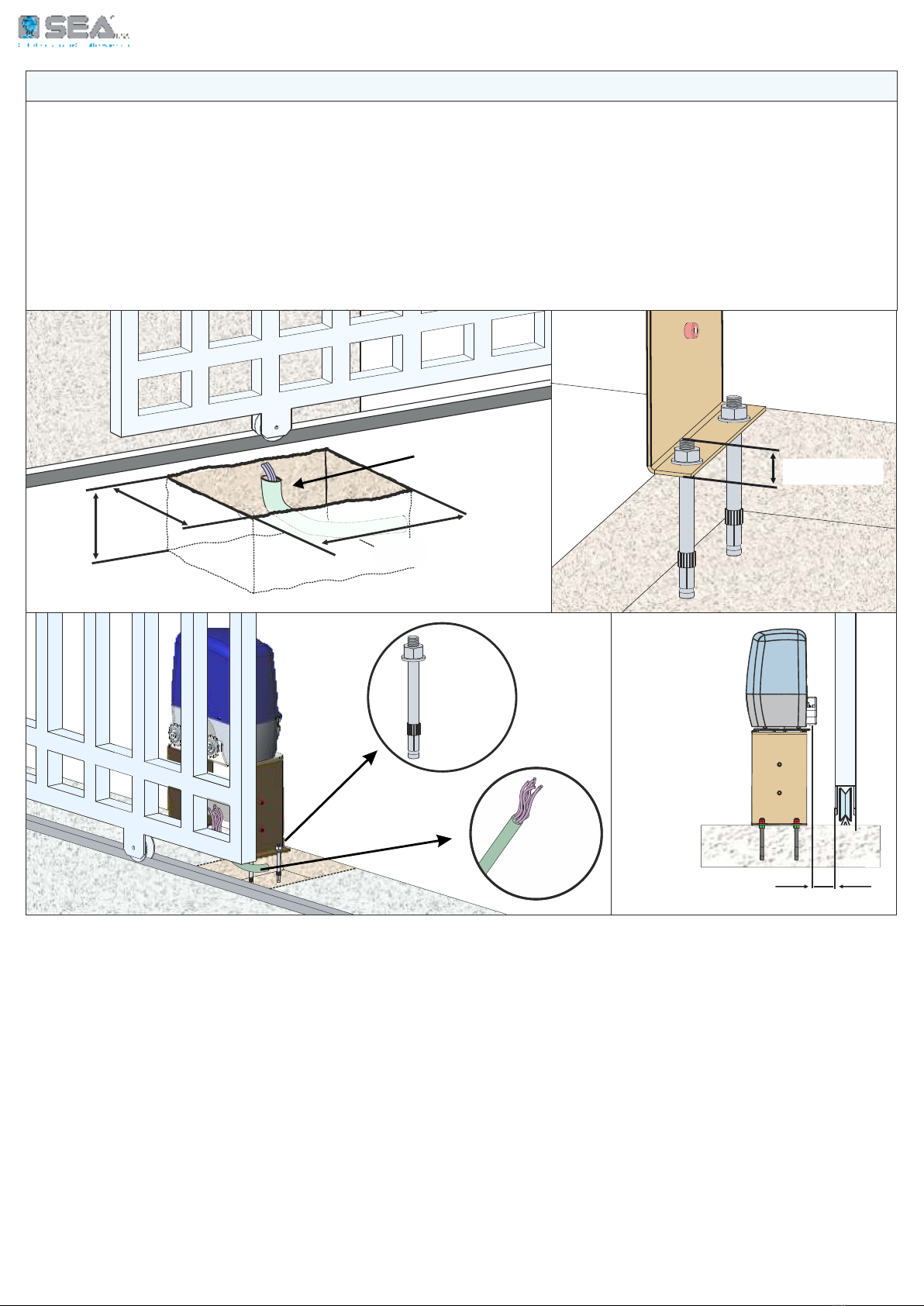

To install the foundation plate it is necessary to:
10.1. Prepare a concrete pad according to the dimensions shown in Fig. 20 - use R425 concrete type
10.2. Foreseen the passage for a flexible plastic pipe of at least 1,20 inches in diameter into the basement
for the electric cables passage
10.3. Insert the red head fastener into the concrete, letting them come out from the pad by 1,00 inch
10.4. Level the pad and let dry
10.5. Anchor the operator base to the red head fastener
17,72
Dimensions
in inches
10 - CONCRETE PAD AND INSTALLATION of «TAURUS CHAIN»
ELECTRIC
CABLES
PIPE
RED
HEAD
FASTENER
’’ X ’’ ¹⁄ 3 ¹⁄
ELECTRIC
CABLES
SHEATH
Fig. 20
Fig. 23
Fig. 21
Fig. 22
4,33 inches

13
11.1. Secure two sturdy brackets at the two extremities of the gate for attaching the chain - Fig. 24
11.2. Install a chain tensioners on each bracket to adjust the chain tension - Fig. 24
11.3. UNLOCK THE OPERATOR USING THE SPECIAL RELEASE KEY - SEE CHAPTER 13
11.4. Install the chain on the chain tensioner at the end of the gate, pass it through the pinion unit, as shown in
Fig. 25 and hook it to the chain tensioner on the opposite side. Fig. 25 and Fig. 26 show the correct
installation, respectively, with open and closed gate. The chain must always be in line and equidistant from
the gate - Fig. 27; if not perfectly aligned - Fig. 28 and Fig. 29, derailments from the pinion unit may occur or
the operator could be damaged by excessive overheating due to effort
11 - INSTALLATION OF THE CHAIN SYSTEM
M           .   1,77     - Fig. 27
OBLIGATORY PATH OF THE
CHAIN INSIDE THE PINION UNIT
CHAIN TENSIONER
UNLOCK THE OPERATOR BEFORE
ADJUSTING THE CHAIN TENSION!
1,77 inches
GATE
GATE
Fig. 24
Fig. 25
Fig. 29
Fig. 28
Fig. 27
Fig. 26

14
-OPENING-
UPPER POSITION
-CLOSING-
LOWER POSITION
C
Fig. 30 Fig. 31
-OPENING-
UPPER POSITION
-CLOSING-
LOWER POSITION
12 - LIMIT SWITCH ADJUSTMENT - FOR «TAURUS CHAIN» WITH LIMIT SWITCH
Fig. 32
13.1. TO RELEASE THE OPERATOR
- - Fig. 33Open the lock cover, insert the key and rotate 90° clockwise
- - Fig. 34Pull the release lever until it stops, about 90°
when pulling the release lever, the control unit receives a safety stop impulse thanks to a micro-switch inside
the operator (anyway, it is higly recommended to switch OFF the power supply before)
13.2. TO LOCK THE OPERATOR
- Push the release lever to the complete closing
- Rotate the key counter-clockwise and extract it
- Close the protective lock cover
Once the lock has been restored the electronic control unit reactivates - if the power supply was ON!
13 - RELEASE SYSTEM - for both «TAURUS RACK» and «TAURUS CHAIN»
Fig. 33 Fig. 34
C
O
ALL THE UNLOCKING AND LOCKING OPERATIONS AND ALL PERIODIC MAINTENANCE OPERATIONS
MUST BE CARRIED OUT IN ABSENCE OF POWER SUPPLY!

15
15 - PERIODIC MAINTENANCE - FOR INSTALLERS ONLY!
ALL OPERATIONS MUST BE CARRIED OUT EXCLUSIVELY BY AN AUTHORIZED INSTALLER
ALL OPERATIONS MUST BE CARRIED OUT IN ABSENCE OF POWER SUPPLY
CHECK THE CORRECT OPERATION OF THE RELEASE SYSTEM
CHECK THE CORRECT OPERATION OF THE ELECTRONIC ANTI-CRUSHING CLUTCH
CHECK THE DISTANCE BETWEEN PINION AND GEAR RACK (0,06 inches)
CHECK THE CONDITION OF THE PINION AND THE GEAR RACK (IF OVERUSED OR DAMAGED)
CHECK THE FIXING SCREWS
CHECK THE CONDITION OF THE ELECTRIC CABLES
CHECK THE CORRECT OPERATION OF THE LIMIT SWITCHES IN OPENING AND CLOSING;
ALSO CHECK THE CONDITION OF THE STOP PLATES
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL

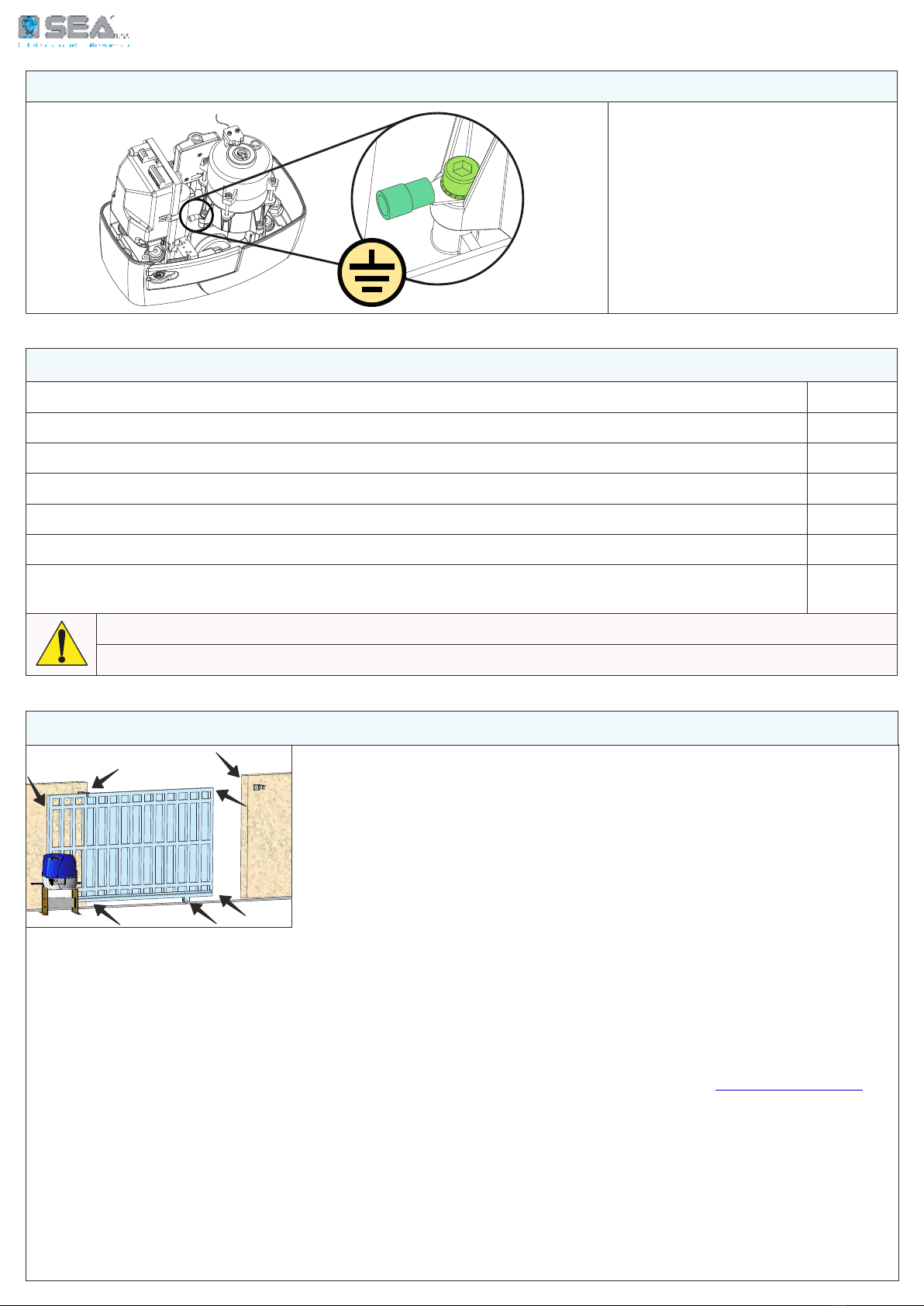

14.1. Before connecting the
operator, provide for its earthing,
as shown in the figure on the side
Fig. 35
14 - GROUNDING
RISK EXAMINATION: The points pointed by the arrows are potentially
dangerous. The installer must take a thorough risk examination to prevent
crushing, conveying, cutting, grappling, trapping so as to guarantee a safe
installation for people, things and animals; (Re. Laws in force in the country where
the installation has been made.
NOTICE: SEA USA Inc. can not be deemed responsible for any damage or
accident caused by product breaking, being damages or accidents due to a
failure to comply with the instructions herein. The guarantee will be avoid and the
manufacturer responsibility will be nullified if SEA USA Inc. original spare parts
are not being used. The electrical installation shall be carried out by a professional
technician who will release documentation as requested by the laws in force. Packaging materials such as plastic
bags, foam polystyrene, nails etc must be kept out of children’s reach as dangers may arise
WARNINGS: All electrical installation should comply the current regulations. A 16A - 0,030A differential switch must be
used. The entire system must be properly earth bonded. Separate the main supply cables (operators, power supply)
from 24V command cables (photocells, push-buttons, etc) through pipes or sheats to prevent interferences and noise.
Always use cable-glands or pipes close to the control unit box to protect the interconnection cables against
pulling efforts
INTENDED USE: The operator has been designed to be used for the automation of sliding gates only
SPARE PARTS: Send request for spare parts to: SEA USA Inc. - Doral - MIAMI - (FL) 33172 - www.sea-usa.com
SAFETY AND ENVIRONMENTAL COMPATIBILITY: Don’t waste product packing materials and/or circuits
STORAGE: T = -4°F/+149°F ; Humidity = min. 5% / max. 90% (without condensation); Materials must be properly
packaged, handled with care and with appropriate vehicles
MAINTENANCE AND DECOMMISSION: The decommission and maintenance of products must be carried out by
specialised and authorised personnel only
WARRANTY LIMITS: For the guarantee see the sales conditions
THE MANUFACTURER CAN NOT BE DEEMED RESPONSIBLE FOR ANY DAMAGE OR INJURY CAUSED BY
IMPROPER USE OF THIS PRODUCT
SEA reserves the right to make all the necessary changes and modifications of the products or manuals without giving
prior notice
GATE WARNINGS AND PRECAUTIONS

SEA USA Inc.
10850 N.W. 21st - unit 160 - Doral - Miami
FLORIDA (FL) 33172
Phone: ++ 1 - 305.594.1151
www.sea-usa.com
