SEACHOICE 72118 User manual

BEFORE INSTALLING THIS PRODUCT
When replacing the fuse, be sure to only use a fuse
of the rating specified on this product.
To avoid short-circuiting, cover any disconnected leads with insulating
tape. It is especially important to insulate any unused wires, which if left
uncovered may cause a short circuit. When connecting other devices to this
product, refer to the manual for the product to be connected. The black cable
is ground, make sure to connect the ground wire first.
could result in fire or malfunction.
Ensure that the ground cable is properly connected to metal parts of the
vehicles body frame or direct to the battery if your vehicle does not have a
grounded chassis frame The ground cable of this units power amp and a
second powered system must be connected to the frame separately with
different screws. If the screw for the ground wire loosens or falls out, it
To avoid potential shorts in the
electrical system, be sure to
disconnect the (–) battery cable before
installation. Use this unit with a 12-volt
battery and negative grounding only.
malfunction.
Failure to do so may result in a fire or
TOOLS NEEDED:
- Wrench and/or Pliers
- #2 Phillips screwdriver
- Crimp tool
- Handsaw / Jig Saw
- Electrical tape

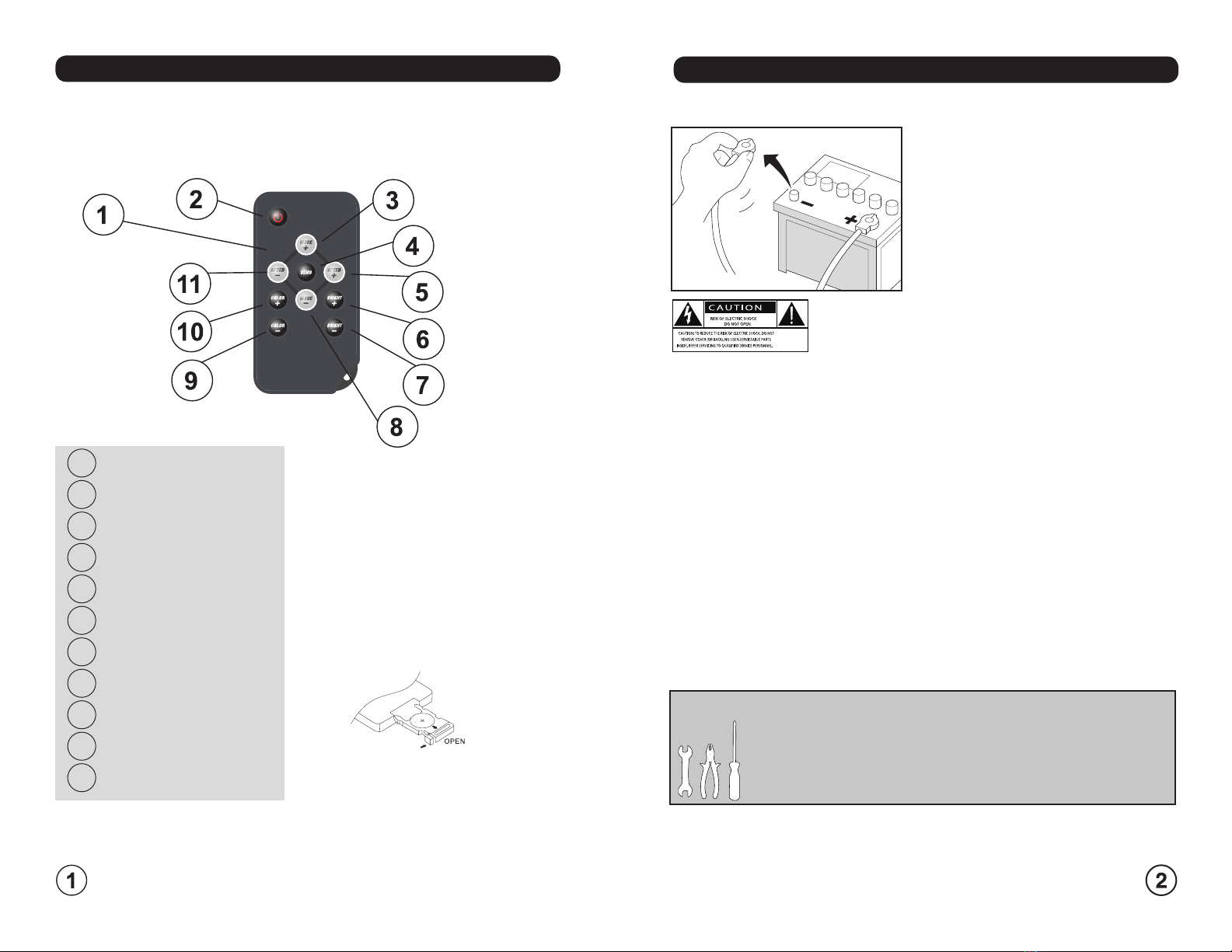

GETTING TO KNOW YOUR
RF CONTROLLER
GETTING STARTED
1RF CONTROLLER
2POWER ON / OFF
3MODE UP
4AUTO DEMO
5SPEED UP
6BRIGHTNESS UP
7BRIGHTNESS DOWN
8MODE DOWN
9COLOR DOWN
10 COLOR UP
11 SPEED DOWN REPLACEMENT BATTERY - CR2025
1) RF controller range: Up to 25ft (LoS)
2) Do not obstruct the RF remote with metal
3) Always keep away from small children
4) Do not store in direct sunlight

GROUND CABLE
METAL FRAME
YOUR AMPLIFIER
SPEAKER 1
SPEAKER 2
+12V BATTERY YELLOW
REMOTE OUT
+12V BLUE
+12V RED
CHASSIS
GROUND
POINT
BATTERY
OPTIONAL DIRECT BATTERY WIRING CIRCUIT
BLACK
OPTIONAL
FUSE AND FUSE HOLDER
(NOT INCLUDED)
CHASSIS
GROUND
POINT
Recommended 16 ~ 18ga Primary Extension Wire
(not included)
CNO
Normally Open
ON/OFF ACC switch
Normally open
ACC switch
(not included)
YOUR
BATTERY
KILL SWITCH
YOUR RADIO
+12VDC
OPTIONAL
FUSE / FUSE HOLDER
(NOT INCLUDED)
3A
RGB POWER
INPUT
WIRE DIAGRAM
CAUTION!! Do not ground or short the RGB wires
- Secure all wiring with wire ties
- Do not touch the speaker flex wire
- Properly seal connections to ensure water tight connections
TROUBLE SHOOTING GUIDE
CAUTION!!
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
TROUBLE CAUSE SOLUTION
RGB Unit will not turn on
The fuse is blown Check / replace the fuse
Switch not engaged Turn to on position
No sound is heard
Blown speaker Replace faulty speaker
Volume is low / muted Press the volume level up
Device is paused or muted
Check your devices playing /
volume status
Unit has become
unresponsive Power glitch or interference
Disconnect power for
10 seconds to reset
SPECIFICATIONS
RGB HUB GENERAL SPEC
• Power source: 14.4VDC (10.8V ~ 16V allowable)
• Grounding System: Negative type
• Maximum Current Consumption: 1.5A
• Unit Weight: 0.55lbs / 0.25kg
• Storage Temperature: 5oF to 113oF / -15oC to 45oC
• Operation Temperature: 14oF to 104oF / -10oC to 40oC
