SealerSales FKR-200A User manual

Double Impulse Portable Sealers
Model: FKR-200A, FKR-300A, FKR-400A
Distributed By:
Version 1.0
Last Updated: 2/15/19

Copyright © 2019 by Stephanie Hwang
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying,
recording, or other electronic or mechanical methods, without the prior written permission of the publisher, except in the case of brief quotations
embodied in critical reviews and certain other noncommercial uses permitted by copyright law. For permission requests, write to the publisher,
addressed “Attention: Permissions Coordinator,” at the address below.
Sealer Sales, Inc.
8820 Baird Avenue
Northridge, Ca 91324
www.sealersales.com
Printed in the United States of America

F K R - A I N S T R U C T I O N M A N U A L
1
General Information
Thank you for purchasing our FKR-A Series Double Impulse Portable Sealers.
This owner’s manual contains information relating to your sealer. The manual will provide you
with basic information concerning both operation and maintenance of your new machine. Please
read it carefully as failure to do so may result in bodily injury and/or damage to the equipment.
Please fill in the information below. You will find the information on the machine identification
plate. You will need this information when ordering replacement parts or making technical
inquiries.
No part of this manual may be duplicated, reproduced, stored in a retrieval system, translated,
transcribed, or transmitted in any form without the express prior written permission of Sealer Sales.
E Q U I P M E N T I N F O R M A T I O N
Model #
Serial #
Purchase Date:
Reference # (found on packing slip)
Owner:

F K R - A I N S T R U C T I O N M A N U A L
2
Safety Instructions
WARNING! Below are general safety precautions and warnings that should be
understood prior to setting up or operating your equipment. Read and fully understand all instructions and
warnings prior to using this unit. Your safety is most important! Failure to comply with procedures may
result in serious injury or property damage. Remember: Your personal safety is your
responsibility.
Unsafe practices or unauthorized modifications could result in accidents or property damage. Failure to
follow these safety rules and take necessary precautions can result in serious injury as well as damage to
equipment.
Never operate or service your sealer until you have read this manual completely and understand it
fully.
Plug the sealer into a standard 120 Volt, 60Hz wall outlet or surge protector.
Do not use the sealer if the power cord, plug or any other parts are damaged. Be sure not to allow
the power cord to drape into your work area. Check that all parts are operating properly and
perform the intended functions. Check for any worn parts before starting operation. Check for all
other conditions that may affect the operation.
Reduce risk of unintentional starting. Make sure the power switch is in the "OFF" position before
connecting to the power source.
Always disconnect sealer from power source before servicing, changing accessories or cleaning the
unit.
To provide protection against the risk of electrical shock, the power connection must be properly
grounded at all times.
Do not leave the sealer unattended when in use. Disconnect the sealer from the power source
before leaving the work area.
Sealer is used solely for sealing thermoplastic materials. Using the machine for any other purpose
can cause damage to the machine and operator.
While operating machinery, wear close-fitting clothing and tie back long hair to prevent any
external items from getting caught in the machine. Do not wear jewelry when operating the sealer.

F K R - A I N S T R U C T I O N M A N U A L
3

Never touch the heating element(s) with bare hand while the sealer is plugged into a power source,
in operation or just finished operation. Touching heated areas may cause fire and/or severe burns.
While machine is in operation, do not place fingers, tools, or other foreign objects on or into the
machine. Do not place hands or fingers near pinch points. Do not touch machine while it is in
operation. Perform all procedures carefully and watch where hands and fingers are at all times.
The sealer is not water resistant or water proof. Spraying down the machine will damage machine
or cause electrical shock. Do not submerge the sealer into water or liquid.
Do not operate sealer in a corrosive or humid environment.
Always keep the machine clean, lubricated and in good working condition. Follow any
maintenance and lubrication procedures outlined in this manual. Make sure unit is disconnected
from power source before cleaning.
NEVER use any accessories or parts from other manufacturers. Machine should not be altered or
modified using parts that are not genuine authorized parts. Doing so will VOID YOUR
WARRANTY.
 When replacing the heating elements, always replace the PTFE adhesive under the
heating element. A worn PTFE adhesive can cause the heating element to break. The
PTFE adhesive works as a barrier between the body of the sealer and the element. Never allow
the element to come in direct contact with the sealer body as that will damage the timer.
Never leave the sealer unattended. Be safe, disconnect the sealer from power source before
leaving work area.
Always keep out of reach of children and pets.
Close supervision is necessary when any appliance is near persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge . This sealer is NOT to be used by
children or by persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge.
DO NOT use the sealer outdoors.
DO NOT use the sealer while under the influence of drugs, medications or alcohol.
SAVE THESE INSTRUCTIONS - REFER TO THEM OFTEN AND USE THEM TO INSTRUCT
OTHERS.

F K R - A I N S T R U C T I O N M A N U A L
4
Introduction
FKR-A Series double impulse portable sealers are lightweight and easy to use anywhere. The sealer is
ideal for sealing polyethylene and laminated foils. Equipped with top and bottom heating elements, our
double impulse sealers can seal thicker thermoplastic materials up to 20mil in total thickness.
Applications include sealing around oddly shaped products including drum, box liners or sealing around
large, irregularly sized objects.
Features of the FKR-A Series Double Impulse Portable Sealers
Your sealer is equipped with a wide range of standard features and capabilities.
Impulse sealing - no warm up time needed
Lightweight and easy to operate
Impulse heat with timer
Available in 8", 12", and 16" seal lengths
Seal width: 5mm (.19")
Manufacturer spare parts kit includes: 2 heating elements
How Do FKR-A Double Impulse Portable Sealers Work?
Our FKR-A Series double impulse portable sealers fire a short burst of electricity
through a specially designed heating wire to weld thermoplastic materials together.
The length of the seal time will depend on the sealing characteristics of the bag
being sealed. The sealing process is simple: The operator places the bag between
the sealing jaws and presses the jaws together to activate the unit. The operator retrieves the sealed bag
and repeats the process. Our FKR-A Series double impulse sealers utilize twin heating element wires, one
on the upper sealing jaw and one on the bottom sealing jaw providing greater heat penetration for sealing
through thicker materials (up to 20mil total thickness).
Specifications
FKR-200A
FKR-300A
FKR-400A
Power
110V/60Hz
110V/60Hz
110V/60Hz
Watts
200W
300W
400W
Sealing Length / Width
7.8" / 5mm
11.8" / 5mm
15.7" / 5mm
Power Cord Length
5ft
5ft
5ft
Handle Cord Length
7ft
7ft
7ft
Handle Dimensions
8.9" x 10.2" x 4.7"
13" x 10.2" x 4.7"
17" x 10.2" x 4.7"
Control Box Dimensions
8.7" x 4.9" x 6.9"
8.7" x 4.9" x 6.9"
8.7" x 4.9" x 6.9"
Shipping Dimensions
21" x 14" x 9"
21" x 14" x 9"
21" x 14" x 9"
Gross Weight
15-lbs
19-lbs
20-lbs
Basic
Principles
Place material on lower
jaw and activate by
pressing jaws together

F K R - A I N S T R U C T I O N M A N U A L
5
Getting to Know your Portable Sealer
FKR-A Series Double Impulse Portable Sealers are simple and efficient sealing machines.

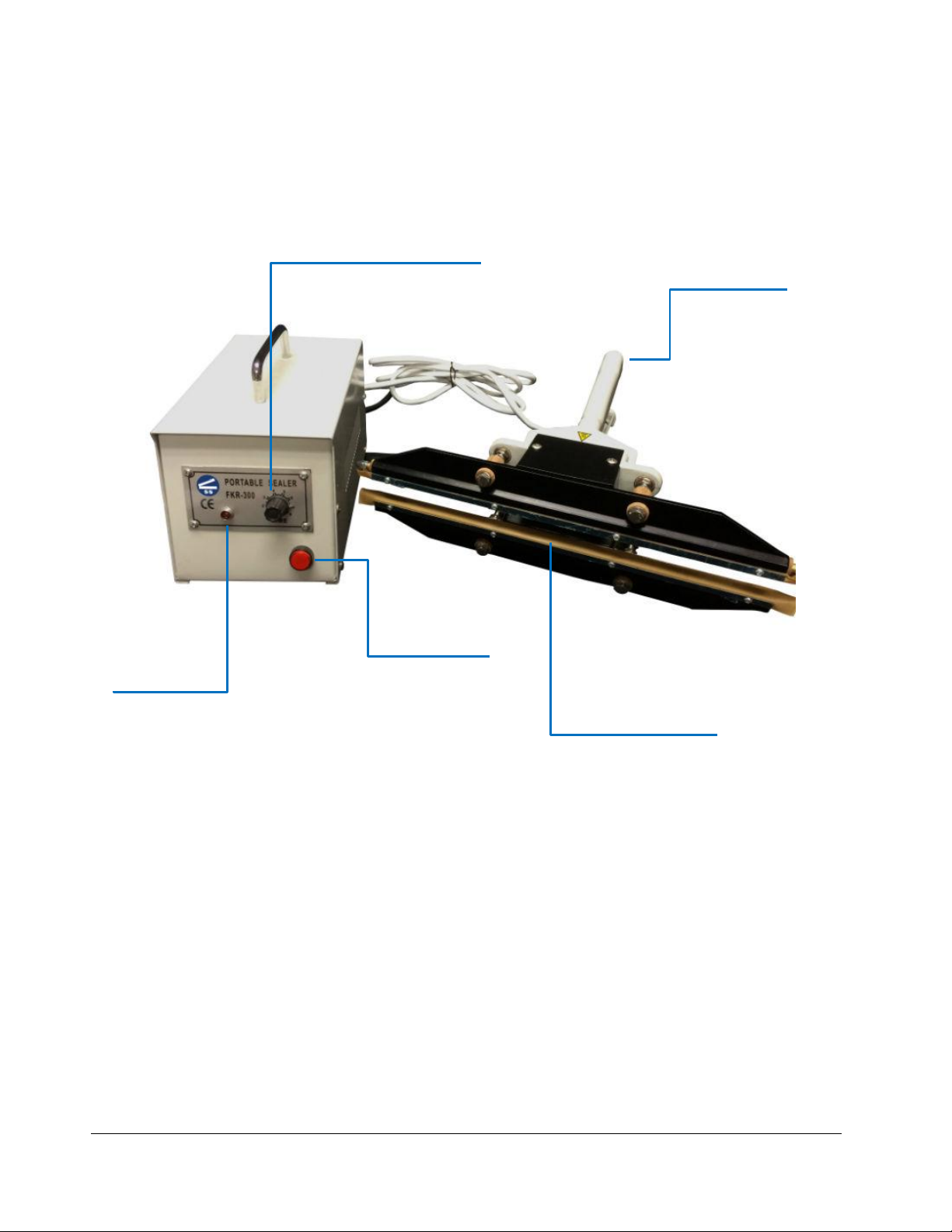

Figure 1. FKR-A Series Double Impulse Portable Sealer Overview
Power Button
Timer Light
SealJaws
Place material
betweenjaws to seal
Handle
Hold down
handles to
activate
sealing
Timer
Sealat the lowest timer
setting that will seal
material

F K R - A I N S T R U C T I O N M A N U A L
6
Operating your Sealer
Important
Read this manual carefully, and make it available to everyone connected with the supervision, maintenance,
or operation of this machine. Additional copies are available at your request. (Contact your distributor for
this information.) Be very careful when operating, adjusting, or servicing this equipment. If in doubt, stop
and obtain qualified help before proceeding.
Installation
Place the portable in the desired location with the required electrical power source available. (See power
requirements.) Make certain that proper electrical wiring is provided to guard against low voltage. If the
voltage is too low, the equipment will not function properly.
Plug the handle to the main base of the machine.
Figure 2. Plug handle to base of machine.
Finding the proper location is a most important function of the initial set-up. One must take several factors
into consideration:
Adequate power source
Relationship to source of product
Relationship to any conveyors necessary to remove finished product
Convenience of operator

F K R - A I N S T R U C T I O N M A N U A L
7
Operation
1. Before operating, check the heating element, PTFE cover, PTFE adhesive and the
silicone rubber.
2. Insert the power cord into the correct receptacle (120V).
3. Turn the power switch on.
4. Set the timer knob to the lowest setting. Always start with a low setting and increase gradually as
needed.
5. Place material to be sealed between the jaws. Hold the handle down firmly to activate the sealing
cycle. The timer light will turn off when seal has been completed.
6. When red light turns off, keep holding the handles firmly for an additional 2-3 seconds.
For a high quality seal, seals must cool under pressure. We usually recommend a
congeal setting of at least 2x that of the heat setting but every bag will have variations.
Thicker materials will require a longer cool (congealing) time.
Tips for Successful Sealing
1. If the seal is broken or damaged, decrease the sealing time.
2. If the seal is not fully welded, increase the sealing time.
3. If the sealing material sticks to the sealing pad, decrease the congealing time.
4. If the width of the seal is not perfect or does not match the size of the element, increase the
congealing time.
5. Always keep the sealer clean. Remove any residue found on the platform and PTFE cover. Silicone
spray may be used for this purpose.
6. When replacing the heating elements, always replace the PTFE adhesive under
the heating element. A worn PTFE adhesive can cause the heating element to break. The
PTFE adhesive works as a barrier between the body of the sealer and the element. Never allow the
element to come in direct contact with the sealer body as that will damage the timer.
7. Be sure to turn off the power or unplug the unit before replacing any parts.

F K R - A I N S T R U C T I O N M A N U A L
8
Maintenance
The following maintenance procedures should be followed to ensure the longevity of your FKR-A Series
double impulse portable sealer.
Inspection and Cleaning
1. Inspect your machine daily.
2. Use a clean cloth to remove any plastic residue remaining on the PTFE cloth.
3. When replacing the elements, always check the condition of the bottom PTFE tape.
4. Check the condition of the silicone rubber for wear and burns. A damaged silicone rubber will
affect the quality of the seal.
Replacement Kit Instructions
Our FKR-A Series double impulse sealers will require new heating elements and PTFE from time to time.
Heating elements will break through wear and tear. A good rule of thumb is to replace the PTFE adhesive
every time you change your heating element. The PTFE cover prevents the plastic or other thermoplastic
material you are sealing from sticking to the heating element.
Replacement kits are available from your distributor. Kits include (2) heating elements, (2) PTFE Covers,
and (2) PTFE adhesives. For replacement kit part #s, refer to your model #.
FKR-200A
FKR-300A
FKR-400A
Replacement Kit
RK-8H5-FKR-200A
RK-12H5-FKR-300A
RK-12H5-FKR-400A
Heating Element
HE-8-5-FKR-200A
HE-12-5-FKR-300A
HE-16-5-FKR-400A
PTFE Adhesive
TA-8
TA-12
TA-16
PTFE Cover (1" wide)
TC-8-1
TC-12-1
TC-16-1

F K R - A I N S T R U C T I O N M A N U A L
9
To install your replacement kit on your sealer, turn off power and unplug sealer.
Removing Worn Parts.
1. Loosen the four screws on the PTFE cover plate on both sides of the sealer body. Remove the
PTFE cover.

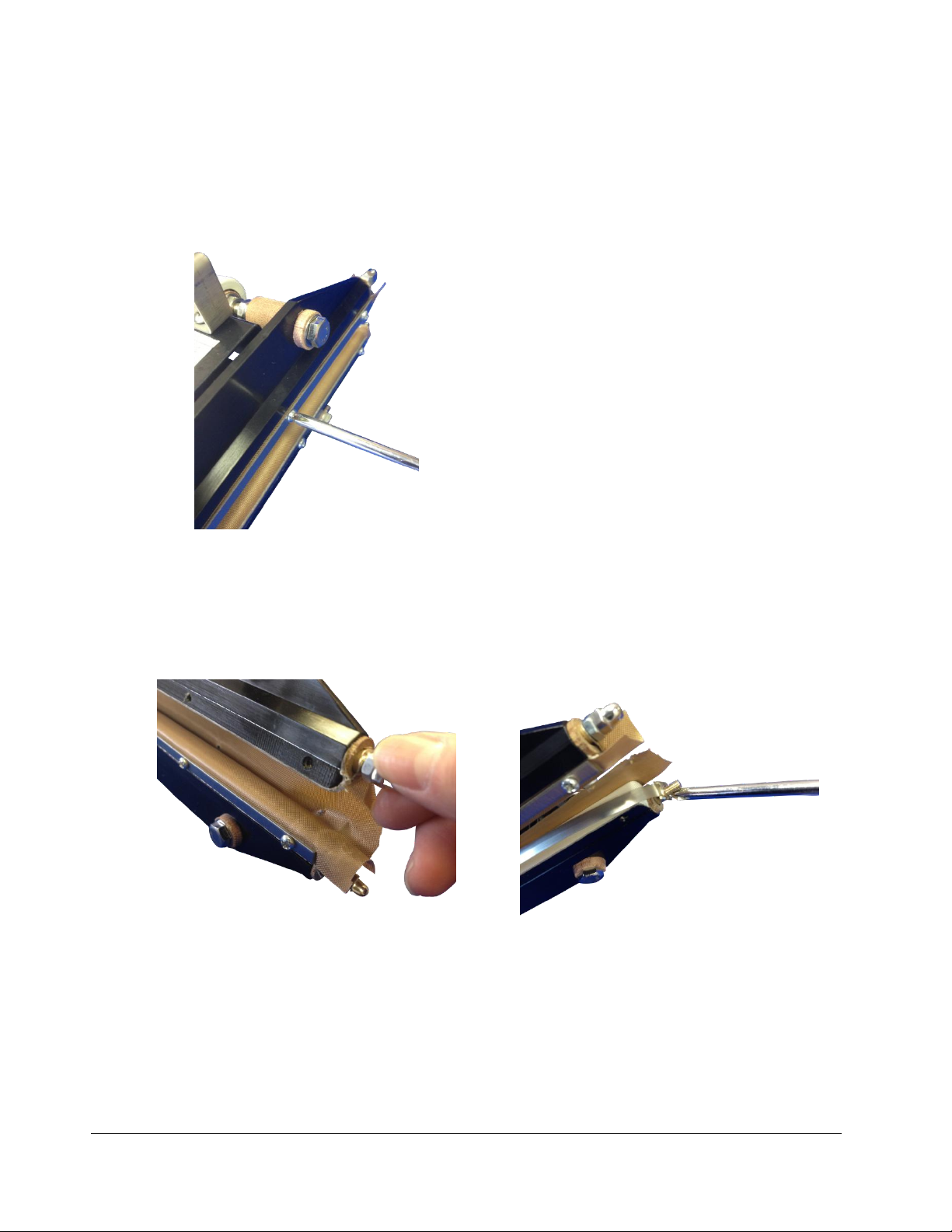

Figure 3. Loosen screws on PTFE plate.
2. Unscrew the cap and nut that are holding the heating element (Figure 4). To remove the heating
element, use a screw driver to press down on the mounting screw which is spring loaded (Figure
5). When you release one end of the element, the other element should release easily.
Figure 4. Loosen the cap and nut holding the heating element.
Figure 5. Remove heating element by pressing down on the mounting screw.
3. Peel the PTFE adhesive from the sealer's body.
Installing New Replacement Parts.
1. Remove the backing of the liner found on the PTFE adhesive.

F K R - A I N S T R U C T I O N M A N U A L
10
2. Apply the adhesive to the sealer’s sealing platform. Tuck the adhesive close to the mounting screw
as possible. Note: The PTFE adhesive serves as a barrier between the sealer body and element.
Never allow the element to come in direct contact with the sealer body. A good rule of thumb is
to replace the PTFE adhesive every time you change the element.
3. Hook one end of the element to the mounting screw. Place the sealer on its side so that
mounting screw is touching the table. To attach the element to the other side, press down on the
mounting screw while at the same time use a screw driver to press down on the mounting screw
on the other side of the sealer. Both mounting screws should be held down at the same time and
this will allow you to attach the other end of the element. Attach cap and nut.
4. Replace the PTFE cover.
5. Replace the PTFE cover on both sides. Tighten the screws on the PTFE cover plates when the
PTFE cover is position smoothly on top of the element. Note: The PTFE cover prevents the
plastic or any thermoplastic material you are sealing from sticking to the heating element.

F K R - A I N S T R U C T I O N M A N U A L
11
Parts Diagram
Figure 6. Electric Circuit Diagram Overview

F K R - A I N S T R U C T I O N M A N U A L
12
Figure 7. Spare Parts Diagram Overview

F K R - A I N S T R U C T I O N M A N U A L
13
Figure 8. Spare Parts Diagram Overview
Item Part # Description Comments
RKs
RK-Model#
REPLACEMENT KITS
Incldues (2) elements, (2) PTFE cover, (2) PTFE
adhesive
specify model # when ordering
1 Handle
2 Handle spring
3 Screw
4 Heating block
5 Insulating panel
6
TC-specifymodel# PTFE cover specify model # when ordering
7
HE-specifymodel# Heating Element specify model # when ordering
not shown
TA-specifymodel# PTFE adhesive specify model # when ordering
not shown
HTA-FKRA Heating terminal assembly (screw)
8 Fixed aluminum shim
9 Standing leg
10 Cover plate
11 Power box
12
PCB-FKR-A PC board
13 Control panel
14
TRNS-specifymodel# Transformer specify model # when ordering
15 Rubber foot
16 Lifting handle
17 Timer knob
18
MSW-FSLH-FKRA Microswitch

F K R - A I N S T R U C T I O N M A N U A L
14
Troubleshooting
Problem Possible Causes Solution
No sealing
Timer lights off
1. Disconnected power cord
2. Power cord is broken
3. Transformer is broken
1. Check or change plug
2. Replace power cord
3. Replace the transformer
No sealing
Timer lights are on
1. Heating element is broken
2. Poor contact at heating terminal
blocks
3. Microswitch malfunction
4. Microswitch out of place
1. Replace the heating element
2. Clean, tighten or change the heating terminal
blocks
3. Replace microswitch
4. Adjust microswitch
Burnt PTFE cloth
1. Timer malfunction
2. Timer setting too high
1. Replace timer
2. Decrease timer setting
Broken heating element 1. Worn PTFE adhesive 1. Replace PTFE adhesive
Wrinkled seal
1. Seal time is set too high
2. Cooling (congeal) time is too
short
1. Decrease
2. Increase congealing time
Imperfect seal
1. Worn PTFE cloth
2. Worn silicone rubber
1. Replace PTFE cloth
2. Replace the silicone rubber
Burnt seal 1. Seal time is set too high 1. Decrease seal time
No seal 1. Seal time is set too low 1. Increase seal time
Seal sticking to PTFE cloth
1. Worn or dirty PTFE cloth
2. Worn or dirty silicone rubber
1. Replace or clean PTFE cloth
2. Replace or clean silicone rubber
Seal time is not adjustable 1. Circuit board is damaged 1. Replace timer
