SeaLevel SeaISO ISO-1 User manual

1
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Item# ISO-1R
SeaISO
™
USB Isolator
User Manual | ISO-1 and ISO-1R

2
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Contents
CONTENTS...........................................................................................................................................................2
INTRODUCTION ................................................................................................................................................... 3
BEFORE YOU GET STARTED ............................................................................................................................... 4
SPECIFICATIONS ................................................................................................................................................. 7
APPENDIX A – DRAWINGS2................................................................................................................................ 8
APPENDIX B – HOW TO GET ASSISTANCE .....................................................................................................10
APPENDIX C – COMPLIANCE NOTICES ..........................................................................................................11
WARRANTY ........................................................................................................................................................12

3
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Introduction
The SeaISO USB Isolator is a device that provides galvanic separation between USB devices and host
control systems. It is powered from the host system and allows energy transfer over the isolation barrier
to the slave device. The Isolator is a USB 2.0 compatible device connecting with the host over a high-speed
link and featuring full speed (12 Mbit/s) connection to the isolated slave device.
Model ISO-1 is a standard version enclosed in an ABS plastic case dedicated mainly for industrial use.
Model ISO-1R is a custom ruggedized version featuring cable “bump” design and sealed TPE overmold for
environmental protection in medical applications.
Features
Medical grade 4000Vac isolation, data, and power
Meets 60601-1 3rd Edition requirements for 1x MOPP at working voltage up to 250Vac
Meets 60601-1 3rd Edition requirements for 2x MOPP at working voltage up to 42.4Vac
High retention connectors
USB bus powered
High speed host port
1Full speed device port
Energy transfer with isolation
300mA minimum output current (with host port capable of 500mA)
Up to 1.1A output current from high-power host port
Tested for compatibility with USB 3.0
Overload and short circuit protection
No software required – appears in the system as a 1-port hub
1Low speed only devices such as keyboards and mice must be connected through an intervening USB
hub.

4
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Before You Get Started
Advisory Conventions
Warning
The highest level of importance used to stress a condition where damage could result to the
product, or the user could suffer serious injury.
Important
The middle level of importance used to highlight information that might not seem obvious or a
situation that could cause the product to fail.
Note
The lowest level of importance used to provide background information, additional tips, or other
non-critical facts that will not affect the use of the product.
Important Safety Instructions
SAVE THIS MANUAL— It contains important safety and operating instructions for the installing and using
the SeaISO USB Isolator.
Prior to beginning the installation, carefully read, understand, and follow all related safety
guidelines and documentation. This manual includes warnings, recommendations, and safety
precautions that must be observed.
•Carefully follow all the installation instructions later in this manual.
•There are no user-serviceable parts in the SeaISO USB Isolator. Do not disassemble.
•Contact the manufacturer if service or repair is required.
•Do not operate the system if it has visible damage. Contact the manufacturer for a replacement.

5
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
What’s Included
ISO-1
The SeaISO ISO-1 USB Isolator is shipped with the following items. If any of these items are missing
or damaged, please contact Sealevel for replacement.
• SeaISO USB Isolator (model # ISO-1)
• USB cable extension (CA-536)
• USB A-B cable 1m (CA-539)

6
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Installation Instructions (ISO-1)
• Connect B-type USB connector on the isolator to the host computer via the included A-B
type 1m long USB cable CA-539
• Connect CA-536 cable to the A-type female USB connector on the isolator
• Connect your desired USB device to the A-type female end of the CA-536 cable
• Host computer should detect a new device and start enumeration
• After enumeration completes (and appropriate device drivers are loaded, if required) your
USB device is ready to use
ISO-1R
The SeaISO ISO-1R Ruggedized Isolator is shipped as an overmolded cable with the isolation
electronics contained in a “bump” in the cable.

7
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Installation Instructions (ISO-1R)
• Connect A-type male USB connector of the isolator to the host computer.
• Connect your desired USB device to the A-type female connector of the isolator
• Host computer should detect a new device and start enumeration
• After enumeration completes (and appropriate device drivers are loaded, if required) your
USB device is ready to use
Specifications
Physical Dimensions
Length 4.0”
Width 2.0”
Height 1.2”
For CAD drawing with dimensions, see Appendix A
Power Consumption
Input 5VDC 5VDC
Output (host USB port) Current limited by host port
capability (up to 1.1A)
Environmental Specifications
Specification Operating Storage
Temperature Range 0º to 50º C (32º to 122º F) -20º to 70º C (-4º to 158º F)
Humidity Range 10 to 90% R.H. Non-Condensing 10 to 90% R.H. Non-Condensing
Manufacturing
All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested.
These printed circuit boards are solder mask over bare copper or solder mask over tin nickel.

8
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023

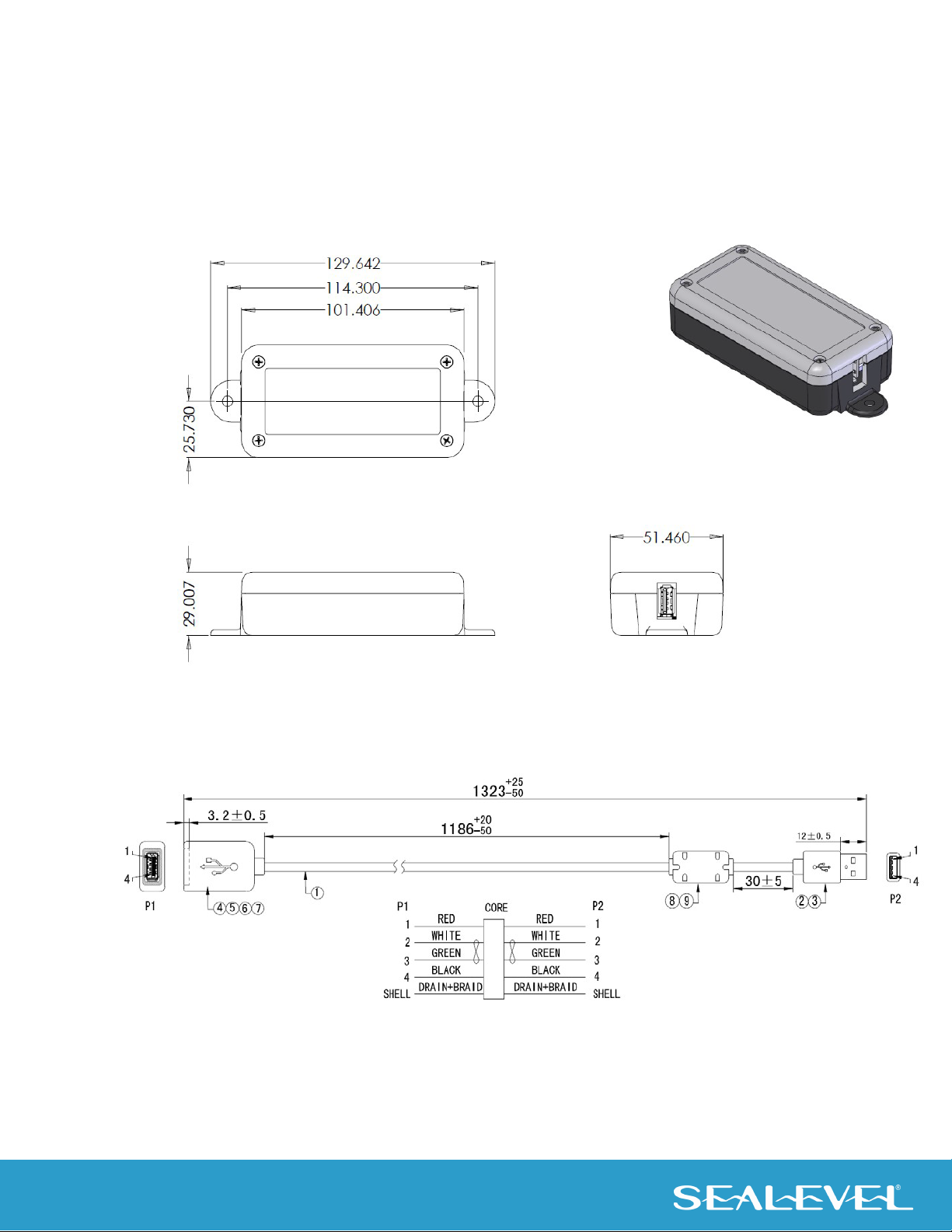

Appendix A – Drawings2
ISO-1
CA-536
1All dimensions in millimeters

9
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
CA-539
ISO-1R

10
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Appendix B – How To Get Assistance
When calling for technical assistance, please have your user manual and current adapter settings. If
possible, please have the adapter installed in a computer ready to run diagnostics.
Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common
questions. This section can be found at http://www.sealevel.com/faq.asp.
Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com.
The latest software updates, and newest manuals are available via our FTP site that can be accessed from
our home page.
Technical support is available Monday to Friday from 8:00 A.M. to 5:00 P.M. Eastern time. Technical
support can be reached at [phone].
RETURN AUTHORIZATION MUST BE OBTAINED FROM SEALEVEL SYSTEMS BEFORE RETURNED
MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING SEALEVEL

11
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Appendix C – Compliance Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for Class A digital device,
pursuant to Part 15 Subpart B / ICES 003 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in such case the user will be required
to correct the interference at the users expense.
EMC Directive Statement
Products bearing the CE Label fulfill the requirements of the EMC directive (2004/108/EC)
and RoHS directive (2011/65/EU). To obey these directives, the following European
standards must be met:
•EN55022 Class A - “Limits and methods of measurement of radio interference
characteristics of information technology equipment”
•EN55024 – “Information technology equipment Immunity characteristics Limits
and methods of measurement”.
•UL Recognized in accordance with 60601-1 3rd Ed. (E474084)
This is a Class A Product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures to prevent or correct the
interference.
Always use the cabling provided with this product if possible. If no cable is provided or if an alternate
cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives.

12
© Sealevel Systems, Inc. SeaISO USB Isolator Manual | SL9261 5/2023
Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is
standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control
of manufacturing quality and the historically high reliability of our products in the field. Sealevel products
are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product
development, production, burn-in and testing. Sealevel achieved ISO-9001:2015 certification in 2018.
Warranty Policy
Sealevel Systems, Inc. (hereafter "Sealevel") warrants that the Product shall conform to and perform in
accordance with published technical specifications and shall be free of defects in materials and
workmanship for the warranty period. In the event of failure, Sealevel will repair or replace the product at
Sealevel's sole discretion. Failures resulting from misapplication or misuse of the Product, failure to adhere
to any specifications or instructions, or failure resulting from neglect, abuse, accidents, or acts of nature
are not covered under this warranty.
Warranty service may be obtained by delivering the Product to Sealevel and providing proof of purchase.
Customer agrees to ensure the Product or assume the risk of loss or damage in transit, to prepay shipping
charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for
original purchaser and is not transferable.
This warranty applies to Sealevel manufactured Product. Product purchased through Sealevel but
manufactured by a third party will retain the original manufacturer's warranty.
Non-Warranty Repair/Retest
Products returned due to damage or misuse and Products retested with no problem found are subject to
repair/retest charges. A purchase order or credit card number and authorization must be provided in order
to obtain an RMA (Return Merchandise Authorization) number prior to returning Product.
How to obtain an RMA (Return Merchandise Authorization)
If you need to return a product for warranty or non-warranty repair, you must first obtain an RMA number.
Please contact Sealevel Systems, Inc. Technical Support for assistance:
Available Monday – Friday, 8:00 AM to 5:00 PM EST
Phone [phone]
Email [e-mail]
Trademarks
Sealevel Systems, Incorporated acknowledges that all trademarks referenced in this manual are the
service mark, trademark, or registered trademark of the respective company.
