SeaLevel SeaLINK PIO-96 User manual

1
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
SeaLINK PIO-48
User Manual | 8203

2
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Contents
CONTENTS...........................................................................................................................................................2
INTRODUCTION ...................................................................................................................................................3
BEFORE YOU GET STARTED ...............................................................................................................................4
SOFTWARE INSTALLATION ................................................................................................................................7
PHYSICAL INSTALLATION.................................................................................................................................. 9
DIGITAL I/O INTERFACE....................................................................................................................................10
PROGRAMMING THE SEALINK PIO-48 ............................................................................................................11
ELECTRICAL CHARACTERISTICS .....................................................................................................................12
SPECIFICATIONS ...............................................................................................................................................13
EXAMPLE CIRCUITS ..........................................................................................................................................14
APPENDIX A –TROUBLESHOOTING................................................................................................................15
APPENDIX B –HOW TO GET ASSISTANCE .....................................................................................................16
APPENDIX C –SILK SCREEN - 8203 PCB ........................................................................................................17
APPENDIX D –COMPLIANCE NOTICES ..........................................................................................................18
WARRANTY ........................................................................................................................................................19

3
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Introduction
The SeaLINK PIO-48, part number 8203, provides an easy method for interfacing common digital I/O
circuitry via any computer’s USB port. Typical applications include control/monitoring of TTL devices (e.g.,
LEDs, small solenoids, small relays) and interfacing to solid-state relay racks (SSRs) for high-power AC or
DC loads.
The SeaLINK PIO-48’s 48 digital I/O channels are accessed via two 50-pin header connectors with industry-
standard pin out. Each header provides 24 bits of digital I/O divided into three eight-bit groups. Each eight-
bit group may be individually configured via software command as input or output to best match your
particular application requirements.
The SeaLINK PIO-48 is designed to be used under Windows 98/ME/2000/XP. The SeaI/O API (Application
Programmer Interface) available on Sealevel’s website provides a variety of useful high-level function calls
implemented in a Windows dynamic link library (DLL). This API gives access to the SeaLINK PIO-48’s I/O
from Windows-based platforms such as Visual C++. In addition to the API, SeaI/O includes an ActiveX
control along with sample code and utilities to simplify software development.
Other Sealevel SeaLINK USB to Digital I/O Products
Model No.
Part No.
Description
SeaLINK PIO-96
(P/N 8205)
- 96 TTL Inputs/Outputs
SeaLINK PLC-16
(P/N 8206)
- 8 Form C Outputs/ 8 Opto-isolated Inputs
SeaLINK REL-16
(P/N 8207)
- 16 Reed Relay Outputs
SeaLINK ISO-16
(P/N 8208)
- 16 Opto-isolated Inputs
SeaLINK DIO-16
(P/N 8209)
- 8 Reed Outputs/8 Opto-isolated Inputs

4
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Before You Get Started
What’s Included
The SeaLINK PIO-48 is shipped with the following items. If any of these items are missing or damaged,
please contact Sealevel for replacement.
•SeaLINK PIO-48 Module
•AC/DC 5V Power Supply (Item# TR101)
•6’ USB A to B Cable (Item# CA179)
Advisory Conventions
Warning
The highest level of importance used to stress a condition where damage could result to the
product, or the user could suffer serious injury.
Important
The middle level of importance used to highlight information that might not seem obvious or a
situation that could cause the product to fail.
Note
The lowest level of importance used to provide background information, additional tips, or other
non-critical facts that will not affect the use of the product.

5
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Optional Items
Depending upon your application, you are likely to find one or more of the following items useful for
interfacing the SeaLINK PIO-48 to real-world signals. All items can be purchased from our website
(http://www.sealevel.com) or by calling [phone].
For TTL Applications
•Terminal Block Kit - (Part Number KT107)
Kit includes the TB07 screw terminal block and CA167 ribbon cable for connecting one of the
SeaLINK PIO-48’s 50-pin header connectors to your I/O. 6” Snap track and DIN rail clips are included
for DIN rail mounting.
•IDC 50 to IDC 50 Pin 40" Ribbon Cable (Part Number CA167)
Interfaces each of the SeaLINK PIO-48’s 50-pin header connectors.
•Simulation/debug module (Part Number TA01)
Module allows monitoring status of output pins and controlling state of input pins. An LED
corresponding to each port bit illuminates to indicate state. Eight position DIP-switches are used
to generate input status changes.
For High-Current, High-Voltage Applications
•IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA167)
40” cable connects the SeaLINK PIO-48 to solid-state relay racks equipped with 50-pin header
interface.
•IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA135)
40” cable connects the SeaLINK PIO-48 to solid-state relay racks equipped with 50-pin edge
connector.

6
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
•Solid State Relay Racks:
•Quad six position relay rack (Part Number PB24HQ)
Relay rack can accept up to six QSSRs for a total of 24 channels. Features a 50-pin header
connector for easy interface via 50-conductor ribbon cables.
•Quad four position relay rack (Part Number PB16HQ)
Relay rack can accept up to four QSSRs for a total of 16 channels. Features a 50-pin header
connector for easy interface via 50-conductor ribbon cables.
•Quad Solid State Relay Modules:
•AC Input (Part Number IA5Q)
Provides 4 channels of discrete I/O interface to monitor AC inputs up to 140V @ 10mA.
•DC Input (Part Number IB5Q)
Provides 4 channels of discrete I/O interface to monitor DC inputs from 3.3V to 32V.
•AC Output (Part Number OA5Q)
Provides 4 channels of discrete I/O interface to control AC outputs up to 140V @ 3A.
•DC Output (Part Number OB5Q)
Provides 4 channels of discrete I/O interface to control DC outputs up to 60V @ 3A.
•Simulation/debug module (Part Number TA01)
Module simulates the operation and load characteristics of a standard 24-channel relay rack. An
LED corresponding to each port bit illuminates to indicate state. Eight position DIP-switches are
used to generate input status changes.

7
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Software Installation
Windows Installation
Do not install the Adapter in the machine until the software has been fully installed.
Only users running Windows 7 or newer should utilize these instructions for accessing and
installing the appropriate driver via Sealevel’s website. If you are utilizing an operating
system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing
[email protected]om to receive access to the legacy driver download and installation
instructions.
1. Begin by locating, selecting, and installing the correct software from the Sealevel software
driver database.
2. Select the Part Number (#8203) for your adapter from the listing.
3. Select ‘Download Now for SeaIO Classic for Windows’. The setup file will automatically
detect the operating environment and install the proper components. Next (depending on
your browser) select the ‘Run this program from its current location’ or ‘Open’ option. Follow
the information presented on the screens that follow.
4. A screen may appear with the declaration: “The publisher cannot be determined due to the
problems below: Authenticode signature not found.” Please select the ‘Yes’ button and
proceed with the installation. This declaration simply means that the Operating System is
not aware of the driver being loaded. It will not cause any harm to your system.
5. During setup the user may specify installation directories and other preferred configurations.
This program also adds entries to the system registry that are necessary for specifying the
operating parameters for each driver. An uninstall option is also included to remove all
registry/INI file entries from the system.
6. If installing in NT, skip to step 15. ‘Windows NT Card Installation.’
7. Go to the “Add New Hardware Wizard” in the Control Panel.
8. When the Wizard asks if you want Windows to search for the new hardware, choose “No, I
want to select the hardware from a list.”
9. Scroll through the list of categorized hardware and select ‘SeaIO Devices.’ If this is the first
SeaIO device you may need to select ‘Other Devices’ and ‘Sealevel Systems, Inc.’ instead of
‘SeaIO Devices.’
10. Click “Next.”
11. Select the card model and press “Next.”

8
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Windows Installation, Continued
12. The Wizard will guide you through a few more informational prompts; continue to click “Next”
until it is completed.
13. Your card’s resource assignments may be adjusted through the Device Manager (if, for
instance, you need to change the I/O port address Windows assigned when you installed the
card).
14. Windows software installation is complete
15. Windows NT Card Installation: After accomplishing steps 1 - 5, bring up the Control Panel
and double-click on the SeaIO Devices icon. To install a new card, click “Add Port.” Repeat
this procedure for as many SeaIO cards as you wish to install.
For additional software support, please call Sealevel Systems’ Technical Support, [phone]. Our
technical support is free and available from 8:00 AM - 5:00 PM Eastern Time, Monday through Friday. For
email support contact: supp[email protected].

9
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Physical Installation
The SeaLINK PIO-48 can be installed in any open USB port.
Do not install the Adapter in the machine until the software has been fully installed.
1. Simply connect the SeaLINK PIO-48 to your USB port with the supplied cable.
2. The software drivers installed during setup will automatically recognize and configure the device.
3. You should see one or more “New Hardware Found” windows, indicating the actual device being
created.
4. Next, view your system’s Device Manager.
5. You should have a new ‘SeaIO 8203’ in the SeaI/O Device heading indicating the installation was
successful.
The SeaLINK PIO-48 is now ready for use.

10
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Digital I/O Interface
The SeaLINK PIO-48’s 48 digital I/O channels are accessed via two industry-standard 50-pin header
connectors. Each header provides 24 bits of digital I/O divided into three eight-bit ports. Each port may be
individually configured via software command as input or output.
50-pin Header Connector
You will need to open the SeaLINK PIO-48’s enclosure to access the two header connectors P2 and P3 (see
Appendix C for connector locations). To open, remove the four screws found on the bottom panel of the
unit. Once cables are connected to the headers reassemble the enclosure with the cables exiting the
opening on the back panel of the unit.
Each of the two 50-pin connectors has the following pin out which is compatible with a wide variety of solid
state relay racks:

11
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Programming the SeaLINK PIO-48
Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel
Systems family of digital I/O adapters. Included in the SeaI/O software are driver functions for use in
accessing the I/O as well as helpful samples and utilities.
Programming for Windows
The SeaI/O API (Application Programmer Interface) provides a variety of useful high-level function calls
implemented in a Windows dynamic link library (DLL). The API is defined in the help file
(Start/Programs/SeaIO/SeaIO Help) under “Application Programmers Interface”. This help file also
includes detailed information dealing with installation / removal of the software and information about
latency, logic states, and device configuration.
For C language programmers we recommend using the API to access the SeaLINK PIO-48. If you are
programming in Visual Basic, using the ActiveX control included with SeaI/O is advised.
Samples and Utilities
A variety of sample programs and utilities (both executable and source code) are included with SeaI/O.
Further documentation on these samples can be found by selecting “Start/Programs/SeaIO/Sample
Application Description”. Information about where the files are physically stored on your disk is also
included in this same file.

12
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Electrical Characteristics
The SeaLINK PIO-48 uses 74ABT245 octal bi-directional transceivers to provide TTL input/output
capabilities. Each bit is pulled to +5V through a 10K ohm pull-up resistor to insure each bit is at a known
state when not driven.

13
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Specifications
Inputs
Logic High
Min 2VDC
Logic Low
Max 0.8VDC
Outputs
Logic High
Min 2VDC @ 32 mA
Logic Low
Max 0.5VDC @ 64 mA
Temperature Range
Operating
0°C - 70°C
Storage
-50°C - 105°C
Power Consumption
Supply line
+5 VDC
+5VDC
Rating
400 mA (no load)
2.4A (Max)

14
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021

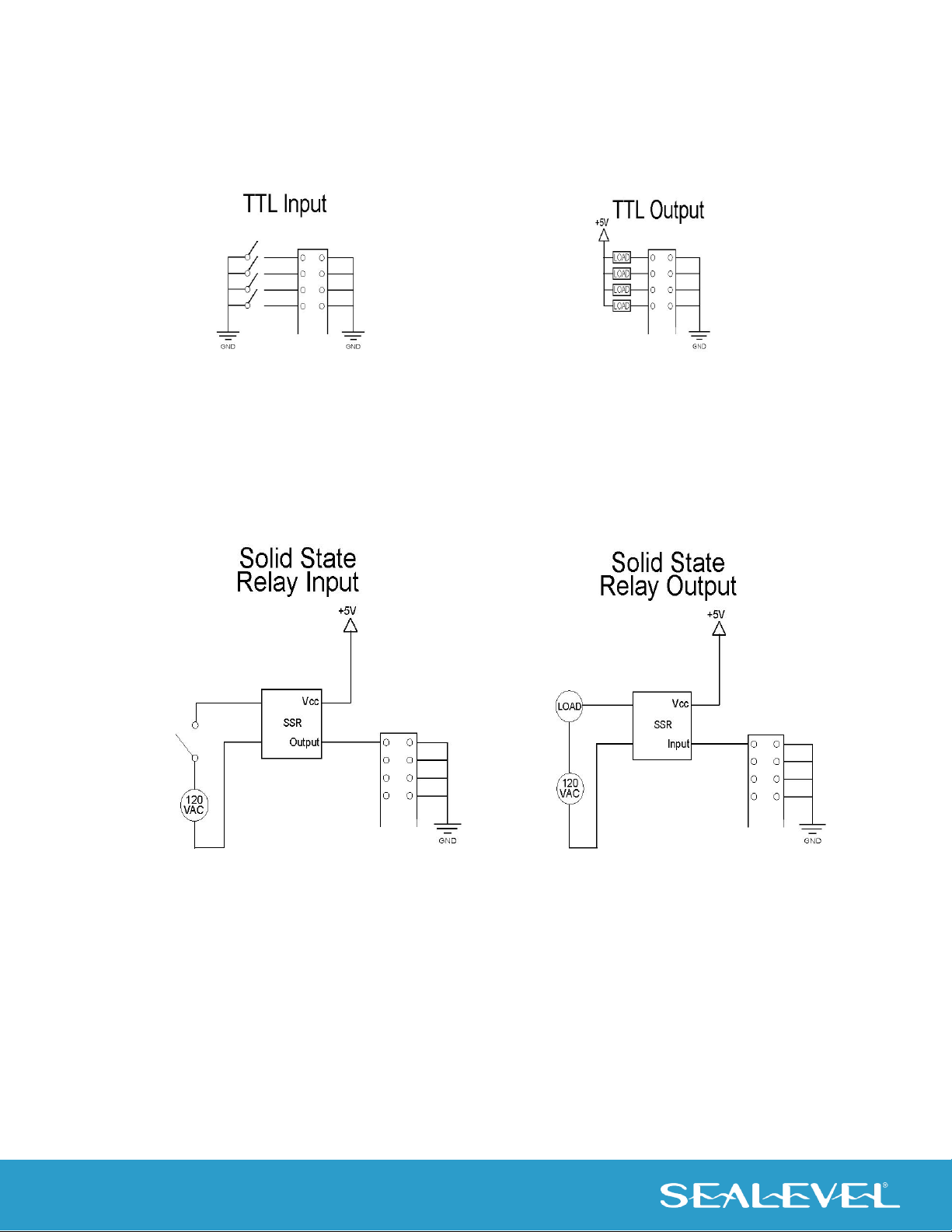

Example Circuits

15
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Appendix A –Troubleshooting
The adapter should provide years of trouble-free service. However, in the event that device appears to not
be functioning incorrectly, the following tips can eliminate most common problems without the need to call
Technical Support.
1. Read this manual thoroughly before attempting to install the adapter in your system.
2. Use Device Manager under Windows to verify proper installation.
3. Use the SeaI/O control panel applet for card identification and configuration.
4. Identify all I/O adapters currently installed in your system. This includes your on-board serial ports,
controller cards, sound cards etc. The I/O addresses used by these adapters, as well as the IRQ (if
any) should be identified.
5. Configure your Sealevel Systems adapter so that there is no conflict with currently installed
adapters. No two adapters can occupy the same I/O address.
6. Make sure the Sealevel Systems adapter is using a unique IRQ The IRQ is typically selected via an
on-board header block. Refer to the section on Card Setup for help in choosing an I/O address and
IRQ.
7. Make sure the Sealevel Systems adapter is securely installed in a motherboard slot.
8. If you are utilizing an operating system prior to Windows 7, please contact Sealevel‘s Technical
support as directed below to receive more information regarding the utility software which will
determine if your product is functioning properly.
9. Only users running Windows 7 or newer should utilize the diagnostic tool ‘WinSSD’ installed in the
SeaCOM folder on the Start Menu during the setup process. First find the ports using the Device
Manager, then use ‘WinSSD’ to verify that the ports are functional.
10. Always use the Sealevel Systems diagnostic software when troubleshooting a problem. This will
help eliminate any software issues and identify any hardware conflicts.
If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, [phone].
Our technical support is free and available from 8:00 A.M.- 5:00 P.M. Eastern Time Monday through Friday.
For email support contact sup[email protected].

16
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Appendix B –How To Get Assistance
Please refer to Troubleshooting Guide prior to calling Technical Support.
1. Begin by reading through the Trouble Shooting Guide in Appendix A. If assistance is still needed
please see below.
2. When calling for technical assistance, please have your user manual and current adapter
settings. If possible, please have the adapter installed in a computer ready to run diagnostics.
3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many
common questions. This section can be found at http://www.sealevel.com/faq.asp.
4. Sealevel Systems maintains a web page on the Internet. Our home page address is
https://www.sealevel.com/. The latest software updates, and newest manuals are available
via our web site.
5. Technical support is available Monday to Friday from 8:00 A.M. to 5:00 P.M. Eastern Time.
Technical support can be reached at [phone].
RETURN AUTHORIZATION MUST BE OBTAINED FROM SEALEVEL SYSTEMS BEFORE RETURNED
MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING SEALEVEL
SYSTEMS AND REQUESTING A RETURN MERCHANDISE AUTHORIZATION (RMA) NUMBER.

17
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Appendix C –Silk Screen - 8203 PCB

18
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Appendix D –Compliance Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in such case the user will be required to correct
the interference at the users expense.
EMC Directive Statement
Products bearing the CE Label fulfill the requirements of the EMC directive (89/336/EEC)
and of the low-voltage directive (73/23/EEC) issued by the European Commission. To obey
these directives, the following European standards must be met:
•EN55022 Class A - “Limits and methods of measurement of radio interference
characteristics of information technology equipment”
•EN55024 –“Information technology equipment Immunity characteristics Limits
and methods of measurement”.
This is a Class A Product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures to prevent or correct the
interference.
Always use cabling provided with this product if possible. If no cable is provided or if an alternate
cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives.

19
© Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021
Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is
standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control
of manufacturing quality and the historically high reliability of our products in the field. Sealevel products
are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product
development, production, burn-in and testing. Sealevel achieved ISO-9001:2015 certification in 2018.
Warranty Policy
Sealevel Systems, Inc. (hereafter "Sealevel") warrants that the Product shall conform to and perform in
accordance with published technical specifications and shall be free of defects in materials and
workmanship for the warranty period. In the event of failure, Sealevel will repair or replace the product at
Sealevel's sole discretion. Failures resulting from misapplication or misuse of the Product, failure to adhere
to any specifications or instructions, or failure resulting from neglect, abuse, accidents, or acts of nature
are not covered under this warranty.
Warranty service may be obtained by delivering the Product to Sealevel and providing proof of purchase.
Customer agrees to ensure the Product or assume the risk of loss or damage in transit, to prepay shipping
charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for
original purchaser and is not transferable.
This warranty applies to Sealevel manufactured Product. Product purchased through Sealevel but
manufactured by a third party will retain the original manufacturer's warranty.
Non-Warranty Repair/Retest
Products returned due to damage or misuse and Products retested with no problem found are subject to
repair/retest charges. A purchase order or credit card number and authorization must be provided in order
to obtain an RMA (Return Merchandise Authorization) number prior to returning Product.
How to obtain an RMA (Return Merchandise Authorization)
If you need to return a product for warranty or non-warranty repair, you must first obtain an RMA number.
Please contact Sealevel Systems, Inc. Technical Support for assistance:
Available Monday –Friday, 8:00AM to 5:00PM EST
Phone [phone]
Email [email protected]
Trademarks
Sealevel Systems, Incorporated acknowledges that all trademarks referenced in this manual are the service
mark, trademark, or registered trademark of the respective company.
