SeaPAC R9-7R ARM9 Touchscreen Computer
User Manual | S96100-7R

2
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Contents
CONTENTS...........................................................................................................................................................2
INTRODUCTION ................................................................................................................................................... 3
BEFORE YOU GET STARTED ............................................................................................................................... 4
PRODUCT OVERVIEW..........................................................................................................................................7
PRODUCT VIEWS .................................................................................................................................................9
TECHNICAL DESCRIPTION ...............................................................................................................................10
SOFTWARE INSTALLATION ..............................................................................................................................14
SPECIFICATIONS ...............................................................................................................................................41
APPENDIX A – RESOURCES..............................................................................................................................43
APPENDIX B – APPLICATION DEBUGGING OVER ETHERNET.......................................................................44
APPENDIX C – INSTALLATION.........................................................................................................................46
APPENDIX D – CAD DRAWING .........................................................................................................................48
APPENDIX E – HOW TO GET ASSISTANCE .....................................................................................................49
APPENDIX F – COMPLIANCE NOTICES...........................................................................................................50
WARRANTY ........................................................................................................................................................51

3
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Introduction
Overview
The SeaPAC R9-7R is an application-ready platform for your next product design. The system is based on
the 400MHz Atmel AT91SAM9G45 microcontroller boasting a 32-bit ARM® instruction set for maximum
performance.
To provide the fastest time to market, the Windows CE 6.0 BSP binary and low-level drivers for system I/O
are included. Additionally, the SeaPAC R9-7R software package is equipped with the Sealevel Talos I/O
Framework, which offers a high-level object-oriented .NET Compact Framework (CF) device interface. This
interface provides an I/O point abstraction layer with built-in support for the specific needs of analog and
digital I/O such as gain control and debouncing.
The SeaPAC R9-7R is housed in a rugged enclosure suitable for panel mounting and is rated for a –30°C to
+70°C operating temperature range. The SeaPAC R9-7R is powered from your 5VDC LPS source, or optional
power supply adapter.
Features
7” WVGA 300 nit TFT LCD with LED backlight
Durable resistive touchscreen
Atmel AT91SAM9G45 ARM® Processor
128MB DDR2 RAM
(1) 10/100 BaseT Ethernet
(1) USB 2.0 Port (high retention)
(1) USB Device Port (high retention for Debug)
(2) Isolated RS-485 serial ports
5 VDC @ 1.5 A power input via COM A (RJ45) Port or Molex 2-pin connector
Includes 110 VAC to 5 VDC @ 2.5 A wall mount power supply
Power 7.5W Max
Compatible with Windows Embedded CE 6.0 and Linux
Panel mount NEMA 4 / IP65 rated bezel

4
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Before You Get Started
What’s Included
The SeaPAC R9-7R is shipped with the following items. If any of these items are missing or damaged,
please contact Sealevel for replacement.
•SeaPAC R9-7R ARM9 Touchscreen Computer with CE runtime image
•TR146 110 VAC to 5 VDC @ 2.5 A wall mount power supply
•Microsoft® Windows® CE 6.0 Core license
Advisory Conventions
Warning
The highest level of importance used to stress a condition where damage could result to the
product, or the user could suffer serious injury.
Important
The middle level of importance used to highlight information that might not seem obvious or a
situation that could cause the product to fail.
Note
The lowest level of importance used to provide background information, additional tips, or other
non-critical facts that will not affect the use of the product.

5
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Important Safety Instructions
SAVE THIS MANUAL— It contains important safety and operating instructions for the installing and
configuring the SeaPAC R9-7R system.
Prior to beginning the installation, carefully read, understand, and follow all related safety
guidelines and documentation. This manual includes warnings, recommendations, and safety
precautions that must be observed.
•Carefully follow all the installation instructions later in this manual.
•There are no user-serviceable parts in the SeaPAC R9-7R system. Do not disassemble the
system. Contact the manufacturer if service or repair is required.
•Only technically qualified service personnel are permitted to install or service the equipment.
•Do not use auxiliary equipment not recommended by the manufacturer. To do so may result in
a risk of fire, electric shock, or injury to persons.
•Do not operate the system if it has received a sharp blow, been dropped, or otherwise damaged
in any way. Contact the manufacturer for a replacement.

6
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Optional Items
Depending upon your application, you are likely to find one or more of the following items useful with the SeaPAC
R9-7. All items can be purchased from our website (www.sealevel.com) by calling our sales team at (864) 843-
4343.
Cables
USB Type A to USB Type B, 72" in Length - Device Cable (Item# CA179)
The CA179 is a 72" standard USB device cable that connects
USB peripherals with a Type B connector to the Type A
connector on a host computer. The CA179 is USB 2.0 compliant
and is compatible with USB 1.1 and 1.0 devices.
CAT5 Patch Cable, 7' in Length – Blue (Item# CA246)
Standard 7' CAT5 UTP Patch Cable (RJ45).

7
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Product Overview
Specifications
Processor
Atmel (AT91SAM9G45) — 400MHz RISC Processor
32KB Data Cache, 32KB Instruction Cache, Write Buffer
Integrated Memory Management Unit (MMU)
Memory
128MB DDR2 RAM
256MB NAND Flash Touchscreen
Display
7” 300 nit TFT LCD with LED backlight
800 x 480 Resolution
16.7M Colors
Touchscreen
4-wire Resistive Touchscreen
Bus Interfaces
10/100 BaseT Ethernet
1 USB Device Port (high retention)
1 USB 2.0 Port (High retention)
Industrial I/O
Two Isolated RS-485 Ports

8
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Audio
AC97 compatible Audio Codec with onboard speaker (WAV capable)
Power
5 VDC Input
7.5 W Max (TR146: 5 VDC @ 2.5 A power adapter included)
Power can be applied either through the dedicated input power connector or conveniently via
COM A connector (see Serial Communications section for details).
Use appropriately classified power supply marked Limited Power Source, or LPS. Follow local
wiring codes and regulations that may apply.

9
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Product Views
Front
Back

10
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Technical Description
Memory
The SeaPAC R9-7R is offered with128MB DDR2 RAM and 256MB NAND Flash.
Ethernet
The SeaPAC R9-7R includes a 10/100 BaseT Ethernet interface accessed via the RJ45 connector located
on the rear of the enclosure.
USB
The SeaPAC R9-7R provides one SeaLATCH USB 2.0 host port, and one USB device port. The USB ports are
located on the back of the enclosure. The USB device port is considered a DEBUG (maintenance) port.
Connector: USB 2.0 Device Port
Manufacturer: Samtec
Description: Standard USB Type B (High Retension)
Pin Signal
1 TX+
2 TX-
3 RX+
4 NC
5 NC
6 RX-
7 NC
8 NC

11
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Display and Touchscreen
The SeaPAC R9-7R features a 300 nit 7” TFT 800x480 pixel LCD with LED backlight, and a durable 4-wire
resistive touchscreen.
Serial Communications
Connect to a variety of serial peripherals via the SeaPAC R9-7’s serial ports. Two isolated RS-485 serial
ports are provided, via RJ45 connectors, labeled “COM A” and “COM B” on the lower front panel of the unit.
RS-485 interfaces are 2-Wire (Half-Duplex) with ECHO (capable of keeping the receiver always enabled and
able to echo back bytes transmitted on the differential line)
COM A port includes terminals to supply power to the unit (see pinout table below)
Use appropriately classified Limited Power Source, or LPS. Follow local wiring codes and
regulations that may apply.

12
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Connectors: COM A and COM B
Description: RJ-45
Connector: RS-485 Expansion (RJ45)
Description: RJ45 Socket, W/O LEDs
Mates with: Standard RJ45 Plug
COM Port A
COM Port B
Assignments
Serial Port Assignment
COM A COM2 (USART1)
COM B COM3 (USART2)
Pin Signal
15VDC Source
2GND_ISO1
35VDC Source
4485-
5Common (GND)
6485+
7Common (GND)
8Common (GND)
Pin Signal
1 No connect
2 GND_ISO2
3 No connect
4 485-
5 No connect
6 485+
7 No connect
8 No connect
8
1

13
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Service button
A recessed service button is provided to reset the SeaPAC R9-7. A blunt non-conductive instrument may
be used to press the button and assert a reset to the processor and peripherals.

14
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Software Installation
Only users running Windows 7 or newer should utilize these instructions for accessing and
installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system
prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing
[email protected] to receive access to the proper driver download and installation
instructions.
SeaPAC R9-7R Quick Start
Begin by download R9 Development for Windows. Click the download “R9 Development (Windows SDK)”
button. This will install Talos Framework, binaries, documentation, and examples on your PC (See Figure
1.)

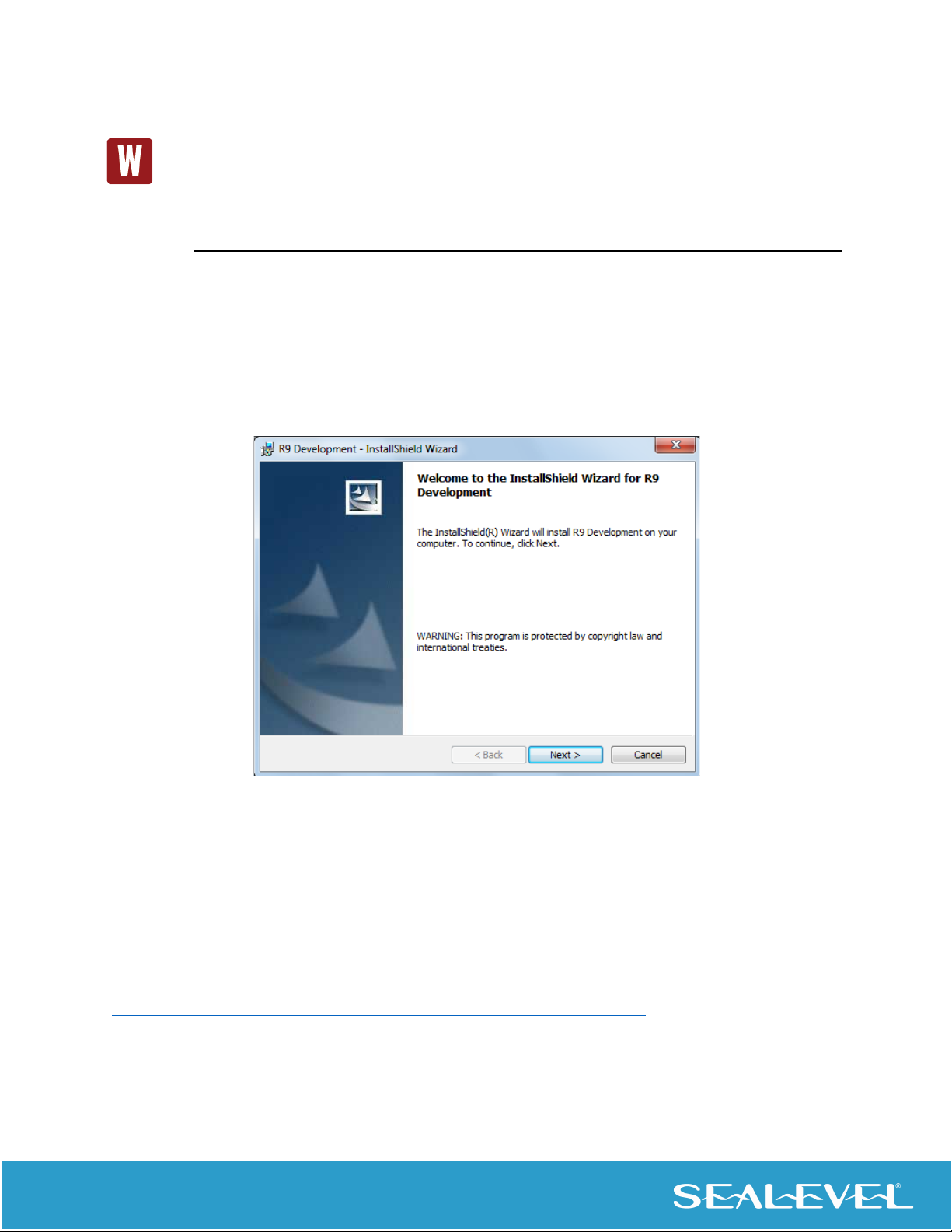

Figure 1 - Installation Wizard
After installation, the package can be found in Windows by clicking Start All Programs Sealevel
Systems R9 Development.
The contents of the factory provided NAND Flash build will allow the R9-7R to run Windows CE 6.0 OS
when power is applied to the board.
The Talos Net Framework is also located on Sealevel’s website:
https://www.sealevel.com/support/software-talos-net-framework-windows/.

15
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
To avoid accidental damage, be sure to follow proper ESD procedures by grounding yourself and
the board.
Use a standard USB device cable and connect the Type B connector to the SeaPAC R9-7. Connect the
cable’s Type A connector into the host PC. (See Figure 2.)
Figure 2
You are now ready to set up a USB communication interface between the host PC and the SeaPAC R9-7.
Depending on which operating system you are using – Windows 7, Vista, or XP – the setup experience will
vary.

16
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Windows Device Center
If your host PC is running Windows Vista or later and you are connected to the Internet, then Windows
Mobile Device Center software will install automatically. If you are not connected to the Internet but have
obtained the Windows Mobile Device Center software manually, then running their setup will achieve the
same result. (See Appendix A.)
After installation, a negotiation will begin between the PC and the SeaPAC R9-7R board and the device
center connection screen will appear. (See Figure 3.)
Figure 3. Device Center Connected
Using your mouse, select “Connect without setting up your device”. The idea is to explore the file system
on the SeaPAC R9-7R without setting up synchronization with contacts, calendar, or e-mail. Now choose
“File Management Browse the contents of your device” from the screen. (See Figure 4.)
Figure 4. Device Center File Management

17
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
This action opens a standard Windows Explorer where the default file contents of the SeaPAC R9-7R can
be read or written to. (See Figure 5.)
Figure 5 - Contents of SeaPAC R9-7
Windows ActiveSync for XP
If your host PC is running Windows XP, ActiveSync is required to establish connection to the SeaPAC R9-7.
ActiveSync differs from Windows Mobile Device Center in that having an internet connection will not
establish an automatic download and installation. For installation procedures, refer to Microsoft’s website.
(See Appendix A). After installation, a negotiation will begin between the PC and the SeaPAC R9-7R board,
and the “New Partnership” dialog will appear. (See Figure 6.)
Figure 6 - ActiveSync New Partnership Dialog

18
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Using your mouse, select “No” and then select “Next”. The ActiveSync main dialog will appear. Select the
“Explore” icon. This action opens a standard Windows Explorer where the default file contents of the
SeaPAC R9-7R can be read or written. (See Figure 7.)
Figure 7 - ActiveSync Main Dialog
Connection Complete
You are now ready to set up a complete development environment for building and debugging smart
device applications and libraries. The next section guides you by example using Microsoft Visual Studio.

19
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Programming Using The .NET Compact Framework
Application Development
Introduction
With .NET Compact Framework coupled with our Talos .NET Framework, C# and VB.NET programmers can
develop powerful embedded applications on the SeaPAC R9-7R such as mobile, robotics, home automation,
industrial, and a broad range of other embedded applications. The low cost of licensing for Windows 6.0
CE has created an ideal environment to develop a new generation of embedded products around the
SeaPAC R9-7.
Our Talos Framework allows access to the more specific I/O sections of the SeaPAC R9-7R development
board such as digital output points, CAN bus, and the serial ports. A complete list of the API documentation
can be found either in Windows by clicking Start All Programs Sealevel Systems R9 Development
Talos Documentation.html.
Writing .NET applications for the SeaPAC R9-7R is very similar to writing desktop or console applications
for XP and Vista. The only difference is the amount of resources available. Because the memory footprint
is smaller compared to a desktop computer, care should be taken where allocation of memory is concerned,
such as large object creation.
Requirements
•Visual Studio Professional 2005 or 2008
•.NET Compact Framework 3.5

20
© Sealevel Systems, Inc. SeaPAC R9-7R Manual | SL9259 3/2023
Getting Started
For this demonstration, we will construct a smart device console application using Visual C#. Start Visual
Studio and select File New Project. A ‘New Project’ dialog will appear. Select a project type of Visual
C# Smart Device. Select ‘Smart Device Project’ as the Template. Make sure the combo box has .NET
Framework 3.5 selected. Type the name of the project. In this case, call it HelloWorld. (See Figure 8.)
Figure 8. Visual Studio New Project Dialog
Click the "OK" button. The next configuration screen allows you to select the type of project you are creating.
Select "Windows CE" for the target platform, .NET Compact Framework version 3.5 and select the "Console
Application" icon for the template. (See Figure 9.)
Figure 9. Visual Studio Add Smart Device Dialog
