Sealey AB900.V3 User manual

1.2. GENERAL SAFETY INSTRUCTIONS
WARNING! Compressor must only be serviced by an
authorised agent.
Familiarise yourself with the application and limitations of the
compressor.
Ensure the compressor is in good order and condition before
use. If in any doubt do not use the unit and contact an
electrician / service agent.
Before moving, or maintaining the compressor, ensure it is
unplugged from the mains supply and that the air brush is
disconnected.
Do not attach anything other than an air brush to the
compressor.
Ensure the safe working pressure of any air brush used,
exceeds the units output pressure.
Ensure the area selected for spraying is provided with
suitable ventilation.
Ensure the compressor is turned off before disconnecting the
air brush.
To move the compressor use the handle only.
Use the compressor in a well ventilated area and ensure it is
placed on a firm surface.
Keep tools and other items away from the compressor when it
is in use, and keep area clean and clear of unnecessary
items.
Ensure the air brush supply hose is not tangled, 0twisted, or
pinched.
Keep children and unauthorised persons away from the
working area.
DO NOT disassemble compressor for any reason. The unit
must be checked and serviced by an approved service agent.
DO NOT use the compressor outdoors, or in damp, or wet
locations.
DO NOT operate within the vicinity of flammable liquids,
gases or solids.
DO NOT touch compressor cylinder head as it may be hot
and will remain so for some time after shutdown.
DO NOT attempt to move the compressor by pulling the air
brush supply hose. Only move the compressor by its handle.
DO NOT use this product to perform a task for which it has
not been designed.
DANGER! DO NOT direct the output jet of air towards
people or animals.
 When not in use, store the compressor carefully in a safe, dry,
childproof location.
 Switch off the compressor when the air brush is not being
used.
 Wear approved eye protection and a suitable respirator when
painting.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to
read, understand and comply with the following: You must check all
electrical products, before use, to ensure that they are safe. You
must inspect power cables, plugs, sockets and any other connectors
for wear or damage. You must ensure that the risk of electric shock is
minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in
the main distribution board. We also recommend that a Residual
Current Device (RCD) is used. It is particularly important to use an
RCD with portable products that are plugged into a supply which is
not protected by an RCCB. If in any doubt consult a qualified
electrician. You may obtain a Residual Current Device by contacting
your Sealey dealer. You must also read and understand the
following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires all portable
electrical appliances, if used on business premises, to be
tested by a qualified electrician, using a Portable Appliance
Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of
electrical appliances responsible for the safe condition of
those appliances and the safety of the appliance operators. If
in any doubt about electrical safety, contact a qualified
electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance
is safe before connecting it to the power supply. See 1.1.1.
and 1.1.2. and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit
and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or
damage and check all connections to ensure that none is
loose.
1.1.6. Important: Ensure that the voltage marked on the appliance
matches the power supply to be used and that the plug is
fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors.
Immediately have any faulty item repaired or replaced by a
qualified electrician. When an ASTA/BS approved UK 3 pin
plug is damaged, cut the cable just above the plug and
dispose of the plug safely. Fit a new plug according to the
following instructions (UK only).
a) Connect the
GREEN/YELLOW
earth wire to the
earth terminal ‘E’.
b) Connect the
BROWN live wire to
the live terminal ‘L’.
c) Connect the BLUE
neutral wire to the
neutral terminal ‘N’.
d) After wiring, check
that there are no bare
wires, that all wires
have been correctly
connected, that the cable outer insulation extends
beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this
symbol , are fitted with live (brown) and neutral (blue) wires
only. To rewire, connect the wires as indicated above.
DO NOT connect either wire to the earth terminal.
FUSE RATING 3 AMP
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire
INSTRUCTIONS FOR:
MINI AIR BRUSH COMPRESSOR
MODEL No: AB900.V3
Original Language Version AB900.V3 Issue: 1 - 05/04/11
1.1.10. Products which require more than 13 amps are supplied
without a plug. In this case you must contact a qualified
electrician to ensure that a suitably rated supply is available.
We recommend that you discuss the installation of an
industrial round pin plug and socket with your electrician.
1.1.11. If an extension reel is used it should be fully unwound before
connection. A reel with an RCD fitted is preferred since any
appliance plugged into it will be protected. The cable core
section is important and should be at least 1.5mm², but to be
absolutely sure that the capacity of the reel is suitable for this
product and for others which may be used in the other output
sockets, we recommend the use of 2.5mm² section cable. If
extension reel is to be used outdoors, ensure it is marked for
outdoor use.
2. SPECIFICATION
Quiet running piston pump, powered by a 120Watt electric
motor - suitable for most air brushes. Requires no lubrication
and the air supply from the unit is oil-free. Supplied with an air
filter regulator and pressure gauge.
2.1 SPECIFICATION................................. MODEL NO. AB900.V3
Motor power.....................................................................120W
Input .......................................................................... 230V - 1A
Free Air Delivery: ........................................................... 0.8cfm
Air pressure.......................................................................50psi
Air outlet size ...............................................................1/8”BSP
3. PREPARATION
 WARNING! If an electrical fuse blows, ensure it is
replaced with an identical fuse type and rating.
 DO NOT eat or smoke whilst spraying.
 DO NOT spray near naked flames.
 DO NOT leave the compressor running unattended.
 DO NOT operate the compressor whilst under the influence of
drugs, alcohol or other intoxicating medication.
 DO NOT carry the compressor while operating the air brush.
 DO NOT cover the compressor or restrict air flow around the
machine whilst operating.
 DO NOT allow anyone to operate the compressor unless they
have received full instructions.
3.1 Remove compressor from packaging and inspect for any
damage. If anything is found to be missing or damaged
contact your supplier.
3.2 Confirm that the mains voltage corresponds with the voltage
shown on the compressor data plate.
3.3 The compressor should be operated in a position that allows
good air circulation around the unit.
4. OPERATION
fig.1
Original Language Version AB900.V3 Issue: 1 - 05/04/11
WARNING! Ensure that you have read, understood and
apply Section 1 safety instructions.
4.1 Situate the compressor in a convenient position for the air
brush work to be undertaken. Ensure that it is resting on a
stable and level surface that will not be affected by the minor
vibration of the unit. Do not rest the compressor on sheets of
paper or card etc. Ensure the rubber feet are in direct contact
with the work surface.
4.2 Do not operate the unit in an enclosed space and ensure that
there is adequate air space around the unit.
4.3 Attach the air brush hose to the 1/8" BSP air outlet.
4.4 Plug the mains lead into a convenient socket but do not
switch on until you have fully prepared the medium to be
sprayed, the air brush and the item/surface to be sprayed.
4.5 Switch on the unit. The compressor will then provide a
constant air flow to the air brush. The compressor motor will
cut-in and out automatically to maintain the required pressure
as determined by the user setting on the regulator.
4.6 Refer to the air brush instructions for the correct operating
pressure. To adjust the pressure, first pull up the regulator
knob to unlock it. To increase the pressure, turn the knob
clockwise. To decrease the pressure, turn the knob
anti-clockwise. Monitor the result on the pressure gauge.
When correct pressure has been obtained, push down the
regulator knob to lock it. (See below).
4.7 Refer to the manufacturers instructions with your air brush for
the correct spraying technique. Do not leave the compressor
running for any length of time with the air brush attached but
not being used. If there is a pause in your work switch the
compressor off.
4.8 If the operating note of the compressor changes, there may
be a blockage within the air brush or the air hose may be
pinched. The unit should be switched off immediately and the
source of the blockage investigated and eliminated.
4.9 When the task is complete use the compressor to blow a
suitable cleaning solvent through your air brush.
4.9 Switch the unit off. Operate the air brush to relieve any
pressure left in the hose. Disconnect the air brush from the
compressor.
4.10 During and immediately after operation, the finned pump head
may be hot and should not be touched. If the unit must be
moved, lift it by the handle only. Allow the unit to cool before
storing it.
4.11 Should there appear to be any loss of efficiency when
spraying, ensure first that the air brush is scrupulously clean
and functioning properly. If the air brush is satisfactory then
refer to the trouble shooting guide for the compressor.
FAULT CAUSE REMEDY
Low air flow.  Air valve plate or air valve is  Change the defective air valve plate
damaged. or air valve.
 Diaphragm damaged.  Change diaphragm.
 The head screws are too loose.  Tighten the screws equally.
 Air hose leaking.  Check seals or renew hose.
Noisy operation.  The head screws are too tight.  Loosen the screws and then tighten
them equally. Do not overtighten.
 Bearing fault.  Return to dealer for checking.
Humming noise but does  The head screws are too tight.  Loosen the screws and then tighten
not work. them equally. Do not overtighten.
 Armature fault.  Return to dealer for checking.
5.1 Keep the unit clean at all times.
Do not cover any of the ventilation slots.
Do not allow any extraneous material to enter the unit via any
of the ventilation openings.
Store in dust free and dry conditions.
5.2 The troubleshooting guide below is intended to give you an
indication of what type of fault may have developed with your
unit over a long period of service. The chart is not intended as
a guide on how to repair the fault yourself. In all cases we
recommend that the unit be returned to an authorised service
agent for rectification.
5. MAINTENANCE & TROUBLESHOOTING
Parts support is available for this product. To obtain a parts listing and/or diagram, please log on to www.sealey.co.uk,
email sales@sealey.co.uk or phone 01284 757500.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
Original Language Version AB900.V3 Issue: 1 - 05/04/11

Other Sealey Air Compressor manuals

Sealey RE225.V3 User manual

Sealey

Sealey RE225.V3 User manual

Sealey SA5040 User manual

Sealey

Sealey SA5040 User manual

Sealey SAC1503B User manual

Sealey

Sealey SAC1503B User manual

Sealey SA2010/3 User manual

Sealey

Sealey SA2010/3 User manual

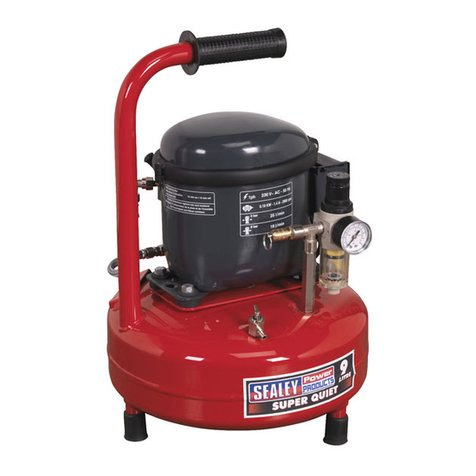

Sealey SSQC0903P User manual

Sealey

Sealey SSQC0903P User manual

Sealey MAC2300 User manual

Sealey

Sealey MAC2300 User manual

Sealey SA3015/55 User manual

Sealey

Sealey SA3015/55 User manual

Sealey SAC5020A User manual

Sealey

Sealey SAC5020A User manual

Sealey Professional Tools AUTO SERVICE LINE RE300 User manual

Sealey

Sealey Professional Tools AUTO SERVICE LINE RE300 User manual

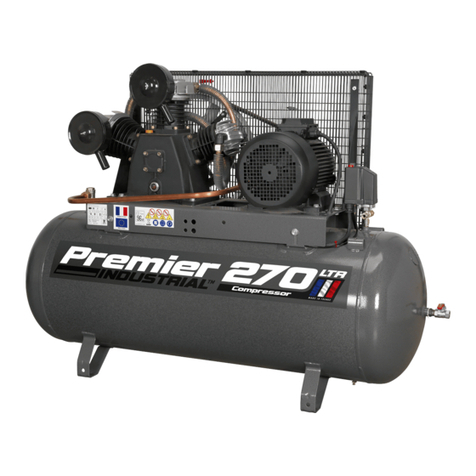

Sealey SAC32775B User manual

Sealey

Sealey SAC32775B User manual

Sealey MAC03 User manual

Sealey

Sealey MAC03 User manual

Sealey SAC3153B.V2 User manual

Sealey

Sealey SAC3153B.V2 User manual

Sealey SA22503 User manual

Sealey

Sealey SA22503 User manual

Sealey SA22503 User manual

Sealey

Sealey SA22503 User manual

Sealey SAC2420E110V.V3 User manual

Sealey

Sealey SAC2420E110V.V3 User manual

Sealey MAC1250 User manual

Sealey

Sealey MAC1250 User manual

Sealey SA200T.V2 User manual

Sealey

Sealey SA200T.V2 User manual

Sealey MAC01 User manual

Sealey

Sealey MAC01 User manual

Sealey MAC23250 User manual

Sealey

Sealey MAC23250 User manual

Sealey SAC2203BLN.V2 User manual

Sealey

Sealey SAC2203BLN.V2 User manual

Sealey RE227 User manual

Sealey

Sealey RE227 User manual

Sealey SAC1903B User manual

Sealey

Sealey SAC1903B User manual

Sealey SSC11003 User manual

Sealey

Sealey SSC11003 User manual

Sealey AirPower SAC5020E.V3 User manual

Sealey

Sealey AirPower SAC5020E.V3 User manual

Popular Air Compressor manuals by other brands

Hyundai HY140200PES user manual

Hyundai

Hyundai HY140200PES user manual

COLTRI HEAVY DUTY Series Use and maintenance manual

COLTRI

COLTRI HEAVY DUTY Series Use and maintenance manual

Cameron Turbo Air 3000 Handbook

Cameron

Cameron Turbo Air 3000 Handbook

Clarke BOXER 100 Operation & maintenance instructions

Clarke

Clarke BOXER 100 Operation & maintenance instructions

Bauer Mini Verticus Instruction manual and replacement parts list

Bauer

Bauer Mini Verticus Instruction manual and replacement parts list

Ingersoll-Rand SSR UP6 15 Option manual

Ingersoll-Rand

Ingersoll-Rand SSR UP6 15 Option manual

Campbell Hausfeld Oil-Lubricated Compressor HL5403 Operating instructions and parts list

Campbell Hausfeld

Campbell Hausfeld Oil-Lubricated Compressor HL5403 Operating instructions and parts list

Panasonic DD51C78GBU6 Specification sheet

Panasonic

Panasonic DD51C78GBU6 Specification sheet

ALLPOWER APC4008 owner's manual

ALLPOWER

ALLPOWER APC4008 owner's manual

Central Pneumatic 39750 Assembly and operating instructions

Central Pneumatic

Central Pneumatic 39750 Assembly and operating instructions

ALLPOWER APC4011 owner's manual

ALLPOWER

ALLPOWER APC4011 owner's manual

Central Pneumatic 93271 operating instructions

Central Pneumatic

Central Pneumatic 93271 operating instructions

pilotair K25D Instructions and parts list

pilotair

pilotair K25D Instructions and parts list

Green Power GPAC2520V owner's manual

Green Power

Green Power GPAC2520V owner's manual

pilotair K17T Instructions and parts list

pilotair

pilotair K17T Instructions and parts list

Vanair Viper Series Operator's manual & parts list

Vanair

Vanair Viper Series Operator's manual & parts list

Airmax T100 owner's manual

Airmax

Airmax T100 owner's manual

pilotair K25P Instructions and parts list

pilotair

pilotair K25P Instructions and parts list

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
