Sealey SAC10030VE.V2 User manual

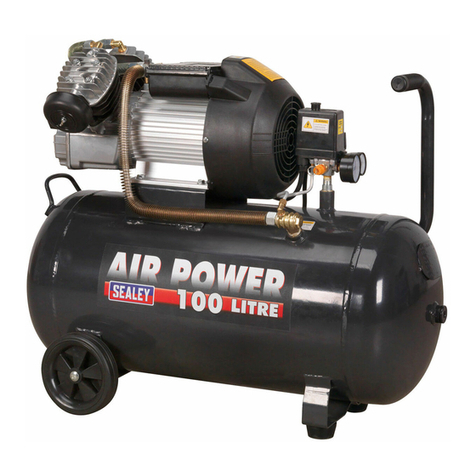

100L V-TWIN DIRECT DRIVE COMPRESSOR 3HP
MODEL NO: SAC10030VE.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist. If the product is used in the course of business duties, it
must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
ELECTRICAL SAFETY INFORMATION It is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable and DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately by
a qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
A) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live terminal ‘L’.
C) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
IMPORTANT! The use of extension leads to connect these compressors to the mains is not
recommended as the resulting voltage drop reduces motor, and therefore pump performances.
1.2. GENERAL SAFETY
9  Familiarise yourself with the application and limitations of the compressor.
9  Ensure the compressor is in good order and condition before use. If in any doubt DO NOT use the unit and contact an electrician/
service agent.
WARNING! Compressor must only be serviced by an authorised agent. DO NOT tamper with, or attempt to adjust, pressure
switch or safety valve.
9  Before moving, or maintaining the compressor ensure it is unplugged from the mains supply and that the air tank pressure has been vented.
9  Maintain the compressor in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may
be dangerous and will invalidate your warranty.
9  Read the instructions relating to any accessory to be used with the compressor. Ensure the safe working pressure of any air
appliance used exceeds unit’s output pressure. If using spray gun, check that the area selected for spraying is provided with air change
system/ventilation.
9  Ensure the air supply valve is turned off before disconnecting the air supply hose.
9  To move the compressor use the handle only. Maintain unit’s centre of gravity when lifting. DO NOT attempt to lift or move the
compressor by any other means.
9  Use the compressor in a well ventilated area and ensure it is placed on a firm surface.
9  Keep tools and other items away from the compressor when it is in use, and keep the area clean and clear of unnecessary items.
9  Ensure any air hose attached is not tangled, twisted or pinched.
9  Keep children and unauthorised persons away from the working area.
8  DO NOT dis-assemble compressor for any reason. The unit must be checked by qualified personnel only.
8  DO NOT use the compressor outdoors, in damp or wet locations or operate within the vicinity of flammable liquids, gases or solids.
8  DO NOT touch compressor cylinder, cylinder head or pipe from head to tank as these may be hot and will remain so for some time
after shut down.
8  DO NOT attempt to move the compressor by pulling the air tool hose.
8  DO NOT use this product to perform a task for which it is not designed.
8  DO NOT deface the certification plate attached to the compressor tank
8  DO NOT cover the compressor or restrict air flow around the machine whilst operating.
SAC10030VE.V2 Issue 2 (7) 24/06/20
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear ear
protection
Ensure oil level
is correct before
rst use
WARNING:
High Voltage
WARNING:
Hot surface
WARNING:
Automatic
start up
Indoor use only DO NOT open
the air cock
before an air
hose is attached
RECOMMENDED
FUSE RATING:
13AMP

8  DO NOT operate the compressor without an air filter.
8  DO NOT allow anyone to operate the compressor unless they have received full instructions.
▲DANGER! DO NOT direct the output jet of air towards people or animals.
8DO NOT operate the compressor without an air filter.
8DO NOT allow anyone to operate the compressor unless they have received full instructions.
WARNING! The air tank is a pressure vessel and the following safety measures apply:
8DO NOT tamper with the safety valve, DO NOT modify or alter the tank in any way and DO NOT strap anything to the tank, DO NOT
weld tank.
8DO NOT subject the tank to impact, vibration or to heat and DO NOT allow contact with abrasives or corrosives.
9Drain condensation from tank daily.
WARNING! If an electrical fuse blows, ensure it is replaced with an identical fuse type and rating.
9 When not in use, store the compressor carefully in a safe, dry, childproof location.
2. INTRODUCTION
V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear. Suitable for general purpose
workshop applications. Pump directly coupled to heavy-duty induction motor for reliable and quiet operation. Precision welded receiver tank
manufactured to meet Pressure Vessel Directive.
3. SPECIFICATION
Model No: ........................... SAC10030VE.V2
Air Displacement cfm(l/min): . . . . . . . . . . . . . . . . . . . .12.6(357)
Maximum Free Air Delivery cfm(l/min): . . . . . . . . . . . . .8.8(249)
Maximum Pressure: ........................ 116psi(8bar)
Minimum Rated Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13A
Motor Output: .................................... 3hp
Outlet:..........................Quick Release Coupling
Phase: ......................................... 1ph
Electrical Plug Type:...........................3-Pin BS
Receiver Capacity: ...............................100ltr
Size (W x D x H): .................... 890 x 450 x 760mm
Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230V
Noise Level: .................................. 96dBA)
4. PREPARATION
4.1. Remove compressor from packaging and inspect for any shortages or damage. If
anything is found to be missing or damaged contact your supplier.
4.2. Save the packing material for future transportation of the compressor. We recommend
that the packing is stored in a safe location, at least for the period of the guarantee.
Then, if necessary, it will be easier to send the compressor to the service centre.
4.3. Confirm that the mains voltage corresponds with the voltage shown on the compressor
data plate.
4.4. Assemble the wheels (fig.A.X) and rubber feet (fig.A.Y) to the main frame using the nuts,
bolts and washers supplied.
4.5. Attach handle with screw provided.
4.6. The compressor should be operated on a flat, firm surface, or one that does not exceed
5
°either transversely or longitudinally (fig.1), and should be in a position that allows
good air circulation around the unit.
4.7. Remove the plastic transit plug from the oil filler hole.
4.8. Before using the compressor check the oil level by referring to the oil sight glass (fig.2C).
If the oil level is not up to the red centre mark it should be further topped up with
recommended oil (See section 6.4). Screw the filler/breather cap into the aperture as
shown in (fig.2B).
4.9. Screw the back half of a filter unit into the downward facing port openings in each head
as shown in (fig.2A). Place a filter cover over each threaded rod protruding from the
back half of the filter and secure each with a wing nut. Refer also to (fig.4).
IMPORTANT: Take care when selecting tools for use with the compressor. Air tool manufacturers normally express the volume of air
required to operate a tool in cubic feet per minute (cfm). This refers to free air delivered by the compressor (‘air out’) which varies
according to the pressure setting. DO NOT confuse this with the compressor displacement which is the air taken in by the compressor
(‘air in’). ‘Air out’ is always less than ‘air in’ - due to losses within the compressor.
5. OPERATION
WARNING! Ensure that you have read, understood and apply Section 1 Safety Instructions.
5.1. IMPORTANT. The use of extension leads to connect this compressor to the mains is not recommended as the resulting voltage
drop reduces motor, and therefore pump, performance and could damage your compressor.
5.2. Take care when selecting tools for use with the compressor. Air tool manufacturers normally express the volume of air
required to operate a tool in cubic feet per minute (cfm).
This refers to free air delivered by the compressor (‘air out’) which varies according to the pressure setting. DO NOT
confuse this with the compressor displacement which is the air taken in by the compressor (‘air in’). ‘Air out’ is always less
than ‘air in’ - due to losses within the compressor.
5.3. STARTING THE COMPRESSOR
5.3.1. Your compressor is tted with a push/pull type of ON/OFF switch. To turn the compressor ‘ON’ pull the switch knob upwards. To turn
the compressor ‘OFF’ push the knob downwards. (See g.3.1)
Original Language Version
© Jack Sealey Limited
g.A
g.1
g.2
XY
Z
SAC10030VE.V2 Issue 2 (7) 24/06/20

5.3.2. Check that the ON/OFF switch (g.3.1) is in the “OFF” position, the regulator
tap (fig.3.2) is closed (Zero ‘0’ bar), and air tap (g.3.4) is OFF.
5.3.3. Plug mains lead into mains supply and start the compressor by pulling the switch
knob upwards.
5.3.4. When starting the compressor for the first time, leave it running for several minutes
with the air tap (g.3.4) open to ensure good distribution of the lubricating oil.
Turn the compressor off and close the air tap. Restart the compressor and
leave it running with air tap (fig.3.4) closed and regulator (fig.3.2) set to
maximum pressure. Make sure that pressure in the tank rises and that the
compressor stops automatically when the max. pressure value allowed - written on
the specification plate and shown on the gauge (fig.3.6) - is achieved.
The compressor will now operate automatically. The pressure switch(fig.3.8)
stops the motor when the maximum tank pressure is reached and restarts
it when pressure falls below the minimum threshold - approx. 2 bar (29psi) less
than the maximum pressure.
5.3.5. Stop the compressor by pushing the switch knob (See g.3.1) downwards. The
compressed air inside the compressor head will flow out, making the restart easier
and preventing the motor from being damaged. DO NOT, other than in an
emergency, stop the compressor by switching off the mains power, or by pulling
the plug out, as the pressure relief will not then occur and motor damage may
result upon restart.
When the compressor runs correctly and is stopped correctly there will be:
a) a whistle of compressed air when the motor stops,
b) a protracted whistle (about 20-25 seconds) when the compressor starts with no pressure in the tank.
5.3.6. The output pressure is regulated by the pressure regulator (fig.3.2). Turn the knob clockwise to increase pressure and clockwise to
reduce it. The knob can be locked at any required setting by tightening the locking ring (fig.3.3) up against the underside of the knob.
To determine the correct working pressure for any piece of equipment check the corresponding manual. When the compressor is not
being used set the regulated pressure to zero so as to avoid damaging the pressure reducer.
NOTE: a) If the motor does not cut in and out, but runs continuously when using an air appliance, the capacity of the compressor
may be too small for the equipment or tool. b) The larger gauge (fig.3.6) indicates the pressure inside the main tank. The smaller
gauge (fig.3.5) indicates the pressure supplied to the air equipment. Should the pressure in the main tank exceed the pre-set switch
(fig.3.8) maximum, the safety valve (fig.3.7) will activate.
WARNING! For this reason DO NOT tamper with, or adjust, the switch or safety valve.
5.4. The compressor is fitted with a reset trip, located in the connection box on top of the motor (fig.A.Z). The reset button is on the side
of the box. Should the trip activate, leave for 1 minute before pressing the button to reset. For possible causes of trip activation and
remedies see section 7 Troubleshooting.
6. MAINTENANCE
WARNING! Before performing any maintenance operation, switch off the
compressor, disconnect from electricity supply and release all air from the tank. In
order to keep the compressor in good working condition, periodical maintenance
is essential.
6.1. After the first 50 working hours replace the lubricating oil - see Item 6.4.
6.2. OPERATIONS TO BE CARRIED OUT DAILY:
6.2.1. Drain condensation, place a container under the valve and open the valve by
turning anti-clockwise (fig.5). Re-tighten the valve.
6.2.2. Check that all nuts and bolts are tight, particularly those retaining the crankcase
and cylinder head.
6.3. OPERATIONS TO BE CARRIED OUT EVERY 100 HOURS: (or more frequently, if the compressor operates in a very dusty atmosphere).
6.3.1. Check oil level and, if necessary, top it up.
6.3.2. Remove the air filter element by unscrewing the filter holder (fig.4) and prising open the holder. Clean it by blowing through with an air
line at low pressure, from the clean side. Alternatively, wash it in soapy water, rinse and dry. DO NOT operate the compressor without
the filter as foreign bodies or dust could seriously damage the pump.
6.3.3. Check for oil leaks.
6.4. OPERATIONS TO BE CARRIED OUT EVERY 200 HOURS:
6.4.1. Replace the lubricating oil. Remove the oil filler/breather (fig.2A) and unscrew the drain bolt (fig.2B), drain
the oil into a suitable container. Drain when the compressor is hot so that the oil drains rapidly and
completely. Incline the compressor to ensure complete drainage. Replace the drain bolt and refill with fresh
oil through the filler aperture. DO NOT overfill.
6.4.2. Replace oil filler/breather (fig.2A).
6.5. RECOMMENDED OIL:
6.5.1. Suitable for room temperatures ranging from +5ºC to +25ºC: SEALEY CPO or equivalent SAE 40
compressor oil.
6.5.2. Room temperature below +5ºC: SAE 20 compressor oil.
WARNING! Never mix different oils and DO NOT use non-detergent/low quality oils as the compressor may be damaged.
6.5.3. Dispose of waste oil only in accordance with local authority requirements.
6.5.4. Check the automatic cut-out at maximum pressure and the automatic cut-in at 2 bar below that.
6.6. OPERATIONS TO BE CARRIED OUT EVERY 500 HOURS:
6.6.1. Replace air filter (fig.4).
6.6.2. Check all tube fittings and electrical connections.
IMPORTANT! Failure to carry out maintenance tasks may invalidate the warranty on your compressor.
WARNING - Air contaminants taken into the compressor will affect optimum performance. Example: Body ller dust or paint
overspray will clog the pump intake lter and may cause internal damage to pump/motor components.
NOTE: Any parts damaged by any type of contamination will not be covered by warranty.
Original Language Version
© Jack Sealey Limited
g.3
g.5
g.4
SAC10030VE.V2 Issue 2 (7) 24/06/20

Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and
disposed of in a manner which is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any
fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). When the
product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. Please note that
other versions of this product are available. If you require documentation for alternative versions, please email or call our technical team on [e-mail]
or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
6.7. INSPECTION OF PRESSURE TANK BOTH INSIDE AND OUT
6.7.1. Under the PRESSURE SYSTEMS SAFETY REGULATIONS 2000 it is the responsibility of the owner of the compressor to initiate
a system of inspection that both defines the frequency of the inspection and appoints a person who has specific responsibility for
carrying out the inspection.
7. TROUBLESHOOTING
7.1. SCHEDULED MAINTENANCE TABLE
Maintenance Daily 100
hours
200
hours
500
hours
Drain condensation •
Check
Oil level •
Clean
Intake lter •
Check for
Oil leaks •
Check
Cut-out •
Replace
Oil •
Replace air lter •
Check tube ttings and
electrical connections •
FAULT CAUSE REMEDY
Pressure drop in the tank. 1. Air leaks at connections.
2. Air leaks from safety valve.
3. Air leaks from cylinder head gasket.
1. Run compressor to maximum pressure, switch off. Brush soap solution over
connections and look for bubbles. Tighten connections showing leaks. If problem
persists, contact Authorised Service Agent.
2. Operate the safety valve manually by pulling on the ring. If valve continues to
leak when in the closed position it should be replaced.
3. Check tightness of head bolts, if leak continues contact Authorised Service Agent.
Pressure switch valve leaks when
compressor is idle.
Non-return valve seal defective. Empty the air tank. Referring to (g.6), remove the non-return valve cap (g.6.3),
spring (g.6.2) and seal (g.6.1). Clean the seal and its seat, or if necessary replace
the seal and ret.
Air leaks from tank body or tank
welds.
Internal corrosion caused by
infrequent tank draining or non
permitted modifications to tank.
Tank could rupture or explode. Cannot be repaired.
DISCONTINUE USE IMMEDIATELY
Motor stops and will not restart. 1. Thermal cut out has operated.
2. Supply fuse has tripped.
1. Allow unit to cool for 30 minutes then press reset button (fig.7).
2. Reset fuse and restart unit. If repeated tripping occurs, replace the check valve
or contact Authorised Service Agent.
Compressor stops and will not
restart.
Motor failure. Contact Authorised Service Agent.
Compressor does not stop at
maximum pressure
1. Pressure switch fault.
2. Filter clogged
3. Head gasket or valve fault
1. Contact Authorised Service Agent.
2. Replace filter element.
3. Contact Authorised Service Agent.
Compressor noisy with metallic
knock
Bearing or piston damage Contact Authorised Service Agent.
Excessive moisture in discharged air High humidity environment Drain tank after each use
g.6
g.7
SAC10030VE.V2 Issue 2 (7) 24/06/20
