Sealey VS7105 User manual

5PC ENGINE OIL FUNNEL SET - AUDI, SEAT,
SKODA AND VOLKSWAGEN
MODEL NO: VS7105
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLYAND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGEAND/OR
PERSONAL INJURYAND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
8DO NOT use tools if damaged.
9Maintain tools in a good, clean condition for best and safest performance.
9Wear approved eye protection.A full range of personal safety equipment is available from your Sealey stockist.
9Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9Keep children and unauthorised persons away from the work area.
9When not in use, store in a secure, childproof location.
9Keep working area clean and tidy, dry and free from unrelated materials
9Ensure the working area has adequate lighting
2. INTRODUCTION
Fastens and seals into the engine ller with three manufacturer specic adaptors. Covering a large proportion of modern vehicles for Audi,
Seat, Skoda and Volkswagen. Hands-free operation with no mess or spills. See instructions on Sealey website for complete list of vehicle
applications.
3. SPECIFICATION
Adaptors: 1 x 39mm Knob Type, 1 x Clip Type - 38mm, 1 x Ø45mm - Twist tting
NOTE: Clip Type is a common type and details are therefore not included in the table below.
4. OPERATION
4.1. ASSEMBLY
4.1.1. Apply adhesive (not supplied) around the ne threads on the transparent chamber (g.1).
4.1.2. Connect transparent chamber to the upper funnel part (g.1) to form complete funnel.
4.2. IN USE
NOTE: Ensure engine is cool before using funnel.
4.2.1. Remove original oil cap on engine.
4.2.2. Connect oil funnel or funnel with relevant adapter to oil ller neck.
4.2.3. Make sure the funnel is securely connected to the engine before lling.
4.2.4. Disconnect oil funnel from oil ller neck after oil is relled.
4.2.5. Clean residual oil inside the funnel and store the funnel in dry and well-ventilated place.
VS7105 Issue 1 24/05/22
Original Language Version
© Jack Sealey Limited
Refer to
instructions Wear eye
protection Wear protective
gloves Wear safety
footwear Wear protective
clothing

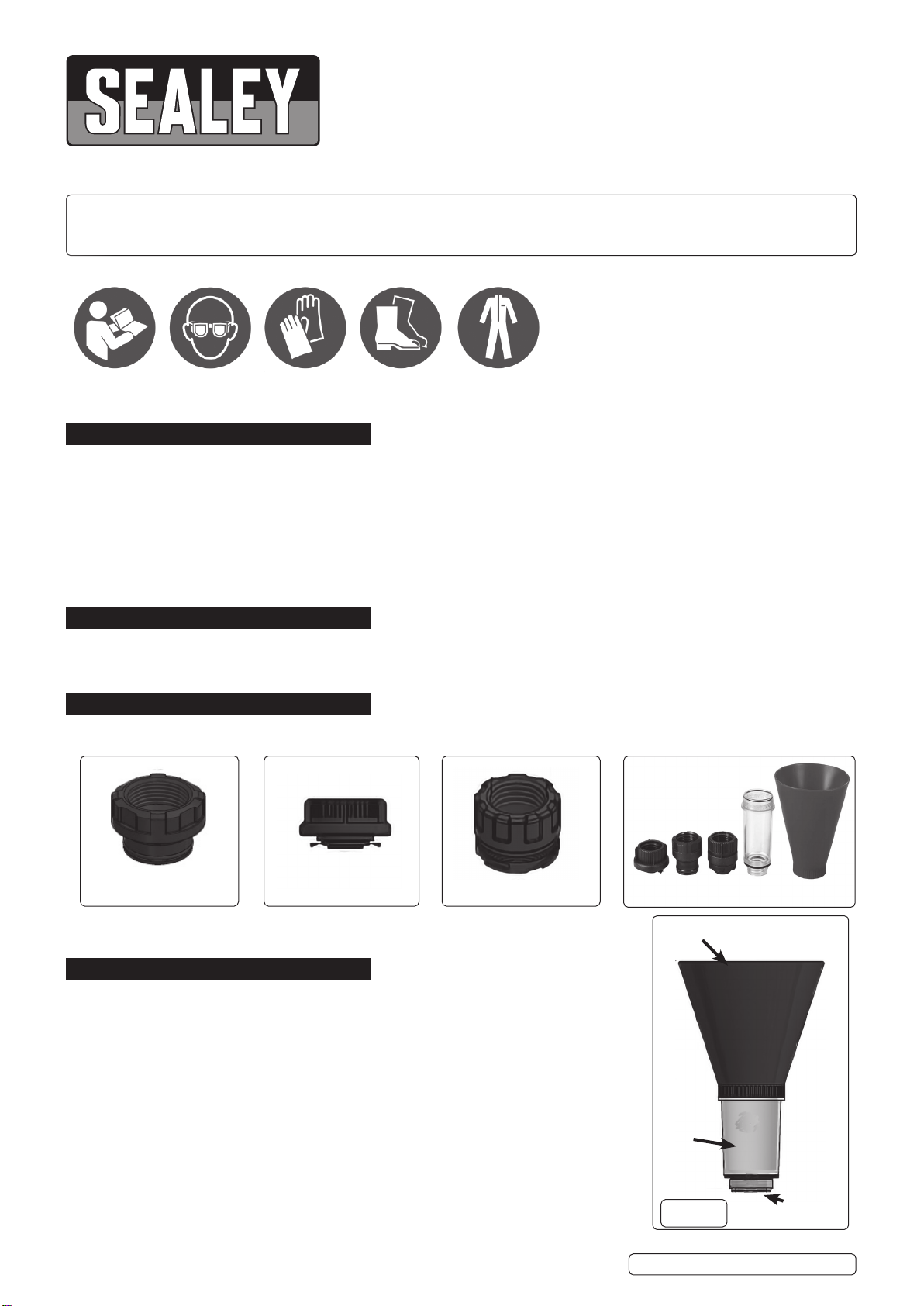

Clip Type Twist Type
Funnel
g.1 Adaptor
Location
Knob Type
Chamber

Make Model Engine Type Year Fits
Audi A1 1.4 TDI 2014-2017 Twist
Audi A1 1.6 TDI 2014-2018 Twist
Audi A1 1.8 TFSI 2015-2018 Twist
Audi A1 35 TFSI; A1/S1 2019-2021 Knob
Audi A1 40 TFSI 2018-2020 Twist
Audi A1 S1 quattro 2014-2018 Twist
Audi A3 1.5 TSI; Cabriolet 8V 2017-2021 Knob
Audi A3 1.5 TSI; Saloon/Sportback 8V 2017-2020 Knob
Audi A3 1.5 TSI; Saloon/Sportback 8Y 2020-2021 Knob
Audi A3 1.6 TDI 2012-2020 Twist
Audi A3 1.6 TDI quattro 2015-2020 Twist
Audi A3 1.8 TFSI 2012-2020 Twist
Audi A3 1.8 TFSI quattro 2012-2020 Twist
Audi A3 2.0 TDI 2012-2020 Twist
Audi A3 2.0 TFSI 2016-2020 Twist
Audi A3 2.0 TFSI quattro 2016-2020 Twist
Audi A3 35 TFSI 2019-2021 Knob
Audi A3 40 TDI quattro 2018-2020 Twist
Audi A3 40 TFSI quattro 2018-2020 Twist
Audi A3 S3 quattro 2012-2020 Twist
Audi A41.8 TFSI 2011-2015 Twist
Audi A41.8 TFSI quattro 2011-2015 Twist
Audi A42.0 TDI 2007-2015 Twist
Audi A42.0 TDI quattro 2013-2015 Twist
Audi A42.0 TFSI 2013-2015 Twist
Audi A42.0 TFSI quattro 2013-2015 Twist
Audi A51.8 TFSI 2007-2017 Twist
Audi A52.0 TDI 2013-2020 Twist
Audi A52.0 TDI quattro 2013-2020 Twist
Audi A52.0 TFSI 2013-2020 Twist
Audi A52.0 TFSI quattro 2013-2020 Twist
Audi A53.0 TDI quattro 2016-2020 Twist
Audi A535 TDI 2017-2020 Twist
Audi A540 TDI 2016-2020 Twist
Audi A540 TDI quattro 2016-2020 Twist
Audi A550 TDI quattro 2017-2020 Twist
Audi A6 1.8 TFSI 2015-2018 Twist
Audi A6 2.0 TDI 2012-2018 Twist
Audi A6 2.0 TDI quattro 2015-2018 Twist
Audi A6 2.0 TFSI 2014-2018 Twist
Audi A6 2.0 TFSI quattro 2014-2018 Twist
Audi A6 3.0 TDI 2014-2018 Twist
Audi A6 3.0 TDI quattro 2014-2018 Twist
Audi A7 1.8 TFSI 2015-2018 Twist
Audi A7 2.0 TFSI quattro 2015-2018 Twist
Audi A7 3.0 TDI 2014-2018 Twist
Audi A7 3.0 TDI quattro 2014-2018 Twist
Audi A82.0 TFSI quattro 2016, 2018 Twist
Audi A850 TDI Mild Hybrid quattro 2017, 2019 Twist
Audi A855 TFSI Mild Hybrid quattro 2018-2020 Twist
Audi Q21.5 TSI 2017-2021 Knob
Audi Q21.6 TDI 2016, 2018 Twist
Audi Q22.0 TDI quattro 2016-2020 Twist
VS7105 Issue 1 24/05/22
Original Language Version
© Jack Sealey Limited

Make Model Engine Type Year Fits
Audi Q3 1.5 TSI; F3 Sportback 2019 -2021 Knob
Audi Q3 2.0 TDI CLJA,CLLB 2012-2018 Twist
Audi Q3 2.0 TDI quattro 2014-2018 Twist
Audi Q3 2.0 TFSI 2015-2018 Twist
Audi Q3 2.0 TFSI quattro 2014-2018 Twist
Audi Q3 35 TDI 2018-2020 Twist
Audi Q3 35 TDI quattro 2018-2020 Twist
Audi Q3 40 TDI quattro 2018, 2020 Twist
Audi Q3 45 TFSI quattro 2018-2020 Twist
Audi Q52.0 TDI 2010-2020 Twist
Audi Q52.0 TDI quattro 2009-2018 Twist
Audi Q52.0 TFSI quattro 2010-2017 Twist
Audi Q7 2.0 TFSI quattro, except 2019 2015-2020 Twist
Audi Q7 3.0 TDI e-tron quattro, excpet 2017 2015-2018 Twist
Audi Q7 3.0 TDI quattro 2015-2019 Twist
Audi Q7 SQ7 TDI quattro, except 2018 2016-2019 Twist
Audi Q845 TDI Mild Hybrid quattro 2018-2020 Twist
Audi Q850 TDI Mild Hybrid quattro 2018-2019 Twist
Audi Q855 TFSI Mild Hybrid quattro 2018, 2020 Twist
Audi TT 1.8 TFSI 2015-2018 Twist
Audi TT 2.0 TDI 2014-2020 Twist
Audi TT 2.0 TDI quattro 2018-2020 Twist
Audi TT 2.0 TFSI 2014-2020 Twist
Audi TT 2.0 TFSI quattro 2014-2020 Twist
Seat Alhambra 2.0 TDI 4Drive 2015-2020 Twist
Seat Alhambra 2.0 TDI, except 2013 2011-2020 Twist
Seat Alhambra 2.0 TSI, except 2017 2016-2020 Twist
Seat Arona 1.5 TSI 2018-2021 Knob
Seat Arona 1.6 TDI 2017-2021 Twist
Seat Ateca 1.5 TSI 2016-2021 Knob
Seat Ateca 1.6 TDI 2016-2020 Twist
Seat Ateca 2.0 TDI 2016-2020 Twist
Seat Ateca 2.0 TDI 4Drive 2016-2020 Twist
Seat Ibiza 1.4 TDI 2015-2016 Twist
Seat Ibiza 1.5 TSI 2018-2021 Knob
Seat Ibiza 1.8 TSI Cupra 2015-2016 Twist
Seat Leon 1.5 TSI 2017-2021 Knob
Seat Leon 1.6 TDI 2012-2020 Twist
Seat Leon 1.6 TDI 4Drive 2014-2020 Twist
Seat Leon 1.8 TSI, except 2014 2013-2020 Twist
Seat Leon 2.0 Cupra 2013-2020 Twist
Seat Leon 2.0 TDI 2013-2020 Twist
Seat Leon 2.0 TDI 4Drive 2014-2020 Twist
Seat Tarraco 1.5 TSI 2019-2021 Knob
Seat Toledo 1.4 TDI, except 2017 2015-2018 Twist
Seat Toledo 1.6 TDI 2015-2019 Twist
Skoda Fabia 1.4 TDI 2014-2020 Twist
Skoda Kamiq 1.5 TSI 2019-2021 Knob
Skoda Kamiq 1.5 TSI ACT 2019-2021 Knob
Skoda Kamiq 1.6 TDI 2019-2021 Twist
Skoda Karoq 1.5 TSI 2019-2021 Knob
Skoda Karoq 1.5 TSI ACT 2017-2021 Knob
Skoda Karoq 2.0 TDI 2017-2021 Twist
VS7105 Issue 1 24/05/22
Original Language Version
© Jack Sealey Limited

Make Model Engine Type Year Fits
Skoda Karoq 2.0 TDI 4x4 2017-2021 Twist
Skoda Kodiaq 1.5 TSI 2019-2021 Knob
Skoda Kodiaq 1.5 TSI ACT 2018-2021 Knob
Skoda Kodiaq 2.0 RS Bi-TDI 4x4 2018-2020 Twist
Skoda Kodiaq 2.0 TDI 2016-2020 Twist
Skoda Kodiaq 2.0 TSI 4x4 2016-2019 Twist
Skoda Octavia 1.5 TGI CNG 2018-2021 Knob
Skoda Octavia 1.5 TSI 2017-2021 Knob
Skoda Octavia 1.5 TSI 2019-2021 Knob
Skoda Octavia 1.5 TSI ACT 2018-2020 Knob
Skoda Octavia 1.6 TDI 2012-2020 Twist
Skoda Octavia 2.0 TDI 2012-2020 Twist
Skoda Octavia 2.0 TDI / TDI RS 4x4 2014-2020 Twist
Skoda Octavia 2.0 TDI RS 2013-2020 Twist
Skoda Octavia 2.0 TSI RS 2013-2020 Twist
Skoda Rapid 1.4 TDI 2015-2020 Twist
Skoda Rapid 1.6 TDI 2015-2020 Twist
Skoda Scala 1.5 TSI ACT 2019-2021 Knob
Skoda Scala 1.6 TDI 2019-2021 Twist
Skoda Superb 1.5 TSI 3V 2015-2021 Knob
Skoda Superb 1.5 TSI ACT 2018-2021 Knob
Skoda Superb 1.8 TSI 2015-2020 Twist
Skoda Superb 2.0 TDI 2015-2020 Twist
Skoda Superb 2.0 TSI 2015-2020 Twist
Skoda Yeti 2.0 TDI, except 2013 CU_, DF_ 2009-2017 Twist
VW Amarok 3.0 TDI 4motion 2016-2020 Twist
VW Amarok 3.0 TDI, except 2019 2016-2020 Twist
VW Arteon 1.5 TSI 2017-2021 Knob
VW Arteon 2.0 TDI 2017-2019 Twist
VW Arteon 2.0 TDI 4motion 2018-2020 Twist
VW Arteon 2.0 TSI 2018, 2020 Twist
VW Arteon 2.0 TSI 4motion, except 2019 2017-2020 Twist
VW Atlas 2.0 TSI 2018-2021 Twist
VW Beetle 2.0 TDI; CU_, CVCA, DELA 2014-2018 Twist
VW Beetle 2.0 TSI; CPLA;CPPA 2013-2019 Twist
VW Caddy 2.0 TDI 2015-2020 Twist
VW CC 2.0 TDI 2015-2016 Twist
VW Crafter 2.0 TDI 2016-2020 Twist
VW Crafter 2.0 TDI RWD 2017-2020 Twist
VW Golf 1.5 TSI 2020-2020 Knob
VW Golf 1.5 TSI; Sportvan 2014-2020 Knob
VW Golf 1.6 TDI 2012-2020 Twist
VW Golf 2.0 GTD, except 2014 2013-2020 Twist
VW Golf 2.0 GTI 2013-2020 Twist
VW Golf 2.0 GTI Clubsport S 2016-2020 Twist
VW Golf 2.0 GTI Clubsport, except 2018 2017-2020 Twist
VW Golf 2.0 GTI TCR 2019-2019 Twist
VW Golf 2.0 R 4motion 2013-2020 Twist
VW Golf 2.0 TDI 2012-2020 Twist
VW Golf MK VII 1.5 TSI 2017-2021 Knob
VW Jetta 1.8 TSI, except 2016 2015-2020 Twist
VW Jetta 2.0 TDI; CUUB;CVCA;DELA;DGMA 2014-2020 Twist
VW Jetta 2.0 TSI; CPLA;CPPA 2013-2016 Twist
VS7105 Issue 1 24/05/22
Original Language Version
© Jack Sealey Limited

Make Model Engine Type Year Fits
VW Passat 1.6 TDI 2014-2020 Twist
VW Passat 1.8 TSI 2015-2020 Twist
VW Passat 2.0 TDI 2014-2020 Twist
VW Passat 2.0 TSI 2015-2020 Twist
VW Polo 1.4 TDI 2014-2020 Twist
VW Polo 1.5 TSI 2018-2021 Knob
VW Polo 1.6 TDI 2017-2020 Twist
VW Polo 1.8 GTI 2014-2019 Twist
VW Polo 2.0 GTI, except 2018 2017-2020 Twist
VW Scirocco 2.0 TDI 2013-2017 Twist
VW Scirocco 2.0 TSI 2013-2017 Twist
VW Sharan 2.0 TDI 4motion 2015-2020 Twist
VW Sharan 2.0 TDI, except 2012 2011-2020 Twist
VW Sharan 2.0 TSI 2016-2020 Twist
VW T-Cross 1.5 TSI 2019-2021 Knob
VW Tiguan 1.5 TSI 2016-2021 Knob
VW Tiguan 1.6 TDI 2016-2020 Twist
VW Tiguan 2.0 TDI 2015-2020 Twist
VW Tiguan 2.0 TSI 4motion 2016-2019 Twist
VW Tiguan Allspace 1.5 TSI 2018-2021 Knob
VW Tiguan Allspace 2.0 TDI 2017-2020 Twist
VW Tiguan Allspace 2.0 TSI 2018-2020 Twist
VW Touareg 3.0 TDI 4motion 2018-2020 Twist
VW Touran 1.6 TDI, excpet 2019 2015-2020 Twist
VW Touran 1.8 TSI, except 2016 2015-2020 Twist
VW Touran 2.0 TDI 2015-2020 Twist
VW Transporter 2.0 TDI 2015-2020 Twist
VW Transporter 2.0 TSI 2011-2020 Twist
VW T-Roc 1.5 TSI 2018-2021 Knob
VW T-Roc 2.0 TDI 2019-2020 Twist
VW T-Roc 2.0 TDI 4motion, except 2018 2017-2020 Twist
VW T-Roc 2.0 TSI 4motion, except 2019 2017-2020 Twist
VS7105 Issue 1 24/05/22
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Parts support is available for this product. Please email [e-mail] or telephone [phone]
