Sealey VS721.V2 User manual

BUSH INSTALLATION/REMOVAL KIT - VAUXHALL
MODEL NO: VS721.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
I
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURYAND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this tool.
WARNING! Familiarise yourself with the specific applications and limitations of this tool, as well as any potential hazards.
9This tool should be used in conjunction with inspection maintenance procedures recommended in the vehicle manufacturer’s manual.
9Ensure that this tool is the correct tool for the task.
9Ensure that the vehicle is properly supported with axle stands before working under the vehicle.
9Ensure that there is adequate lighting prior to using this tool.
9A range of inspection lamps are available from your local Sealey stockist.
9Keep children and unauthorised persons away from the working area.
9Keep the threaded rod well lubricated during operation to ease removal of bushes.
8DO NOT use this tool for any purpose other than that for which it is designed.
8DO NOT use air tools with this tool.
8DO NOT use this tool if any parts are missing or damaged, as this may cause failure and/or personal injury.
8DO NOT use this tool when you are tired, or under the influence of alcohol, drugs or intoxicating medication.
9When not in use, store in a safe, dry location.
2. INTRODUCTION
Intended for the in-situ removal/installation of Vauxhall/Opel Vectra (95 -02) upper and lower rear trailing arm bushes. Bushes are quickly
pressed in or out with tool and a 19mm ratchet wrench (not included).

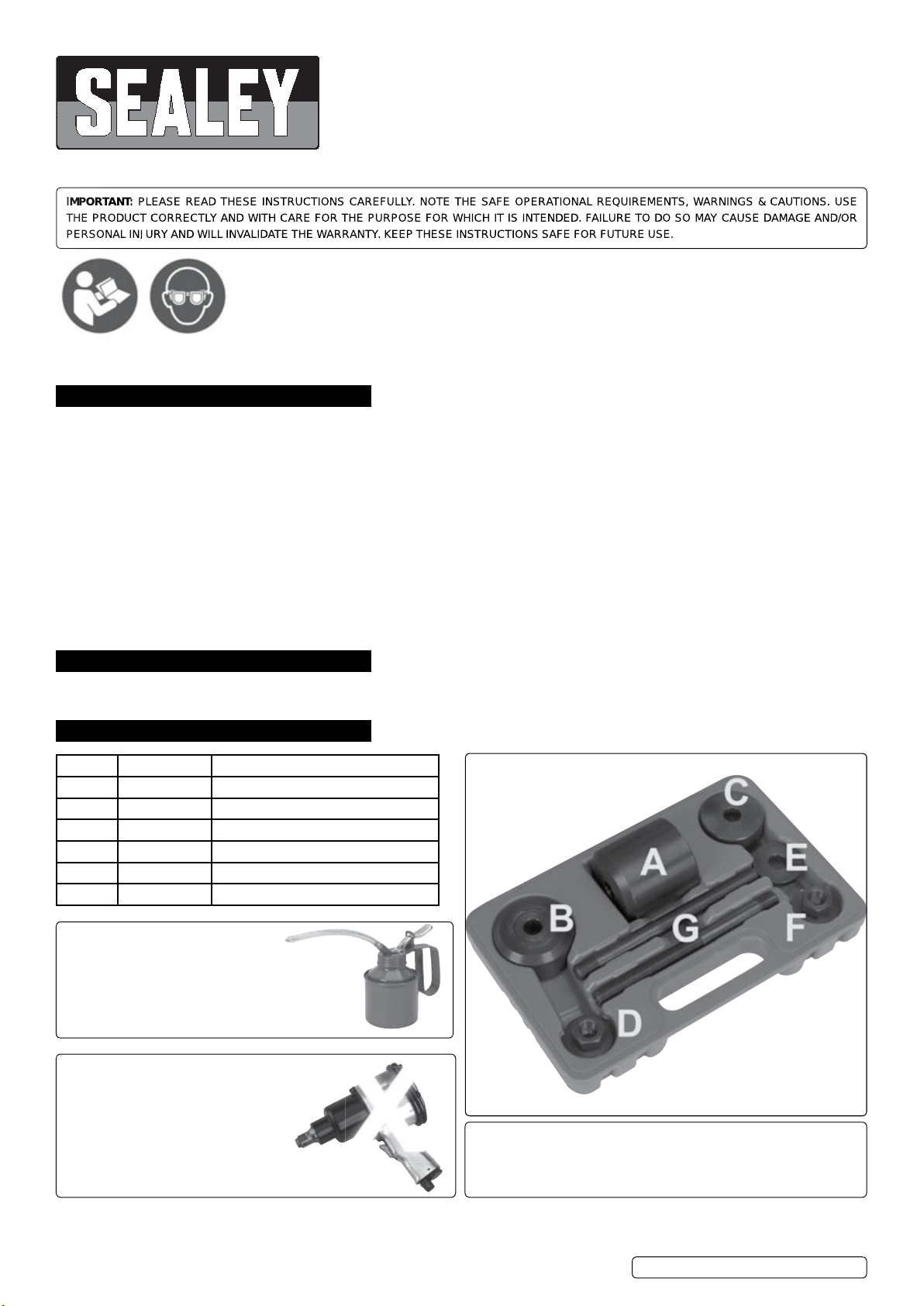

3. CONTENTS
Refer to
instruction
manual
Wear eye
protection
Original Language Version
© Jack Sealey Limited
Item Part no. Description
A VS721.V2-02 Pressed support sleeve 55.5 x 54mm
B VS721.V2-01 Pressed support sleeve 24.5 x 45mm
C VS721.V2-03 Pressed support sleeve 20 x 45mm
D& F VS721.V2-06 Screw nut
E VS721.02-08 Thick spacer
G VS721.02-04 Threaded rod
ALWAYS KEEP THREADED ROD
WELL LUBRICATED. x
DO NOT USE AIR TOOLS. Threaded rod maximum load 150Nm. Exceeding this load will
shorten the life of the threaded rod. The threaded rod is
considered to be a consumable item and is NOT covered under
warranty.
VS721.V2 | Issue:3 (H,F) 12/02/19

Original Language Version
© Jack Sealey Limited
4. OPERATION
4.1. REMOVING A BUSH (fig’s 1 & 2)
4.1.1. Screw the nut with washer attached (D) onto the short threaded portion of threaded rod (G). Slide the pushing cup (C) onto the threaded
rod in the orientation shown above in fig.1.
4.1.2. Push the threaded rod through the centre of the bush to be removed until the pushing cup bears against the bush.
4.1.3. Hold the assembly in place and slide the large static cup (A) onto the rod until it bears against the surface of the suspension arm as shown
above in fig.1.
4.1.4. Slide washer (E) onto the rod and retain the whole assembly by screwing the nut with washer (F) onto the threaded rod.
4.1.5. Hold nut D with a spanner and then place a second spanner over the nut with washer attached (F). This should preferably be a ratchet ring
spanner for ease of use and maximum accessibility. As the nut is turned extraction will commence as indicated in fig.2. Some considerable
pressure may need to be applied to initiate the first movement of the bush.As the bush leaves the suspension arm ensure that the assembly is
supported as it is likely to fall away from the suspension arm once the bush becomes loose.
4.1.6. Disassemble the extractor and dispose of the old bush in compliance with local authority waste disposal requirements.
4.2. INSERTING A BUSH (fig’s 3 & 4)
4.2.1. Screw the nut with washer attached (D) onto the short threaded portion of threaded rod (G). Slide the small static cup (B) onto the
threaded rod in the orientation shown above in fig.3.
4.2.2. Hold the assembly against the suspension arm so that the static cup (B) is aligned with the hole in the arm with the threaded rod sticking
through to the other side.
4.2.3. Slide the new bush onto the threaded rod and align it with the hole in the arm. Place the pushing cup (C) up against the bush and slide on the
washer (E). Retain the whole assembly by screwing on the nut with washer (F). Before commencing insertion ensure that the assembly is
aligned with the hole in the suspension arm as shown in fig.3.
4.2.4. Hold nut D with a spanner and then place a second spanner over the nut with washer attached (F). This should preferably be a ratchet ring
spanner for ease of use and maximum accessibility. As the nut is turned, insertion will commence as indicated in fig.4. Take care not to drive
the bush too far into the suspension arm. Cease insertion when the bush is fully inserted into the arm as shown in fig.4.
4.2.5. Disassemble the extractor and place the separate components in the case provided.
NOTE: A spare rod (G) is supplied in case of thread damage.
fig.2
fig.3fig.4
fig.1
VS721.V2 | Issue:3 (H,F) 12/02/19

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
