Sealey CRM251 User manual

INSTRUCTIONS FOR
CABLE REEL SYSTEM RETRACTABLE 25mtr
1 X 230V SOCKET.
MODEL NO: CRM251
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. Electrical Safety
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey dealer.
If used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
9Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse - see
fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
qualied electrician.
9 This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.

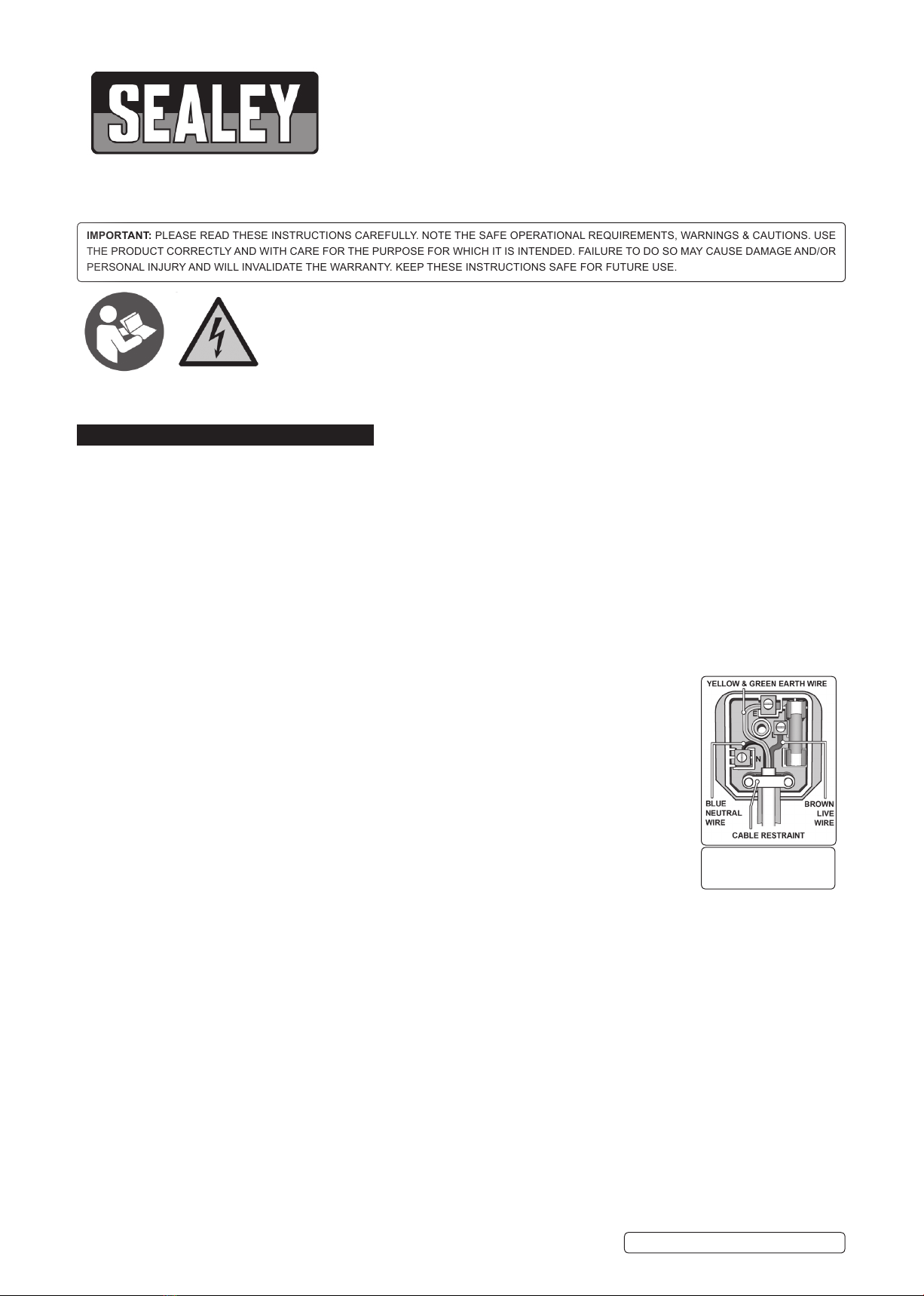

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. General Safety
Familiarise yourself with the application and limitations of the reel, as well as the specific hazards.
WARNING! Isolate the reel from the electrical supply before connecting or disconnecting
equipment, servicing or performing any maintenance.
9Maintain the reel in good condition (use an authorised service agent).
9Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
9Locate and fix the reel in a suitable work area. DO NOT position in direct sunlight, or in areas of extreme temperature.
9Keep extended cable away from heat, oil and sharp edges. Check cable for wear before each use and ensure all connections are
secure.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9Keep children and unauthorised persons away from the work area.
8DO NOT allow the extended cable to trail through liquids.
8DO NOT trail the extended cable where it is likely to be a hazard to others.
8DO NOT allow vehicles or wheeled equipment to pass over the extended cable.
8DO NOT use the reel for any purpose other than that for which it is designed.
8DO NOT operate the reel when you are tired, under the influence of alcohol, drugs or intoxicating medication.
9When not in use, switch off the electrical supply and retract cable into case. Store in a safe, dry location
WARNING! DO NOT dismantle the reel casing, or attempt to remove the screws on the sides. To do so may result in damage to the
reel and/or personal injury and will invalidate the warranty. Internal maintenance, which will require the opening of the casing, must
only be undertaken by an authorised service agent.
WARNING! Observe the wound and unwound capacities in the specifications below.
Recommended fuse rating
13 Amp
CRM251 | Issue 2 20/07/17
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Electrical
shock
hazard

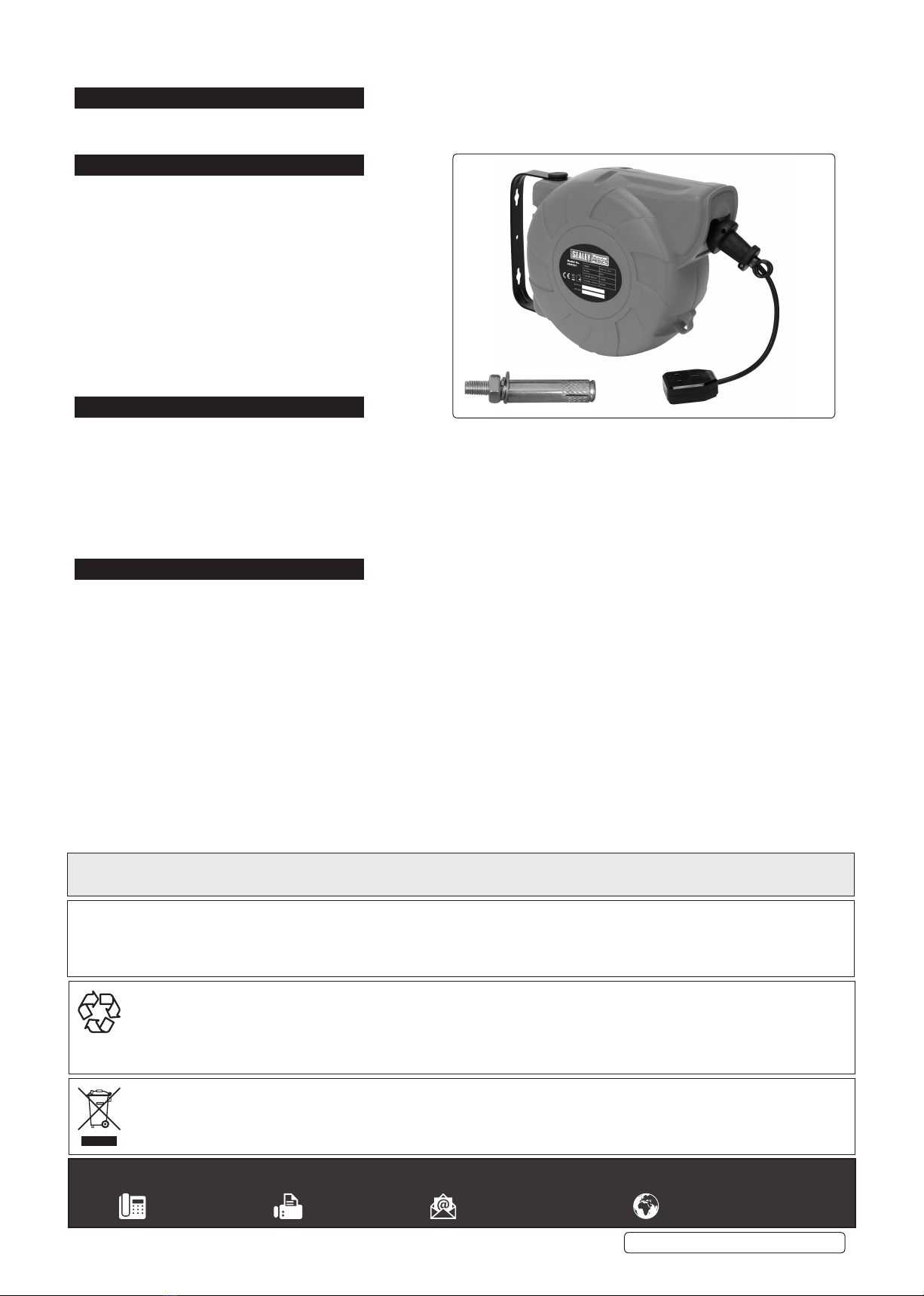

2. INTRODUCTION
Durable composite housing operated by simple pull and release action. Features integral manual thermal trip switch to prevent overload and
LED power indicator. Supplied with single socket outlet and BS approved plug.
3. SPECIFICATION
Model No:................................................................. CRM251
Voltage: ..........................................................................230V
Cable Size:............................................................ 3 x 1.5mm
Cable Length:................................................................25mtr
Thermal Trip:.................................................................... Yes
Capacity Wound:.........................................................1000W
Capacity Unwound: .....................................................3000W
4. MOUNTING
4.1. Fix the cable reel in an appropriate position, ensuring that the wall and the mounting bolts will adequately support the weight of the
reel and the tension of the cable, as it is pulled from the reel. (Fixings are dependent on wall type check fixings are suitable before
use.)
4.2. Using the bracket as a template, mark the position on the wall where the cable reel is to be mounted. Using a suitable drill bit, drill two
10mm diameter holes in the wall of sufficient depth to take the rawl bolts supplied.
4.3. Insert the two rawl bolts into the holes, and mount the bracket onto the studs and loosely secure with the flat washers, spring washers
and the nuts supplied. Tighten the nuts evenly until the bracket and reel are secure.
4.4. Ensure that the cable can be pulled out to, and reeled back from, work sites without fouling on the sides of the cable entry.
5. OPERATION
5.1. EXTENDING THE CABLE.
5.1.1. As the cable is pulled out from the reel, the action of the ratchet mechanism can be heard alternating between a clicking sound
and a short silent period. If the tension on the cable is released whilst the ratchet is clicking, the cable will remain extended. If the
tension on the cable is released during the silent period, the cable will retract. To stop the cable retracting, pull it out again until the
ratchet starts clicking, and then release it.
5.2. RETRACTING THE CABLE.
5.2.1. To release the cable and allow it to automatically rewind, pull the cable out from the locked position until the clicking stops and then
release the tension on the cable. DO NOT let go of the cable, but guide it back smoothly until the socket is back in the reel.
WARNING! The reel tension is factory set, if any adjustment is required, contact an authorised service agent. DO NOT remove any
of the cover screws.
5.3. THERMAL CUT-OUT.
5.3.1. In the event of the reel being overloaded, the cut-out switch will trip. If this occurs, disconnect the reel from the supply and then
determine and rectify the cause of the overload.
5.3.2. Reconnect to the supply and press the cut-out reset button - after allowing two to three minutes for cooling down.
CRM251 | Issue 2 20/07/17
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
