Sealey AP47PWS User manual

4 DRAWER & CUPBOARD 1210MM MOBILE
WORKSTATION
MODEL NO: AP47PWS
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
AP47PWS Issue 1 11/03/2020
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
1. SAFETY
9Only use on firm, level, unobstructed surfaces which are capable of supporting the trolley.
8DO NOT overload.
9Apply the brakes when stationary.
8DO NOT stand/ride on the trolley, climb on open drawers or allow others to do so.
9Replace or repair damaged parts. Use only recommended parts. Unauthorised parts may be dangerous and will invalidate the warranty.
9Two persons maybe required to assemble the unit.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
2. INTRODUCTION
Durable mobile workstation with four drawers and cupboard. Sheet metal drawers with structural foam fronts run on ball bearing drawer slide.
Recessed side and rear panels allow for storage baskets to be tted where necessary. Supplied with four storage baskets. Four heavy-duty
5” composite castors with rubber over mould, two xed and two swivel with brake. Structural foam handle with tool storage for quick access to
frequently used tools. Cupboard door tted with barrel lock and supplied with two keys.
3. SPECIFICATION
MODEL No:........................................................... AP47PWS
Overall Size (W x D x H): ....................1210 x 700 x 1000mm
X-Large Drawer (x4)(W x D x H): ............120 x 370 x 480mm
Cupboard (W x D x H):............................610 x 410 x 490mm
4. CONTENTS

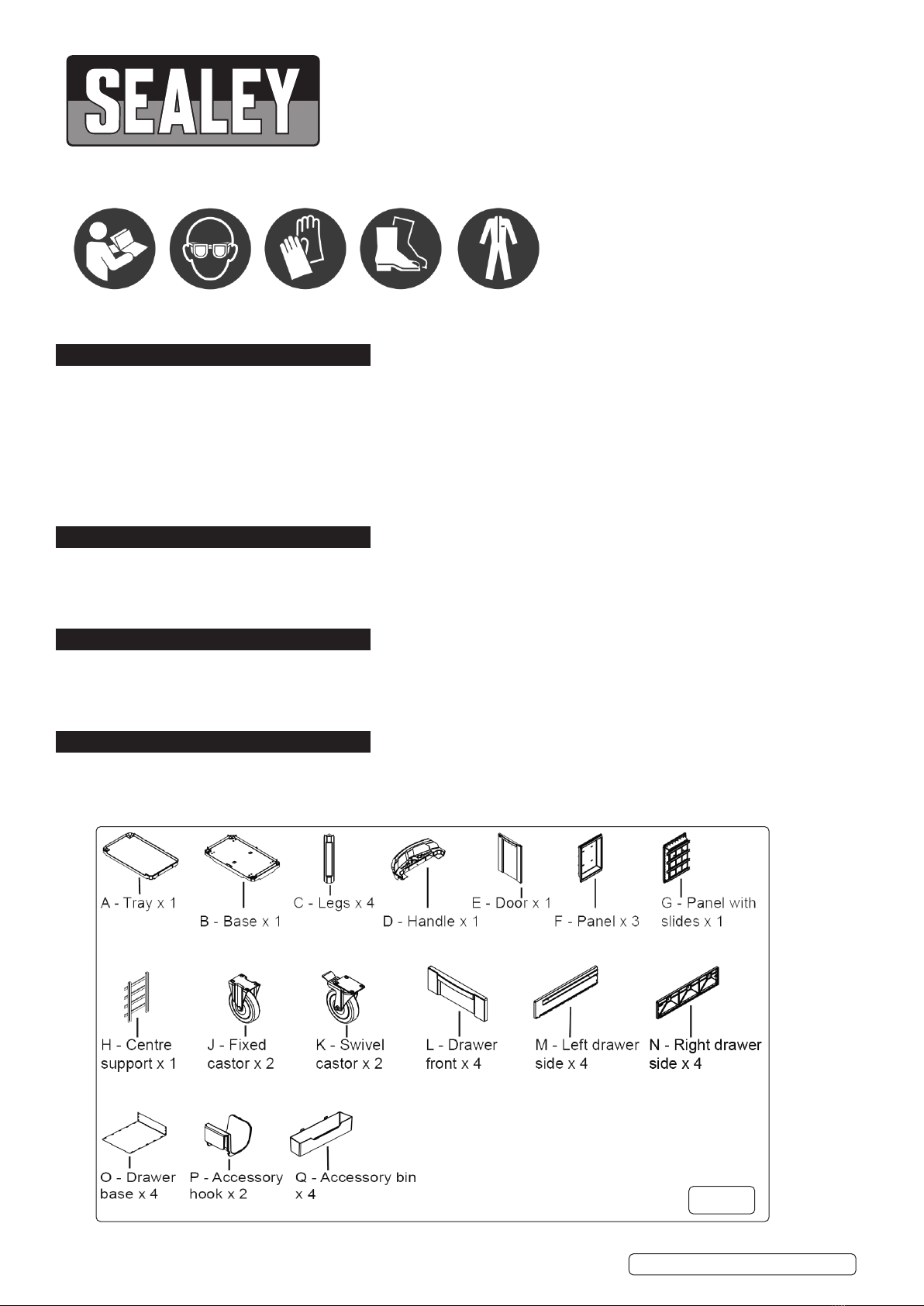

4.1. Unpack all parts and check against parts diagram below.
4.2. Tools required: 13mm A/F spanner, No. 2 Cross head screwdriver.
g.1

Original Language Version
© Jack Sealey Limited
5. ASSEMBLY
NOTE: Take care when turning the unit on to its top surface and place on a surface that will not damage the unit.
5.1. Place handle (g.3.D) upside down and align plugs into tray (g.3.A) and press together (g.3). Insert legs (g.4.C) into tray (g.4.A)
using 4 screws (g.2.AA). Attach handle (g.3.D) using three screws (g.2.DD) (g.4).
NOTE: DO NOT overtighten xings.
5.2. Insert panels (g.5.F) into rear and side of assembly (g.5). Insert panel with slides (g.5.G) into side of assembly (at handle end).
NOTE: Panel t at this stage will be loose.
NOTE: Ensure full engagement between panel g.3.F and g.3.G into tray g.5.A.
NOTE: Slide overhang on side panel g.1.G to face workstation opening (g.5).
5.3. Install centre support (g.6.H) with drawer slides facing matching slides in end panel (g.6.G) (g.6). Slide overhang to face
workstation opening. Install the pin of door (g.6.E) into tray (g.6.A) (g.6).
5.4. Install castors (g1.J and g.1.K) to base (g.1.B) using 12 nuts and bolts (g2.BB, g.2.CC) (g.7).
NOTE: Assemble swivel castors in marked locations (g.7).
g.2
g.3
g.5
g.6 g.7
g.4
AP47PWS Issue 1 11/03/2020

5.5. Assemble the base (g.8.B) onto the legs (g.8.C) using four nuts (g.8.CC) and four bolts (g.8.BB). (g.8). Align drawer pin pivot
(g.8.1) and centre support (g.8.2).
5.6. Insert drawer base (g.9.O) into left hand drawer side (g.9.M) (g.9). Push rmly against a hard surface to snap drawer base into
drawer side.
NOTE: Follow indicator on inside of drawer front for drawer direction and drawer side (R/L).
NOTE: Ensure drawer side is fully engaged with the drawer base.
5.7. Insert the drawer base (g10.O) into the right hand drawer side (g.10.N). Push rmly against a hard surface so that the base xes into
the drawer side (g.10).
5.8. Take previously assembled drawer and attach to drawer front (g.11.M). Attach using screws (g.11.EE) (g.11).
NOTE: Ensure all location clips are fully engaged from drawer sides to drawer front.
5.9. To install the drawers (g.12, g.13), extend the drawer slides (g.12.1) and insert the brackets (g.12.2) on each side of the drawer
into the slots on the slides ensuring correct alignment. Close the drawer to set slides in position.
5.10. To remove drawers (g.13), fully open empty drawer. Push down on the right release lever while pushing up the left release lever. Pull
drawer outward while holding both levers until drawer is released.
g.8
g.9
g.10
g.11
g.12
g.13
AP47PWS Issue 1 11/03/2020
Original Language Version
© Jack Sealey Limited

5.11. Clip accessory hooks (g.14.P) rmly into tray (g.14.A). Hang accessory bins (g.14.Q) on any panel (g.1.F, g.1.G). (g.14).
6. MAINTENANCE
6.1. Ensure castors are free to rotate at all times, lubricate as required.
6.2. Ensure drawers run smoothly, lubricate as required.
6.3. Wipe down surfaces with a damp cloth.
g.14
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
