Sealey X136 User manual

CROSS BEAM ADAPTOR 2TONNE
MODEL NO: X136
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9Ensure that the cross beam adaptor is in good working order. Take action for immediate repair or replacement of damaged parts. Use
genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
9Keep work area clean and tidy and free from unrelated materials.
9Ensure the vehicle handbrake is engaged, engine/motor is switched off and transmission is in 1st or reverse gear.
9Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
9Only place the cross beam adaptor under those lifting points recommended by the vehicle manufacturer (see vehicle handbook).
9Ensure there are no passengers in the vehicle.
9Ensure all non-essential persons keep a safe distance whilst the the cross beam adaptor is in use.
▲DANGER: Use the the cross beam adaptor for lifting only, NOT for supporting the lifted load.
9Use suitable capacity axle stands under the vehicle before proceeding with any task.
9Ensure there are no persons or obstructions beneath the vehicle before lowering.
8DO NOT allow untrained persons to operate the cross beam adaptor.
8DO NOT exceed the rated capacity of the cross beam adaptor.
8DO NOT work under the vehicle until axle stands have been correctly positioned.
8DO NOT use the cross beam adaptor for purposes other than that for which it is designed.
8DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substance.
9When not in use store the cross beam adaptor in a safe, dry, childproof area.
WARNING! It is very dangerous to go under a vehicle which is supported by a jack even if additional supports are used. DO NOT go under a
vehicle unless it is supported by adequately rated axle stands.
2. INTRODUCTION
Provides extra safety when locating awkward jacking points. Ideal for front wheel drive vehicles. Suitable for jacks with 31-33mm saddle spigot
pin.
3. SPECIFICATION
Model no ........................................................................X136
Applications........... 3000CXD, 3003CXQ, 3010CX, 3012CXD
Max. width.................................................................. 820mm
Min. width................................................................... 580mm
Weight....................................................................... 12.90kg
Screw adjustment......................................................... 75mm
4. CONTENTS
Refer to
instruction
manual
Wear safety
footwear
X136 | Issue:2 (H,F) 03/09/18
Original Language Version
© Jack Sealey Limited

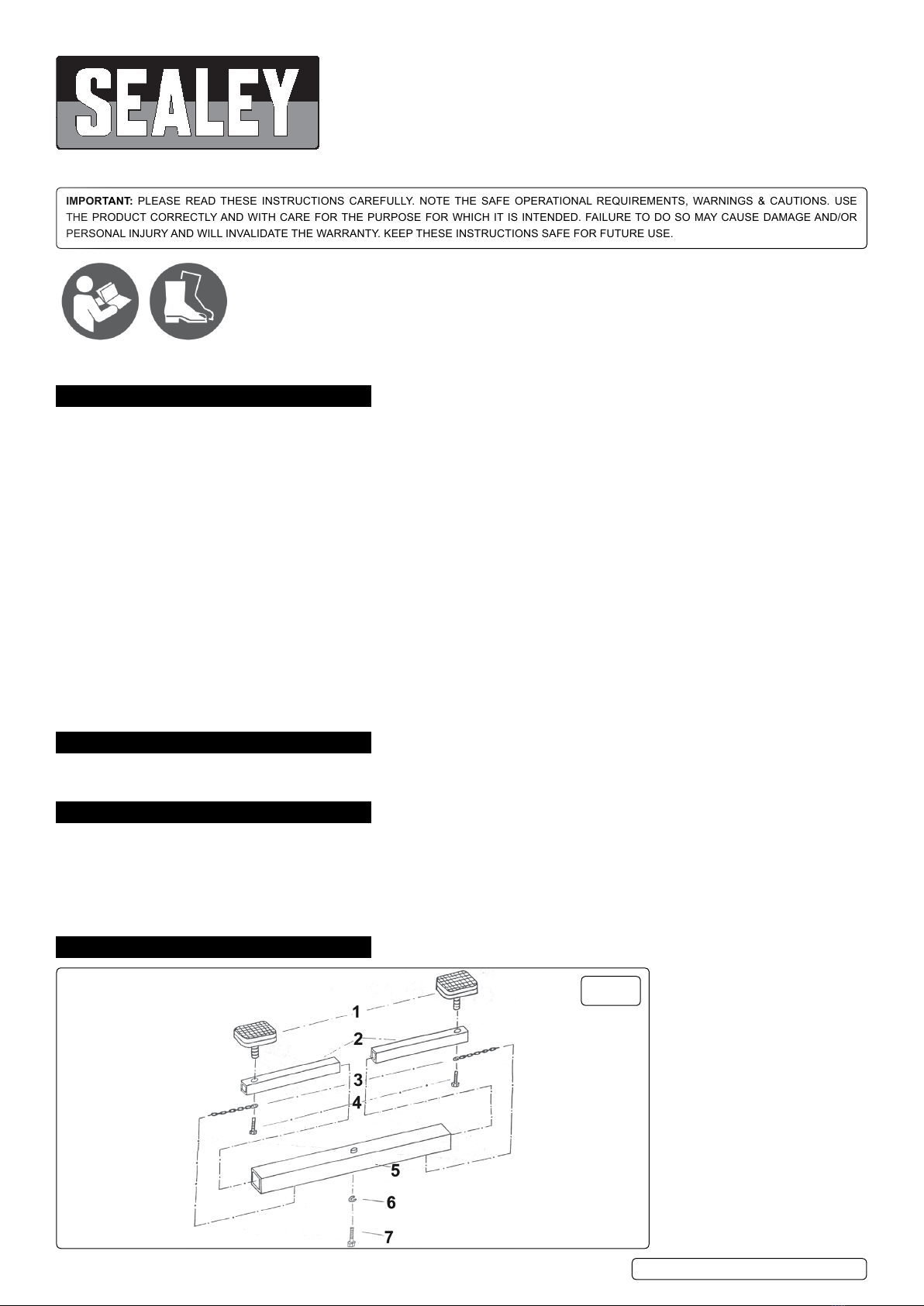

1 Adaptor
2 Expansion beam
3 Chain
4 Bolt
5 Fixed beam
6 Washer
7 Bolt
fig.1

Original Language Version
© Jack Sealey Limited
5. ASSEMBLY
Note: Numbers shown in brackets refer to item numbers on fig.1.
5.1. ASSEMBLY
5.1.1. Slide the expansion beams (2) into the ends of the fixed beam (5), ensuring the threaded holes protrude from the fixed beam.
5.1.2. Screw in the adaptors (1) and secure the chains (3) using the bolts (4).
5.2. OPERATION
5.2.1. Remove the saddle from the jack.
5.2.2. Fit the cross beam adaptor to the jack. Secure using the bolt (7) and washer (6).
Note: The securing bolt can only be used on models 2080CX and 3080CX.
5.2.3. Adjust the position of the adaptors to ensure they are under the lifting the points recommended by the vehicle manufacturer (see vehicle
handbook), before commencing the jacking operation.
X136 | Issue:2 (H,F) 03/09/18
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Parts support is available for this product. Please email [e-mail] or telephone [phone]
