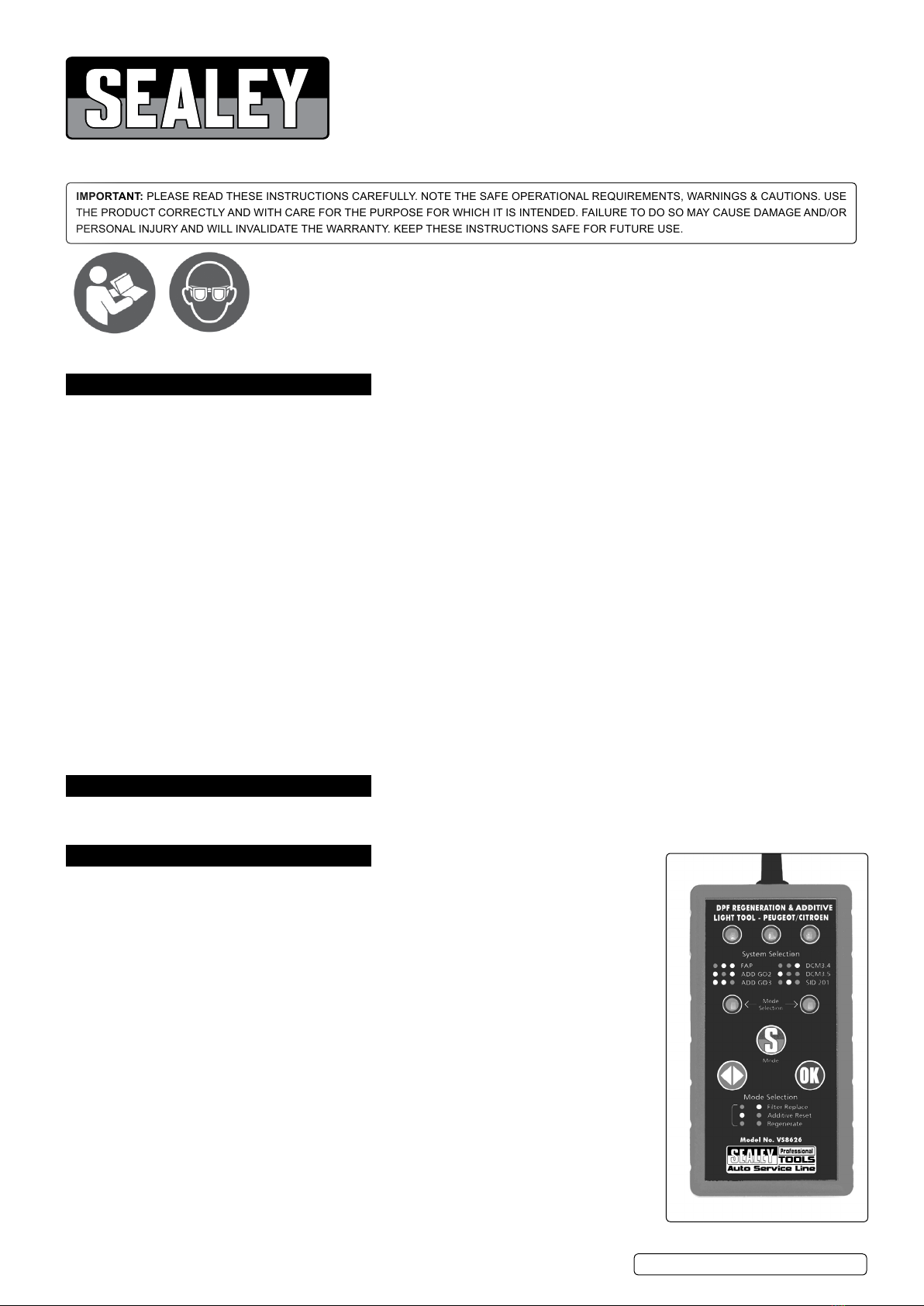

Sealey VS8626 User manual

DPF REGENERATION & ADDITIVE LIGHT
TOOL - PEUGEOT/CITROEN
MODEL NO: VS8626
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are strictly adhered to.
8DO NOT use the tool if it, or any attachment, is damaged.
9Maintain the tool in a good, clean condition for the best and safest performance.
9If required, ensure that the vehicle to be worked on is adequately supported with axle stands or ramps and is chocked.
9Put transmission in PARK (automatic transmission) or NEUTRAL (manual transmission) and make sure the parking brake is
engaged.
9Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
9Wear suitable clothing to avoid snagging. Do not wear jewellery and tie back long hair.
WARNING! Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs. These
components create hazardous voltages when the engine is running.
8DO NOT connect or disconnect any test equipment with the ignition on, or the engine running.
9 Keepareextinguishernearbythatissuitableforpetrol/chemical/electricalres.
9Account for all tools and parts being used and do not leave any in the engine bay.
9Keep the tool dry, clean and free from oil, water and grease. Use a mild detergent on a clean cloth to clean the
outside of the tool.
9 Ensurethatthevehicleisparkedoutside,onanon-ammablesurfaceandawayfromanycombustibles.
WARNING! The exhaust system could reach temperatures above 300°C. Also exhaust gases are poisonous.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions to establish the current procedure and data. These
instructions are provided as a guide only.
WARNING! The warnings and instructions discussed in this manual cannot cover all possible conditions and situations that may
occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied
by the operator.
9When not in use, store the tool away in its box, in a cool, dry, safe, childproof location.
2. INTRODUCTION
Essential tool for extinguishing the Particulate Filter light after the filter has been replaced. Also resets the ELOYS additive after it has been
topped up and burns any particles that have clogged the filters (regenerate). Powered by connection to the vehicle.
3. FEATURES
The VS8626 tool:
3.1. Is compatible with the latest CAN vehicles.
3.2. Enables Fuel Additive functions for Replacing Filters, resetting
3.3. Additive Reset lights and performing the Regenerate Process.
ThenewVS8626Peugeot/CitroenParticulatetoolhasbeendesignedtoextinguishtheParticulateFilter
Lightafterthelterhasbeenreplaced,re-settheELOYSadditivelightafterithasbeentoppedupandalso
burnanyparticlesthathavecloggedthelter(regenerate).
VS8626Issue3(H5F)04/04/18
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear Eye
Protection

4. OPERATION
4.1. Filter Replace –This is a light on the dashboard that is illuminated when the lter is clogged and needs changing, or
potentially regenerating.
4.2. Additive Reset – This is a light on the dashboard that is illuminated when the fuel additive is empty or low and needs relling.
4.3. Regenerate Filter – This will increase the engine speed to around 4000 RPM, which in turn will increase the temperature of
the exhaust gases; this causes the soot that has built up on the lter to be burnt o󰀨.
4.4. Vehicle Set-Up
4.4.1. Ensurethatthevehicleisparkedoutside,onanon-ammablesurfaceandawayfromanycombustibles(theexhaustsystemcould
reach temperatures above 300°C). That it’s engine is at working temperature, with at least a ¼ tank of fuel and that there are no
fault codes stored.
4.4.2. Ensurethatthevehicle’signitionisturnedo󰀨.
4.4.3. Connect the tool to the correct diagnostic socket on the vehicle, refer to the vehicle owner’s manual for it’s location.
4.4.4. Turn on the vehicle’s ignition.
Note: As part of the process, a clear codes message will be sent to the vehicle (any faults that are permanent on the vehicle will
 remainuntilthefaultisxed).
SystemSelectionfordi󰀨erent
Fuel Additive Systems.
System selection full
description.
Mode Selection for functions.
Function
Button
Mode
Button
OK
Button
VS8626Issue3(H5F)04/04/18
Original Language Version
© Jack Sealey Limited

4.5. Filter Replace
4.5.1. Press the Function button to select the appropriate system. (There is a
full list of systems on the rear of the tool).
4.5.2. Press Mode button to select correct type (Filter Replace).
4.5.3. Press the ‘OK’ button to perform the function.
4.5.4. Oncethefunctionhascompleted,theModeLEDwillashtoindicatea
successful reset.
4.5.5. Ifthefunctionisunsuccessful,the3SystemSelectionLEDswillash.
4.6. Additive Reset
4.6.1. Press the Function button to select the appropriate system. (There is a full
list of systems on the rear of the tool).
4.6.2. Press Mode button to select correct type (Additive Reset).
4.6.3. Press the ‘OK’ button to perform the function.
4.6.4. Oncethefunctionhascompleted,theModeLEDwillashtoindicatea
successful reset.
4.6.5. Ifthefunctionisunsuccessful,the3SystemSelectionLEDswillash.
4.6.6. Disconnecttester,openllercapformorethan5seconds,thenclose`
again.
4.7. Regenerate Filter
4.7.1. Start the vehicle’s engine and allow it to warm up.
4.7.2. Press the Function button to select the appropriate system. (There is a full
list of systems on the rear of the tool).
4.7.3. Press Mode button to select correct type (Regenerate Filter).
4.7.4. Press the ‘OK’ button to perform the function.
4.7.5. Oncethefunctionhascompleted,theModeLEDwillashtoindicatea
successful reset.
4.7.6. Ifthefunctionisunsuccessful,the3SystemSelectionLEDswillash.
4.7.7. Switchtheignitiono󰀨,unplugthetoolandturnignitionon.
NOTE: Regeneration takes around 15 mins in total (2 mins running at idle,
 8minsat4000rpmandthen5minsatidle).Ensurethatrear/exhaustarea
of the vehicle is kept clear of people for this period.
(See list at end of instructions)
Additive Reset
(See list at end of instructions)
Regenerate Filter
VS8626Issue3(H5F)04/04/18
Original Language Version
© Jack Sealey Limited
V
Filter Replace
(See list at end of instructions)

5. APPLICATION LIST
Make/Model Engine size System Engine Code Year
CITROEN
C3 PICASSO 1.6 PADDGO ALL CODES 08-11
C4 1.6 PADDGO ALL CODES 06-11
C3 PICASSO 1.6 PADDGO ALL CODES 06-11
C5 2.0 DELPHI DCM 3.4 FAP RHR 07-10
C5 2.0 ADDGO 2 RHS 00-04
C5 2.0 ADDGO 2 RHY 00-04
C5 2.0 ADDGO 2 RHZ 00-04
C5 2.2 MARELLI FAP 4HX 00-04
C5 2.0 MARELLI FAP RHR 00-04
C5 2.2 EDC16CP39 FAP 4HP 07-10
C5 2.2 EDC16CP39 FAP 4HR 07-10
C5 2.2 EDC16CP39 FAP 4HS 07-10
C5 2.2 EDC16CP39 FAP 4HT 07-10
C5 2.7 SIEMENS SID 201 FAP UHZ 07-10
C5 3.0 BOSCH EDC17CP11 09-10
C5 1.6 ADDGO 3 04-08
C6 2.2 EDC16CP39 FAP 4HP 07-10
C6 2.2 EDC16CP39 FAP 4HR 07-10
C6 2.2 EDC16CP39 FAP 4HS 07-10
C6 2.2 EDC16CP39 FAP 4HT 07-10
C6 2.7 SIEMENS SID 201 FAP UHZ 07-10
C6 3.0 BOSCH EDC17CP11 09-10
C6 2.2 MARELLI FAP 4HW 02-07
C8 1.6 ADDGO 3 06-08
BERLINGO 2.0 ADDGO 2 RHY 00-04
C-CROSSER 2.2 EDC16CP39 FAP 4HN 07-11
XSARA PICASSO 2.0 ADDGO 2 RHY 00-04
VS8626Issue3(H5F)04/04/18
Original Language Version
© Jack Sealey Limited

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Make/Model Engine size System Engine Code Year
PEUGEOT
207 1.6 PADDGO ALL CODES 09-11
307 2.0 DELPHI DCM 3.4 FAP RHF 07-10
307 2.0 DELPHI DCM 3.4 FAP RHL 07-10
307 2.0 DELPHI DCM 3.4 FAP RHR 07-10
307 2.0 ADDGO 2 00-04
307 1.6 ADDGO 3 05-07
308 2.0 DELPHI DCM 3.4 FAP RHF 07-11
308 2.0 DELPHI DCM 3.5 FAP RHH 07-11
308 2.0 DELPHI DCM 3.4 FAP RHL 07-11
308 2.0 DELPHI DCM 3.4 FAP RHR 07-11
308 1.6 PADDGO ALL CODES 08-11
406 2.2 MARELLI FAP 4HZ 00-04
407 2.0 DELPHI DCM 3.4 FAP RHF 07-11
407 2.0 DELPHI DCM 3.4 FAP RHL 07-11
407 2.0 DELPHI DCM 3.4 FAP RHR 07-11
407 2.2 EDC16CP39 FAP 4HP 07-11
407 2.2 EDC16CP39 FAP 4HR 07-11
407 2.2 EDC16CP39 FAP 4HS 07-11
407 2.2 EDC16CP39 FAP 4HT 07-11
407 2.7 SID201 FAP UHZ 07-11
407 3.0 BOSCH EDC17CP11 09-11
407 1.6 ADDGO 3 06-08
607 2.2 MARELLI FAP 4HX 99-04
806 2.0 ADDGO 2 RHY 00-04
807 2.0 MARELLI FAP 4HW 02-04
807 2.2 EDC16CP39 FAP 4HP 07-11
807 2.2 EDC16CP39 FAP 4HR 07-11
807 2.2 EDC16CP39 FAP 4HS 07-11
807 2.2 EDC16CP39 FAP 4HT 07-11
807 1.6 ADDGO 3 05-07
1007 1.6 PADDGO ALL CODES 04-09
3008 2.0 DELPHI DCM 3.5 FAP RHH/RHE 07-11
3008 1.6 PADDGO RHH/RHE 09-11
5008 2.0 DELPHI DCM 3.5 FAP RHH/RHE 09-11
4007 2.2 EDC16CP39 FAP 4HN 07-11
406 Coupe 2.2 MARELLI FAP 4HZ 00-04
Partner 2.0 ADDGO 2 RHY 00-04
