ASSEMBLY, OPERATING INSTRUCTIONS
AND PARTS LIST FOR
SIEArt, S
SUBURBAN TRACTOR
MODEL NO. 917.99400 - RECOIL STARTER
MODEL NO. 917.99410 - ELECTRIC STARTER
SEARS
ROEBUCK AND CO.
PART NO. 6547H
SEARS, ROEBUCK AND CO.-U.S.A.
SIMPSONS-SEARS LIMITED-CANADA
PRINTED IN U.S.A.
another free manual from www.searstractormanuals.com

TABLE OF CONTENTS
DESCRIPTION

PAGE
INTRODUCTION  
3
GENERAL INFORMATION  
3
OPTIONAL EQUIPMENT  
3
PARTS IDENTIFICATION
  
4
BATTERY INSTALLATION   5
OPERATING CONTROLS
 
5
BEFORE STARTING ENGINE 
6
TO START ENGINE 
6
Recoil Starter
 
6
Electric Starter

  6
OPERATE TRACTOR 
7
TRANSAXLE LUBRICATION
 7
ENGINE LUBRICATION

7
LUBRICATION CHART  
7
BELT ADJUSTMENT

8
BRAKE ADJUSTMENT .

8
BRAKE LOCK  
8
DESCRIPTION  PAGE
STARTER GENERATOR BELT

9
WHEEL WEIGHTS 
9
STARTER AIR CLEANER  9
AIR CLEANER   9
TOWING TRACTOR 
SEAT POSITION  
9

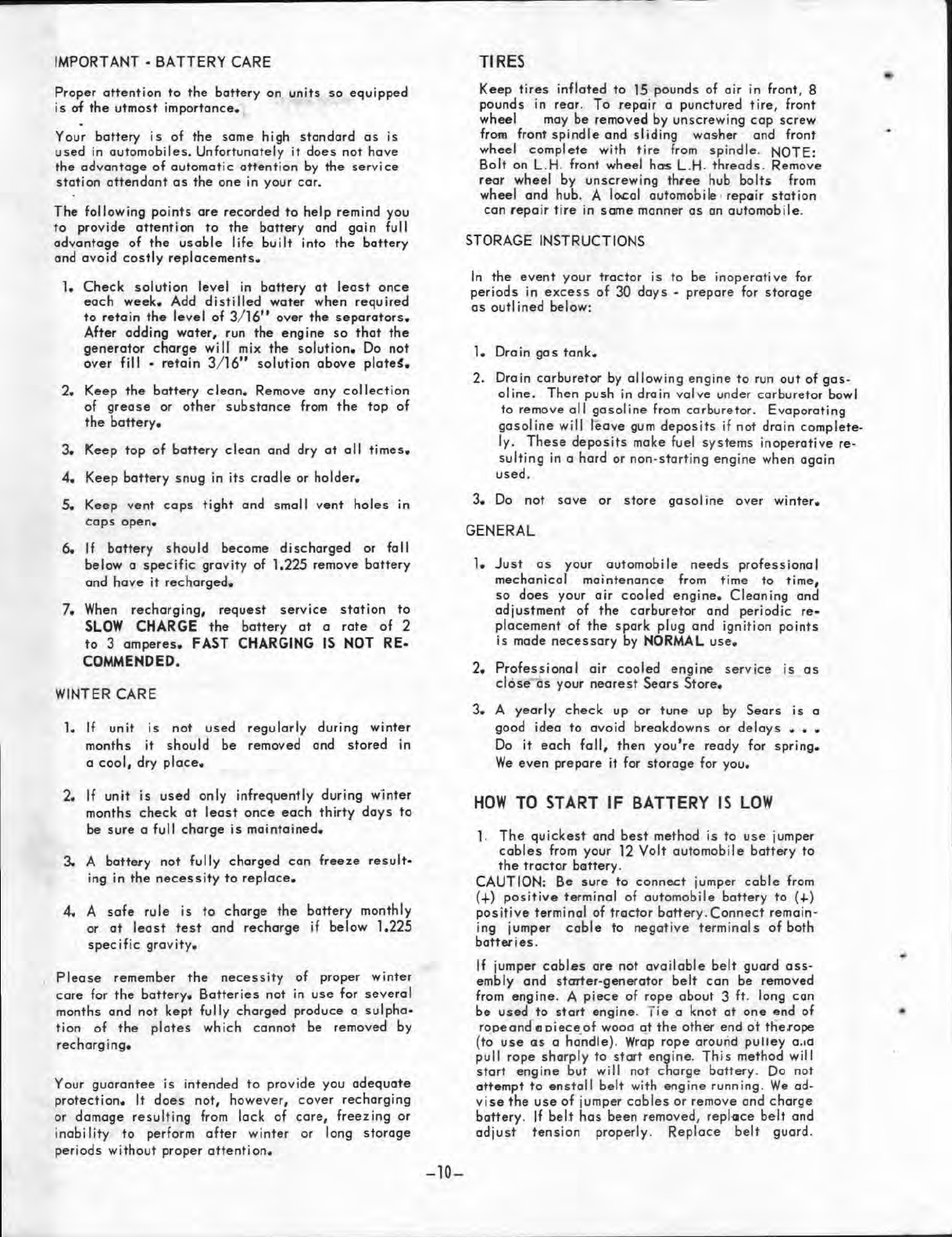

IMPORTANT BATTERY CARE

10
WINTER CARE  
10
TIRES 
10
STORAGE INSTRUCTIONS  
10
GENERAL 
10
TROUBLE SHOOTING
 
11
HARD TO START

11
ENGINE OVER HEATS  
1 1 ,
ENGINE LACKS POWER

11
PARTS LIST 

12 thru 21
HOW TO ORDER REPAIR PARTS

22
•
—2
another free manual from www.searstractormanuals.com

SEARS
ROEBL,K AND CO
. . . WE GUARANTEE the Sears Tractor to be free from defects in materials
and workmanship for a period of one (1) year from date of sale. This also includes
the gasoline engine which is warranted for a period of one (1) year by the gasoline
Should a defect appear within the guarantee period, we will, at our option, either
repair or replace the defective part without cost to you.
This guarantee does not cover free repair, replacement, or installation of parts
worn through normal use or to parts damaged due to accident, negligence, abuse
or improper use, or if the Tractor has been altered or adjusted by other than our
qualified serviceman.
We do not authorize any person or representative to make any other guarantee
or to assume for us any liability in connection with the sale of the Sears Tractor
other than those contained herein. Any agreements outside of or contradictory
to the foregoing shall be void and of no effect. This guarantee applies only to
those machines sold and operated in the United States and Canada.
another free manual from www.searstractormanuals.com

INTRODUCTION
Your Tractor is ruggedly built for plenty of stamina and long life. You will delighted with its ease in
maneuvering. The design of your Tractor will give you the superior performance you have a right to de-
mand of any tractor of this size. Properly adjusted, maintained and operated, it will respond to every
reasonable demand you make upon it, and will give you reliable service for years.
GENERAL INFORMATION
Keep this book handy at all times, familiarize yourself with the operating instructions before beginning
to operate your tractor.
Each tractor is given a thorough inspection before shipment, however, it is important that it be again
thoroughly checked at the time of receipt, to ascertain if any damage has occurred in transit.
Your tractor is shipped complete.
CATALOG NUMBER
1 Carton

634X1  10 HP

Tractor with Electric Starter
1 Carton

634X9  10HP

Tractor with Recoil Starter
OPTIONAL EQUIPMENT
BUNDLE NUMBER

DESCRIPTION
9931
606X80
Three Point Hitch
9934
634X4
Kit to Convert Recoil to Electric
Starter
9939
634X8
Lighting Kit for Suburban W/Recoil
Starter
9960
626X6
Pair of Wheel Weights
ATTACHMENTS FOR YOUR TRACTOR
9813
606X4
Dis Harrow
9814
606X7 Drag Harrow
9815
606X8
Adjustable Foot
9816
606X18
Sweep- 14"
9817
606X5
Cultivator with 6" Sweep
9818
606X6
Cultivator with Double Point Shovel
9819
606X12 Weeding Hoes-Pair
9820
606X13
Hillers-Pair
9821
606X14
Shank and 6" Sweep
9835
634X12
Rotary Tiller 30"
9841
606X31
Front End Weight
5320
575X81
Middle Buster Blade 10"
5322
575X83
Corn Shovel 5" X 8"
9911
606X52
Leaf Mulcher - 42" Mower
9912
606X55
Replacement Blade 42" Mower
9914
575X66 and 606X58
Dump Rake with Teeth
9915 634X11
42" Grader Blade
9918 606X78
Cutter Bar Mower
9927 606X73
Moldboard Plow 8"
9930
606X77
42" Rotary Mower
9932
634X5
Snow Thrower
9938
634X6
Buldozer 42"
Sears, Roebuck and Co. Simpsons-Sears Limited in Canada reserves the right to make any changes in
design and changes or improvements on its implements without imposing any obligation to install the
same upon its implements heretofore manufactured.
—3—
another free manual from www.searstractormanuals.com

FIG. A
LIGHT SWITCH
IGNITION SWITCH
FOOT PEDAL
— FOOT REST
FIG. B
CHOKE
REMOTE CONTROL
(throttle lever)
SHIFT LEVER
RANGE SHIFT LEVER
(High-Low Range)
PARTS IDENTIFICATION
FOOT REST
another free manual from www.searstractormanuals.com

0 
Oman C
n 111.
 Ofmlual
SPUD IN MPH
0
O
0 1.9
e
1.4 3.6
e
2.4 5.9
95.2.3
14.1.41.
Su. INOMICK a CO
i“ us, •
SETTING UP INSTRUCTIONS
A number at the beginning of a paragraph in the following instructions refers to an arrow in the adjoining figure ex-
cept when otherwise stated. When R.H. (Right Hand) and L.H. (Left Hand) are used, it should be understood to
to mean from a position behind and facing the tractor (or direction of travel). Reference to "front" indicates the
engine and hood end of tractor, and the "rear" the transmission.
1.
Remove carton from around tractor.
2.
Cut banding holding tractor to crate bottom.
3.
Check tire pressure, front tires 15 pounds, rear 8 pounds.
4.
This suburban tractor has been completely assembled at the factory, except for the electric star-:-ar model. The
battery is shipped dry. Below are instructions for filling and installing battery. Lubricate the tractor and add
fuel.
NOTE: Use a good grade of regular, clean, fresh gasoline. Do not mix oil with gasoline. See Lubrication Chart.
FIG. C
1.
Fill battery with electrolyte and charge battery
as outlined in instructions in battery container.
2.
Lift cowling and assemble clamp (B) to one of
two battery bolts (A). Flat washer and wing nut
above clamp. Hook the bolt clamp assembly into
rear of battery support and turn clamp to side,as
shown. Slide battery into position with termin-
als to center of tractor, as shown in Fig. C.
111 .1.—
A
FIG. D
3.
Assemble other battery bolt (A) and clamp (B)
as shown, with washer and wing nut and tighten
wing nuts securely.
4.
Connect starter switch cable (covered cable) to
(+) terminal. Tighten nut securely.
5.
Connect ground strap to (—) negative terminal,
and tighten nut securely.
OPERATING CONTROLS
Become thoroughly familiar with the operating con-
trols before starting engine. See Figures A and B,
Page 4 for location of controls.
The following controls are used to operate the
tractor:
1. Clutch and brake foot pedal is located on the
left side foot rest. The foot pedal operates a
combination brake and drive clutch. There are
three positions of operation on the foot pedal.
See Figure B.
a.
The clutch is in DRIVE position when the pedal
is all the way out (i.e. when the foot is removed
from the pedal).
b.
The clutch is in NEUTRAL when the pedal is
depressed half way or more.
c.
The BRAKE is on when the pedal is pressed all
the way forward.
FIG. E
2. Transmission gear shift lever is located at
front centcr of seat. See Figure A.
The gear shift lever selects the Forward speeds,
the Neutral, and the Reverse positions required.
See Fi
g
ure E.
FIG. F
3. The high-low range is located on R.H. frame
side just forward of R.H. rear fender. The
high-low range lever has 3 positions up for
high-range, center for neutral position, and
down for low range. There is two neutral posi-
tions in transmission, one on the gear shift
lever and, one on the high-low range lever. Both
levers must be engaged for tractor to operate.
Place gear shift lever in neutral position for
starting tractor. Place high low range lever
also in neutral for easier pushing of tractor or
when tractor is towed.
—
5
—
another free manual from www.searstractormanuals.com

BEFORE STARTING ENGINE
LIFT COWLING
1. To lift cowling, grasp each side of cowling,
at rear and pull outward and upward Lift
cowl ing to its extreme open position.
FIG. G
2.
Engine crankcase is shipped with oil ready
for use. However check oil level before start-
ing. If necessary, add oil to bring oil level up
to the fuel mark on the dip stick. Dipstick
must be screwed in tight for checking oil
level, and tractor should be level. NOTE: Do
not fill above full mark on dipstick. Engine
must be stopped when checking oil level. Re-
fer to engine manual for grade and type of oil
to use.
3.
Fill fuel tank with regular grade of clean
fresh gasoline, and open fuel shutt off valve
located near carburetor.
CAUTION: Before starting the engine, check to
see that the controls are as follows:
4.
Transmiss ion gear shift lever must be in
neutral. Neutral is when gear shift lever is
free to move forward and backwards. It will
operate simi I iar to an automobile See Figure H.
FIG. H
TO START ENGINE
1. Pull out choke control to full choke position,
to start cold engine.
FIG. I
FOR RECOIL STARTER
Advance throttle lever to about 1/2 throttle.
2.
Turn key clockwise to on position.
3.
Grasp recoil starter handle See Figure
re (I) and
pull sharply to start engine. Do not allow
starter rope to snap back. Repeat until en-
gine starts. Move choke control in about 2/3 of
the way. Gradually push control in as engine
warms up, before applying load.
NOTE: If engine does not start after serveral
pulls push in choke control. Check to see that
fuel shut off valve is open, fuel in tank and the
ignition key is turned on.
FOR ELECTRIC STARTER
1.
Advance throttle lever to about 1/2 throttle..
2.
Pull choke control out to full choke position.
3.
The ignition and starter key is located on L.H.
side of dashboard. Turn key clockwise to en-
gage starter. When engine starts release key.
After engine starts push in choke control as en-
gine warms up. Let engine warm up before app-
lying load.
CAUTION: Do not run starter continuiously for more
then 30 seconds at a time.
If after several attempts, engine does not start, move
throttle control lever to FAST position. Wait for two
minutes and try again.
4.. After engine starts, move engine control lever
to FAST position.
FOR ALL MODELS
1. Engine speed between FAST and SLOW posi-
tions may be varied as desired.
2.
To stop engine turn key in a counter clockwise
direction to off position. Key can be removed so
that children cannot start tractor.
1.
—
6
—
another free manual from www.searstractormanuals.com

TO OPERATE TRACTOR
Try your tractor in a large, open space. Learn
to

start,  stop 
and reverse.
2. Start the engine and put the remote control
lever at about 1 / 2
throttle. Push down on foot
pedal, move gear shift lever and range lever to
speed desired. Release foot pedal slowly, and
tractor will start to move. After foot pedal is
fully released (clutch engaged) move remote
control lever to fast psoition. If ground travel
is too fast, depress foot pedal and shift to a
slower ground travel speed. Always select a
ground travel speed so that engine is not over-
loaded.
Do not shift gears while tractor is moving.
Important: Do not attempt to make any turns at
high speed or when operating on a hillside. Redu-
ce speed when on hillsides so that if wheel strik-
es a hole, rut or ditch tractor will not tip.
Never release clutch quickly with remote control
at
 fast 
position  (full 
throttle).
If tractor becomes mired or in a hole try to back
out
 rather 
than  drive forward.
To stop tractor, push foot pedal all the way down,
move gear shift lever to neutral, set brake lock
and release foot pedal. Always check to make
sure brake lock will hold tractor secure. Shut off
and remove key from switch.
This will.prevent unauthorized children from start
ing tractor. Never leave engine running with trac-
or unattended.
TRANSAXLE LUBRICATION
FIG. J
• 1. Check oil in transaxle every 50 hours of oper-
ation.
2.
Change oil in transaxle after 500 hours of op-
eration: To drain oil unscrew drain plug on
lower L.H. side of transaxle, and catch oil in
suitable container, see Figure J.
3.
To fill transaxle use 5 qts. of Allstate SAE 30
motor oil for service MM or MS. Fill through
filler plug as shown in figure
J, NOTE: Rear
wheel 
is shown removed for illustration.
4.
To check oil level, remove filler plug from
transaxle. Oil level should be even with this
plug.
ENGINE LUBRICATION
Change oil in crankcase after first 2 hours of
operation Engine should be warm when oil is
changed.
2.
To drain oil, unscrew pipe cap at lower front
end of engine and catcn usea oil in suitable
container. See Figure K.
3.
Refill engine crankcase with oilasinstructed
under "Before Starting the Engine". Check oil
level after each five hours of operation and add
oil, if necessary, to bring to correct level.
4.
After first oil change, oil should be changed
atter each 25 hours of operation.
LUBRICATION CHART
There are only 5 grease fittings on this tractor:
1.
Grease front spindles and wheels every five
hours. Two slots of grease each fitting.
2.
Grease steering sector every 5 hours, two
shots of grease.
3.
Check oil in engine crankcase at least every
5 hours of operation. Change oil every 25
hours of normal operation, in extremely
dirty
or
dusty conditions change oil every 15 to 20
hours of operation.
4.
Check oil in transaxle every 50 hours of opera-
tion. Change oil in transaxle every 500 hours
of operation.
5.
Apply

serveral drops of oil to all pivot points
every 5 hours of operation.
1.
1.
another free manual from www.searstractormanuals.com

_ IDLER PULLEY
IDLER BRACKET
FRAME 
BELT
FLAT
IDLER
62-"
FOOT PEDAL
IDLER PULLEY
FLANGED NUT
TURNBUCKLE
41"
FOOT PEDAL
BRAKE LOCK
BELT ADJUSTMENT
1. Loosen bolt in flat idler and frame, and push idler and bolt down in slot of frame until center of idler
pulley on idler bracket (just back of engine) is 6-12 inches above frame as shown. Tighten bolt in
flat idler and frame securely.
NOTE: Foot pedal should be in vertical or just back of vertical position with clutch engaged. New
belts will stretch after a few hours of operation, then after initial stretch, adjustment is
seldom necessary, so adjust belt after 1st 10 hours of operation.
BRAKE ADJUSTMENT
To adjust brake, loosen nut back of turnbuckle and turn turnbuckle (clockwise when standing in front
of tractor) one turn at a time until foot pedal has between 4 to
4'' 2
inches of travel from clutch en-
gageed to full brake position, or center of idler is about
4
1
4 to 4
1 2
above frame as shown.
Tab on idler bracket will deflect belt slightly. Tighten jam nut against turnbuckle to lock turnbuckle
in position. Keep brake properly adjusted especially in hilly terrain.
BRAKE LOCK
The flanged nut is adjustable forward or backward on rear brake rod so that lock assembly will hold
brake full on when parking
lock
is pulled up (lock
position).
Tighten jam nut against flanged nut to
lock flange nut in position. As brake band wears, flanged nut will have to be readjusted.
another free manual from www.searstractormanuals.com

FIG. N
AIR CLEANER
Clean air cleaner periodically. To clean carburetor
air cleaner remove wing nut that holds air filter
cover to bracket and remove cover.
1.
Pull element trom bracket.
2.
Tap element lightly to dislodge any dirt etc.
which has accumulated on element. Compressed
air may also be used to clean air cleaner. Bl-
ow air from center to outside. This is a
dry
type air cleaner, so do not oil or wash in
gas-
oline or other solvent.
3.
Clean cover and bracket and replace element.
Wing nut must be kept tight. If air cleaner be-
comes to dirty
/ engine will not receive suffic-
ient air to run properly, At the start of each
season it is
recommended
that a new element
be instal led.
TOWING TRACTOR
Place gear shift lever and range lever in neutral
position. Tractor can then be towed at a reasonable
safe speed.
FIG. 0
SEAT POSITION
The seat may be moved towards the front or rear
to give the most comfortable riding position.
To
move the seat, loosen the nut beneath the seat
spring and slide the seat to the position required.
Tighten the nut making sure that the seat has not
twisted out of alignment with the seat spring.
-9-
MAINTENANCE AND SERVICE
FIG. L
STARTER GENERATOR BELT
1.
Remove 3 screws (A) holding belt guard to en-
gine.
2.
Loosen bolt (B) in generator adjusting strap
and generator, move starter generator back to
tighten belt and tighten bolt (B) securely.
Belt should be tight enough to prevent belt
slippage
 when  starting
 tractor.
WHEEL WEIGHTS:
Rear wheel weights are available where extra
draw bar pull is desired. When attaching weight to
the wheel the convex side should be out. Insert
the bolts from the outside through the holes, which
have a deep recess on the concave (inner) side,
and holes in wheel disc Another wheel weight can
be added by placing nut in hex recess of first
weight and bolt second weight to first. WHE EL
WEIGHTS ARE VERY ESSENTIAL FOR ADDED
TRACTION. THIS IS ESPECIALLY TRUE FOR
ALL TILLAGE TOOLS SUCH AS PLOW ETC. AND
WITH SNOWPLOW - BULLDOZER.
FIG. M
STARTER AIR CLEANER
Keep starter air cleaner clean on recoil models,
and screen clean on electric models. This is nece-
ssary so that engines will have proper cooling. Re-
move polyurethane cleaner from around starter on
recoil models end top lightly. Knead in hands to re-
move all dirt and larger particles of foreign matter.
Compressed air can also be used to clean element.
Replace air

cleaner

around

starter.
another free manual from www.searstractormanuals.com

IMPORTANT - BATTERY CARE
Proper attention to the battery on units so equipped
is of the utmost importance.
Your battery is of the some high standard as is
used in automobiles. Unfortunately it does not have
the advantage of automatic attention by the service
station attendant as the one in your car.
The following points are recorded to help remind you
to provide attention to the battery and gain full
advantage of the usable life built into the battery
and avoid costly replacements.
1. Check solution level in battery at least once
each week. Add distilled water when required
to retain the level of 3/16" over the separators.
After adding water, run the engine so that the
generator charge will mix the solution. Do not
over fill - retain 3/16" solution above plated.
2. Keep the battery clean. Remove any collection
of grease or other substance from the top of
the battery.
3. Keep top of battery clean and dry at all times.
4. Keep battery snug in its cradle or holder.
5.
Keep vent caps tight and small vent holes in
caps open.
6.
If battery should become discharged or fall
below a specific gravity of 1.225 remove battery
and have it recharged.
7.
When recharging, request service station to
SLOW CHARGE
the battery at a rate of 2
to 3 amperes.
FAST CHARGING IS NOT RE-
COMMENDED.
WINTER CARE
1.
If unit is not used regularly during winter
months it should be removed and stored in
a cool, dry place.
2.
If unit is used only infrequently during winter
months check at least once each thirty days to
be sure a full charge is maintained.
3.
A battery not fully charged can freeze result-
ing in the necessity to replace.
4.
A safe rule is to charge the battery monthly
or at least test and recharge if below 1.225
specific gravity.
Please remember the necessity of proper winter
care for the battery. Batteries not in use for several
months and not kept fully charged produce a sulpha-
tion of the plates which cannot be removed by
recharging.
Your guarantee is intended to provide you adequate
protection. It does not, however, cover recharging
or damage resulting from lack of care, freezing or
inability to perform after winter or long storage
periods without proper attention.
TIRES
Keep tires inflated to 15 pounds of air in front, 8
pounds in rear. To repair a punctured tire, front
wheel may be removed by unscrewing cap screw
from front spindle and sliding washer and front
wheel complete with tire from spindle. NOTE:
Bolt on L.H. front wheel has L.H. threads. Remove
rear wheel by unscrewing three hub bolts from
wheel and hub. A local automobile repair station
can repair tire in same manner cs an automobile.
STORAGE INSTRUCTIONS
In the event your tractor is to be inoperative for
periods in excess of 30 days - prepare for storage
as outlined below:
1.
Drain gas tank.
2.
Drain carburetor by allowing engine to run out of gas-
oline. Then push in drain valve under carburetor bowl
to remove all gasoline from carburetor. Evaporating
gasoline will leave gum deposits if not drain complete-
ly. These deposits make fuel systems inoperative re-
sulting in a hard or non-starting engine when again
used.
3.
Do not save or store gasoline over winter.
GENERAL
1.
Just as your automobile needs professional
mechanical maintenance from time to time,
so does your air cooled engine. Cleaning and
adjustment of the carburetor and periodic re-
placement of the spark plug and ignition points
is made necessary by
NORMAL
use.
2. Professional air cooled engine service is as
close as
your nearest Sears Store.
3.
A yearly check up or tune up by Sears is a
good idea to avoid breakdowns or delays ...
Do it each fall, then you're ready for spring.
We even prepare it for storage for you.
HOW TO START IF BATTERY IS LOW
1. The quickest and best method is to use jumper
cables from your 12 Volt automobile battery to
the tractor battery.
CAUTION: Be sure to connect jumper cable from
(+) positive terminal of automobile battery to (.-)
positive terminal of tractor battery. Connect remain-
ing jumper cable to negative terminals of both
batteries.
If jumper cables are not available belt guard ass-
embly and starter-generator belt can be removed
from engine. A piece of rope about 3 ft. long can
be used to start engine. Fie a knot at one end of
ropeand a piece of woos at
the other end of the.rope
(to use as a handle). Wrap rope
around pulley
a.la
pull rope sharply to start engine. This method will
start engine but will not charge battery. Do not
attempt to enstall belt with engine running. We ad-
vise the use of jumper cables or remove and charge
battery. If belt has been removed, replace belt and
adjust tension properly. Replace belt guard.
-10-
another free manual from www.searstractormanuals.com

Clean polyurethane cleaner around starter or
screen over starter. Be sure fins on cylinder
head and around cylinder are clean.
Fill  to level  indicated 
on dip stick.
Do not over fill engine.
Correct carburetor adjustment.
See Engine Manual
Dirty starter, air cleaner or screen
Check oil level in crankcase.
Lean Mixture
TROUBLE SHOOTING

HARD TO START
No 
gasoline 
in 
fuel  tank  or 
carburetor.
Fill fuel tank: open fuel shut off valve. Check
fuel 
line, fuel

strainer and carburetor. Remove
fuel 
strainer
 and  clean. 
Clean 
fuel  line and
carburetor.
Fuel

strainer, or fuel 
line clogged
Drain

fuel  from  tank  and 
carburetor.

Refill
with
 fresh
 clean 
gasoline.
 Remove and dry
spark  plug and

reset plug gap. 
Replace wire
on 
spark 
plug.
Water in gasoline or old fuel.
Spark plug wire off at spark plug
Spark plug dirty
Remove plug, clean and reset plug gap, or in-
stall  new 
spark 
plug.
Improperly choked, not fully choked or flooded
engine
Check choke if not fully choking correct, Flood-
ed 
engine,  push  in  choke, 
open  throttle and
crank engine to clear out gas.
Dirty carburetor air filter
Carburetor out of adjustment
Ignition switch off
Remove air filter and tap to remove dust and
dirt,

-clean 
with  compressed  air.  Install
 new
air cleaner once each year. Check carburetor
adjustment,
 see engine manual. Turn on
 igni-
tion key.
Poor ignition
Check

points,

condensor 
plug,  soil 
or

loose
wires.
ENGINE OVERHEATS
ENGINE LACKS
POWER
Engine overloaded
Shift to a lower gear or reduce load.
Dirty 
carburetor, air cleaner. Improper carbure-
tor adjustment
Clean or replace air cleaner. Adjust. See eng-
ine manual.
Fauity ingition
Poor compression
Check

points,  spark plug
condensor, coil

and
loose wires. See Dealer to check compression.
Belt slips
Tighten drive belt.
—11—
another free manual from www.searstractormanuals.com

A
A
29
1H
33
85 3
86
O
90
32
14
1
13
14
D
D 
.
/
16
15 
Y
NIVV1A/14/14/.
18
17
21
t,20
25
23
24
26 ce
27
34
R
70
'`' 69
68
66 0
65
71
38
37
.,c,
43  T
"45
40
42  44V-
44
58-4
60-6
-Ca
50-"" 
59
51
,"
56
48
55
54
53
/1.
. 
4 (19,_
52 51 
'K
64 63
60
0,62
59-45,°
OPQRST
73 c)
Cn , 74
91
53Cn
90O
77
76
(SV?
4;n?
92
92
78
i3/9
96 53
0 3
c94

82
'‘gB)
53 53
-12-
T ©
89 ©
87 88 4
r
i p
90
._ 95
O
89
O
90 10190
90
22
SEARS SUBURBAN
10
HP TRACTOR -- MODEL
NUMBERS 917.99400 & 917.99410
another free manual from www.searstractormanuals.com

SEARS SUBURBAN 10 H.P. TRACTOR -- MODEL NUMBERS 917.99400 AND 917.99410
PARTS LIST
KEY
PART
KEY
PART
NO. NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
6357H Hood Ornament
51 09132507
Washer 13/32x1-9/16 x 7 Ga.
2
634A15
Cowling top Assembly
52
120369 Hex Nut 3/8 - 24
3
1685H
Lock Nut 5/16 - 18
53
273589
Lock Washer 3/8
4
19141607
Washer 7/16

x 1 x 7 Ga.
54
634A1.1
Spindle - R.H.
5 3578H
Cowling Pivot Bolt
55
4761H
Tie Rod
& Joints
6
6463H
Dashboard
56
634A32
Spindle Complete - L. H.
7 6465H
Dashboard Panel R.H.
57
428721
Hex Bolt 5/8-11 x 4-1/2
8 6464H
Dashboard Panel L.H.
58
6855M
Grease Fitting
9
5913H
Key Set
59 19262014 Washer 13/16 x 1-1/4 x 34 Ga.
10 5798H
Ignition Switch
60
1309H
Bearing
11 6466H
Choke Control
61
98000071 E Ring Truarc #5133 - 75
12 634A36
Remote Control
62
19090814 Washer 9/32 x
1
/2 x 14 Ga.
13
Tank Fuel (See Engine Book)
63 4764H
Huglock Nut 5/8-11
14
Strap Fuel Tank (See Engine
64
606A226
Front Axle W/Bearings
Book)
65
4759H
Drag Link Arm
15 6420H
Dashboard Brace
66
6476H Drag Link
& Joints
16
3662H
Grill Retainer
67
634A26 Engine Mount Assembly
17
5780H
Grill Front Upper
68
634A28
Front Channel Cover
&
Weld
18
5807H
Grill Panel
Bolts
19 6536H
Shorting Wire
69
6485H
Hinge
20
6541H
Tie
70
6433H
Front Channel Cover Support
21
5794H
Grill Retainer - Lower
71
9943M Woodruff Key 1/4 x 3/4
22
5790H
Grill  Side
72
2987H
Plug Button
23
6496H
Grill Frame
73
120375 Hex Nut 1/4 - 20
24
5781H
Grill Front - Lower
74
115321 Hex Socket Headless Set Screw
25
9396E
Sq. Key 1/4"
C.P. 5/16-18 x 5/16
26
634A20
Engine Pulley W/Set Screw
75
122145
Hex Bolt 3/8-16 x 1-1/4 H.T.
27 .
6481H
Belt Guide Einger- Lower
76
120272
HexBolt5/16-18x1
28
6480H
Belt Guide Finger - Upper
77
122007
Hex Bolt 5/16 - 18

x
3/4
29
634A21
En gine 10 H.P. Craftsman Elec.
78
120918
Hex Bolt 3/8-16 x
1 -
1/2
Start
79
122126
Hex Bolt 3/8 - 16 x 7/8
29
634A53
Engine 10 H.P. Craftsman Recoil
80
120233
Hex Bolt 3/8-16 x 1
Start
8.1
120233
Hex Bolt 3/8 - 16 x 1
30
634A30
Engine Tie Bracket
82
04850616
Hex Bolt 3/8 - 16 x 1 L.H.
31
634A31
Tank and Battery Support Assembly
83
120233
Hex Bolt 3/8 - 16 x 1
32
6430H
Cover L.H.
84
122119
Hex Bolt 3/8 - 16 x 3/4
33
6458H
Tank and Battery Support Bracket
85
122307
Hex Bolt 7/16 - 14 x 2
R.H.
86
102583
Hex Socket Headless Set
34
6457H
Tank and Battery Support Bracket
Screw C.P. 5/16 - 18 x 5/8
L.H.
87
17900806
Truss Hd. Cross Recess
35
634A29
Idler Bracket - Support Weldment
Thread Cutting Screw #8-32
36
6431H
Cover R.H.
x 3/8 Type 1 C.P.
37
634A19
Chassis Assembly W/Bearings
88
141526
Truss Hd. Machine Screw #10
38
6426H
Drawbar
-24 x 3/8
39
271.501
Hex Nut 7 /16 - 14
89
120361
Hex Nut #10 - 24
40 456121
Lock Washer 7/16
90
120377
Hex Nut 3/8 - 16 NC
41
42
663511
09151811
Flat Idler
Washer .469 I.D. x 1-1/8 x 11 Ga.
91
92
453692
273588
Lock Washer 1/4
Lock Washer 5/16
43
6479H
Belt Guide Finger
93
456121
Lock Washer 7'16
44
120395
Washer 15/32 x 59/64 x 16Ga. 94
120394
Washer 13/32 x 13/16 x 16 Ga.
45
122320
Hex Bolt 7/16 - 14 x
2 -
!'2
95
432226
Lock Washer #10
46
6376H
Tire 4.80
/
4.00 x 8 - 2 PLY
96
120316
Hex Nut 5/16 -18
47
338H
Tube 4.00 x 8 W/Straight Stem
97
271501
Hex Nut 7/16 - 14
119
4760H
Front Wheel
6547H
Instruction Sheet for
49
5920H
Flanged Bearing
917.99400 and 917.99410
50
6427H
Dust Cap Outer
10 HP Suburban Tractos
—13—
another free manual from www.searstractormanuals.com

17
31
,/
23
SEARS SUBURBAN 10 HP TRACTOR -- MODEL NUMBERS
917.99400 & 917.99410
4
4
18 
16
sio 
6
14

—4
\
cZZD
/
11 
-§P1-7
-1-- 
;3'
13
\ 7
9 
i 
7
/ 
• 
I
 i ,

,
,
I 5
 r-

- _- --_-.
1

1 
t 8
t \ -'1 ,

--/---
i i

1 
I
I
19
20
21 
1
13
61
14
L.-
22

-4_

60
29
12
28
Mg "
" ±
27 
36 -
.4
)
u  i
-'25
I
v26
Y
0-15
V--
37
--38
39
A
B 
C 
D  E  F G  H
49
50 
V51 I5 2
jr5 3
54
©
55

If
56
0
C58
8
CP 
4R)
4? 
ir&

3 8
Qit
57
GO 6 3
3 8 
6 4 
6 4
O

13

0
5 9 
6 2
©
6 5
5 5 
66 
55
-14-
47
5 5
another free manual from www.searstractormanuals.com

KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
X2
A.12
33
SEARS SUBURBAN 10 H.P. TRACTOR --
MODEL NUMBER
917.99400 AND 917.99410
PARTS LIST
PART
KEY
PART
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
6368H
6740H
98000071
19252016
5138H
5949H
6468H
626A31.
115321
105111
634A33
5070H
5124H
98000072
9858M1
4382H
6483H
6412H
1199M
6436H
6422H
634A19
6426H
6477H
456723
6459H
6442H
4766H
6364H
634A14
6435H
6474H
Decorative Insert
Rubber "0" Ring
E Ring Truarc #5133-75
Washer 49/64 x 1-1/4 x 16 Ga.
Steering Wheel
Rubber Bushing
Bearing
Steering Arm
Hex Socket Headless Set Screw
C.P. 5/16-18 x 5/16
Sq. lid. Set Screw C.P. 5/16-18x
3/8
Brake Arm Assembly
Foot Rest
Foot Rest Pad
E Ring Truarc #5133 - 62
Woodruff Key 3/16 x 5/8
Pedal Cover
Seat Pad
Foot Pedal Shaft
Seat
Fender - L.H.
Seat Spring
Chassis Assembly W/Bearings
Drawbar
Range Shift Rod
Cotter Pin 3/16 x 1
Transmission Bracket
Shift Rod Bracket
Bearing
Control Knob
Hanger - Rear
Fender- R.H.
V Belt (ground drive)
GreaseFlifirig-
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
634A13
634A16
19292016
122150
273589
5089H
4700A
633A23
634A22
64611-I
120371
5808H
1297H1
1296H
9418248
120917
120915
122253
122267
122119
120233
120377
122007
1304H
19171911
120394
19211610
192116.12
273588
456122
456121
120378
271501
Steering Gear Sector and Arm
Steering Shaft and Pinion
Washer 57/64 x 1-1/4 x 16 Ga.
Hex Bolt 3/8-16 x 1-3/8
Lock Washer 3/8
Wheel Hub- Rear
Sq. Key 1/4"
Transmission
Belt Guide
Transmission Pulley
Hex Nut 1/2-20
Tire 7.50 x 12 2 Ply Turf
Saver Tread
Disc Wheel 12 x 5 JA rind
Tube 600 X 12 W/Straight Stem
Truss Hd. Cross Recess Thread
Cutting Screw #10-24 x 7/16
Sq. Neck Carriage Bolt Y2-13 x 1-1/4
Sq. Neck Carriage Bolt 3/8-16 x 1
Hex Bolt 7/16-14 x 1
Hex Bolt 7/16 - 14 x 1-1/4
Hex Bolt 3/8 - 16 x
3/4
Hex Bolt 3/8-16 x 1
Hex Nut
3/8 - 16
Hex Bolt 5/16-18 x
Hub Bolt
Washer 17/32 x 1-3/16 x 11 Ga.
Washer 13/32 x 13/16 x 16 Ga.
Washer 41/64 x 1 x 10 Ga.
Washer 21/32 x 1 x 12 Ga.
Lock Washer 5/16
Lock Washer 1/2
Lock Washer 7/16
Hex Nut
Y2-13
Hex Nut 7/16 - 14
6842M
•
another free manual from www.searstractormanuals.com

21
E

34
33
Y
- 
23
26
25
)k
3
m  ': •--.-' ----1-- 
4 48
1 ID, 0
15  / 
3
, 
,  14 
0
1 
, 1211
1

),  "40
- -I

10  9
G H

42 
44
41 
4fl)50 
46 47 49

O45
A 
B 
C

D 
E 
F
35

38
36 c

39
37 Ccff-; 4
34 36
40
O
43
SEARS SUBURBAN 10 FfP TRACTOR -- MODEL NUMBERS
917.99400 & 917.99410
another free manual from www.searstractormanuals.com

•
SEARS SUBURBAN 10 H.P. TRACTOR -- MODEL NUMBER 917.99400 & 917.99410
PARTS LIST
KEY PART
KEY
PART
NO. NO. DESCRIPTION NO. NO.
DESCRIPTION
><
- --
6636H
634A24  --
Idler
Idler Bracket and Pin
26
27
6000H
4379H
Large Flange Nut
Shift Handle Grip
3
177923
Cotter Pin 1/8 x 3/4
28
6482H
Brake Lining
4
9416771.
Nylock Nut 3/8-24
29 6415H Brake Drum
5
6406H
Clutch Rod
30
634A27
Parking Lock Assembly
6
6486H
Spring
31
634A25
Brake Bracket Assembly
7
456723
Cotter Pin 3/16 x 1
32
2228M
Woodruff Key 3/16 x
34
8 626A31
Steering Arm
H.T.
9 122320
Finished Hex Bolt 7/36-14x
33
634A23
Brake Band And Lining
2-1/2
34
6416H
Brake Rod Guide
10 120395
Washer 15/32 x 59/64 x 16 Ga.
35
122126
Hex Bolt 3/8-16 x 7/8
11
6479H
Belt Guide Finger
36 27 3589
Lock Washer 3'8
12
09151811
Washer .469 I.D. x 1-1/8 x 11
37 120394
Washer 13/32 x 13,
r
16 x
Ga.
16 Ga.
13
6635H
Flat Idler
38
5948H
Shoulder Bolt
14
456121
Lock Washer 7/16
39 5999H
Spring Washer
15 271501
Hex Nut 7/16-14
40 120377
Hex Nut 3/8 - 16
16
120371
Hex Nut '/2 - 20
41 17210612
Flat Hd. Machine Screw
17 6461H
Transmission Pulley
Undercut 3/8-16 x 3/4
18
634A33
Brake Arm Assembly
42 110356
Sq. Neck Carriage '4-20
19
98000072
E Ring Truarc #5133 - 62
x
20
6412H
Foot Pedal Shaft
43
120375
Hex Nut
1 / 4 - 
20
21
4382H
Pedal Cover
44 122007 Hex Bolt 5/16 - 18 x
22
?3
24
25
6407H
6417H
124829
6408H
Brake Rod-Front
Turnbuckle
Hex Jam Nut 3/8-16
Brake Rod-Rear
45
46
47
120376
105111
115321
Hex Nut 5/16 - 18
Sq. Hd. Set Screw C.P.
5/16-18 x 3'8
Hex Socket Headless Set
Screw C.P. 5/16-18x5/16
Nylock
48
9858M1
Woodruff Key 3 /16 x 5/8
49 05080404
Rivet Brass Tubular #4
x

4
50
453692
Lock Washer 1/4
another free manual from www.searstractormanuals.com

SEARS SUBURBAN 10 HP TRACTOR -- MODEL NUMBER 917.99410
6
if
cif9 — -
3
2 \
10 11

12
CP.
14
13
27 22
\
28
19
0 /
26
0 0
,
29 -\

2
30 
25
22
31
32
V
35
—18—
another free manual from www.searstractormanuals.com

SEARS SUBURBAN 10 H.P. TRACTOR -- MODEL NUMBER 917.99410
PARTS
LIST
KEY
PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO. DESCRIPTION
1
5072H
Battery Bolt
20
11050600
External Lock Washer #1120
2
19091216
Washer 17/64 x
1/4 x 16
qu..
-00
3
3748M
Wing Nut
21 120229 Hex Bolt 5/36-18 x 7/8
4
5110H
Battery Clamp
22
273588
Lock Washer 5/16
5
6121H1
Battery Cable
23
120393
Washer 11/32 x 1J/16 x 16 Ga.
6
120375
Hex Nut 1/4-20 24
120376 Hex Nut 5/16 - 18
7
51111-11
Battery
25
606A361
Generator Mount Bracket
&
8
3754H1
V Belt (Motor- generator)
Bushing
9
120233
Hex Bolt 3/8 - 16 x 1
26
122027
Hex Bolt 5/16-18 x 1-1/4 H.T.
10
6419H
Generator Adjusting Strap
27
122007
Hex Bolt 5/16-18 x
1/4
11
273589
Lock Washer 3/8
28
445957 Pan Hd. Machine Screw'/a-28 x
12
120377
Hex Nut 3/8- 16
3/8
13
606A325
Motor Generator
29
606A327 Belt Guard Assembly
14
6593H
Battery Cable,

x
30
453049
Pan Hd. Machine Screw 1/4-20 x
15
5797H
Ignition and Starter Switch
16
132900
Slotted Rd. Hd. Machine Screw
31
5959H Ground Wire
#10 -
32 x 3/8
32
120706 Hex Bolt 1/4-20 x 1/2
17
5913H Key Set 33
606A190 Voltage Regulator
18 6534H
Ground Cable
34
453692 Lock Washer 1/4
19
122052
Hex Bolt 5/16-18x 1-1/4 H.T.
35
5803H
Ground to Generator Wire
36
653SH
Battery Wire
37
5804H Field Wire
•
—19—
another free manual from www.searstractormanuals.com
