HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “944.101040”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11
STEERING ............................................................................................................12-13
MOWER DECK .....................................................................................................14-15
MOWER LIFT.............................................................................................................16
SEAT ..........................................................................................................................17
DECALS.....................................................................................................................18
ENGINE BREAKDOWN........................................................................................19-23
TRANSAXLE BREAKDOWN ...............................................................................24-25
SEARS SERVICE ......................................................................................................26

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
G
L
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-15 AMP DC @ 3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH13
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
85 86
30 87
87A
87
87A 8586
30
RELAY
BLUE
BLUE BLACK
BLACK
TRACTOR - - MODEL NUMBER 944.101040
SCHEMATIC

4
TRACTOR - - MODEL NUMBER 944.101040
ELECTRICAL
28
55
26
43
41
24
27
25
30
33
22
79 21
40
71
34
Service Minder (If Equipped)
4646
12V Outlet (If Equipped)
59
103
16
42
T20S
102
29
81
105
Charge Indicator (If Equipped)
142
(+) (-)
143
8
1
99
100
227
90

5
TRACTOR - - MODEL NUMBER 944.101040
ELECTRICAL

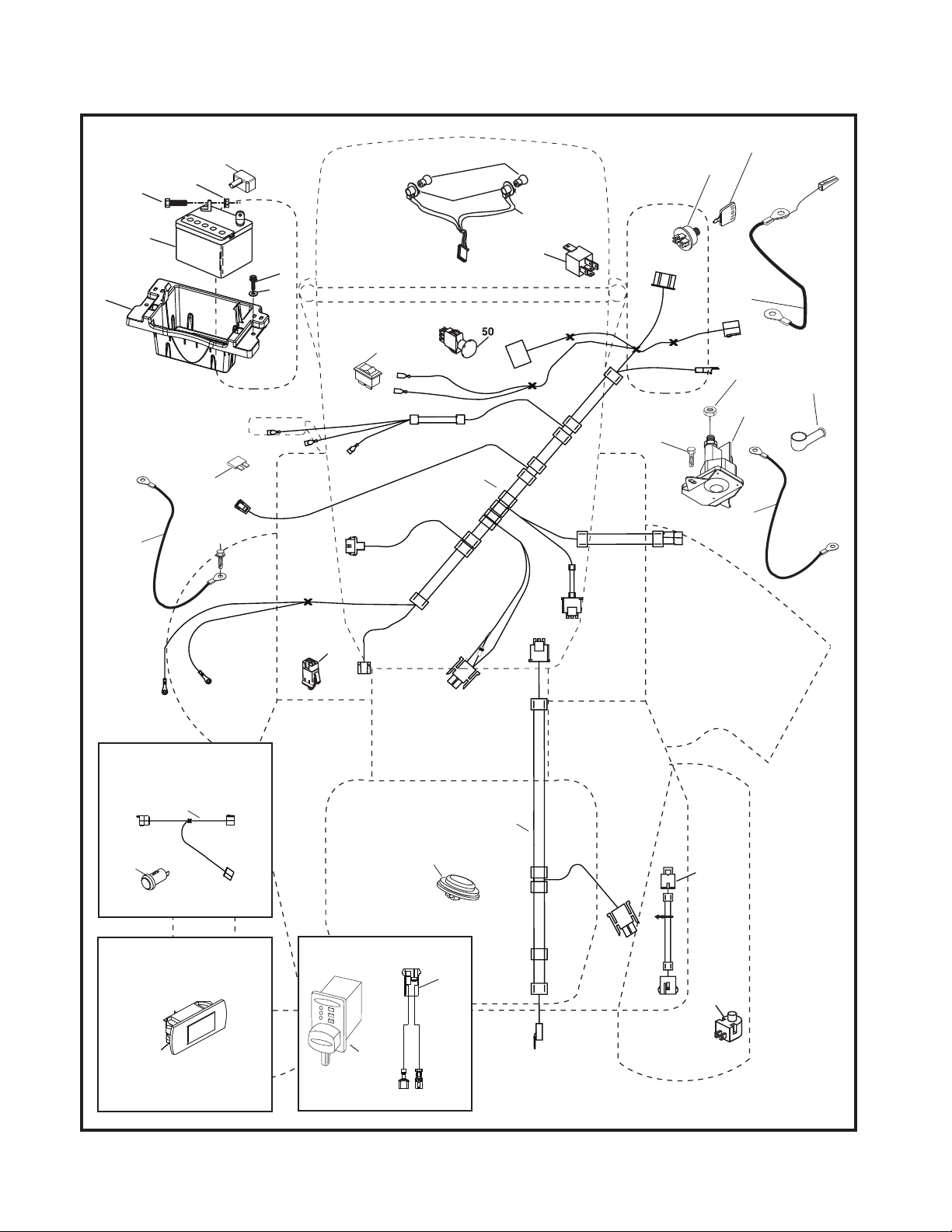

KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 163465 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 587205101 Box Battery
16 176138 Switch Interlock Push-In
21 400252 Harness Socket Light w/4152J
22 4152J Bulb Light
24 585555601 Cable Btry.
25 585555501 Cable Starter
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 416588 Cable, Ground
29 401545 Switch, Seat
30 193350 Switch, Ign
33 411934 Key/Chain
34 110712X Switch Light / Reset
40 501133201 Harness Ign. Elec Relay
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 192507 Solenoid
46 586161801 Gauge SRVCMNDR HRMTR
50 582107602 Switch PTO
55 17060512 Screw Thdrol 5/16-18 x 3/4 TYTT
71 194276 Harness Ign. Chassis
79 175242 Bulbholder Asm. Incandescent
81 409615 Relay Harness Sealed
90 435395 Cover Terminal Battery
99 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 19091416 Washer 9/32 x 7/8 16 Ga.
102 404454 Harness Pigtail
105 407568 Switch Reverse

6
TRACTOR - - MODEL NUMBER 944.101040
CHASSIS

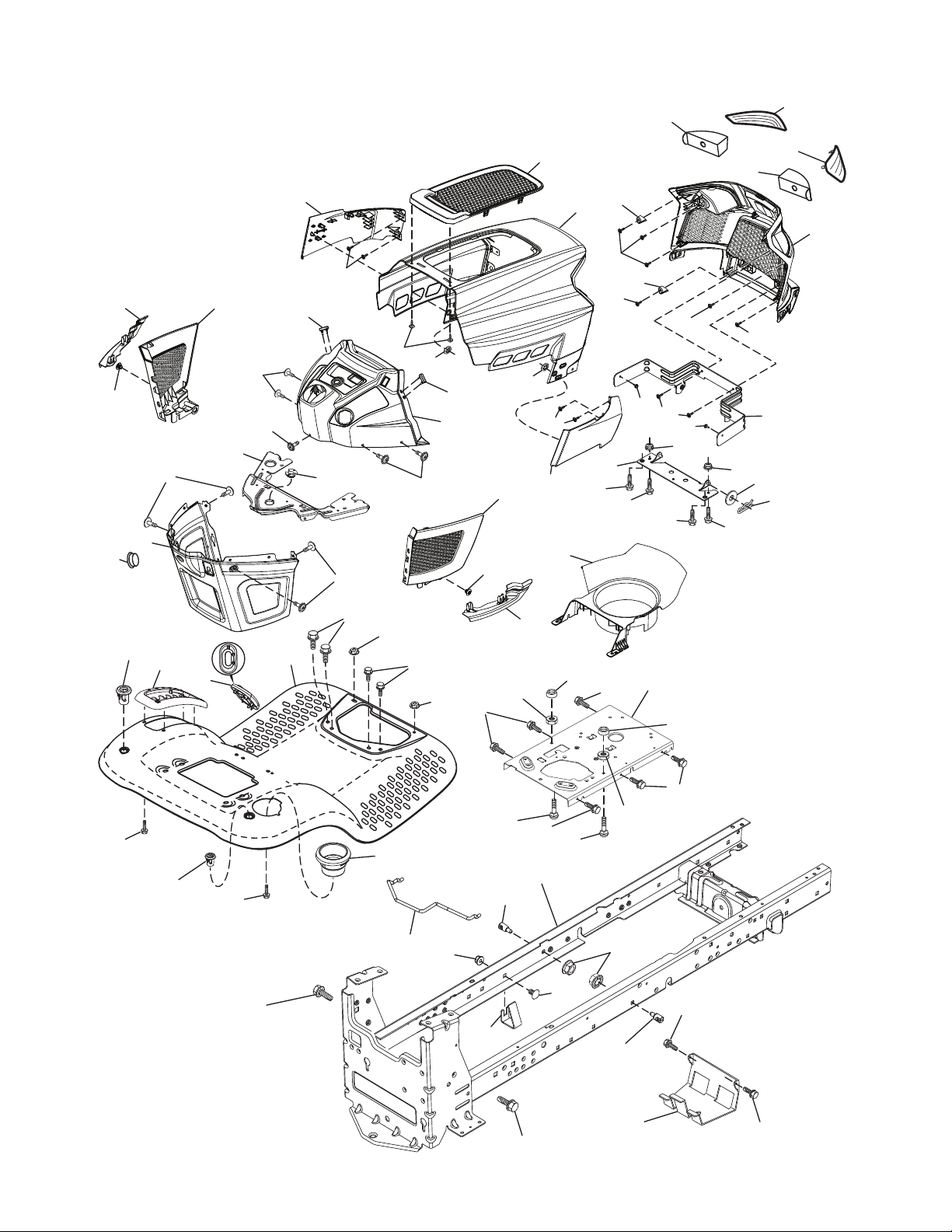

chassis-tex_TALON II_1
195
68
68
68
68
183
183
236
236 34
235
235
189
189
152
228
228
194
159
159
180
306
125
146
150
335
202
350
203
350
336
369
14
204 25
15
191
297
182
176
176
5
176
176
176
364
364 151
130
363
363
130 130
130
130
18
177
175 218 35
68
68
52
52
102
213
213
205
130
206
130
181
287
37
162
138
181
194
194
36
36
196 161
137
137 298
298
165

7
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER 944.101040
CHASSIS
5 580485906 Dash
14 580354407 Hood
15 580485601 Lens LH
18 580485302 Grille
25 580484501 Lens RH
34 580910801 Plate engine
35 19111116 Washer 11/32 x 11/16 x 16 Ga.
36 17060512 Screw 5/16-18 x 3/4
37 414878X428 Fender
52 73680500 Nut Crown lock 5/16-18
68 17490508 Screw Thdrol 5/16-18 x 1/2
102 4497H Retainer Spring 1"
125 581684801 Clip Fuel Line
130 416358 Screw # 10 x .750 BOS Thread
137 407590 Bumper Dash
138 193224X428 Cupholder
146 581857901 Bolt
150 585238002 Duct Heat Hood
151 580663302 Bracket Pivot
152 199535 Shield Browning/Debris
159 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
161 193229X428 Console Fuel Window
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2
165 196826 Support Tank Rear
175 196304 Crossmember
176 400776 Screw 10-24 x 5/8 Wshd Qdrx
177 195228 Bushing Steering
180 195457 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 406859 Dash Lower
183 74520520 Bolt 5/16-18 x 1-1/4
189 17000512 Screw 5/16-18 x 3/4
191 580485101 Mylar Headlight/Reflective Lens RH
194 73900500 Nut Lock Hex Flange 5/16-18
195 401556X428 Plug Hole Dash 12V Adapter
196 431658 Console Asm. Deck Lift
202 580485002 C-Closeout Lwr Trm RH
203 580484802 C-Closeout Lwr Trm LH
204 580484701 Hood Top Vent
205 580843707 Assembly Corner RH
206 580843807 Assembly Corner LH
213 74760512 Bolt hex HD 5/16-18 unc x 3/4
218 580897301 Pivot Hood Assy
228 195161 Stud Fastener
235 406129 Spacer Fender
236 73930500 Nut Center Lock 5/16-18
287 17600406 Screw Hex Washead 1/4-20 x 3/8
297 580484901 Mylar Headlight/Reflective Lens LH
298 580851001 Nut Push
306 73900600 Nut Lock
335 580484602 C-Side Closeout RH
336 580484402 C-Side Closeout LH
350 445143 Clip X-Mass Tree
363 580724501 Cap Talon Grille
364 17060408 Screw
369 421756 Screw #10 x 0.500 BOS Thread

8
TRACTOR - - MODEL NUMBER 944.101040
DRIVE
52
51
170
171
56 213
221
160
206
26
207
209
92 125
116
196
197
225
125
163
208
210
214
125
215
153
166
211
211
222
153

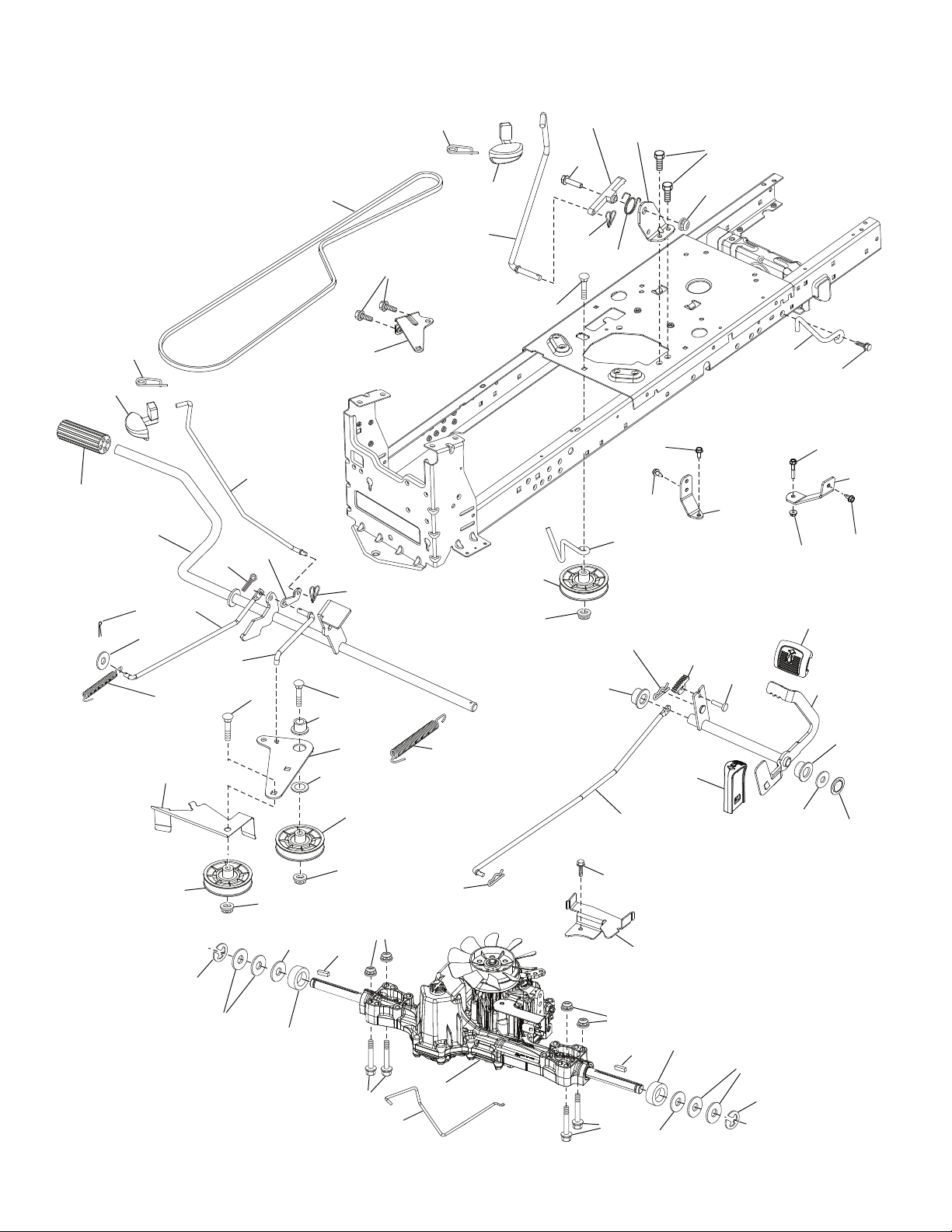

drive-tex_K46_pedal_158
2
2
73
73 33
205
1
116
33
230
230
183 183
205
116
99
216
143
64
188
161
35
184
167
160
42
159
221
186
189
49
187
50
51
52
190
51
185
29
159
15
17
325
326
336
125
125
227
116

9
TRACTOR - - MODEL NUMBER 944.101040
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – Transaxle, TufftorqK46BT(426120)
(See Transaxle Breakdown.)
2 123583X Key
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 413678 Spring, Brake
26 199679 Spring Return Cruise
29 403806 Rod, Brake
33 12000001 Ring E
35 583864501 Rod, Brake, Park
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove
56 130969 V-Belt, Drive
64 197865 Shaft Asm. Pedal Brake Control
73 74490540 Bolt 5/16-18 x 2-1/2 Gr. 5
92 74760520 Bolt Fin. Hex 5/16-18 unc x 1.25
99 415742 Rod Asm. Bypass
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
143 17490508 Screw 5/16-18 x 1/2
153 4497H Retainer Spring
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709x Spring, Return, Clutch
163 448275 Rod Pedal Control
166 429164 Nut, Push
167 405257 Latch Brake Parking
170 194322 Keeper Belt Centerspan
171 72110616 Bolt 3/8-16 unc
183 137057 Spacer Axle
184 196439X428 Handle Parking Brake
185 72110622 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 582217001 Link Clutch Ground Drive, Long
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
196 17000616 Screw 3/8-16 x 1
197 585658601 Link Clutch Anti-Rotation
205 121748X Washer
206 448596 Bracket Mount Latch Cruise
207 587031401 Latch Control Cruise
208 197869 Bolt Sector Control Cruise
209 199592 Rod Conrtrol Cruise
210 400980 Rocker Asm. Pedal Control
211 120183X Bearing, Nylon
213 196441X428 Knob Control Cruise
214 421263 Pad Pedal Forward
215 197301X428 Pad Pedal Reverse
216 196131 Bracket Pulley Idler
221 403187 Retainer Spring Clip Handle
222 79212010 Washer
225 403319 Keeper Belt Transaxle
227 17490512 Screw 5/16-18 x 3/4
230 188967 Washer Harden
325 585668502 Torque Strap K46 LT RH
326 585670802 Bracket TRQ STP 46 20" Tire RH
336 587259601 Bolt 5/16 - 18 x 1-3/4 Flanged

10
1
29

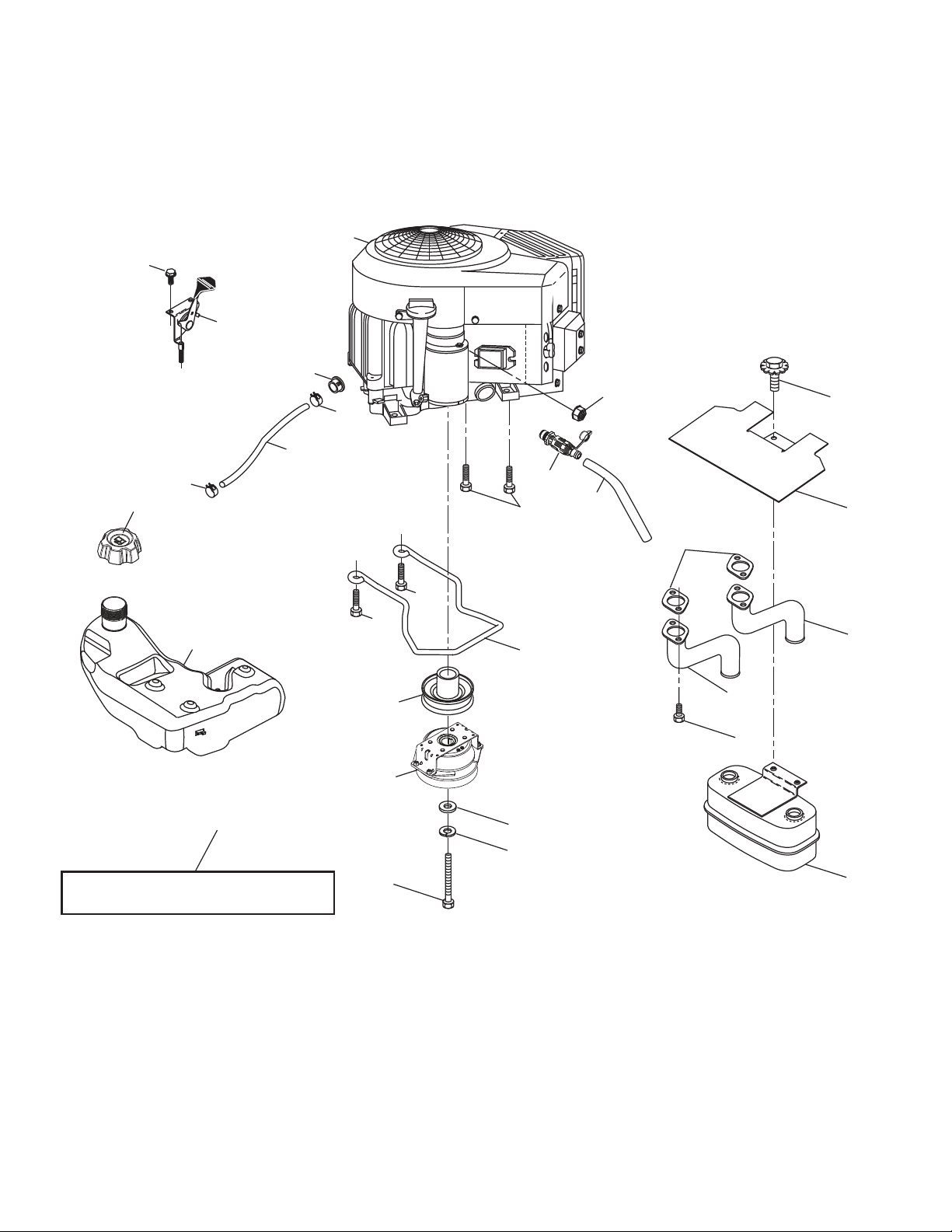

SPARK ARRESTER KIT
84
45
21
20
62
71
70
79
69
102
2

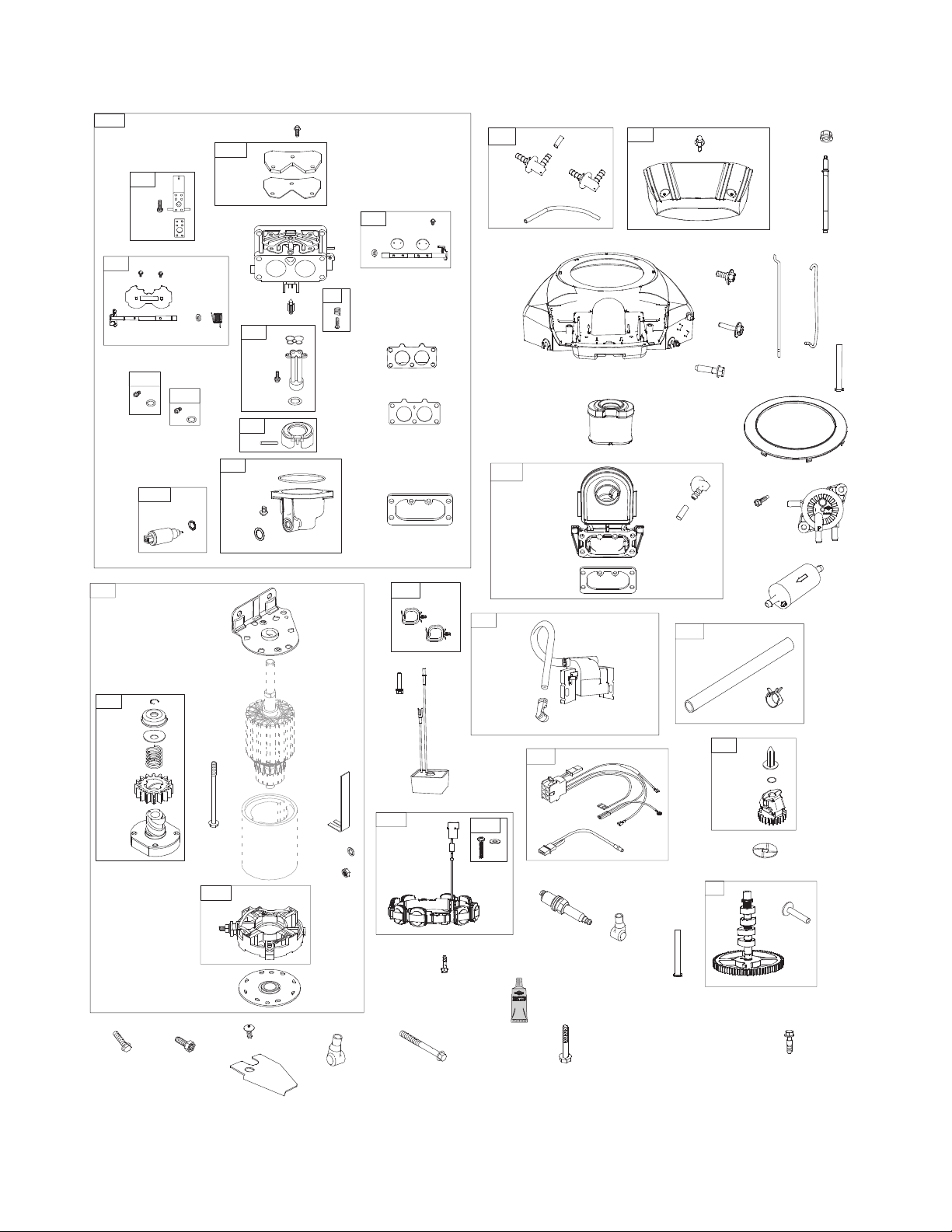

engine-tex_bs-2cyl_155
9
90
90
82
81
12
41
42
85
11
18
15
37
28
37
91
TRACTOR - - MODEL NUMBER 944.101040
ENGINE

11
TRACTOR - - MODEL NUMBER 944.101040
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En-
gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values
are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat-
ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and
the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross
power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety
of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.
1 – – – – Engine B&S Model No. 44R677-0026-G1
(586607601) (See engine breakdown.)
2 445962 Muffler
9 501832601 Keeper Belt Engine
11 587241601 Clutch Electric
12 405097 Pulley Engine
15 532438025 Tank Fuel
18 585124802 Cap Fuel
20 421473X428 Control Throttle
21 416358 Screw 10 x .750 BOS Thread
28 401135 Fuel Line
29 137180 Spark Arrester Kit
37 123487X Clamp Hose
41 126197X Washer 1-1/2 OD x 15/32 ID x .250
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
62 434017 Shield Heat Muffler
69 165391 Gasket
70 581881101 Exhaust Tube LH
71 581881001 Exhaust Tube RH
79 183906 Screw 5/16-18 x .75
81 148456 Tube Drain Oil Easy
82 428287 Valve Oil Drain
84 17060620 Screw 3/8-16 x 1-1/4
85 179953 Bolt Hex 7/16-20 x 3.75 Gr
90 17000616 Screw 3/8-16 x 1.0
91 187495 Bushing
102 17000512 Screw 5/16-18 x 3/4

12

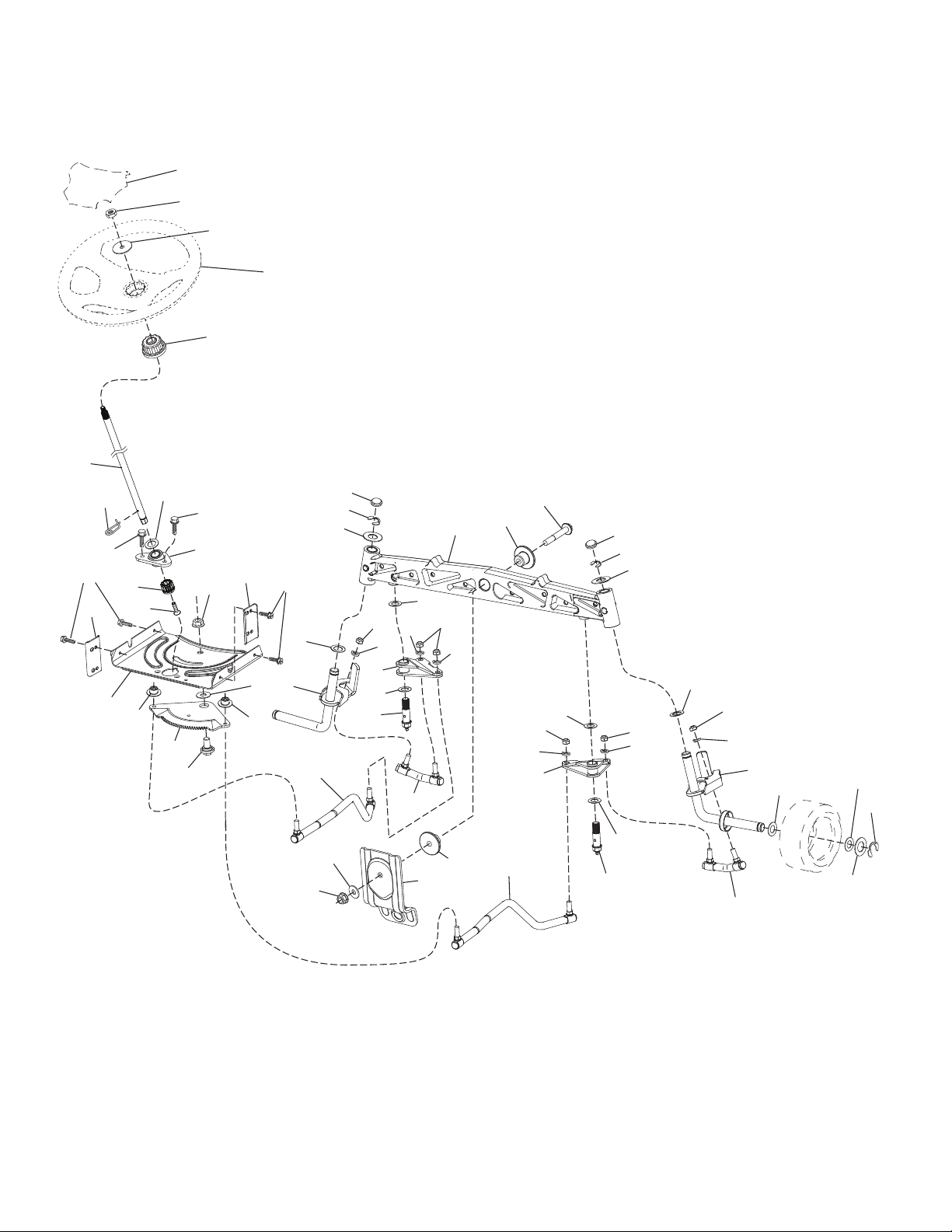

TRACTOR - - MODEL NUMBER 944.101040
STEERING ASSEMBLY
19
60
59
58
70
68
69
35
67
63
57
57
63
6
15
14
5
81
13 13
8
53
62
81
61
82
15
14
14
14
15
80
85
14
15
80
82
80
6
4
15
14
86
9
8
9
8
67
66
7
7
2
80
steering-tex_TTR_73
122
122
1
21
45
26
50
16
28
28
27
22
64
75
76

13
TRACTOR - - MODEL NUMBER 944.101040
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 414803X428 Wheel, Steering
2 436870 Axle Asm., Front
4 436873 Spindle Asm., LH
5 436874 Spindle Asm., RH
6 6266H Washer Thrust 0.75 x 1.23
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Klip #T5304-75
9 184946X667 Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer, Lock 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 587016002 Shaft Steering
19 194729 Plate Steering
21 586840201 Adapter, Wheel Steering Splnd Alum
22 585029901 Bearing Subasm Shaft Steer Low
26 414852X428 Insert, Wheel Steering
27 19211616 Washer 21/32 x 1 x 16 Ga.
28 17000612 Screw 3/8-16 x 3/4
35 440770 Gear, Sector Plate
45 587016401 Washer 3/8 ID 2-3/8OD 12 Ga. PLTD
50 73900600 Nut Lock Flg. 3/8-16 unc
53 188967 Washer Hardened .793 x 1.637 x .060
57 407465 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 436884 Draglink, LH
62 436885 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 585338801 Bracket Deck Susp. Front
75 580683701 Pinion
76 580683601 Screw Head Sock
80 1370H Washer
81 436887 Link Cross RH
82 442147 Pivot Bolt
85 441873 Pivot RH
86 441872 Pivot LH
122 444962 Cap Gear Sector
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

14
TRACTOR - - MODEL NUMBER 944.101040
MOWER DECK
55
41
32
33
56
34
57
59
240
197
188
1
69
69
69
199
40
3
46
145
46_tex_lt_pred_29_r6
15
14
13
11
12
21
25
26
27
198
29
21
21
23
24
36
40
2
19
19
6
6
117
116
40
119
117
119
116
40
68
46
189
189
188
21
21
69
69
4
21
242
241
200
147

15
TRACTOR - - MODEL NUMBER 944.101040
MOWER DECK
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 589535317 Mower Housing
2 405507 Cover Mandrel LH
3 405506 Cover Mandrel RH
4 74760512 Bolt Hex Hd 5/16-18 unc x 3/4
6 195186 Arm Suspension
11 405380 Blade Mulching
12 584309301 Screw
13 587256501 Shaft Assembly, Mandrel
14 187281 Housing, Mandrel
15 585323901 Bearing, Mandrel
19 196539 Bolt, Shoulder
21 73680500 Nut
23 192557 Bracket, Deflector
24 105304X Cap, Sleeve
25 197026 Spring, Torsion, Deflector
26 110452X Nut, Push
27 405357 Shield, Deflector
29 131491 Rod, Hinge
32 197473 Pulley, Mandrel
33 400234 Nut, Toplock, Flanged
34 72110612 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
36 197379 Pulley, Idler, Flat
40 73900600 Nut, Lock Flg. 3/8-16 unc
41 584953901 Bolt Hx Wsh Hd 313-18 x 1.19
46 137729 Screw
55 197249 Arm, Idler
56 199092 Spacer, Retainer
57 17000616 Screw Hex Wsh. Thd. 3/8-16 x 1
59 141043 Guard, Tuv. Idler (94)
68 405143 V-Belt
69 72140505 Bolt
116 4898H Bolt, Shoulder
117 188606 Wheel, Gauge
119 19121414 Washer 13/32 x 7/8 x 14 Ga.
145 193197 Pulley Idler
147 197251 Spring Return
188 195161 Stud Fastener
189 73900500 Nut Lock Hex Flange
197 19131312 Washer 13/32 x 13/16 x 12 Ga.
198 403149 Baffle Center Front
199 403150 Baffle Front RH
200 413524 Washer 13/32 x 1 x 1/2 x 11 Ga
240 74520636 Bolt Fin. Hex 3/8-16 x 2-1/4 Gr. 5
241 152927 Screw
242 415598 Port Washout
- - 416405 Coupling Quick Connect
- - 587253301 Mandrel Assembly (Includes hous-
ing (Key #14), shaft assembly (Key
#13), and bearing only (Key #15)-
pulley/nut/washer and blade bolt/
washers not included.)
- - 582245701 Replacement Mower, Complete

16
TRACTOR - - MODEL NUMBER 944.101040
MOWER LIFT
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
116
90 98
97
97
lift-tex_45
91
101
89 87
100
89
87
*Key 91 may be substituted for Key 101
*
2 422027 Shaft Asm., Lift
3 426896 Lever Asm., Lift RH
7 445060X428 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19191912 Washer Clear Zinc
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 195181 Link Lift Susp Mower Rear
97 17000612 Screw 3/8-16 x .75
98 195270 Link Lift Susp. Front Mower
100 73930600 Nut Centerlock 3/8-16 unc
101 407003 Link Asm Lift Fxd
116 19151516 Washer 15/32 x 15/16 x 16 Ga.

17
TRACTOR - - MODEL NUMBER 944.101040
SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 586507601 Seat
2 180166 Bracket Pivot Fender
6 73800600 Nut, Lock W/Ins. 3/8-16 unc
7 587613301 Spring, Seat Cprsn
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 196977 Pan, Seat
21 587907801 Bolt, Shoulder 5/16-18 x 5/8
37 73800500 Nut, Lock 5/16-18 unc
40 197661 Handle Slide Seat
1
40
10
41
7
8
7
8
seat-tex_6.5SL_11
44
43
8
8
2
46
6
637
37
21
21
41 198200 Spring Latch Seat
43 74760612 Bolt 3/8-16 x 3/4
44 19133812 Washer 13/32 x 2-3/8 x 12 Ga.
46 588090401 Bolt 3/8-16 x 1.25

18
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt

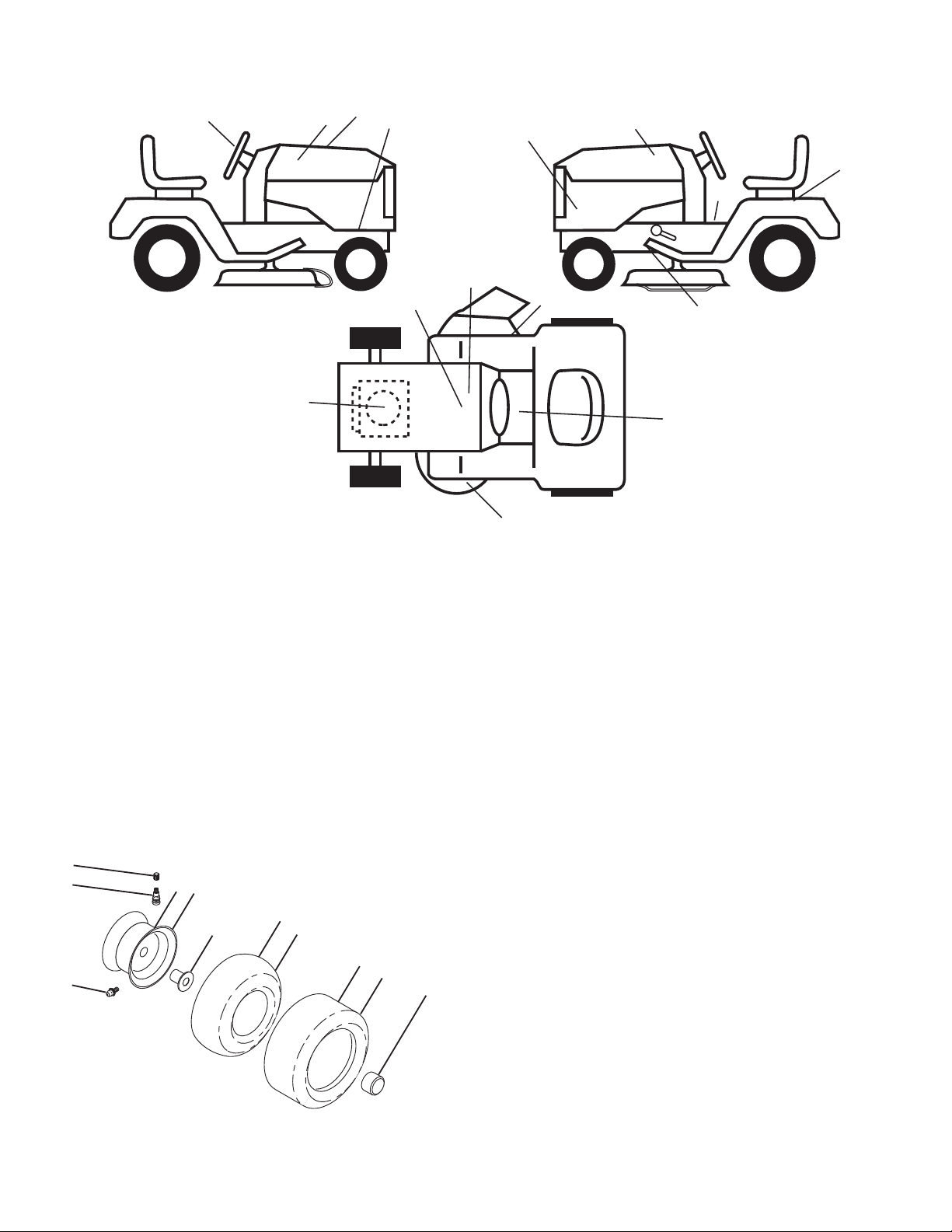

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER 944.101040
DECALS
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106732X613 Rim Assembly, Front
4 59904 Tube, Front
5 106222X Tire, Front 15 x 6-6
6 278H Fitting, Grease
7 9040H Bearing, Flange
8 104757X428 Cap, Axle
9 138468 Tire, Rear 20 x 8-8
10 7152J Tube, Rear
11 106108X613 Rim Assembly, Rear
- - 144334 Sealant, Tire (10 oz. Tube)
1 585767601 Decal, Hood
2 581579901 Decal, Warn. Spark
3 587390301 Decal, Fender Dichard
4 581579001 Decal, Warning
5 582522401 Decal, Engine
6 581580001 Decal, B-Belt Schematic
7 427508 Decal, RPL
8 584904601 Decal, Deck/Deflect Warning
9 149517 Decal, Battery Warning
10 448709 Decal, Battery
15 586208001 Decal, Sideskirt RH
16 586208002 Decal, Sideskirt LH
12 421534 Decal, Mower V-Belt Schematic
13 581894601 Decal, Steering Wheel
- - 581724801 Decal, Bypass
- - 193226X428 Pad, Footrest, LH
- - 400981X428 Pad, Footrest, RH
- - 115816626 Manual, Operator's
(English/French)
- - 115816724 Manual, Parts (English/French)
9
10
13
12
8
2
7
4
5
11
3
6
15 16

19
TRACTOR - - MODEL NUMBER 944.101040
BRIGGS ENGINE - MODEL NUMBER 44R677, TYPE NUMBER 0026-G1
1022
868
1095
7
163
883
51B
883
943
1022
12
9
7
3
358
868
842
691
524
20
163
51A
51
51B
943A
121
104
105
137 987
672 1124A
150
276
1124
163
51A
51
1353
633
217
1123
633A
276A
276B
48 1330132910581036
28
27
26
25
27
24
32
29
75
332
741
377
16
50
212
163
54
415
617
617
51A
186
929
964
307
306
306A
307A
865
447
573
405
209
211
267
265
188
1012
222
332
75
23
1070
1005
668
74 73
668A
118 118A

20
TRACTOR - - MODEL NUMBER 944.101040
BRIGGS ENGINE - MODEL NUMBER 44R677, TYPE NUMBER 0026-G1
385
601
187
918
703
1127
137
104
987
95
150
1128
105
1126
1124A
276
672
418
163
135
130
98
947
125
133
131
142
117
1124
975
1169
51A
633
108
231
141
217
117A
276
216 212
53
654
387
240
186A 964
918A
186B
1040
431
964
186B
163
968
467
304
305
305A
305B
445
697
334
635
1119
501
729
367
851
333
526
1090
802
310
801
1051
783
513
309
510
462
659
503
311
797
877
789
474 1059
220
615
219 221
45
46
918
337
635
13
850
22
10
