Sears Super 12 User manual

SEARS , ROEBUCK AND CO ........................... U.S .A
SIMPSONS-
SEARS ll MITE D. .. .. .. ....... .. CANADA
another free manual from www.searstractormanuals.com

TA BLE OF CONTE N TS
DESCRIPTION
PAGE NO . DESCRIPTION PAGE NO.
Rules of Safety 2 Seat Position 8
Ports ldenti ficoti on

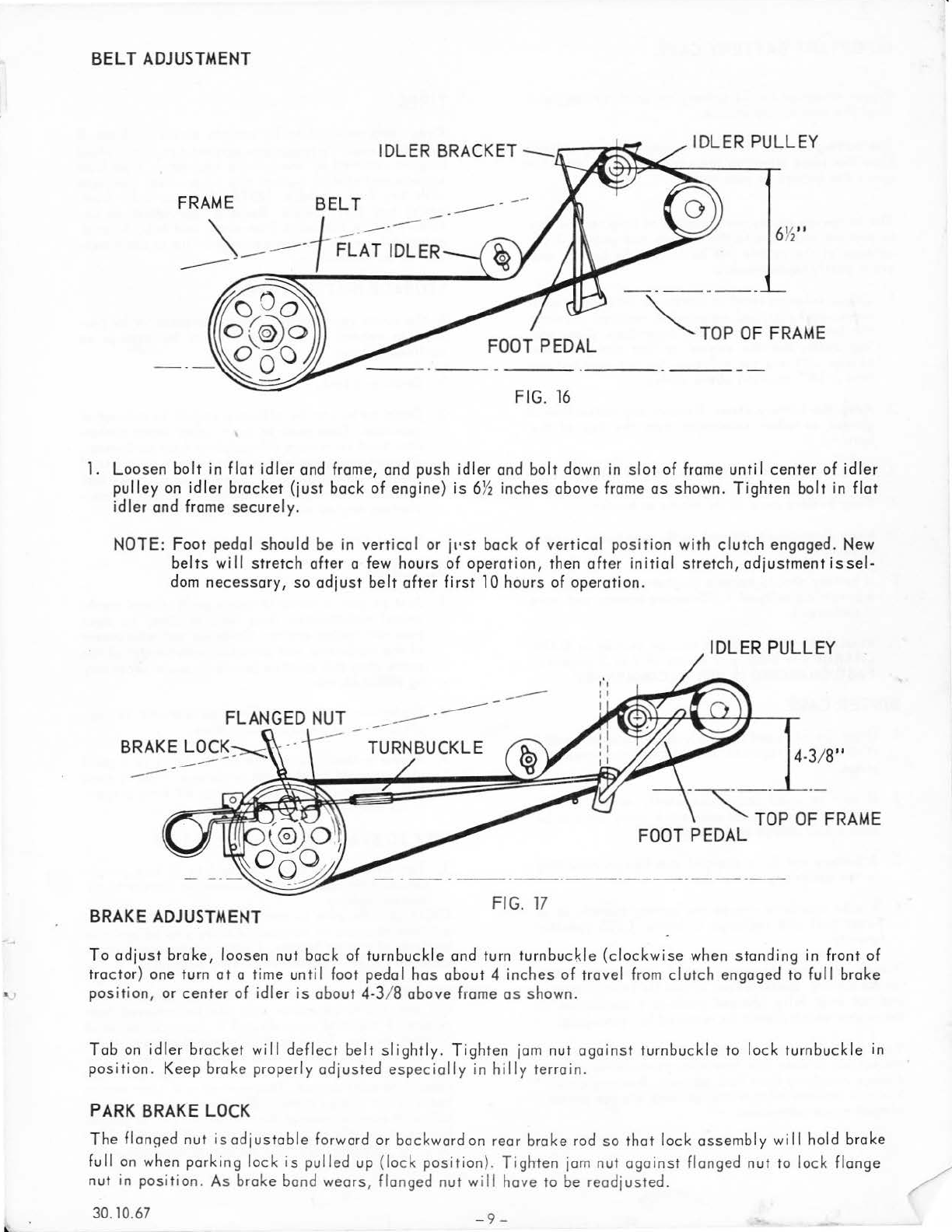

3 Belt Adjustment 9
Setting Up Instructions
4 Broke Adjustment 9
Battery Installation 4 Pork Broke Lock 9
Operating Controls 4 Battery Core -Important 10
Before Starting Engine 5 Winter Core 10
To Start Engine 5 T
ire s 10
To Operate Troctor 6 Storage Instructions
10
Safe Operation 6 General 10
Engine Pulley Groove To Use
How To Start If Battery Is Low
10
For Your Various Attachments 6 Trouble Shooting
11
Tronsoxle Lubrication 7 Hard To Start
11
Engine Lubrication 7 Engine Over Heats
11
Lubrication Chart 7 Engine Locks Power
11
Air Cleaner 7 Rear Wheel Adjustment
12
Starter Generator Belt 8 Suggested Rear Wheel Adjustment
Wheel Weights 8
For Your Attachment
13
Starter Air Screen 8

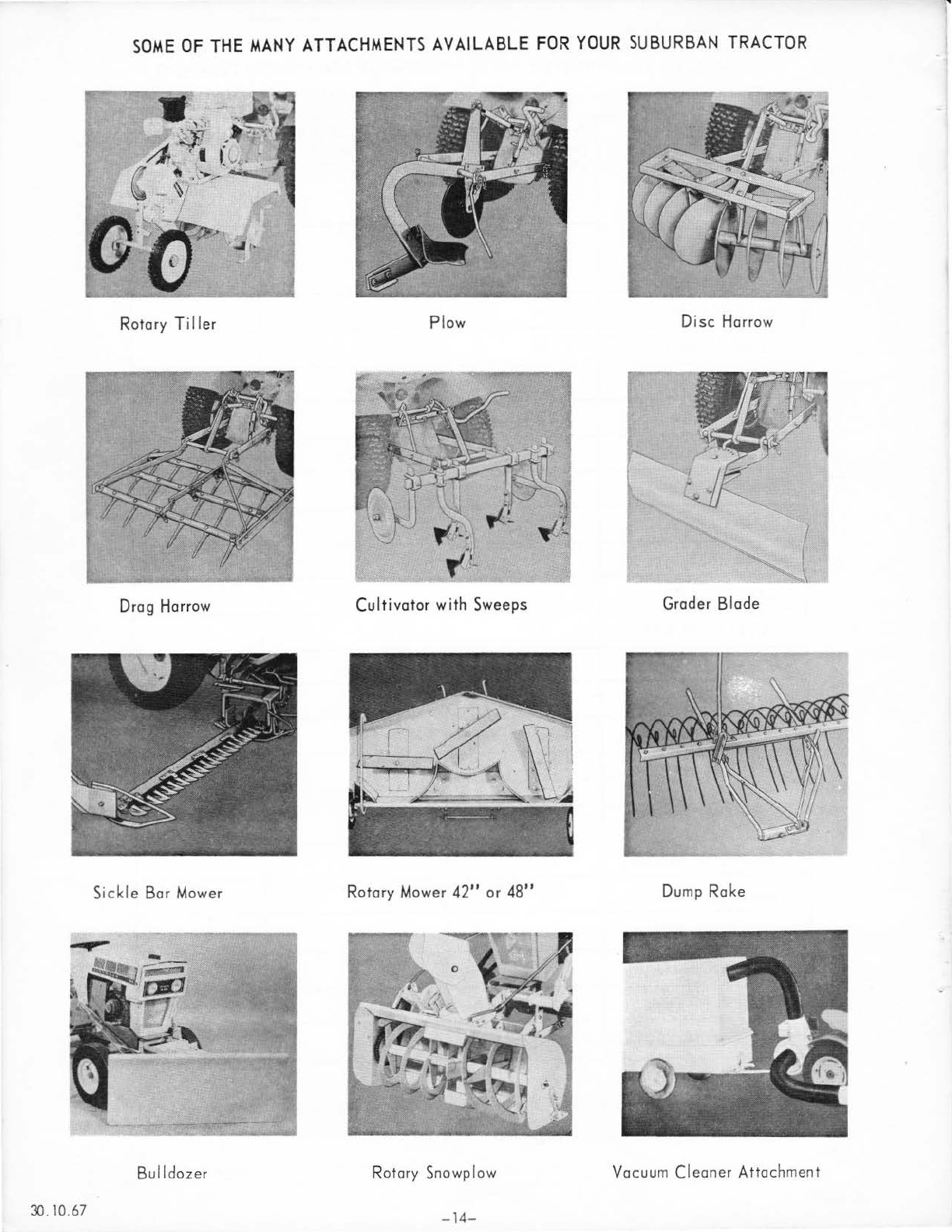

Some Of The Many Attachments
Towing Tractor
8
Available For Your Tractor
14
Optional Equipment 15

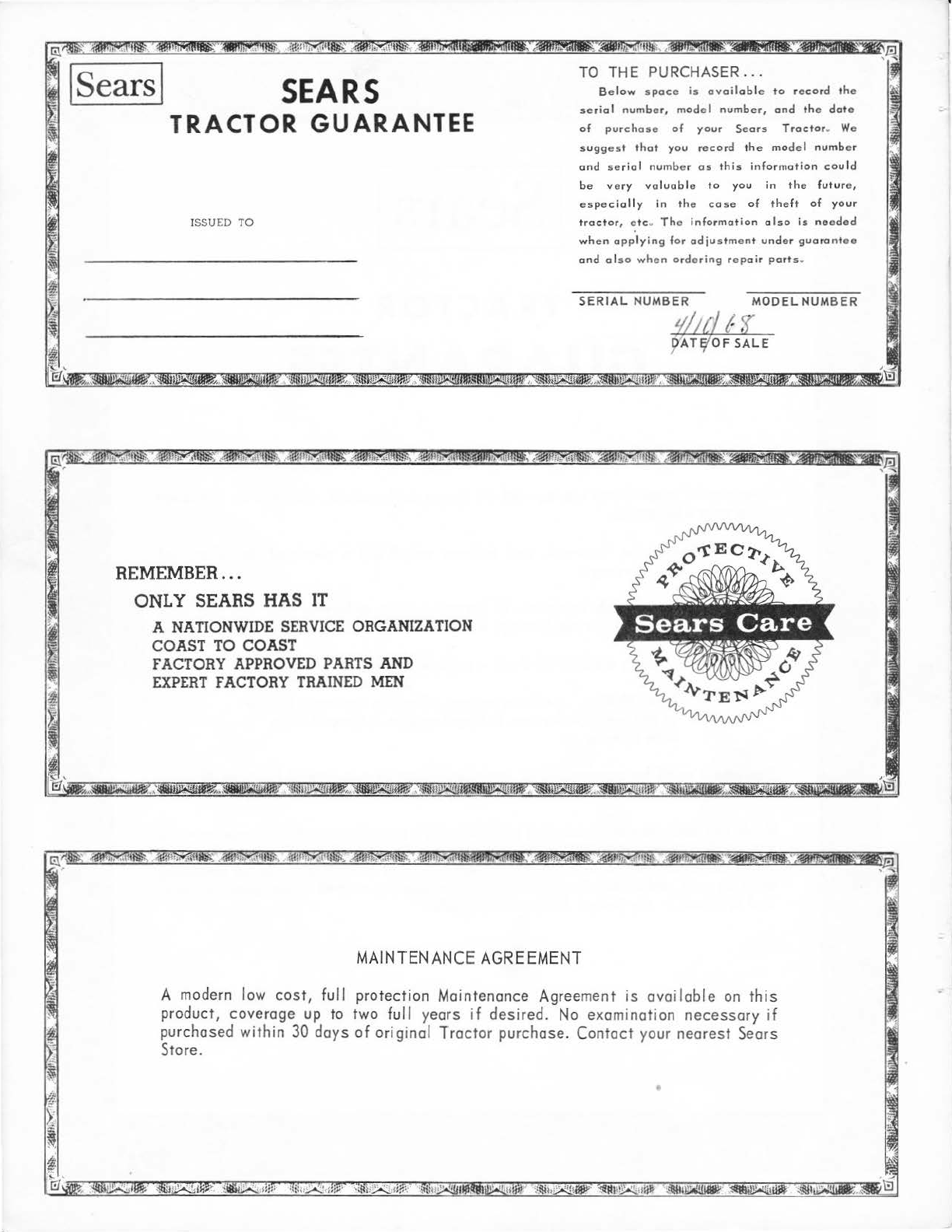

Guarantee Back Page
MODEL NUMBER 917.25311
INSTRUCTION BOOK PART NO. 8165H
I 30.10.67
-1-
another free manual from www.searstractormanuals.com

..
YOU CAN 00
MANY JOBS
EASILY WITH THE
WIOE VARIETYOF
ATTACHMENTS
FIRST
B! cAR£fUL --= ! ~ -----
DO NOT-STARJ; RUN
OR REFUEL IN A
CLOSED BUILDING
c.,~
J_~
"---- v l --~
\..___-
30.10.67
-·
ALWAYS START IN NEUTRAL!
- 2-
CLEAN Y OUR SCREEN
FREQUENTL Y!
ONLY ONE
PERSON
ON TRACTOR
..
another free manual from www.searstractormanuals.com

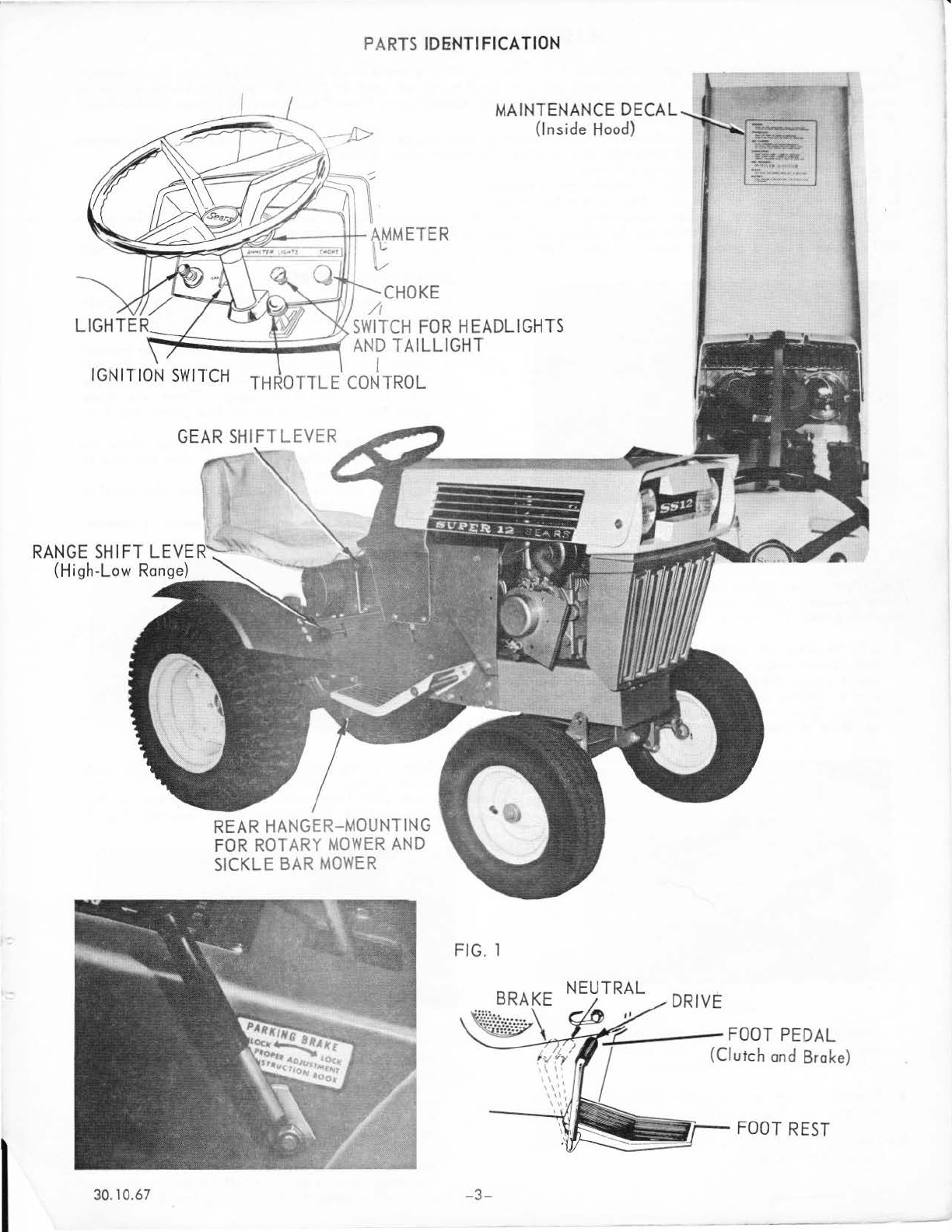

PARTSlOriNTI FICA TION
RA N GE SH IFT LEVER..__
(High- Low Range)
30.10.67
REAR HANGER-MOUNTIN G
F
OR R OTARY MOWER AND
SICKL E BAR MOWER
MA INT ENANCE DECAL
(Inside Hood)
FIG. 1
NEUTRAL
-3-
FOOT REST
another free manual from www.searstractormanuals.com

I
SETTING UP INSTRUCTIONS
A number at the beginning of a paragraph in the follow ing inst ructions refers to on arrow in the ad j oining figure except
when otherwise stated . When R.H. (Right Hand) and L.H. (Left Hand) ore used, it should be understood to mean from a
position behind and facing the tractor (or direction of travel). Reference to "front" indicates the engine and hood end
of tractor, and the "re ar" the transmission.
1. Remove carton from around tractor . Y au have on e l ectric start tractor, rem ove battery from crate bottom and prepare
for operation as given in step one under Fig. 2. This will require about 2 Y2 to 3 hours of time.
2. Cut bonding holding tractor to crat e bottom.
3. Check tire pressure, front tires 12 pou n ds, rear 8 po u nds.
4. Adjust rear wheels on axle according to ottechment used.
5. This suburban tractor has been completely assembled at the factory, except for battery installation. The battery is
shipped dry. Below ore ins tr uc tions for fil l ing and instal ling battery. Lubricate the tractor and add fuel.
NOTE: Use a good grade of regular, clean, fresh gasoline. Do not mix oil with gasoline. See Lubrication Chart.
FIG. 2
1. Fill battery with electrolyte and charge battery as
outlined in ins t ructions in battery container.
CAUTION: After filling cells, let battery stand for
thirty minutes . Then charge battery at a rote not
exceeding three (3} amperes for about m hours .
2.
Lift cowling and assemble clomp (B) to one of
two battery bolts (A). Flat washer and wi ng nut
above clomp . Hook the bolt clomp assembly into
rear of battery support and turn clamp to side as
shown. Slide battery into position with terminals
to center of tractor, as shown in Fig. 2.
FIG. 3
3. R efer to Fig. 3. Assemble other battery bolt (A)
and clomp (B) as shown, wi th washer and wing
nut and tighten wing nut securely.
4. Connect starter swi tc h cable (covered cab l e) to
(+) term i nal. Tighten nut secure ly.
5. Connect ground strop to(- ) negative termina l, and
tighten nut securely .
1.3 .68
OPERATING CONTROLS
Become thoroughly familiar with the operating controls
before starting engine. See Fig. l, page 3 for location
of contra Is.
The following controls ore used to operate the t racto r:
1. Clutch and broke foot pedal is located on the left
side foot rest. The foot pedal operates a combina-
tion broke and drive clutch. There ore three
positions of operation on the foot pedal. See Fig .
1.
a. The clutch is in DRIVE position when the
pedal is all the way out (i.e. when the foot is
removed from the pedal).
b. The clutch is in NEUTRAL when the pedal is
depressed half way or more.
c. The BRAK .E is on when the pedal is pressed
all the way forward.
FIG . 4
2. Transmission gear shift lever is located at front
center of seat. See Fig. 4.
The gear shift lever selects the Forward speeds, the
Neutral, and the Reverse positions required, Fig. 4.
and 4.
FIG. 5
3. The hig h-low ra nge is locat ed on R.H. frame side
just forward of R.H. rear fe nder . The high-low
ran ge lever has 3 positions, up for high-range,
center f or neutral, and down for low range. There
ore two neutral positions in transmission, one on
the gear shift l ever, and one of the high-low
range lever . Both le vers must be engaged for /
trac to r to operate. P lac e gear shift l eve r in
neutral position for sta rt ing tractor. Place high-
lo w range l eve r also in neutral for eas i er pushing
-4- .of tractor or when tractor is being to wed.
another free manual from www.searstractormanuals.com

BE FORE STARTI NG ENGIN E
1. To lift cowling, grasp ea ch si de of cowling at
rear and puil outwad :l and upward. Lift cowling
to its ext reme op en pos it ion.
-----~ -- ~~-- ---
ALWA Y:S START IN NEUTRAL!
FI G. 6 \
2. Engine crankcase is shipped with oiI ready for
use. However check oil l evel befor e s tarting . If
n?cessary, add oil to bring oil le v el up to the full
od mark on the dipstick . Dipstic k mus t be screwed
in tight for checking oil lev el, and tra ctor should
be level. Oi I cap a city is 2Y2 pints. N OTE: Do not
fill above full mark on dipstick . E ngin e must be
stopped when checking oi I leve l. Us e Al l state
Regular M.S. S.A.E. # 30 oil or eq uiva len t. If not
available, use Allstate Multi-gra de al l weather
oil S.A. E. 10W-20W-30W or eq uivale nt. NOTE:
Use S.A.E. lOW oil below 32 degree s.
3.
Fill fuel tank with regular grade of clean fresh
gasoline, and open fuel shut off valve located
near carburetor .
CAUTION: Before starting the en gi ne, check to see
that the controls are as follows :
4.
Transmission gear shift lever must be in n eu tr al.
Neutral is when gear shift lever is f ree to mo ve
forward and
backwards . It w.il l opera te s imi lar to
an automobile. See Fig. 4, page 4.
F IG . 7
TO ST AR T ENGIN E
CHO I< E
Q
1. Pull out choke control to full cho ke position
to start c old eng i ne.
30.10. 67 -5-
0000 00000000000 0 000 0 000 00000000000
KEEP ENGINE CLEAN. THIS ENGINE IS AIR-
COOLED . IF COOLING SYSTEM BECOMES
CLOGGED , SERIOU S DA M AGE MAY RESULT .
THEREFO RE, K EEP THE BLOWER SCREEN,
FINS ON FLY WHEEL , CY LINDER HEAD AND
BLOCK FRE E FROM GRASS OR DIRT.
00 0 0 00000000 00 00 00000000000000000
2. Advan ce throttle lever to abou t Y2 thr o tt le .
3. T
he ignition and starter key is loc ated on L.H.
si de;; of dashboard. Tum key cl o ckwise to engage
star ter . When engine start s, r ele ase key. After
en gi ne starts push in choke con trol as en gin e
w
arms up. Let engine warm up before apply ing
l
oad.
CAUTION: Do not run starter cont inuo usly for more
than 30
seconds at a time. If aft e r s everal a tt empts,
eng ine does not start, move throttle control l eve r to
FAST position. Wait for two minutes and try again.
4. After e ng i ne starts, move engi ne cont rol lever to
FAST pos i tion.
5. To stop engine turn key in a c ounter-clockwise
direction to off posit i on. Key can be removed so
chi l dren cannot start trac tor.
DO NOT -S TART, RUN
OR R EFU eL IN A
CLOSED BUIL DINS
<.-'--
'--- ~ J~. - L ..... ,._,
~\......,/
another free manual from www.searstractormanuals.com

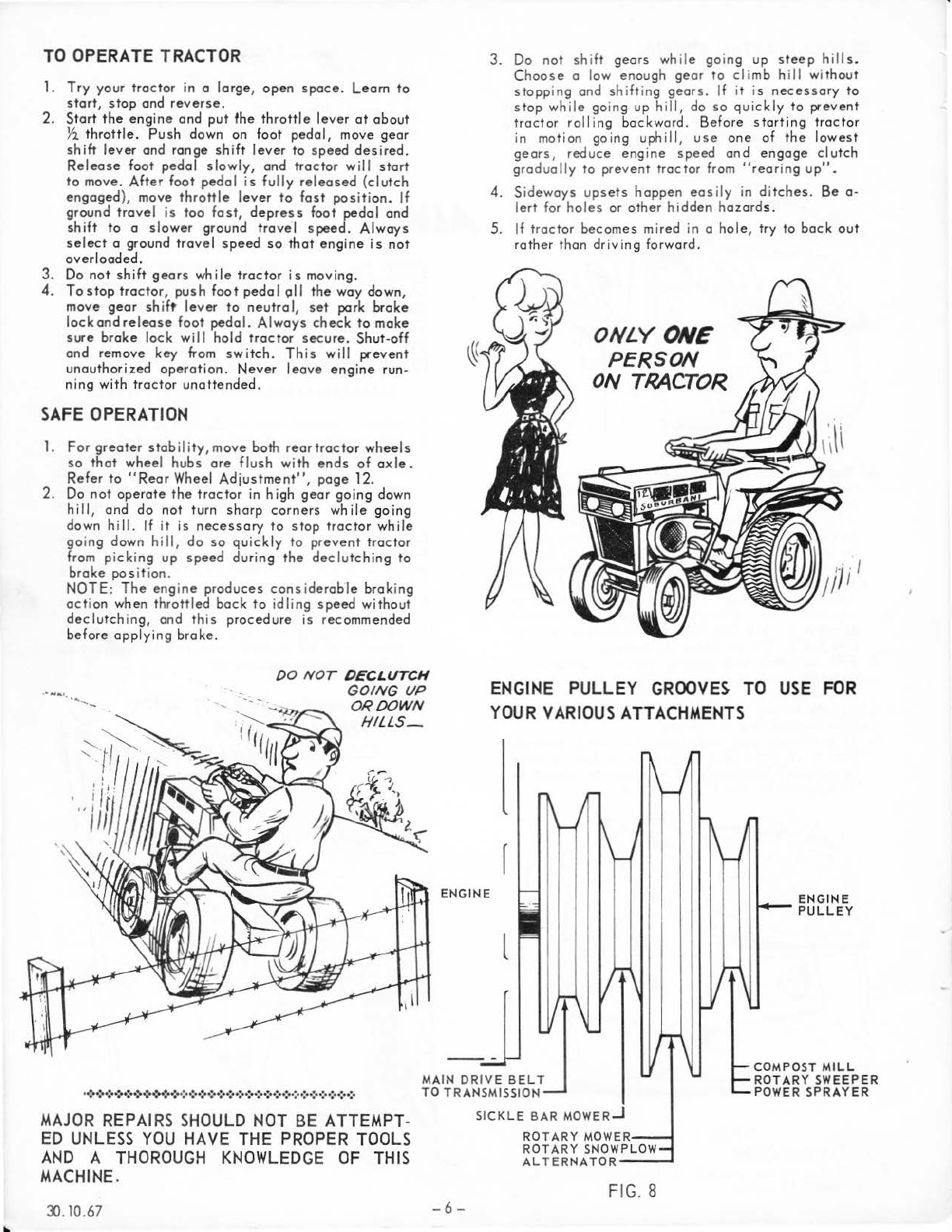

TO OPERATE T RACTOR
1. Try your tractor in a large, open space. Learn to
start, stop and reve rs e .
2.
Star t the engine and put f he throttle lever at about
Y1 throttle . Push down on foot pedal, move gear
shift lever and range shift lever to spe ed des ired.
Re l ease foot pedal slowly, and tractor will start
to move. After foot pedal is fully rel eased (clutch
engaged), move throttle lever to fast position. If
ground travel is too fast, depress foot pedal and
shift to a slower ground trave 'l s peed. Always
select a ground travel speed so that engine is not
overloaded.
3. Do not shift gear s while tractor is moving.
4.
To stop tractor, push foot pedal9ll the way down,
move
gear shift lever to neutral, set park brake
lock and release foot pedal. Always check to make
sure brake lock will hold tractor secure. Shut-off
and remove key from switch. This will prevent
unauthorized operation. Ne ver I eave engine run-
ning with tractor unattended.
SAFE OPERATION
1. For greater stab ili ty, move both r eartroctor whee ls
so that whee l hubs are flush with ends of axle.
Refer to "Rear Wheel Adjustment" , page 12 .
2. Do not operate the tractor in high gear going down
hill,
and do not turn sharp corners while g oing
down hill. If it is necessary to stop tractor while
going down hi II, do so quickly to prevent tractor
from picking up speed during the declutching to
broke position.
NOTE: The eng ine produces cons ider ob le brak ing
action when throttled back to idling sp eed without
declutching, and this procedure is recommended
before applying brake.
DO NOT DECLUTCH
GOING UP
OROOWN
HILLS-
ENGINE
3. Do not shift gears wh ile go ing up steep hills .
Choose a low enough gear to climb hill wi thout
stopp ing and shifting gears. If it is neces sa ry to
stop wh ile going up hi ll, do so quickly to prevent
tractor rolli ng backward. Befo re s t ar ti ng tractor
in motion going uphill, use one of the lowest
gears , reduce engine speed and engage clutch
g radua lly to prevent tractor from "rearing up" .
4. Sideways ups ets happen eas il y in ditches. Be a-
lert for holes or other hidden hazard s.
5. If tractor becomes mired in a hole, try to back out
rather than driving forward.
ONLY ONE
PERSON
ON TRACTOR
ENGINE PU LLE Y GROOVES TO USE FOR
Y OUR VARIOUS ATTACHMENTS
r
l
ENG IN E
PUL L EY
MAIN DRIVE BELT
COMPOST MIL L
ROTARY SWE E PER
POWER SPRAYER
MAJOR RE PA I RS SH OU LD NO T BE ATTEM PT -
ED UN LESS YOU HAVE THE PROPER TO OLS
AN D A TH OROUGH KNO WL ED GE OF THI S
MAC H INE.
XI. 10.67
TO TRANSMISSION
SICKLE BAR MOWER
FIG. 8
-6-
another free manual from www.searstractormanuals.com

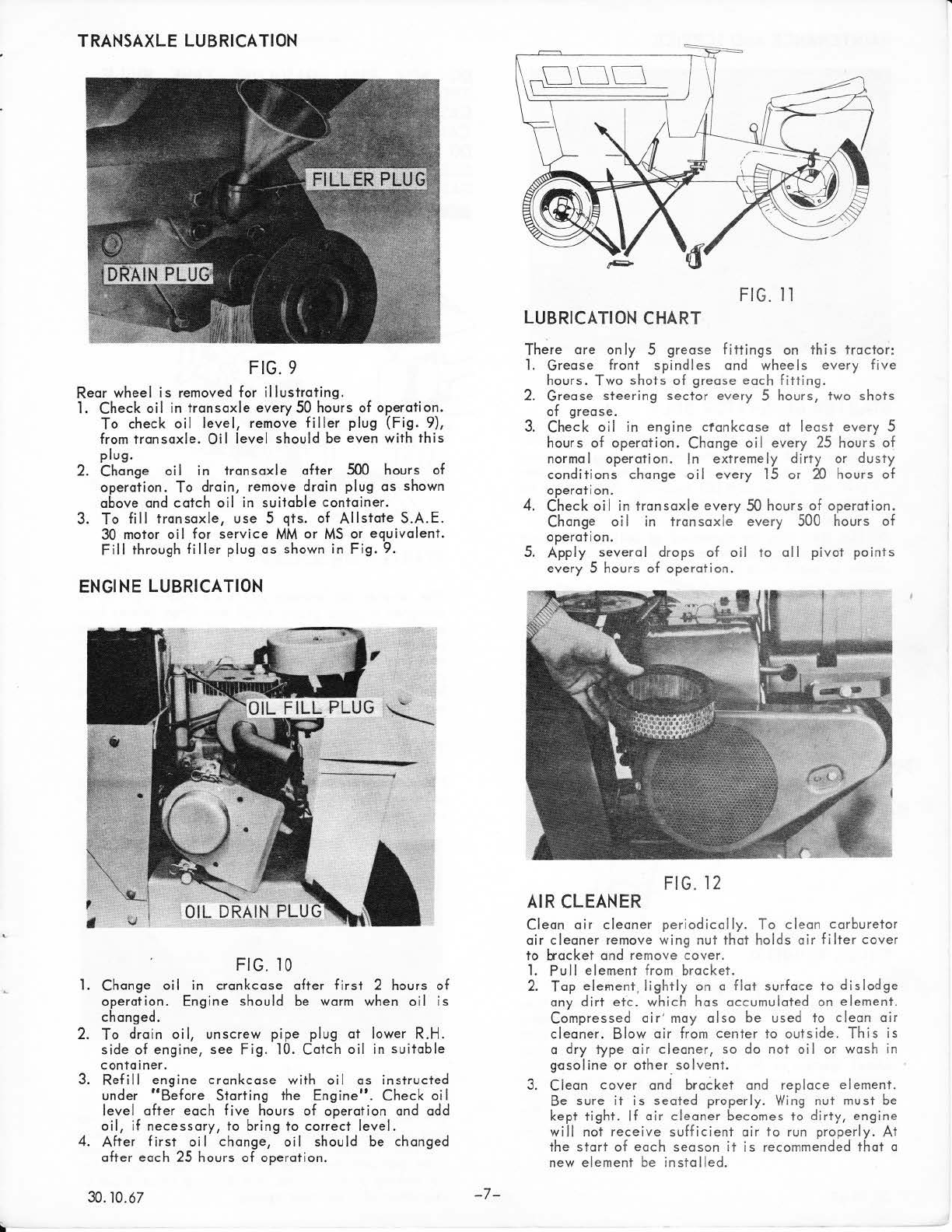

TRANSAXLE LUBRICATION
FIG. 9
Rear wheel is removed for illustrating.
1. Check oil in transaxle every 50 hours of operation.
To check oil level, remove filler plug (Fig. 9),
from transaxle. Oil level shou ld be even with this
plug.
2. Change oil in transaxle after 500 hours of
operation. To drain, remove drain plug as shown
above and catch oil in suitable container.
3. To fill transaxle, use 5 qts .. of Allstate S.A.E.
30 motor oil for service MM or MS or equivalent.
Fill through filler plug as shown in Fig. 9.
ENGINE LUBRICATION
FIG. 10
1. Change oil in crankcase after first 2 hours of
operation. Engine should be warm when oil is
changed.
2. To drain oil, unscrew pipe plug at lower R.H.
side of engine , see Fig. 10. Catch oil in suitable
container.
3. Refill engine crankcase with oil as instructed
under "Before Starting the Engine". Check oil
leve l after each five hours of operation and add
oil, if necessary , to bring to correct leve l.
4. After first oil change, oil should be changed
after each 25 hours of operation.
30.10.67
-7-
FIG. 11
LUBRICATION CHART
There ore only 5 grease fittings on this tractor:
1. Grease front spindles and wheels every five
hours. Two shots of grease each fitting.
2. Grease steering sector every 5 hours, two shots
of grease.
3. Check oil in engine cfankcase at least every 5
hours of operation. Change oil every 25 hours of
normal oper ation. In extremely dirty or dusty
conditions change oil every 15 or 20 hours of
operation.
4. Che ck oil in transaxle every 50 hours of operation.
Change oiI in transaxle every 500 hours of
operation.
5. Apply se ve ral drops of oil to all pivot points
every 5 hours of operation.
FIG . 12
AIR CLEANER
Clea n air cleaner periodically. To clean carburetor
air cleaner remove wing nut that holds air fi Iter cover
to brocket and remove cover.
1. Pull element from bracket.
2. Top element , lightly on a flat surface to dislodge
any dirt etc. which has accumulated on element.
Compressed air ' may also be used to clean air
cleaner. Blow air from center to outside. This is
a dry type air cleaner, so do not oil or wash in
gasolin e or other solvent .
3. Clean cover and brocket and replace element.
Be sure it is sea ted properly. Wing nut must be
kep t tight. If air cleaner becomes to d irty, eng i ne
will not receive sufficient air to run properly. At
the start of each season it is recommended t hat a
new element be installed.
another free manual from www.searstractormanuals.com

•
MAINTENANCE AND SERVICE
FIG . 13
STARTER GENERATOR BELT
1. Remove 3 screws (A) holding belt guard to engine.
2. Loosen bolt (B) in generator adjusting strap and
generator, move starter generator back to tighten
belt and tighten bolt (B) securely. Belt should be
tight enough to prevent belt slippage when starting
tractor.
NOTE: Belt can be tightened at bolt (B), without
removing belt guard. However, belt tension will be
easier to check with guard removed.
FIG. 14
WHEEL WEIGHTS:
HEX RECESS
Rear wheel weights (optional equipment} are very
essential for added traction. This is especially true
for attachments such as the plow, disc harrow,
leveler blade, rotary snowplow, bulldozer, etc. One
or two wheel weights can be mounted to each re ar
wheel. Except in the case ot the plow (refer to plow
attachment manual), wheel weights should be used in
pairs, one on each side. Operation with weight on one
side only wil l cause uneven tire wear, may cause the
tractor to tip and can result in improper operation of
certain attachments .
30.10 ~ 67 -8-
DO NOT FILL GASOLINE TANK WHILE
ENGINE IS RUNNING. AVOID SPILLING
GASOLINE ON A HOT ENGINE-- THIS MAY
CAUSE AN EXPLOSION AND SERIOUS INJURY .
DO NOT MIX OIL WITH GASOLINE. USE
CLEAN, FRESH "REGULAR" GRADE
GASOLINE . FILL TANK COMPLETELY.
STAR T ER AIR SCREEN
KEEP 5TART£R
SGREEN CLEAN
The s tarte r a ir s cr een i llustrated in Fig. 13, is
design ed to keep gras s, ch aff and large leaves from
e
ntering the coo ling system and must be cleaned
periodically. The cleaning of this starter air screen
will vary with the conditions in which the tractor is
used. The starter air screen should not be allowed to
become too plugged or dirty which would interfere
with the cooling of the eng i ne.
TOWING TRACTOR
Place gear shift lever and range lever in neutral
pos i tion. Tractor can then be towed at a reasonable
safe speed.
SEAT POSITION
FIG. 15
The se at may be m oved to wa rds t he front or re ar to
gi ve th e most comfor ta b le rid ing po si tion. To move
t~e seat , l oo sen the n ut be ne ath the s eat spring and
sli de the s eat to the pos ition req ui red. Ti ghten the
nut
ma king sure that t he seat ha s not tw is ted ou t of
al ign me nt with the se at s p ri ng.
another free manual from www.searstractormanuals.com

l
BELT ADJUSTMENT
-----.
--
6 }1' '
~TOP OF FRAME
FIG. 16
1. Loosen bolt in flat idler and frame, and push idler a nd bolt down in slot of frame untiI center of idler
pulley on idler bracket {just back of engine) is 6!-1 inches above frame as shown. Tighten bolt in flat
idler and frame securely.
NOTE: Foot pedal should be in vertical or j1•st bock of vertical position with clutch engaged. New
belts will stretch after a few hours of operation, then after initial stretch, adjustment isse i-
dam necessary, so adjust belt after first 10 hours of operation.
IDLER PULLEY
- ----
.--
---- -------
4-3/ 8"
--- ·- -- ---- --- -- ---
BRAKE ADJUSTMENT FIG.
17
To adjust brake, loosen nut bock of turnbuckle and turn turnbuckle (clockwise when standing in front of
tractor) one tu rn at a time unt il foot pedal has about 4 inches of travel from clutch engaged to full broke
"' .J posit io n, or center of idler is about 4-3/ 8 above frame as shown.
Tab on idler brocket will deflect belt slightly. Tighten jam nut against turnbuckle to lock turnbuckle 1n
position. Keep brake properly adjusted especially in hilly terrain.
PARK BRAKE LOCK
The flanged nut is adjustable forward or backward on rear broke rod so that lock assembly wiII hold brake
full on when parking lock is pu ll ed up (l ock pos it ion). Tigh1en jarn nut against flanged nut to lock flange /
nut in position . As broke bond wears, flanged nut will have to be readjusted. ./'
30.10.67 -
9-
another free manual from www.searstractormanuals.com

I
IMPORTANT BA TTER Y CARE
Proper attent ion to the battery on un i ts so equipped
is of the utmost importonc~.
The battery in your tractor is o special type, and must
hove the some attention the service station attendant
gives the battery in your cor.
The following points ore recorded . to help remind you
to provide attention to the battery and gain full ad-
vantage of the usable I ih! bui It into the battery and
ovoid costly replacements.
1. Check solution level in battery at least once each
week. Add distill ed water when required to retain
the level of 3/ 16 " over the separators. After add-
ing water, run the engine so that the generator
charge will mix the solution. Do not over fill-re-
tain 3/16" sol uti on above plates.
2. Keep the battery c leo n. Remove any collection of
grease or other substance from the top of the
battery.
3. Keep top of battery clean and dry at all times.
4. Keep battery snug in its cradle or holder.
5. Keep vent cops tight and small vent holes in caps
open.
6. If battery should become discharged or fall below
o specificgrovityof 1.225remove battery and hove
it recharged.
7. When recharging, request servic e station to SLOW
CHARGE the battery at a rate of 2 or 3 amperes.
FAST CHARGING IS HOT RECOMMENDED.
WINTER CARE
1. If unit is not us ed regularly during winter months
it shoul d be removed and stored in a cool, dry
place.
2. If unit is used only infrequently during winter
months check at least once each thirty days to be
sure o full charge is maintained.
3. A battery not fully charged can freeze, resulting
in the necessity to replace.
4. A safe rule is to charge the battery mon thly or at
least test and recharge if below 1.225 specific
gra v ity.
Please remember the nece ssity of proper winter core
for the battery. Batteries not in use for sev eral months
and not kept fully charged produce o sulphotion of
the plates which cannot be removed by rechorg ing .
Your guarantee is intended to provide you adequate
prote cti on. It does not, however, cover recharging or
damage resulting from lack of core, freezing or ino -
bil ity to perform after winter or long storage periods
wi thout proper attention.
30.10.67
-10-
TIRES
Keep tires inflated to 12 pounds of air in front, 8
pounds in rear. To repair o punctured tire, front wheel
may be remove d by unscrewing cap screw from front
spin dle an d sl i ding washer and fro nt whe el comple te
with tire from spindle. NOT E: Bo lt on L.H. front
wheel has L.H. tr eads. Remove rear wheel bv un-
screwing five hub bolts from wheel and hub. A local
automobil e repair station con repair tire in some man-
ner as an automobile.
STORAGE INSTRUCTIONS
In the event your tractor is to be inoperative for per -
iods in excess of 30 days- prepare fo r storage as
outlined below:
1. Droi n go s tonk.
2. Drain carburetor by allowing engine to run out ot
gasoline. Then push in drain valve under carbur -
etor bowl to remove all gasoline from carburetor.
Evapor ating go sol ine wi II leave gum deposits if
not drained completely. These deposits make fuel
systems inope r ative resulting in o hard or non-
starting engine when again us ed.
3. Do not save or store gasoline ov er wi nter .
GENERAL
l. Just as your outomobi le needs professional mech-
anical maintenance from time to time, so does
your air cooled engine. Cleaning and adjustment
of the carburetor and periodic replacem e nt of the
spark plug and ignition points is made necessary
by NORMAL use .
2. Professional air cooled engine service is as
close as your nearest Sears Store.
3. A yearly check-up or tune-up by Sears is a good
idea to avoid breakdowns or delays---Do it each
fall, th en you ' re ready for spring . We even prepare
it for storage for you.
HOW TO START IF BATTERY IS LOW
1. The quickest and best method is to use jumper
cables from your 12 Volt automobile battery to the
tractor battery.
CAUTION: Be sure to connect jumper cobl~ from (+)
positive t erminal of automobile battery to(+) posi ti ve
terminal of tractor bat tery . Connect remaining jump er
cable to n egat ive terminals of both batteries.
If jumper cables ore not availab le , be lt guard assem-
bly and starter-generator belt con be removed from
engine. A pi~ce of rope about 3 ft. long con be used
to start engine. Tie a knot at one end of rope and a
a
piece of wood at the other end of the rope ( to use
as o handle). Wrap rope around pulley and pull rope
sharply to start engine. This method will start engine
b· ut will not charge battery. Do not att empt to install
belt with eng:ne ru nning. We advise the use of jumper
ca b les or remove and cha rge battery . If be lt has been
removed, replace belt and adjust te nsion properly.
Replace belt guard.
..
another free manual from www.searstractormanuals.com

TROUBLE SHOOTING
HARD TO START
No gasoline in fuel tonk or carburetor Fill fuel tonk: open fuel shut off vo Ive. Check
fuel Iine, fuel
str ainer and carburetor. Remove
Fuel stra ine r, or fuel I ine clogged.
fuel strainer and clean . Clean fuel I
ine and
carburetor .
Water in
go sol ine or old fuel. Drain fuel from tonk and carb uretor.
Refill
with fresh clean gosol in e. Remove and dry
Spark plug wire off at spark plug.
spark plug and reset plug gop. Replace wire
on spark
plug .
Spark plug dirty Remove plug, clean and reset plug gop, see
engine manu
al or
ins ta ll new spark plug.
Improperly
choked, not fully choked or flooded
Check choke,
if not fully choking refer to
engine .
Dirty carburetor air filter
Carburetor out of adjustment
Ignit ion switch off
Poor ignition
Dirty starter, air screen
Check oi I IeveI in crankcase .
Leon Mixture
Engine overloaded
D1rty carburetor or air cleaner.
Improper ca rburetor odjustment
Faul ty ingi tion
Poor compression
Belt sl ips
30.10.67
engine manual.
Flooded
eng 1ne, push in
choke, open throttle
clear out gas. and crank
engine to
Remove oir
filter and top to remove dust and
dirt, clean with compressed air. Install new air
cl eaner once eclch year. Check carburetor ad-
justment, see engine manual. Turn on ignition
key.
Check points, condenser plug, co il
or loose
wires.
ENGINE OVER HE ATS
Clean screen over starter . Be sure f ins on cyl-
inder head and around cylind er ore clean .
F
ill to level indicated on dip stick.
Do not over fi II engine .
Correct carburetor adjustment.
See engine manual.
EN G INE LAC KS POWER
Shift to o lower gear or reduce load.
Clean or replace air cleaner. Adjust carburetor
see
Engine Manua l.
Check points, spark p
lug, condenser,
coil
and for Ioose
wires. Contact Sears to check
compression.
Tighten drive belt.
-11 -
another free manual from www.searstractormanuals.com

REAR WHEEL ADJUSTMENT
NOTE: Wheel adjustment is very importan t ! Your tractor was shipp ed with the wheels se t-in on the axle. P leas e ad1ust
according to your usage.
FIG. 18
FIG. 19
30. 10.67
-12-
l. For greater st ab i li ty on hillsides, move both rear
tractor wheels so that wheel hubs ( A), ore flush
with ends of axle (B). Refer to F1g. 18.
2. Ref er to Fig .20 . Adjust wheels on axle by loo;.c:r.•
ing jam nut ( C) , on set screw {D), and then ::ct
screw. Also loosen hex bolt (E). Slide wheel in ur
out on axle as required for attachment, see chart
on page 13. Retighten items (C, D, and E) secure-
ly.
FIG. 20
A- MAXIMUM REAR WHEEL TR EAD 28 "
8- MINIMUM REAR WHEEL TREAD 25"
(Cent er to center of tire)
another free manual from www.searstractormanuals.com

SUGGES TE D R EAR TRACTOR WHE EL ADJUSTMENT FOR YOUR AT TA CH MENT
ATTACHMENT
BO TH MOVED OUT BOTH MOVED SO ADJUST FOR
ON AXLE AS FAR
AT TAC HM ENT ROW WIDTH
AS POSSIB LE COVERS TIRE !
T RACKS
ADJUST ABLE X
FOOT
ALTERNATOR X
COMPOST MILL X
CULTIVATOR X
DISC HARROW
X
DOZER BLADE X
DRAG HARROW X
DUMP CART X
DUMP RAKE X
LAWN ROLLER X
LEVELER BLADE X
MOWER, REEL X
MOWER, ROTARY X
MOWER, SICKLE BAR X
PLANTER, VEGET-
ABLE X
*PL OW
X
SNOWPLOW , RO T ARY
X
SPRAYER, POWER
X
SPREADER-SEEDER
X
SWEEPER, ROTARY
X
TILLER,
ROTARY
X
VACUUM COLLECTOR X
NOTE : If at all possible, keep b oth rea r whee ls in the ou te r· most p os iti on on axle at oil times.
•For deta•l ed •nst ru ct•o ns , refe r to Pl ow I ns t ruc t iO n Book .
30. 1 0.67
- 13-
..
another free manual from www.searstractormanuals.com

...
SOM E OF THE MANY ATTACHMENTS AVAILABLE FOR YOUR SUBURBAN TRACTOR
Rotary Tiller
Plow
Disc Harrow
Drag Harrow
Cultivator with Sweeps Grader Blade
Sickle
Bar Mower
Rotary Mower 42" or 48"
Dump Rake
Bulldozer
Rotary Snowp low Vacuu m Cleaner Attac hmen t
30.10.67 -
14-
another free manual from www.searstractormanuals.com

STOCK NUMBER
32-25178
32-25176
32-25162
OPTIONAL EQUIPMENT
DESCRIPTION
3 Point H itch
Set of Fou r Hub Cops
Rear Wheel Weight
Sears, Roebuck ond Co. or Si mpsons - Seors limited in Canada reserves the right to make any changes in design
or improvements wi thout i mposing any obligation to i nstal l the some upon i ts items heretofore manufactured.
30.10.67
-15-
another free manual from www.searstractormanuals.com

J Sears !
TRACTOR
GUARANTEE
This Sears Tractor is guaranteed as follows for one year from date of sale:
If repairs or repair parts are required for proper performance, they will be furnished
at no cost whatsoever .
Normal maintenance, tune-ups, and failures which are a result of abuse are not
included in this coverage.
Tractors equipped with batteries: If battery proves defective and will not hold
a charge, in exchange for the battery, we will:
During the first 90 days- replace battery at no charge.
After 90 days - replace battery, charging customer 1/ 12th
of the price of the new battery for each full month from
date
of sale.
Equipment used for commercial or rental purposes is guaranteed for only 30 days
from date of sale.
We do not authorize any person or representative to make any other guarantee or to
assume for
us any liability in connection with the sale of the Tractor other than
those contained herein. Any agreements outside of or contradictory to the foregoing
shall be void and of no effect. This guarantee applies only to those machines sold
and operated in the United States and Canada.
SEARS,
ROEBUCK AND CO.
and SIMPSONS-SEARS LIMITED
•
another free manual from www.searstractormanuals.com

I Sea rsl SEARS
TO THE PURCHASER . ..
Below space is available to record the
serial number, model number, and the dote
of purchase of your Sears Tractor . We
suggest that you record the model nu mbe r
and se r ial number as th is information cou ld
be very va l uable to yo u in the fut ur o,
espec ioll y in the co se of theft of your
tractor, etc . The information also is n eeded
when applying for adjustment under guarantee
and also whe n o rdering repair po r ts .
TRACTOR GUARANTEE
ISSU ED TO
SERIAL NUMBER MODEL NUMBER
I '
"'I
• li
REMEMBER •. .
ONLY SEARS HAS IT
A NATIONWIDE SERVICE ORGANIZATION
COAST
TO COAST
FA CTO RY APPROVED PARTS AND
EXPE RT FACTORY TRAINED MEN
MA I NTEN AN CE AG RE E ME NT
A modern
low cost, full pr ot ec tion Maintenance Agreement is available on this
product, coverage up to two full years if desired. No examination necessary if
purchased within 30 days of original Tractor purchase. Contact your nearest Sears
Store.
•
another free manual from www.searstractormanuals.com

•
another free manual from www.searstractormanuals.com
